Maintenance ItemMaintenance Interval (Miles or Number of months, whichever occurs first)
After the described period, continue to follow the described maintenance at the recommended
intervals.
I = Inspect;
R=Replace, Change, Tire Rotate or lubricate; T= Tighten to specified torque
Miles (000) 7.5 15 22.5 30 37.5 45 52.5 60 67.5 75 82.5 90
Months 7.5 15 22.5 30 37.5 45 52.5 60 67.5 75 82.5 90
I
I
R
I
I
I
n fluid
oissimsnartcitamotuA
Bolts and nuts on chassis Driving on dirt
or dusty roadsTTTTTTTTTTTT
R
R
R
lamroN
diulfekarB
Severe When operating in high humidity areas or in mountainous areas, replace every 15,000 miles or
15 months, whichever occurs first
Brake lines and hoses Normal IIIIII
Driving on dirt
or dusty roads IIIIIIIIIIII
Severe When operating in areas where road salts or other corrosive materials are used; if living in coastal
areas, inspect every 7,500 miles or 7.5 months, whichever occurs first.
Brake pads and discs Normal IIIIII
Severe Repeated short driving distance, driving on rough and/or muddy roads; driving in areas where road
salts or other corrosive materials; living in coastal areas, inspect every 7,500 miles or 7.5 months, whichever occurs first.
Cabi

n air filter Normal RR RRRR
Note: Driving in heavy traffic, on dirt roads or in urban, dusty or desert areas may shorten the life of the cabin air filter. Replacement may be needed if you notice reduced air flow from the air conditioner and heater or if the windows fog easily when you use the “fresh” mode. Consult your dealer if any of these conditions occur.
Scheduled Maintenance
MAINTENANCE
37Maintenance Log
JOBNAME: 2878013-en-2018_Toyo PAGE: 36 SESS: 4 OUTPUT: Mon Nov 13 08:02:35 2017
/InfoShareAuthorCODA/InfoShareAuthorCODA/TS_Warr_Maint/2878013-en-2018_T\
oyota_86.00505-18WMG-86_vX/TS_Warr_Maint_v1

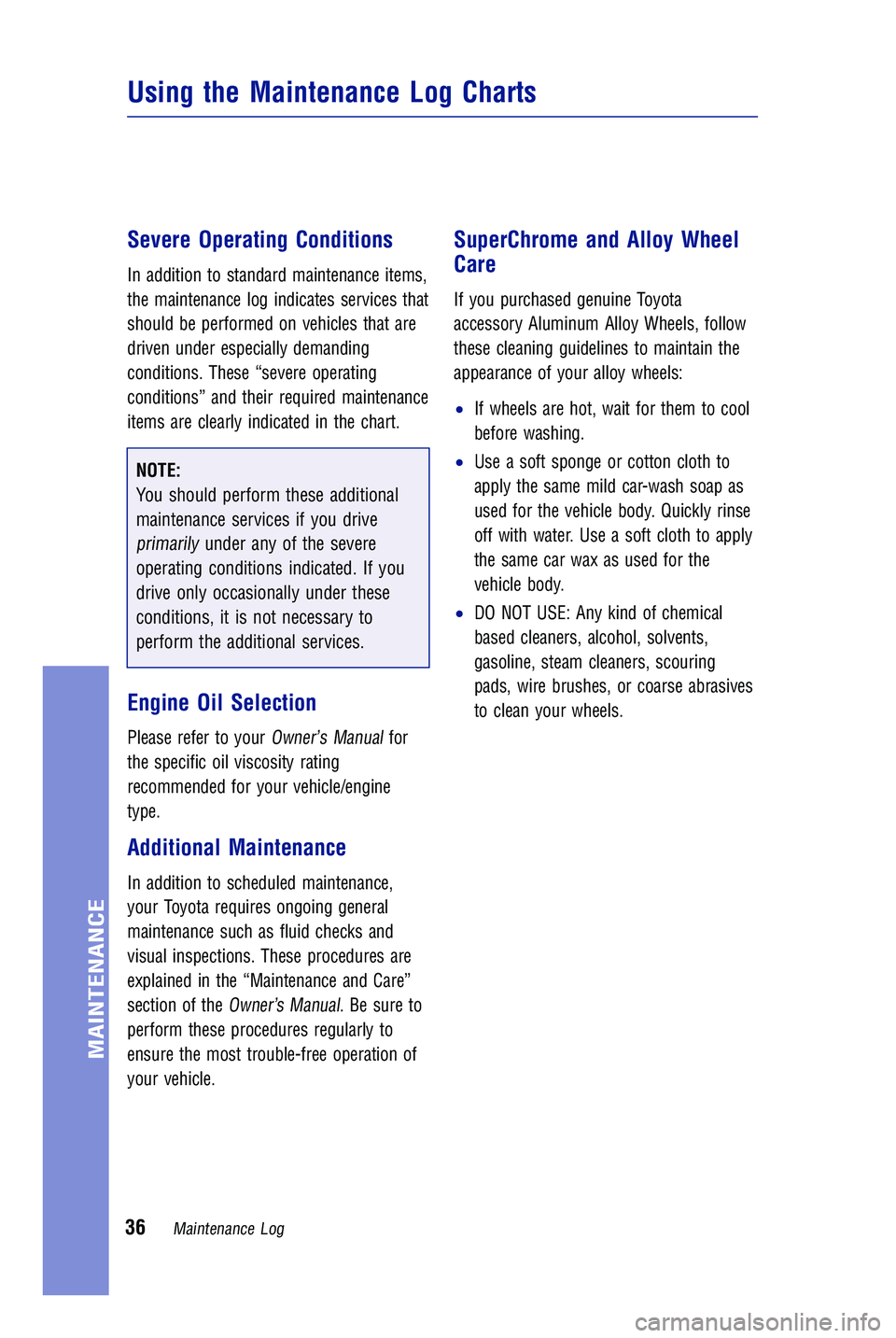

Severe Operating Conditions
In addition to standard maintenance items,
the maintenance log indicates services that
should be performed on vehicles that are
driven under especially demanding
conditions. These “severe operating
conditions” and their required maintenance
items are clearly indicated in the chart.
NOTE:
You should perform these additional
maintenance services if you drive
primarilyunder any of the severe
operating conditions indicated. If you
drive only occasionally under these
conditions, it is not necessary to
perform the additional services.
Engine Oil Selection
Please refer to yourOwner’s Manualfor
the specific oil viscosity rating
recommended for your vehicle/engine
type.
Additional Maintenance
In addition to scheduled maintenance,
your Toyota requires ongoing general
maintenance such as fluid checks and
visual inspections. These procedures are
explained in the “Maintenance and Care”
section of the
Owner’s Manual. Be sure to
perform these procedures regularly to
ensure the most trouble-free operation of
your vehicle.
SuperChrome and Alloy Wheel
Care
If you purchased genuine Toyota
accessory Aluminum Alloy Wheels, follow
these cleaning guidelines to maintain the
appearance of your alloy wheels:
If wheels are hot, wait for them to cool
before washing.
Use a soft sponge or cotton cloth to
apply the same mild car-wash soap as
used for the vehicle body. Quickly rinse
off with water. Use a soft cloth to apply
the same car wax as used for the
vehicle body.
DO NOT USE: Any kind of chemical
based cleaners, alcohol, solvents,
gasoline, steam cleaners, scouring
pads, wire brushes, or coarse abrasives
to clean your wheels.
Using the Maintenance Log Charts
Maintenance Log36
MAINTENANCE
46768b2_2878013 2018 Toyota 86 EML EN 1st PTG text.indd 3611/21/17 5:14 PM

JOBNAME: 2372396-en-2017_SCIO PAGE: 37 SESS: 4 OUTPUT: Thu Jun 23 13:07:16 2016
/InfoShareAuthorCODA/InfoShareAuthorCODA/TS_Warr_Maint/2372396-en-2017_S\
CION-FRS.00505-17WMG-FRS_/TS_Warr_Maint_v3
Maintenance ItemMaintenance Interval (Miles or Number of months, whichever occurs first)
After the described period, continue to follow the described maintenance at the recommended
intervals.
I = Inspect;
R=Replace, Change, Tire Rotate or lubricate; T= Tighten to specified torque
Miles (000) 7.5 15 22.5 30 37.5 45 52.5 60 67.5 75 82.5 90
Months 7.5 15 22.5 30 37.5 45 52.5 60 67.5 75 82.5 90
I
I
R
I
I
I
n fluid
oissimsnartcitamotuA
Bolts and nuts on chassis Driving on dirt
or dusty roads
TTTTTTTTTTT
T
R
R
R
lamroN
diulfekarB
Severe When operating in high humidity areas or in mountainous areas, replace every 15,000 miles or
15 months, whichever occurs first
Brake lines and hoses Normal IIIIII
Driving on dirt
or dusty roads
IIIIIIIIIII
I
Severe When operating in areas where road salts or other corrosive materials are used; if living in coastal
areas, inspect every 7,500 miles or 7.5 months, whichever occurs first.
Brake pads and discs Normal IIIIII
Severe Repeated short driving distance, driving on rough and/or muddy roads; driving in areas where road
salts or other corrosive materials; living in coastal areas, inspect every 7,500 miles or 7.5 months, whichever occurs first.
Cabin air filter Normal RR RRRR
Note: Driving in heavy traffic, on dirt roads or in urban, dusty or desert areas may shorten the life of the cabin air filter. Replacement may be needed if you notice reduced air flow from the air conditioner and heater or if the windows fog easily when you use the “fresh” mode. Consult your dealer if any of these conditions occur.
Scheduled Maintenance
MAINTENANCE
37Maintenance Log
JOBNAME: 2878013-en-2018_Toyo PAGE: 36 SESS: 4 OUTPUT: Mon Nov 13 08:02:35 2017
/InfoShareAuthorCODA/InfoShareAuthorCODA/TS_Warr_Maint/2878013-en-2018_T\
oyota_86.00505-18WMG-86_vX/TS_Warr_Maint_v1
Severe Operating Conditions
In addition to standard maintenance items,
the maintenance log indicates services that
should be performed on vehicles that are
driven under especially demanding
conditions. These “severe operating
conditions” and their required maintenance
items are clearly indicated in the chart.
NOTE:
You should perform these additional
maintenance services if you drive
primarilyunder any of the severe
operating conditions indicated. If you
drive only occasionally under these
conditions, it is not necessary to
perform the additional services.
Engine Oil Selection
Please refer to yourOwner’s Manualfor
the specific oil viscosity rating
recommended for your vehicle/engine
type.
Additional Maintenance
In addition to scheduled maintenance,
your Toyota requires ongoing general
maintenance such as fluid checks and
visual inspections. These procedures are
explained in the “Maintenance and Care”
section of the
Owner’s Manual. Be sure to
perform these procedures regularly to
ensure the most trouble-free operation of
your vehicle.
SuperChrome and Alloy Wheel
Care
If you purchased genuine Toyota
accessory Aluminum Alloy Wheels, follow
these cleaning guidelines to maintain the
appearance of your alloy wheels:
If wheels are hot, wait for them to cool
before washing.
Use a soft sponge or cotton cloth to
apply the same mild car-wash soap as
used for the vehicle body. Quickly rinse
off with water. Use a soft cloth to apply
the same car wax as used for the
vehicle body.
DO NOT USE: Any kind of chemical
based cleaners, alcohol, solvents,
gasoline, steam cleaners, scouring
pads, wire brushes, or coarse abrasives
to clean your wheels.
Using the Maintenance Log Charts
Maintenance Log36
MAINTENANCE
46768b2_2878013 2018 Toyota 86 EML EN 1st PTG text.indd 3711/21/17 5:14 PM

JOBNAME: 2878013-en-2018_Toyo PAGE: 41 SESS: 4 OUTPUT: Mon Nov 13 08:02:35 2017
/InfoShareAuthorCODA/InfoShareAuthorCODA/TS_Warr_Maint/2878013-en-2018_T\
oyota_86.00505-18WMG-86_vX/TS_Warr_Maint_v1
T
he following descriptions are
provided to give you a better
understanding of the maintenance
items that should be performed on your
vehicle. The scheduled maintenance log
indicates at which mileage/time intervals
each item should be performed. Please
note that many maintenance items should
be performed only by a qualified
technician.
For further information on maintenance
items you can perform yourself, see the
Vehicle Maintenance and Care and
Do-It-Yourself Maintenance sections of
the
Owner’s Manual.
Ball Joints and Dust Covers
Check the suspension and steering linkage
ball joints for looseness and damage.
Check all dust covers for deterioration and
damage. Replace any deteriorated or
damaged parts. A qualified technician
should perform these operations.
Brake Lines and Hoses
Visually inspect for proper installation.
Check for chafing, cracks, deterioration
and signs of leakage. Replace any
deteriorated or damaged parts. A qualified
technician should perform these
operations.
Brake Linings/Drums and Brake
Pads/Discs
Check the brake linings (shoes) and
drums for scoring, burning, fluid leakage,
broken parts and excessive wear. Check
the pads for excessive wear and the discs
for runout, excessive wear and fluid
leakage. Replace any deteriorated or
damaged parts. A qualified technician
should perform these operations.

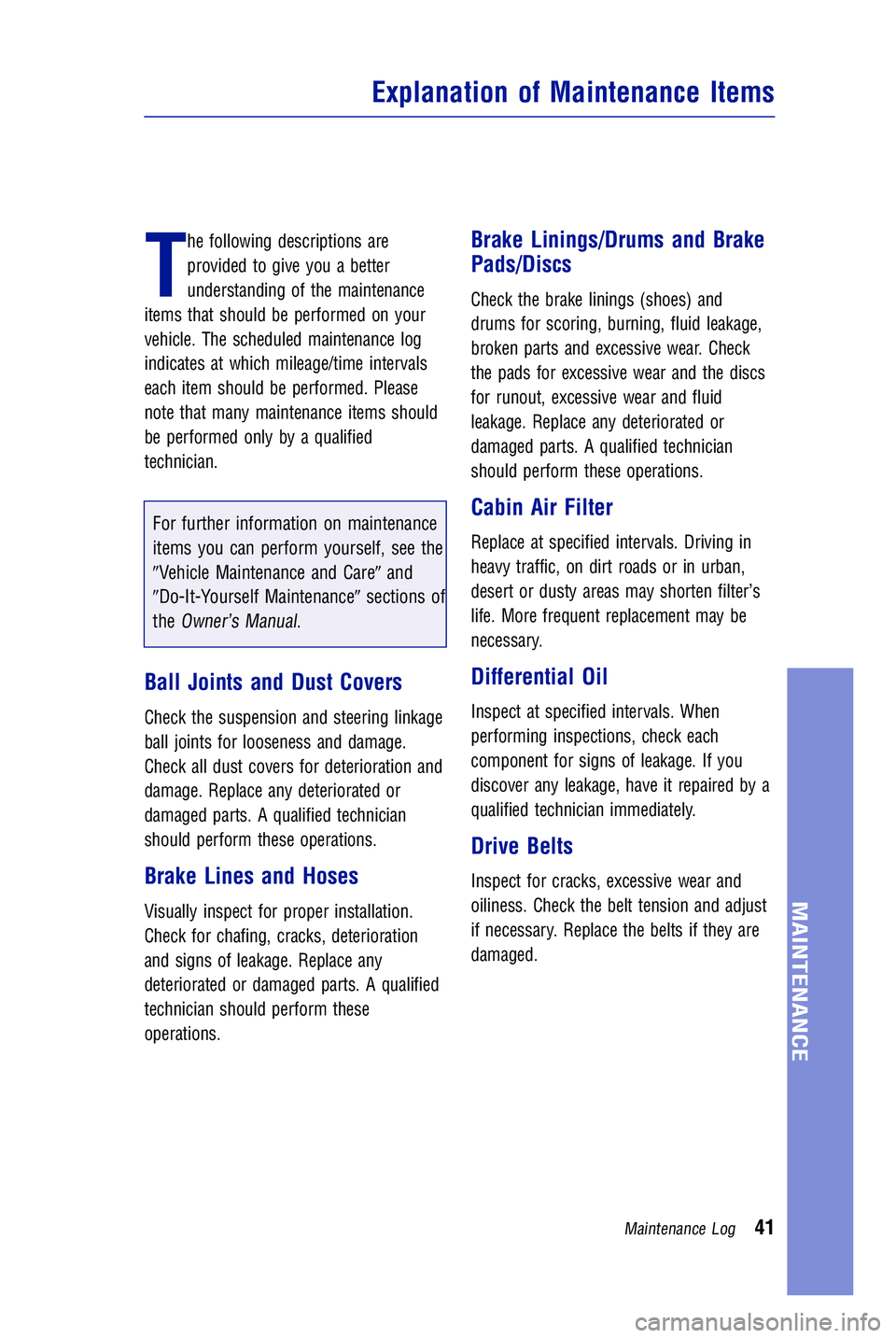

Cabin Air Filter
Replace at specified intervals. Driving in
heavy traffic, on dirt roads or in urban,
desert or dusty areas may shorten filter’s
life. More frequent replacement may be
necessary.
Differential Oil
Inspect at specified intervals. When
performing inspections, check each
component for signs of leakage. If you
discover any leakage, have it repaired by a
qualified technician immediately.
Drive Belts
Inspect for cracks, excessive wear and
oiliness. Check the belt tension and adjust
if necessary. Replace the belts if they are
damaged.
Explanation of Maintenance Items
Maintenance Log41
MAINTENANCE
JOBNAME: 2878013-en-2018_Toyo PAGE: 40 SESS: 4 OUTPUT: Mon Nov 13 08:02:35 2017
/InfoShareAuthorCODA/InfoShareAuthorCODA/TS_Warr_Maint/2878013-en-2018_T\
oyota_86.00505-18WMG-86_vX/TS_Warr_Maint_v1

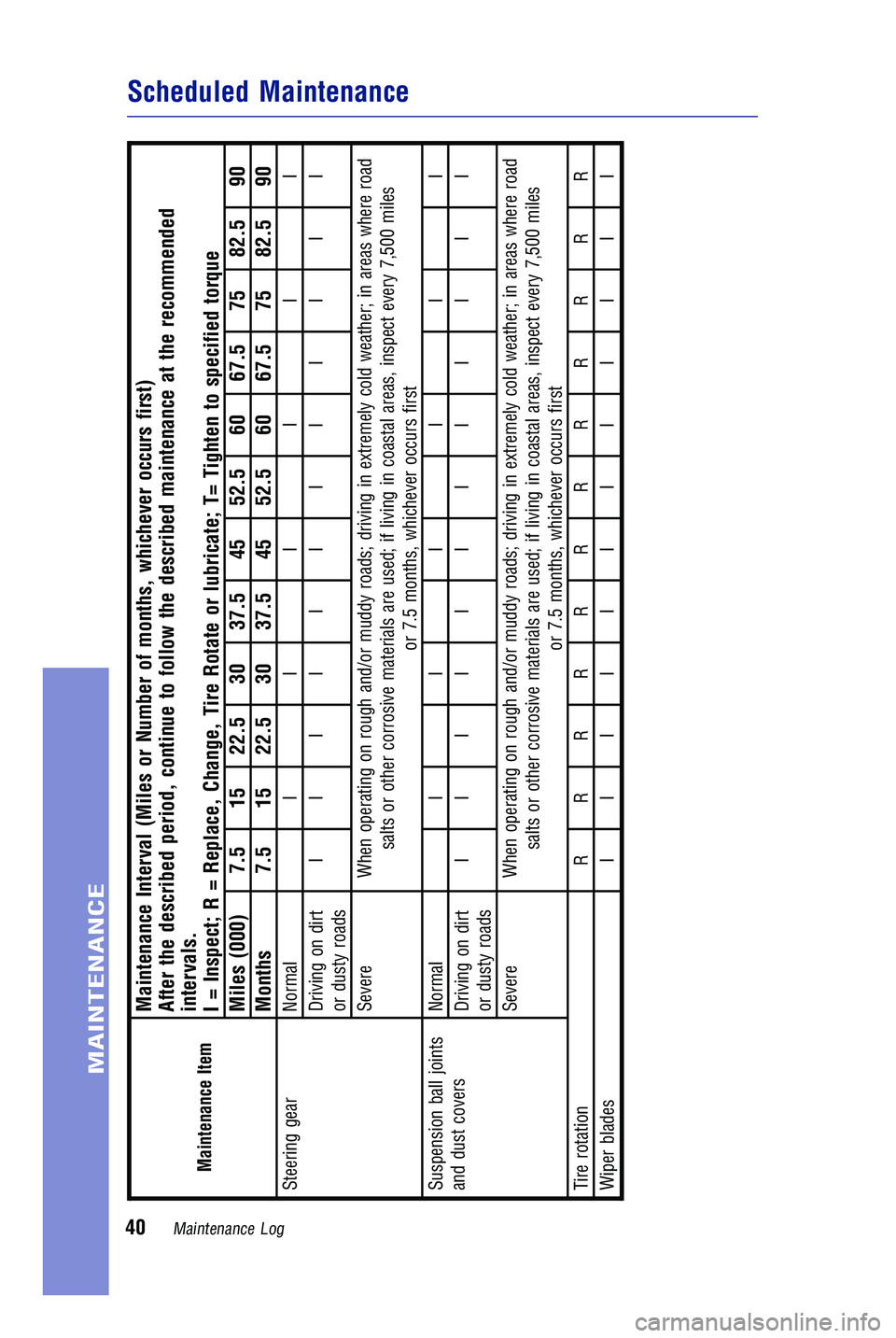

Maintenance Item
Maintenance Interval (Miles or Number of months, whichever occurs first)
After the described period, continue to follow the described maintenance at the recommendedintervals.
I = Inspect
; R = Replace, Change, Tire Rotate or lubricate; T= Tighten to specified torque
Miles (000) 7.5 15 22.5 30 37.5 45 52.5 60 67.5 75 82.5 90
Months 7.5 15 22.5 30 37.5 45 52.5 60 67.5 75 82.5 90
Steering gear Normal
I IIIII
Driving on dirt
or dusty roads
IIIIIIIIIIII
Severe
When operating on rough and/or muddy roads; driving in extremely cold weather; in areas where road salts or other corrosive materials are used; if living in coastal areas, inspect every 7,500 miles
or 7.5 months, whichever occurs first
Suspension ball jointsand dust covers Normal
IIIIII
Driving on dirt
or dusty roads
IIIIIIIIIIII
Severe
When operating on rough and/or muddy roads; driving in extremely cold weather; in areas where road salts or other corrosive materials are used; if living in coastal areas, inspect every 7,500 miles
or 7.5 months, whichever occurs first
Tire rotation
RRRRRRRRRRRR
Wiper blades
IIIIIIIIIIII
Scheduled Maintenance
MAINTENANCE
40Maintenance Log
46768b2_2878013 2018 Toyota 86 EML EN 1st PTG text.indd 4011/21/17 5:14 PM

JOBNAME: 2878013-en-2018_Toyo PAGE: 41 SESS: 4 OUTPUT: Mon Nov 13 08:02:35 2017
/InfoShareAuthorCODA/InfoShareAuthorCODA/TS_Warr_Maint/2878013-en-2018_T\
oyota_86.00505-18WMG-86_vX/TS_Warr_Maint_v1
T
he following descriptions are
provided to give you a better
understanding of the maintenance
items that should be performed on your
vehicle. The scheduled maintenance log
indicates at which mileage/time intervals
each item should be performed. Please
note that many maintenance items should
be performed only by a qualified
technician.
For further information on maintenance
items you can perform yourself, see the
Vehicle Maintenance and Care and
Do-It-Yourself Maintenance sections of
the
Owner’s Manual.
Ball Joints and Dust Covers
Check the suspension and steering linkage
ball joints for looseness and damage.
Check all dust covers for deterioration and
damage. Replace any deteriorated or
damaged parts. A qualified technician
should perform these operations.
Brake Lines and Hoses
Visually inspect for proper installation.
Check for chafing, cracks, deterioration
and signs of leakage. Replace any
deteriorated or damaged parts. A qualified
technician should perform these
operations.
Brake Linings/Drums and Brake
Pads/Discs
Check the brake linings (shoes) and
drums for scoring, burning, fluid leakage,
broken parts and excessive wear. Check
the pads for excessive wear and the discs
for runout, excessive wear and fluid
leakage. Replace any deteriorated or
damaged parts. A qualified technician
should perform these operations.
Cabin Air Filter
Replace at specified intervals. Driving in
heavy traffic, on dirt roads or in urban,
desert or dusty areas may shorten filter’s
life. More frequent replacement may be
necessary.
Differential Oil
Inspect at specified intervals. When
performing inspections, check each
component for signs of leakage. If you
discover any leakage, have it repaired by a
qualified technician immediately.
Drive Belts
Inspect for cracks, excessive wear and
oiliness. Check the belt tension and adjust
if necessary. Replace the belts if they are
damaged.
Explanation of Maintenance Items
Maintenance Log41
MAINTENANCE
JOBNAME: 2878013-en-2018_Toyo PAGE: 40 SESS: 4 OUTPUT: Mon Nov 13 08:02:35 2017
/InfoShareAuthorCODA/InfoShareAuthorCODA/TS_Warr_Maint/2878013-en-2018_T\
oyota_86.00505-18WMG-86_vX/TS_Warr_Maint_v1
Maintenance Item
Maintenance Interval (Miles or Number of months, whichever occurs first)
After the described period, continue to follow the described maintenance at the recommended
intervals.
I = Inspect; R = Replace, Change, Tire Rotate or lubricate; T= Tighten to specified torque
Miles (000) 7.5 15 22.5 30 37.5 45 52.5 60 67.5 75 82.5 90
Months 7.5 15 22.5 30 37.5 45 52.5 60 67.5 75 82.5 90
Steering gear Normal IIIIII
Driving on dirt
or dusty roads IIIIIIIIIIII
Severe When operating on rough and/or muddy roads; driving in extremely cold weather; in areas where road
salts or other corrosive materials are used; if living in coastal areas, inspect every 7,500 miles or 7.5 months, whichever occurs first
Suspension ball joints
and dust covers Normal
IIIIII
Driving on dirt
or dusty roads IIIIIIIIIIII
Severe When operating on rough and/or muddy roads; driving in extremely cold weather; in areas where road
salts or other corrosive materials are used; if living in coastal areas, inspect every 7,500 miles or 7.5 months, whichever occurs first
Tire rotation RRRRRRRRRRRR
Wiper blades IIIIIIIIIIII
Scheduled Maintenance
MAINTENANCE
40Maintenance Log
46768b2_2878013 2018 Toyota 86 EML EN 1st PTG text.indd 4111/21/17 5:14 PM
