TOYOTA GT86 2019 Owners Manual (in English)

221
2-2. Instrument cluster
2
When driving
WARNING
■
Caution for use while driving
●When operating the multi-information display while driving, pay extra
attention to the safety of the area around the vehicle.
● Do not look continuously at the multi-information display while driving as
you may fail to see pedestrians, objects on the road, etc. ahea d of the
vehicle.
■ The information display at low temperatures
Allow the interior of the vehicle to warm up before using the liquid crystal
information display. At extremely low temperatures, the informa tion display
monitor may respond slowly, and display changes may be delayed.
For example, there is a lag between the driver’s shifting and t he new gear
number appearing on the display. This lag could cause the drive r to down-
shift again, causing rapid and excessive engine braking and possibly an
accident resulting in death or injury.
■ Cautions during setting up the display
As the engine needs to be running during setting up the display , ensure that
the vehicle is parked in a place with adequate ventilation. In a closed area
such as a garage, exhaust gases including harmful carbon monoxi de (CO)
may collect and enter the vehicle. This may lead to death or a serious health
hazard.
NOTICE
■ While setting up the display
To prevent battery discharge, ensure that the engine is running while setting
up the display features.

222
2-3. Operating the lights and windshield wipers

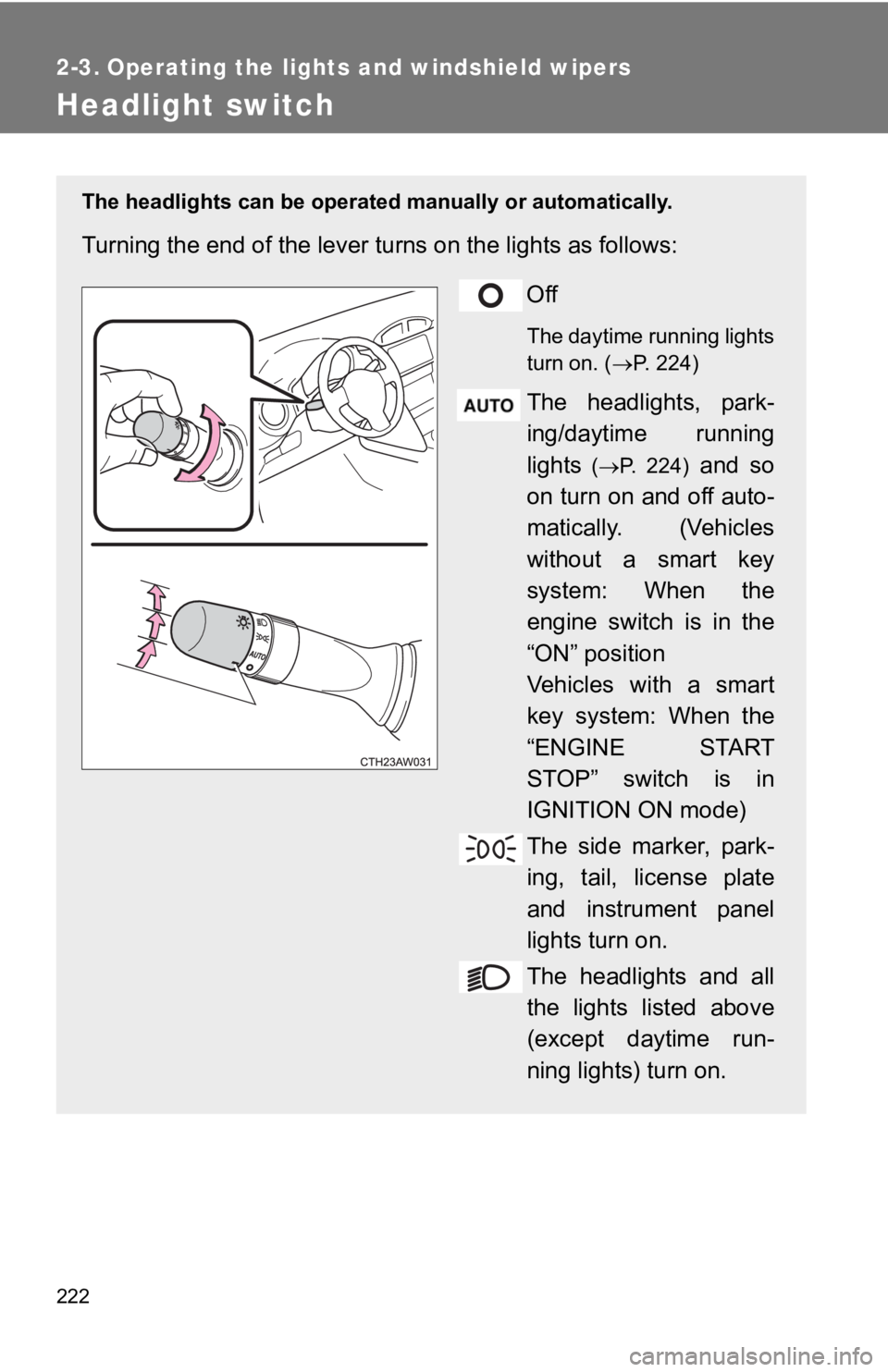

Headlight switch
The headlights can be operated manually or automatically.
Turning the end of the lever turns on the lights as follows:
Off
The daytime running lights
turn on. (P. 224)
The headlights, park-
ing/daytime running
lights
(P. 224) and so
on turn on and off auto-
matically. (Vehicles
without a smart key
system: When the
engine switch is in the
“ON” position
Vehicles with a smart
key system: When the
“ENGINE START
STOP” switch is in
IGNITION ON mode)
The side marker, park-
ing, tail, license plate
and instrument panel
lights turn on.
The headlights and all
the lights listed above
(except daytime run-
ning lights) turn on.

223
2-3. Operating the light
s and windshield wipers
2
When driving
Turning on the high beam headlights
With the headlights on, push
the lever forward to turn on the
high beams.
Pull the lever back to the center
position to turn the high beams
off.
Pull the lever toward you and
release it to flash the high
beams once.
You can flash the high beams
with the headlights on or off.

224 2-3. Operating the lights and windshield wipers
■Daytime running light system
●The daytime running lights illuminate using the same lights as the parking
lights and illuminate brighter than the parking lights.
● To make your vehicle more visible to other drivers during dayti me driving,
the daytime running lights turn on automatically when all of th e following
conditions are met. (The daytime running lights are not designe d for use
at night.)
• The engine is running
• The shift lever is shifted out of P (Vehicles with an automati c transmis-
sion)
• The parking brake is released
• The headlight switch is off or in the “AUTO”
* position
*: When the surroundings are bright
The daytime running lights remain on after they illuminate even if the parking
brake is set again.
● When the turn signal indicators are flashing, the daytime runni ng light on
the side that the turn signals are flashing will turn off.
● When the emergency flashers are flashing, both daytime running lights
will turn off.
● Compared to turning on the headlights, the daytime running ligh t system
offers greater durability and consumes less electricity, so it can help
improve fuel economy.

225
2-3. Operating the light
s and windshield wipers
2
When driving
■Headlight control sensor
■ Automatic light off system
Vehicles without a smart key system
The light switch is in , the headlights and tail lights turn of f 30 sec-
onds after a door is opened and closed if the engine switch is turned off.
(The lights turn off immediately if on the key is pressed after all the
doors are locked.)
To turn the lights on again, turn the engine switch to “ON” position, or turn
the light switch off and then back to
or .
Vehicles with a smart key system
The light switch is in , the headlights and tail lights turn of f 30 sec-
onds after a door is opened and closed if the “ENGINE START STO P”
switch is turned off. (The lights turn off immediately if on t he key is
pressed after all the doors are locked.)
To turn the lights on again, turn the “ENGINE START STOP” switc h to IGNI-
TION ON mode, or turn the light switch off and then back to
or
.
Headlight control sensor is located on the
passenger's side.
The sensor may not function properly if
an object is placed on the sensor, or any-
thing that blocks the sensor is affixed to
the windshield.
Doing so interferes with the sensor
detecting the level of ambient light and
may cause the automatic headlight sys-
tem to malfunction.

226 2-3. Operating the lights and windshield wipers
■Light reminder buzzer
Vehicles without a smart key system
A buzzer sounds when the engine switch is turned to “LOCK” position and
the driver's door is opened with the key removed from the engin e switch
while the lights are turned on.
Vehicles with a smart key system
A buzzer sounds when the “ENGINE START STOP” switch is turned o ff and
the driver's door is opened while the lights are turned on.
■ Automatic headlight leveling system
The level of the headlights is automatically adjusted according to the number
of passengers and the loading condition of the vehicle to ensure that the
headlights do not interfere with other road users.
■ Battery-saving function
In the following conditions, the headlights and the other remai ning lights will
go off automatically after 20 minutes in order to prevent the vehicle battery
from being discharged:
● The headlights and/or tail lights are on.
● The key is removed from the engine switch (vehicles without a s mart key
system) or the “ENGINE START STOP” switch is turned off (vehicl es with
a smart key system).
● The light switch is in or .
This function will be canceled in any of the following situations:
● When the engine switch is turned to the “ON” position (vehicles without a
smart key system) or the “ENGINE START STOP” switch is turned t o
IGNITION ON mode (vehicles with a smart key system)
● When the light switch is operated
● When the door is opened or closed
■ Customization that can be conf igured at your Toyota dealer
Settings of the light sensor sensitivity can be changed.
(Customizable features P. 487)

227
2-3. Operating the light
s and windshield wipers
2
When driving
NOTICE
■To prevent battery discharge
Do not leave the lights on longer than necessary when the engine is not run-
ning.

228
2-3. Operating the lights and windshield wipers
Fog light switch
■Fog lights can be used when
The headlights are on in low beam.
The fog lights secure excellent vis ibility in difficult driving condi-
tions, such as in rain and fog.
Turns the front fog lights off
Turns the front fog lights on
: If equipped

229
2-3. Operating the lights and windshield wipers
2
When driving

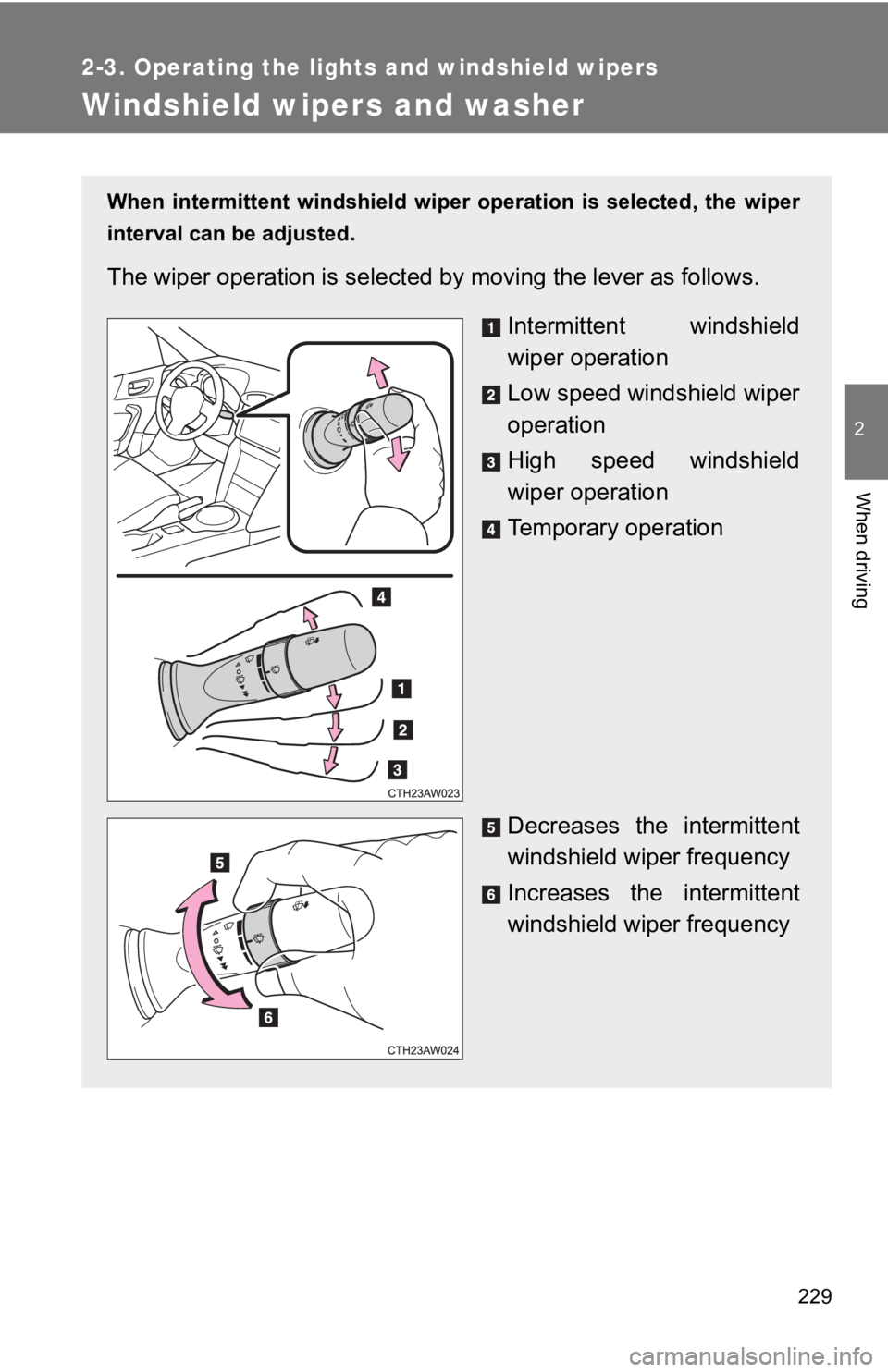

Windshield wipers and washer
When intermittent windshield wiper operation is selected, the wiper
interval can be adjusted.
The wiper operation is selected by moving the lever as follows.
Intermittent windshield
wiper operation
Low speed windshield wiper
operation
High speed windshield
wiper operation
Temporary operation
Decreases the intermittent
windshield wiper frequency
Increases the intermittent
windshield wiper frequency

230 2-3. Operating the lights and windshield wipers
■The windshield wipers and w asher can be operated when
Vehicles without a smart key system
The engine switch is in the “ON” position.
Vehicles with a smart key system
The “ENGINE START STOP” switch is in IGNITION ON mode.
■ If no windshield washer fluid sprays
Check that the washer nozzles are not blocked if there is washe r fluid in the
windshield washer fluid tank.
WARNING
■ Caution regarding the use of washer fluid
When it is cold, do not use the washer fluid until the windshield becomes
warm. The fluid may freeze on the windshield and cause low visi bility. This
may lead to an accident, resulting in death or serious injury.
Washer/wiper dual opera-
tion
The wipers will automatically
operate a couple of times after
the washer squirts.
