TOYOTA GT86 2019 Warranties & Maintenance Guides (in English)

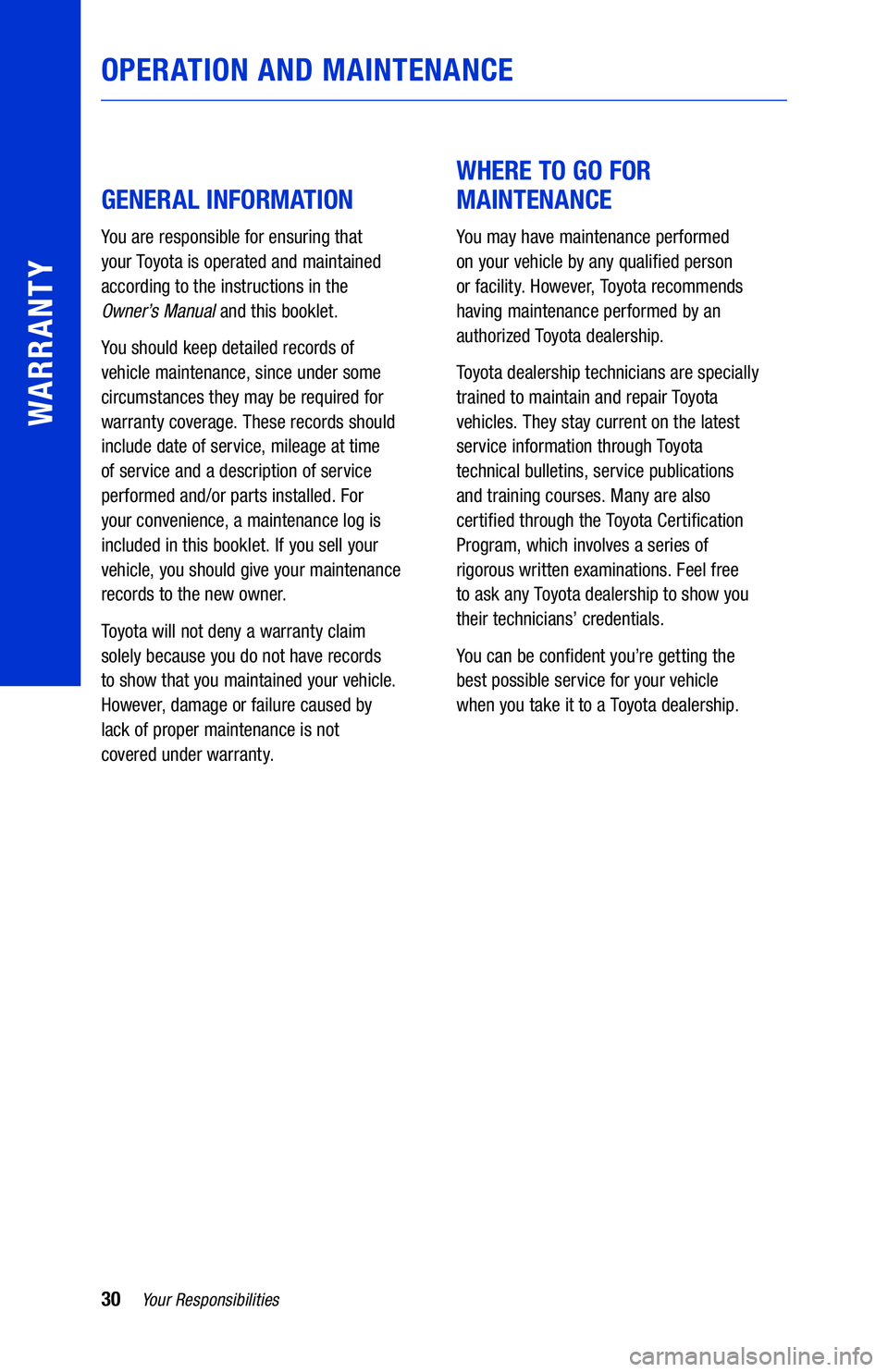

30Your Responsibilities
WARRANTY
OPERATION AND MAINTENANCE
GENERAL INFORMATION
You are responsible for ensuring that
your Toyota is operated and maintained
according to the instructions in the
Owner’s Manual and this booklet.
You should keep detailed records of
vehicle maintenance, since under some
circumstances they may be required for
warranty coverage. These records should
include date of service, mileage at time
of service and a description of service
performed and/or parts installed. For
your convenience, a maintenance log is
included in this booklet. If you sell your
vehicle, you should give your maintenance
records to the new owner.
Toyota will not deny a warranty claim
solely because you do not have records
to show that you maintained your vehicle.
However, damage or failure caused by
lack of proper maintenance is not
covered under warranty.

WHERE TO GO FOR
MAINTENANCE
You may have maintenance performed
on your vehicle by any qualied person
or facility. However, Toyota recommends
having maintenance performed by an
authorized Toyota dealership.
Toyota dealership technicians are specially
trained to maintain and repair Toyota
vehicles. They stay current on the latest
service information through Toyota
technical bulletins, service publications
and training courses. Many are also
certied through the Toyota Certication
Program, which involves a series of
rigorous written examinations. Feel free
to ask any Toyota dealership to show you
their technicians’ credentials.
You can be condent you’re getting the
best possible service for your vehicle
when you take it to a Toyota dealership.

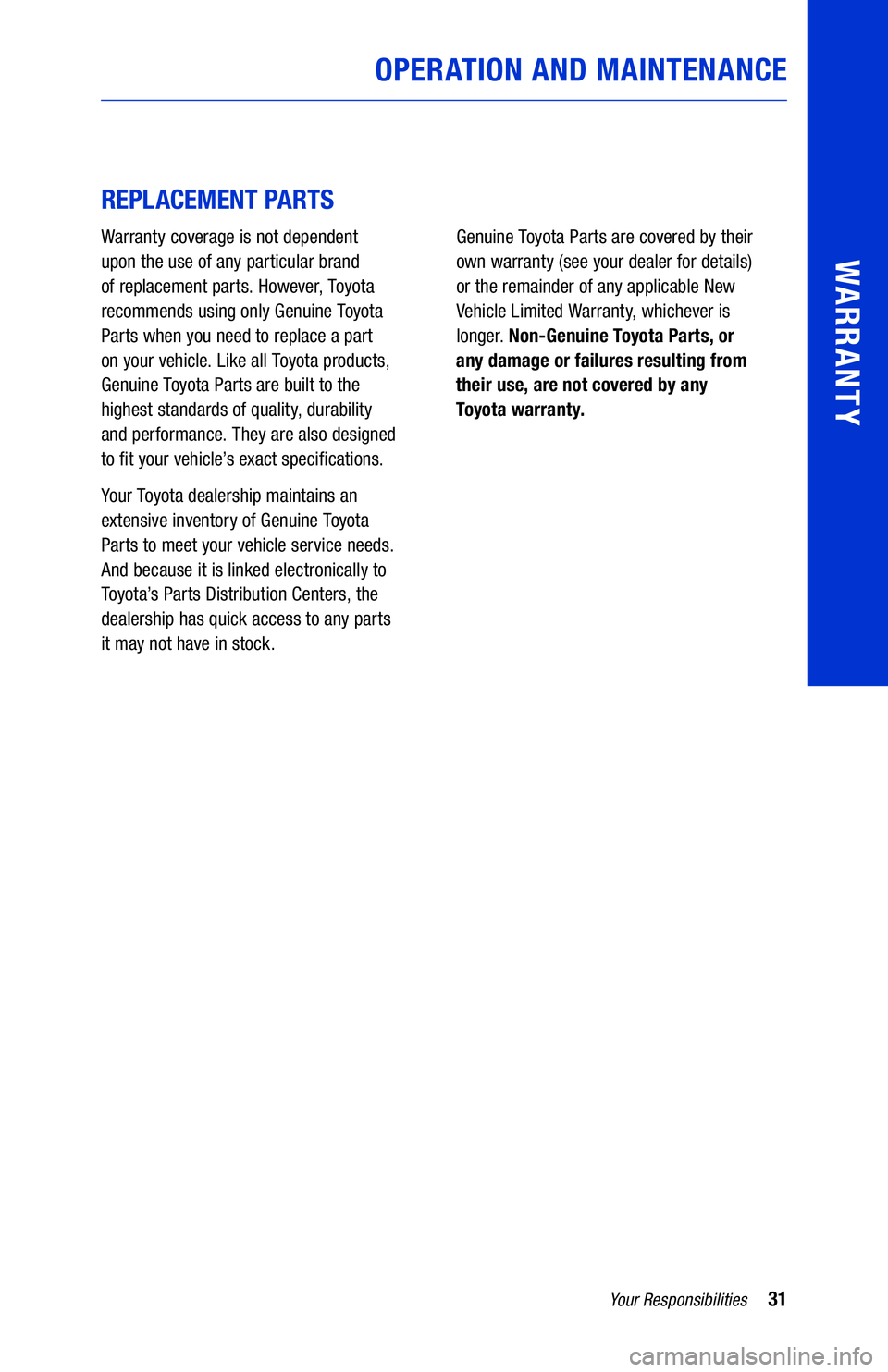

31Your Responsibilities
WARRANTY
OPERATION AND MAINTENANCE
REPLACEMENT PARTS
Warranty coverage is not dependent
upon the use of any particular brand
of replacement parts. However, Toyota
recommends using only Genuine Toyota
Parts when you need to replace a part
on your vehicle. Like all Toyota products,
Genuine Toyota Parts are built to the
highest standards of quality, durability
and performance. They are also designed
to t your vehicle’s exact specications.
Your Toyota dealership maintains an
extensive inventory of Genuine Toyota
Parts to meet your vehicle service needs.
And because it is linked electronically to
Toyota’s Parts Distribution Centers, the
dealership has quick access to any parts
it may not have in stock.


Genuine Toyota Parts are covered by their
own warranty (see your dealer for details)
or the remainder of any applicable New
Vehicle Limited Warranty, whichever is
longer. Non-Genuine Toyota Parts, or
any damage or failures resulting from
their use, are not covered by any
Toyota warranty.

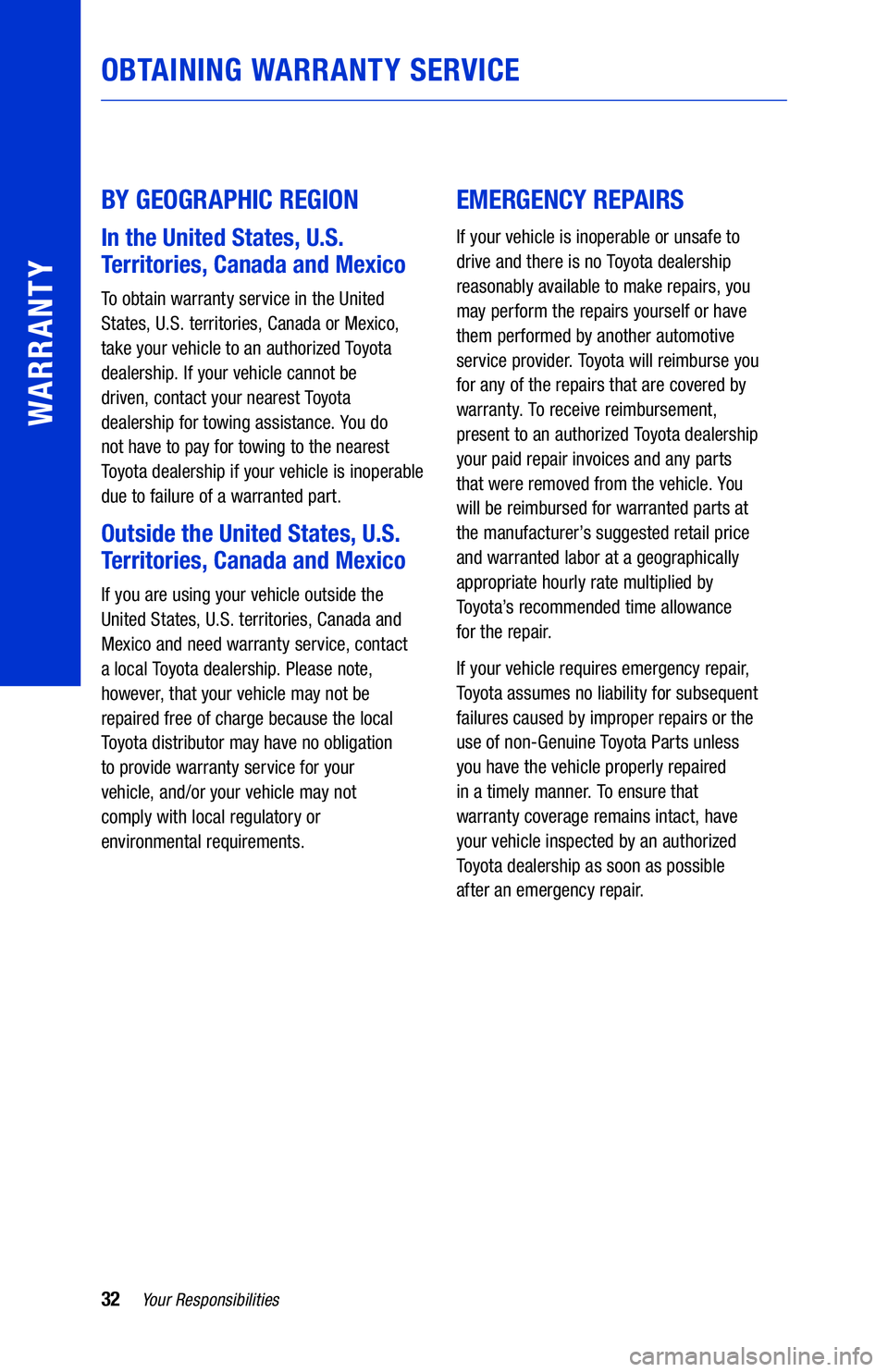

32Your Responsibilities
WARRANTY
BY GEOGRAPHIC REGION
In the United States, U.S.
Territories, Canada and Mexico
To obtain warranty service in the United
States, U.S. territories, Canada or Mexico,
take your vehicle to an authorized Toyota
dealership. If your vehicle cannot be
driven, contact your nearest Toyota
dealership for towing assistance. You do
not have to pay for towing to the nearest
Toyota dealership if your vehicle is inoperable
due to failure of a warranted part.
Outside the United States, U.S.
Territories, Canada and Mexico
If you are using your vehicle outside the
United States, U.S. territories, Canada and
Mexico and need warranty service, contact
a local Toyota dealership. Please note,
however, that your vehicle may not be
repaired free of charge because the local
Toyota distributor may have no obligation
to provide warranty service for your
vehicle, and/or your vehicle may not
comply with local regulatory or
environmental requirements.


EMERGENCY REPAIRS
If your vehicle is inoperable or unsafe to
drive and there is no Toyota dealership
reasonably available to make repairs, you
may perform the repairs yourself or have
them performed by another automotive
service provider. Toyota will reimburse you
for any of the repairs that are covered by
warranty. To receive reimbursement,
present to an authorized Toyota dealership
your paid repair invoices and any parts
that were removed from the vehicle. You
will be reimbursed for warranted parts at
the manufacturer’s suggested retail price
and warranted labor at a geographically
appropriate hourly rate multiplied by
Toyota’s recommended time allowance
for the repair.
If your vehicle requires emergency repair,
Toyota assumes no liability for subsequent
failures caused by improper repairs or the
use of non-Genuine Toyota Parts unless
you have the vehicle properly repaired
in a timely manner. To ensure that
warranty coverage remains intact, have
your vehicle inspected by an authorized
Toyota dealership as soon as possible
after an emergency repair.
OBTAINING WARRANTY SERVICE

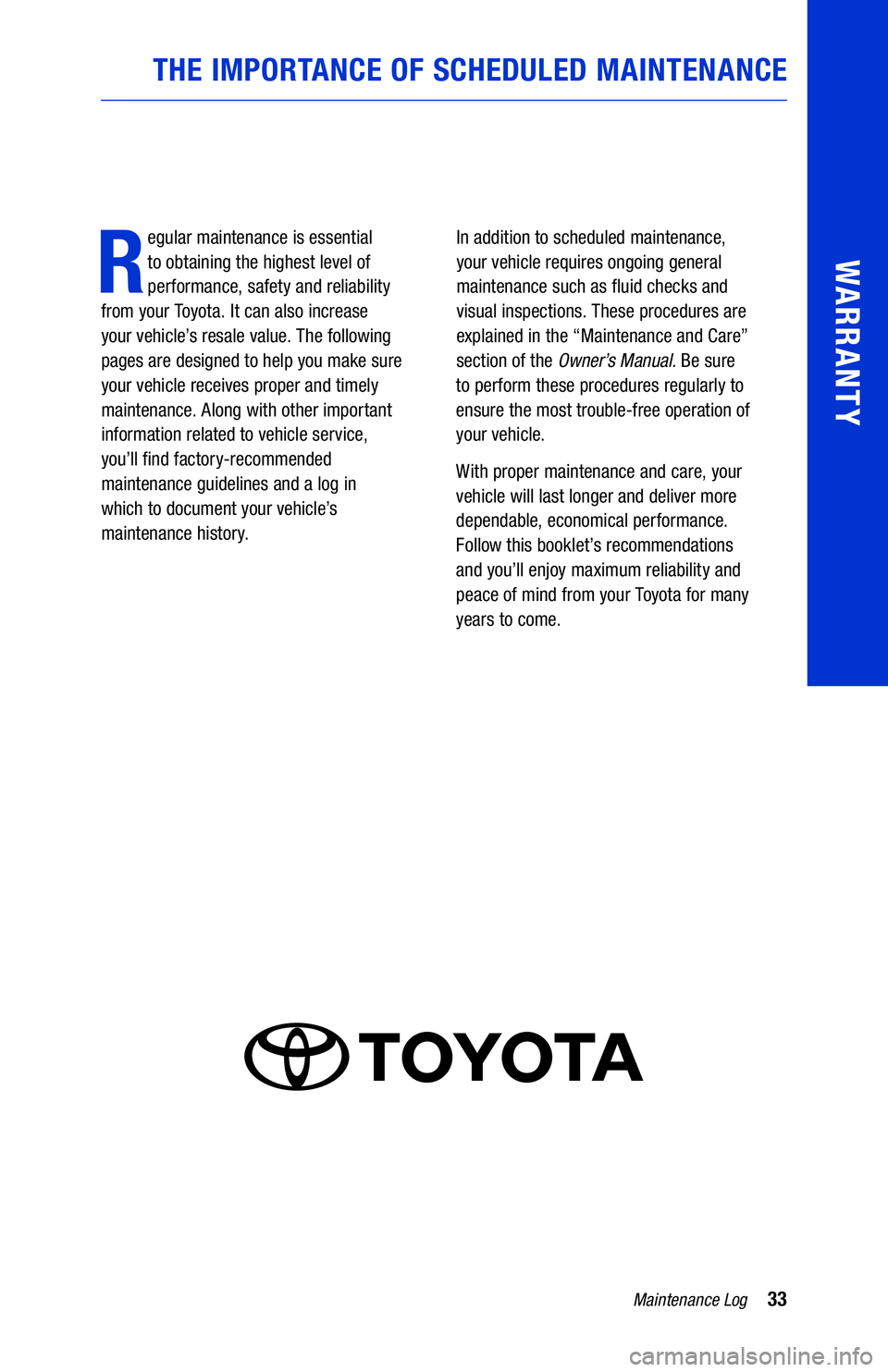

33Maintenance Log
WARRANTY
THE IMPORTANCE OF SCHEDULED MAINTENANCE
R
egular maintenance is essential
to obtaining the highest level of
performance, safety and reliability
from your Toyota. It can also increase
your vehicle’s resale value. The following
pages are designed to help you make sure
your vehicle receives proper and timely
maintenance. Along with other important
information related to vehicle service,
you’ll nd factory-recommended
maintenance guidelines and a log in
which to document your vehicle’s
maintenance history.In addition to scheduled maintenance,
your vehicle requires ongoing general
maintenance such as uid checks and
visual inspections. These procedures are
explained in the “Maintenance and Care”
section of the Owner’s Manual. Be sure
to perform these procedures regularly to
ensure the most trouble-free operation of
your vehicle.
With proper maintenance and care, your
vehicle will last longer and deliver more
dependable, economical performance.
Follow this booklet’s recommendations
and you’ll enjoy maximum reliability and
peace of mind from your Toyota for many
years to come.

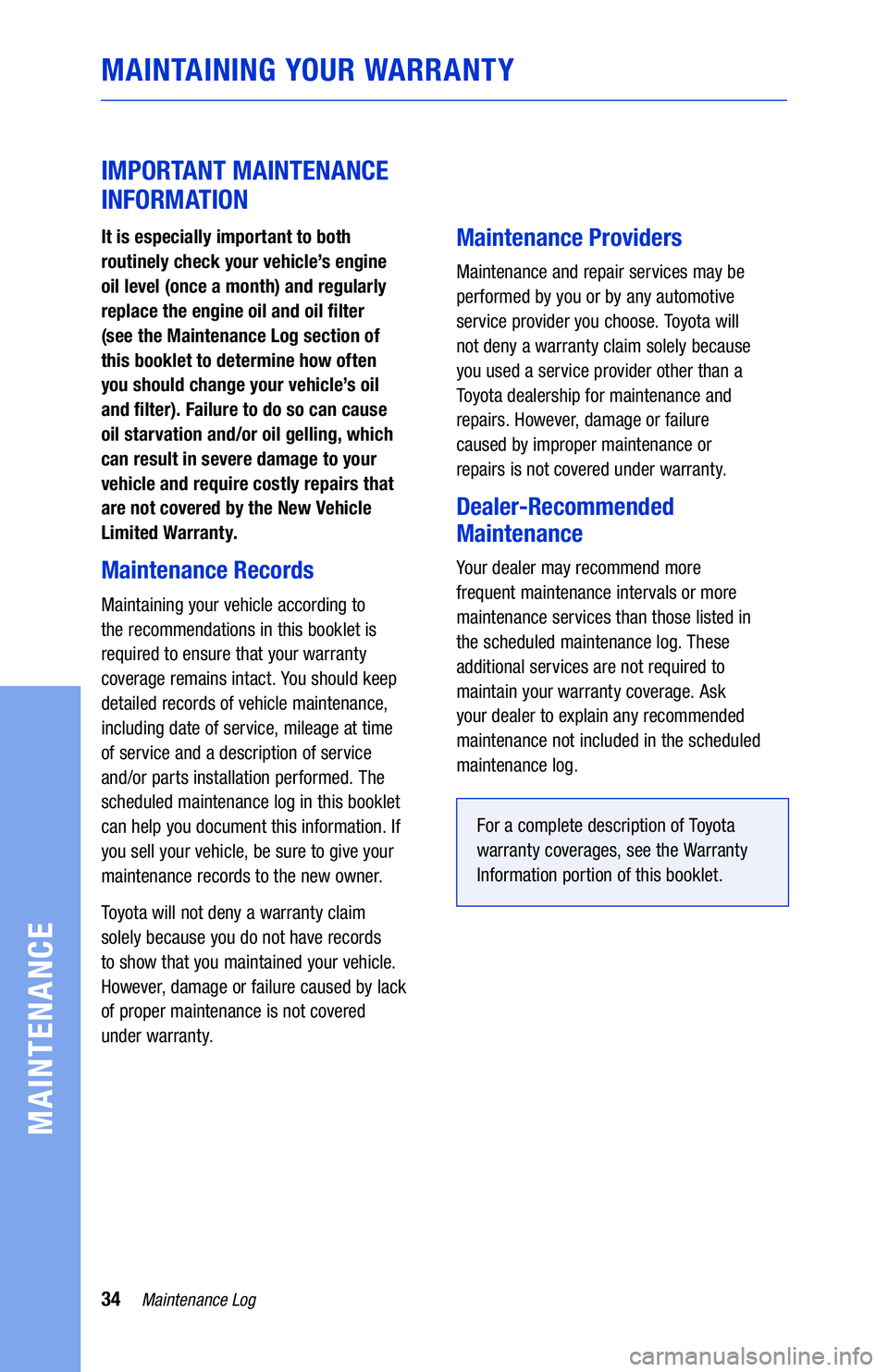

34Maintenance Log
MAINTENANCE
MAINTAINING YOUR WARRANTY
IMPORTANT MAINTENANCE
INFORMATION
It is especially important to both
routinely check your vehicle’s engine
oil level (once a month) and regularly
replace the engine oil and oil lter
(see the Maintenance Log section of
this booklet to determine how often
you should change your vehicle’s oil
and lter). Failure to do so can cause
oil starvation and/or oil gelling, which
can result in severe damage to your
vehicle and require costly repairs that
are not covered by the New Vehicle
Limited Warranty.
Maintenance Records
Maintaining your vehicle according to
the recommendations in this booklet is
required to ensure that your warranty
coverage remains intact. You should keep
detailed records of vehicle maintenance,
including date of service, mileage at time
of service and a description of service
and/or parts installation performed. The
scheduled maintenance log in this booklet
can help you document this information. If
you sell your vehicle, be sure to give your
maintenance records to the new owner.
Toyota will not deny a warranty claim
solely because you do not have records
to show that you maintained your vehicle.
However, damage or failure caused by lack
of proper maintenance is not covered
under warranty.


Maintenance Providers
Maintenance and repair services may be
performed by you or by any automotive
service provider you choose. Toyota will
not deny a warranty claim solely because
you used a service provider other than a
Toyota dealership for maintenance and
repairs. However, damage or failure
caused by improper maintenance or
repairs is not covered under warranty.
Dealer-Recommended
Maintenance
Your dealer may recommend more
frequent maintenance intervals or more
maintenance services than those listed in
the scheduled maintenance log. These
additional services are not required to
maintain your warranty coverage. Ask
your dealer to explain any recommended
maintenance not included in the scheduled
maintenance log.
For a complete description of Toyota
warranty coverages, see the Warranty
Information portion of this booklet.

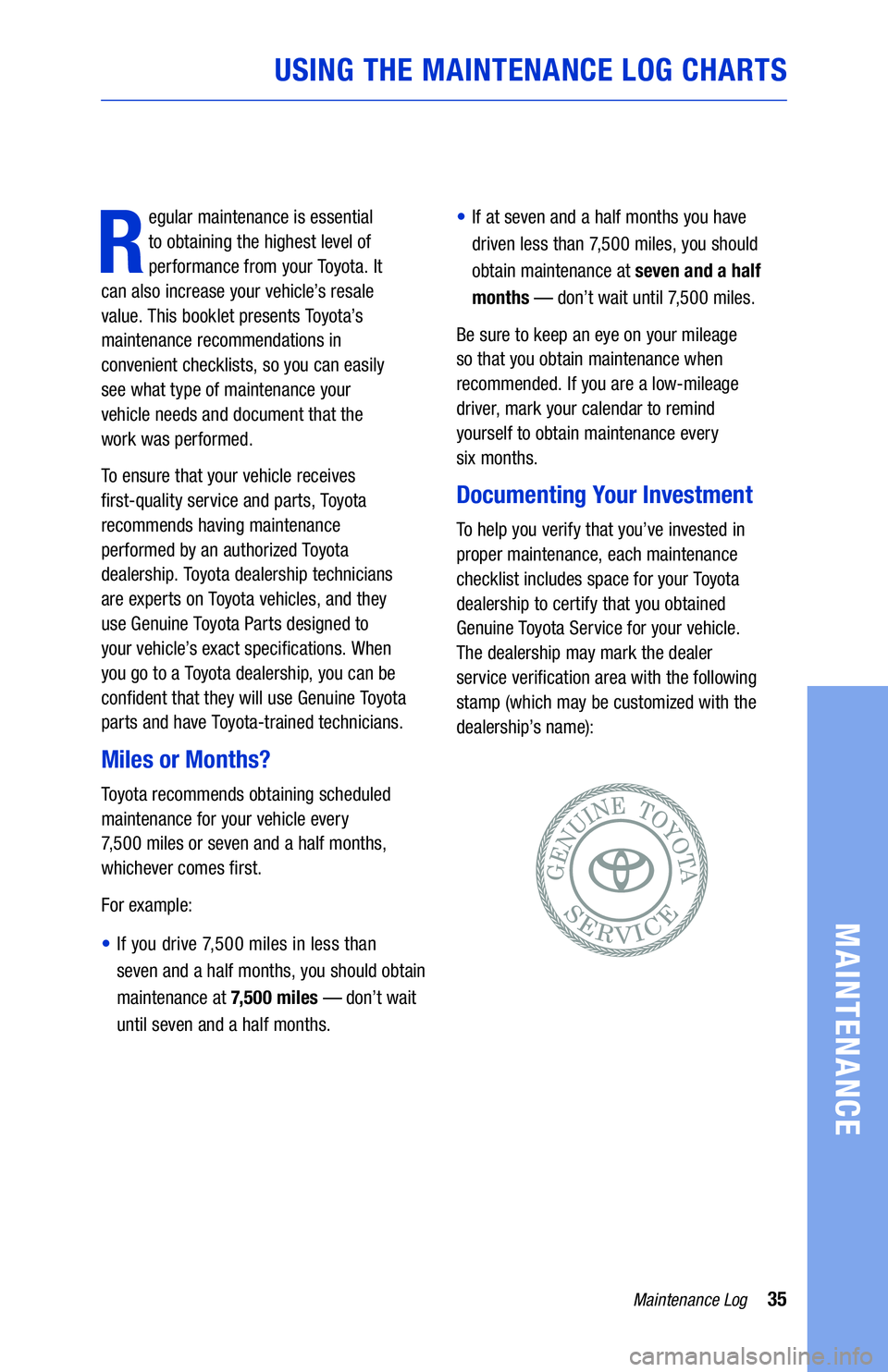

35Maintenance Log
MAINTENANCE
USING THE MAINTENANCE LOG CHARTS
R
egular maintenance is essential
to obtaining the highest level of
performance from your Toyota. It
can also increase your vehicle’s resale
value. This booklet presents Toyota’s
maintenance recommendations in
convenient checklists, so you can easily
see what type of maintenance your
vehicle needs and document that the
work was performed.
To ensure that your vehicle receives
rst-quality service and parts, Toyota
recommends having maintenance
performed by an authorized Toyota
dealership. Toyota dealership technicians
are experts on Toyota vehicles, and they
use Genuine Toyota Parts designed to
your vehicle’s exact specications. When
you go to a Toyota dealership, you can be
condent that they will use Genuine Toyota
parts and have Toyota-trained technicians.
Miles or Months?
Toyota recommends obtaining scheduled
maintenance for your vehicle every
7,500 miles or seven and a half months,
whichever comes rst.
For example:
• If you drive 7,500 miles in less than
seven and a half months, you should obtain
maintenance at 7,500 miles — don’t wait
until seven and a half months.
• If at seven and a half months you have
driven less than 7,500 miles, you should
obtain maintenance at seven and a half
months — don’t wait until 7,500 miles.
Be sure to keep an eye on your mileage
so that you obtain maintenance when
recommended. If you are a low-mileage
driver, mark your calendar to remind
yourself to obtain maintenance every
six months.
Documenting Your Investment
To help you verify that you’ve invested in
proper maintenance, each maintenance
checklist includes space for your Toyota
dealership to certify that you obtained
Genuine Toyota Service for your vehicle.
The dealership may mark the dealer
service verication area with the following
stamp (which may be customized with the
dealership’s name):

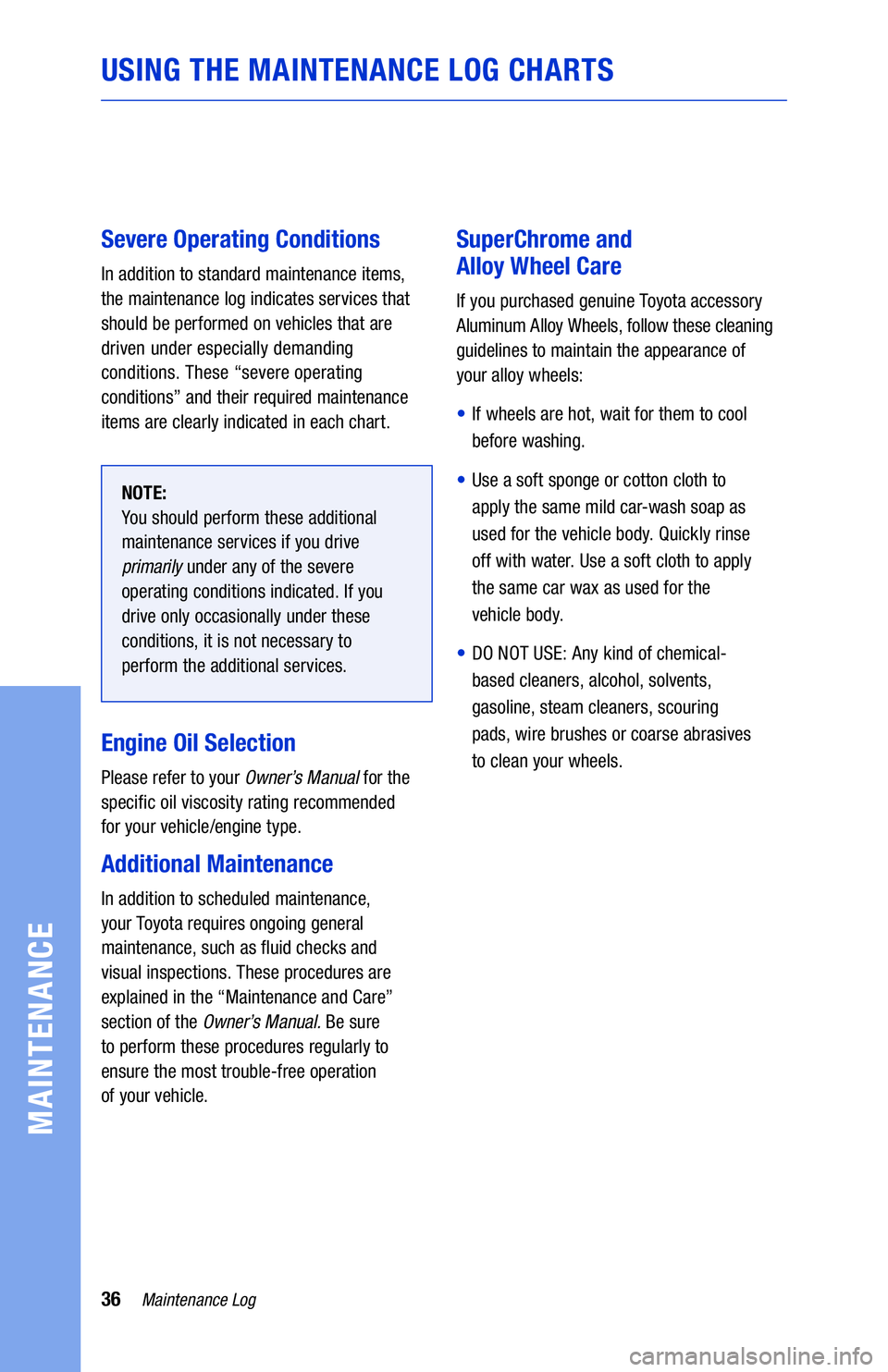

36Maintenance Log
MAINTENANCE
Severe Operating Conditions
In addition to standard maintenance items,
the maintenance log indicates services that
should be performed on vehicles that are
driven under especially demanding
conditions. These “severe operating
conditions” and their required maintenance
items are clearly indicated in each chart.
NOTE:
You should perform these additional
maintenance services if you drive
primarily under any of the severe
operating conditions indicated. If you
drive only occasionally under these
conditions, it is not necessary to
perform the additional services.
Engine Oil Selection
Please refer to your Owner’s Manual for the
specic oil viscosity rating recommended
for your vehicle/engine type.
Additional Maintenance
In addition to scheduled maintenance,
your Toyota requires ongoing general
maintenance, such as uid checks and
visual inspections. These procedures are
explained in the “Maintenance and Care”
section of the Owner ’s Manual. Be sure
to perform these procedures regularly to
ensure the most trouble-free operation
of your vehicle.
SuperChrome and
Alloy Wheel Care
If you purchased genuine Toyota accessory
Aluminum Alloy Wheels, follow these cleaning
guidelines to maintain the appearance of
your alloy wheels:
• If wheels are hot, wait for them to cool
before washing.
• Use a soft sponge or cotton cloth to
apply the same mild car-wash soap as
used for the vehicle body. Quickly rinse
off with water. Use a soft cloth to apply
the same car wax as used for the
vehicle body.
• DO NOT USE: Any kind of chemical-
based cleaners, alcohol, solvents,
gasoline, steam cleaners, scouring
pads, wire brushes or coarse abrasives
to clean your wheels.
USING THE MAINTENANCE LOG CHARTS

37Maintenance Log
MAINTENANCE
SCHEDULED MAINTENANCE
Driving on dirt
or dusty roads
Driving on dirt
or dusty roads
Automatic transmission uid
Brake uid
Brake lines and hoses
Brake pads and discs
Cabin air lter Bolts and nuts
on chassis
Normal Normal Normal
Normal Severe
Severe SevereMiles (000)
Month
7.5 15 22.5 30 37.5 45 52.5 60 67.5 75 82.5 90
7.5 15 22.5 30 37.5 45 52.5 60 67.5 75 82.5 90
When operating in high humidity areas or in mountainous areas, replace e\
very 15,000 miles or
15 month, whichever occurs rst.
When operating in areas where road salts or other corrosive materials ar\
e used; if living in coastal areas,
inspect every 7,500 miles or 7.5 months, whichever occurs rst.
Note: Driving in heavy trafc, on dirt roads or in urban, dusty or de\
sert areas may shorten the life of the cabin air lter.
Replacement may be needed if you notice reduced airow from the air c\
onditioner and heater or if the windows fog
easily when you use the “fresh” mode. Consult your dealer if any o\
f these conditions occur.After the described period, continue to follow the described maintenance\
at the recommended intervals. I = Inspect; R = Replace, Change, Rotate Tires or Lubricate; T = Tighten\
to Specied Torque
Maintenance Item
I IIRII
I I
I II
I
I
I
I II I
R R
R R
R
R
R R
R
Repeated short driving distance; driving on rough and/or muddy roads; dr\
iving in areas where
road salts or other corrosive materials are used; if living in coastal a\
reas, inspect every
7,500 miles or 7.5 months, whichever occurs rst.
T T T T T T T T T T T T
Maintenance Interval (Miles or Number of Months, Whichever Occurs First\
)

38Maintenance Log
MAINTENANCE
SCHEDULED MAINTENANCE
Driving on dirt
or dusty roads
Inspect
Clutch uid and system operations
Drive shaft boots
Engine oil and oil lter
Engine coolant
Engine air lter Drive belt
Normal
Normal
Normal Severe Severe
ReplaceMiles (000)
Month
7.5 15 22.5 30 37.5 45 52.5 60 67.5 75 82.5 90
7.5 15 22.5 30 37.5 45 52.5 60 67.5 75 82.5 90
Driving on dirt
or dusty roads
Repeated short driving distance; driving on rough and/or muddy roads;
if driving in extremely cold weather; in areas where road salts or other\
corrosive materials are used;
if living in coastal areas, inspect every 7,500 miles or 7.5 months, whi\
chever occurs rst.
Repeated short distance driving; driving in extremely cold weather, repl\
ace every 3,750 miles
or 3.75 months, whichever occurs rst.
Note: When the vehicle is used in extremely dusty conditions, the air \
lter cleaner element should be replaced more often.Note: See the“Explanation of Maintenance Items” section in the bac\
k of this guide for more information.
Maintenance Item
I IIIII
I
I I
I
First replace at 135,000 miles or 132 months, then replace at every 75,0\
00 miles or 72 months,
whichever occurs rst.
R RR
III RIII RIII RRRRRRRRRRRR
R
I
IIII
I
II
After the described period, continue to follow the described maintenance\
at the recommended intervals.
I = Inspect; R = Replace, Change, Rotate Tires or Lubricate; T = Tighten\
to Specied Torque
Maintenance Interval (Miles or Number of Months, Whichever Occurs First\
)

39Maintenance Log
MAINTENANCE
SCHEDULED MAINTENANCE
Exhaust pipes and mountings
Fuel lines and
connections,
fuel tank
vapor vent system hoses
and fuel tank
band
Fuel lter
Fuel tank cap gasket
Manual transmission oil
Parking brake lining
and drums
Rear differential oil
Spark plugs Driver’s oor mat proper installation
Normal Normal
Severe Normal
SevereMiles (000)
Month
7.5 15 22.5 30 37.5 45 52.5 60 67.5 75 82.5 90
7.5 15 22.5 30 37.5 45 52.5 60 67.5 75 82.5 90
Maintenance Item
IIIIII
I II
I
II
I II
R
R
I
I I
When operating in areas where road salts or other corrosive materials ar\
e used; if living in coastal areas,
inspect every 7,500 miles or 7.5 months, whichever occurs rst.
When operating in areas where road salts or other corrosive materials ar\
e used; if living in coastal areas,
inspect every 7,500 miles or 7.5 months, whichever occurs rst.
Note: When operating the vehicle in extremely cold or hot weather condit\
ions, contamination of the lter may occur andlter replacement should be performed more often.
I
I
I
I
I
I I
I I
IIIIIIIII
After the described period, continue to follow the described maintenance\
at the recommended intervals.
I = Inspect; R = Replace, Change, Rotate Tires or Lubricate; T = Tighten\
to Specied Torque
Maintenance Interval (Miles or Number of Months, Whichever Occurs First\
)
