TOYOTA GT86 2019 Warranties & Maintenance Guides (in English)

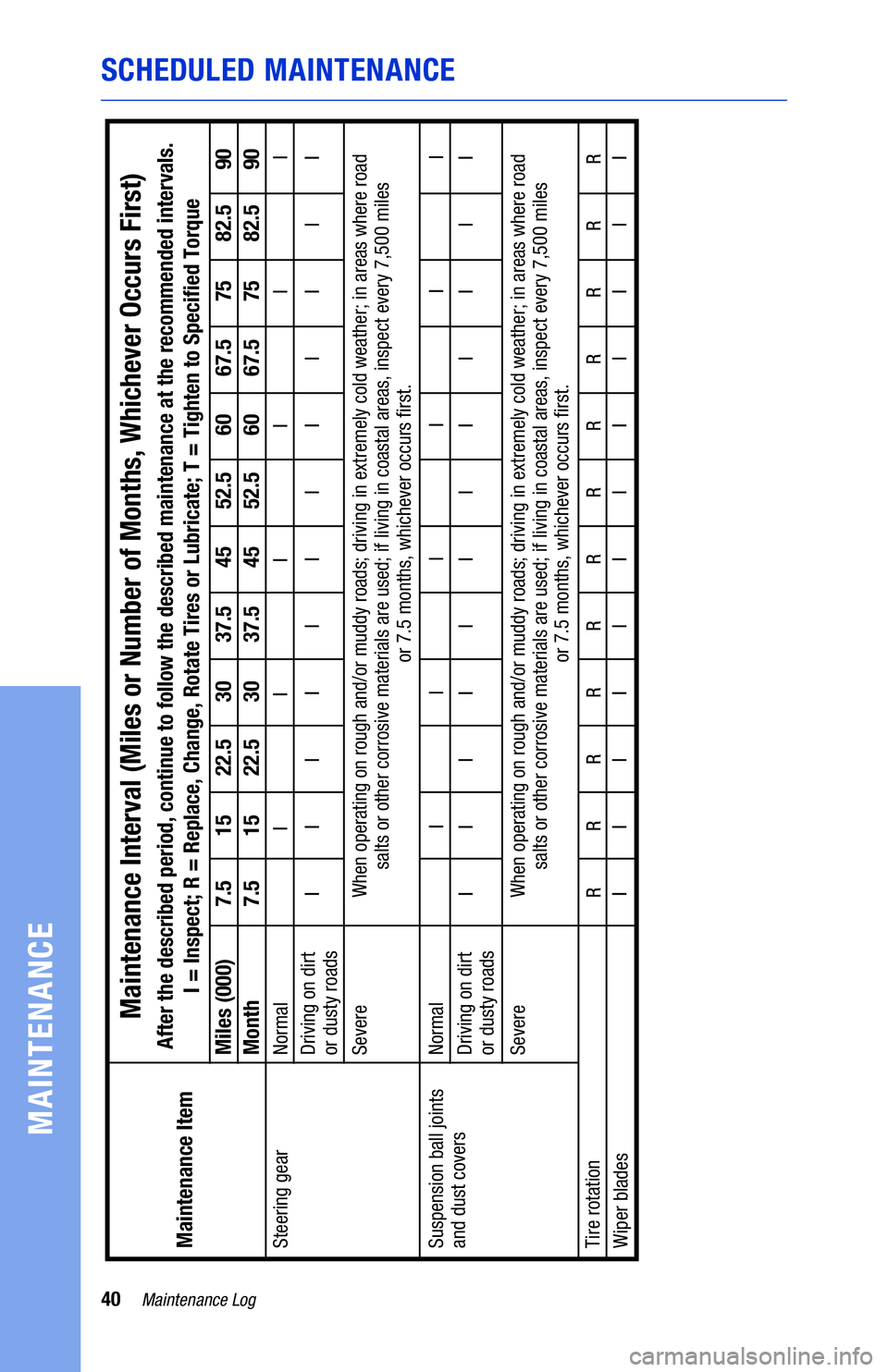

40Maintenance Log
MAINTENANCE
SCHEDULED MAINTENANCE
NormalMiles (000)
Month
7.5 15 22.5 30 37.5 45 52.5 60 67.5 75 82.5 90
7.5 15 22.5 30 37.5 45 52.5 60 67.5 75 82.5 90
Driving on dirt
or dusty roads Driving on dirt
or dusty roads
Severe Severe
When operating on rough and/or muddy roads; driving in extremely cold we\
ather; in areas where road
salts or other corrosive materials are used; if living in coastal areas,\
inspect every 7,500 miles
or 7.5 months, whichever occurs rst.
When operating on rough and/or muddy roads; driving in extremely cold we\
ather; in areas where road
salts or other corrosive materials are used; if living in coastal areas,\
inspect every 7,500 miles
or 7.5 months, whichever occurs rst.
Steering gear
Suspension ball joints
and dust covers
Normal
Tire rotation
Wiper bladesMaintenance Item
After the described period, continue to follow the described maintenance\
at the recommended intervals.I = Inspect; R = Replace, Change, Rotate Tires or Lubricate; T = Tighten\
to Specied Torque
Maintenance Interval (Miles or Number of Months, Whichever Occurs First\
)

41Maintenance Log
MAINTENANCE
EXPLANATION OF MAINTENANCE ITEMS
T
he following descriptions are
provided to give you a better
understanding of the maintenance
items that should be performed on your
vehicle. The scheduled maintenance log
indicates at which mileage/time intervals
each item should be performed. Please
note that many maintenance items should
be performed only by a qualied technician.
For further information on maintenance
items you can perform yourself, see
the “Maintenance and Care” and
“Do-It-Yourself Maintenance” sections
of the Owner’s Manual .
Automatic Transmission Fluid or
Manual Transmission Oil
Inspect or replace at specied intervals.
When performing inspections, check each
component for signs of leakage. If you
discover any leakage, have it repaired by
a qualied technician immediately.
Ball Joints and Dust Covers
Check the suspension and steering
linkage ball joints for looseness and
damage. Check all dust covers for
deterioration and damage. Replace
any deteriorated or damaged parts.
A qualied technician should perform
these operations.
Brake Lines and Hoses
Visually inspect for proper installation.
Check for chang, cracks, deterioration
and signs of leakage. Replace any
deteriorated or damaged parts. A qualied
technician should perform these operations.
Brake Linings/Drums and
Brake Pads/Discs
Check the brake linings (shoes) and
drums for scoring, burning, uid leakage,
broken parts and excessive wear. Check
the pads for excessive wear and the discs
for runout, excessive wear and uid
leakage. Replace any deteriorated or
damaged parts. A qualied technician
should perform these operations.
Cabin Air Filter
Replace at specied intervals. Driving in
heavy trafc, on dirt roads or in urban,
desert or dusty areas may shorten lter’s
life. More frequent replacement may
be necessary.
Differential Oil
Inspect at specied intervals. When
performing inspections, check each
component for signs of leakage. If you
discover any leakage, have it repaired
by a qualied technician immediately.
Drive Belts
Inspect for cracks, excessive wear and
oiliness. Check the belt tension and adjust
if necessary. Replace the belts if they
are damaged.

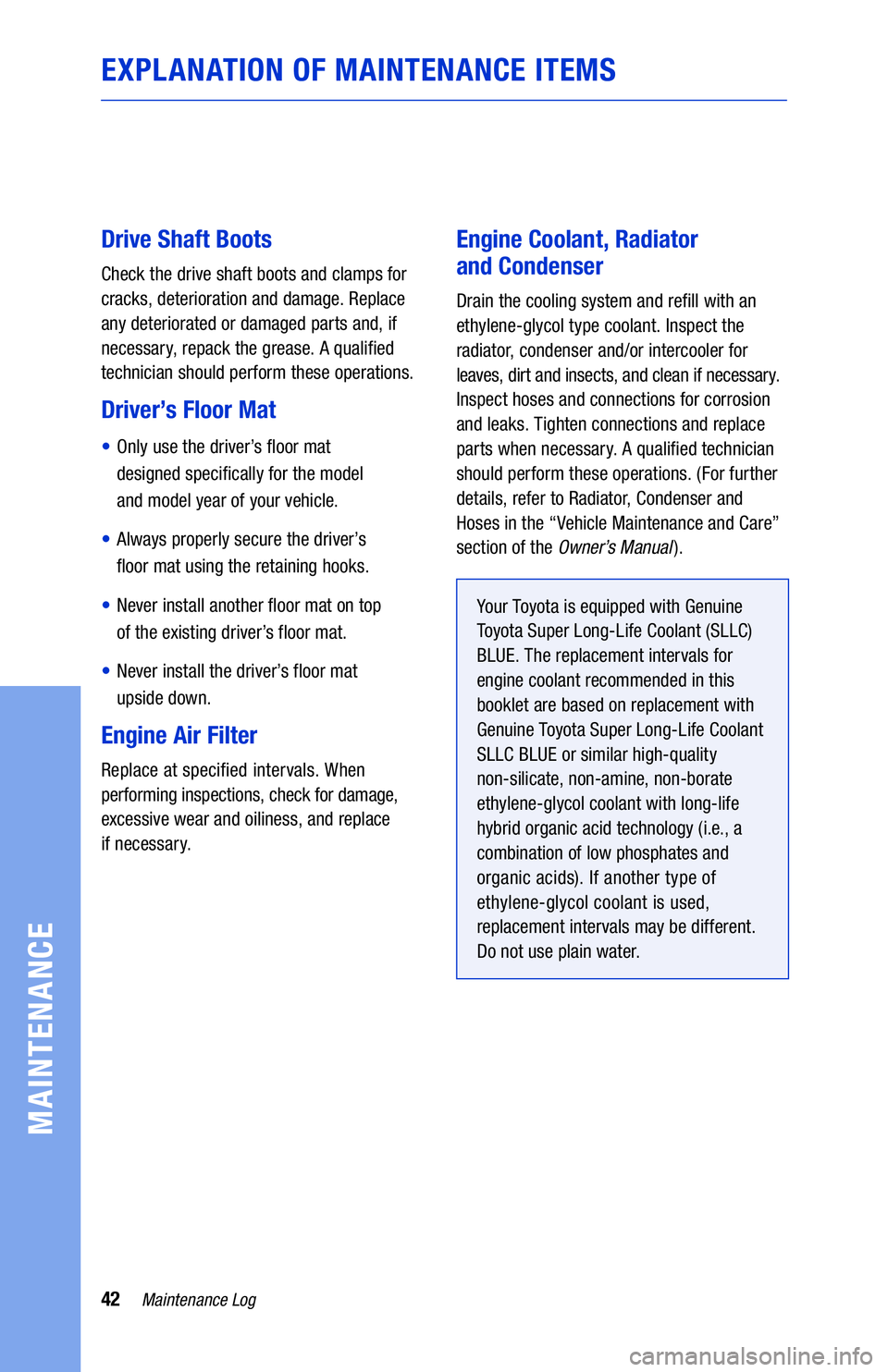

42Maintenance Log
MAINTENANCE
EXPLANATION OF MAINTENANCE ITEMS
Drive Shaft Boots
Check the drive shaft boots and clamps for
cracks, deterioration and damage. Replace
any deteriorated or damaged parts and, if
necessary, repack the grease. A qualied
technician should perform these operations.
Driver’s Floor Mat
• Only use the driver’s floor mat
designed specifically for the model
and model year of your vehicle.
• Always properly secure the driver’s
floor mat using the retaining hooks.
• Never install another floor mat on top
of the existing driver’s floor mat.
• Never install the driver’s floor mat
upside down.
Engine Air Filter
Replace at specied intervals. When
performing inspections, check for damage,
excessive wear and oiliness, and replace
if necessary.
Engine Coolant, Radiator
and Condenser
Drain the cooling system and rell with an
ethylene-glycol type coolant. Inspect the
radiator, condenser and/or intercooler for
leaves, dirt and insects, and clean if necessary.
Inspect hoses and connections for corrosion
and leaks. Tighten connections and replace
parts when necessary. A qualied technician
should perform these operations. (For further
details, refer to Radiator, Condenser and
Hoses in the “Vehicle Maintenance and Care”
section of the Owner’s Manua l ).
Your Toyota is equipped with Genuine
Toyota Super Long-Life Coolant (SLLC)
BLUE. The replacement intervals for
engine coolant recommended in this
booklet are based on replacement with
Genuine Toyota Super Long-Life Coolant
SLLC BLUE or similar high-quality
non-silicate, non-amine, non-borate
ethylene-glycol coolant with long-life
hybrid organic acid technology (i.e., a
combination of low phosphates and
organic acids). If another type of
ethylene-glycol coolant is used,
replacement intervals may be different.
Do not use plain water.

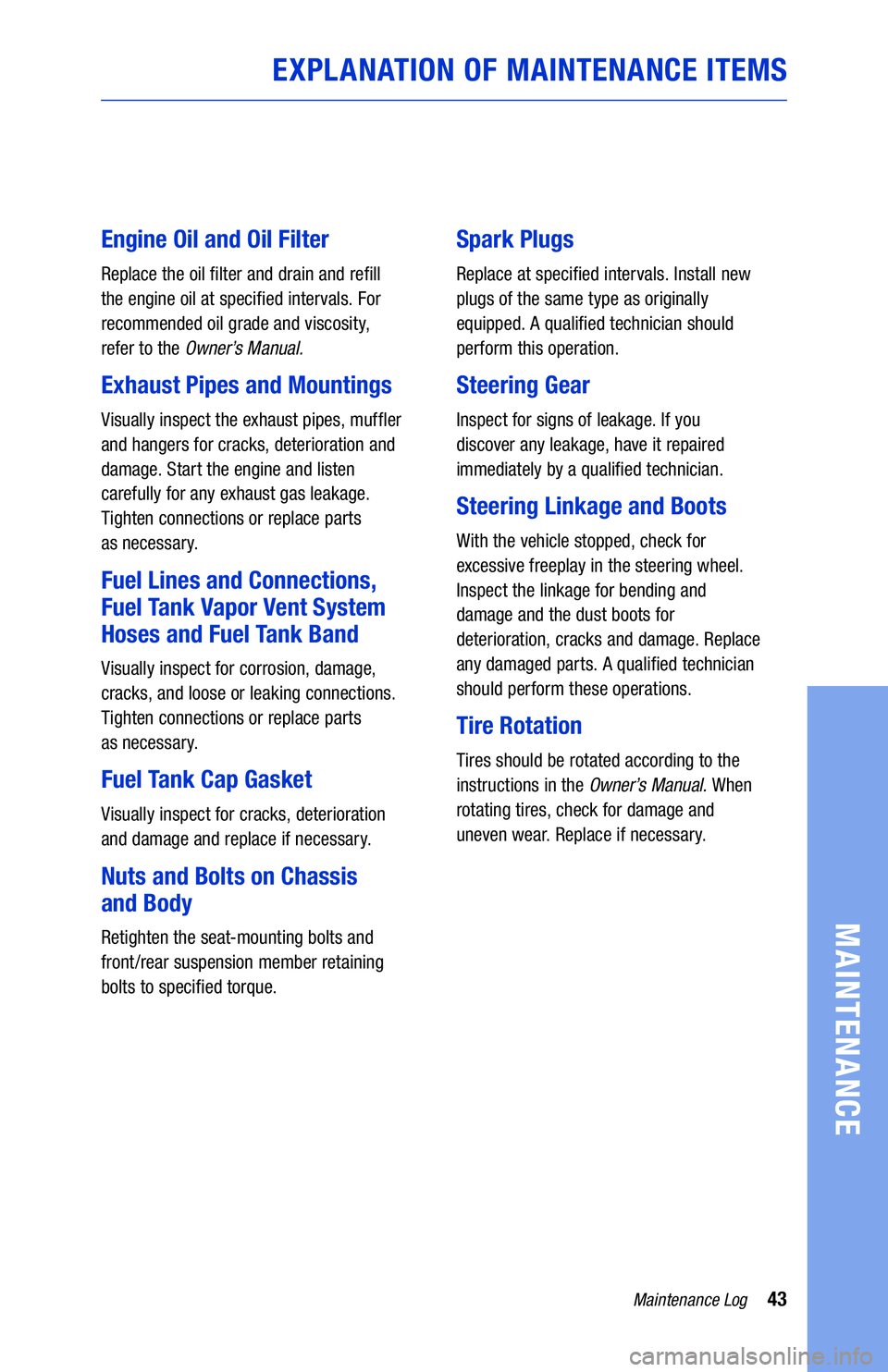

43Maintenance Log
MAINTENANCE
EXPLANATION OF MAINTENANCE ITEMS
Engine Oil and Oil Filter
Replace the oil lter and drain and rell
the engine oil at specied intervals. For
recommended oil grade and viscosity,
refer to the Owner’ s Manual.
Exhaust Pipes and Mountings
Visually inspect the exhaust pipes, mufer
and hangers for cracks, deterioration and
damage. Start the engine and listen
carefully for any exhaust gas leakage.
Tighten connections or replace parts
as necessary.
Fuel Lines and Connections,
Fuel Tank Vapor Vent System
Hoses and Fuel Tank Band
Visually inspect for corrosion, damage,
cracks, and loose or leaking connections.
Tighten connections or replace parts
as necessary.
Fuel Tank Cap Gasket
Visually inspect for cracks, deterioration
and damage and replace if necessary.
Nuts and Bolts on Chassis
and Body
Retighten the seat-mounting bolts and
front /rear suspension member retaining
bolts to specied torque.
Spark Plugs
Replace at specied intervals. Install new
plugs of the same type as originally
equipped. A qualied technician should
perform this operation.
Steering Gear
Inspect for signs of leakage. If you
discover any leakage, have it repaired
immediately by a qualied technician.
Steering Linkage and Boots
With the vehicle stopped, check for
excessive freeplay in the steering wheel.
Inspect the linkage for bending and
damage and the dust boots for
deterioration, cracks and damage. Replace
any damaged parts. A qualied technician
should perform these operations.
Tire Rotation
Tires should be rotated according to the
instructions in the Owner’s Manual. When
rotating tires, check for damage and
uneven wear. Replace if necessary.

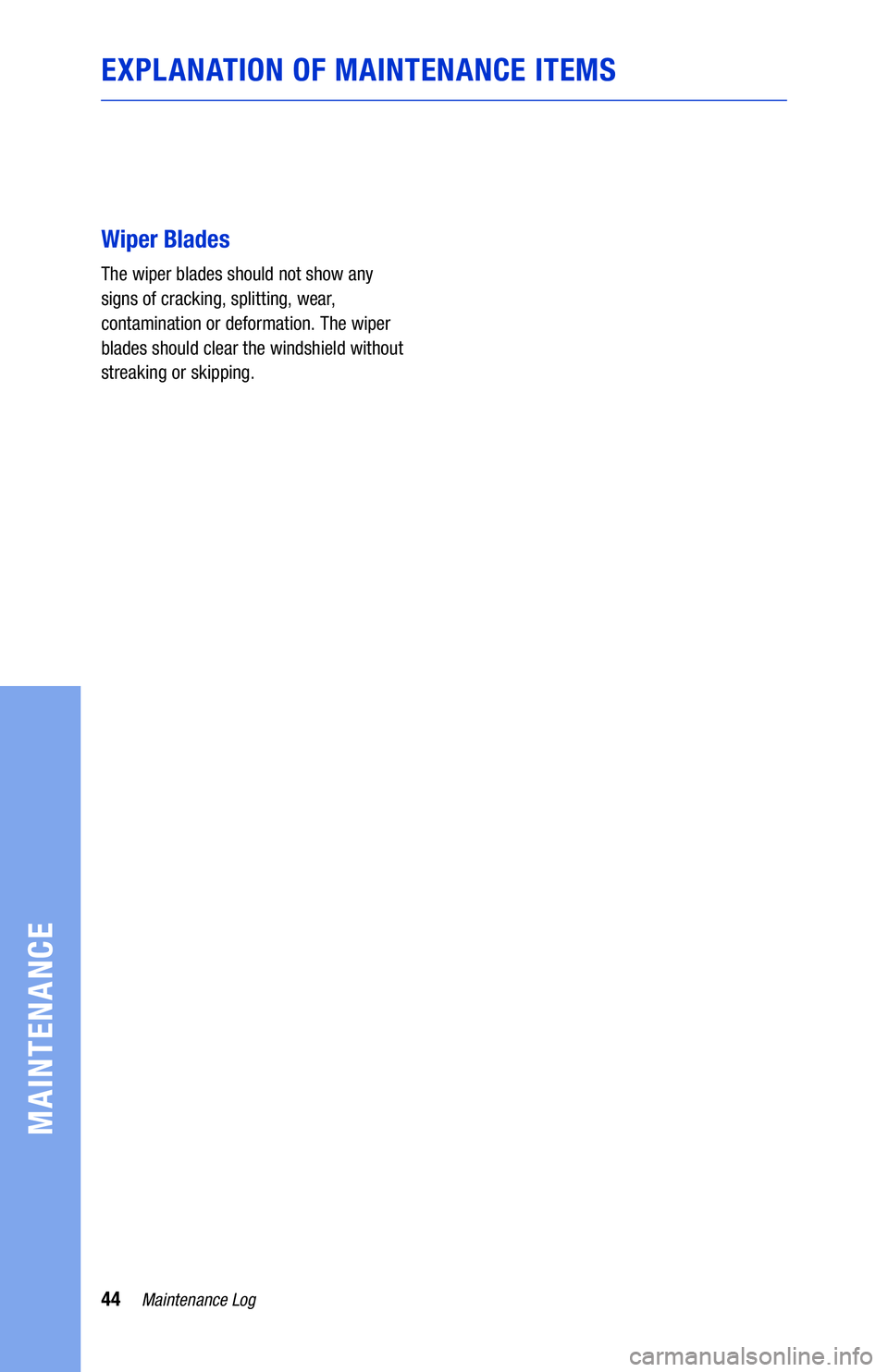

44Maintenance Log
MAINTENANCE
EXPLANATION OF MAINTENANCE ITEMS
Wiper Blades
The wiper blades should not show any
signs of cracking, splitting, wear,
contamination or deformation. The wiper
blades should clear the windshield without
streaking or skipping.

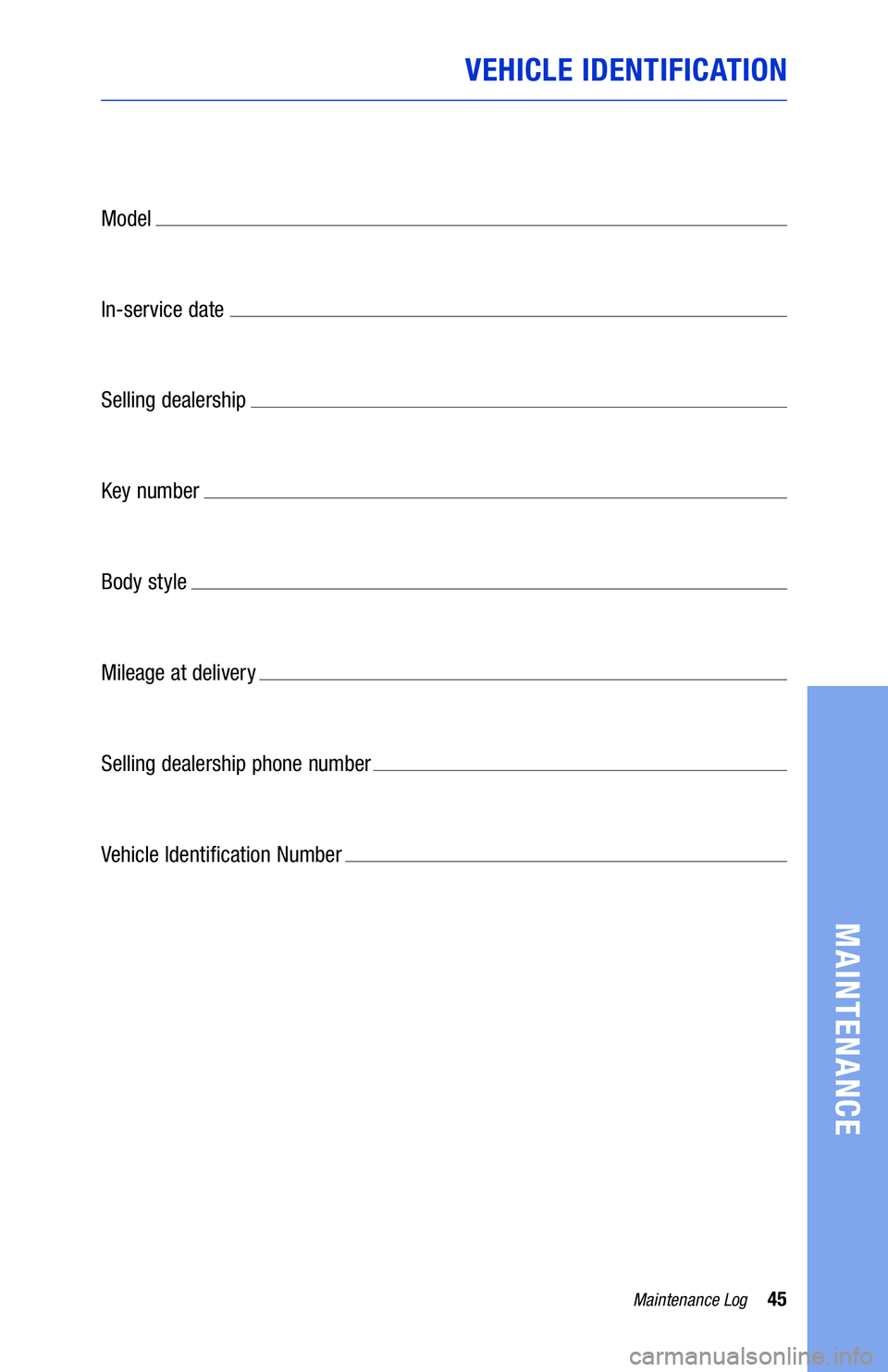

45Maintenance Log
MAINTENANCE
VEHICLE IDENTIFICATION
Model
In-service date
Selling dealership
Key number
Body style
Mileage at delivery
Selling dealership phone number
Vehicle Identication Number

46Maintenance Log
MAINTENANCE
NOTES

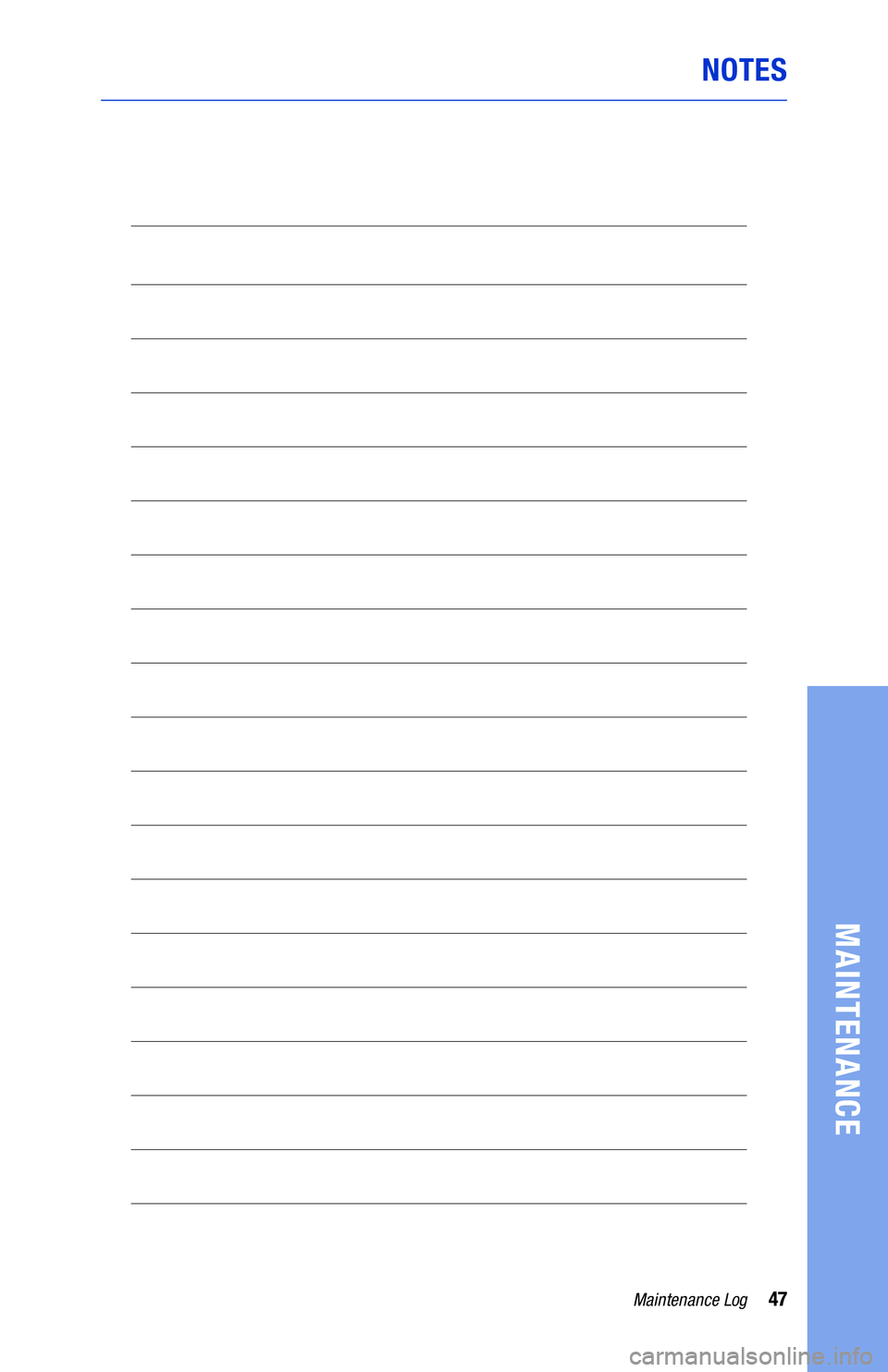

47Maintenance Log
MAINTENANCE
NOTES

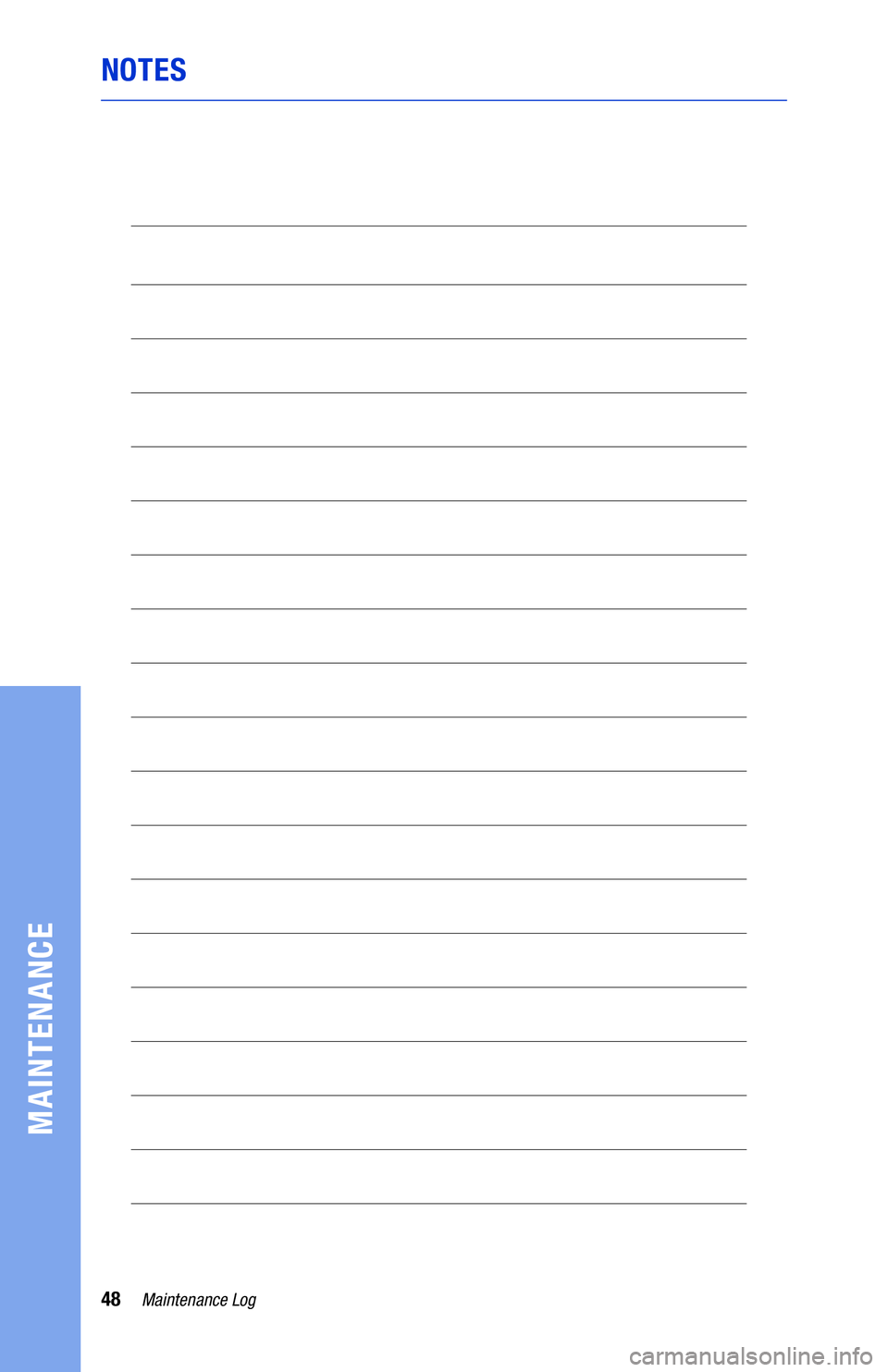

48Maintenance Log
MAINTENANCE
NOTES

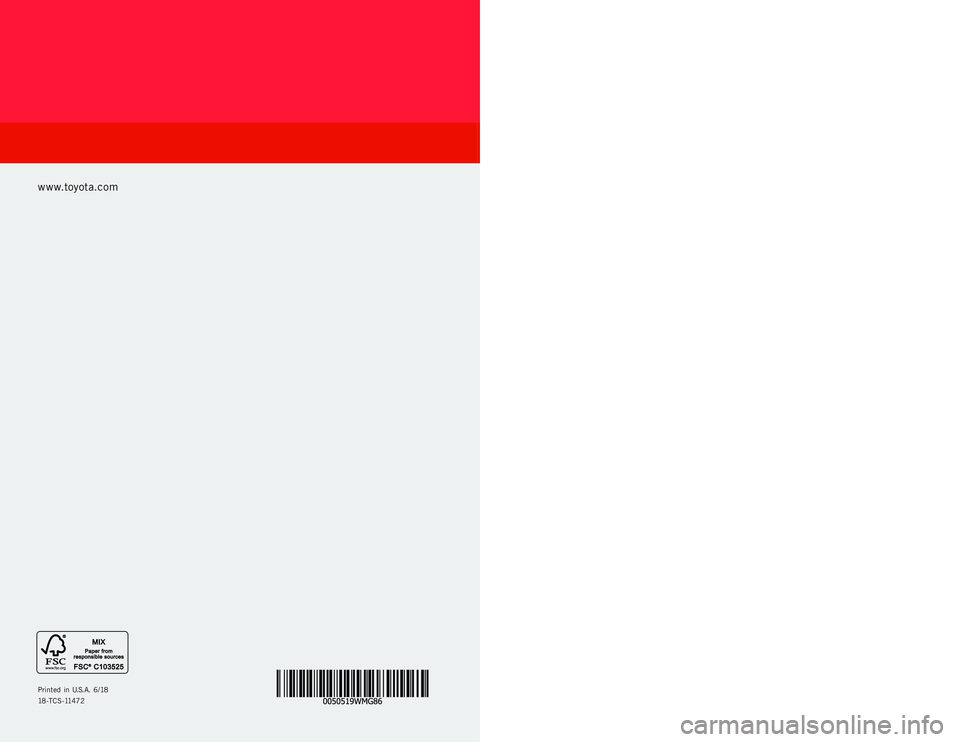

WARRANT Y &
MAINTENANCE GUIDE
Printed in U.S.A . 6/18
18-TCS-11472
86
2 0 1 9
www.toyota.com
