TOYOTA GT86 2020 (in English) User Guide

9

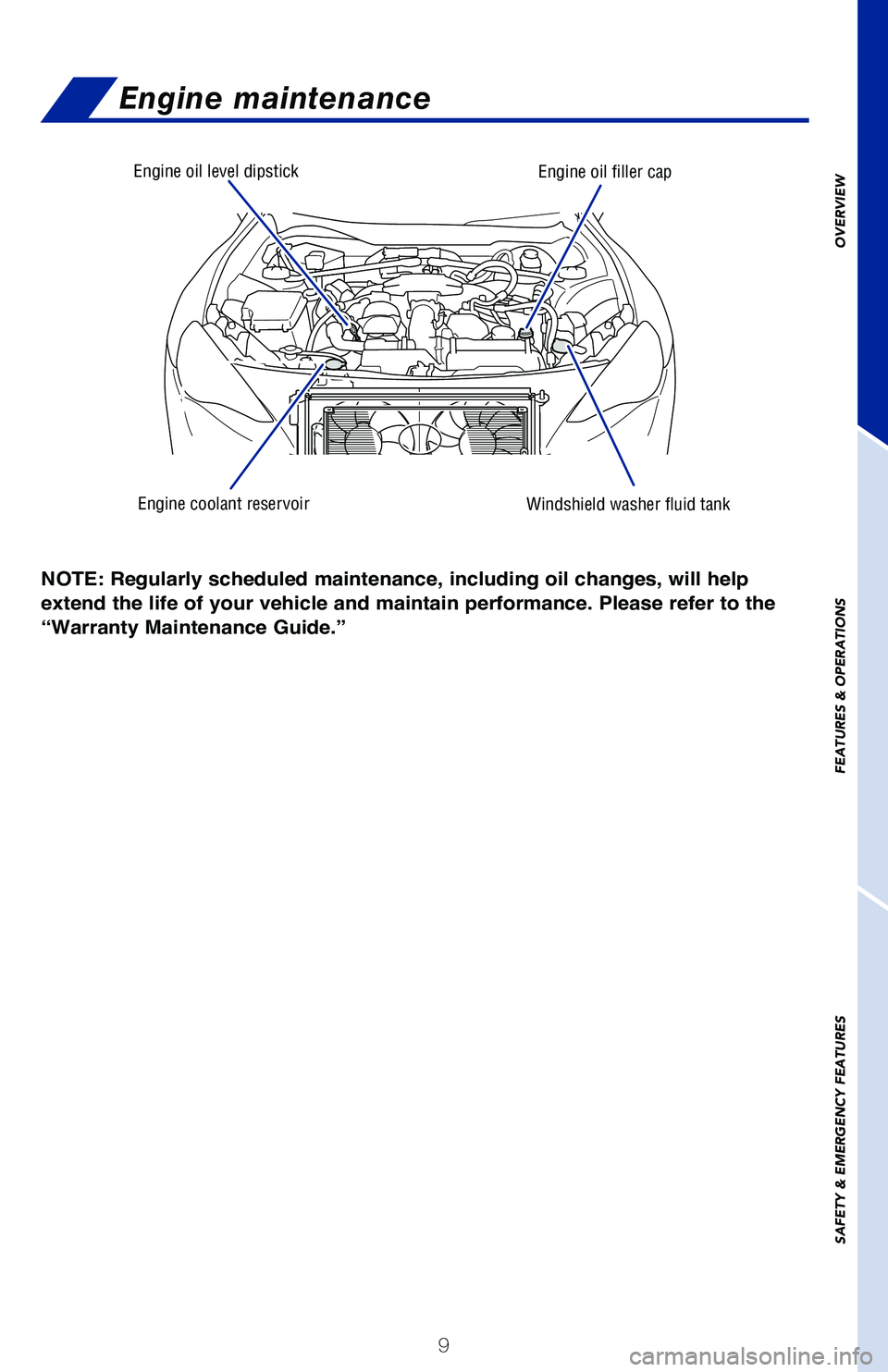

Windshield washer fluid tank
Engine oil level dipstick
Engine coolant reservoir
Engine oil filler cap
NOTE: Regularly scheduled maintenance, including oil changes, will help
extend the life of your vehicle and maintain performance. Please refer to the
“Warranty Maintenance Guide.”
Engine maintenance
OVERVIEW
FEATURES
& OPERATIONS
SAFETY
& EMERGENCY FEATURES

10

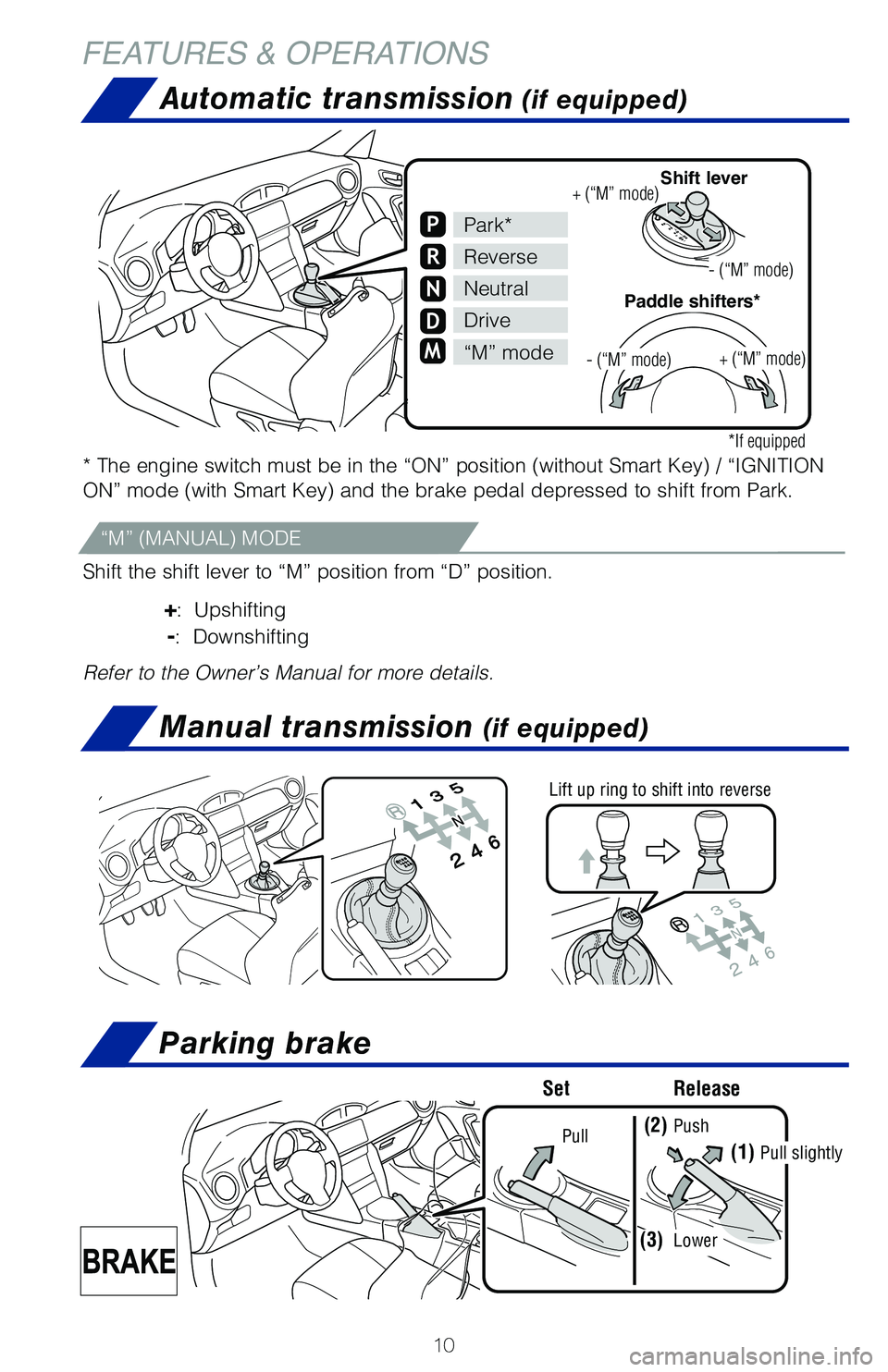

P
R
N
D
M
Park*
Reverse
Neutral
Drive
“M” mode
+ (“M” mode)
- (“M” mode)
+ (“M” mode)
*If equipped
- (“M” mode)
Paddle shifters*
Shift lever
* The engine switch must be in the “ON” position (without Smart K\
ey) / “IGNITION
ON” mode (with Smart Key) and the brake pedal depressed to shift fr\
om Park.
Shift the shift lever to “M” position from “D” position.
+: Upshifting
-: Downshifting
Refer to the Owner’s Manual for more details.
Pull(2) Push
(1) Pull slightly
(3) Lower
SetRelease
“M” (MANUAL) MODE
Automatic transmission (if equipped)
Lift up ring to shift into reverse
Manual transmission (if equipped)
Parking brake
FEATURES & OPERATIONS

11

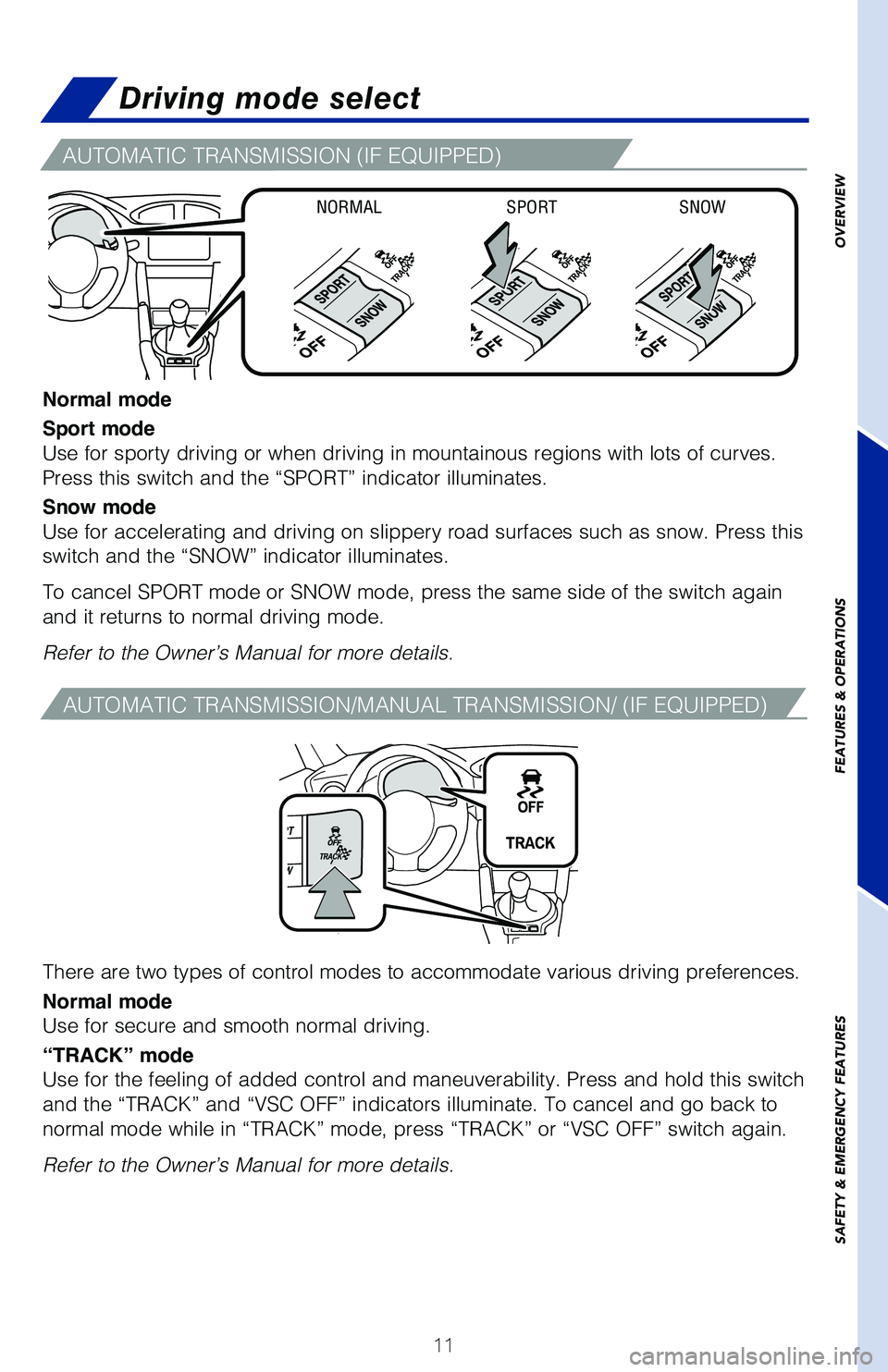

Normal mode
Sport mode
Use for sporty driving or when driving in mountainous regions with lots \
of curves.
Press this switch and the “SPORT” indicator illuminates.
Snow mode
Use for accelerating and driving on slippery road surfaces such as snow.\
Press this
switch and the “SNOW” indicator illuminates.
To cancel SPORT mode or SNOW mode, press the same side of the switch aga\
in
and it returns to normal driving mode.
Refer to the Owner’s Manual for more details.
There are two types of control modes to accommodate various driving pref\
erences.
Normal mode
Use for secure and smooth normal driving.
“TRACK” mode
Use for the feeling of added control and maneuverability. Press and hold\
this switch
and the “TRACK” and “VSC OFF” indicators illuminate. To canc\
el and go back to
normal mode while in “TRACK” mode, press “TRACK” or “VSC \
OFF” switch again.
Refer to the Owner’s Manual for more details.
Driving mode select
NORMALSPORTSNOW
AUTOMATIC TRANSMISSION (IF EQUIPPED)
AUTOMATIC TRANSMISSION/MANUAL TRANSMISSION/ (IF EQUIPPED)
OVERVIEW
FEATURES
& OPERATIONS
SAFETY
& EMERGENCY FEATURES

12
FEATURES & OPERATIONS

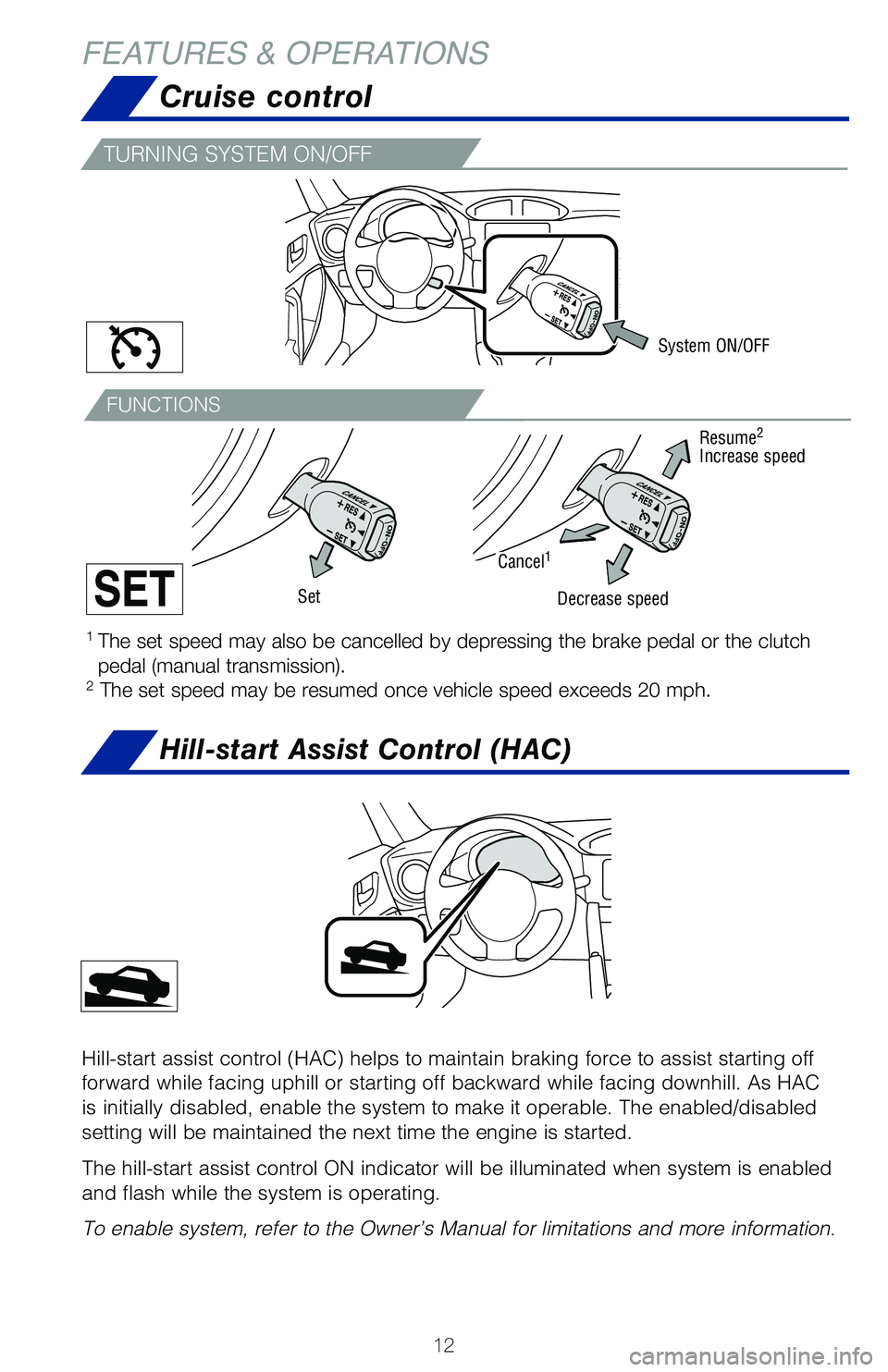

Cruise control
1 The set speed may also be cancelled by depressing the brake pedal or the\
clutch
pedal (manual transmission).2 The set speed may be resumed once vehicle speed exceeds 20 mph.
System ON/OFF
Increase speed
Decrease speed
Cancel1
Resume2
Set
Hill-start Assist Control (HAC)
Hill-start assist control (HAC) helps to maintain braking force to ass\
ist starting off
forward while facing uphill or starting off backward while facing downhi\
ll. As HAC
is initially disabled, enable the system to make it operable. The enable\
d/disabled
setting will be maintained the next time the engine is started.
The hill-start assist control ON indicator will be illuminated when syst\
em is enabled
and flash while the system is operating.
To enable system, refer to the Owner’s Manual for limitations and mor\
e information.
TURNING SYSTEM ON/OFF
FUNCTIONS

13

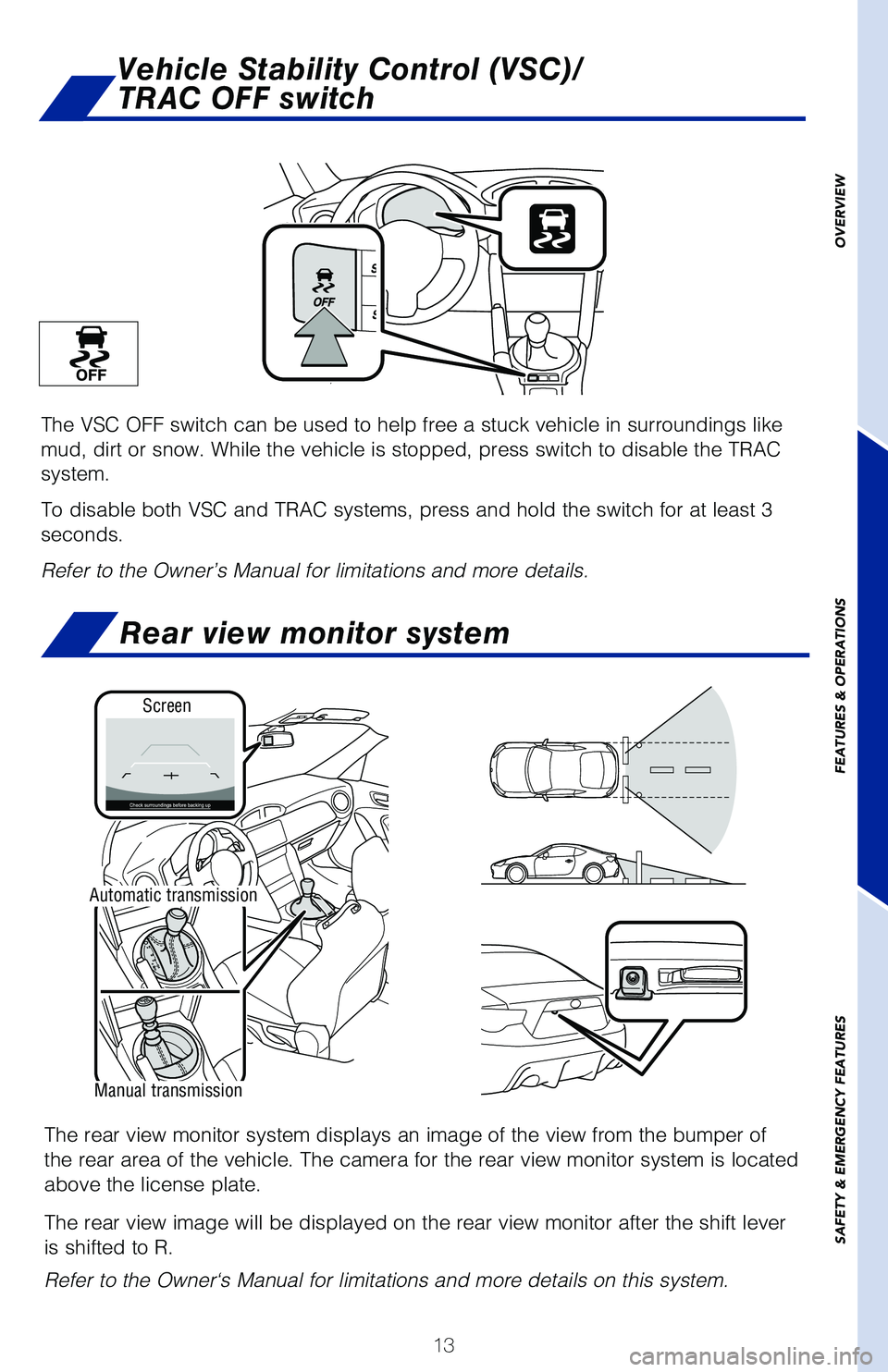

Vehicle Stability Control (VSC)/
TRAC OFF switch
The VSC OFF switch can be used to help free a stuck vehicle in surroundi\
ngs like
mud, dirt or snow. While the vehicle is stopped, press switch to disable\
the TRAC
system.
To disable both VSC and TRAC systems, press and hold the switch for at l\
east 3
seconds.
Refer to the Owner’s Manual for limitations and more details.
Rear view monitor system
The rear view monitor system displays an image of the view from the bump\
er of
the rear area of the vehicle. The camera for the rear view monitor syste\
m is located
above the license plate.
The rear view image will be displayed on the rear view monitor after the\
shift lever
is shifted to R.
Refer to the Owner‘s Manual for limitations and more details on this system.
Screen
Automatic transmission
Manual transmission
OVERVIEW
FEATURES
& OPERATIONS
SAFETY
& EMERGENCY FEATURES

14

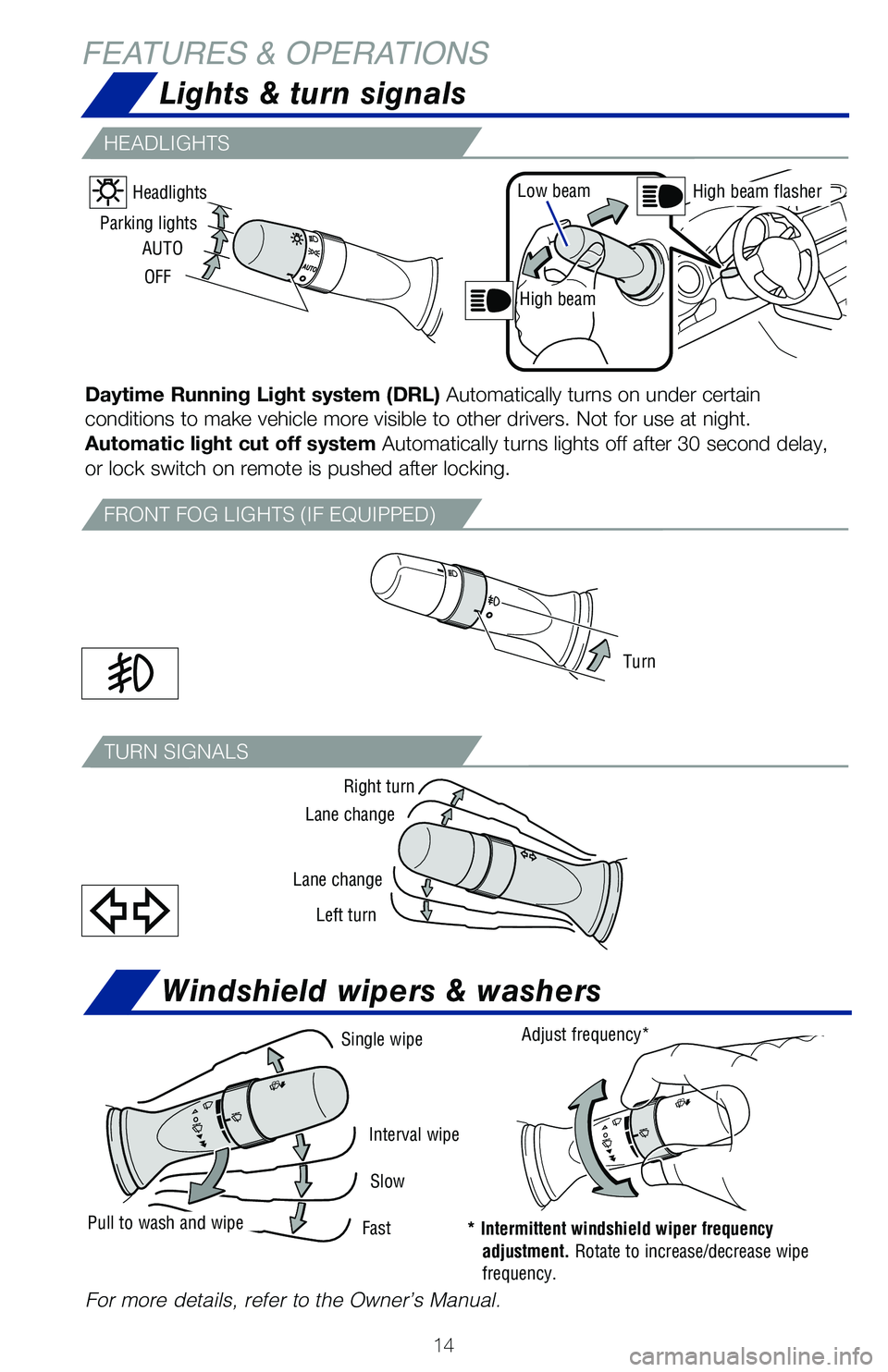

Windshield wipers & washers
For more details, refer to the Owner’s Manual.
* Intermittent windshield wiper frequency adjustment. Rotate to increase/decrease wipe frequency.
Lights & turn signals
Parking lights
Low beamHeadlights
Right turn
Left turn
Lane change
Lane change
High beam
High beam flasher
AUTO
OFF
Daytime Running Light system (DRL) Automatically turns on under certain
conditions to make vehicle more visible to other drivers. Not for use at\
night.
Automatic light cut off system Automatically turns lights off after 30 second delay,
or lock switch on remote is pushed after locking.
TURN SIGNALS
Turn
Interval wipe
Slow
FastPull to wash and wipe
Single wipeAdjust frequency*
FEATURES & OPERATIONS
HEADLIGHTS
FRONT FOG LIGHTS (IF EQUIPPED)

15

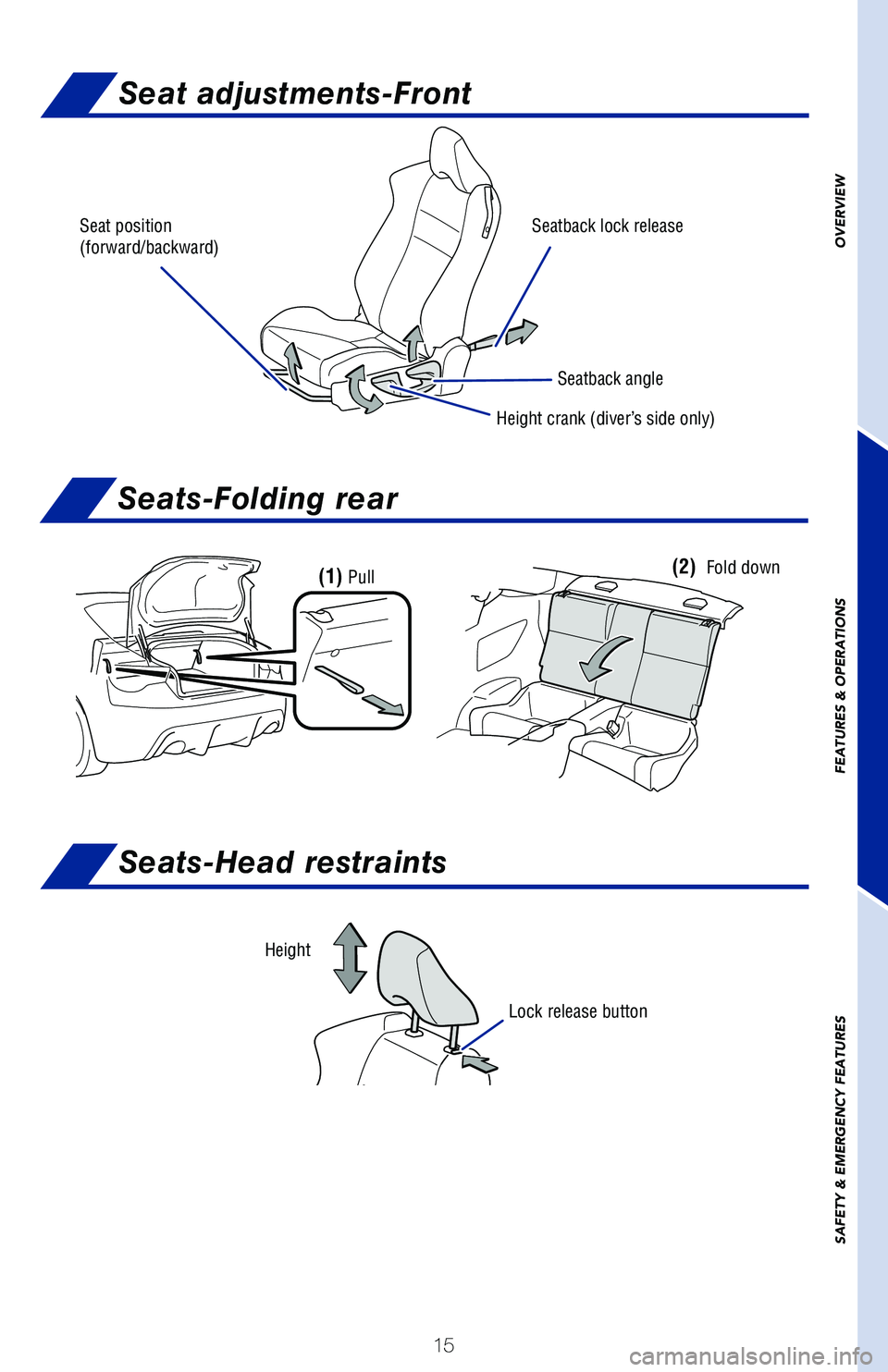

Seats-Folding rear
(1) Pull(2) Fold down
Height
Lock release button
Seat position(forward/backward)
Seatback angle
Height crank (diver’s side only)
Seatback lock release
Seat adjustments-Front
Seats-Head restraints
OVERVIEW
FEATURES
& OPERATIONS
SAFETY
& EMERGENCY FEATURES

16

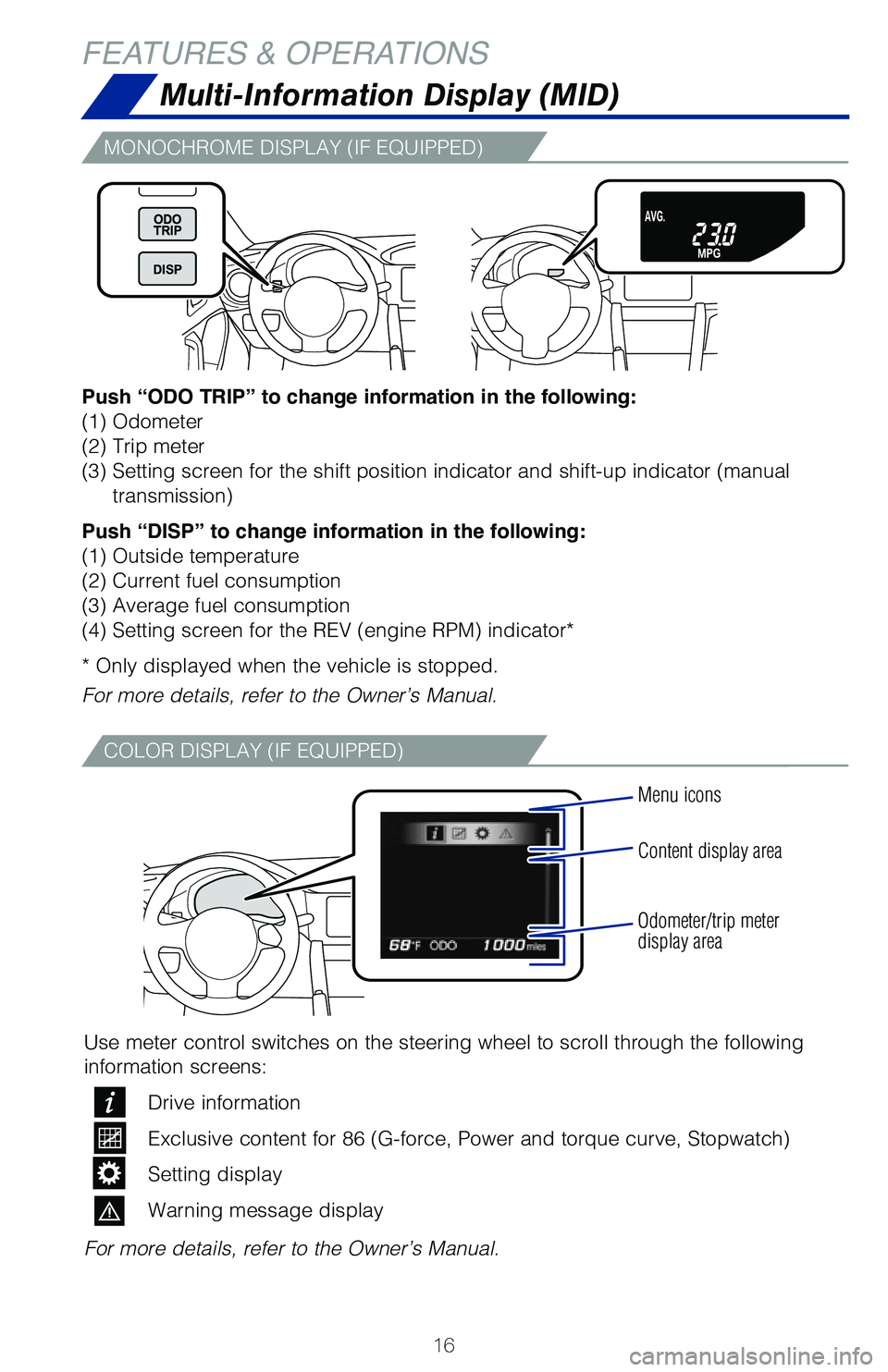

Multi-Information Display (MID)
Push “ODO TRIP” to change information in the following:
(1) Odometer
(2) Trip meter
(3) Setting screen for the shift position indicator and shift-up indic\
ator (manual
transmission)
Push “DISP” to change information in the following:
(1) Outside temperature
(2) Current fuel consumption
(3) Average fuel consumption
(4) Setting screen for the REV (engine RPM) indicator*
* Only displayed when the vehicle is stopped.
For more details, refer to the Owner’s Manual.
Menu icons
Content display area
Odometer/trip meter display area
Use meter control switches on the steering wheel to scroll through the f\
ollowing
information screens:
Drive information
Exclusive content for 86 (G-force, Power and torque curve, Stopwatch)\
Setting display
Warning message display
For more details, refer to the Owner’s Manual.
FEATURES & OPERATIONS
MONOCHROME DISPLAY (IF EQUIPPED)
COLOR DISPLAY (IF EQUIPPED)

17

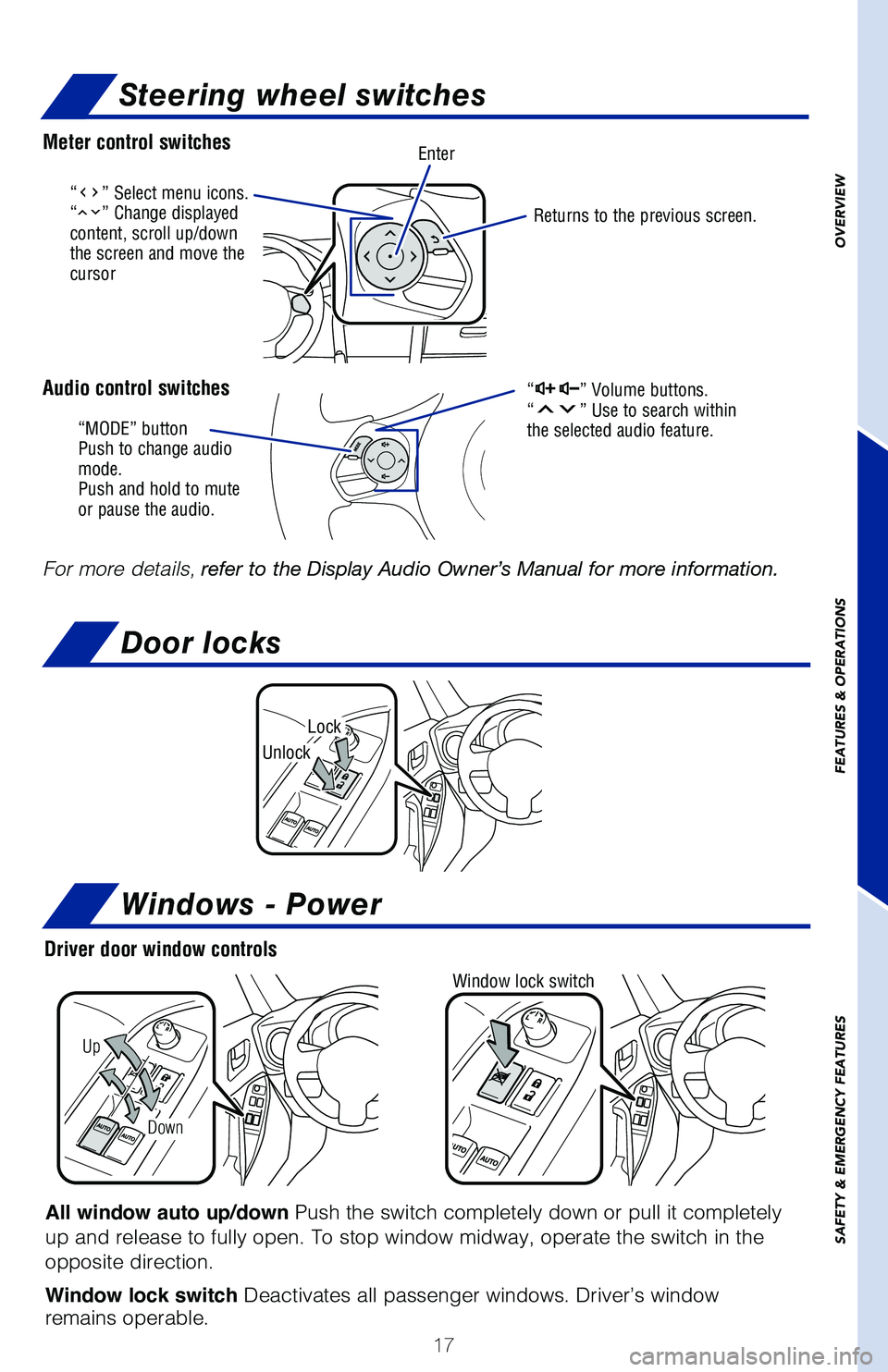

“” Select menu icons. “” Change displayed content, scroll up/down the screen and move the cursor
Returns to the previous screen.
“MODE” buttonPush to change audio mode.Push and hold to mute or pause the audio.
EnterMeter control switches
Audio control switches
Steering wheel switches
For more details, refer to the Display Audio Owner’s Manual for more information.
Door locks
Windows - Power
All window auto up/down Push the switch completely down or pull it completely
up and release to fully open. To stop window midway, operate the switch \
in the
opposite direction.
Window lock switch Deactivates all passenger windows. Driver’s window remains operable.
Window lock switch
Up
Down
Driver door window controls
Lock
Unlock
“” Volume buttons. “” Use to search within the selected audio feature.
OVERVIEW
FEATURES
& OPERATIONS
SAFETY
& EMERGENCY FEATURES

18
FEATURES & OPERATIONS
When starting the engine, the engine
switch may seem stuck in the “LOCK”
position. To free it, turn the key while
turning the steering wheel slightly left
and right.
A message will be displayed on the
multi-information display.
Automatic transmission
Check that the shift lever is in P. Press
the engine switch while turning the
steering wheel left and right.
Manual transmission
Press the engine switch while turning
the steering wheel left and right.
With Smart Key systemWithout Smart Key system
Push
TurnTurnTurn
Hold wheel, push lever down, set angle and length, and return lever.
NOTE: Do not attempt to adjust while the vehicle is in motion.
Tilt & telescopic steering wheel
Lock release lever
AngleLength
Steering lock release
