Quick Reference Guide 2020
toyota.comPrinted in U.S.A. 8/19 19 - M KG -13 4 8 5
QUICK
REFERENCE
GUIDE
2020
Page 2 of 32
Toyota 86
2020
This Quick Reference Guide is a summary of basic vehicle
operations. It contains brief descriptions of fundamental
operations so you can locate and use the vehicle’s main
equipment quickly and easily.
The Quick Reference Guide is not intended as a substitute for
the Owner’s Manual located in your vehicle’s glove box. We
strongly encourage you to review the Owner’s Manual and sup-
plementary manuals so you will have a better understanding of
your vehicle’s capabilities and limitations.
Your dealership and the entire staff of Toyota Motor North
America, Inc. wish you many years of satisfied driving in your
new 86.
A word about safe vehicle operations
This Quick Reference Guide is not a full description of 86 operations. E\
very 86
owner should review the Owner’s Manual that accompanies this vehicle.\
Pay special attention to the boxed information highlighted in color throughout
the Owner’s Manual. Each box contains safe operating instructions to \
help you
avoid injury or equipment malfunction.
All information in this Quick Reference Guide is current at the time of \
printing.
Toyota reserves the right to make changes at any time without notice.
29
6. Touch [PAIR] to begin the
pairing process. Once the
pairing process is completed, a
confirmation message is shown.
7. Touch [OK] on the message screen to complete the pairing process.
NOTE: A maximum of four devices can be paired.
The Multimedia System will automatically initiate the download of contacts, call
history and messages.
Refer to the Display Audio Owner’s Manual for more information.
Page 3 of 32
1

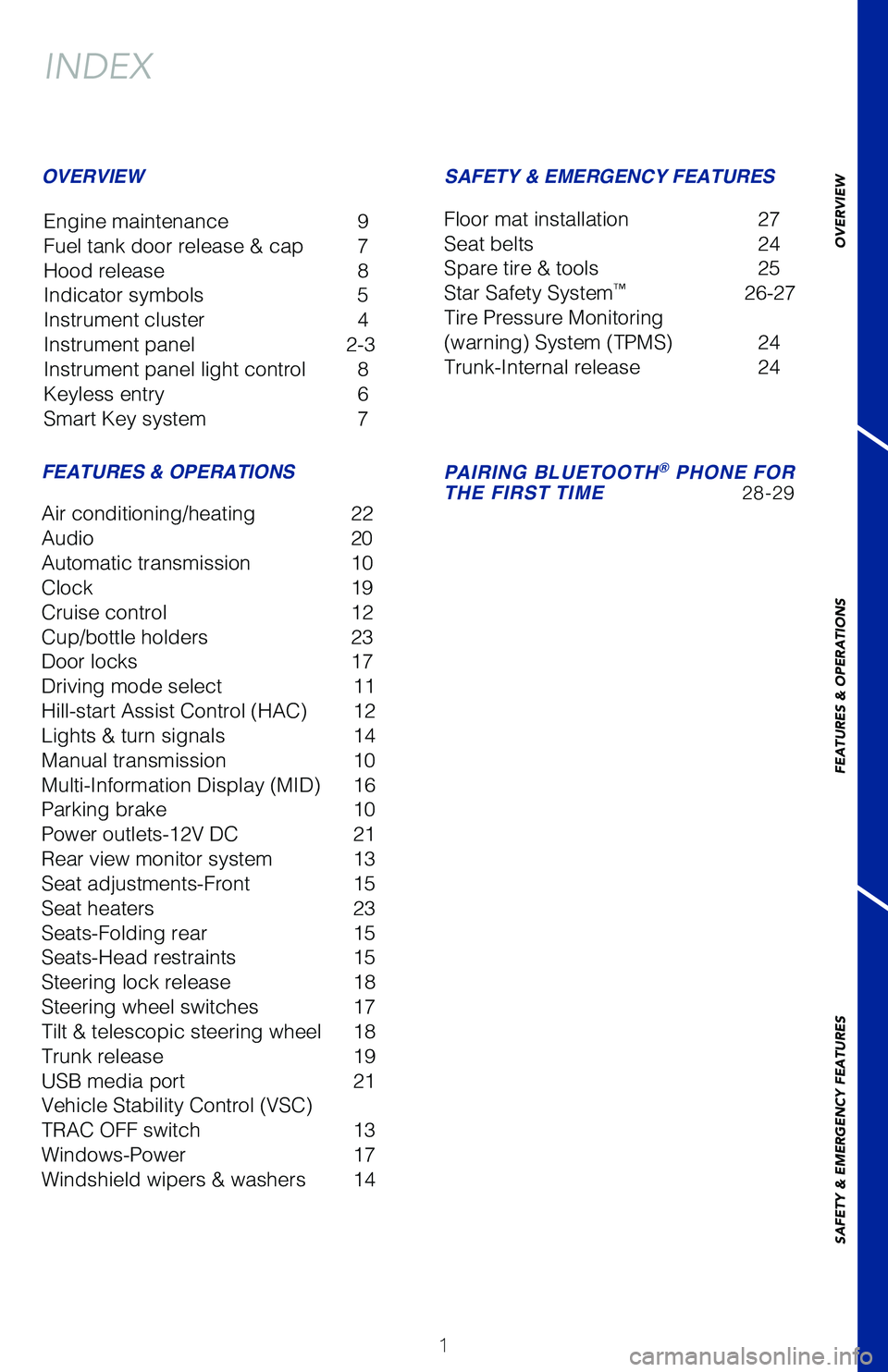

INDEX
Engine maintenance 9
Fuel tank door release & cap 7
Hood release 8
Indicator symbols 5
Instrument cluster 4
Instrument panel 2-3
Instrument panel light control 8
Keyless entry 6
Smart Key system 7
OVERVIEW
FEATURES & OPERATIONS
SAFETY & EMERGENCY FEATURES
Air conditioning/heating 22
Audio 20
Automatic transmission 10
Clock 19
Cruise control 12
Cup/bottle holders 23
Door locks 17
Driving mode select 11
Hill-start Assist Control (HAC) 12
Lights & turn signals 14
Manual transmission 10
Multi-Information Display (MID) 16
Parking brake 10
Power outlets-12V DC 21
Rear view monitor system 13
Seat adjustments-Front 15
Seat heaters 23
Seats-Folding rear 15
Seats-Head restraints 15
Steering lock release 18
Steering wheel switches 17
Tilt & telescopic steering wheel 18
Trunk release 19
USB media port 21
Vehicle Stability Control (VSC)
TRAC OFF switch 13
Windows-Power 17
Windshield wipers & washers 14
Floor mat installation 27
Seat belts 24
Spare tire & tools 25
Star Safety System™ 26-27
Tire Pressure Monitoring
(warning) System (TPMS) 24
Trunk-Internal release 24
PAIRING BLUETOOTH® PHONE FOR THE FIRST TIME 28-29
OVERVIEW
FEATURES
& OPERATIONS
SAFETY
& EMERGENCY FEATURES
Page 4 of 32
2

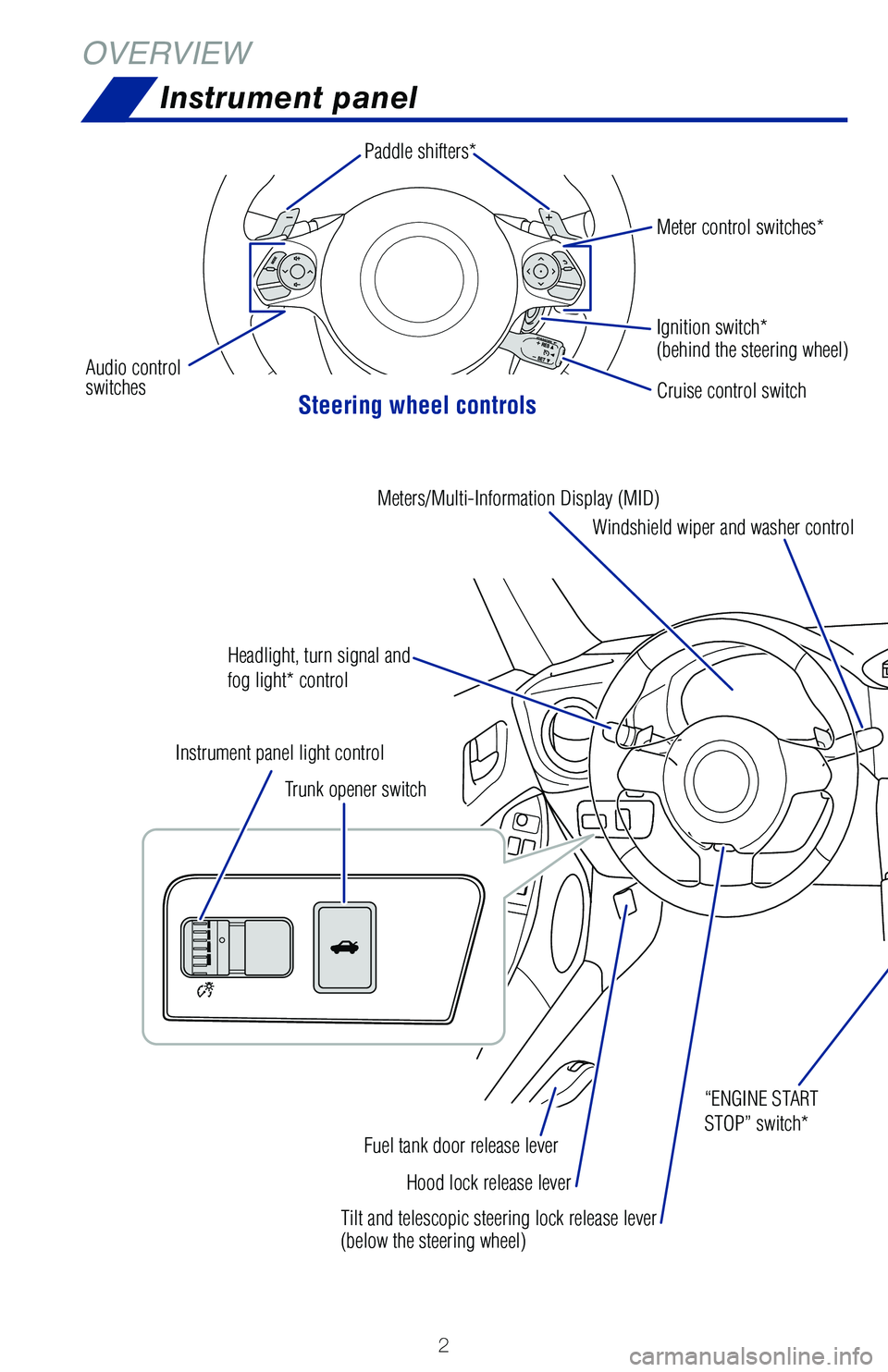

Instrument panel
Steering wheel controls
OVERVIEW
Paddle shifters*
Audio controlswitches
Ignition switch* (behind the steering wheel)
Meter control switches*
Headlight, turn signal and
fog light* control
Windshield wiper and washer control
Meters/Multi-Information Display (MID)
Tilt and telescopic steering lock release lever (below the steering wheel)
Hood lock release lever
Fuel tank door release lever
“ENGINE START
STOP” switch*
Trunk opener switch
Instrument panel light control
Cruise control switch
Page 5 of 32
3

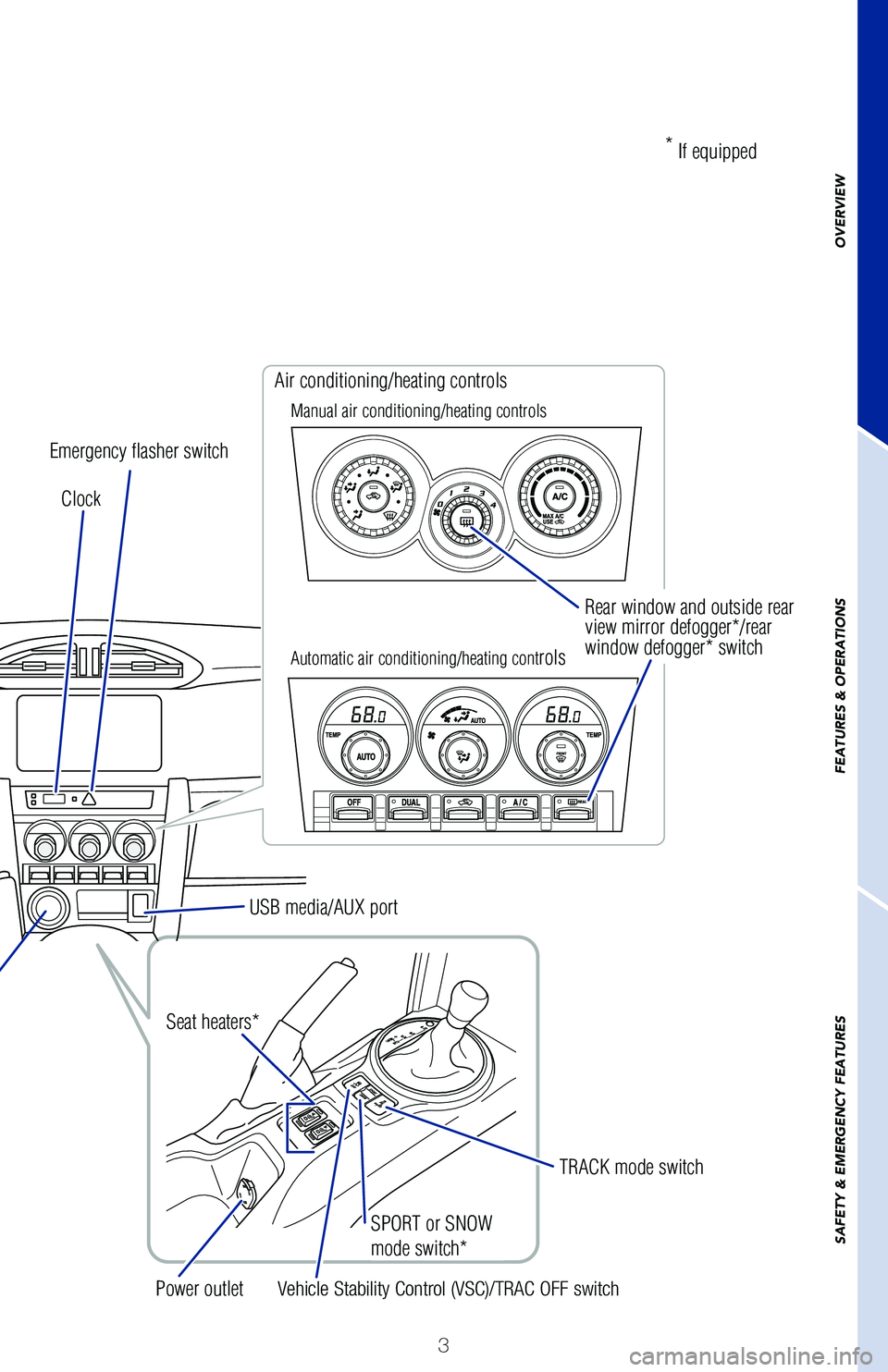

Rear window and outside rear view mirror defogger*/rear window defogger* switch
SPORT or SNOW
mode switch*
Clock
Emergency flasher switch
Air conditioning/heating controls
Manual air conditioning/heating controls
Automatic air conditioning/heating controls
Vehicle Stability Control (VSC)/TRAC OFF switch
TRACK mode switch
Seat heaters*
Power outlet
* If equipped
USB media/AUX port
OVERVIEW
FEATURES
& OPERATIONS
SAFETY
& EMERGENCY FEATURES
Page 6 of 32
4

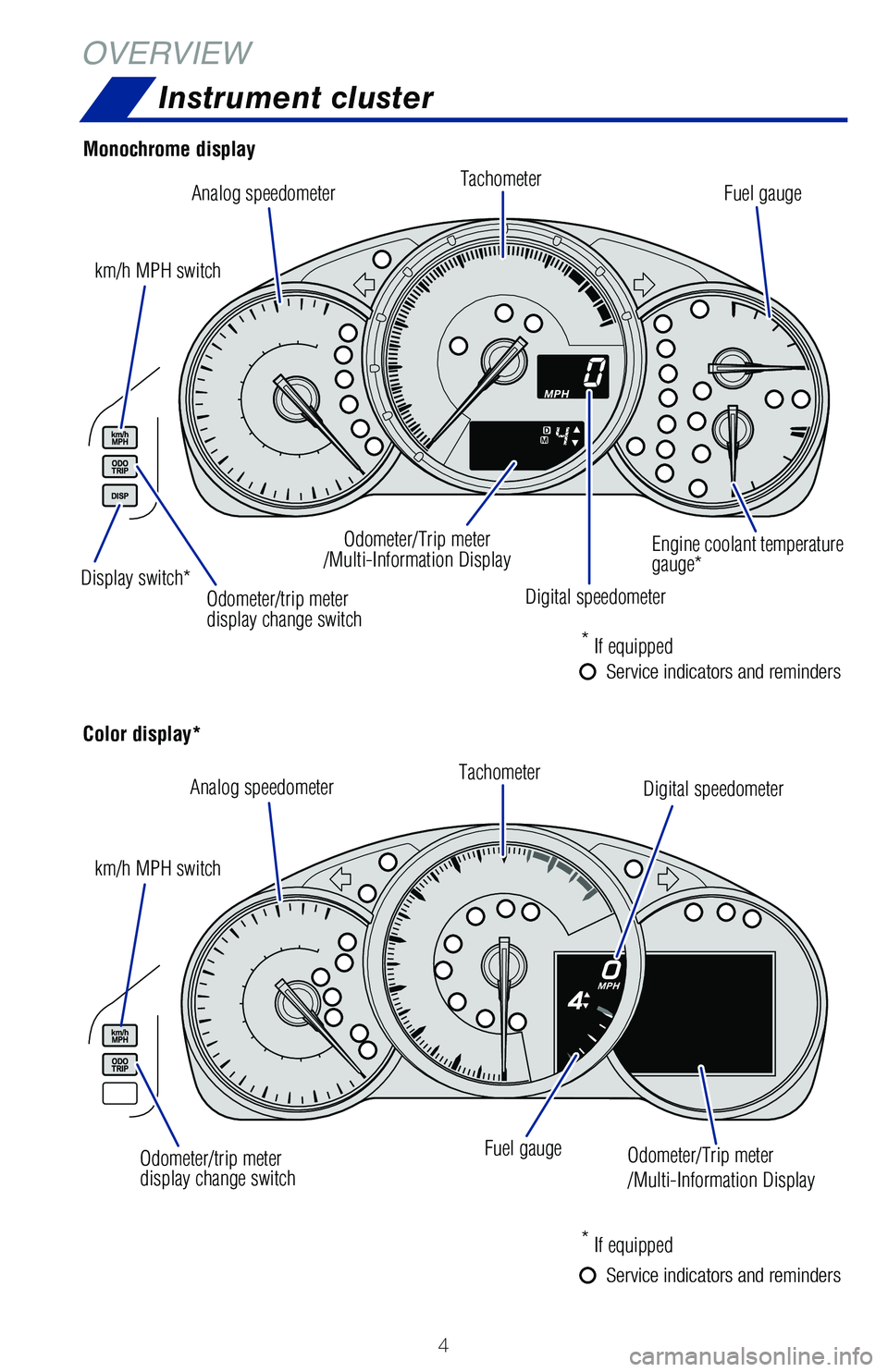

Instrument cluster
Display switch*
Monochrome display
Color display*
Analog speedometer
Analog speedometer
km/h MPH switch
km/h MPH switch
Odometer/trip meterdisplay change switch
Odometer/trip meterdisplay change switch
Tachometer
Tachometer
Fuel gauge
Fuel gauge
Engine coolant temperature gauge*
Digital speedometer
Digital speedometer
Odometer/Trip meter/Multi-Information Display
Odometer/Trip meter
/Multi-Information Display
Service indicators and reminders
Service indicators and reminders
OVERVIEW
* If equipped
* If equipped
Page 7 of 32
5
Brake system warning1
Charging system warning1
Automatic headlight leveling system warning
For details, refer to “Indicators and warning lights,” Section 2-2\
, 2020 Owner’s
Manual.
Anti-lock Brake System (ABS) warning1
Airbag SRS warning1
Low fuel level warning1 (yellow)
Cruise control indicator (green/yellow)
Cruise control SET indicator
Low Tire Pressure Warning1
Slip indicator1,3
Smart Key system indicator6
(green/yellow2)
Automatic Transmission fluidtemperature warning6
TRAC OFF indicator1
SNOW indicator4,6
REV (engine RPM) indicator (red)
Upshift/downshift indicator4,6
Shift position indicator5,6
Shift-up indicator5,6
Shift position and shift range indicator4,6
Security indicator
SPORT indicator4,6
Turn signal indicator
TRACK mode indicator
Open door warning6
Master warning1,2,6
AIR BAG ON/OFF indicator
Seat belt reminder (alarm will sound if speed is over 12 mph)
Malfunction/Check Engine indicator1
Low engine oil pressure warning1
Low engine coolant temperature indicator2,6 (blue/red)
Electric power steering system warning1
Fuel tank door position
Front fog light indicator6
Hill-start assist control ON indicator3
Headlight high beam indicator
Low outside temperature indicator6Vehicle Stability Control (VSC) OFF indicator1
1 If the indicator does not turn off within a few seconds of starting the \
engine, there may be a malfunction. Have the vehicle inspected by your Toyota dealer.2 If the indicator flashes, there may be a malfunction. Refer to the Owner\
’s Manual.3 If the indicator flashes, it indicates that the system is operating.4 Vehicle with an automatic transmission.5 Vehicle with a manual transmission.6 If equipped.

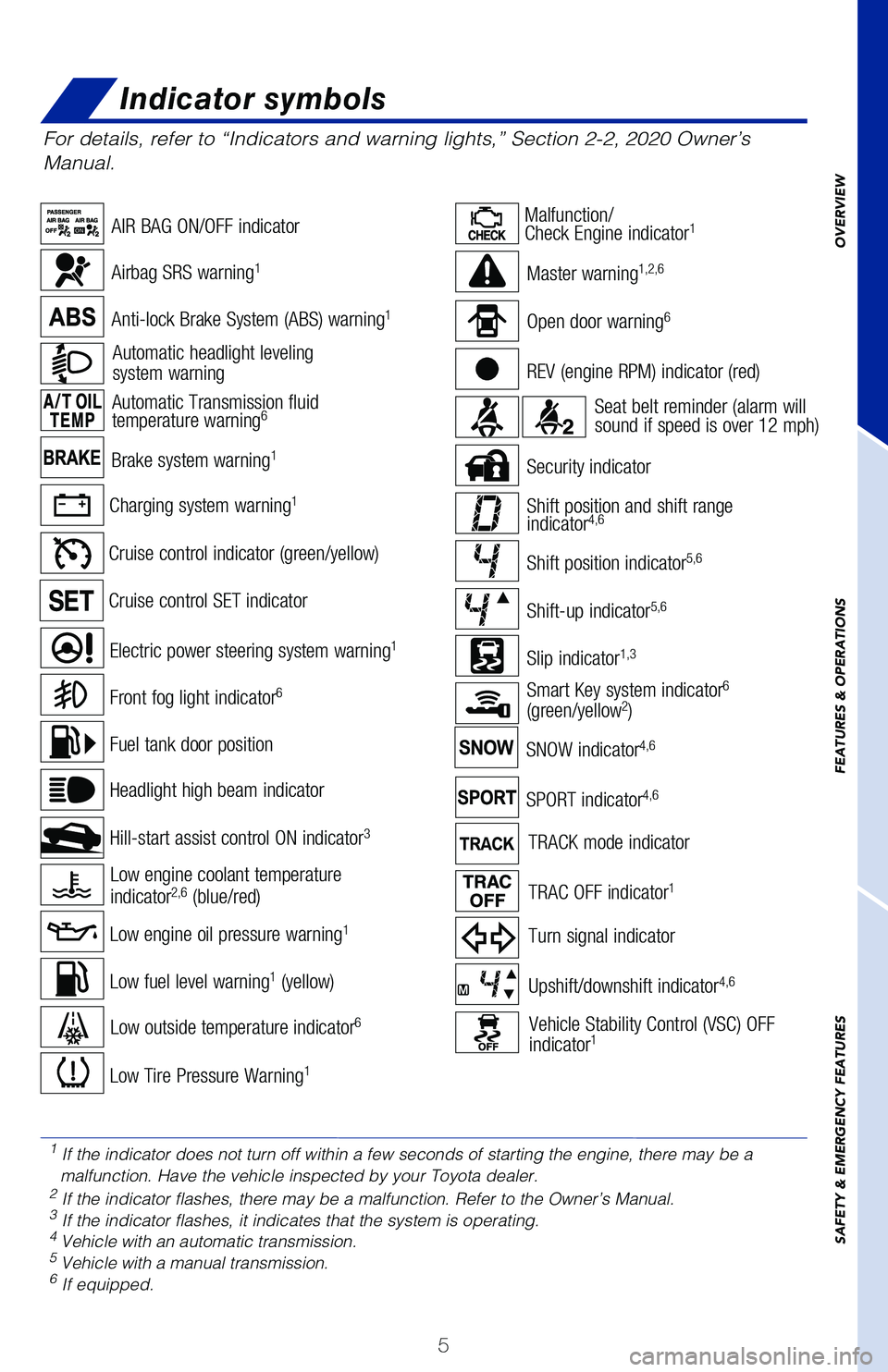

Indicator symbols
OVERVIEW
FEATURES
& OPERATIONS
SAFETY
& EMERGENCY FEATURES
Page 8 of 32
6

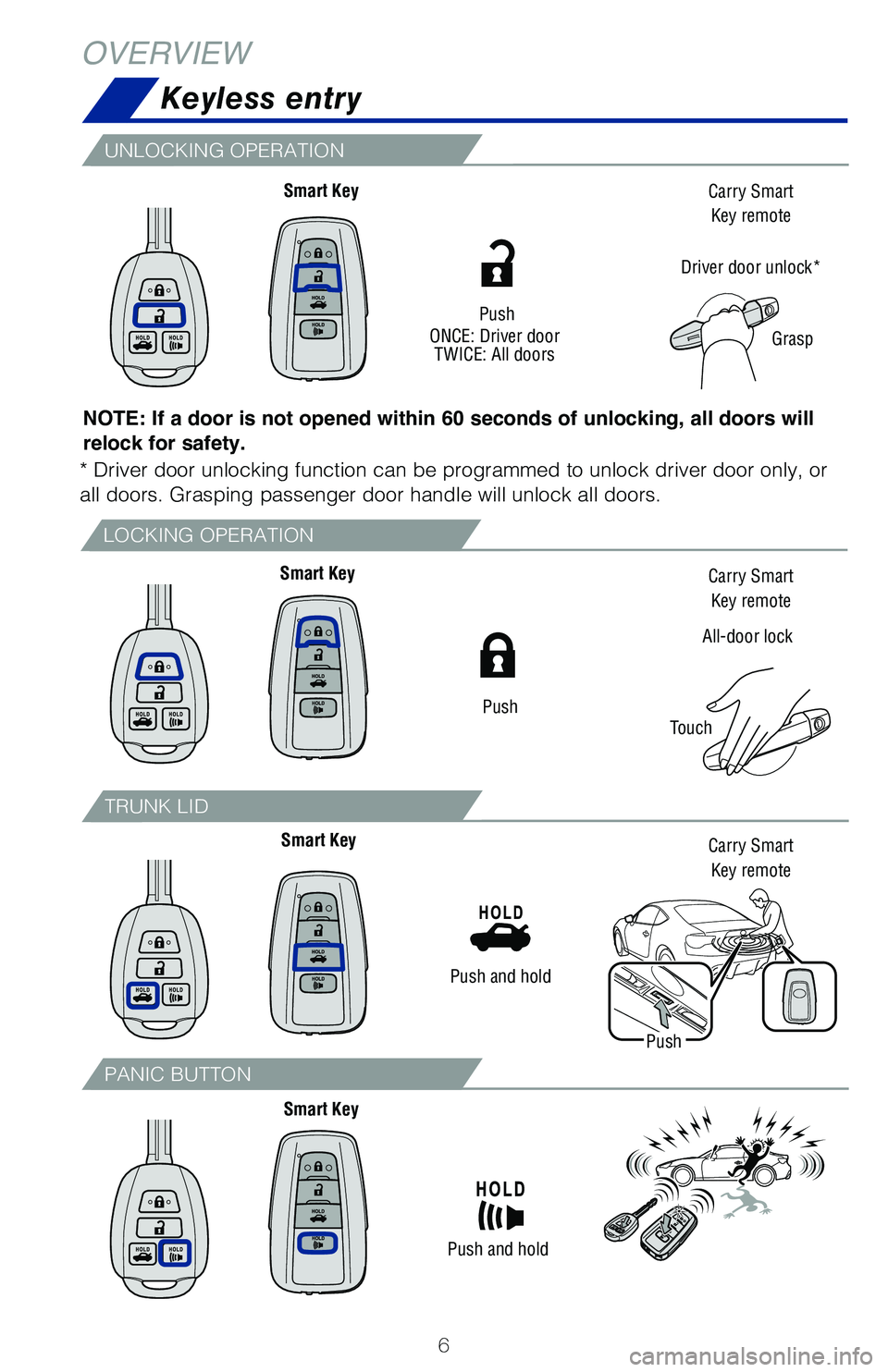

Keyless entry
LOCKING OPERATION
UNLOCKING OPERATION
TRUNK LID
PANIC BUTTON
NOTE: If a door is not opened within 60 seconds of unlocking, all doors will
relock for safety.
All-door lock
Touch
Smart Key
Smart Key
Smart Key
Smart Key
Carry Smart
Key remote
Carry Smart
Key remote
Carry Smart
Key remote
Grasp
Driver door unlock*
PushONCE: Driver doorTWICE: All doors
Push
Push and hold
Push and hold
Push
* Driver door unlocking function can be programmed to unlock driver door\
only, or
all doors. Grasping passenger door handle will unlock all doors.
OVERVIEW
Page 9 of 32
7
Smart Key system (if equipped)

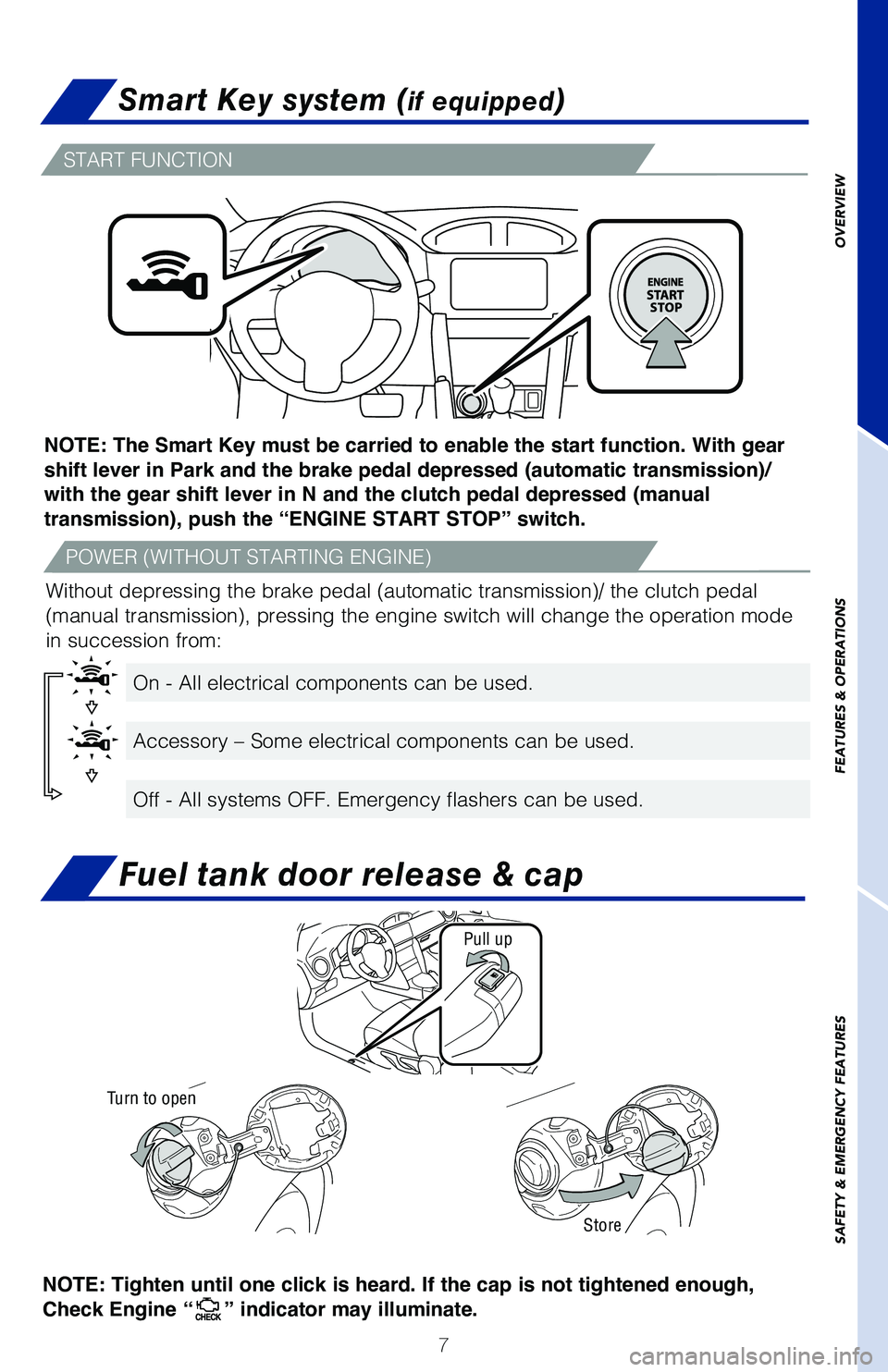

START FUNCTION
POWER (WITHOUT STARTING ENGINE)
On - All electrical components can be used.
Accessory – Some electrical components can be used.
Off - All systems OFF. Emergency flashers can be used.
NOTE: The Smart Key must be carried to enable the start function. With gear
shift lever in Park and the brake pedal depressed (automatic transmission)/
with the gear shift lever in N and the clutch pedal depressed (manual
transmission), push the “ENGINE START STOP” switch.
Without depressing the brake pedal (automatic transmission)/ the clutc\
h pedal
(manual transmission), pressing the engine switch will change the oper\
ation mode
in succession from:
Fuel tank door release & cap
NOTE: Tighten until one click is heard. If the cap is not tightened enough,
Check Engine “” indicator may illuminate.
Pull up
Store
Turn to open
OVERVIEW
FEATURES
& OPERATIONS
SAFETY
& EMERGENCY FEATURES
Page 10 of 32
8

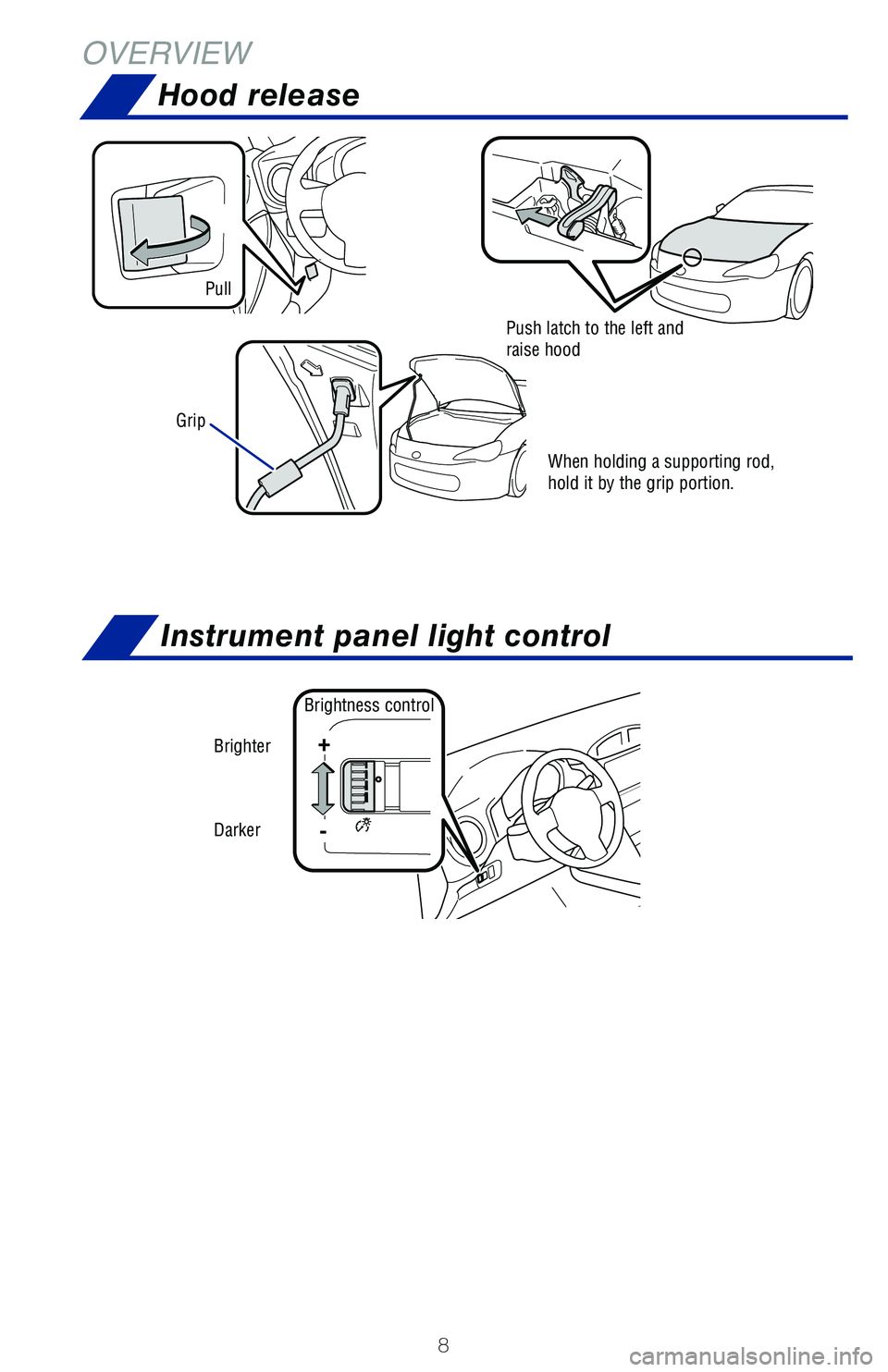

Hood release
Grip
Instrument panel light control
Brightness control
Brighter
Darker
+
-
When holding a supporting rod, hold it by the grip portion.
Push latch to the left and raise hood
Pull
OVERVIEW
