TOYOTA GT86 2020 (in English) Owner's Manual

19
OVERVIEW
FEATURES
& OPERATIONS
SAFETY
& EMERGENCY FEATURES

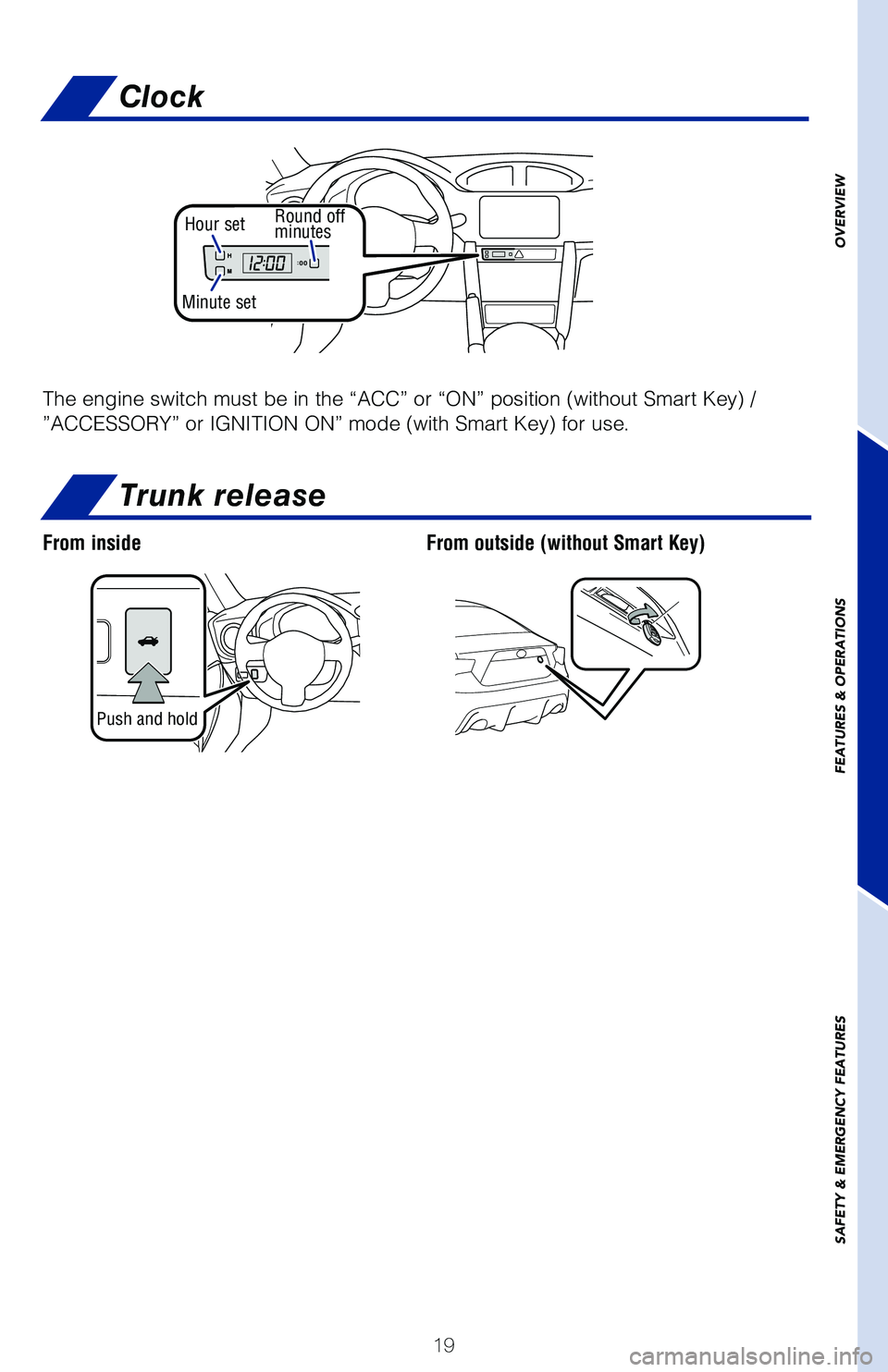

Trunk release
Push and hold
From insideFrom outside (without Smart Key)
Clock
00
The engine switch must be in the “ACC” or “ON” position (wi\
thout Smart Key) /
”ACCESSORY” or IGNITION ON” mode (with Smart Key) for use.
Minute set
Hour setRound off minutes

20
FEATURES & OPERATIONS

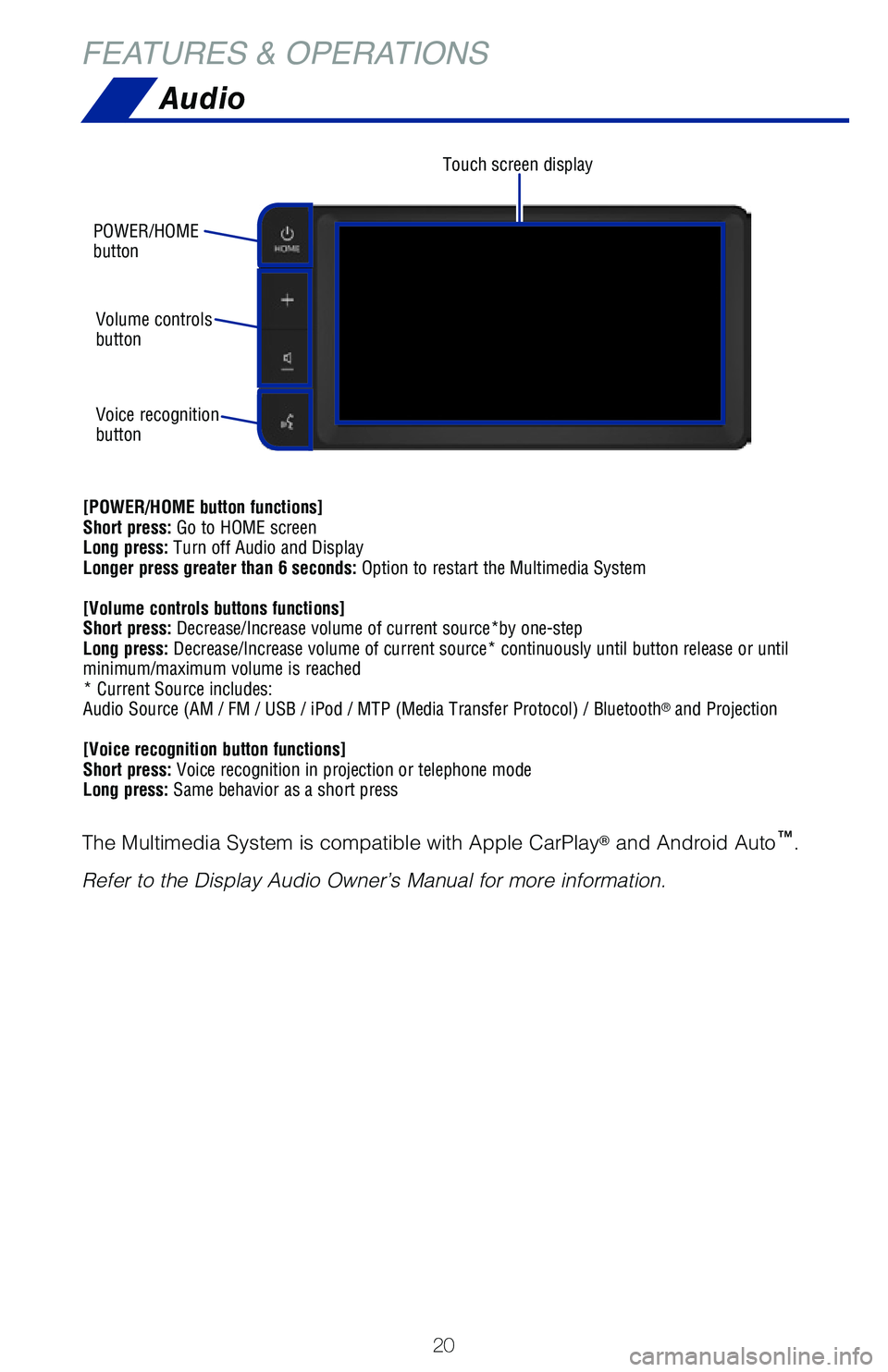

Audio
Touch screen display
POWER/HOME button
Volume controls button
Voice recognition button
[POWER/HOME button functions]Short press: Go to HOME screen Long press: Turn off Audio and Display Longer press greater than 6 seconds: Option to restart the Multimedia System
[Volume controls buttons functions]Short press: Decrease/Increase volume of current source*by one-step Long press: Decrease/Increase volume of current source* continuously until button re\
lease or until minimum/maximum volume is reached* Current Source includes: Audio Source (AM / FM / USB / iPod / MTP (Media Transfer Protocol) / \
Bluetooth® and Projection
[Voice recognition button functions]Short press: Voice recognition in projection or telephone mode Long press: Same behavior as a short press
Refer to the Display Audio Owner’s Manual for more information.
The Multimedia System is compatible with Apple CarPlay® and Android Auto™.

21
OVERVIEW
FEATURES & OPERATIONS
SAFETY
& EMERGENCY FEATURES

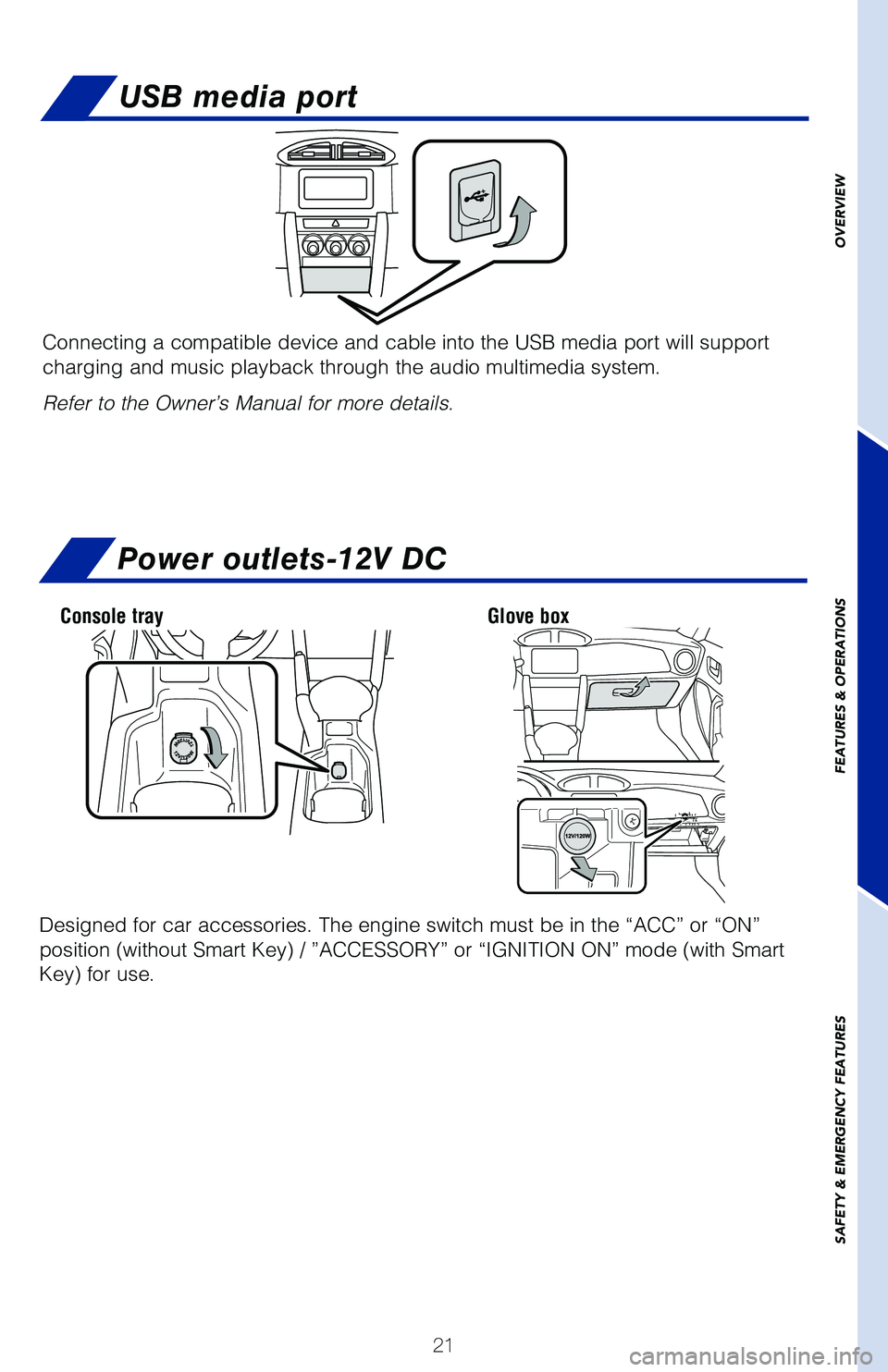

Power outlets-12V DC
USB media port
Connecting a compatible device and cable into the USB media port will su\
pport
charging and music playback through the audio multimedia system.
Refer to the Owner’s Manual for more details.
Designed for car accessories. The engine switch must be in the “ACC”\
or “ON”
position (without Smart Key) / ”ACCESSORY” or “IGNITION ON”\
mode (with Smart
Key) for use.
Console trayGlove box

22
FEATURES & OPERATIONS

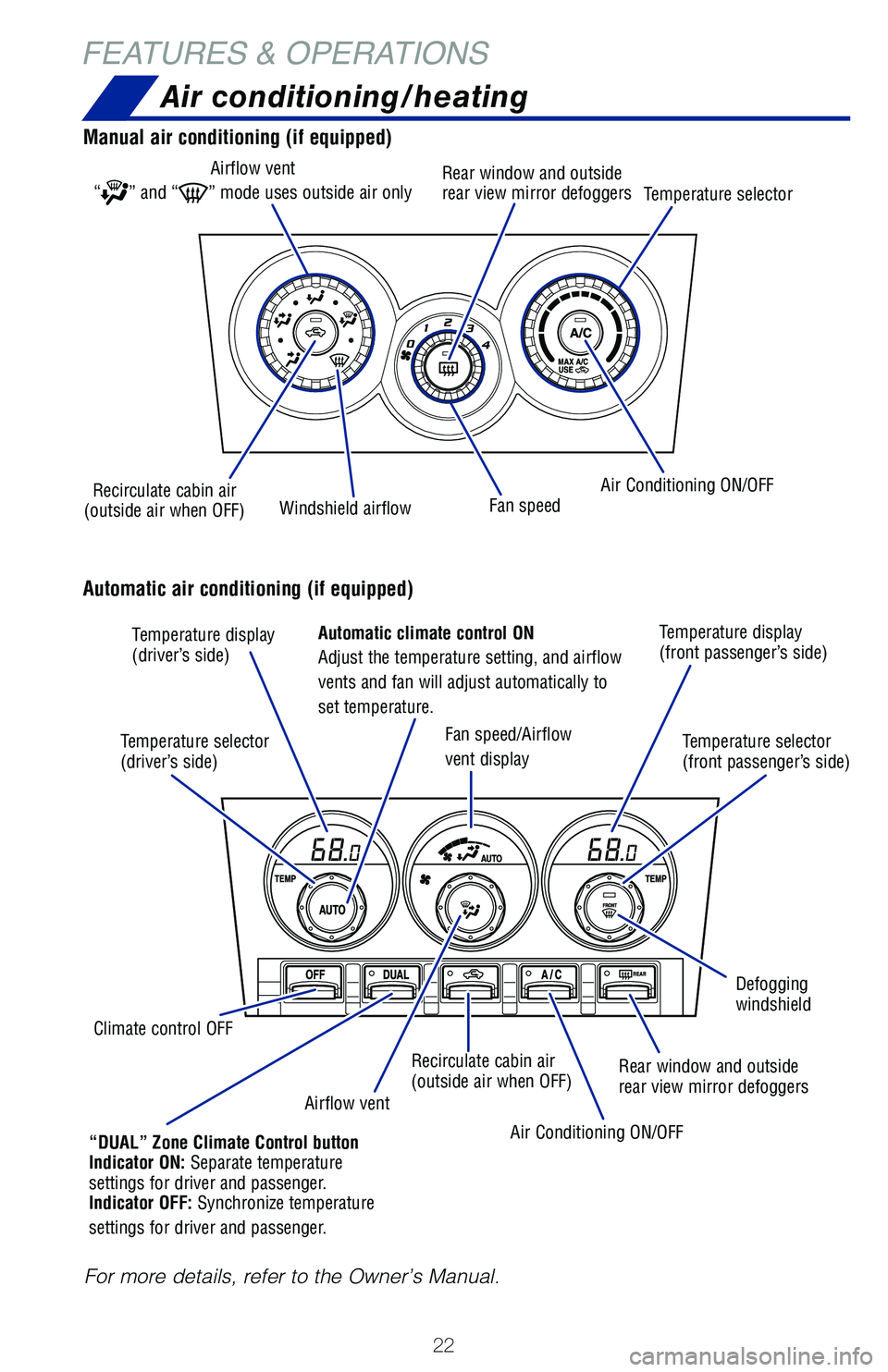

Air conditioning/heating
For more details, refer to the Owner’s Manual.
Airflow vent
“” and “” mode uses outside air onlyRear window and outsiderear view mirror defoggers
Recirculate cabin air (outside air when OFF)
Climate control OFF
Recirculate cabin air (outside air when OFF)Rear window and outsiderear view mirror defoggers
Air Conditioning ON/OFF
Windshield airflow
Defogging windshield
Airflow vent
Temperature selector (driver’s side)Temperature selector (front passenger’s side)
Automatic climate control ON
Adjust the temperature setting, and airflow
vents and fan will adjust automatically to
set temperature.
Fan speed/Airflow
vent display
Temperature display (driver’s side)
Temperature display (front passenger’s side)
“DUAL” Zone Climate Control buttonIndicator ON: Separate temperaturesettings for driver and passenger.Indicator OFF: Synchronize temperature
settings for driver and passenger.
Air Conditioning ON/OFFFan speed
Temperature selector
Manual air conditioning (if equipped)
Automatic air conditioning (if equipped)

23

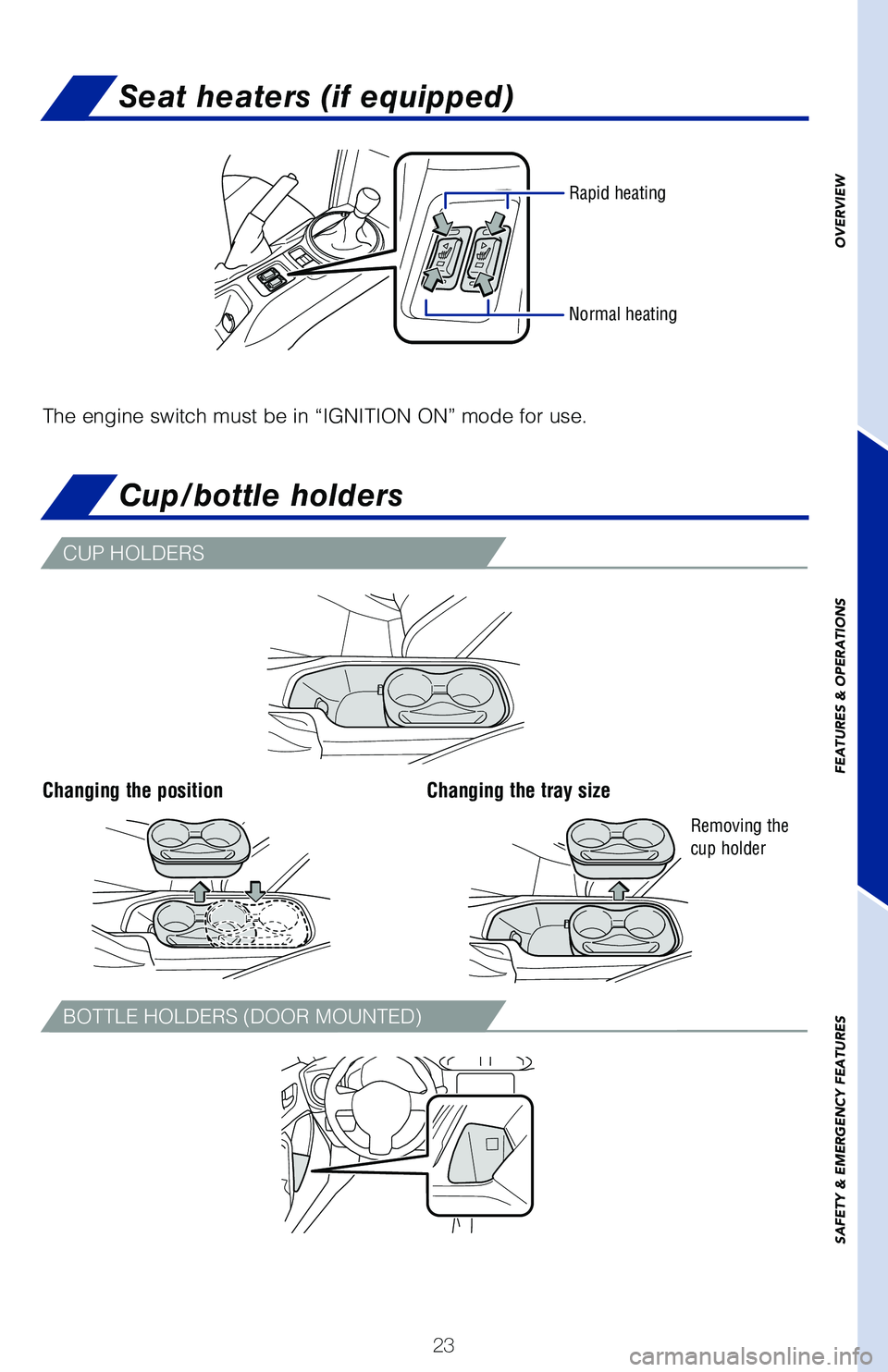

Seat heaters (if equipped)
The engine switch must be in “IGNITION ON” mode for use.
Rapid heating
Normal heating
Removing the cup holder
Cup/bottle holders
Changing the positionChanging the tray size
CUP HOLDERS
BOTTLE HOLDERS (DOOR MOUNTED)
OVERVIEW
FEATURES
& OPERATIONS
SAFETY
& EMERGENCY FEATURES

24

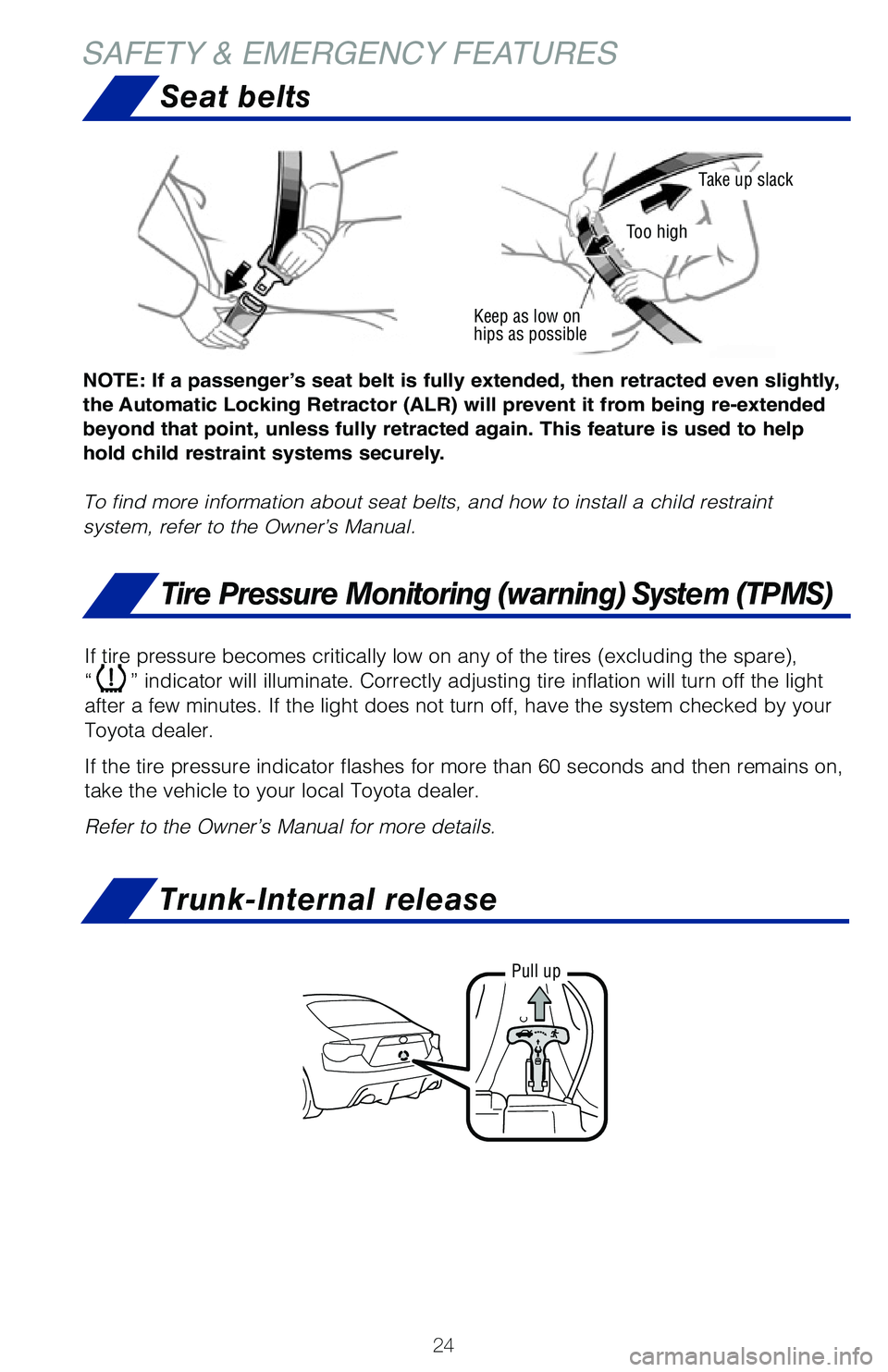

Seat belts
Tire Pressure Monitoring (warning) System (TPMS)
NOTE: If a passenger’s seat belt is fully extended, then retracted even slightly,
the Automatic Locking Retractor (ALR) will prevent it from being re-extended
beyond that point, unless fully retracted again. This feature is used to help
hold child restraint systems securely.
To find more information about seat belts, and how to install a child re\
straint
system, refer to the Owner’s Manual.
Keep as low onhips as possible
Take up slack
Too high
If tire pressure becomes critically low on any of the tires (excluding \
the spare),
“” indicator will illuminate. Correctly adjusting tire inflation will \
turn off the light
after a few minutes. If the light does not turn off, have the system che\
cked by your
Toyota dealer.
If the tire pressure indicator flashes for more than 60 seconds and then\
remains on,
take the vehicle to your local Toyota dealer.
Refer to the Owner’s Manual for more details.
SAFETY & EMERGENCY FEATURES
Trunk-Internal release
Pull up

25

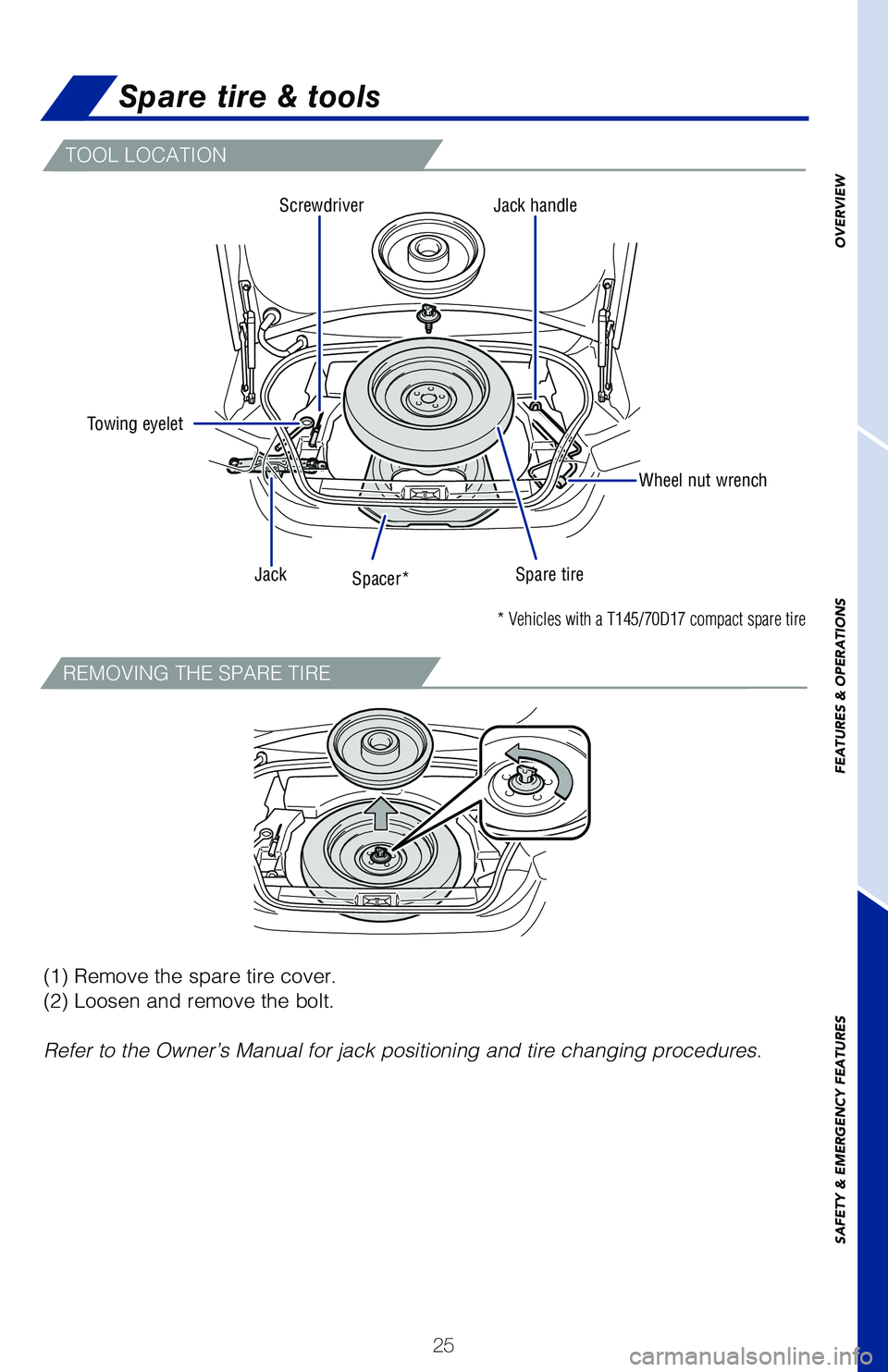

TOOL LOCATION
REMOVING THE SPARE TIRE
Spare tire & tools
Towing eyelet
Wheel nut wrench
Jack handle
JackSpare tireSpacer*
Screwdriver
(1) Remove the spare tire cover.
(2) Loosen and remove the bolt.
Refer to the Owner’s Manual for jack positioning and tire changing pr\
ocedures.
* Vehicles with a T145/70D17 compact spare tire
OVERVIEW
FEATURES
& OPERATIONS
SAFETY
& EMERGENCY FEATURES

26
SAFETY & EMERGENCY FEATURES

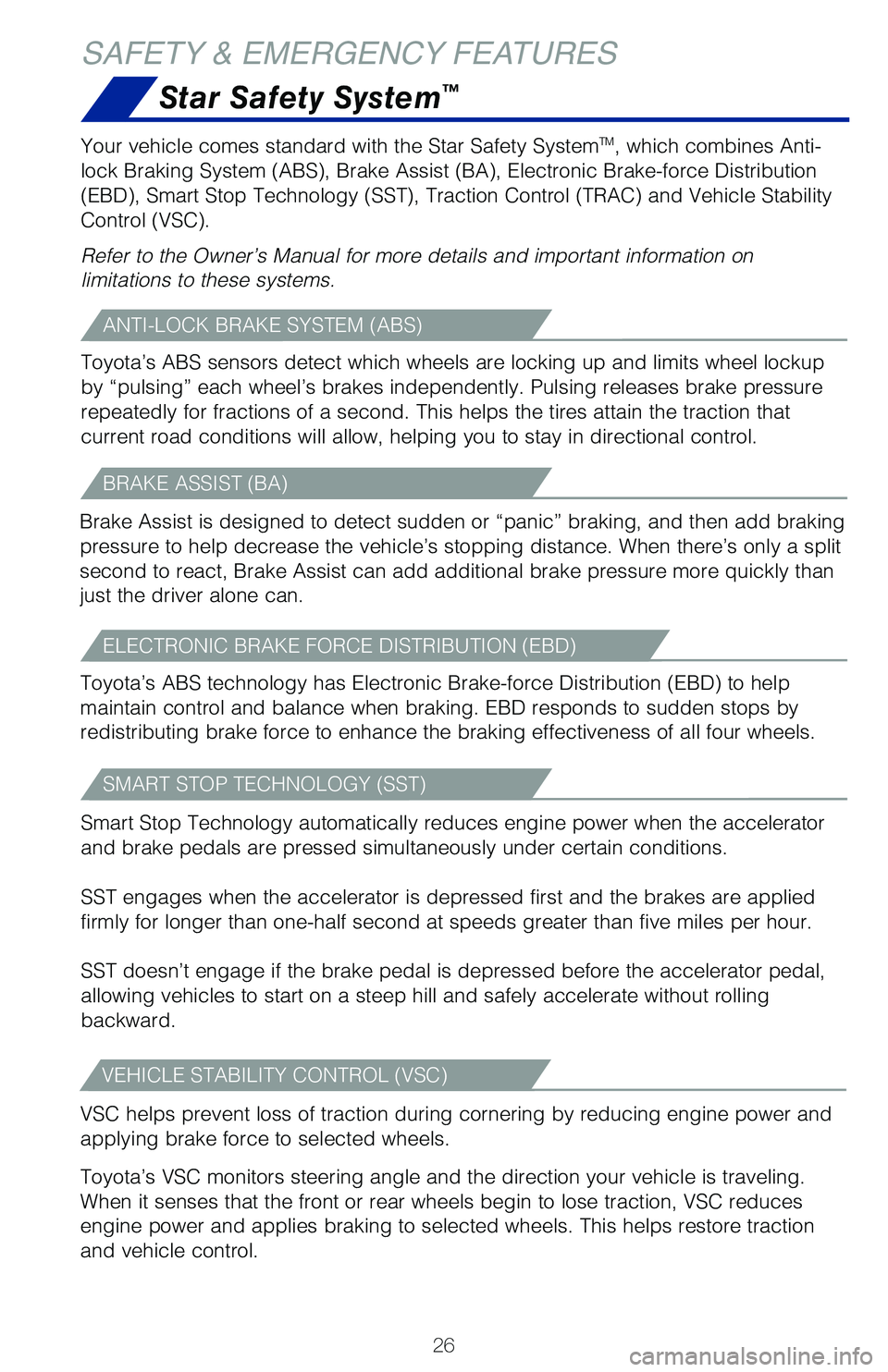

Star Safety System™
Your vehicle comes standard with the Star Safety SystemTM, which combines Anti-
lock Braking System (ABS), Brake Assist (BA), Electronic Brake-force\
Distribution
(EBD), Smart Stop Technology (SST), Traction Control (TRAC) and Ve\
hicle Stability
Control (VSC).
Refer to the Owner’s Manual for more details and important informatio\
n on
limitations to these systems.
Smart Stop Technology automatically reduces engine power when the accele\
rator
and brake pedals are pressed simultaneously under certain conditions.
SST engages when the accelerator is depressed first and the brakes are a\
pplied
firmly for longer than one-half second at speeds greater than five miles\
per hour.
SST doesn’t engage if the brake pedal is depressed before the acceler\
ator pedal,
allowing vehicles to start on a steep hill and safely accelerate without\
rolling
backward.
SMART STOP TECHNOLOGY (SST)
VSC helps prevent loss of traction during cornering by reducing engine p\
ower and
applying brake force to selected wheels.
Toyota’s VSC monitors steering angle and the direction your vehicle i\
s traveling.
When it senses that the front or rear wheels begin to lose traction, VSC\
reduces
engine power and applies braking to selected wheels. This helps restore \
traction
and vehicle control.
VEHICLE STABILITY CONTROL (VSC)
Toyota’s ABS sensors detect which wheels are locking up and limits wh\
eel lockup
by “pulsing” each wheel’s brakes independently. Pulsing release\
s brake pressure
repeatedly for fractions of a second. This helps the tires attain the tr\
action that
current road conditions will allow, helping you to stay in directional c\
ontrol.
ANTI-LOCK BRAKE SYSTEM (ABS)
Brake Assist is designed to detect sudden or “panic” braking, and \
then add braking
pressure to help decrease the vehicle’s stopping distance. When there\
’s only a split
second to react, Brake Assist can add additional brake pressure more qui\
ckly than
just the driver alone can.
BRAKE ASSIST (BA)
Toyota’s ABS technology has Electronic Brake-force Distribution (EBD\
) to help
maintain control and balance when braking. EBD responds to sudden stops \
by
redistributing brake force to enhance the braking effectiveness of all f\
our wheels.
ELECTRONIC BRAKE FORCE DISTRIBUTION (EBD)

27
VSC helps prevent loss of traction during cornering by reducing engine p\
ower, and
Traction Control helps maintain traction on loose gravel and wet, icy, o\
r uneven
surfaces by applying brake force to the spinning wheel(s).
Toyota’s TRAC sensors are activated when one of the drive wheels star\
ts to slip.
TRAC limits engine output and applies the brakes to the spinning wheel. \
This
transfers power to the wheels that still have traction to help keep you \
on track.

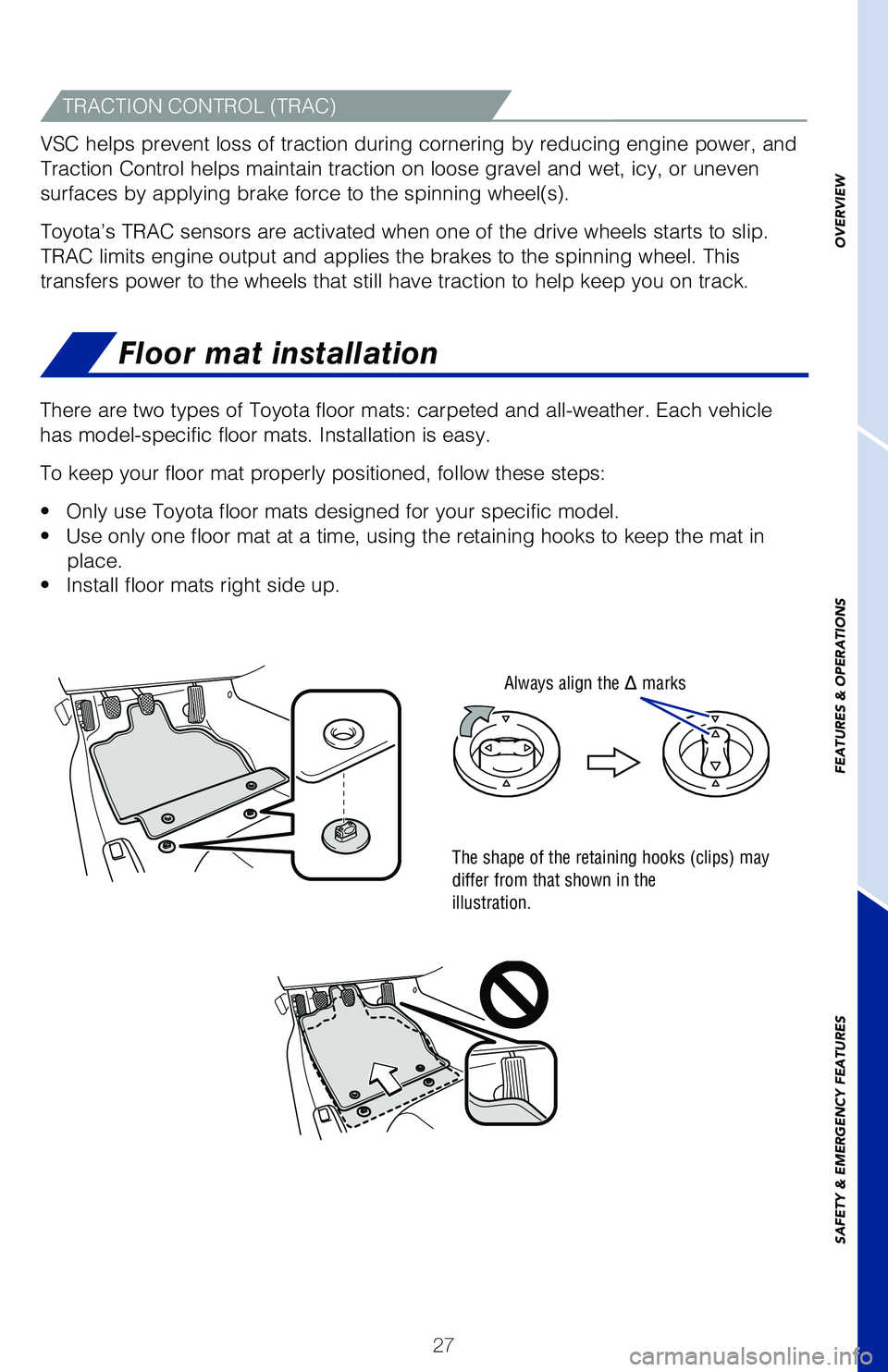

Floor mat installation
There are two types of Toyota floor mats: carpeted and all-weather. Each\
vehicle
has model-specific floor mats. Installation is easy.
To keep your floor mat properly positioned, follow these steps:
• Only use Toyota floor mats designed for your specific model.
• Use only one floor mat at a time, using the retaining hooks to keep the \
mat in
place.
• Install floor mats right side up.
The shape of the retaining hooks (clips) may differ from that shown in theillustration.
Always align the marks
TRACTION CONTROL (TRAC)
OVERVIEW
FEATURES
& OPERATIONS
SAFETY
& EMERGENCY FEATURES

28

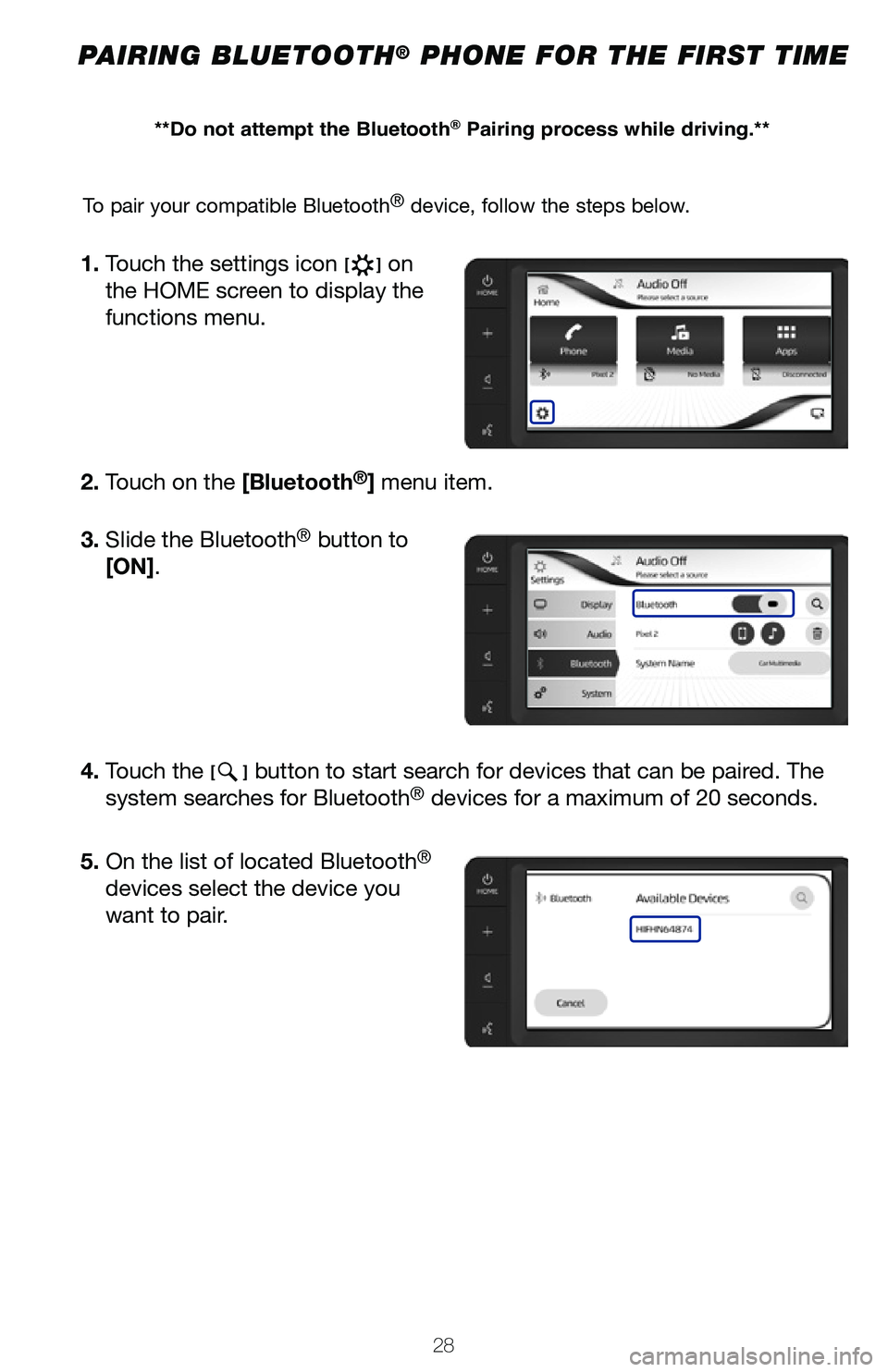

PAIRING BLUETOOTH® PHONE FOR THE FIRST TIME
1. Touch the settings icon [] on
the HOME screen to display the
functions menu.
3. Slide the Bluetooth® button to
[ON].
5. On the list of located Bluetooth®
devices select the device you
want to pair.
4. Touch the [ ] button to start search for devices that can be paired. The
system searches for Bluetooth® devices for a maximum of 20 seconds.
2. Touch on the [Bluetooth®] menu item.
**Do not attempt the Bluetooth® Pairing process while driving.**
To pair your compatible Bluetooth® device, follow the steps below.
