TOYOTA HIGHLANDER 2001 Service Repair Manual

G23398
Wire Harness Side:
(Connector Front View)
T16
G28380
Switch Side:
(Connector Front View):
T16
G25190
ODMS
E7E8E9E6E5

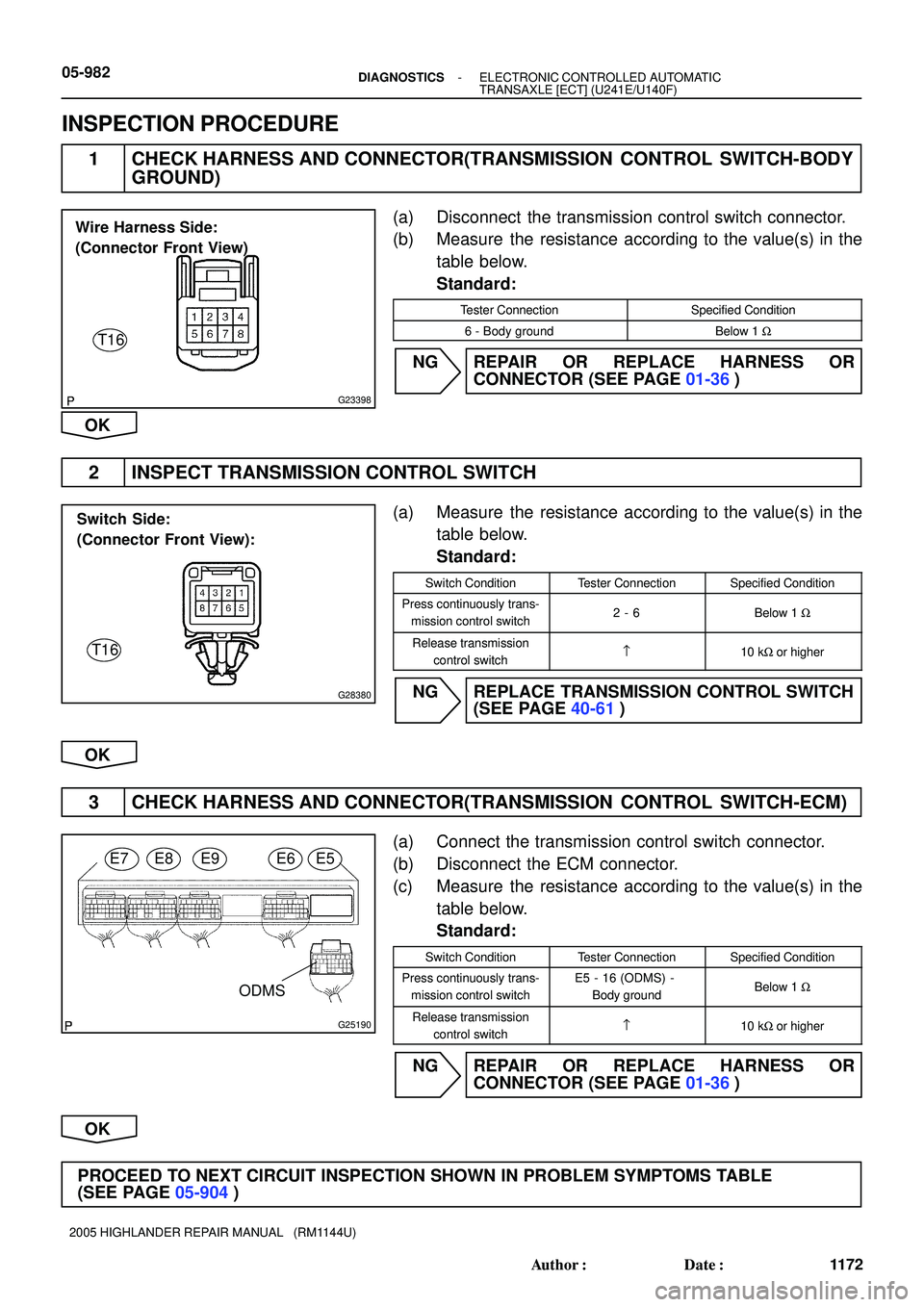

05-982- DIAGNOSTICSELECTRONIC CONTROLLED AUTOMATIC
TRANSAXLE [ECT] (U241E/U140F)
1172 Author
: Date
:
2005 HIGHLANDER REPAIR MANUAL (RM1144U)
INSPECTION PROCEDURE
1 CHECK HARNESS AND CONNECTOR(TRANSMISSION CONTROL SWITCH-BODY
GROUND)
(a) Disconnect the transmission control switch connector.
(b) Measure the resistance according to the value(s) in the
table below.
Standard:
Tester ConnectionSpecified Condition
6 - Body groundBelow 1 W
NG REPAIR OR REPLACE HARNESS OR
CONNECTOR (SEE PAGE 01-36)
OK
2 INSPECT TRANSMISSION CONTROL SWITCH
(a) Measure the resistance according to the value(s) in the
table below.
Standard:
Switch ConditionTester ConnectionSpecified Condition
Press continuously trans-
mission control switch2 - 6Below 1 W
Release transmission
control switch=10 kW or higher
NG REPLACE TRANSMISSION CONTROL SWITCH
(SEE PAGE 40-61)
OK
3 CHECK HARNESS AND CONNECTOR(TRANSMISSION CONTROL SWITCH-ECM)
(a) Connect the transmission control switch connector.
(b) Disconnect the ECM connector.
(c) Measure the resistance according to the value(s) in the
table below.
Standard:
Switch ConditionTester ConnectionSpecified Condition
Press continuously trans-
mission control switchE5 - 16 (ODMS) -
Body groundBelow 1 W
Release transmission
control switch=10 kW or higher
NG REPAIR OR REPLACE HARNESS OR
CONNECTOR (SEE PAGE 01-36)
OK
PROCEED TO NEXT CIRCUIT INSPECTION SHOWN IN PROBLEM SYMPTOMS TABLE
(SEE PAGE 05-904)

05ETG-02
05-1536
- DIAGNOSTICSLIGHTING SYSTEM
1726 Author
: Date
:
2005 HIGHLANDER REPAIR MANUAL (RM1144U)
OPERATION CHECK
1. ILLUMINATED ENTRY SYSTEM OPERATION CHECK
(a) Illuminated entry system controls the following lamps:

Ignition key cylinder lamp

Interior lamp (Room lamp assy No.1)

Personal lamp (Overhead J/B)
(b) Check that the lamps come on after:
(1) Unlocking any door that was closed and locked with the ignition switch off.
(c) Check that the lamps fade out after:
(1) Leaving the doors unlocked for 15 seconds
(2) Turning the ignition switch to the ACC or ON position
(3) Locking all the doors
(d) Check that the lamps stay ON for at least 15 seconds after opening any of the doors, then fade out
again after 15 seconds.
(e) Check that the lamps fade out after:
(1) Leaving the doors unlocked for 15 seconds
(2) Locking all the doors
(f) Check that the lamps stay ON for at least 15 seconds after opening any of the doors, then fade out
again in 15 seconds after closing all the doors.
(g) Check that the lamps come on when opening any of the doors or turning the ignition switch off from
the ACC or ON position.
2. LIGHT AUTO TURN OFF OPERATION CHECK
(a) Turn the ignition switch to the ON position, and switch the headlamps into the TAIL or HEAD position.
(b) Turn the ignition switch off and open the driver's door, and check that the headlamps go off immediate-
ly.
(c) Turn the ignition switch to the ON position, and switch the headlamps into the AUTO position.
(d) Turn the ignition switch off and open the driver's door when operating the automatic light control sys-
tem, and check that the headlamps go off immediately.
3. AUTOMATIC LIGHT CONTROL OPERATION CHECK
HINT:
Perform the operation check at a location with bright surroundings.
(a) Turn the ignition switch to the ON position.
(b) Turn the headlamp dimmer switch to the AUTO position.
(c) Cover the automatic light control sensor and check that the taillamp and headlamp in order.
(d) Uncover the automatic light control sensor and check that the headlamp and taillamp go off in order.
4. DAYTIME RUNNING LIGHT OPERATION CHECK
(a) Check that the high beams come on when the headlamp switch is off with the engine running and park-
ing brake released.
(b) Check that the high beams go off when turning the headlamp dimmer switch into the TAIL or HEAD
(LOW) position under the condition as shown in (a).
(c) Check that the high beams go off when turning the ignition switch off under the condition as shown
in (a).

A82390
Fast SensorSlow Sensor Locus Length
A/F Output (V)
Fuel Trim
05-302
- DIAGNOSTICSSFI SYSTEM (2AZ-FE)
492 Author
: Date
:
2005 HIGHLANDER REPAIR MANUAL (RM1144U)
DTC P2A00 A/F SENSOR CIRCUIT SLOW RESPONSE
(BANK 1 SENSOR 1)
CIRCUIT DESCRIPTION
Refer to DTC P2195 on page 05-269.
DTC No.DTC Detection ConditionTrouble Area
P2A00
In conditions (a), (b) and (c), when A/F sensor output voltage
change value is below regular value against fuel trim change
value, ECM judges that A/F sensor circuit has slow response:
(2 trip detection logic)
(a) Engine is warmed up
(b) Engine speed 1,400 rpm or more
(c) Vehicle speed 60 to 120 km/h (37 to 74 mph)

Open or short in A/F sensor circuit

A/F sensor

A/F sensor heater

EFI relay

Open or short in A/F sensor and EFI relay circuits

Air induction system

Fuel pressure

Injector

PCV hose connection

ECM
MONITOR DESCRIPTION
The Air-Fuel ratio (A/F) sensor varies its output voltage in proportion to the air-fuel ratio. Based on the output
voltage, the ECM determines if the air-fuel ratio is RICH or LEAN and adjusts the stoichiometric air-fuel ratio.
The ECM also checks the fuel injection volume compensation value to check if the A/F sensor is deteriorating
or not. A/F sensor response deterioration is determined by the ratio of the A/F sensor output voltage variation
and fuel trim variation.
05EW5-06

- DIAGNOSTICSSFI SYSTEM (2AZ-FE)
05-303
493 Author
: Date
:
2005 HIGHLANDER REPAIR MANUAL (RM1144U)
MONITOR STRATEGY
Related DTCsP2A00: A/F sensor slow response
Required sensors / components (Main)A/F sensor
Required sensors / components (Related)Vehicle speed sensor (VSS) and crankshaft position (CKP) sensor
Frequency of operationOnce per driving cycle
Duration60 sec.
MIL operation2 driving cycles
Sequence of operationNone
TYPICAL ENABLING CONDITIONS
The monitor will run whenever these DTCs are not presentSee page 05-16
Engine conditionRunning
Time after engine start120 sec. or more
Fuel system statusClosed Loop
A/F sensor statusActivated
IdleOFF
Time after idle OFF2 sec. or more
Engine RPM1,400 to 3,200 rpm
Vehicle speed60 to 120 km/h (37.5 to 75 mph)
Fuel cutOFF
Time after fuel cut is OFF2 sec. or more
Driving for 20 sec. or more40 km/h (25 mph) or more and 900 rpm or more
TYPICAL MALFUNCTION THRESHOLDS
Response rate deterioration level8 or more
MONITOR RESULT
Refer to page 05-24 for detailed information.
The test value and test limit information are described as shown in the following table. Check the monitor
result and test values after performing the monitor drive pattern (see page 05-26).

TID (Test Identification Data) is assigned to each emissions-related component.

TLT (Test Limit Type):
If TLT is 0, the component is malfunctioning when the test value is higher than the test limit.
If TLT is 1, the component is malfunctioning when the test value is lower than the test limit.

CID (Component Identification Data) is assigned to each test value.

Unit Conversion is used to calculate the test value indicated on generic OBD ll scan tools.
TID $06: A/F sensor
TLTCIDUnit ConversionDescription of Test DataDescription of Test Limit
0$01Multiply by 0.000244
(no dimension)Parameter for identify A/F sensor response
rateMalfunction threshold for A/F sensor deteri-
oration
WIRING DIAGRAM
Refer to DTC P2195 on page 05-269.
INSPECTION PROCEDURE
HINT:
Hand-held tester only:
The malfunctioning area can be found by the ACTIVE TEST A/F CONTROL operation. The A/F CONTROL
operation can determine if the A/F sensor, heated oxygen sensor or other suspected trouble areas are mal-
functioning or not.

+25 %
-12.5 %
More than 3.35 V
Less than 3.0 V
Case 1
Case 2
Case 3
Case 4
Output voltage of A/F sensor
(sensor 1)
Injection volume
Output voltage
Output voltage of heated oxygen
sensor (sensor 2)Main suspect
trouble area
OK
+25 %
-12.5 %
More than 3.35 V
Less than 3.0V
Injection volume
Output voltage
+25 %
-12.5 %
More than 0.55 V
Less than 0.4V
Injection volume
Output voltage
A/F sensor
(A/F sensor, heater, A/F sen-
sor circuit)
+25 %
-12.5 %
More than 0.55 V
Less than 0.4V
Injection volume
Output voltage
+25 %
-12.5 %
Injection volume
Output voltage
NG
+25 %
-12.5 %
Injection volume
Output voltage
NG
+25 %
-12.5 %
Injection volume
Output voltage
NG
+25 %
-12.5 %
Injection volume
Output voltage
NGExtremely rich or lean actual
air-fuel ratio
(Injector, fuel pressure, gas
leakage in exhaust system,
etc.) OK
OK
OK
Almost
No reaction
Almost
No reaction
Almost
No reaction Almost
No reaction
'
Heated oxygen sensor
(heated oxygen sensor,
heater, heated oxygen sensor
circuit) 05-304
- DIAGNOSTICSSFI SYSTEM (2AZ-FE)
494 Author
: Date
:
2005 HIGHLANDER REPAIR MANUAL (RM1144U)
(a) Perform the ACTIVE TEST A/F CONTROL operation.
HINT:
The A/F CONTROL operation lowers the injection volume by 12.5% or increases the injection volume by
25%.
(1) Connect the hand-held tester to the DLC3 on the vehicle.
(2) Turn the ignition switch ON.
(3) Warm up the engine by running the engine at 2,500 rpm for approximately 90 seconds.
(4) Enter the following menus: DIAGNOSIS / ENHANCED OBD II / ACTIVE TEST / A/F CONTROL.
(5) Perform the A/F CONTROL operation with the engine idling (press the right or left button).
Result:
A/F sensor reacts in accordance with increase and decrease of injection volume:
+25 % " RICH output: Less than 3.0 V
-12.5 % " LEAN output: More than 3.35 V
Heated oxygen sensor reacts in accordance with increase and decrease of injection volume:
+25 % " RICH output: More than 0.55 V
-12.5 % " LEAN output: Less than 0.4 V
NOTICE:
The A/F sensor output has a few seconds of delay and the heated oxygen sensor output has about
20 seconds of delay at maximum.
The following A/F CONTROL procedure enables a technician to check and graph the voltage outputs of both
the A/F sensor and the heated oxygen sensor.

- DIAGNOSTICSSFI SYSTEM (2AZ-FE)
05-305
495 Author
: Date
:
2005 HIGHLANDER REPAIR MANUAL (RM1144U)
For displaying the graph, enter ºACTIVE TEST / A/F CONTROL / USER DATAº, select ºAFS B1S1 and O2S
B1S2º by pressing ºYESº and push ºENTERº. Then press ºF4º.
HINT:

DTC P2A00 may be also detected, when the air fuel ratio is stuck rich or lean.

A low A/F sensor voltage could be caused by a RICH air-fuel mixture. Check for conditions that would
cause the engine to run with a RICH air-fuel mixture.

A high A/F sensor voltage could be caused by a LEAN air-fuel mixture. Check for conditions that would
cause the engine to run with a LEAN air-fuel mixture.

Read freeze frame data using the hand-held tester or the OBD II scan tool. Freeze frame data records
the engine conditions when a malfunction is detected. When troubleshooting, freeze frame data can
help determine if the vehicle was running or stopped, if the engine was warmed up or not, if the air-fuel
ratio was lean or rich, and other data from the time the malfunction occurred.
1 CHECK OTHER DTC OUTPUT (IN ADDITION TO A/F SENSOR DTC)
(a) Read the DTC using the hand-held tester or the OBD II scan tool.
Result:
DisplayProceed to
Only P2A00 is outputA
P2A00 and other codes is outputB
HINT:
If any other codes besides P2A00 is output, perform the troubleshoot on that DTC before.
B GO TO RELEVANT DTC CHART
(See page 05-48)
A
2 READ VALUE OF OBD II SCAN TOOL OR HAND-HELD TESTER (OUTPUT VOLT-
AGE OF A/F SENSOR)
(a) Connect the hand-held tester or the OBD II scan tool to the DLC3.
(b) Warm up the A/F sensor (bank 1 sensor 1) by running the engine at 2,500 rpm for approximately 90
seconds.
(c) Read the A/F sensor voltage output on the the hand-held tester or OBD II scan tool.
(d) Hand-held tester only:
On the hand-held tester, enter the following menus: DIAGNOSIS / ENHANCED OBD II / SNAPSHOT
/ MANUAL SNAPSHOT / USER DATA. Read the values.
(e) Select ºAFS B1 S1
/ ENGINE SPDº and press YES.
(f) Monitor the A/F sensor voltage carefully.
(g) Check the A/F sensor voltage output under the following conditions:
(1) Allow the engine to idle for 30 seconds.
(2) Run the engine at approximately 2,500 rpm. Do not suddenly change the rpm.
(3) Raise the engine speed to 4,000 rpm and quickly release the accelerator pedal so that the throttle
is fully closed.

A72304
Engine
RPMEngine
RPM (1) Idle (2) Approximately 2,500 rpm
Fuel Cut
When A/F sensor circuit is malfunctioning,
voltage output does not change A/F
Sensor
Voltage A/F
Sensor
Voltage
(1) Idle
Fuel Cut (3) Approximately 4,000 rpm
ºCondition (1), (2)º
Change of approximately 3.3 V Normal Condition
Malfunction Condition
ºCondition (3)º
3.8 V or More(1) Idle (2) Approximately 2,500 rpm(3) Approximately 4,000 rpm
(1) Idle
05-306
- DIAGNOSTICSSFI SYSTEM (2AZ-FE)
496 Author
: Date
:
2005 HIGHLANDER REPAIR MANUAL (RM1144U)
Standard:
Condition (1) and (2)
Voltage change of 3.3 V (0.66 V)* (between approximately 3.1 to 3.5 V) as shown in the illustra-
tion.
Condition (3)
A/F sensor voltage increases to 3.8 V (0.76 V)* or more when fuel is cut during engine decelera-
tion as shown in the illustration.
*: Voltage when using the OBD II scan tool.
HINT:

Whenever the A/F sensor output voltage remains at approximately 3.3 V (0.660 V)* (see ºMalfunction
Conditionº graphic) under any condition as well as the above conditions, the A/F sensor may have an
open circuit. This will happen also when the A/F sensor heater has an open circuit.

Whenever the A/F sensor output voltage remains at a certain value of approximately 3.8 V (0.76 V)*
or more, or 2.8 V (0.56 V)* or less (see ºMalfunction Conditionº graphic) under any condition as well
as the above conditions, the A/F sensor may have a short circuit.

The ECM will stop fuel injection (fuel is cut) during engine deceleration. This will cause a LEAN condi-
tion and should result in a momentary increase in the A/F sensor output voltage.

The ECM must establish a closed throttle position learned value to perform fuel cut. If the battery termi-
nal has been disconnected, the vehicle must be driven over 10 mph (16 km/h) to allow the ECM to learn
the closed throttle position.

When the vehicle is driven:
The output voltage of the A/F sensor may be below 2.8 V (0.76 V)* during fuel enrichment. For the
vehicle, this translates to a sudden increase in speed with the accelerator pedal fully depressed when
trying to overtake another vehicle. The A/F sensor is functioning normally.

The A/F sensor is a current output element, and therefore the current is converted into voltage inside
the ECM. If measuring voltage at connectors of the A/F sensor or ECM, you will observe a constant
voltage.
*: Voltage when using the OBD II scan tool.
OK Go to step 14

A52607
AF-AF+
A6
A/F sensor
B60778
5
12 312
5
3
- DIAGNOSTICSSFI SYSTEM (2AZ-FE)
05-307
497 Author
: Date
:
2005 HIGHLANDER REPAIR MANUAL (RM1144U)
NG
3 INSPECT AIR FUEL RATIO SENSOR (HEATER RESISTANCE)
(a) Disconnect the A6 A/F sensor connector.
(b) Measure the resistance of the A/F sensor terminals.
Standard:
Tester ConnectionConditionSpecified Condition
1 (HT) - 2 (+B)20C (68F)1.8 to 3.4 W
1 (HT) - 4 (AF-)-10 kW or higher
NG REPLACE AIR FUEL RATIO SENSOR
OK
4 INSPECT RELAY (EFI)
(a) Remove the EFI relay from the engine room J/B.
(b) Measure the resistance of the EFI relay.
Standard:
Tester ConnectionSpecified Condition
3 - 510 kW or higher
3 - 5Below 1 W
(when battery voltage is applied to terminals 1 and 2)
NG REPLACE RELAY
OK

12
34
A76787
A81695A86849
Wire Harness Side
A6
A/F Sensor
HT
+B
E8
ECM
HA1A
AF+AF-
A1A-A1A+
A90346
A/F Sensor
EFI Relay
Heater
Sensor
A1A+ HA1A
Duty
Control ECM
From
Battery
A1A-
MREL Reference
+B
AF-AF+ HT
EFI NO. 1
FuseEFI NO. 2
Fuse
05-308
- DIAGNOSTICSSFI SYSTEM (2AZ-FE)
498 Author
: Date
:
2005 HIGHLANDER REPAIR MANUAL (RM1144U)
5 CHECK WIRE HARNESS (A/F SENSOR - ECM)
(a) Check the wire harness between the ECM and A/F sen-
sor.
(1) Disconnect the A6 A/F sensor connector.
(2) Disconnect the E8 ECM connector.
(3) Measure the resistance of the wire harness side
connectors.
Standard:
Tester ConnectionSpecified Condition
A6-3 (AF+) - E8-23 (A1A+)
A6-4 (AF-) - E8-31 (A1A-)
A6-1 (HT) - E8-5 (HA1A)
Below 1 W
A6-3 (AF+) or A1A+ (E8-23) - Body ground
A6-4 (AF-) or A1A- (E8-31) - Body ground
A6-1 (HT) or HA1A (E8-5) - Body ground
10 kW or higher
NG REPAIR OR REPLACE HARNESS AND
CONNECTOR
OK
6 CHECK AIR INDUCTION SYSTEM
(a) Check for vacuum leaks in the air induction system.
OK: There is no leak in the air induction system.
NG REPAIR OR REPLACE AIR INDUCTION SYSTEM
OK

- DIAGNOSTICSSFI SYSTEM (2AZ-FE)
05-309
499 Author
: Date
:
2005 HIGHLANDER REPAIR MANUAL (RM1144U)
7 CHECK CONNECTION OF PCV HOSE
OK: PCV hose is connected correctly and PCV hose has no damage.
NG REPAIR OR REPLACE PCV HOSE
OK
8 CHECK FUEL PRESSURE (See page 11-4)
(a) Check fuel pressure (high or low fuel pressure).
Standard:
ItemSpecified Condition
Fuel pressure304 to 343 kPa (3.1 to 3.5 kgf/cm2, 44 to 55 psi)
NG REPAIR OR REPLACE FUEL SYSTEM
OK
9 INSPECT FUEL INJECTOR ASSY (See page 11-7)
(a) Check injector injection (high or low fuel injection quantity or poor injection pattern).
Standard:
Injection VolumeDifference Between Each Injector
76 to 91 cm3 (4.6 to 5.5cu in.) / 15 seconds15 cm3 (0.9 cu in.) or less
NG REPLACE FUEL INJECTOR ASSY
(See page 11-10)
OK
10 REPLACE AIR FUEL RATIO SENSOR
GO
11 PERFORM CONFIRMATION DRIVING PATTERN (See page 05-269)
HINT:
Clear all DTCs prior to performing the confirmation driving pattern (see page 05-269).
GO
