G36782
Purge VSV
Vent Valve
Vacuum Pump
EVAP Pressure
Positive
ON: Open
NegativeONON
Steps
(Reference)
ON
OFF: Closed
OFF: Vent ON: Closed
Time
60
sec
5/5
Leak Pressure First 0.02 inch
Standard
Gross Leak
Small Leak
No Leak
Leak PressureSecond 0.02 inch
Standard x 0.2
05-332
- DIAGNOSTICSSFI SYSTEM (2AZ-FE)
522 Author: Date:
2005 HIGHLANDER REPAIR MANUAL (RM1144U)
10 PERFORM EVAP SYSTEM CHECK(STEP 5/5)
(a) Check the EVAP pressure in step 5/5.
(b) Compare the EVAP pressure in step 3/5 and the second 0.02 inch leak pressure standard (step 5/5).
Result:
DTCs*Test ResultsSuspected Trouble AreasProceed To
'EVAP pressure (step 3/5) lower than the second
0.02 inch leak pressure standard (step 5/5)Not yet determined (no leakage from EVAP system)A
P0441 and
P0455EVAP pressure (step 3/5) higher than [second 0.02
inch leak pressure standard (step 5/5) x 0.2]Purge VSV stuck open
EVAP gross leakB
P0456EVAP pressure (step 3/5) higher than second 0.02
inch leak pressure standard (step 5/5)EVAP small leakB
*: The DTCs relating to the EVAP system displayed on a hand-held tester when checking.
A Go to step 36
B Go to step 12
Page 1431 of 2572
G36788
ON
0.02 inch Oriffice High-flow
3/5
ONON
Purge VSV
Vent Valve
Vacuum Pump
EVAP Pressure
Positive
Negative
Steps
(Reference)TimeON: Open
OFF: Closed
OFF: Vent ON: Closed
Leak Pressure First 0.02 inch
Standard
2/5
Vacuum Pump Stuck OFF
Within 15 minutes
- DIAGNOSTICSSFI SYSTEM (2AZ-FE)
05-333
523 Author: Date:
2005 HIGHLANDER REPAIR MANUAL (RM1144U)

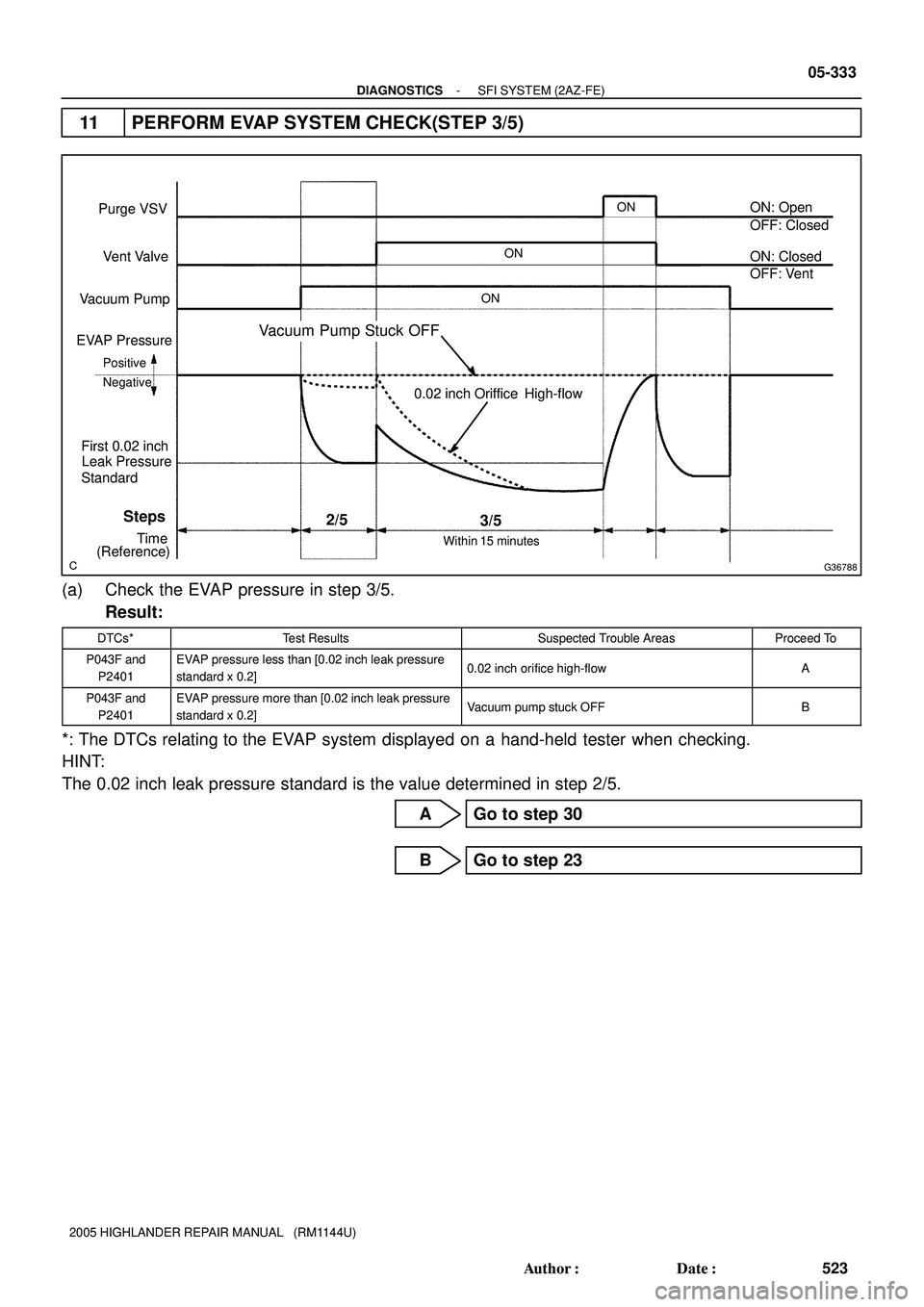

11 PERFORM EVAP SYSTEM CHECK(STEP 3/5)
(a) Check the EVAP pressure in step 3/5.
Result:
DTCs*Test ResultsSuspected Trouble AreasProceed To
P043F and
P2401EVAP pressure less than [0.02 inch leak pressure
standard x 0.2]0.02 inch orifice high-flowA
P043F and
P2401EVAP pressure more than [0.02 inch leak pressure
standard x 0.2]Vacuum pump stuck OFFB
*: The DTCs relating to the EVAP system displayed on a hand-held tester when checking.
HINT:
The 0.02 inch leak pressure standard is the value determined in step 2/5.
A Go to step 30
B Go to step 23
Page 1444 of 2572
05-346
- DIAGNOSTICSSFI SYSTEM (2AZ-FE)
536 Author: Date:
2005 HIGHLANDER REPAIR MANUAL (RM1144U)

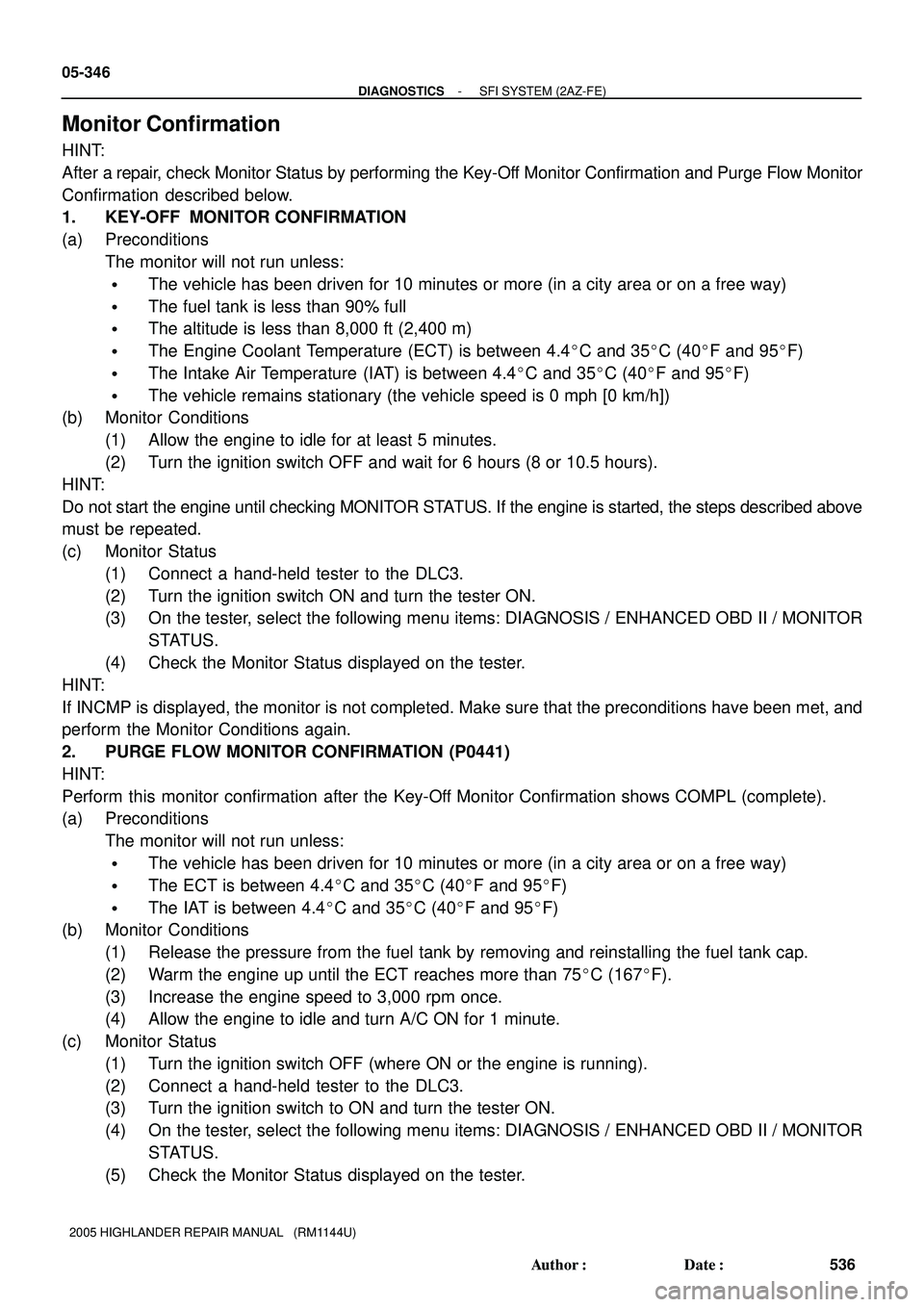

Monitor Confirmation
HINT:
After a repair, check Monitor Status by performing the Key-Off Monitor Confirmation and Purge Flow Monitor
Confirmation described below.
1. KEY-OFF MONITOR CONFIRMATION
(a) Preconditions
The monitor will not run unless:
The vehicle has been driven for 10 minutes or more (in a city area or on a free way)
The fuel tank is less than 90% full
The altitude is less than 8,000 ft (2,400 m)
The Engine Coolant Temperature (ECT) is between 4.4C and 35C (40F and 95F)
The Intake Air Temperature (IAT) is between 4.4C and 35C (40F and 95F)
The vehicle remains stationary (the vehicle speed is 0 mph [0 km/h])
(b) Monitor Conditions
(1) Allow the engine to idle for at least 5 minutes.
(2) Turn the ignition switch OFF and wait for 6 hours (8 or 10.5 hours).
HINT:
Do not start the engine until checking MONITOR STATUS. If the engine is started, the steps described above
must be repeated.
(c) Monitor Status
(1) Connect a hand-held tester to the DLC3.
(2) Turn the ignition switch ON and turn the tester ON.
(3) On the tester, select the following menu items: DIAGNOSIS / ENHANCED OBD II / MONITOR
STATUS.
(4) Check the Monitor Status displayed on the tester.
HINT:
If INCMP is displayed, the monitor is not completed. Make sure that the preconditions have been met, and
perform the Monitor Conditions again.
2. PURGE FLOW MONITOR CONFIRMATION (P0441)
HINT:
Perform this monitor confirmation after the Key-Off Monitor Confirmation shows COMPL (complete).
(a) Preconditions
The monitor will not run unless:
The vehicle has been driven for 10 minutes or more (in a city area or on a free way)
The ECT is between 4.4C and 35C (40F and 95F)
The IAT is between 4.4C and 35C (40F and 95F)
(b) Monitor Conditions
(1) Release the pressure from the fuel tank by removing and reinstalling the fuel tank cap.
(2) Warm the engine up until the ECT reaches more than 75C (167F).
(3) Increase the engine speed to 3,000 rpm once.
(4) Allow the engine to idle and turn A/C ON for 1 minute.
(c) Monitor Status
(1) Turn the ignition switch OFF (where ON or the engine is running).
(2) Connect a hand-held tester to the DLC3.
(3) Turn the ignition switch to ON and turn the tester ON.
(4) On the tester, select the following menu items: DIAGNOSIS / ENHANCED OBD II / MONITOR
STATUS.
(5) Check the Monitor Status displayed on the tester.
Page 1445 of 2572
- DIAGNOSTICSSFI SYSTEM (2AZ-FE)
05-347
537 Author: Date:
2005 HIGHLANDER REPAIR MANUAL (RM1144U)
HINT:
If INCMP is displayed, the monitor is not completed. Make sure that the preconditions have been met, and
perform the Monitor Conditions again.
MONITOR RESULT
Refer to page 05-26 for detailed information.
The test value and test limit information are described as shown in the following table. Check the monitor
result and test values after performing the monitor drive pattern (Refer to ºConfirmation Monitorº).
TID (Test Identification Data) is assigned to each emissions-related component.
TLT (Test Limit Type):
If TLT is 0, the component is malfunctioning when the test value is higher than the test limit.
If TLT is 1, the component is malfunctioning when the test value is lower than the test limit.
CID (Component Identification Data) is assigned to each test value.
Unit Conversion is used to calculate the test value indicated on generic OBD ll scan tools.
(d) Key - off
TID $02: EVAP system (Key-off monitor)
TLTCIDUnit ConversionDescription of Test DataDescription of Test Limit
1$01Multiplied by 0.0156 subtract 2
(kPa)Test value for small leak (P0456):
Refer to pressure D*Malfunction criteria (0 kPa)
1$02Multiplied by 0.0156 subtract 2
(kPa)Test value for gross leak (P0455):
Refer to pressure E*Malfunction criteria (0 kPa)
1$03Multiplied by 0.0156 subtract 2
(kPa)Test value for vacuum pump stuck OFF
(P2401):
Refer to pressure A*
Malfunction criteria (0 kPa)
1$04Multiplied by 0.0156 subtract 2
(kPa)Test value for vacuum pump stuck ON
(P2402):
Refer to pressure A*
Malfunction criteria (0 kPa)
1$05Multiplied by 0.0156 subtract 2
(kPa)Test value for vent valve stuck OFF (vent)
(P2420):
Refer to pressure C*
Malfunction criteria (0 kPa)
1$06Multiplied by 0.0156 subtract 2
(kPa)Test value for vent valve stuck ON (closed)
(P2419):
Refer to pressure A*
Malfunction criteria (0 kPa)
1$07Multiplied by 0.0156 subtract 2
(kPa)Test value for 0.02 inch orifice low flow
(P043E):
Refer to pressure B*
Malfunction criteria (0 kPa)
1$08Multiplied by 0.0156 subtract 2
(kPa)Test value for 0.02 inch orifice high flow
(P043F):
Refer to pressure A*
Malfunction criteria (0 kPa)
1$11Multiplied by 0.0156 subtract 2
(kPa)Test value for purge VSV stuck close
(P0441):
Refer to pressure F*
Malfunction criteria (0 kPa)
1$12Multiplied by 0.0156 subtract 2
(kPa)Test value for purge VSV stuck open
(P0441):
Refer to pressure E*
Malfunction criteria (0 kPa)
1$13Multiplied by 0.0156 subtract 2
(kPa)Test value for purge flow (P0441):
Refer to pressure G*Malfunction criteria (0 kPa)
* Pressures A to G are indicated as shown in the diagram below.
Page 1481 of 2572
- DIAGNOSTICSAIR CONDITIONING SYSTEM
05-1 191
1381 Author: Date:
2005 HIGHLANDER REPAIR MANUAL (RM1144U)
INSPECTION PROCEDURE
1 READ VALUE OF HAND-HELD TESTER
(a) Connect the hand-held tester to the DLC3.
(b) Turn the ignition switch ON and push the hand-held tester main switch ON.
(c) Select the items below in the DATA LIST, and read the displays on the hand-held tester.
ENGINE AND ECT / ALL:
ItemMeasurement Item/Display
(Range)Normal ConditionDiagnostic Note
A/C SIGA/C signal/ ON or OFFA/C ON: ON-
A/C MAG CLUTCHA/C magnet clutch/ ON or OFFA/C magnet clutch ON: ON-
NG INSPECT MULTIPLEX COMMUNICATION
CIRCUIT
OK
2 PERFORM ACTIVE TEST USING HAND-HELD TESTER
(a) Connect the hand-held tester to the DLC3.
(b) Turn the ignition switch ON and push the hand-held tester main switch ON.
(c) Select the item below in the ACTIVE TEST, and then check that the relay operates.
ENGINE AND ECT / ALL:
ItemTest Details/Display (Range)Diagnostic Note
A/C MAG CLUTCHMagnetic clutch relay / OFF, ONOperating sound can be heard
NG Go to step 3
OK
PROCEED TO NEXT CIRCUIT INSPECTION SHOWN IN PROBLEM SYMPTOMS TABLE (SEE PAGE
05-1 129)
Page 1485 of 2572
I41004
B7
A10
SI
A/C Amplifier Connector
Wire Harness View: Blower Motor Controller Connector
Front View:
05-1 182
- DIAGNOSTICSAIR CONDITIONING SYSTEM
1372 Author: Date:
2005 HIGHLANDER REPAIR MANUAL (RM1144U)
INSPECTION PROCEDURE
1 PERFORM ACTUATOR CHECK
(a) Set the actuator check mode (see page 05-1 117).
(b) Press the blower switch to change to the step operation.
(c) Check the air flow level by hand.
Display CodeBlower level
00
11
214
314
414
514
614
714
814
931
OK:
Blower level changes in accordance with each display code.
NG Go to step 2
OK
PROCEED TO NEXT CIRCUIT INSPECTION SHOWN IN PROBLEM SYMPTOMS TABLE (SEE PAGE
05-1 129)
2 CHECK HARNESS AND CONNECTOR(BLOWER MOTOR CONTROLLER - A/C
AMPLIFIER)
(a) Measure the resistance according to the value(s) in the
table below.
Standard:
Tester connectionConditionSpecified condition
A10-17 (BLW) -
B7-2 (SI)AlwaysBelow 1 W
A10-17 (BLW) -
Body groundAlways10 kW or higher
NG REPAIR OR REPLACE HARNESS OR
CONNECTOR
OK
Page 1491 of 2572
05-1 178
- DIAGNOSTICSAIR CONDITIONING SYSTEM
1368 Author: Date:
2005 HIGHLANDER REPAIR MANUAL (RM1144U)
INSPECTION PROCEDURE
1 PERFORM ACTUATOR CHECK
(a) Remove the glove box to see and check the recirculation damper servo sub-assy operation.
(b) Set to the actuator check mode (see page 05-1 117).
(c) Press the DEF switch and change it to step operation.
(d) Press the DEF switch in order and check the operation of recirculation damper servo sub-assy.
Display codeRecirculation damper position
0FRESH
1FRESH
2FRESH
3FRESH
4RECIRCULATION
5RECIRCULATION
6RECIRCULATION
7RECIRCULATION
8RECIRCULATION
9RECIRCULATION
OK:
Recirculation damper position changes in accor-
dance with each display code.
Result:
NGA
OK
(Checking from the PROBLEM SYMPTOMS TABLE)B
OK (Checking from the DTC)C
B PROCEED TO NEXT CIRCUIT INSPECTION
SHOWN IN PROBLEM SYMPTOMS TABLE (SEE
PAGE 05-1 129)
C REPLACE AIRCONDITIONER AMPLIFIER ASSY
A
Page 1504 of 2572
I40146
LBE-
LBE+A162
A166
A1619
A16113
1 R
G9
MPX+
BEAN
B19
Front Seat Inner Belt Assy (Driver's Side) Airbag Sensor AssemblyC12
Combination Meter Assy
(*2) (*1)
(*2) (*1)
*1: w/o Curtain Shield Airbag
*2: w/ Curtain Shield Airbag
05-1898
- DIAGNOSTICSCOMBINATION METER
2088 Author: Date:
2005 HIGHLANDER REPAIR MANUAL (RM1144U)
SEAT BELT WARNING LAMP FOR DRIVER'S SEAT DOES NOT
OPERATE
WIRING DIAGRAM
INSPECTION PROCEDURE
HINT:
If there is an open in the ground circuit (Airbag sensor assy center), the airbag sensor assy center outputs
DTCs. Perform troubleshooting with the ºSupplemental Restraint System 05-1200º.
1 PERFORM ACTIVE TEST BY HAND-HELD TESTER
(a) Operate the hand-held tester according to the steps on the display and select the ºACTIVE TESTº.
METER:
ItemTest DetailsDiagnostic Note
D-BEL T REMINDIndicat. Lamp D-SEAT BELT (OFF/ON)Confirm that the vehicle is stopped and engine
idling
NG REPLACE COMBINATION METER ASSY
(SEE PAGE 71-18)
OK
05IQ1-02
Page 1505 of 2572
I40135
B4
Front Seat Inner Belt Assy (Driver Side)
Connector Front View:
E58133
B4
Front Seat Inner Belt Assy (Driver Side)
Wire Harness View:
- DIAGNOSTICSCOMBINATION METER
05-1899
2089 Author: Date:
2005 HIGHLANDER REPAIR MANUAL (RM1144U)
2 READ VALUE OF HAND-HELD TESTER(DRIVER SEAT BELT)
(a) Operate the hand-held tester according to the steps on the display and select the ºDATA LISTº.
SRS AIRBAG:
ItemMeasurement Item/
Range (Display)Normal ConditionDiagnostic Note
D SEAT BUCKLDriver seat belt buckle switch is
ON / OFFON: Seat belt is fastened
OFF: Seat belt is unfastened-
NG Go to step 3
OK
REPLACE COMBINATION METER ASSY(SEE PAGE 71-18)
3 INSPECT FRONT SEAT INNER BELT ASSY (DRIVER SIDE)
(a) Disconnect the connector from the front seat inner belt
assy (Driver Side).
(b) Measure the resistance according to the value(s) in the
table below.
Standard:
Terminal NoConditionSpecified condition
B4-2 - B4-5Seat belt is fastenedApprox. 330 W
B4-2 - B4-5Seat belt is unfastenedApprox. 1,330 W
NG REPLACE FRONT SEAT INNER BELT ASSY
(DRIVER SIDE)
OK
4 CHECK HARNESS AND CONNECTOR(FRONT SEAT INNER BELT ASSY - BODY
GROUND)(SEE PAGE 01-26)
(a) Disconnect the connector from the front seat inner belt
assy (Driver Side).
(b) Measure the resistance according to the value(s) in the
table below.
Standard:
Tester ConnectionConditionSpecified Condition
B4-5 - Body groundAlwaysBelow 1 W
NG Go to step 5
OK
END
Page 1514 of 2572
052IA-27
- DIAGNOSTICSENGINE IMMOBILIZER SYSTEM
05-1985
2175 Author: Date:
2005 HIGHLANDER REPAIR MANUAL (RM1144U)
ENGINE IMMOBILIZER SYSTEM
HOW TO PROCEED WITH TROUBLESHOOTING
HINT:
Use this procedure to troubleshoot the engine immobilizer system.
1 VEHICLE BROUGHT TO WORKSHOP
2 CUSTOMER PROBLEM ANALYSIS CHECK AND SYMPTOM CHECK
(see page 05-1987)
3 CRANK ENGINE FOR MORE THAN 10 SECONDS
4 CHECK DTC
(a) Check for DTCs and note any codes that are output.
(b) Delete the DTC.
(c) Recheck for DTCs. Try to prompt the DTC (SFI system and engine immobilizer system) by simulating
the original activity that the DTC suggested.
(1) If the DTC does not reoccur, proceed to A.
(2) If the DTC (SFI system) reoccurs, proceed to B.
(3) If the DTC (engine immobilizer system) reoccur, proceed to C.
B Go to SFI SYSTEM
(2AZ-FE engine: See page 05-1)
(3MZ-FE engine: See page 05-362)
C Go to step 8
A
5 READ VALUE OF HAND-HELD TESTER
(IMMOBILIZER ECU (TRANSPONDER KEY ECU ASSY) (SWITCH CONDITION))
(a) Connect the hand-held tester to the DLC3.
(b) Turn the ignition switch ON and push the hand-held tester main switch ON.
(c) Select the item ºKEY SWº in the ºDATA LISTº and read its value displayed on the hand-held tester.
Transponder key ECU assy:
ItemMeasurement Item/
Display (Range)Normal ConditionDiagnostic Note
KEY SwitchUnlock warning switch signal
/ON or OFFON: Key is in ignition key cylinder
OFF: No key is in ignition key cyl-
inder
-
NG Go to DTC B2780 (see page 05-1998)
