Navigation ECU:
N4
BR
VR
VG
G SYNC
I38998R
M4 Multi-Display:
SYNC
G BVR VG
- DIAGNOSTICSNAVIGATION SYSTEM
05-1853
2043 Author: Date:
2005 HIGHLANDER REPAIR MANUAL (RM1144U)

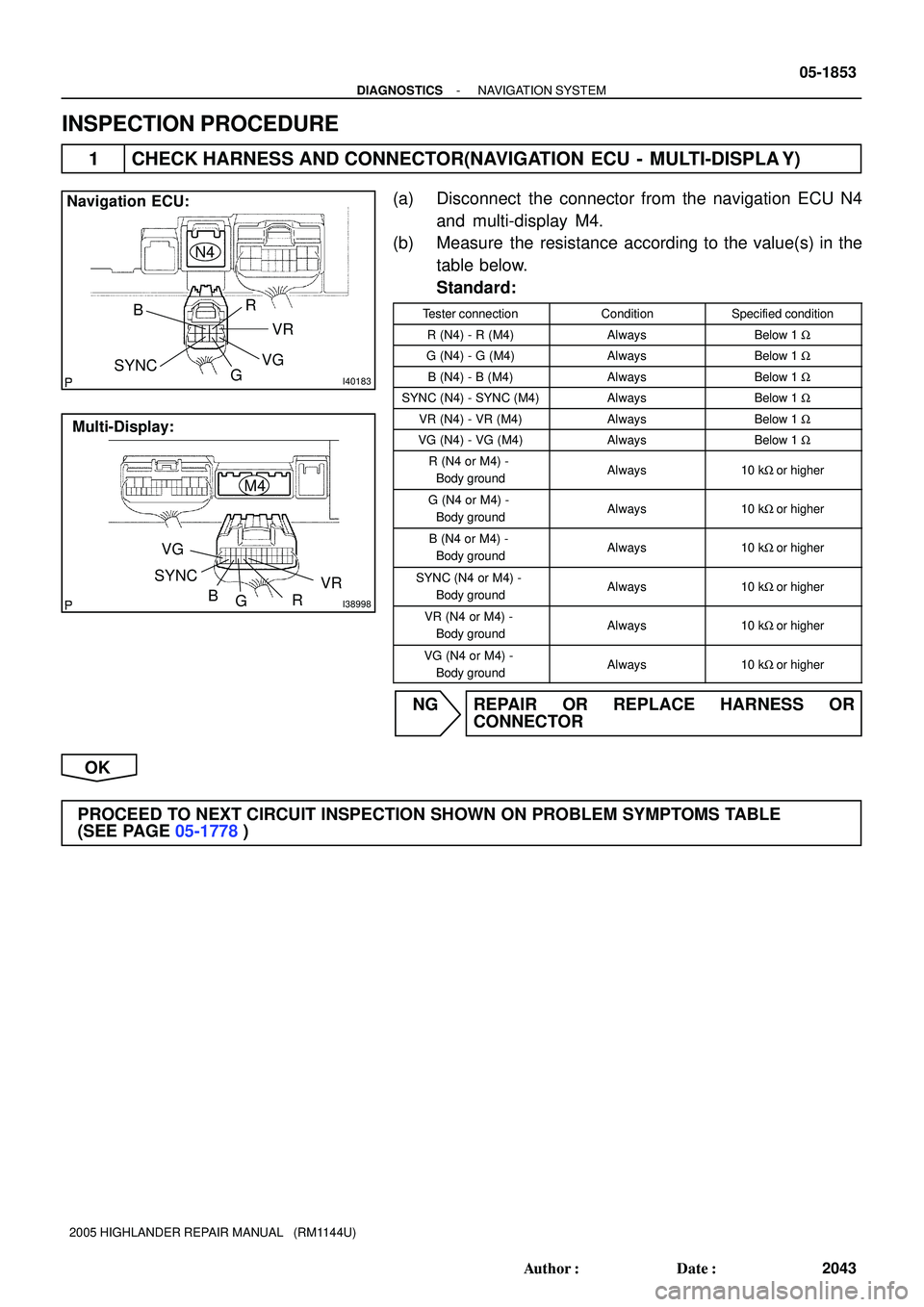

INSPECTION PROCEDURE
1 CHECK HARNESS AND CONNECTOR(NAVIGATION ECU - MULTI-DISPLA Y)
(a) Disconnect the connector from the navigation ECU N4
and multi-display M4.
(b) Measure the resistance according to the value(s) in the
table below.
Standard:
Tester connectionConditionSpecified condition
R (N4) - R (M4)AlwaysBelow 1 W
G (N4) - G (M4)AlwaysBelow 1 W
B (N4) - B (M4)AlwaysBelow 1 W
SYNC (N4) - SYNC (M4)AlwaysBelow 1 W
VR (N4) - VR (M4)AlwaysBelow 1 W
VG (N4) - VG (M4)AlwaysBelow 1 W
R (N4 or M4) -
Body groundAlways10 kW or higher
G (N4 or M4) -
Body groundAlways10 kW or higher
B (N4 or M4) -
Body groundAlways10 kW or higher
SYNC (N4 or M4) -
Body groundAlways10 kW or higher
VR (N4 or M4) -
Body groundAlways10 kW or higher
VG (N4 or M4) -
Body groundAlways10 kW or higher
NG REPAIR OR REPLACE HARNESS OR
CONNECTOR
OK
PROCEED TO NEXT CIRCUIT INSPECTION SHOWN ON PROBLEM SYMPTOMS TABLE
(SEE PAGE 05-1778)
Page 1599 of 2572
I39190
Multi-displayNavigation ECU
TX+
TX- BR SB
TX1+
TX1-
M35 M34
N45
N410 05-1860
- DIAGNOSTICSNAVIGATION SYSTEM
2050 Author: Date:
2005 HIGHLANDER REPAIR MANUAL (RM1144U)

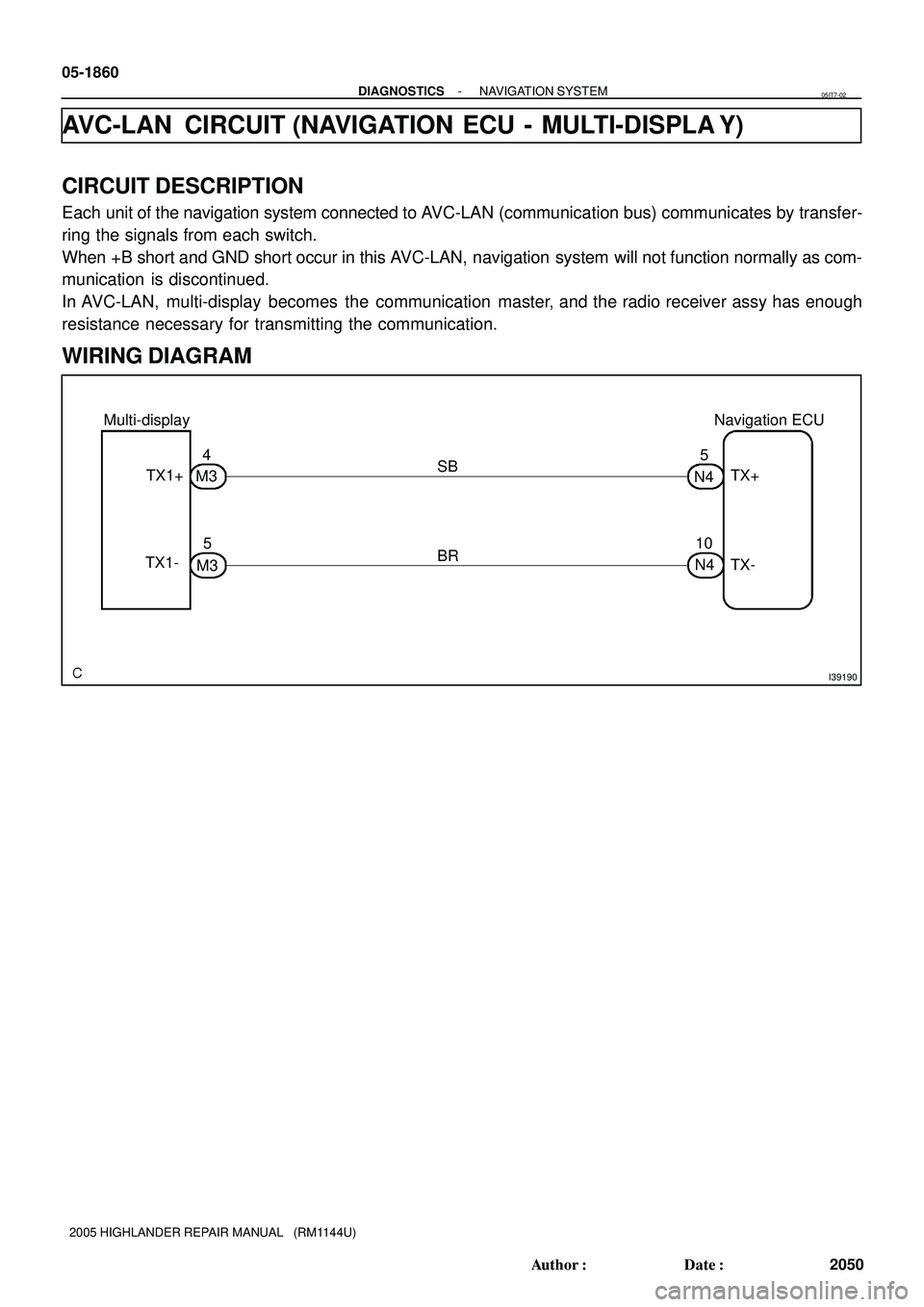

AVC-LAN CIRCUIT (NAVIGATION ECU - MULTI-DISPLA Y)
CIRCUIT DESCRIPTION
Each unit of the navigation system connected to AVC-LAN (communication bus) communicates by transfer-
ring the signals from each switch.
When +B short and GND short occur in this AVC-LAN, navigation system will not function normally as com-
munication is discontinued.
In AVC-LAN, multi-display becomes the communication master, and the radio receiver assy has enough
resistance necessary for transmitting the communication.
WIRING DIAGRAM
05IT7-02
Page 1600 of 2572
I40183
Navigation ECU:
TX+
TX-N4
I38678
Multi-Display:
TX1- TX1+M3
- DIAGNOSTICSNAVIGATION SYSTEM
05-1861
2051 Author: Date:
2005 HIGHLANDER REPAIR MANUAL (RM1144U)
INSPECTION PROCEDURE
1 CHECK HARNESS AND CONNECTOR(NAVIGATION ECU - MULTI-DISPLA Y)
(a) Disconnect the connector from the navigation ECU N4
and multi-display M3.
(b) Measure the resistance according to the value(s) in the
table below.
Standard:
Tester connectionConditionSpecified condition
TX1+ - TX+AlwaysBelow 1 W
TX1- - TX-AlwaysBelow 1 W
TX1+ -
Body groundAlways10 kW or higher
TX1- -
Body groundAlways10 kW or higher
NG REPAIR OR REPLACE HARNESS OR
CONNECTOR
OK
PROCEED TO NEXT CIRCUIT INSPECTION SHOWN IN DIAGNOSTIC TROUBLE CODE CHART
(SEE PAGE 05-1791)
Page 1601 of 2572
I34966
Multi-Display
Gateway ECU
GTX+
GTX- TX3+
TX3-
M412 M411
L BR
G512 G55 05-1862
- DIAGNOSTICSNAVIGATION SYSTEM
2052 Author: Date:
2005 HIGHLANDER REPAIR MANUAL (RM1144U)
AVC-LAN CIRCUIT (MULTI-DISPLA Y - GATEWAY ECU)
CIRCUIT DESCRIPTION
Each unit of the navigation system connected to AVC-LAN (communication bus) communicates by transfer-
ring the signals from each switch.
When +B short and GND short occur in this AVC-LAN, navigation system will not function normally as com-
munication is discontinued.
In AVC-LAN, multi-display becomes the communication master, and the radio receiver assy has enough
resistance necessary for transmitting the communication.
WIRING DIAGRAM
05IT8-02
Page 1602 of 2572
I38998
Multi-Display:
TX3+
TX3-
M4
I40180
Gateway ECU:
GTX+
GTX-G5
- DIAGNOSTICSNAVIGATION SYSTEM
05-1863
2053 Author: Date:
2005 HIGHLANDER REPAIR MANUAL (RM1144U)

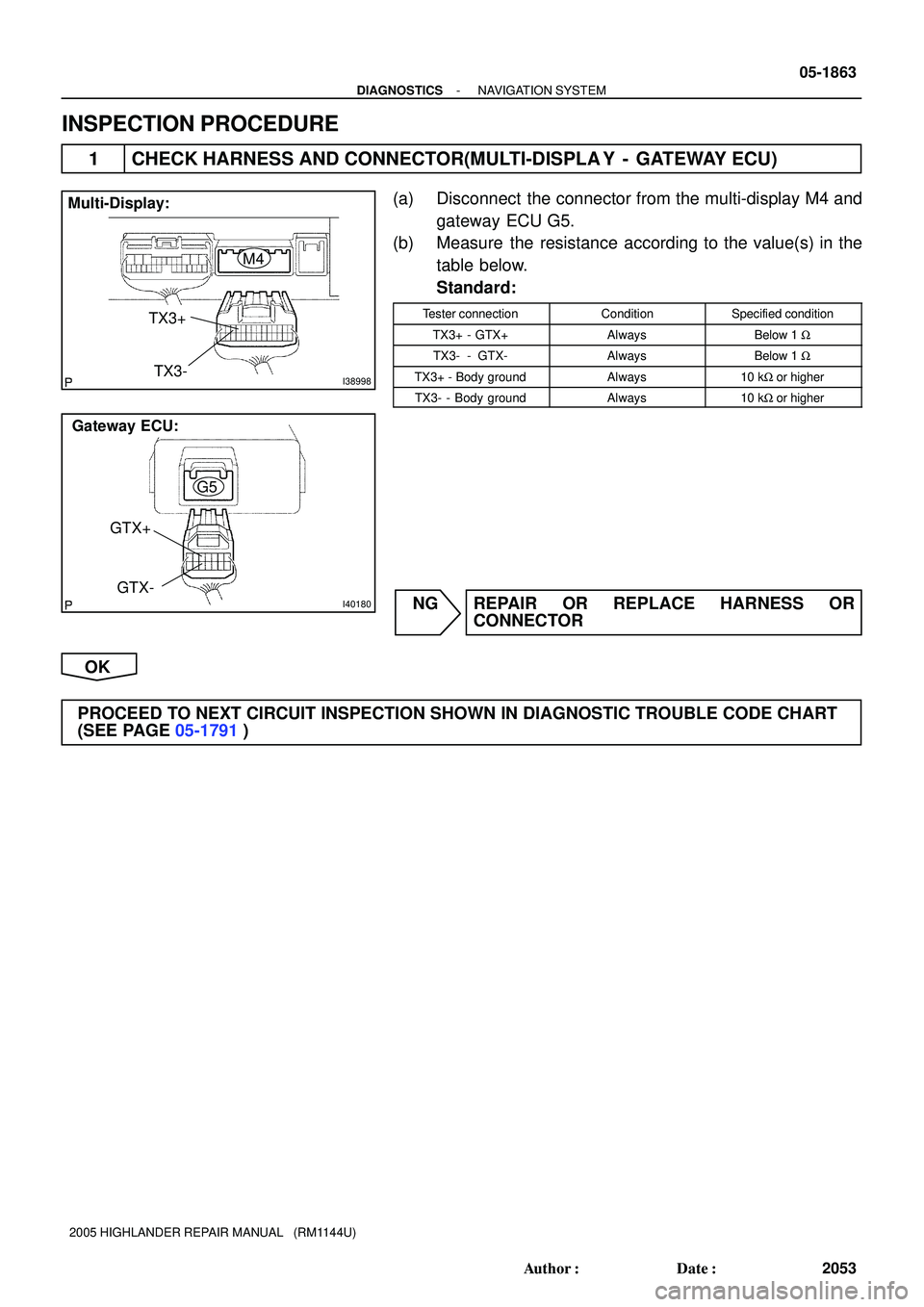

INSPECTION PROCEDURE
1 CHECK HARNESS AND CONNECTOR(MULTI-DISPLA Y - GATEWAY ECU)
(a) Disconnect the connector from the multi-display M4 and
gateway ECU G5.
(b) Measure the resistance according to the value(s) in the
table below.
Standard:
Tester connectionConditionSpecified condition
TX3+ - GTX+AlwaysBelow 1 W
TX3- - GTX-AlwaysBelow 1 W
TX3+ - Body groundAlways10 kW or higher
TX3- - Body groundAlways10 kW or higher
NG REPAIR OR REPLACE HARNESS OR
CONNECTOR
OK
PROCEED TO NEXT CIRCUIT INSPECTION SHOWN IN DIAGNOSTIC TROUBLE CODE CHART
(SEE PAGE 05-1791)
Page 1603 of 2572
05IS3-02
I38224
I38225
I38226
05-1764
- DIAGNOSTICSNAVIGATION SYSTEM
1954 Author: Date:
2005 HIGHLANDER REPAIR MANUAL (RM1144U)
NAVIGATION CHECK MODE (GPS INFORMATION)
HINT:
This mode displays GPS satellite information.
Illustrations may differ from the actual vehicle depending on the device settings and options. There-
fore, some detailed areas may not be shown exactly the same as on the actual vehicle.
1. Enter diagnostic mode (see page 05-1784).
2. Select ºNavigation Checkº from the ºDiagnosis
MENUº screen.
3. Select ºGPS Informationº from the ºNavigation
Checkº screen.
4. When GPS information is displayed, check the GPS
conditions.
HINT:
This screen is updated once per second when input signals to
the vehicle are changed.
Page 1604 of 2572
05IS5-02
I38224
I38229
I38230
05-1766
- DIAGNOSTICSNAVIGATION SYSTEM
1956 Author: Date:
2005 HIGHLANDER REPAIR MANUAL (RM1144U)

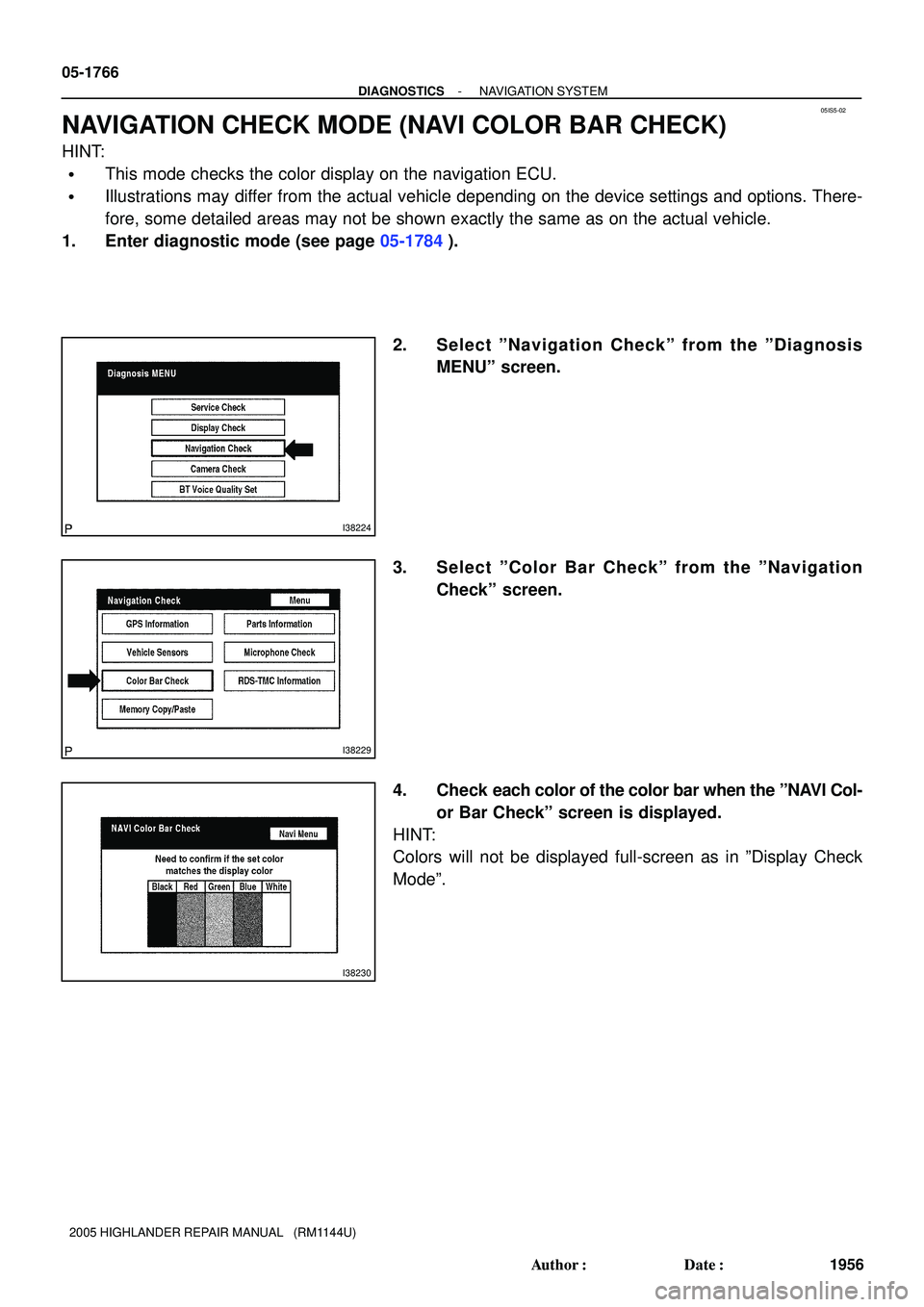

NAVIGATION CHECK MODE (NAVI COLOR BAR CHECK)
HINT:
This mode checks the color display on the navigation ECU.
Illustrations may differ from the actual vehicle depending on the device settings and options. There-
fore, some detailed areas may not be shown exactly the same as on the actual vehicle.
1. Enter diagnostic mode (see page 05-1784).
2. Select ºNavigation Checkº from the ºDiagnosis
MENUº screen.
3. Select ºColor Bar Checkº from the ºNavigation
Checkº screen.
4. Check each color of the color bar when the ºNAVI Col-
or Bar Checkº screen is displayed.
HINT:
Colors will not be displayed full-screen as in ºDisplay Check
Modeº.
Page 1605 of 2572
05IS6-02
I38224
I38231
I38232
*1
*2
*3
*4
- DIAGNOSTICSNAVIGATION SYSTEM
05-1767
1957 Author: Date:
2005 HIGHLANDER REPAIR MANUAL (RM1144U)
NAVIGATION CHECK MODE (PARTS INFORMATION)
HINT:
This mode displays product information on the navigation systems and discs.
Illustrations may differ from the actual vehicle depending on the device settings and options. There-
fore, some detailed areas may not be shown exactly the same as on the actual vehicle.
1. Enter diagnostic mode (see page 05-1784).
2. Select ºNavigation Checkº from the ºDiagnosis
MENUº screen.
3. Select ºParts Informationº from the ºNavigation
Checkº screen.
4. Check the navigation and disc information when the
ºParts Informationº screen is displayed.
DisplayContents
Navigation Manufacturer/*1Navigation ECU manufacturer name is displayed.
Navigation Version/*2Navigation ECU version is displayed.
Disc Manufacturer/*3Map disc manufacturer is displayed.
Disc Version/*4Map disc version is displayed.
Page 1606 of 2572
05IS4-02
I38224
I38227
I38228
- DIAGNOSTICSNAVIGATION SYSTEM
05-1765
1955 Author: Date:
2005 HIGHLANDER REPAIR MANUAL (RM1144U)
NAVIGATION CHECK MODE (VEHICLE SENSORS)
HINT:
This mode checks the vehicle signal status to the navigation ECU.
Illustrations may differ from the actual vehicle depending on the device settings and options. There-
fore, some detailed areas may not be shown exactly the same as on the actual vehicle.
1. Enter diagnostic mode (see page 05-1784).
2. Select ºNavigation Checkº from the ºDiagnosis
MENUº screen.
3. Select ºVehicle Sensorsº from the ºNavigation
Checkº screen.
4. Check all the signals and sensors when vehicle sig-
nal information is displayed.
HINT:
This screen is updated once per second when input signals to
the vehicle are changed.
Page 1608 of 2572
05F45-05
01 BANK 1 - SENSOR 1
01 BANK 1 - SENSOR 2
01 BANK 2 - SENSOR 1
01 BANK 2 - SENSOR 2
A21190
O2S TEST RESULT Screen 05-22
- DIAGNOSTICSSFI SYSTEM (2AZ-FE)
212 Author: Date:
2005 HIGHLANDER REPAIR MANUAL (RM1144U)
O2S TEST RESULT
1. INTRODUCTION
The O2S TEST RESULT refers to the results of the engine con-
trol module (ECM) when it monitors the oxygen sensor (O2S),
and it can be read using the hand-held tester or the generic
OBD II scan tool. Based on this, you can find the O2S's condi-
tions.
The ECM monitors the O2S for various data. You can read the
monitor result (TEST DATA) of each monitor item using the O2S
TEST RESULT. However, the output value of the TEST DATA
is the latest ºsnapshotº value that is taken after monitoring and
therefore it is not dynamic.
In this repair manual, the description of the O2S TEST RESULT
(for O2S related DTCs) are written in a table.
This table consists of 5 items:
(1) TEST ID (a code applied to each TEST DATA)
(2) Description of TEST DATA
(3) Conversion Factor (When conversion factor has a
value written in the table, multiply the TEST DATA
value appearing on the scan tool by the conversion
factor value. The result will be the required value.)
(4) Unit
(5) Standard Value
If the TEST DATA value appearing on the scan tool is out of the
standard value, the O2S is malfunctioning. If it is within the stan-
dard value, the O2S is functioning normally. However, if the val-
ue is on the borderline of the standard value, the O2S may mal-
function very soon.
2. HOW TO READ O2S TEST RESULT USING HAND-
HELD TESTER
(a) Connect the hand-held tester to the DLC3.
(b) On the tester screen, select the following menus: DIAG-
NOSIS / CARB OBDII / O2S TEST RESULT. A list of the
O2S equipped on the vehicle will be displayed.
