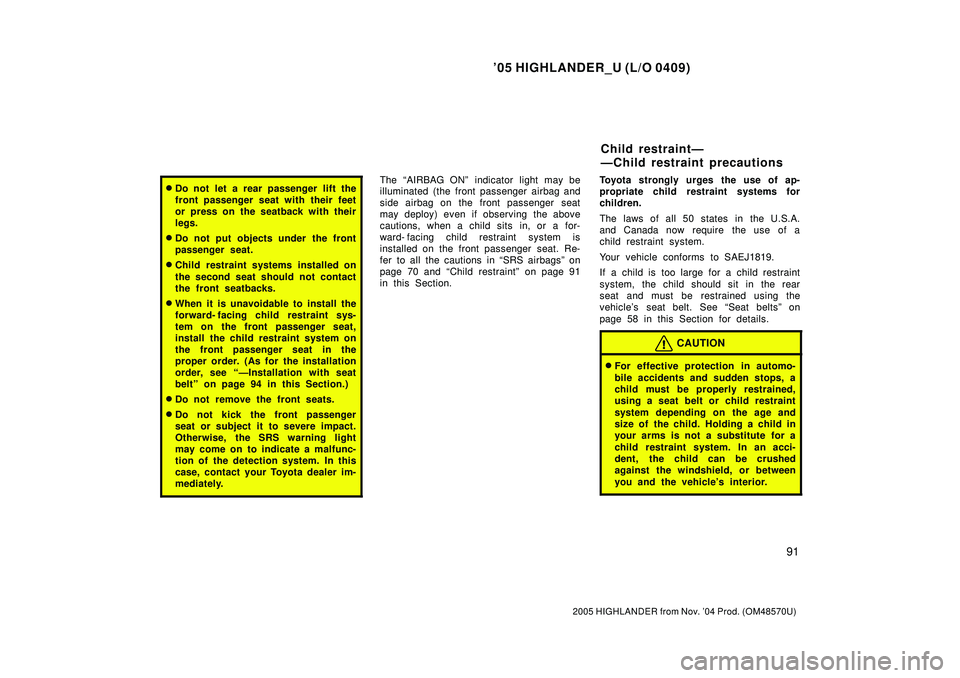

'05 HIGHLANDER_U (L/O 0409)
91
2005 HIGHLANDER from Nov. '04 Prod. (OM48570U)

Do not let a rear passenger lift the
front passenger seat with their feet
or press on the seatback with their
legs.

Do not put objects under the front
passenger seat.

Child restraint systems installed on
the second seat should not contact
the front seatbacks.

When it is unavoidable to install the
forward- facing child restraint sys-
tem on the front passenger seat,
install the child restraint system on
the front passenger seat in the
proper order. (As for the installation
order, see ÐInstallation with seat
beltº on page 94 in this Section.)

Do not remove the front seats.

Do not kick the front passenger
seat or subject it to severe impact.
Otherwise, the SRS warning light
may come on to indicate a malfunc-
tion of the detection system. In this
case, contact your Toyota dealer im-
mediately.
The AIRBAG ONº indicator light may be
illuminated (the front passenger airbag and
side airbag on the front passenger seat
may deploy) even if observing the above
cautions, when a child sits in, or a for-
ward- facing child restraint system is
installed on the front passenger seat. Re-
fer to all the cautions in SRS airbagsº on
page 70 and Child restraintº on page 91
in this Section.Toyota strongly urges the use of ap-
propriate child restraint systems for
children.
The laws of all 50 states in the U.S.A.
and Canada now require the use of a
child restraint system.
Your vehicle conforms to SAEJ1819.
If a child is too large for a child restraint
system, the child should sit in the rear
seat and must be restrained using the
vehicle's seat belt. See Seat beltsº on
page 58 in this Section for details.
CAUTION

For effective protection in automo-
bile accidents and sudden stops, a
child must be properly restrained,
using a seat belt or child restraint
system depending on the age and
size of the child. Holding a child in
your arms is not a substitute for a
child restraint system. In an acci-
dent, the child can be crushed
against the windshield, or between
you and the vehicle's interior.
Child restraintÐ
ÐChild restraint precautions

'05 HIGHLANDER_U (L/O 0409)
92
2005 HIGHLANDER from Nov. '04 Prod. (OM48570U)

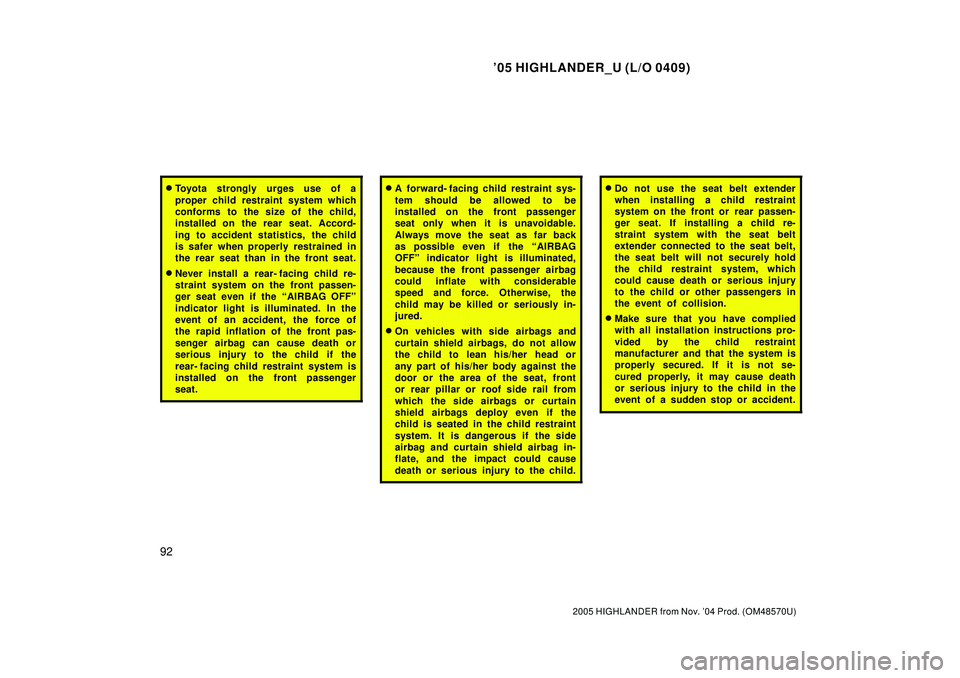

Toyota strongly urges use of a
proper child restraint system which
conforms to the size of the child,
installed on the rear seat. Accord-
ing to accident statistics, the child
is safer when properly restrained in
the rear seat than in the front seat.

Never install a rear- facing child re-
straint system on the front passen-
ger seat even if the AIRBAG OFFº
indicator light is illuminated. In the
event of an accident, the force of
the rapid inflation of the front pas-
senger airbag can cause death or
serious injury to the child if the
rear- facing child restraint system is
installed on the front passenger
seat.

A forward- facing child restraint sys-
tem should be allowed to be
installed on the front passenger
seat only when it is unavoidable.
Always move the seat as far back
as possible even if the AIRBAG
OFFº indicator light is illuminated,
because the front passenger airbag
could inflate with considerable
speed and force. Otherwise, the
child may be killed or seriously in-
jured.

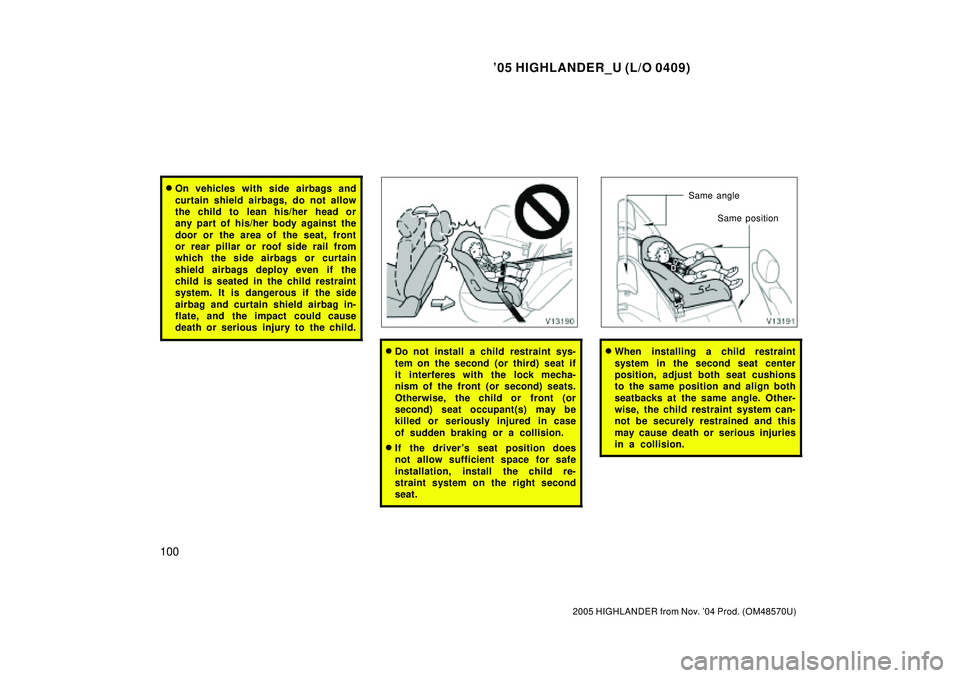

On vehicles with side airbags and
curtain shield airbags, do not allow
the child to lean his/her head or
any part of his/her body against the
door or the area of the seat, front
or rear pillar or roof side rail from
which the side airbags or curtain
shield airbags deploy even if the
child is seated in the child restraint
system. It is dangerous if the side
airbag and curtain shield airbag in-
flate, and the impact could cause
death or serious injury to the child.

Do not use the seat belt extender
when installing a child restraint
system on the front or rear passen-
ger seat. If installing a child re-
straint system with the seat belt
extender connected to the seat belt,
the seat belt will not securely hold
the child restraint system, which
could cause death or serious injury
to the child or other passengers in
the event of collision.

Make sure that you have complied
with all installation instructions pro-
vided by the child restraint
manufacturer and that the system is
properly secured. If it is not se-
cured properly, it may cause death
or serious injury to the child in the
event of a sudden stop or accident.

'05 HIGHLANDER_U (L/O 0409)
93
2005 HIGHLANDER from Nov. '04 Prod. (OM48570U)

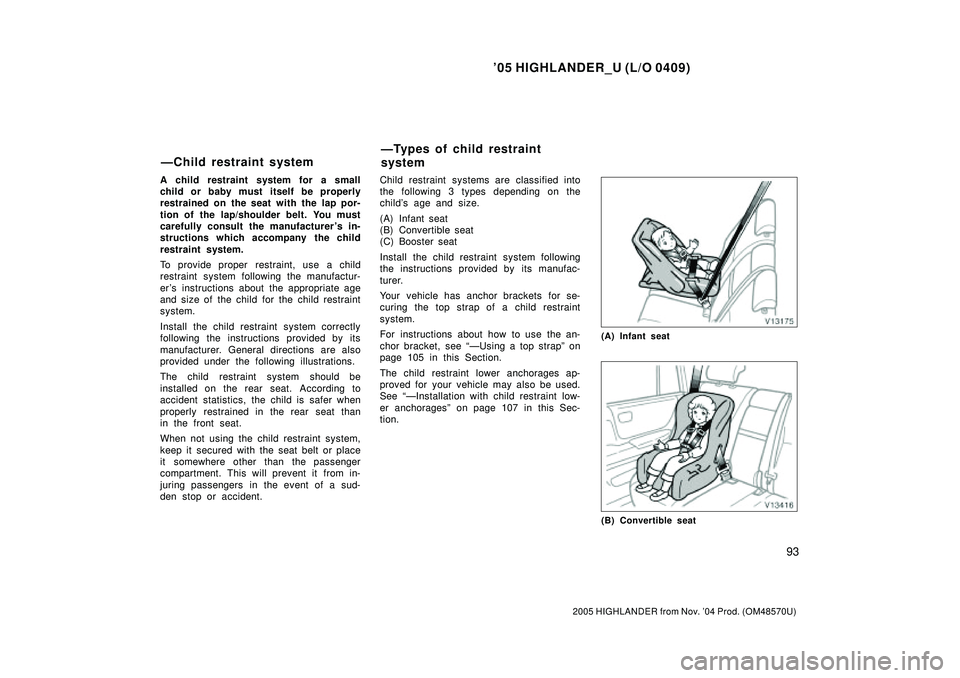

A child restraint system for a small
child or baby must itself be properly
restrained on the seat with the lap por-
tion of the lap/shoulder belt. You must
carefully consult the manufacturer 's in-
structions which accompany the child
restraint system.
To provide proper restraint, use a child
restraint system following the manufactur-
er 's instructions about the appropriate age
and size of the child for the child restraint
system.
Install the child restraint system correctly
following the instructions provided by its
manufacturer. General directions are also
provided under the following illustrations.
The child restraint system should be
installed on the rear seat. According to
accident statistics, the child is safer when
properly restrained in the rear seat than
in the front seat.
When not using the child restraint system,
keep it secured with the seat belt or place
it somewhere other than the passenger
compartment. This will prevent it from in-
juring passengers in the event of a sud-
den stop or accident.Child restraint systems are classified into
the following 3 types depending on the
child's age and size.
(A) Infant seat
(B) Convertible seat
(C) Booster seat
Install the child restraint system following
the instructions provided by its manufac-
turer.
Your vehicle has anchor brackets for se-
curing the top strap of a child restraint
system.
For instructions about how to use the an-
chor bracket, see ÐUsing a top strapº on
page 105 in this Section.
The child restraint lower anchorages ap-
proved for your vehicle may also be used.
See ÐInstallation with child restraint low-
er anchoragesº on page 107 in this Sec-
tion.
(A) Infant seat
(B) Convertible seat
ÐChild restraint systemÐTypes of child restraint
system

'05 HIGHLANDER_U (L/O 0409)
94
2005 HIGHLANDER from Nov. '04 Prod. (OM48570U)
(C) Booster seat(A) INFANT SEAT INSTALLATION
An infant seat must be used in rear-
facing position only.CAUTION

Never install a rear- facing child re-
straint system on the front passen-
ger seat even if the AIRBAG OFFº
indicator light is illuminated. In the
event of an accident, the impact of
the rapid inflation of the front pas-
senger airbag could cause death or
serious injury to the child if the
rear- facing child restraint system is
installed on the front passenger
seat.
ÐInstallation with seat belt

'05 HIGHLANDER_U (L/O 0409)
95
2005 HIGHLANDER from Nov. '04 Prod. (OM48570U)

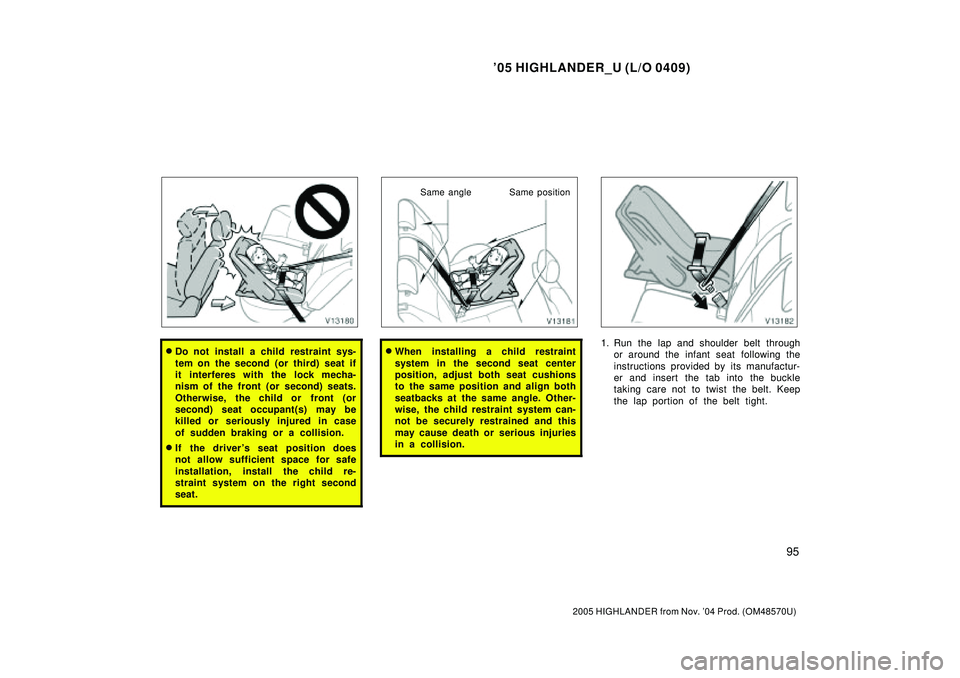

Do not install a child restraint sys-
tem on the second (or third) seat if
it interferes with the lock mecha-
nism of the front (or second) seats.
Otherwise, the child or front (or
second) seat occupant(s) may be
killed or seriously injured in case
of sudden braking or a collision.

If the driver 's seat position does
not allow sufficient space for safe
installation, install the child re-
straint system on the right second
seat.
Same angle Same position

When installing a child restraint
system in the second seat center
position, adjust both seat cushions
to the same position and align both
seatbacks at the same angle. Other-
wise, the child restraint system can-
not be securely restrained and this
may cause death or serious injuries
in a collision.1. Run the lap and shoulder belt through
or around the infant seat following the
instructions provided by its manufactur-
er and insert the tab into the buckle
taking care not to twist the belt. Keep
the lap portion of the belt tight.

'05 HIGHLANDER_U (L/O 0409)
96
2005 HIGHLANDER from Nov. '04 Prod. (OM48570U)

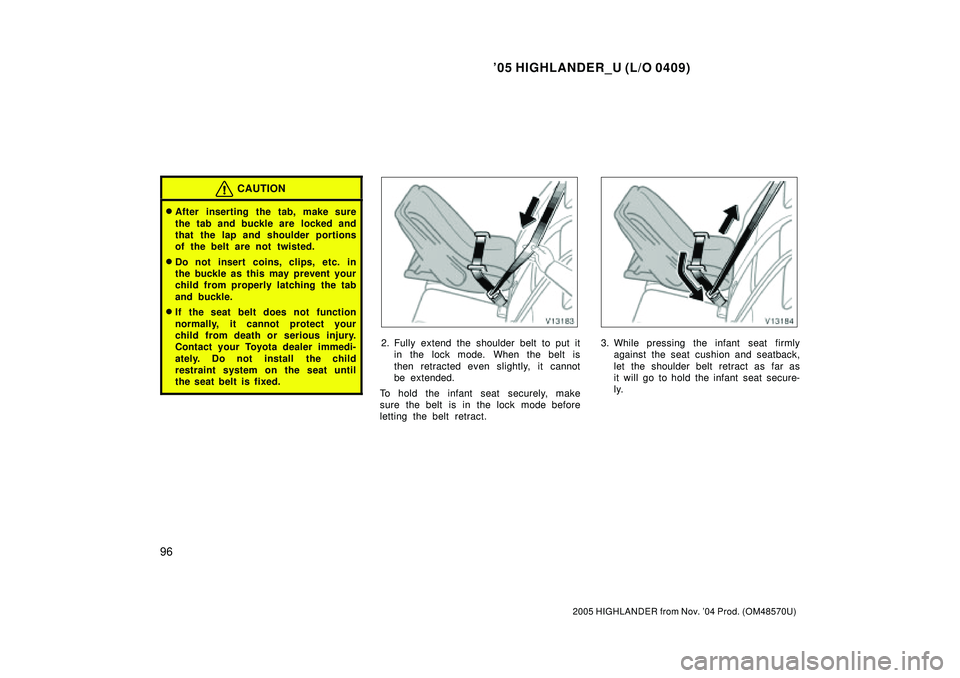

CAUTION

After inserting the tab, make sure
the tab and buckle are locked and
that the lap and shoulder portions
of the belt are not twisted.

Do not insert coins, clips, etc. in
the buckle as this may prevent your
child from properly latching the tab
and buckle.

If the seat belt does not function
normally, it cannot protect your
child from death or serious injury.
Contact your Toyota dealer immedi-
ately. Do not install the child
restraint system on the seat until
the seat belt is fixed.
2. Fully extend the shoulder belt to put it
in the lock mode. When the belt is
then retracted even slightly, it cannot
be extended.
To hold the infant seat securely, make
sure the belt is in the lock mode before
letting the belt retract.3. While pressing the infant seat firmly
against the seat cushion and seatback,
let the shoulder belt retract as far as
it will go to hold the infant seat secure-
ly.

'05 HIGHLANDER_U (L/O 0409)
97
2005 HIGHLANDER from Nov. '04 Prod. (OM48570U)
CAUTION
Push and pull the child restraint sys-
tem in different directions to be sure
it is secure. Follow all the installation
instructions provided by its manufac-
turer.
4. To remove the infant seat, press the
buckle release button and allow the
belt to retract completely. The belt will
move freely again and be ready to
work for an adult or older child passen-
ger.(B) CONVERTIBLE SEAT INSTALLATION
A convertible seat must be used in for-
ward- facing or rear- facing position de-
pending on the age and size of the
child. When installing, follow the
manufacturer 's instructions about the
applicable age and size of the child as
well as directions for installing the
child restraint system.

'05 HIGHLANDER_U (L/O 0409)
98
2005 HIGHLANDER from Nov. '04 Prod. (OM48570U)
Install the child restraint system on the
front passenger seat only when it is un-
avoidable. Your vehicle is equipped with a
front passenger occupant classification
system. In order to activate the occupant
classification system correctly, install the
forward- facing child restraint system on
the front passenger seat in the following
order:
1. Turn the ignition key to the ONº posi-
tion.
2. Move the front passenger seat to the
rearward position.
3. Put the child restraint system on the
front passenger seat without putting
your weight on the front passenger
seat.
4. Insert the seat belt tab into the seat
belt buckle.
5. Fully extend the shoulder belt to put it
in the lock mode. When the belt is
then retracted even slightly, it cannot
be extended. To hold the seat securely,
make sure the belt is in the lock mode
before letting the belt retract.6. While pressing the convertible seat
firmly against the seat cushion and
seatback, let the shoulder belt retract
as far as it will go to hold the convert-
ible seat securely.
CAUTION
Push and pull the child restraint sys-
tem in different directions to be sure
it is secure. Follow all the installation
instructions provided by its manufac-
turer.
7. Put a child on the child restraint sys-
tem and secure the child, complying
with the instructions provided by the
child restraint system manufacturer.The AIRBAG OFFº indicator light should
be illuminated when the ignition key is
ONº and the child is in the child restraint
system after following these procedures.
The AIRBAG OFFº indicator light indi-
cates the SRS front passenger airbag and
side airbag on the passenger side will not
deploy. If the AIRBAG ONº indicator light
is illuminated, remove the child restraint
system and reinstall it with the ignition
key in the ACCº or LOCKº position. If
the AIRBAG ONº indicator light is illumi-
nated when the ignition key is turned to
the ONº position, then the SRS front pas-
senger airbag and side airbag on the pas-
senger side may deploy in an accident.
Do not drive the vehicle in this condition.
Remove the child restraint system and
contact your Toyota dealer.

'05 HIGHLANDER_U (L/O 0409)
99
2005 HIGHLANDER from Nov. '04 Prod. (OM48570U)

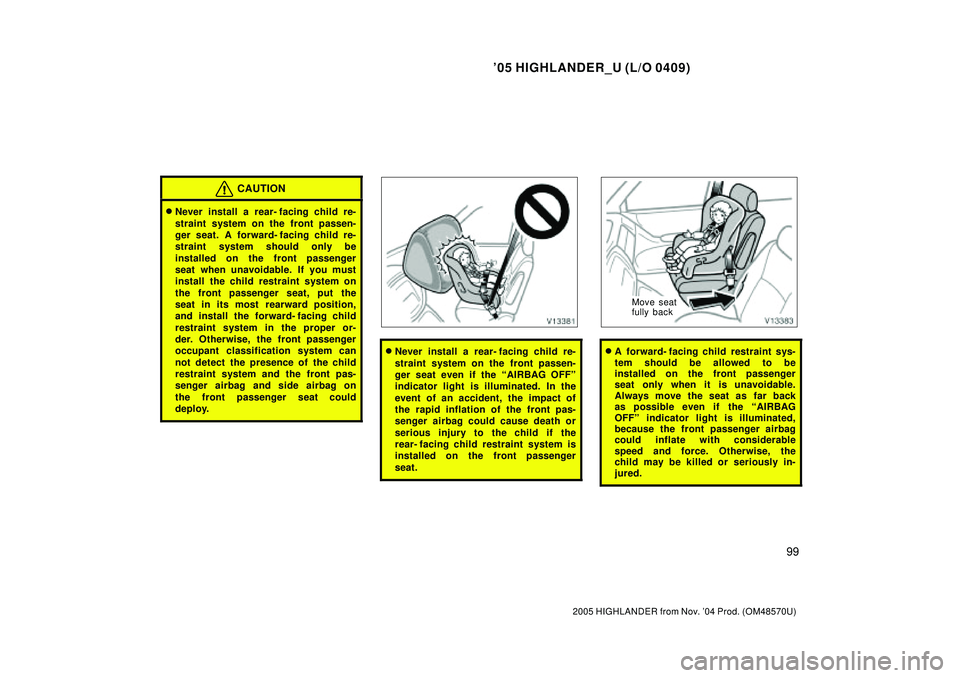

CAUTION

Never install a rear- facing child re-
straint system on the front passen-
ger seat. A forward- facing child re-
straint system should only be
installed on the front passenger
seat when unavoidable. If you must
install the child restraint system on
the front passenger seat, put the
seat in its most rearward position,
and install the forward- facing child
restraint system in the proper or-
der. Otherwise, the front passenger
occupant classification system can
not detect the presence of the child
restraint system and the front pas-
senger airbag and side airbag on
the front passenger seat could
deploy.

Never install a rear- facing child re-
straint system on the front passen-
ger seat even if the AIRBAG OFFº
indicator light is illuminated. In the
event of an accident, the impact of
the rapid inflation of the front pas-
senger airbag could cause death or
serious injury to the child if the
rear- facing child restraint system is
installed on the front passenger
seat.
Move seat
fully back

A forward- facing child restraint sys-
tem should be allowed to be
installed on the front passenger
seat only when it is unavoidable.
Always move the seat as far back
as possible even if the AIRBAG
OFFº indicator light is illuminated,
because the front passenger airbag
could inflate with considerable
speed and force. Otherwise, the
child may be killed or seriously in-
jured.

'05 HIGHLANDER_U (L/O 0409)
100
2005 HIGHLANDER from Nov. '04 Prod. (OM48570U)

On vehicles with side airbags and
curtain shield airbags, do not allow
the child to lean his/her head or
any part of his/her body against the
door or the area of the seat, front
or rear pillar or roof side rail from
which the side airbags or curtain
shield airbags deploy even if the
child is seated in the child restraint
system. It is dangerous if the side
airbag and curtain shield airbag in-
flate, and the impact could cause
death or serious injury to the child.

Do not install a child restraint sys-
tem on the second (or third) seat if
it interferes with the lock mecha-
nism of the front (or second) seats.
Otherwise, the child or front (or
second) seat occupant(s) may be
killed or seriously injured in case
of sudden braking or a collision.

If the driver 's seat position does
not allow sufficient space for safe
installation, install the child re-
straint system on the right second
seat.
Same angle
Same position

When installing a child restraint
system in the second seat center
position, adjust both seat cushions
to the same position and align both
seatbacks at the same angle. Other-
wise, the child restraint system can-
not be securely restrained and this
may cause death or serious injuries
in a collision.
