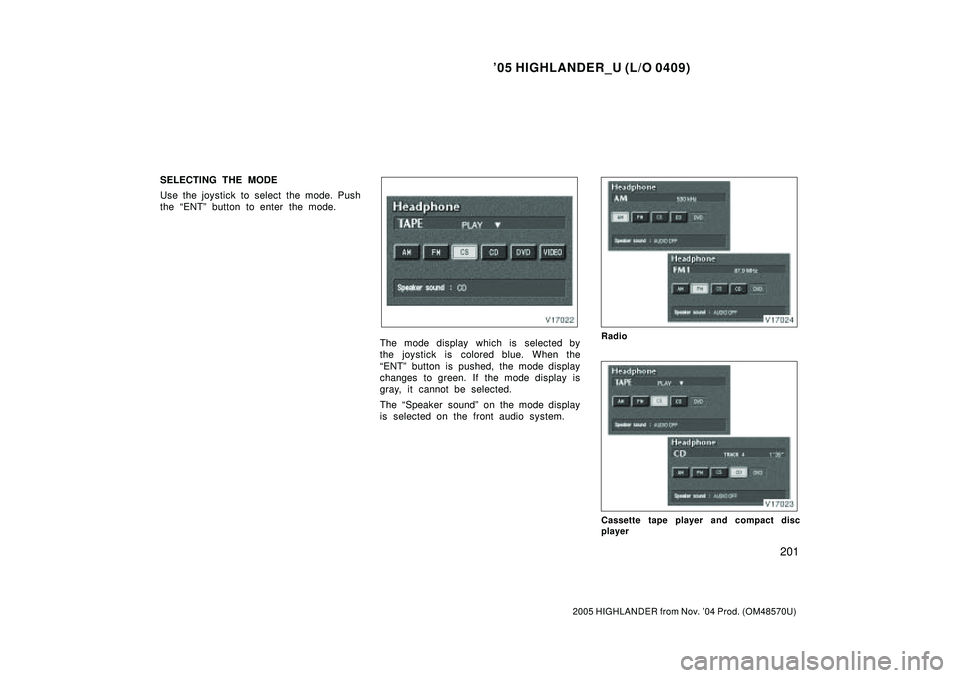

SELECTING THE MODE
Use the joystick to select the mode. Push
the ENTº button to enter the mode.
The mode display which is selected by
the joystick is colored blue. When the
ENTº button is pushed, the mode display
changes to green. If the mode display is
gray, it cannot be selected.
The Speaker soundº on the mode display
is selected on the front audio system.Radio
Cassette tape player and compact disc
player

'05 HIGHLANDER_U (L/O 0409)
202
2005 HIGHLANDER from Nov. '04 Prod. (OM48570U)
When you select a mode, the screen indi-
cates which is selected.
Radio
AM mode:
When you select the AM mode, AMº will
appear on the screen.
FM mode:
When you select the FM mode, FM1º or
FM2º will appear on the screen.
Tape mode
TAPEº appears on the screen while this
mode is selected.
Compact disc mode
CDº appears on the screen while this
mode is selected.
The screen shows the track, or track and
disc number currently being played.
Controller
DVD player unit

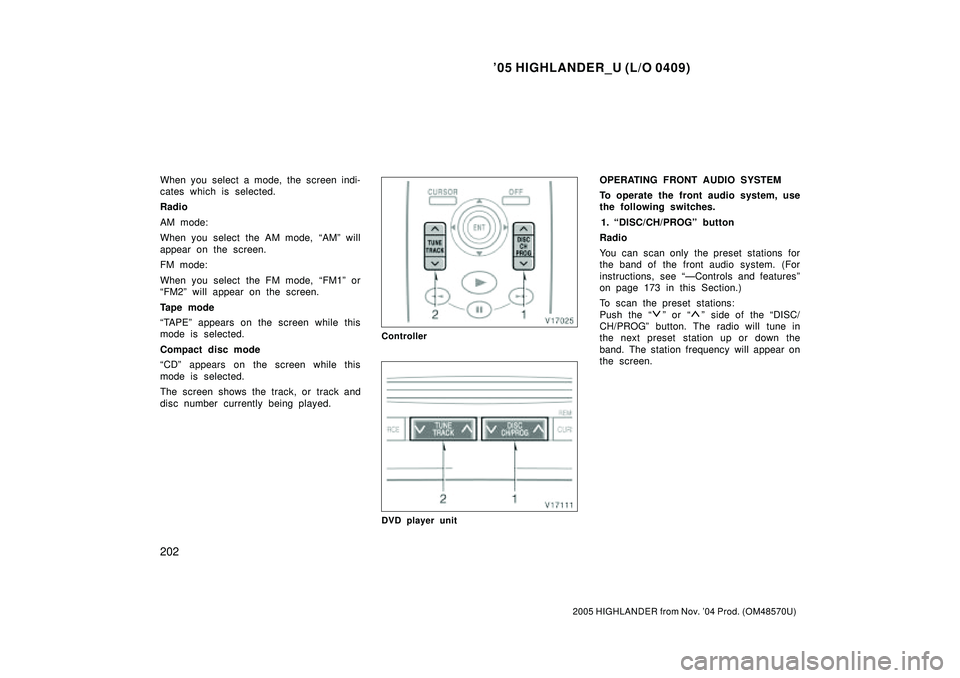

OPERATING FRONT AUDIO SYSTEM
To operate the front audio system, use
the following switches.
1. DISC/CH/PROGº button
Radio
You can scan only the preset stations for
the band of the front audio system. (For
instructions, see ÐControls and featuresº
on page 173 in this Section.)
To scan the preset stations:
Push the
º or º side of the DISC/
CH/PROGº button. The radio will tune in
the next preset station up or down the
band. The station frequency will appear on
the screen.

'05 HIGHLANDER_U (L/O 0409)
203
2005 HIGHLANDER from Nov. '04 Prod. (OM48570U)

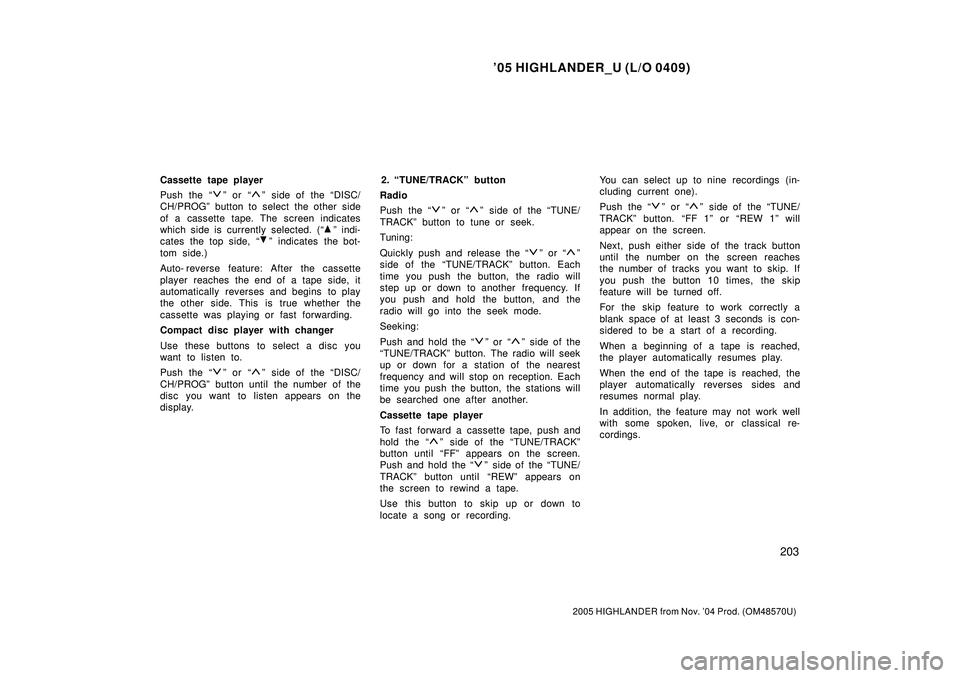

Cassette tape player
Push the
º or º side of the DISC/
CH/PROGº button to select the other side
of a cassette tape. The screen indicates
which side is currently selected. (
º indi-
cates the top side,
º indicates the bot-
tom side.)
Auto- reverse feature: After the cassette
player reaches the end of a tape side, it
automatically reverses and begins to play
the other side. This is true whether the
cassette was playing or fast forwarding.
Compact disc player with changer
Use these buttons to select a disc you
want to listen to.
Push the
º or º side of the DISC/
CH/PROGº button until the number of the
disc you want to listen appears on the
display.2. TUNE/TRACKº button
Radio
Push the
º or º side of the TUNE/
TRACKº button to tune or seek.
Tuning:
Quickly push and release the
º or º
side of the TUNE/TRACKº button. Each
time you push the button, the radio will
step up or down to another frequency. If
you push and hold the button, and the
radio will go into the seek mode.
Seeking:
Push and hold the
º or º side of the
TUNE/TRACKº button. The radio will seek
up or down for a station of the nearest
frequency and will stop on reception. Each
time you push the button, the stations will
be searched one after another.
Cassette tape player
To fast forward a cassette tape, push and
hol d the
º side of the TUNE/TRACKº
button until FFº appears on the screen.
Push and hold the
º side of the TUNE/
TRACKº button until REWº appears on
the screen to rewind a tape.
Use this button to skip up or down to
locate a song or recording.You can select up to nine recordings (in-
cluding current one).
Push the
º or º side of the TUNE/
TRACKº button. FF 1º or REW 1º will
appear on the screen.
Next, push either side of the track button
until the number on the screen reaches
the number of tracks you want to skip. If
you push the button 10 times, the skip
feature will be turned off.
For the skip feature to work correctly a
blank space of at least 3 seconds is con-
sidered to be a start of a recording.
When a beginning of a tape is reached,
the player automatically resumes play.
When the end of the tape is reached, the
player automatically reverses sides and
resumes normal play.
In addition, the feature may not work well
with some spoken, live, or classical re-
cordings.

'05 HIGHLANDER_U (L/O 0409)
204
2005 HIGHLANDER from Nov. '04 Prod. (OM48570U)
Compact disc player
Use this button to skip up or down to a
different track.
Push the
º or º side of the TUNE/
TRACKº button until the number of the
track you want to listen to appears on the
screen. If you want to return to the begin-
ning of the current track, quickly push the

º side of the TUNE/TRACKº button one
time.
Push and hold the
º or º side of the
TUNE/TRACKº button to fast forward or
reverse within a compact disc. When you
release the button, the compact disc play-

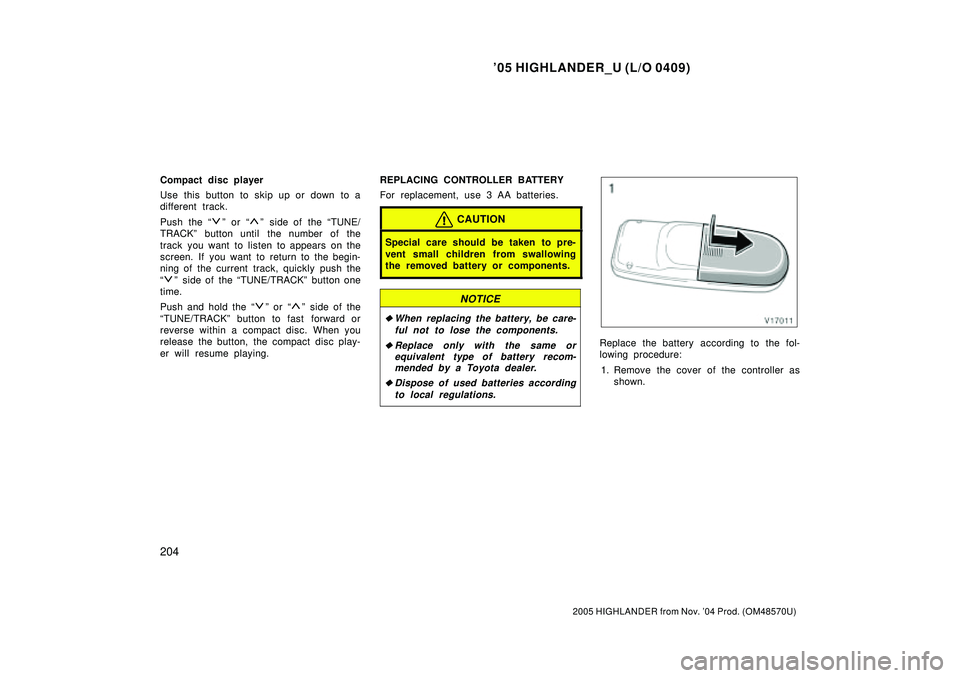

er will resume playing.REPLACING CONTROLLER BATTERY
For replacement, use 3 AA batteries.
CAUTION
Special care should be taken to pre-
vent small children from swallowing
the removed battery or components.
NOTICE

When replacing the battery, be care-
ful not to lose the components.

Replace only with the same or
equivalent type of battery recom-
mended by a Toyota dealer.

Dispose of used batteries according
to local regulations.
Replace the battery according to the fol-
lowing procedure:
1. Remove the cover of the controller as
shown.

'05 HIGHLANDER_U (L/O 0409)
205
2005 HIGHLANDER from Nov. '04 Prod. (OM48570U)

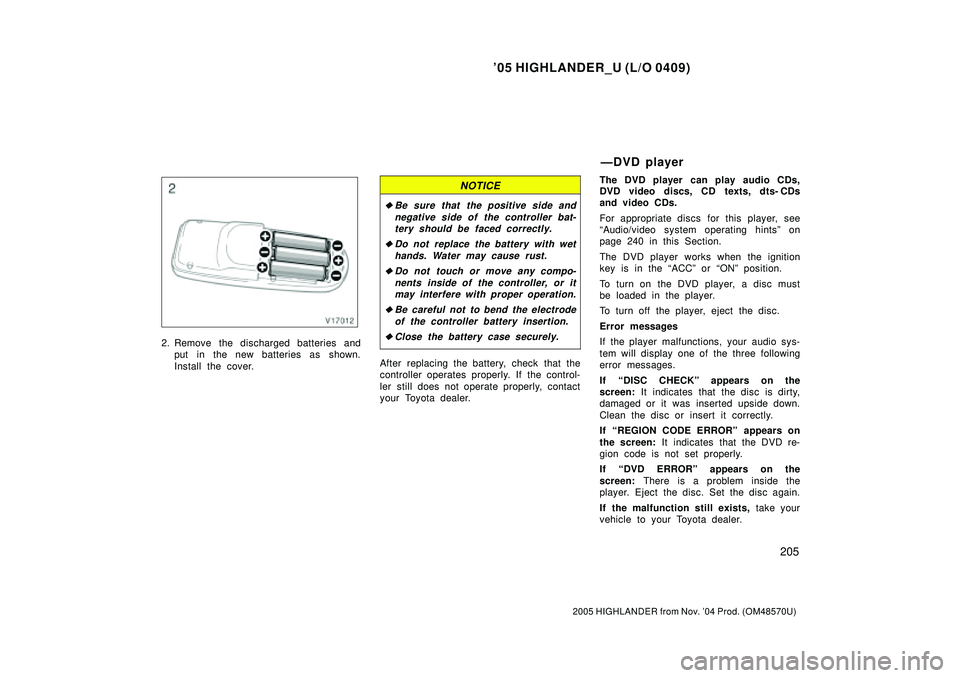

2. Remove the discharged batteries and
put in the new batteries as shown.
Install the cover.
NOTICE

Be sure that the positive side and
negative side of the controller bat-
tery should be faced correctly.

Do not replace the battery with wet
hands. Water may cause rust.

Do not touch or move any compo-
nents inside of the controller, or it
may interfere with proper operation.

Be careful not to bend the electrode
of the controller battery insertion.

Close the battery case securely.
After replacing the battery, check that the
controller operates properly. If the control-
ler still does not operate properly, contact
your Toyota dealer.The DVD player can play audio CDs,
DVD video discs, CD texts, dts- CDs
and video CDs.
For appropriate discs for this player, see
Audio/video system operating hintsº on
page 240 in this Section.
The DVD player works when the ignition
key is in the ACCº or ONº position.
To turn on the DVD player, a disc must
be loaded in the player.
To turn off the player, eject the disc.
Error messages
If the player malfunctions, your audio sys-
tem will display one of the three following
error messages.
If DISC CHECKº appears on the
screen: It indicates that the disc is dirty,
damaged or it was inserted upside down.
Clean the disc or insert it correctly.
If REGION CODE ERRORº appears on
the screen: It indicates that the DVD re-
gion code is not set properly.
If DVD ERRORº appears on the
screen: There is a problem inside the
player. Eject the disc. Set the disc again.
If the malfunction still exists, take your
vehicle to your Toyota dealer.
ÐDVD player

'05 HIGHLANDER_U (L/O 0409)
206
2005 HIGHLANDER from Nov. '04 Prod. (OM48570U)

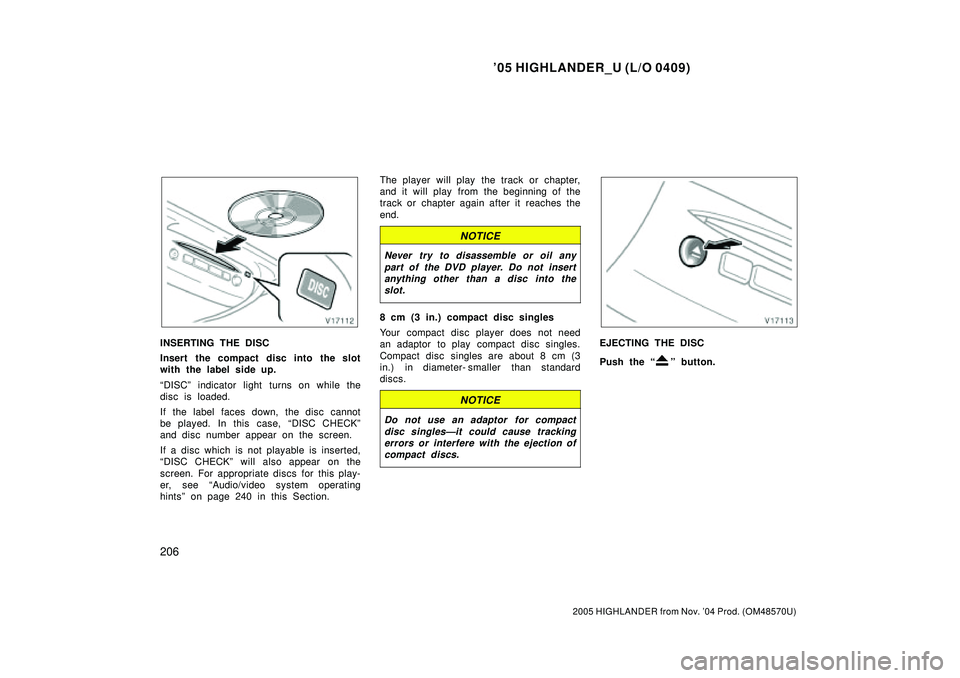

INSERTING THE DISC
Insert the compact disc into the slot
with the label side up.
DISCº indicator light turns on while the
disc is loaded.
If the label faces down, the disc cannot
be played. In this case, DISC CHECKº
and disc number appear on the screen.
If a disc which is not playable is inserted,
DISC CHECKº will also appear on the
screen. For appropriate discs for this play-
er, see Audio/video system operating
hintsº on page 240 in this Section.The player will play the track or chapter,
and it will play from the beginning of the
track or chapter again after it reaches the
end.
NOTICE
Never try to disassemble or oil any
part of the DVD player. Do not insert
anything other than a disc into the
slot.
8 cm (3 in.) compact disc singles
Your compact disc player does not need
an adaptor to play compact disc singles.
Compact disc singles are about 8 cm (3
in.) in diameter- smaller than standard
discs.
NOTICE
Do not use an adaptor for compact
disc singlesÐit could cause tracking
errors or interfere with the ejection of
compact discs.
EJECTING THE DISC
Push the
º button.

'05 HIGHLANDER_U (L/O 0409)
207
2005 HIGHLANDER from Nov. '04 Prod. (OM48570U)

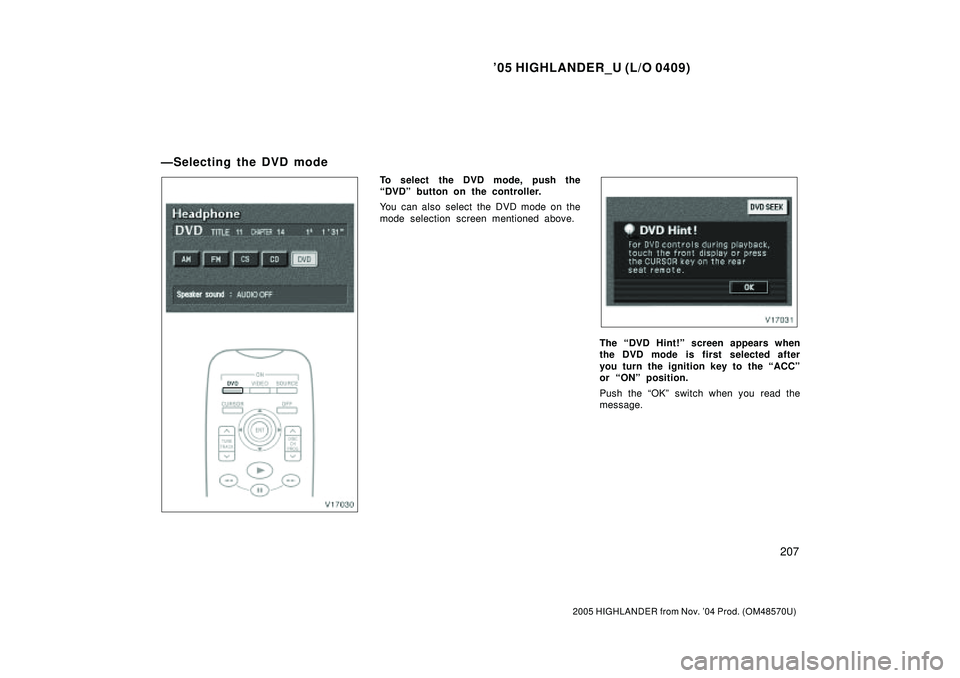

To select the DVD mode, push the
DVDº button on the controller.
You can also select the DVD mode on the
mode selection screen mentioned above.
The DVD Hint!º screen appears when
the DVD mode is first selected after
you turn the ignition key to the ACCº
or ONº position.
Push the OKº switch when you read the
message.
ÐSelecting the DVD mode

'05 HIGHLANDER_U (L/O 0409)
208
2005 HIGHLANDER from Nov. '04 Prod. (OM48570U)

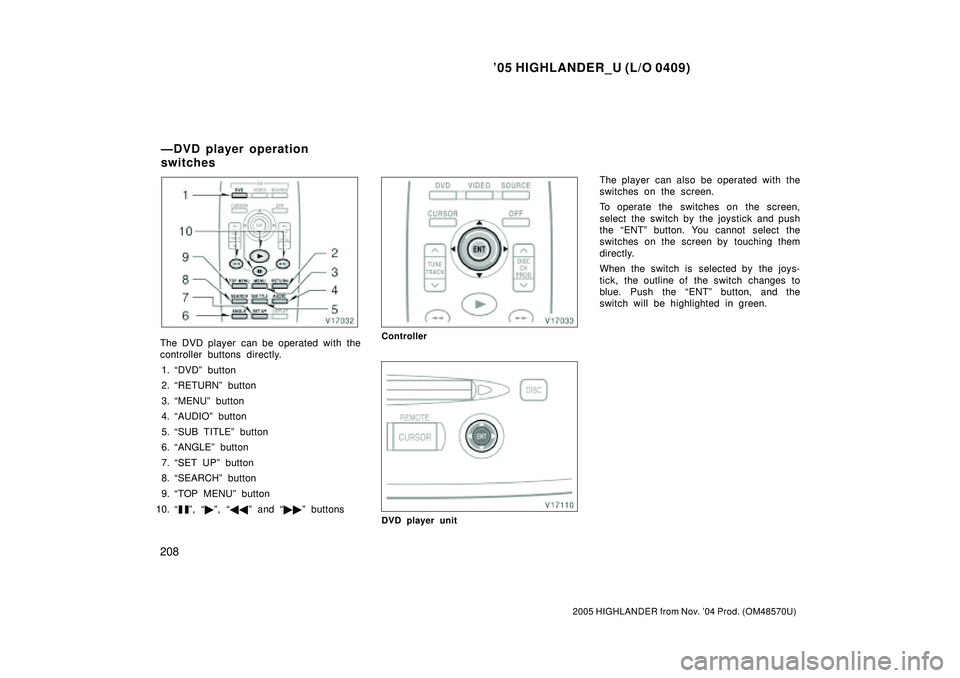

The DVD player can be operated with the
controller buttons directly.
1. DVDº button
2. RETURNº button
3. MENUº button
4. AUDIOº button
5. SUB TITLEº button
6. ANGLEº button
7. SET UPº button
8. SEARCHº button
9. TOP MENUº button
10.
º,
º, º and

º buttons
Controller
DVD player unit
The player can also be operated with the
switches on the screen.
To operate the switches on the screen,
select the switch by the joystick and push
the ENTº button. You cannot select the
switches on the screen by touching them
directly.
When the switch is selected by the joys-
tick, the outline of the switch changes to
blue. Push the ENTº button, and the
switch will be highlighted in green.
ÐDVD player operation
switches

'05 HIGHLANDER_U (L/O 0409)
209
2005 HIGHLANDER from Nov. '04 Prod. (OM48570U)
Controller
DVD player unit

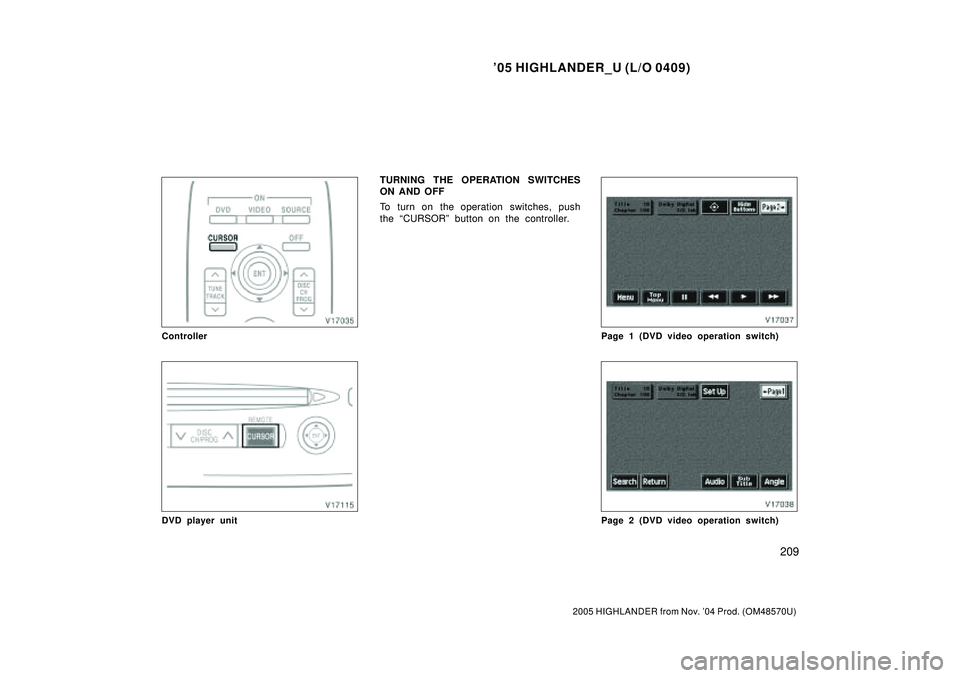

TURNING THE OPERATION SWITCHES
ON AND OFF
To turn on the operation switches, push
the CURSORº button on the controller.
Page 1 (DVD video operation switch)
Page 2 (DVD video operation switch)

'05 HIGHLANDER_U (L/O 0409)
210
2005 HIGHLANDER from Nov. '04 Prod. (OM48570U)
Page 1 (DVD audio operation switch)
Page 2 (DVD audio operation switch)
Page 1 (video CD)
Page 2 (video CD)

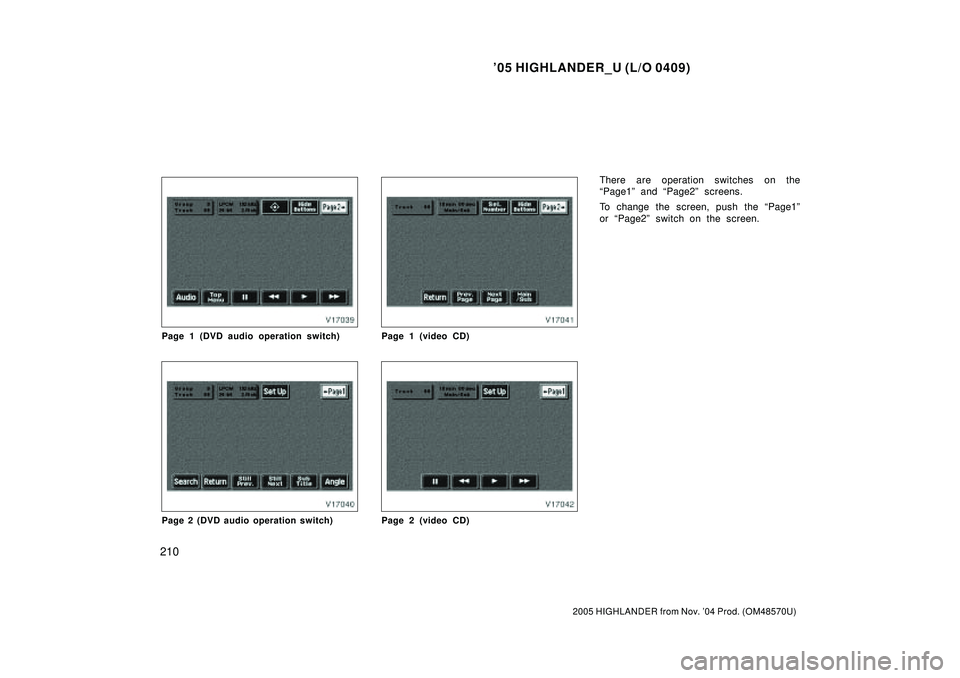

There are operation switches on the
Page1º and Page2º screens.
To change the screen, push the Page1º
or Page2º switch on the screen.
