'05 HIGHLANDER_U (L/O 0409)
191
2005 HIGHLANDER from Nov. '04 Prod. (OM48570U)

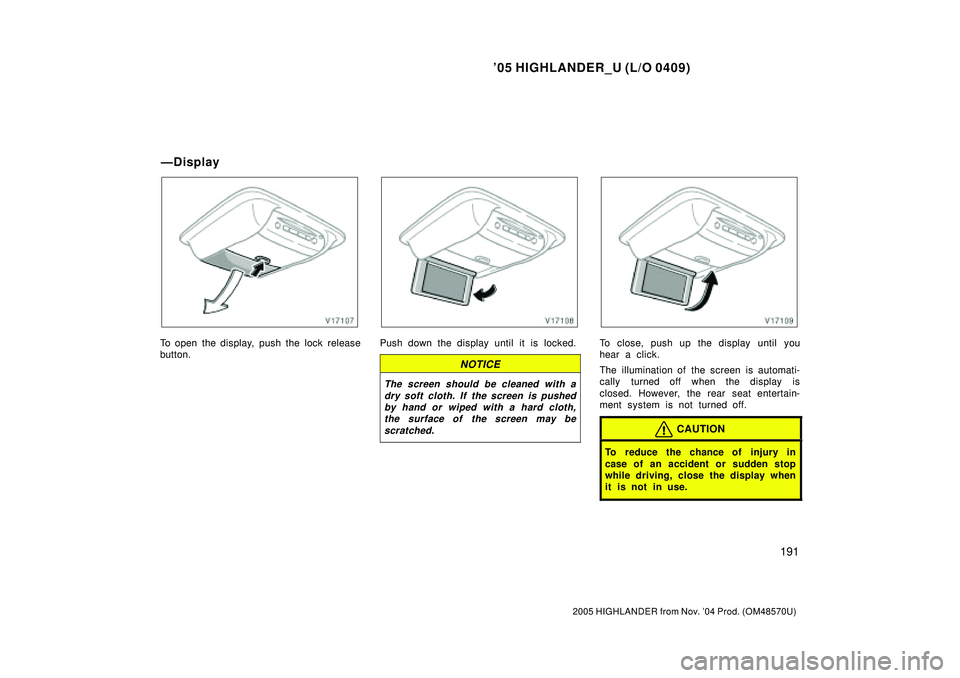

To open the display, push the lock release
button.Push down the display until it is locked.
NOTICE
The screen should be cleaned with a
dry soft cloth. If the screen is pushed
by hand or wiped with a hard cloth,
the surface of the screen may be
scratched.
To close, push up the display until you
hear a click.
The illumination of the screen is automati-
cally turned off when the display is
closed. However, the rear seat entertain-
ment system is not turned off.
CAUTION
To reduce the chance of injury in
case of an accident or sudden stop
while driving, close the display when
it is not in use.
ÐDisplay

'05 HIGHLANDER_U (L/O 0409)
192
2005 HIGHLANDER from Nov. '04 Prod. (OM48570U)

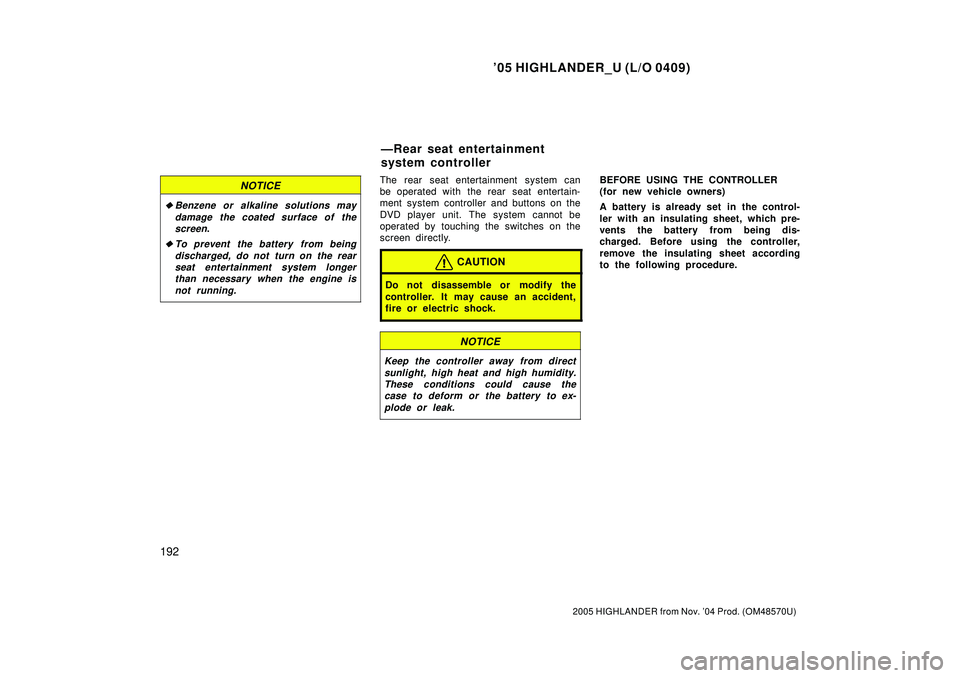

NOTICE

Benzene or alkaline solutions may
damage the coated surface of the
screen
.


To prevent the battery from being
discharged, do not turn on the rear
seat entertainment system longer
than necessary when the engine is
not running.
The rear seat entertainment system can
be operated with the rear seat entertain-
ment system controller and buttons on the
DVD player unit. The system cannot be
operated by touching the switches on the
screen directly.
CAUTION
Do not disassemble or modify the
controller. It may cause an accident,
fire or electric shock.
NOTICE
Keep the controller away from direct
sunlight, high heat and high humidity.
These conditions could cause the
case to deform or the battery to ex-
plode or leak.
BEFORE USING THE CONTROLLER
(for new vehicle owners)
A battery is already set in the control-
ler with an insulating sheet, which pre-
vents the battery from being dis-
charged. Before using the controller,
remove the insulating sheet according
to the following procedure.
ÐRear seat entertainment
system controller

'05 HIGHLANDER_U (L/O 0409)
193
2005 HIGHLANDER from Nov. '04 Prod. (OM48570U)

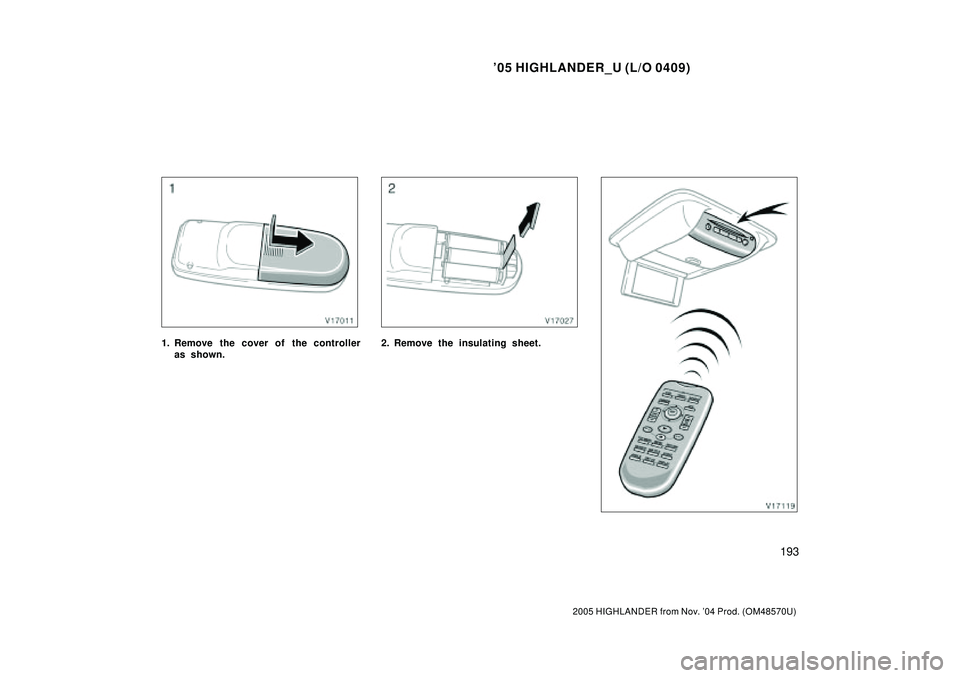

1. Remove the cover of the controller
as shown.2. Remove the insulating sheet.

'05 HIGHLANDER_U (L/O 0409)
194
2005 HIGHLANDER from Nov. '04 Prod. (OM48570U)

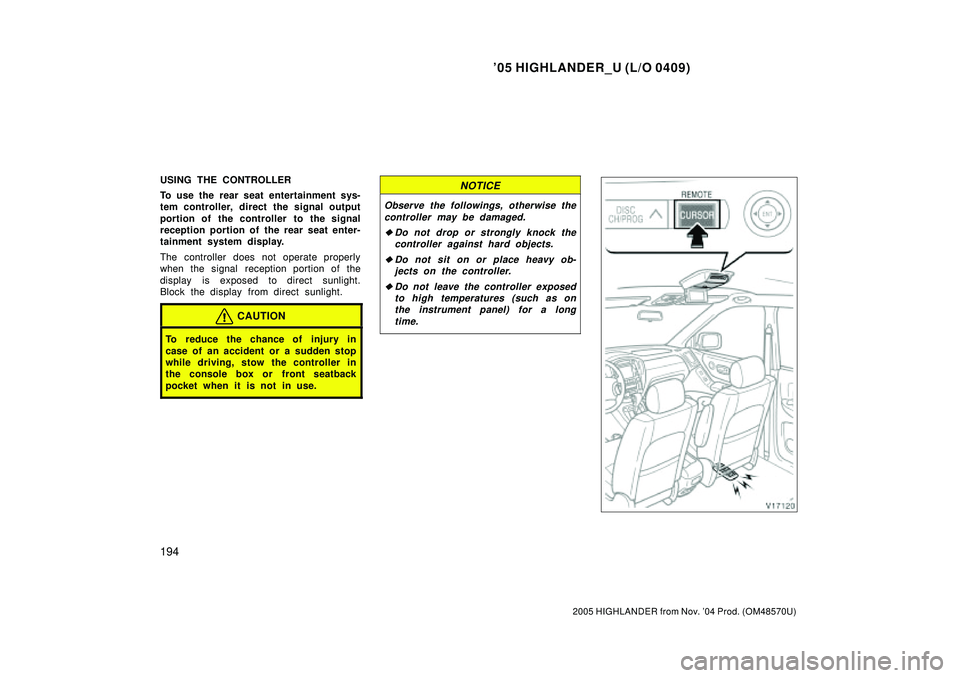

USING THE CONTROLLER
To use the rear seat entertainment sys-
tem controller, direct the signal output
portion of the controller to the signal
reception portion of the rear seat enter-
tainment system display.
The controller does not operate properly
when the signal reception portion of the
display is exposed to direct sunlight.
Block the display from direct sunlight.
CAUTION
To reduce the chance of injury in
case of an accident or a sudden stop
while driving, stow the controller in
the console box or front seatback
pocket when it is not in use.
NOTICE
Observe the followings, otherwise the
controller may be damaged.

Do not drop or strongly knock the
controller against hard objects.

Do not sit on or place heavy ob-
jects on the controller.

Do not leave the controller exposed
to high temperatures (such as on
the instrument panel) for a long
time.

'05 HIGHLANDER_U (L/O 0409)
195
2005 HIGHLANDER from Nov. '04 Prod. (OM48570U)

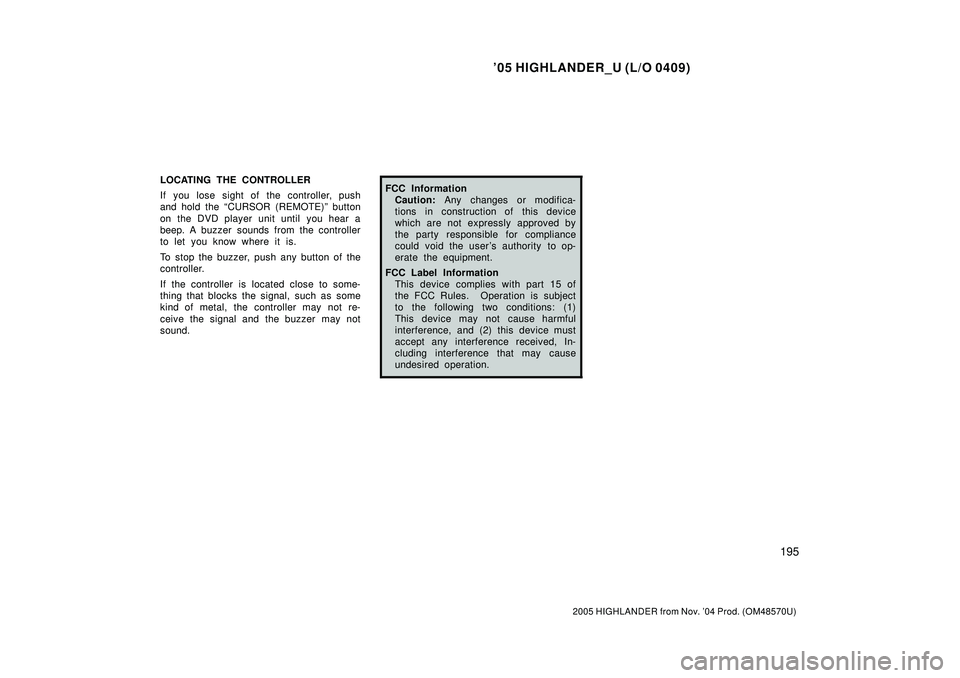

LOCATING THE CONTROLLER
If you lose sight of the controller, push
and hold the CURSOR (REMOTE)º button
on the DVD player unit until you hear a
beep. A buzzer sounds from the controller
to let you know where it is.
To stop the buzzer, push any button of the
controller.
If the controller is located close to some-
thing that blocks the signal, such as some
kind of metal, the controller may not re-
ceive the signal and the buzzer may not
sound.FCC Information
Caution: Any changes or modifica-
tions in construction of this device
which are not expressly approved by
the party responsible for compliance
could void the user's authority to op-
erate the equipment.
FCC Label Information
This device complies with part 15 of
the FCC Rules. Operation is subject
to the following two conditions: (1)
This device may not cause harmful
interference, and (2) this device must
accept any interference received, In-
cluding interference that may cause
undesired operation.

'05 HIGHLANDER_U (L/O 0409)
196
2005 HIGHLANDER from Nov. '04 Prod. (OM48570U)

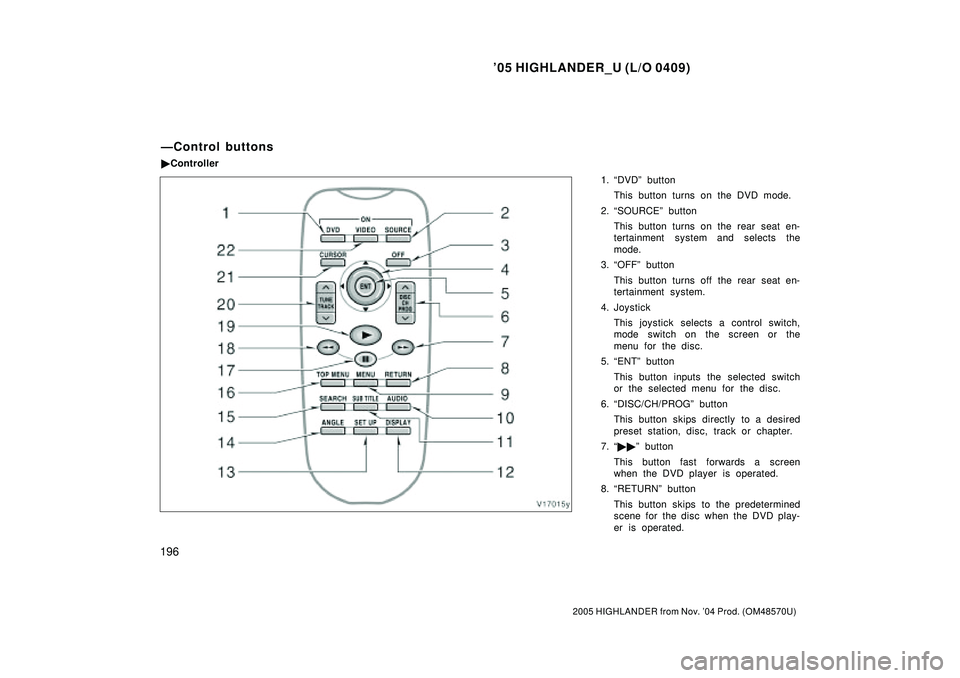

1. DVDº button
This button turns on the DVD mode.
2. SOURCEº button
This button turns on the rear seat en-
tertainment system and selects the
mode.
3. OFFº button
This button turns off the rear seat en-
tertainment system.
4. Joystick
This joystick selects a control switch,
mode switch on the screen or the
menu for the disc.
5. ENTº button
This button inputs the selected switch
or the selected menu for the disc.
6. DISC/CH/PROGº button
This button skips directly to a desired
preset station, disc, track or chapter.
7.

º button
This button fast forwards a screen
when the DVD player is operated.
8. RETURNº button
This button skips to the predetermined
scene for the disc when the DVD play-
er is operated.
ÐControl buttons

Controller

'05 HIGHLANDER_U (L/O 0409)
197
2005 HIGHLANDER from Nov. '04 Prod. (OM48570U)

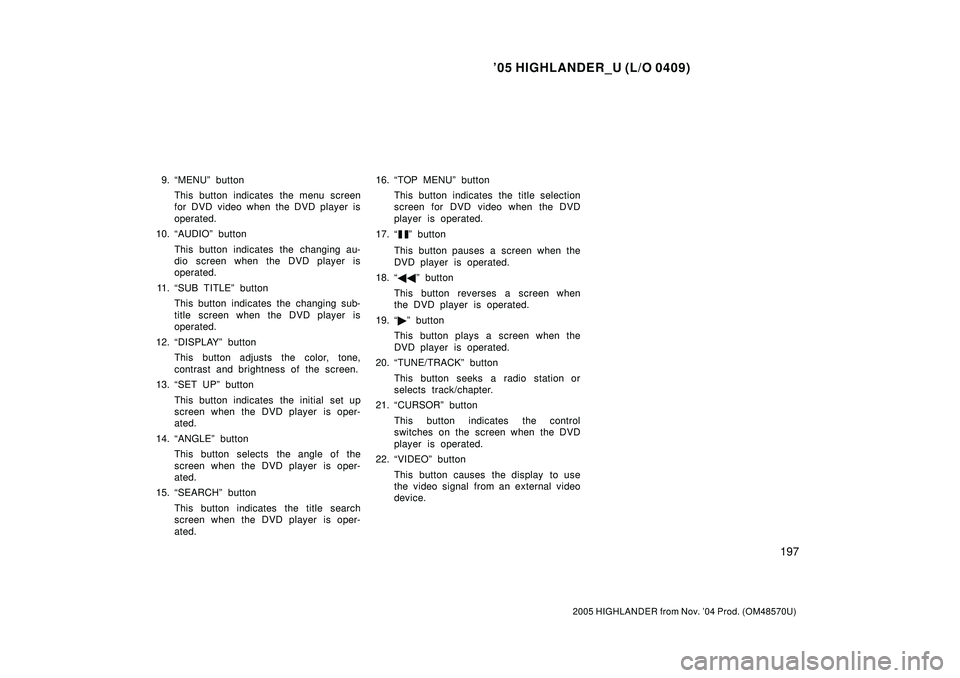

9. MENUº button
This button indicates the menu screen
for DVD video when the DVD player is
operated.
10. AUDIOº button
This button indicates the changing au-
dio screen when the DVD player is
operated.
11. SUB TITLEº button
This button indicates the changing sub-
title screen when the DVD player is
operated.
12. DISPLAYº button
This button adjusts the color, tone,
contrast and brightness of the screen.
13. SET UPº button
This button indicates the initial set up
screen when the DVD player is oper-
ated.
14. ANGLEº button
This button selects the angle of the
screen when the DVD player is oper-
ated.
15. SEARCHº button
This button indicates the title search
screen when the DVD player is oper-
ated.16. TOP MENUº button
This button indicates the title selection
screen for DVD video when the DVD
player is operated.
17.
º button
This button pauses a screen when the
DVD player is operated.
18. º button
This button reverses a screen when
the DVD player is operated.
19.
º button
This button plays a screen when the
DVD player is operated.
20. TUNE/TRACKº button
This button seeks a radio station or
selects track/chapter.
21. CURSORº button
This button indicates the control
switches on the screen when the DVD
player is operated.
22. VIDEOº button
This button causes the display to use
the video signal from an external video
device.

'05 HIGHLANDER_U (L/O 0409)
198
2005 HIGHLANDER from Nov. '04 Prod. (OM48570U)

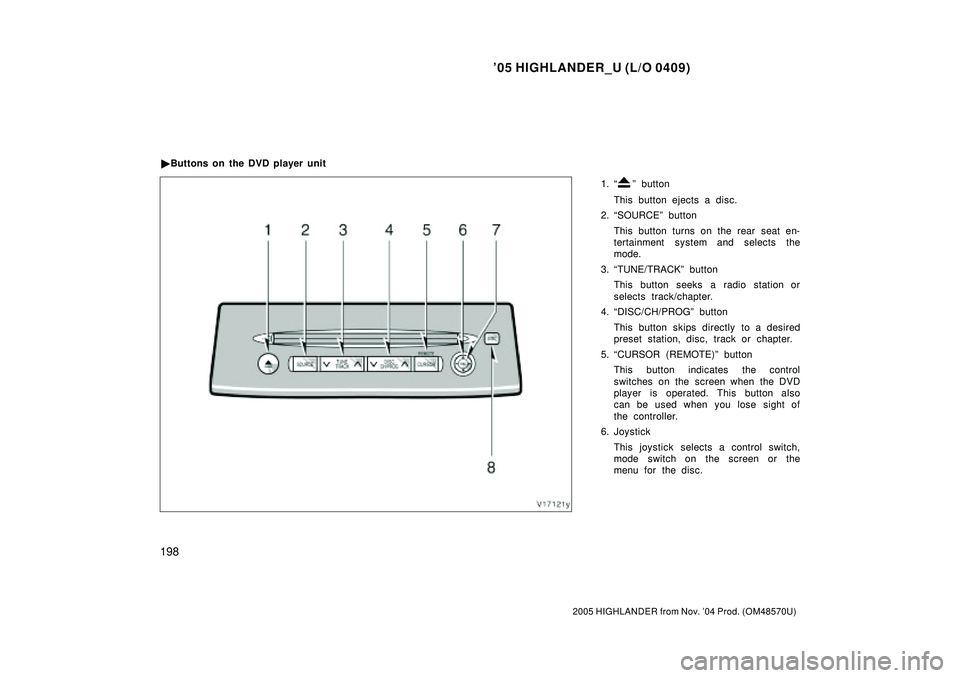

1. º button
This button ejects a disc.
2. SOURCEº button
This button turns on the rear seat en-
tertainment system and selects the
mode.
3. TUNE/TRACKº button
This button seeks a radio station or
selects track/chapter.
4. DISC/CH/PROGº button
This button skips directly to a desired
preset station, disc, track or chapter.
5. CURSOR (REMOTE)º button
This button indicates the control
switches on the screen when the DVD
player is operated. This button also
can be used when you lose sight of
the controller.
6. Joystick
This joystick selects a control switch,
mode switch on the screen or the
menu for the disc.
Buttons on the DVD player unit

'05 HIGHLANDER_U (L/O 0409)
199
2005 HIGHLANDER from Nov. '04 Prod. (OM48570U)

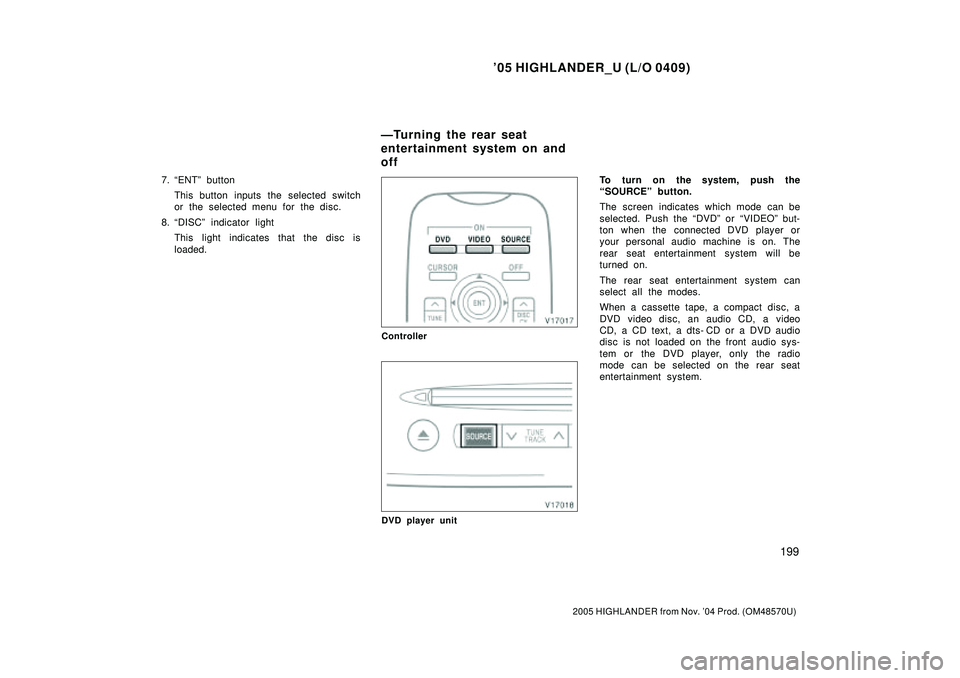

7. ENTº button
This button inputs the selected switch
or the selected menu for the disc.
8. DISCº indicator light
This light indicates that the disc is
loaded.
Controller
DVD player unit
To turn on the system, push the
SOURCEº button.
The screen indicates which mode can be
selected. Push the DVDº or VIDEOº but-
ton when the connected DVD player or
your personal audio machine is on. The
rear seat entertainment system will be
turned on.
The rear seat entertainment system can
select all the modes.
When a cassette tape, a compact disc, a
DVD video disc, an audio CD, a video
CD, a CD text, a dts- CD or a DVD audio
disc is not loaded on the front audio sys-
tem or the DVD player, only the radio
mode can be selected on the rear seat
entertainment system.
ÐTurning the rear seat
entertainment system on and
off

'05 HIGHLANDER_U (L/O 0409)
200
2005 HIGHLANDER from Nov. '04 Prod. (OM48570U)

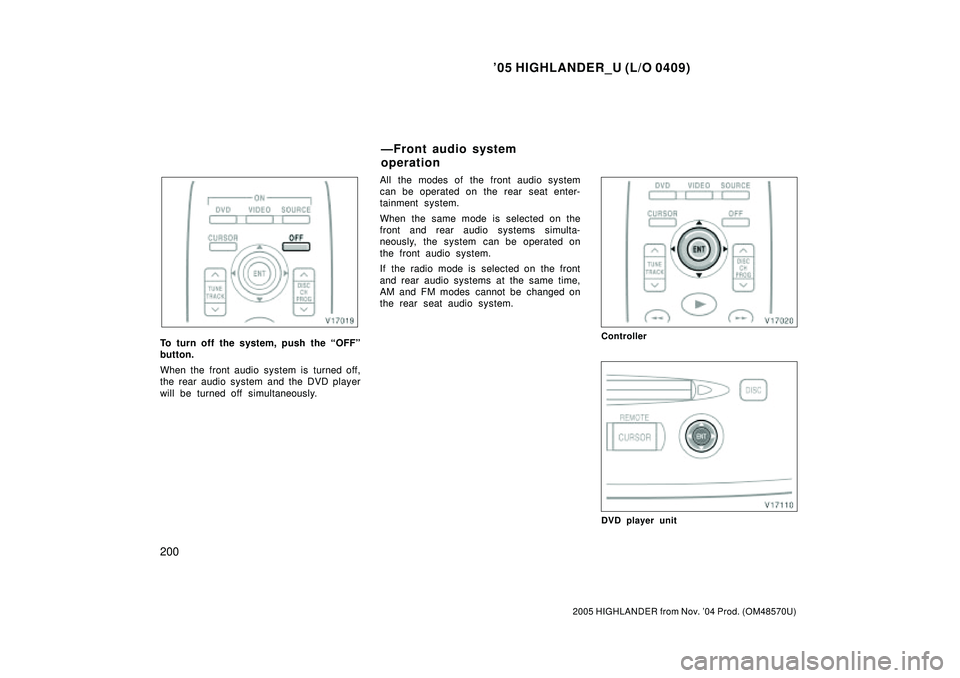

To turn off the system, push the OFFº
button.
When the front audio system is turned off,
the rear audio system and the DVD player
will be turned off simultaneously.All the modes of the front audio system
can be operated on the rear seat enter-
tainment system.
When the same mode is selected on the
front and rear audio systems simulta-
neously, the system can be operated on
the front audio system.
If the radio mode is selected on the front
and rear audio systems at the same time,
AM and FM modes cannot be changed on
the rear seat audio system.Controller
DVD player unit
ÐFront audio system
operation
