Page 599 of 2572
5,000 Mile Maintenance Intervals
7,500 Mile Maintenance IntervalsTo determine the appropriate maintenance
interval for your vehicle, see page 16.
Dealer Service Verification:
Date:
Mileage:
Dea ler Service Verification:
Maintenance Log: SUVs and Trucks
6Applies to Tacoma with 1GR FE, Tundra with 1GR FE and 4Runner with 1GR FE. Required under the terms of the
Emission Control Warranty.
7 Applies to Highlander with 3MZ FE, Land Cruiser, Sequoia, Tundra with 2UZ FE and 4Runner with 2UZ FE.8Inspect thickness measurement and disc runout.9See p age 37 f or details.
90,000 Miles or 108 Months
qReplace engine oil and oil filter1qReplace engine air filter
qRotate tiresqReplace cabin air filter (if equipped)
qLubricate drive shaft bushing (Land Cruiser)
qLubricate propeller shaft4
qLubricate wheel bearings (Land Cruiser)
qReplace limited slip differential oil, if equipped5
qReplace spark plugs6
qReplace timing belt7
qRe torque drive shaft bolt (4WD RAV4)
qRe torque propeller shaft bolt (all models except Highlander and RAV4)
qInspect the following:__ Automatic transmission fluid
__ Ball joints and dust covers
__ Brake lines and hoses
__ Brake linings/drums and brake pads/discs
8
__ Drive belts
__ Drive shaft boots3
__ Engine coolant9
__ Ex haust pipes and mountings
__ Front differential oil (4WD models, Highlander and RAV4)
Additional Maintenance Items for Special Operating Conditions2
Driving in desert or on dirt roads:
qTighten nuts and bolts on chassis
Driving while towing:
qRepl ace front differential oil (2WD RAV4 with manual transmission, all 4WD models
e x cept RAV4 with automatic transmission and Highlander)
qR eplace manual transmission oil (RAV4, Tundra)
qReplace rear differential oil, including limited slip (all models except 2WD
Hi ghlander and 2WD RAV4)
qR epl ac e t ran sfer ca se oil (4WD models)
qTighten nuts and bolts on chassis
Dea ler Service Verification:
D at e :
Mileage:
31
__ Fuel lines and connections, fuel tank band and fuel tank vapor vent system hoses
__ Fuel tank cap gasket
__ Manual transmission oil (RAV4, Tundra)
__ Radiator core and condenser
__ Rear differential oil (all models except 2WD Highlander and 2WD RAV4)
__ Steering gear box
__ St eering linkage and boots
__ Transfer case oil (all 4WD models)
Page 603 of 2572
Maintenance Log: SUVs and Trucks
6Required under the terms of the Emission Control Warranty.7 Inspect thickness measurement and disc runout.8 Applies to Land Cruiser, Sequoia, Tundra and 4Runner with 2UZ FE. Required only for vehicles in California,
Massachusetts and New York.
9See page 37 for details.
120,000 Miles or 144 Months
qReplace engine oil and oil filter1qReplace engine air filter
qRotate tiresqReplace cabin air filter (if equipped)
qLubricate drive shaft bushing (Land Cruiser)
qLubricate propeller shaft4
qLubricate wheel bearings (Land Cruiser)
qReplace limited slip differential oil, if equipped5
qReplace spark plugs (all models)6
qRe torque drive shaft bolt (4WD RAV4)
qRe torque propeller shaft bolt (all models except Highlander and RAV4)
qInspect the following:__ Automatic transmission fluid
__ Ball joints and dust covers
__ Brake lines and hoses
__ Brake linings/drums and brake pads/discs
7
__ Charcoal canister8
__ Drive belts
__ Drive shaft boots3
__ Engine coolant9
__ E ngine valve clearance (except Tacoma
with 2TR FE)
__ Front differential oil (4WD models, Highlander, RAV4)
Additional Maintenance Items for Special Operating Conditions2
Driv ing in desert or on dirt roads:
qTi gh ten n uts and bolts on c hassis
Driving while towing:
qReplace automatic transmission fluid
qRepl ac e f ront differential oil (Highlander, RAV4 and all 4WD models)
qReplace manual transmission oil (RAV4, Tundra)
qR eplace rear differential oil, including limited slip (all models except 2WD
Hi gh land erand 2WD RAV4)
qReplace transfer case oil (4WD models)
qTighten nuts and bolts on chassis
Dealer Service Verification:
Dat e :
M ileage:
35
__ Exhaust pipes and mountings
__ Fuel lines and connections, fuel tank band
and fuel tank vapor vent system hoses
__ Fuel tank cap gasket
__ Manual transmission oil (RAV4, Tundra)
__ R adiat or core and condenser
__ Rear differential oil (all models except
2WD Highlander and 2WD RAV4)
__ St eerin g gear box
__ Steering linkage and boots
__ Transfer case oil (all 4WD models)
Page 607 of 2572
Explanation of Maintenance Items
39
Steering Linkage and Boots
With the vehicle stopped, check for excessive freeplay in the steering wheel.
Inspect the linkage for bending and damage and the dust boots for deterioration,
cracks and damage. Replace any damaged parts. A qualified technician should
perform these operations.
Timing Belt
Replace every 90,000 miles. A qualified technician should perform this operation.
Tire Rotation
Tires should be rotated at specified intervals according to the instructions in the
Owner’s Manual. When rotating tires, check for damage and uneven wear.
Replace if necessary.
Transfer Case Oil
Inspect or replace at specified intervals. When performing inspections, check for
signs of leakage. If you discover any leakage, have it repaired by a qualified tech
nician immediately.
Wheel Bearing and Drive Shaft Bushing Grease
Repack the wheel bearings with wheel bearing grease and the drive shaft
bushing with molybdenum disulfide lithium base chassis grease. A qualified
technician should perform these operations.
Page 678 of 2572
'05 HIGHLANDER_U (L/O 0409)
376
2005 HIGHLANDER from Nov. '04 Prod. (OM48570U)

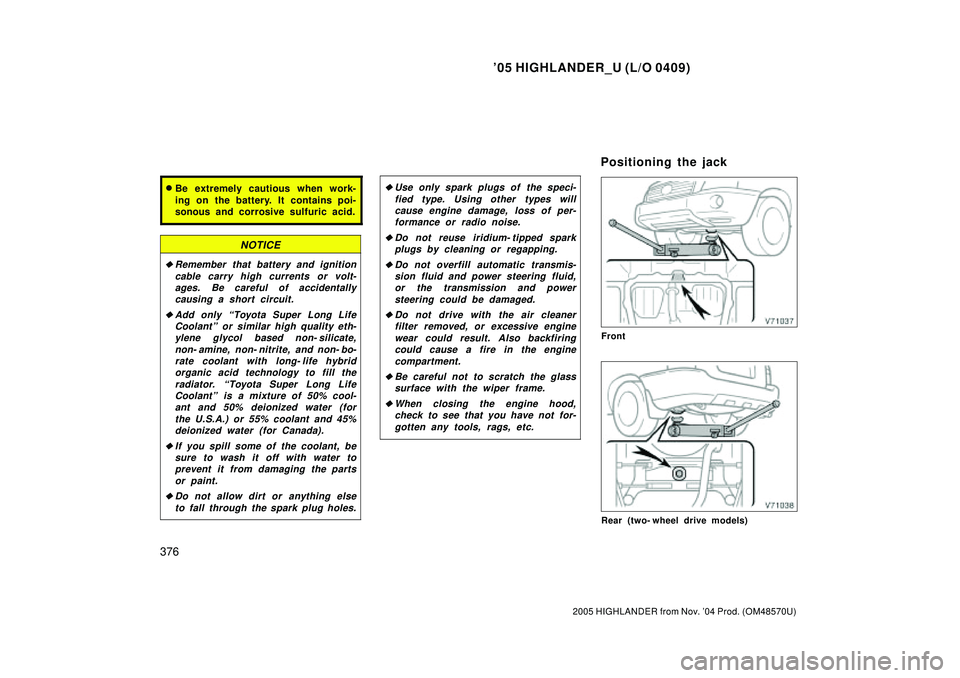

Be extremely cautious when work-
ing on the battery. It contains poi-
sonous and corrosive sulfuric acid.
NOTICE
Remember that battery and ignition
cable carry high currents or volt-
ages. Be careful of accidentally
causing a short circuit.
Add only Toyota Super Long Life
Coolantº or similar high quality eth-
ylene glycol based non- silicate,
non- amine, non- nitrite, and non- bo-
rate coolant with long- life hybrid
organic acid technology to fill the
radiator. Toyota Super Long Life
Coolantº is a mixture of 50% cool-
ant and 50% deionized water (for
the U.S.A.) or 55% coolant and 45%
deionized water (for Canada).
If you spill some of the coolant, be
sure to wash it off with water to
prevent it from damaging the parts
or paint.
Do not allow dirt or anything else
to fall through the spark plug holes.
Use only spark plugs of the speci-
fied type. Using other types will
cause engine damage, loss of per-
formance or radio noise.
Do not reuse iridium- tipped spark
plugs by cleaning or regapping.
Do not overfill automatic transmis-
sion fluid and power steering fluid,
or the transmission and power
steering could be damaged.
Do not drive with the air cleaner
filter removed, or excessive engine
wear could result. Also backfiring
could cause a fire in the engine
compartment.
Be careful not to scratch the glass
surface with the wiper frame.
When closing the engine hood,
check to see that you have not for-
gotten any tools, rags, etc.
Front
Rear (two- wheel drive models)
Positioning the jack
Page 681 of 2572
'05 HIGHLANDER_U (L/O 0409)
379
2005 HIGHLANDER from Nov. '04 Prod. (OM48570U)

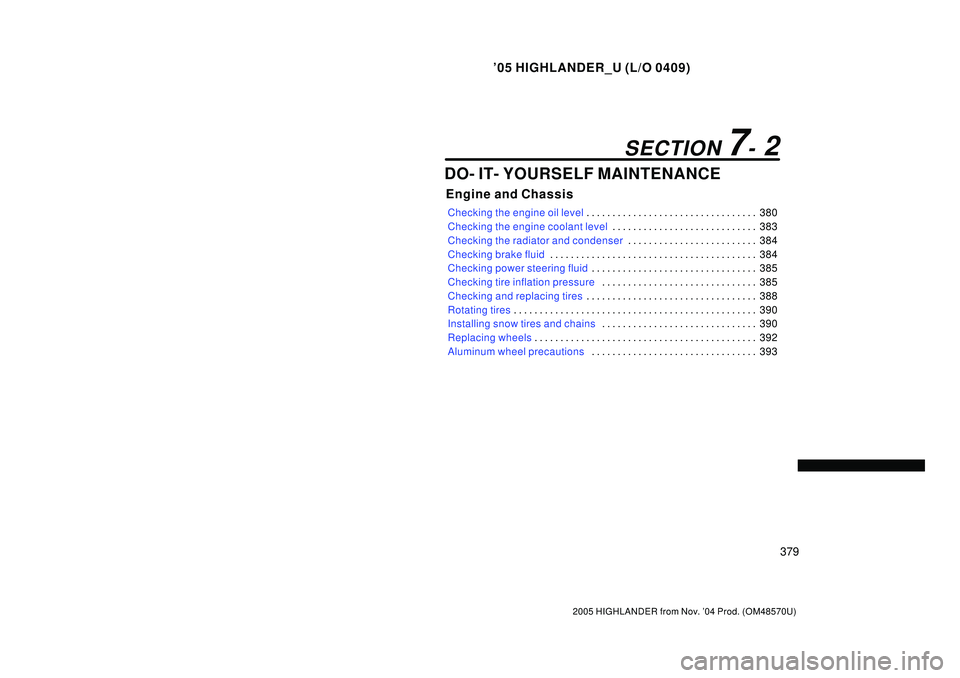

DO- IT- YOURSELF MAINTENANCE
Engine and Chassis
Checking the engine oil level380 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Checking the engine coolant level383 . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Checking the radiator and condenser384 . . . . . . . . . . . . . . . . . . . . . . . . .
Checking brake fluid384 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Checking power steering fluid385 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Checking tire inflation pressure385 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Checking and replacing tires388 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Rotating tires390 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Installing snow tires and chains390 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Replacing wheels392 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Aluminum wheel precautions393 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
SECTION 7- 2
Page 775 of 2572
W04200
Normal Signal Waveform
1 V / Division2 m/s / DivisionGND
BR3795OKNG Speed Sensor
8.0 NVm
(82 kgfVcm, 71 in.Vlbf)
No Clearance
- DIAGNOSTICSABS WITH EBD & BA & TRAC & VSC SYSTEM
05-793
983 Author: Date:
5 INSPECT SPEED SENSOR AND SENSOR ROTOR SERRATIONS
INSPECTION USING OSCILLOSCOPE
(a) Connect the oscilloscope to terminal FR+ - FR- or FL+
- FL- of the skid control ECU.
(b) Drive the vehicle at about 19 mph (30 km/h), and check
the signal waveform.
OK:
A waveform as shown in a figure should be output.
HINT:
As the vehicle speed (wheel revolution speed) increases,
a cycle of the waveform narrows and the fluctuation in the
output voltage becomes greater.
When noise is identified in the waveform on the oscillo-
scope, error signals are generated due to the speed sen-
sor rotor's scratches, looseness or foreign matter at-
tached to it.
NG Go to step 6
OK
REPLACE ABS & TRACTION ACTUATOR ASSY (SEE PAGE 32-37)
6 INSPECT FRONT SPEED SENSOR INSTALLATION
(a) Check the speed sensor installation.
OK:
The installation bolt is tightened properly.
Torque: 8.0 NVm (82 kgfVcm, 71 in.Vlbf)
There is no clearance between the sensor and the
front steering knuckle.
NOTICE:
Check the speed sensor signal after the replacement
(see page 05-765).
NG REPLACE FRONT SPEED SENSOR
(SEE PAGE 32-40)
OK
Page 805 of 2572
G26292
IG1
ESSBAT
(+) (-)(+)
(-)
S14
Steering Angle Sensor
(harness side connector)
- DIAGNOSTICSABS WITH EBD & BA & TRAC & VSC SYSTEM
05-823
1013 Author: Date:
INSPECTION PROCEDURE
HINT:
When U0121/94, U0123/62, U0124/95 or U0126/63 are output together with C1231/31, inspect and
repair the trouble areas indicated by U0121/94, U0123/62, U0124/95 or U0126/63 first.
When the speed sensor or the yaw rate sensor has trouble, DTCs for the steering angle sensor may
be output even when the steering angle sensor is normal. When DTCs for the speed sensor or yaw
rate sensor are output together with other DTCs for the steering angle sensor, inspect and repair the
speed sensor and yaw rate sensor first, and then inspect and repair the steering angle sensor.
Start the inspection from step 1 when using the hand-held tester and start from step 2 when not using
the hand-held tester.
1 READ VALUE OF HAND-HELD TESTER(STEERING ANGLE SENSOR)
(a) Connect the hand-held tester to the DLC3.
(b) Start the engine.
(c) Select the DATA LIST mode on the hand-held tester.
(d) Check that the steering angle value of the steering angle sensor indicated on the hand-held tester,
changes when the steering wheel is turned.
ItemMeasurement Item /
Range (Display)Normal Condition
STEERING ANGSteering sensor/
Min.: -1152 deg, Max.: 1150.875 degMin.: -128 deg/s
Max.: 128 deg/s
OK:
Steering angle value should change.
OK REPLACE ABS & TRACTION ACTUATOR ASSY
(SEE PAGE 32-37)
NG
2 CHECK TERMINAL VOLTAGE(STEERING ANGLE SENSOR CONNECTOR)
(a) Remove the steering wheel and the column lower cover.
(b) Disconnect the steering angle sensor connector S14.
(c) Turn the ignition switch to the ON position.
(d) Measure the voltage according to the value(s) in the table
below.
Standard:
Tester ConnectionSpecified Condition
S14-1 (IG1) - S14-2 (ESS)10 to 14 V
S14-3 (BAT) - S14-2 (ESS)10 to 14 V
NG REPAIR OR REPLACE HARNESS OR
CONNECTOR
OK
REPLACE STEERING ANGLE SENSOR
Page 1393 of 2572
- DIAGNOSTICSSFI SYSTEM (2AZ-FE)(From August, 2004)
05-45
235 Author: Date:
Hand-held Tester DisplayDiagnostic Note Normal Condition* Measurement Item/Range
(Display)
AF FT B1 S1
Short term fuel trim associated with bank
1, sensor 1/
Minimum: 0, Maximum: 1.999
Value less than 1 (0.000 to
0.999) = LEAN
Stoichiometric Air-Fuel Ratio=1
Value greater than 1 (1.001 to
1.999) = RICH
-
FUEL SYS #1
Fuel system status (Bank 1) /
OL or CL or OL DRIVE or
OL FAULT or CL FAULT
Idling after warming up: CL
OL (Open Loop) : Has not yet sa-
tisfied conditions to go closed
loop
CL (Closed Loop) : Using heated
oxygen sensor(s) as feed back
for fuel control
OL DRIVE: Open loop due to
driving conditions (fuel enrich-
ment)
OL FAULT: Open loop due to de-
tected system fault
CL FAULT: Closed loop but one
of heated oxygen sensors, which
is used for fuel control, is mal-
functioning
FC IDLIdle fuel cut/ ON or OFFFuel cut operation: ON
FC IDL = ON when throttle valve
is fully closed and engine speed is
over 1,500 rpm
MILMIL status/ ON or OFFMIL ON: ON-
STARTER SIGStarter signal/ ON or OFFCranking: ON-
A/C SIGA/C signal/ ON or OFFA/C ON: ON-
PNP SW [NSW]PNP switch signal/ ON or OFFP or N position: ON-
ELECT LOAD SIGElectrical load signal/ ON or OFFDefogger switch ON: ON-
STOP LIGHT SWStop lamp switch/ ON or OFFBrake pedal depressed: ON
Brake pedal released: OFF-
PS OIL PRESS SWPower steering signal/ ON or OFF
While turning steering wheel: ON
While not turning steering wheel:
OFFIdle-up control is performed when
PS is ON
PS SIGNALPower steering signal/
ON or OFFWhen steering wheel is turnedThis signal is usually ON until Igni-
tion switch is turned OFF
FUEL PUMP / SPDFuel pump / speed status /
ON/H or OFF/M,LIdling: ON-
A/C MAG CLUTCHA/C magnet clutch status /
ON or OFFA/C magnet clutch ON: ON-
EVAP VSVEVAP VSV status control /
ON or OFFVSV operating: ONEVAP VSV is controlled by ECM
(ground side duty control)
VVT CTRL B1VVT control status (Bank 1) /
ON or OFFVVT system operation: ON-
IGNITIONIgnition counter/ Minimum: 0,
Maximum: 4000 to 400-
CYL #1, #2, #3, #4Misfire ratio of cylinder 1 to 4/
Minimum: 0 %, Maximum: 50 %0 %This item is displayed in only idling
MISFIRE LOADEngine load for first misfire range/
Minimum: 0 g/rev, Maximum: 3.98 g/rev.Misfire 0: 0 g/rev.'
MISFIRE RPMEngine RPM for first misfire range/
Minimum: 0 rpm, Maximum: 6,375 rpmMisfire 0: 0 rpm'
FC TAUFuel Cut TAU: Fuel cut during very light
load/ ON or OFFFuel cut operating: ON
Fuel cut is being performed under
very light load to prevent engine
combustion from becoming incom-
plete
CHECK MODECheck mode/ ON or OFFCheck mode ON: ONSee page 05-40
Page 1399 of 2572
- DIAGNOSTICSSFI SYSTEM (3MZ-FE)(From August, 2004)
05-409
599 Author: Date:
Hand-held Tester DisplayDiagnostic Note Normal Condition * Measurement Item/Range
(Display)
FUEL SYS #1
Fuel system status (Bank 1) /
OL or CL or OL DRIVE or
OL FAULT or CL FAULT
Idling after warming up: CL
OL (Open Loop): Has not yet sa-
tisfied conditions to go closed
loop
CL (Closed Loop): Using heated
oxygen sensor(s) as feed back
for fuel control
OL DRIVE: Open loop due to
driving conditions (fuel enrich-
ment)
OL FAULT: Open loop due to de-
tected system fault
CL FAULT: Closed loop but one
of heated oxygen sensors, which
is used for fuel control, is mal-
functioning
FUEL SYS #2
Fuel system status (Bank 2) /
OL or CL or OL DRIVE or
OL FAULT or CL FAULT
Idling after warming up: CL
OL (Open Loop): Has not yet sa-
tisfied conditions to go closed
loop
CL (Closed Loop): Using heated
oxygen sensor(s) as feed back
for fuel control
OL DRIVE: Open loop due to
driving conditions (fuel enrich-
ment)
OL FAULT: Open loop due to de-
tected system fault
CL FAULT: Closed loop but one
of heated oxygen sensors, which
is used for fuel control, is mal-
functioning
FC IDLFuel cut idle/ ON or OFFFuel cut operation: ON
FC IDL = ON when throttle valve
is fully closed and engine speed is
over 1,500 rpm
MILMIL status/ ON or OFFMIL ON: ON'
STARTER SIGStarter signal/ ON or OFFCranking: ON'
A/C SIGA/C signal/ ON or OFFA/C ON: ON'
PNP SW [NSW]PNP switch signal/ ON or OFFP or N position: ON'
ELECT LOAD SIGElectrical load signal/
ON or OFFTaillamp switch ON: ON
Defogger switch ON: ON'
STOP LIGHT SWStop light switch/
ON or OFFBrake pedal depressed: ON
Brake pedal released: OFF'
PS OIL PRESS SWPower steering oil pressure switch
signal/ ON or OFF
While turning the steering wheel:
ON
While not turning the steering
wheel: OFF
Idle-up control is performed when
PS is ON
PS SIGNALPower steering signal/
ON or OFFWhen steering wheel is turnedThis signal is usually ON until the
Ignition switch is turned OFF
INTAKE CTL VSV1VSV status for intake control (bank
1)/ ON or OFFVSV operation: ON'
INTAKE CTL VSV 2VSV status for intake control (bank
2)/ ON or OFFVSV operation: ON'
FUEL PUMP / SPDFuel pump/speed status/
ON/H or OFF/M, LIdling: ON'
A/C MAG CLUTCHA/C magnet clutch status/
ON or OFFA/C magnet clutch ON: ON'
Page 2089 of 2572
Inspector 's
Name:
Customer 's Name
Date Vehicle
Brought InProduction DateVIN
Licence No.
Odometer Reading/ /
/ /
Date Problem First Occurred
Frequency Problem Occurs/ /
ContinuousIntermittent ( times a day)
TRAC does not operate. (Wheels spin when starting rapidly.)
DisplaysDoes not Display
DTC Check1st Time
2nd TimeNormal System Code
Trouble Code (Code )
Normal System CodeTrouble Code (Code )
Symptomskm
miles
Light Abnormal TRAC OFF Indicator
Light Abnormal SLIP Indicator
Remains ONDoes not Come On
Check Item
NormalTrouble Code (Code )
NormalTrouble Code (Code )
ABS Warning Light
Malfunction
Indicator Light TRAC & VSC Check Sheet
Remains ONDoes not Come On
VSC does not operate. (Wheels sideslip at the time of sharp turning.)
VSC Warning
Indicator Abnormal
Skid Control
Buzzer AbnormalDoes not SoundSounds
VSC/TRC OFF SW
SYSTEMFreeze Frame Data
SHIFT POSITION
YAW RATON
OFF
VSC/TRAC
P, NR
D
deg/s
VFAIL
23
4L
MAS CYL PRESS
THROTTLE
MAS PRESS GRADE
G (RIGHT&LEFT)
G (BACK&FORTH)
STEERING ANG
deg
deg
MPa/s
G
G 05-764
- DIAGNOSTICSABS WITH EBD & BA & TRAC & VSC SYSTEM
954 Author: Date:
