TOYOTA HIGHLANDER 2001 Service Repair Manual

G24767STP Skid Control ECU
(harness side connector)
S27
- DIAGNOSTICSABS WITH EBD & BA & TRAC & VSC SYSTEM
05-839
1029 Author
: Date
:

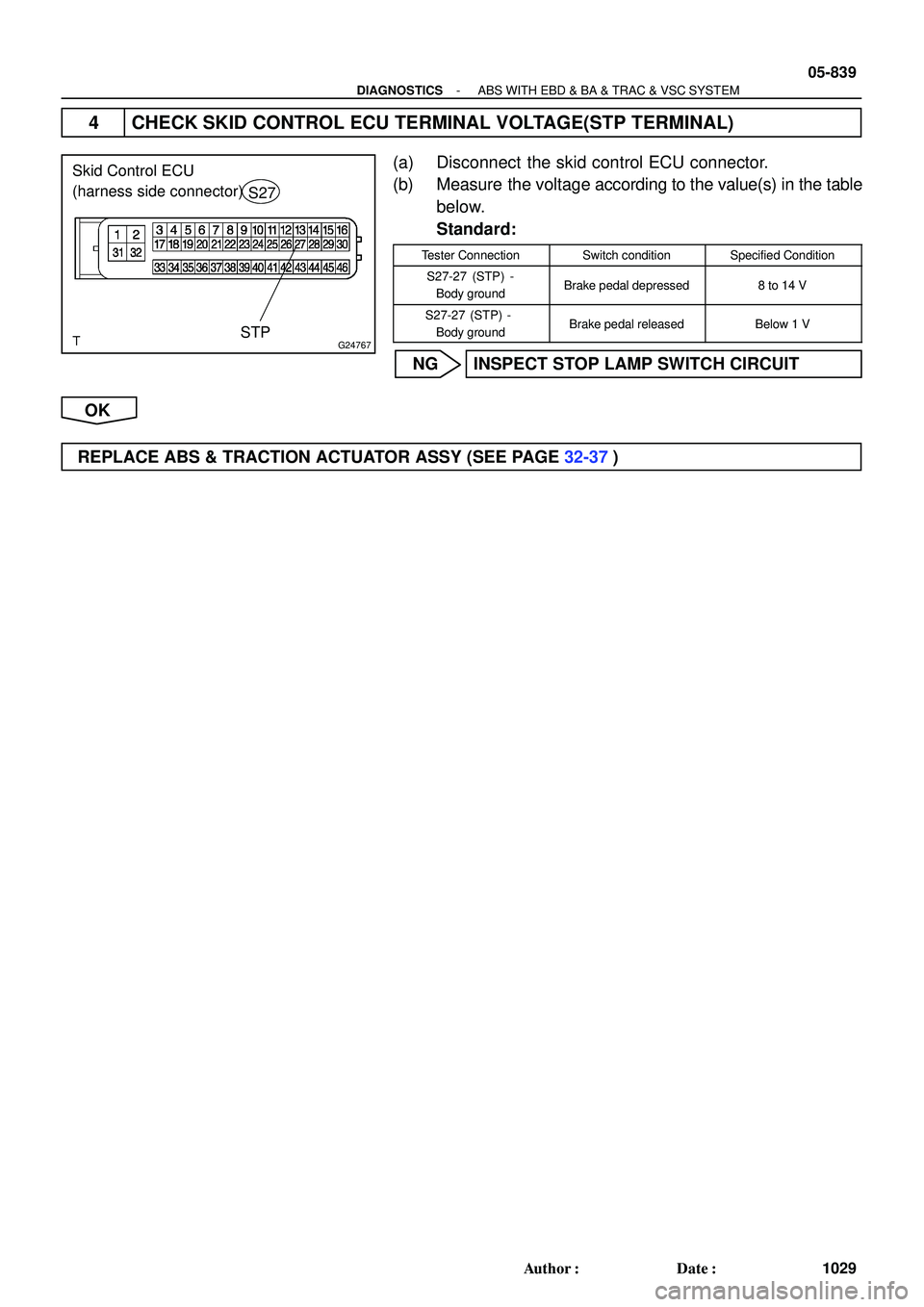

4 CHECK SKID CONTROL ECU TERMINAL VOLTAGE(STP TERMINAL)
(a) Disconnect the skid control ECU connector.
(b) Measure the voltage according to the value(s) in the table
below.
Standard:
Tester ConnectionSwitch conditionSpecified Condition
S27-27 (STP) -
Body groundBrake pedal depressed8 to 14 V
S27-27 (STP) -
Body groundBrake pedal releasedBelow 1 V
NG INSPECT STOP LAMP SWITCH CIRCUIT
OK
REPLACE ABS & TRACTION ACTUATOR ASSY (SEE PAGE 32-37)

6716B-01
BE4029
Tester Probe
Tin FoilHeat Wire
E32576
BE0150
Repair Point
Masking TapeBroken
Wire
BE0151
Repair PointFine Tip Brush
Glass
- AUDIO & VISUAL SYSTEMWINDOW GLASS (ANTENNA WIRE)
67-33
3552 Author
: Date
:
2005 HIGHLANDER REPAIR MANUAL (RM1144U)

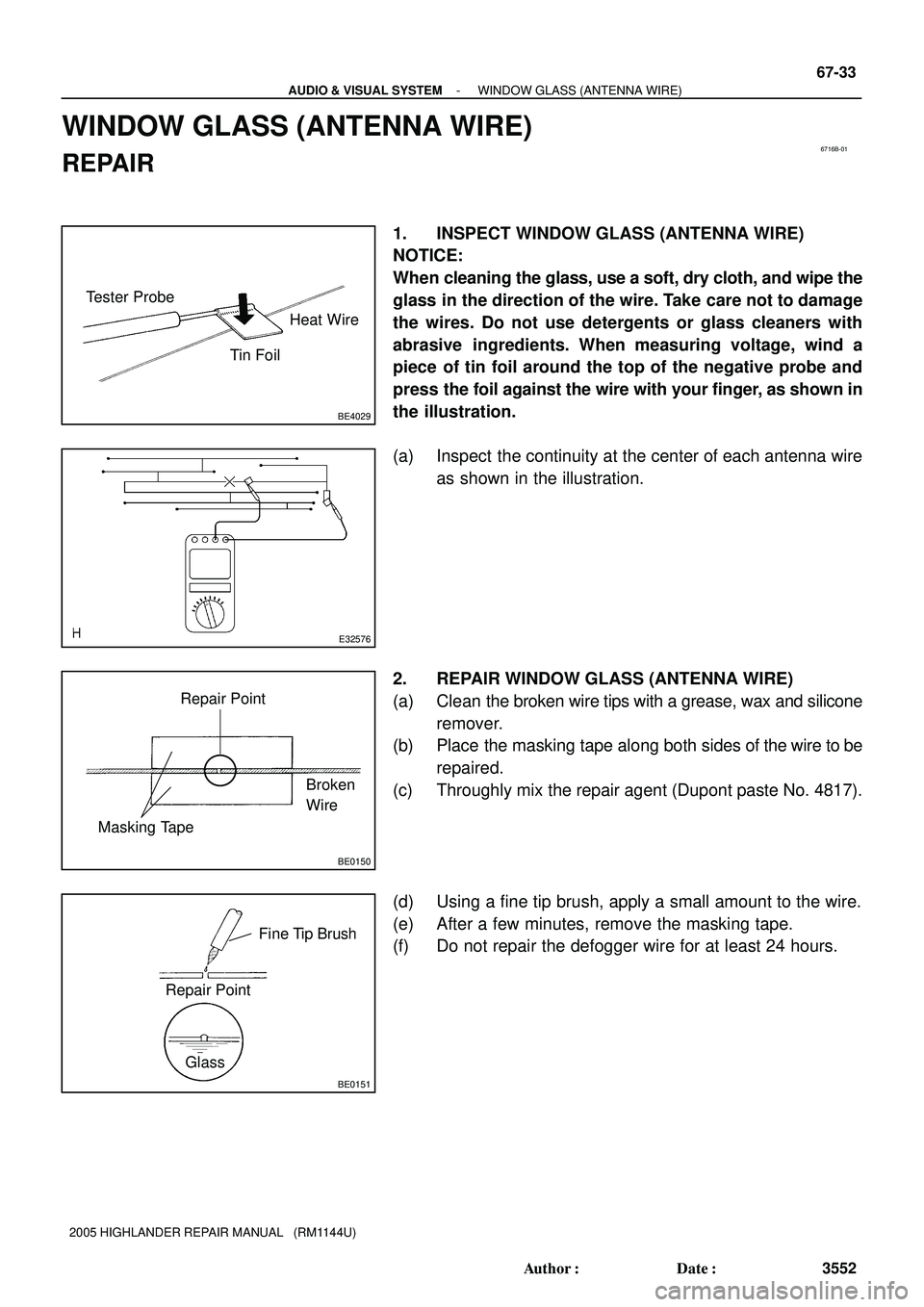

WINDOW GLASS (ANTENNA WIRE)
REPAIR
1. INSPECT WINDOW GLASS (ANTENNA WIRE)
NOTICE:
When cleaning the glass, use a soft, dry cloth, and wipe the
glass in the direction of the wire. Take care not to damage
the wires. Do not use detergents or glass cleaners with
abrasive ingredients. When measuring voltage, wind a
piece of tin foil around the top of the negative probe and
press the foil against the wire with your finger, as shown in
the illustration.
(a) Inspect the continuity at the center of each antenna wire
as shown in the illustration.
2. REPAIR WINDOW GLASS (ANTENNA WIRE)
(a) Clean the broken wire tips with a grease, wax and silicone
remover.
(b) Place the masking tape along both sides of the wire to be
repaired.
(c) Throughly mix the repair agent (Dupont paste No. 4817).
(d) Using a fine tip brush, apply a small amount to the wire.
(e) After a few minutes, remove the masking tape.
(f) Do not repair the defogger wire for at least 24 hours.

G30963
IC4
S27 W Y
WG
W BWL
WB
CANL CANH
CANLCANH
CANL CANH
CANL CANHESS S14
Steering SensorJ16
J/CSkid Control ECU
With Actuator
D3
DLC31011
12
1325
2
146 9S27 S27
IC4
3
11
22 10
218
19
Y1
Yaw Rate Sensor
W BIO213 IO212
9
20VSC
STRG
VSC
STRG
YAW
DLC3S27 12
W-B
W-B
W-B1
32GND2
GND1
4 CGW-BW-B
W-B1
1 1
1 3 6
4C
4C 4N4N
W-B Passenger Side J/B
J19
J/C
W-BJ4
J/C
AAA
BF
ICEH
EB GNDYAW
DLC3
- DIAGNOSTICSCAN COMMUNICATION SYSTEM
05-2131
2321 Author
: Date
:
CHECK CAN BUS LINE (CAN-L) FOR SHORT TO GND
CIRCUIT DESCRIPTION
A short to GND is suspected in the CAN bus line when there is continuity between terminals 4 (CG) and 14
(CANL) of the DLC3.
SymptomTrouble Area
There is continuity between terminals 4 (CG) and 14
(CANL) of DLC3.

Short to GND in CAN bus line (CANL)

Skid control ECU

Steering sensor

Yaw rate sensor
WIRING DIAGRAM
05IR7-02

G25476G26430
Junction Connector:
J16
CANH
CANL
C81825
12345678
9 10111213141516
G25474G26206
DLC3:
CG
CANLD3
05-2132
- DIAGNOSTICSCAN COMMUNICATION SYSTEM
2322 Author
: Date
:

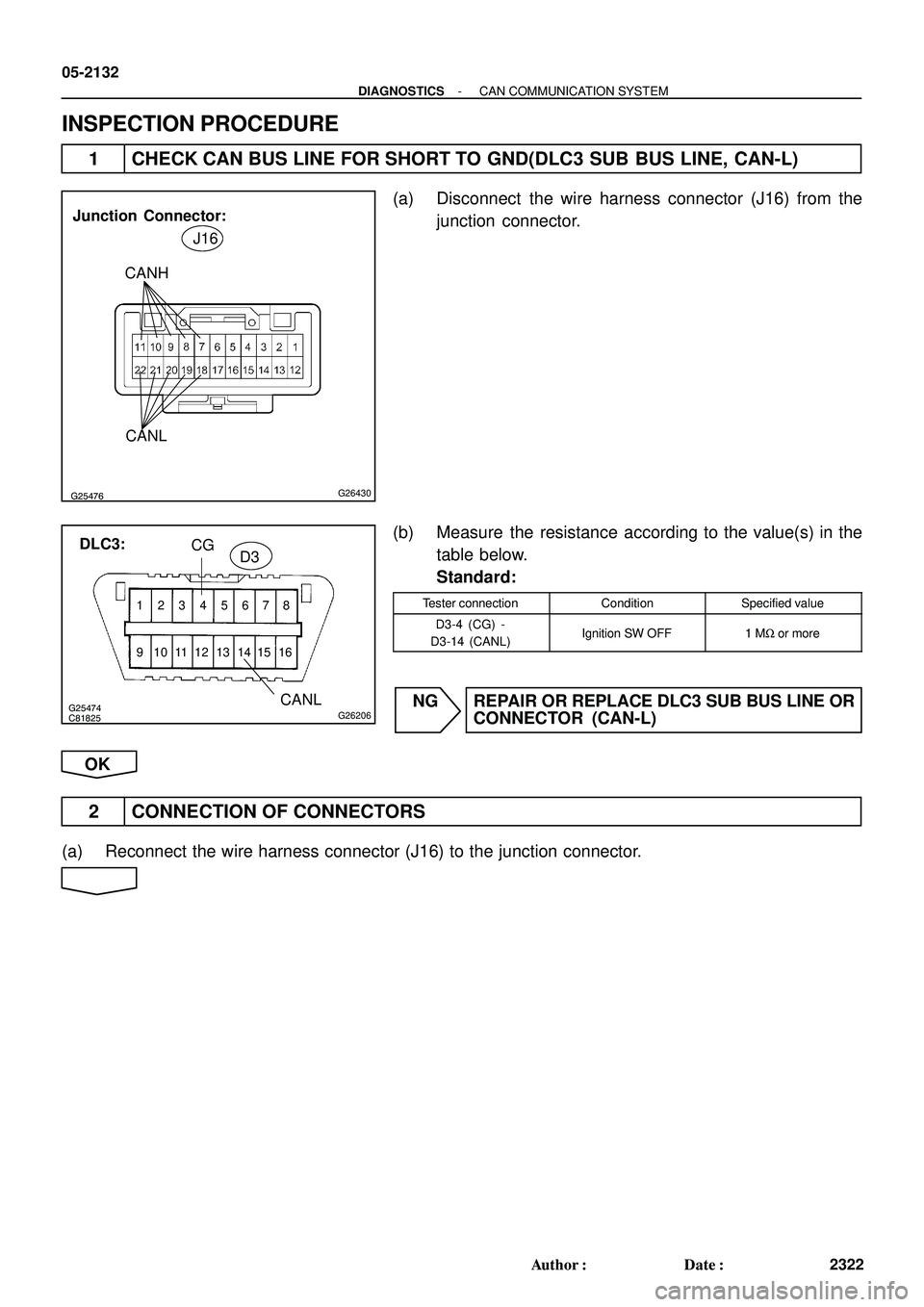

INSPECTION PROCEDURE
1 CHECK CAN BUS LINE FOR SHORT TO GND(DLC3 SUB BUS LINE, CAN-L)
(a) Disconnect the wire harness connector (J16) from the
junction connector.
(b) Measure the resistance according to the value(s) in the
table below.
Standard:
Tester connectionConditionSpecified value
D3-4 (CG) -
D3-14 (CANL)Ignition SW OFF1 MW or more
NG REPAIR OR REPLACE DLC3 SUB BUS LINE OR
CONNECTOR (CAN-L)
OK
2 CONNECTION OF CONNECTORS
(a) Reconnect the wire harness connector (J16) to the junction connector.

C81825
12345678
9 10111213141516
G25474G26206
DLC3:
CG
CANLD3
C81825
12345678
9 10111213141516
G25474G26206
DLC3:
CG
CANLD3
C81825
12345678
9 10111213141516
G25474G26206
DLC3:
CG
CANLD3
- DIAGNOSTICSCAN COMMUNICATION SYSTEM
05-2133
2323 Author
: Date
:
3 CHECK CAN BUS LINE FOR SHORT TO GND(SKID CONTROL ECU, CAN-L)
(a) Disconnect the connector (S27) from the skid control
ECU.
(b) Measure the resistance according to the value(s) in the
table below.
Standard:
Tester connectionConditionSpecified value
D3-4 (CG) -
D3-14 (CANL)Ignition SW OFF3 kW or more
OK REPLACE SKID CONTROL ECU WITH
ACTUATOR (SEE PAGE 32-37)
NG
4 CHECK CAN BUS LINE FOR SHORT TO GND(STEERING SENSOR, CAN-L)
(a) Reconnect the connector (S27) to the skid control ECU.
(b) Disconnect the connector (S14) from the steering sensor.
(c) Measure the resistance according to the value(s) in the
table below.
Standard:
Tester connectionConditionSpecified value
D3-4 (CG) -
D3-14 (CANL)Ignition SW OFF3 kW or more
OK REPLACE STEERING SENSOR
(SEE PAGE 32-48)
NG
5 CHECK CAN BUS LINE FOR SHORT TO GND(YAW RATE SWENSOR, CAN-L)
(a) Reconnect the connector (S14) to the steering sensor.
(b) Disconnect the connector (Y1) from the yaw rate sensor.
(c) Measure the resistance according to the value(s) in the
table below.
Standard:
Tester connectionConditionSpecified value
D3-4 (CG) -
D3-14 (CANL)Ignition SW OFF3 kW or more
OK REPLACE YAW RATE SENSOR
(SEE PAGE 32-46)
NG

G25476G26430
Junction Connector:
J16
CANH
CANL
E69126
Skid Control ECU
Connector Front
View:
CANL
S27
GND1
05-2134
- DIAGNOSTICSCAN COMMUNICATION SYSTEM
2324 Author
: Date
:
6 CHECK CAN BUS LINE FOR SHORT TO GND(SKID CONTROL ECU - JUNCTION
CONNECTOR, CAN-L)
(a) Reconnect the connector (Y1) to the yaw rate sensor.
(b) Disconnect the wire harness connector (J16) from the
junction connector.
(c) Disconnect the connector (S27) from the skid control
ECU.
(d) Measure the resistance according to the value(s) in the
table below.
Standard:
Tester connectionConditionSpecified value
S27-25 (CANL) -
S27-32 (GND1)Ignition SW OFF1 MW more
NG REPAIR OR REPLACE CAN MAIN BUS LINE OR
CONNECTOR (SKID CONTROL ECU - JUNC-
TION CONNECTOR, CAN-L)
OK

G24991G26210
S14
Steering Sensor Wire Harness View:
CANLESS
- DIAGNOSTICSCAN COMMUNICATION SYSTEM
05-2135
2325 Author
: Date
:
7 CHECK CAN BUS LINE FOR SHORT TO GND(STEERING SENSOR - JUNCTION
CONNECTOR, CAN-L)
(a) Disconnect the connector (S14) from the steering sensor.
(b) Measure the resistance according to the value(s) in the
table below.
Standard:
Tester connectionConditionSpecified value
S14-2 (ESS) -
S14-9 (CANL)Ignition SW OFF1 MW more
HINT:
Check the wire harness connector connected to the junction
connector while disconnecting them.
NG REPAIR OR REPLACE CAN MAIN BUS LINE OR
CONNECTOR (STEERING SENSOR - JUNC-
TION CONNECTOR, CAN-L)
OK
REPAIR OR REPLACE YAW RATE SENSOR SUB BUS LINE OR CONNECTOR (CAN-L)

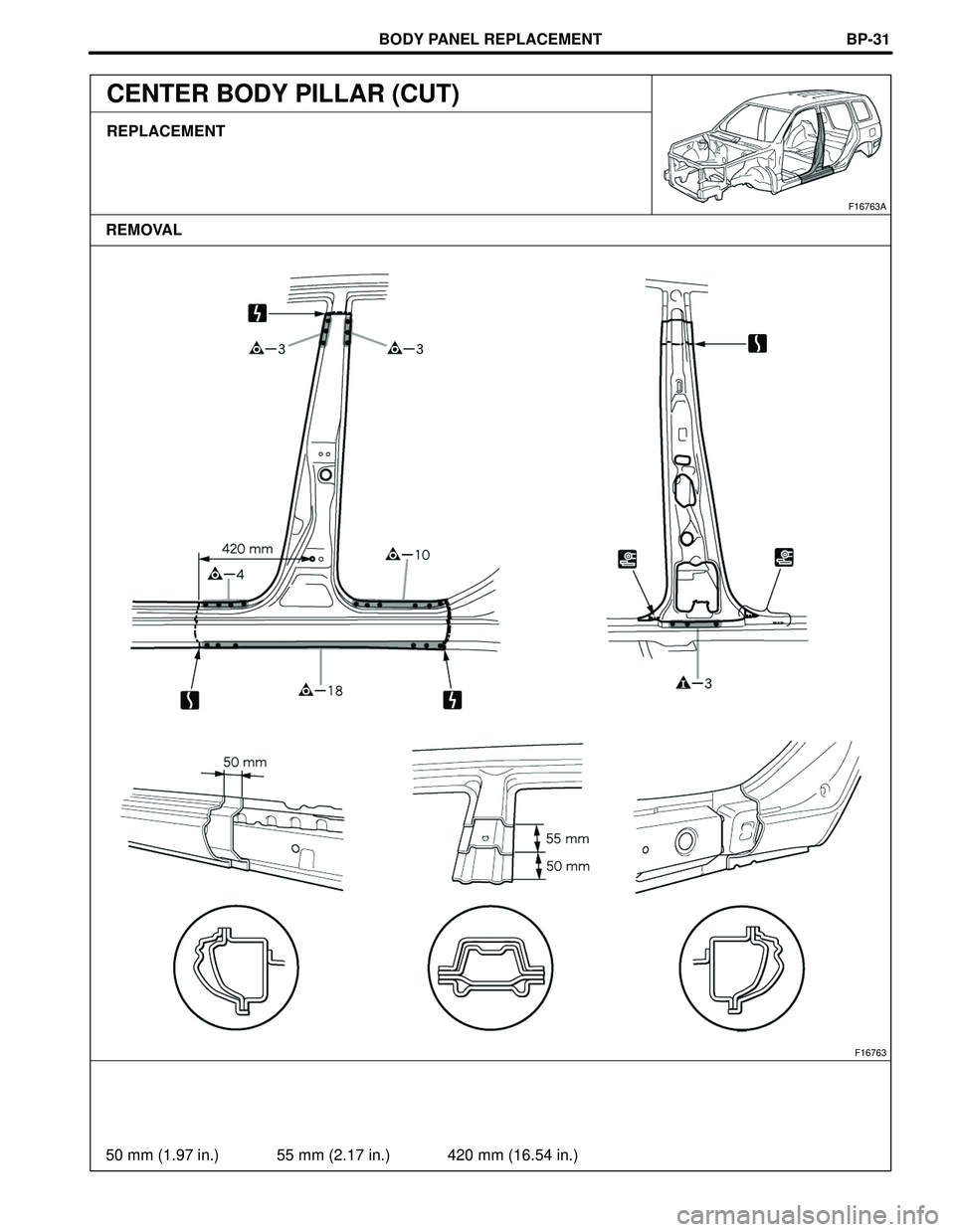

BODY PANEL REPLACEMENT
F16763
50 mm (1.97 in.) 55 mm (2.17 in.) 420 mm (16.54 in.)
F16763A
REMOVALBP-31
CENTER BODY PILLAR (CUT)
REPLACEMENT

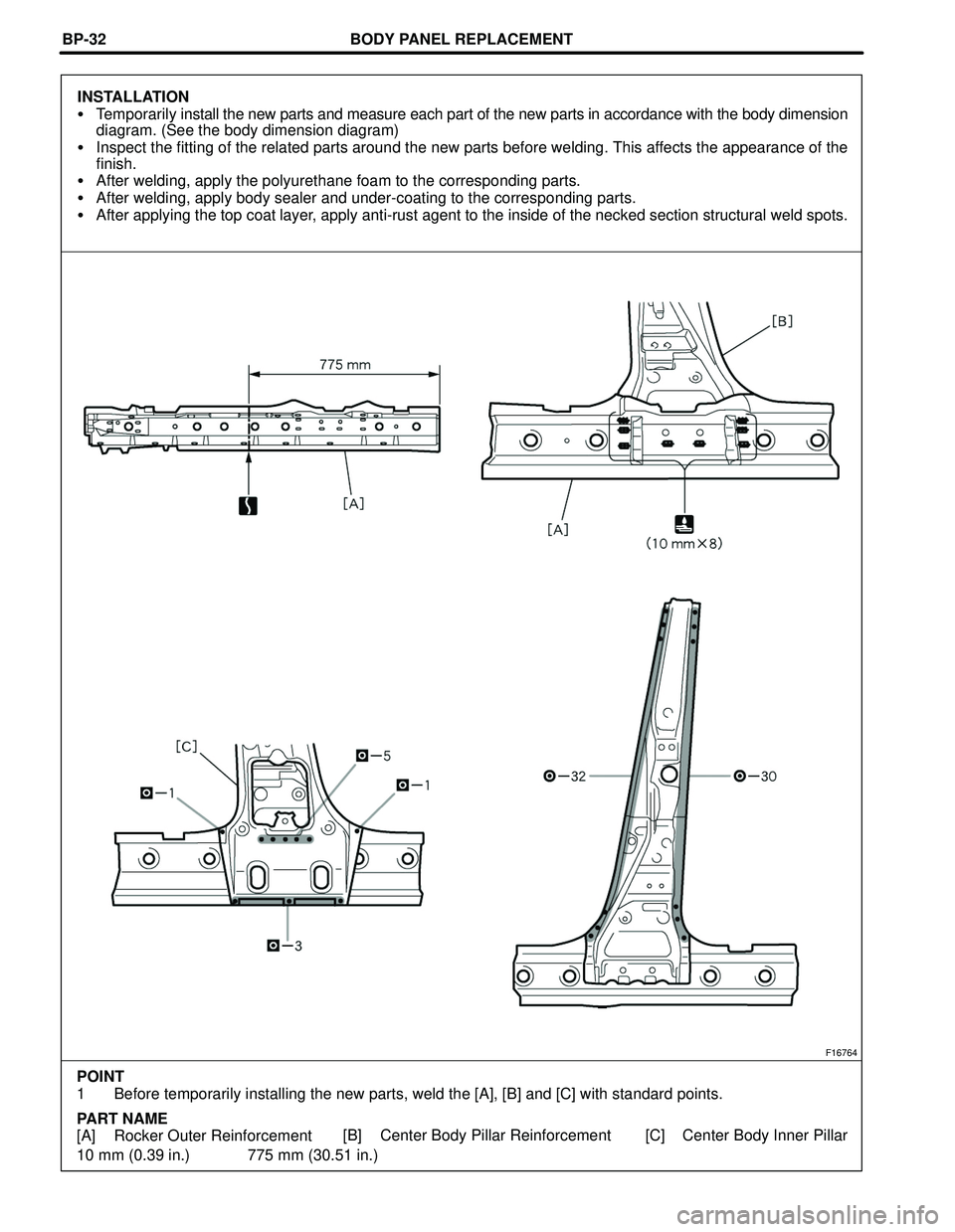

BODY PANEL REPLACEMENT
F16764
10 mm (0.39 in.) 775 mm (30.51 in.) POINT
1 Before temporarily installing the new parts, weld the [A], [B] and [C] with standard points.
PART NAME
[A] Rocker Outer Reinforcement[B] Center Body Pillar Reinforcement [C] Center Body Inner Pillar BP-32
INSTALLATION

Temporarily install the new parts and measure each part of the new parts in accordance with the body dimension
diagram. (See the body dimension diagram)

Inspect the fitting of the related parts around the new parts before welding. This affects the appearance of the
finish.

After welding, apply the polyurethane foam to the corresponding parts.

After welding, apply body sealer and under-coating to the corresponding parts.

After applying the top coat layer, apply anti-rust agent to the inside of the necked section structural weld spots.

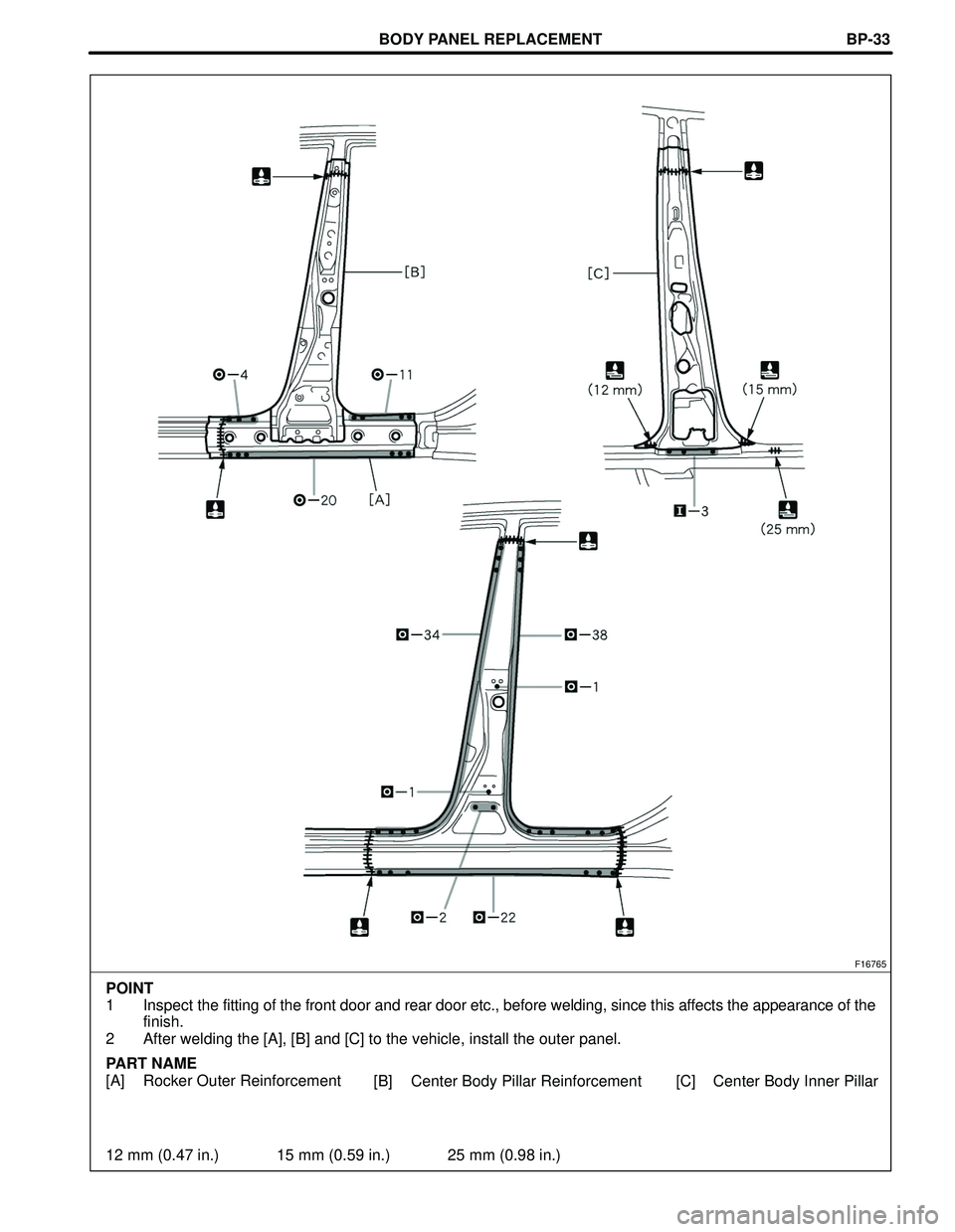

BODY PANEL REPLACEMENT
F16765
12 mm (0.47 in.) 15 mm (0.59 in.) 25 mm (0.98 in.) POINT
1 Inspect the fitting of the front door and rear door etc., before welding, since this affects the appearance of the
finish.
2 After welding the [A], [B] and [C] to the vehicle, install the outer panel.
PART NAME
[A] Rocker Outer Reinforcement
[B] Center Body Pillar Reinforcement[C] Center Body Inner PillarBP-33
