TOYOTA HIGHLANDER 2007 XU40 / 2.G Navigation Manual

111
2. Touch the desired search condition to
list the memos. The “Memo List” is dis-
played on the screen.To display the memos listed in a desired
period, touch the
“Period” switch.
Touch the number keys.
After setting the period, touch the
“OK”switch. The “Memo List” screen will be
displayed.
You can set a period from January 1, 2003,
through December 31, 2022, for searching.
To delete and/or edit the memo, touch the
desired memo switch.
To delete all memos, touch the
“Delete
All”
switch. A message appears on the
display. To delete, touch the “Yes”
switch. To cancel the deletion, touch the“No” switch.

11 2
To edit: Touch the corresponding “Memo”
or “Location” switch. (See page 110 for
details.)
To delete: Touch the
“Delete” switch.
(See page 109 for details.)
Trip information
Trip information such as driving distance,
average vehicle speed, fuel consumption,
etc. can be displayed on the screen.
Push the “INFO” button to display the
“Information Menu” and touch the
“Trip
Info”
switch.
“OUTSIDE TEMP”
The display indicates the outside air tempera-
tures.
“Consumption”
The instantaneous fuel consumption is calcu-
lated and displayed based on distance and
fuel consumption with the engine running.
The displayed value is updated every 1 sec-
ond.
Note that an accurate figure may not be
shown in the following cases.
When the vehicle is stopped with the en-
gine running, the display will indicate the
extremely high fuel consumption.
When the vehicle is driving down a long
slope, applying the engine brake, the dis-
play will indicate the extremely low fuel
consumption.
The calculation is reset when the ignition
switch is turned off.

11 3 “After refueling”
The average fuel consumption is calculated
and displayed based on total driving distance
and total fuel consumption with the engine
running.
The displayed value is updated every 10 sec-
onds.
Every time you refuel the vehicle, the calcula-
tion is reset. When refueling, be sure to stop
your vehicle and turn the ignition switch off.
“Cruising range”
The distance the vehicle can travel with the
remaining fuel is calculated and displayed
based on the quantity of remaining fuel and
past fuel consumption.
The driving range display indicates the
approximate distance that you can drive until
the fuel gauge reaches “E”. It is different from
the actual distance traveled.
The displayed value is updated every time the
fuel equivalent for 1 mile or 1 km is consumed.
Every time you refuel the vehicle, the calcula-
tion is reset. When refueling, be sure to stop
your vehicle and turn the ignition switch off.
The actual driving range varies with driving
habits and road conditions. If fuel consump-
tion is good, the driving range will be longer.
If fuel consumption is poor, the driving range
will be shorter.If the low fuel level warning light comes on, re-
fuel even if the display indicates that the ve-
hicle can be driven further.
“Average speed”
The average speed is calculated and dis-
played based on the total driving distance and
the total driving time after the engine is star-
ted.
The displayed value is updated every 10 sec-
onds.
“Distance”
The distance after engine starting is dis-
played.
“Reset”
To reset the calculations of “Average speed”
and “Distance”.
Screen setting
1. Push the “INFO” button to display the
“Information Menu” screen.
2. Touch the “Screen Setting” switch.

11 4

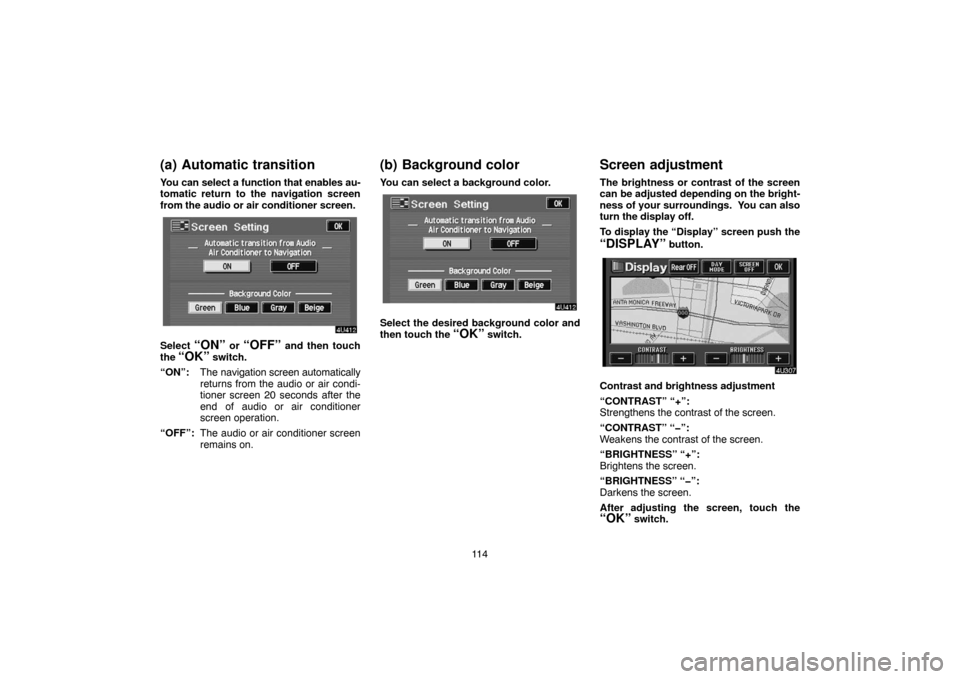

(a) Automatic transition
You can select a function that enables au-
tomatic return to the navigation screen
from the audio or air conditioner screen.
Select “ON” or “OFF” and then touch
the
“OK” switch.
“ON”:The navigation screen automatically
returns from the audio or air condi-
tioner screen 20 seconds after the
end of audio or air conditioner
screen operation.
“OFF”:The audio or air conditioner screen
remains on.
(b) Background color
You can select a background color.
Select the desired background color and
then touch the
“OK” switch.
Screen adjustment
The brightness or contrast of the screen
can be adjusted depending on the bright-
ness of your surroundings. You can also
turn the display off.
To display the “Display” screen push the
“DISPLAY” button.
Contrast and brightness adjustment
“CONTRAST” “+”:
Strengthens the contrast of the screen.
“CONTRAST” “”:
Weakens the contrast of the screen.
“BRIGHTNESS” “+”:
Brightens the screen.
“BRIGHTNESS” “”:
Darkens the screen.
After adjusting the screen, touch the
“OK” switch.

11 5 The rear screen turns off when you touch
“Rear OFF”.
The screen goes off when you touch the
“SCREEN OFF” switch. To turn the dis-
play screen back on, push any button such as
“INFO”, etc. The selected screen appears.
INFORMATION
When you do not touch any button on
the “Display” screen for 20 seconds, the
previous screen will be displayed.

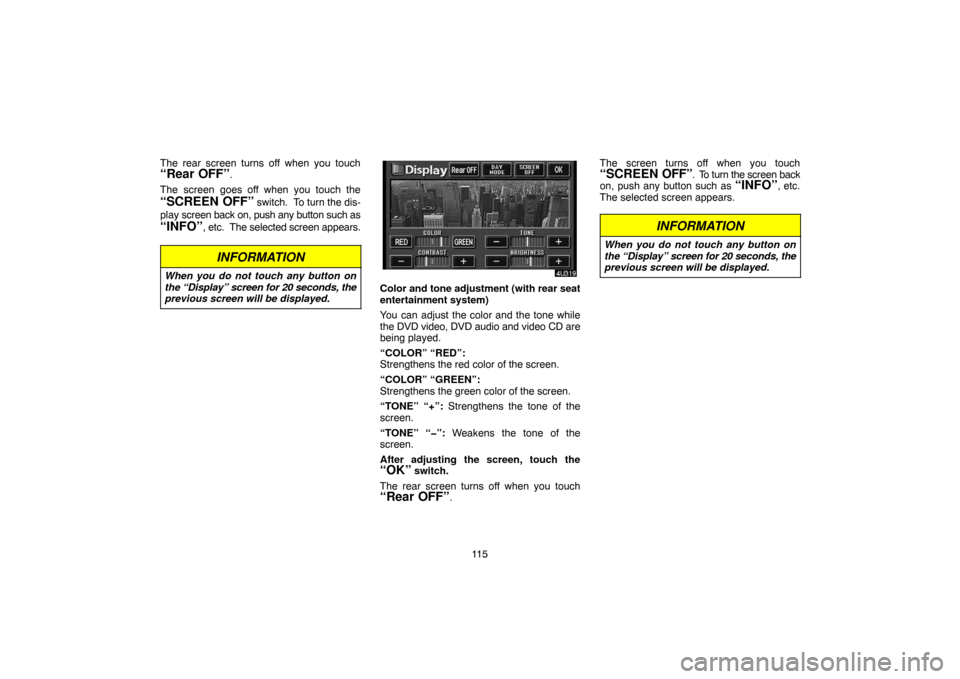

Color and tone adjustment (with rear seat
entertainment system)
You can adjust the color and the tone while
the DVD video, DVD audio and video CD are
being played.
“COLOR” “RED”:
Strengthens the red color of the screen.
“COLOR” “GREEN”:
Strengthens the green color of the screen.
“TONE” “+”: Strengthens the tone of the
screen.
“TONE” “”: Weakens the tone of the
screen.
After adjusting the screen, touch the
“OK” switch.
The rear screen turns off when you touch
“Rear OFF”.The screen turns off when you touch
“SCREEN OFF”. To turn the screen back
on, push any button such as “INFO”, etc.
The selected screen appears.
INFORMATION
When you do not touch any button on
the “Display” screen for 20 seconds, the
previous screen will be displayed.

11 6

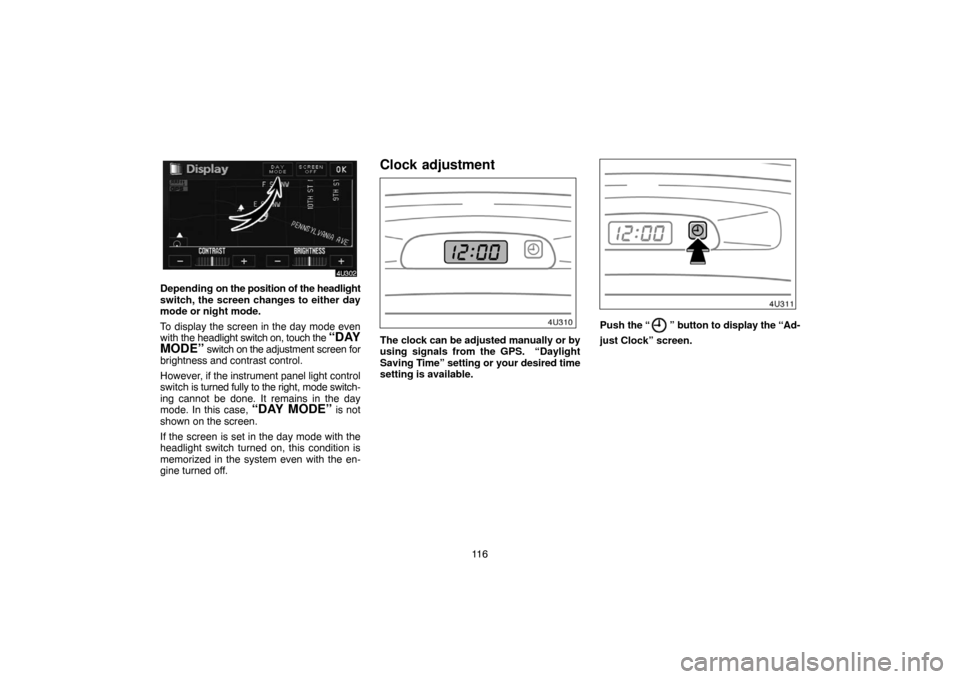

Depending on the position of the headlight
switch, the screen changes to either day
mode or night mode.
To display the screen in the day mode even
with the headlight switch on, touch the
“DAY
MODE”
switch on the adjustment screen for
brightness and contrast control.
However, if the instrument panel light control
switch is turned fully to the right, mode switch-
ing cannot be done. It remains in the day
mode. In this case,
“DAY MODE” is not
shown on the screen.
If the screen is set in the day mode with the
headlight switch turned on, this condition is
memorized in the system even with the en-
gine turned off.
Clock adjustment
The clock can be adjusted manually or by
using signals from the GPS. “Daylight
Saving Time” setting or your desired time
setting is available.
Push the “” button to display the “Ad-
just Clock” screen.

11 7

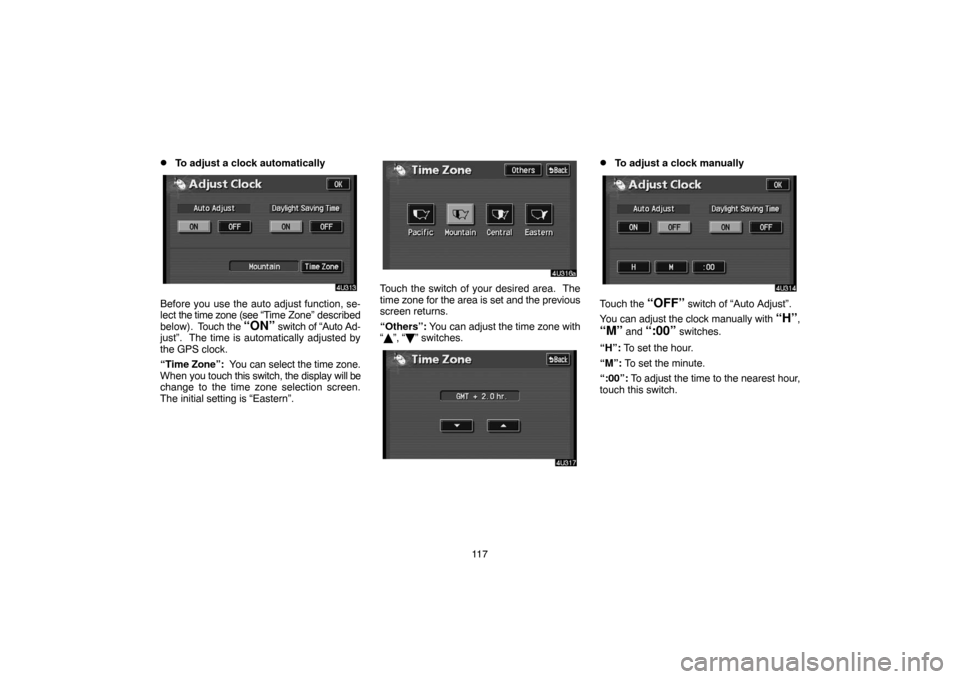

To adjust a clock automatically
Before you use the auto adjust function, se-
lect the time zone (see “Time Zone” described
below). Touch the
“ON” switch of “Auto Ad-
just”. The time is automatically adjusted by
the GPS clock.
“Time Zone”: You can select the time zone.
When you touch this switch, the display will be
change to the time zone selection screen.
The initial setting is “Eastern”.
Touch the switch of your desired area. The
time zone for the area is set and the previous
screen returns.
“Others”: You can adjust the time zone with
“”, “” switches.
To adjust a clock manually
Touch the “OFF” switch of “Auto Adjust”.
You can adjust the clock manually with
“H”,
“M” and “:00” switches.
“H”: To set the hour.
“M”: To set the minute.
“:00”: To adjust the time to the nearest hour,
touch this switch.

11 8

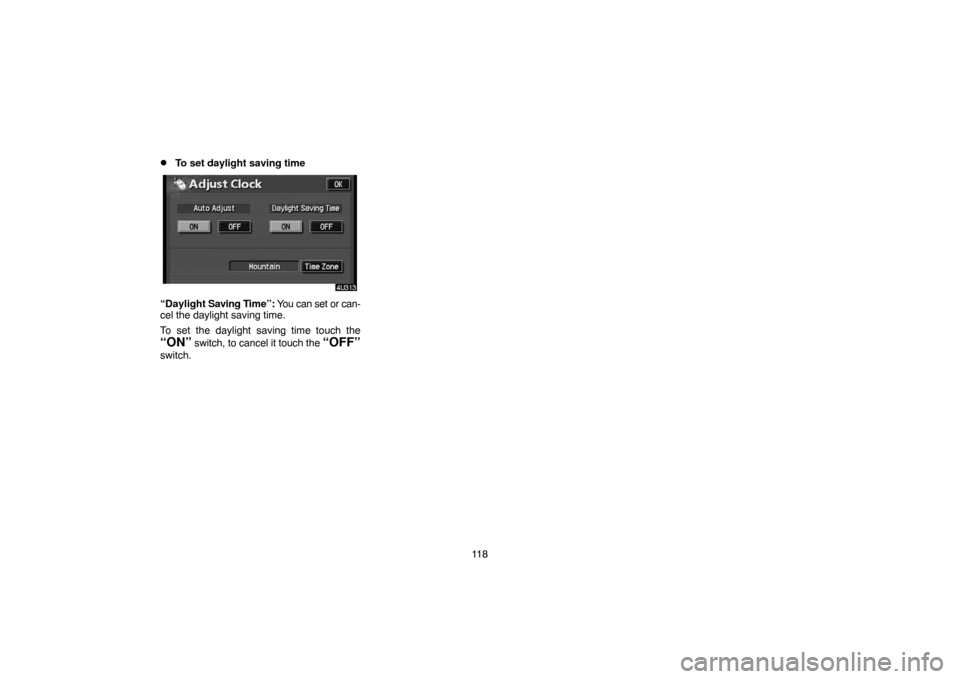

To set daylight saving time
“Daylight Saving Time”: You can set or can-
cel the daylight saving time.
To set the daylight saving time touch the
“ON” switch, to cancel it touch the “OFF”
switch.

11 9
AUDIO SYSTEM
Audio system
Quick reference120 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Using your audio system121 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Audio system operating hints151 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
SECTION V

120

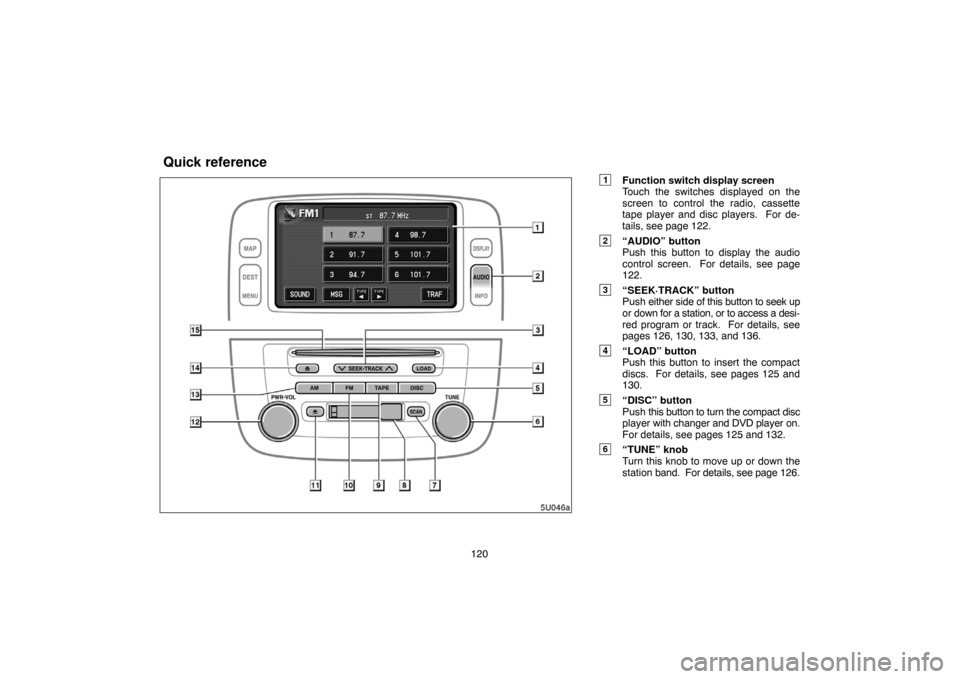

1Function switch display screen
Touch the switches displayed on the
screen to control the radio, cassette
tape player and disc players. For de-
tails, see page 122.
2“AUDIO” button
Push this button to display the audio
control screen. For details, see page
122.
3“SEEK·TRACK” button
Push either side of this button to seek up
or down for a station, or to access a desi-
red program or track. For details, see
pages 126, 130, 133, and 136.
4“LOAD” button
Push this button to insert the compact
discs. For details, see pages 125 and
130.
5“DISC” button
Push this button to turn the compact disc
player with changer and DVD player on.
For details, see pages 125 and 132.
6“TUNE” knob
Turn this knob to move up or down the
station band. For details, see page 126.
Quick reference
