TOYOTA HIGHLANDER 2007 XU40 / 2.G Navigation Manual

51
(d) Detour setting
While the route guidance is operating, you
can change the route to detour around a
section of the route where a delay is
caused by road repairs, an accident, etc.
1. Touch the
“Route” switch.
2. Touch the “Detour” switch.
3. Select the switch below to select the
desired detour distance.
“1 Mile (km)”, “3 Miles (km)” or “5 Miles
(km)”: Touch one of these switches to start
the detour process. After detouring, the sys-
tem returns to the original guidance route.
“Whole Route”: If you touch this switch, the
system will calculate an entire new route to
the destination.
This picture shows an example of how the
system would guide you around a delay
caused by a traffic jam.
1This position indicates the location of a
traffic jam caused by road repairs or an
accident.
2This route indicates the detour sug-
gested by the system.
INFORMATION
When your vehicle is on a freeway, the
detour distance selections are 5, 15,
and 25 miles (km).
The system may not be able to calcu-
late a detour route depending on the
selected distance and surrounding
road conditions.

52

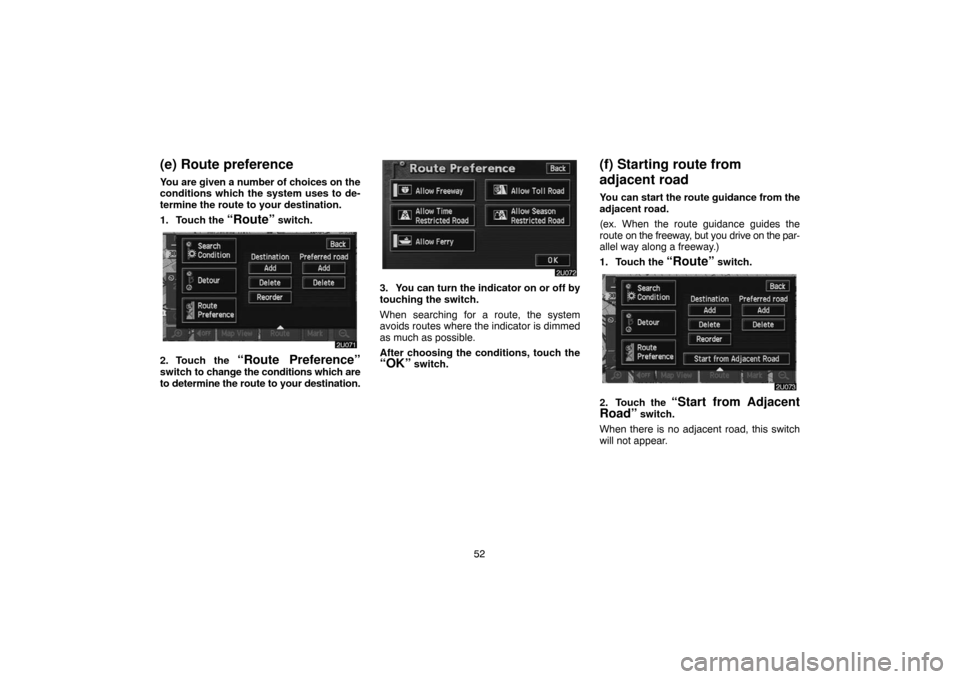

(e) Route preference
You are given a number of choices on the
conditions which the system uses to de-
termine the route to your destination.
1. Touch the
“Route” switch.
2. Touch the “Route Preference”switch to change the conditions which are
to determine the route to your destination.
3. You can turn the indicator on or off by
touching the switch.
When searching for a route, the system
avoids routes where the indicator is dimmed
as much as possible.
After choosing the conditions, touch the
“OK” switch.
(f) Starting route from
adjacent road
You can start the route guidance from the
adjacent road.
(ex. When the route guidance guides the
route on the freeway, but you drive on the par-
allel way along a freeway.)
1. Touch the
“Route” switch.
2. Touch the “Start from Adjacent
Road” switch.
When there is no adjacent road, this switch
will not appear.

53

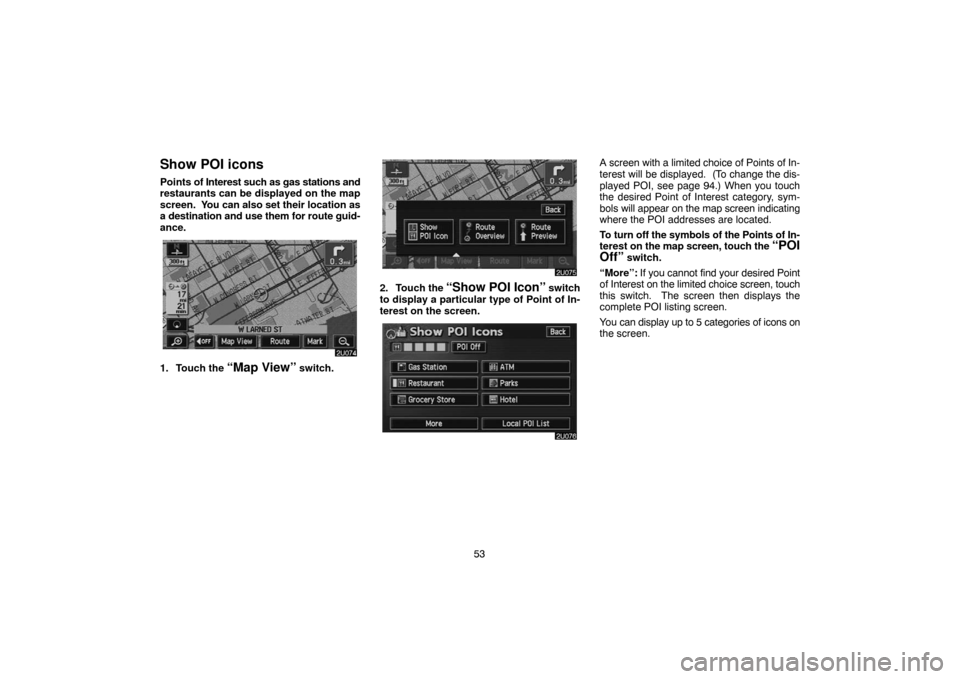

Show POI icons
Points of Interest such as gas stations and
restaurants can be displayed on the map
screen. You can also set their location as
a destination and use them for route guid-
ance.
1. Touch the “Map View” switch.
2. Touch the “Show POI Icon” switch
to display a particular type of Point of In-
terest on the screen.
A screen with a limited choice of Points of In-
terest will be displayed. (To change the dis-
played POI, see page 94.) When you touch
the desired Point of Interest category, sym-
bols will appear on the map screen indicating
where the POI addresses are located.
To turn off the symbols of the Points of In-
terest on the map screen, touch the
“POI
Off” switch.
“More”: If you cannot find your desired Point
of Interest on the limited choice screen, touch
this switch. The screen then displays the
complete POI listing screen.
You can display up to 5 categories of icons on
the screen.

54

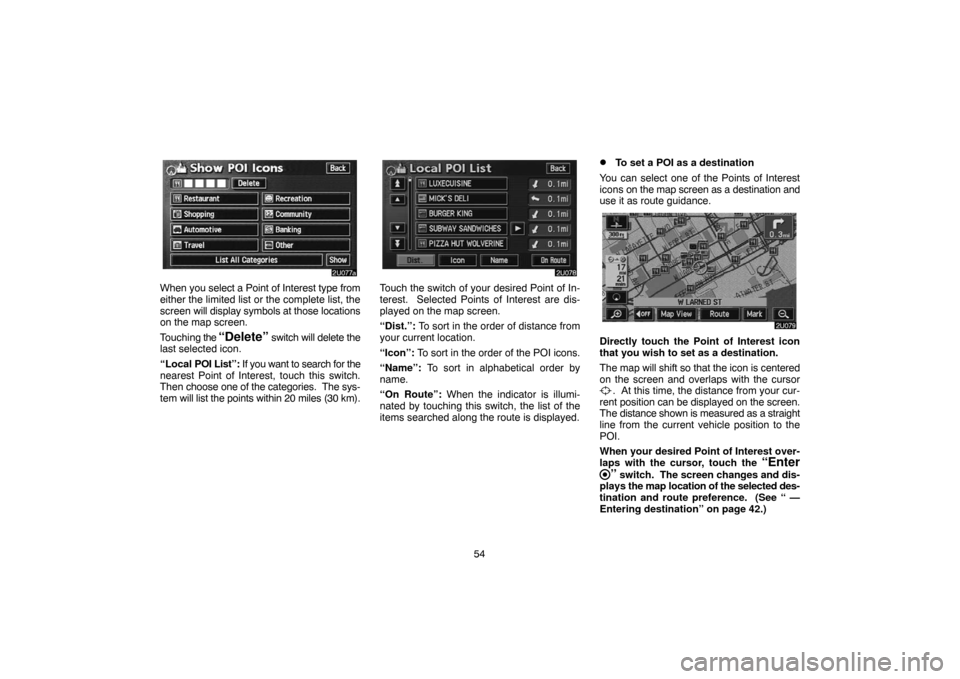

When you select a Point of Interest type from
either the limited list or the complete list, the
screen will display symbols at those locations
on the map screen.
Touching the
“Delete” switch will delete the
last selected icon.
“Local POI List”: If you want to search for the
nearest Point of Interest, touch this switch.
Then choose one of the categories. The sys-
tem will list the points within 20 miles (30 km).
Touch the switch of your desired Point of In-
terest. Selected Points of Interest are dis-
played on the map screen.
“Dist.”: To sort in the order of distance from
your current location.
“Icon”: To sort in the order of the POI icons.
“Name”: To sort in alphabetical order by
name.
“On Route”: When the indicator is illumi-
nated by touching this switch, the list of the
items searched along the route is displayed.
To set a POI as a destination
You can select one of the Points of Interest
icons on the map screen as a destination and
use it as route guidance.
Directly touch the Point of Interest icon
that you wish to set as a destination.
The map will shift so that the icon is centered
on the screen and overlaps with the cursor
. At this time, the distance from your cur-
rent position can be displayed on the screen.
The distance shown is measured as a straight
line from the current vehicle position to the
POI.
When your desired Point of Interest over-
laps with the cursor, touch the
“Enter
” switch. The screen changes and dis-
plays the map location of the selected des-
tination and route preference. (See “ —
Entering destination” on page 42.)

55

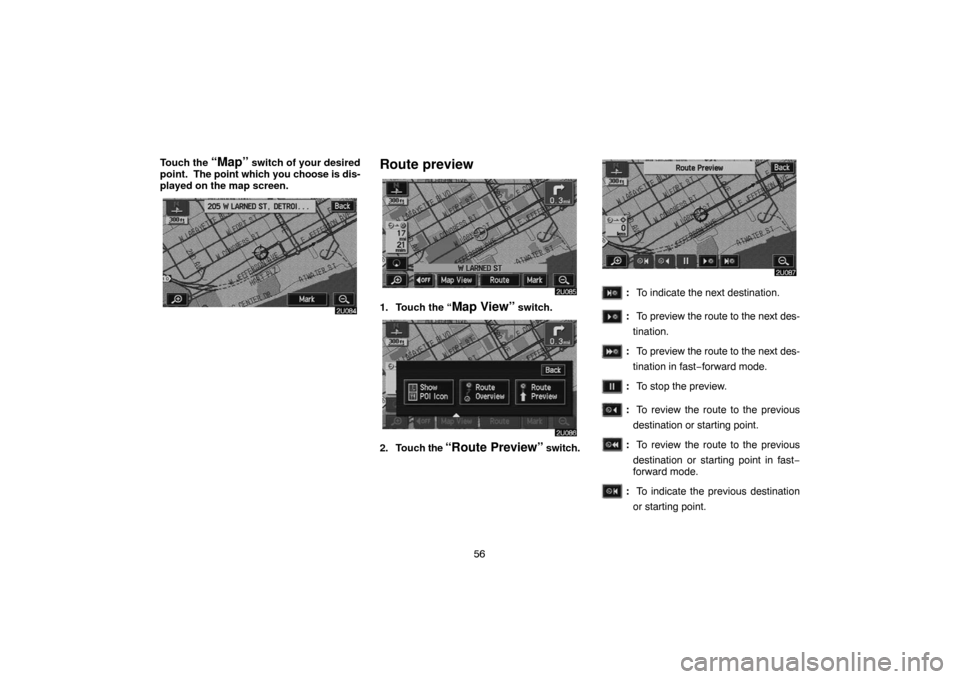

Route overview
1. Touch the “Map View” switch.
2. Touch the “Route Overview”switch.
The entire route from the current position to
the destination is displayed.
“Guide”: To start guidance.
“Route”: To change the route. (For details,
see pages 46 and 48.)
“Turn List”: The following screen displays
the list of the roads up to your destination.You can scroll through the list of roads by
touching
or . However, not all road
names in the route may appear on the list. If
a road changes its name without requiring a
turn (such as on a street that runs through two
or more cities), the name change will not ap-
pear on the list. The street name closest to
the starting point will be displayed with a mile-
age to the next turn.
These marks indicate the
direction in which you should turn
at an intersection.

56 Touch the
“Map” switch of your desired
point. The point which you choose is dis-
played on the map screen.Route preview
1. Touch the “Map View” switch.
2. Touch the “Route Preview” switch.
:To indicate the next destination.
:To preview the route to the next des-
tination.
:To preview the route to the next des-
tination in fast−forward mode.
:To stop the preview.
:To review the route to the previous
destination or starting point.
:To review the route to the previous
destination or starting point in fast−
forward mode.
:To indicate the previous destination
or starting point.

57

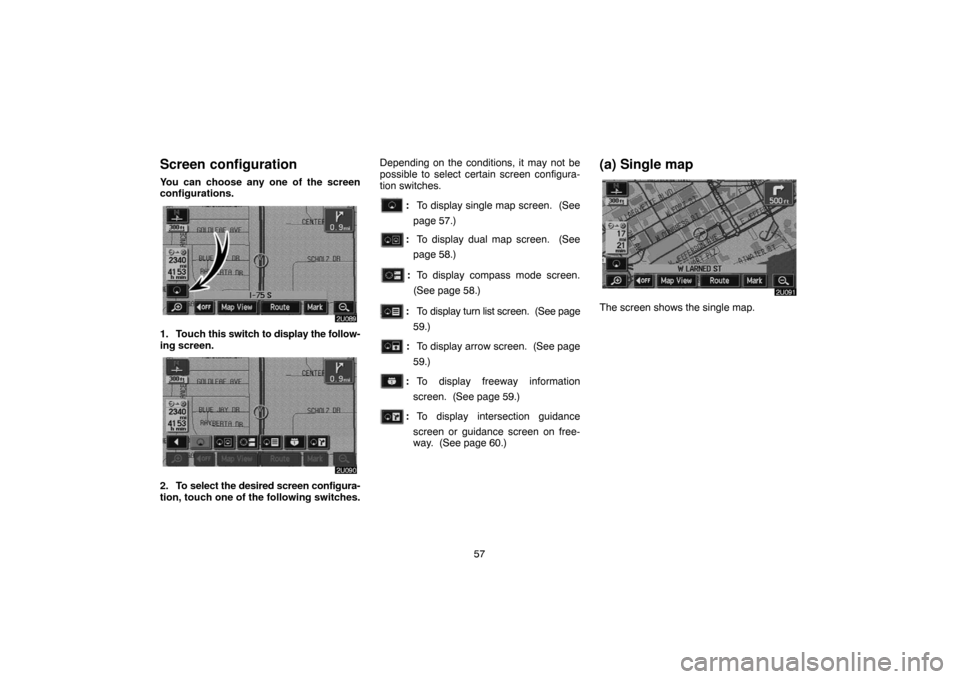

Screen configuration
You can choose any one of the screen
configurations.
1. Touch this switch to display the follow-
ing screen.
2. To select the desired screen configura-
tion, touch one of the following switches.Depending on the conditions, it may not be
possible to select certain screen configura-
tion switches.
:To display single map screen. (See
page 57.)
:To display dual map screen. (See
page 58.)
:To display compass mode screen.
(See page 58.)
:To display turn list screen. (See page
59.)
:To display arrow screen. (See page
59.)
:To display freeway information
screen. (See page 59.)
:To display intersection guidance
screen or guidance screen on free-
way. (See page 60.)
(a) Single map
The screen shows the single map.

58

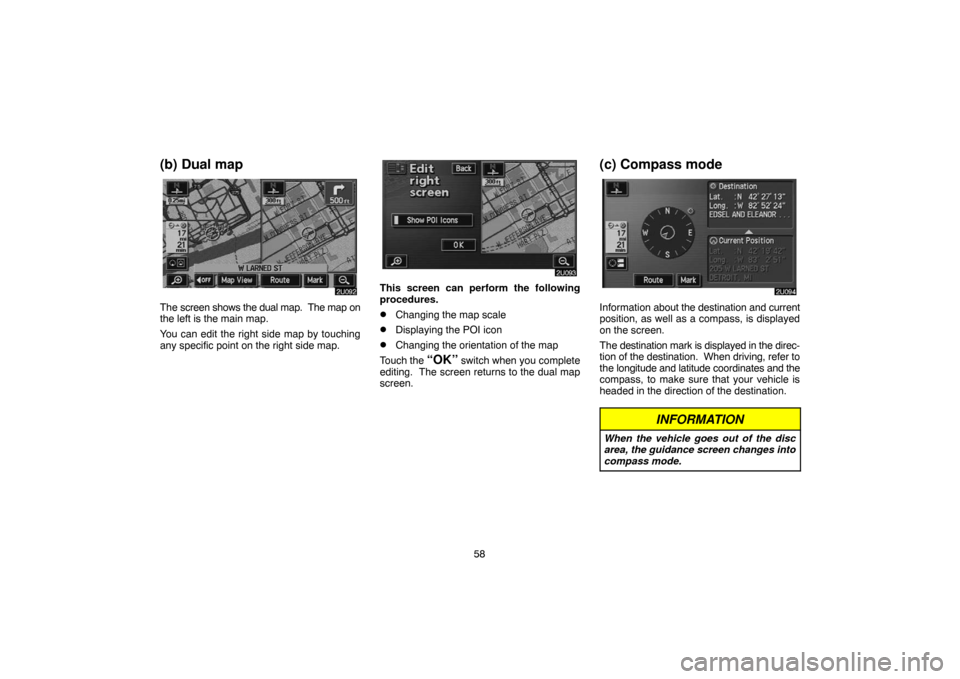

(b) Dual map
The screen shows the dual map. The map on
the left is the main map.
You can edit the right side map by touching
any specific point on the right side map.
This screen can perform the following
procedures.
Changing the map scale
Displaying the POI icon
Changing the orientation of the map
Touch the
“OK” switch when you complete
editing. The screen returns to the dual map
screen.
(c) Compass mode
Information about the destination and current
position, as well as a compass, is displayed
on the screen.
The destination mark is displayed in the direc-
tion of the destination. When driving, refer to
the longitude and latitude coordinates and the
compass, to make sure that your vehicle is
headed in the direction of the destination.
INFORMATION
When the vehicle goes out of the disc
area, the guidance screen changes into
compass mode.

59

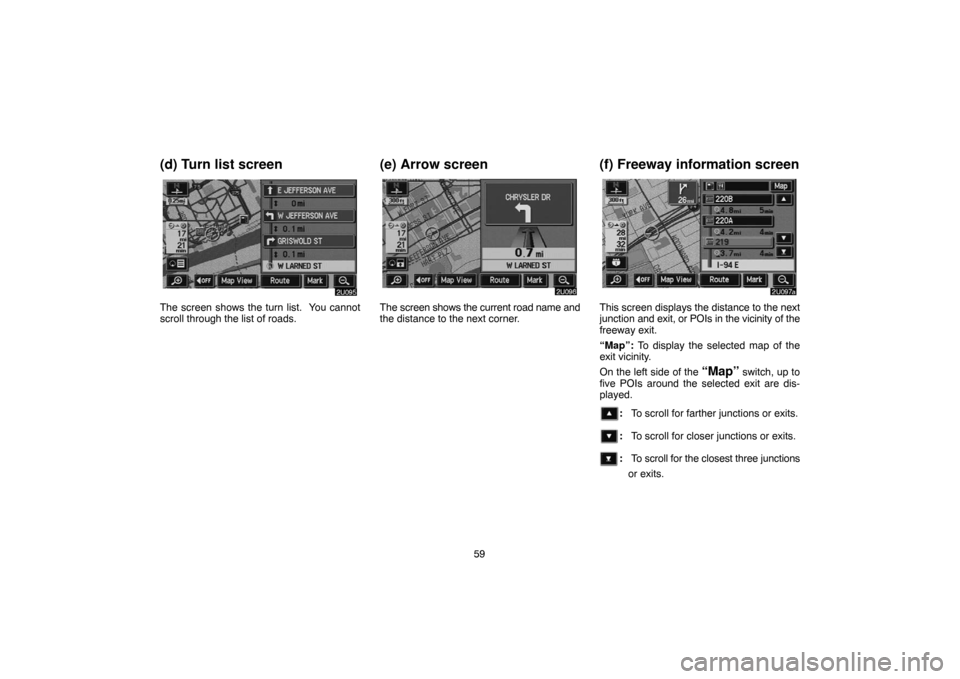

(d) Turn list screen
The screen shows the turn list. You cannot
scroll through the list of roads.
(e) Arrow screen
The screen shows the current road name and
the distance to the next corner.
(f) Freeway information screen
This screen displays the distance to the next
junction and exit, or POIs in the vicinity of the
freeway exit.
“Map”: To display the selected map of the
exit vicinity.
On the left side of the
“Map” switch, up to
five POIs around the selected exit are dis-
played.
:To scroll for farther junctions or exits.
:To scroll for closer junctions or exits.
:To scroll for the closest three junctions
or exits.

60
INFORMATION
When you drive on a freeway, the screen
is automatically divided into two parts,
with freeway information screen on the
right side.
(g) Intersection guidance
screen/guidance screen on
freeway
Intersection guidance screen
This screen automatically appears when the
vehicle approaches an intersection on the
road.
The distance to the intersection is shown at
the bottom of the screen.
“OFF”: The intersection guidance screen
disappears and the map screen appears.
When touching the
switch or pushing
the
“MAP” button, the intersection guid-
ance screen reappears.
INFORMATION
Intersection guidance can be turned on
or off. (See page 89.)
Guidance screen on freeway
This screen automatically appears when the
vehicle approaches a junction or exit on a
freeway.
The distance to the junction or exit is shown
at the bottom of the screen.
“OFF”: The guidance screen on freeway
disappears and the map screen appears.
When touching the
switch or pushing
the
“MAP” button, the guidance screen on
freeway reappears.
INFORMATION
Guidance screen on freeway can be
turned on or off. (See page 90.)
