TOYOTA HIGHLANDER 2007 XU40 / 2.G Navigation Manual

61
Distance and time to
destination
When the vehicle is on the guidance route,
the distance and the estimated travel time
to the destination are displayed. When the
vehicle is not on the guidance route, the
distance to and the direction of the des-
tination are displayed.
When driving on the guidance route and more
than one destination is set, the distance and
the estimated travel time from current position
to each destination are displayed.
1. Touch this switch to display the follow-
ing screen.
2. Touch the number switch of the des-
tination you wish to display.
The distance and the estimated travel time
from the current position to the selected des-
tination are displayed.
Displayed while driving along the
guidance route.
Displayed while driving off the
guidance route. The destination
direction is indicated by an arrow.
INFORMATION
When the vehicle is on the guidance
route, the distance measured along the
route is displayed. Travel time is calcu-
lated based on the set vehicle speed in-
formation. (For details, see page 83.)
However, when the vehicle is not on the
guidance route, the distance is the linear
distance between the current position
and the destination.

62
Foot print map
For the area which is covered by the foot print
map (Some areas in the following cities;
Detroit, Chicago, N.Y., L.A), you can switch to
the foot print map on a scale of 75 feet (25 m).
To switch to the foot print map
The
switch changes into the
switch when the map is scaled down to 150
feet (50 m).
To display the foot print map, touch the
switch.
To delete the foot print map display
Touch the
switch.
INFORMATION
If the map or the current position is
moved to the area which is not cov-
ered by the foot print map, the screen
scale automatically changes to 150
feet (50 m).
On the foot print map, a one way
street is displayed by .
It is not possible to perform scrolling
on the foot print map (onetouch
scroll) while driving.
To display building information
Information is available only for buildings for
which information is recorded on the map
disc.
1. Touch the “Info.” switch while the
foot print map is displayed.
If the map is displayed in split screen, it turned
into a single map display.

63
2. Using an eightdirection arrow, move
the cursor to the position of the building
you wish to display information.
3. Touch the
“Building Info.” switch.
4. Details of POIs in some buildings may
be displayed. If you wish to see detailed
POI information, touch the building name.
You can see the detail of the selected
POIs.

64

65
ADVANCED FUNCTIONS
Descriptions of functions for more effective use
Suspending and resuming guidance66 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Volume67 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
User selection67 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
My places70 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Area to avoid77 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Setup80 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Current position calibration81 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Distance unit83 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Estimated travel time83 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Auto reroute85 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Adjusting time zone85 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Auto voice guidance86 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Voice guidance in all modes87 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Notifying traffic restriction88 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Intersection guidance89 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Guidance screen on freeway90 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Street name on scroll map91 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Display of building shape92 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Screen layout function93 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
POI category change (Show POI Icons)94 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Delete previous point95 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Map color96 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Screen animation97 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
SECTION III

66
Suspending and resuming
guidance
To suspend guidance
You can suspend route guidance.
Push the “MENU” button to display the
“Menu” screen and touch the
“Suspend
Guidance” switch.
INFORMATION
When you do not have route guidance,
the
“Suspend Guidance” switch
cannot be used.
The screen will return to the current posi-
tion map without route guidance.
To resume guidance
You can resume the suspended route
guidance.
Push the “MENU” button to display the
“Menu” screen and touch the “Resume
Guidance”
switch.
The screen will change to the current posi-
tion map with route guidance.

67
Volume
You can use voice guidance when ap-
proaching a destination.
You can adjust the volume of the voice or turn
off voice guidance.
Push the “MENU” button to display the
“Menu” screen, and touch the “Volume”
switch.
To adjust the volume, select the desired level
by touching the appropriate number.
If you do not need voice guidance, touch the
“Off” switch.
The selected item is highlighted in green.
INFORMATION
During route guidance, the voice guid-
ance continues even if the navigation
screen is changed to other screens.
“Adaptive Volume Control”: If you turn the
“Adaptive Volume Control” on, the volume is
turned up automatically when the vehicle
speed exceeds 50 mph (80 km/h).
To turn the “Adaptive Volume Control” system
on, touch the switch. The indicator will be
highlighted.
User selection
The system can memorize the following
settings for up to three users.
Map direction
Map scale
Guidance mode
Setup
Volume
Language
Push the “MENU” button to display the
“Menu” screen. Then touch the
“Select
User”
switch.

68
To register
Touch the “Memorize” switch of your
desired “User number”.
The confirmation screen will appear. To
register, touch the
“Yes” switch. To re-
turn to the previous screen, touch the
“No” or “Back” switch.
When you touch the switch already regis-
tered, this screen appears. To replace,
touch the
“Yes” switch. To cancel the re-
placement, touch the
“No” or “Back”switch.

69

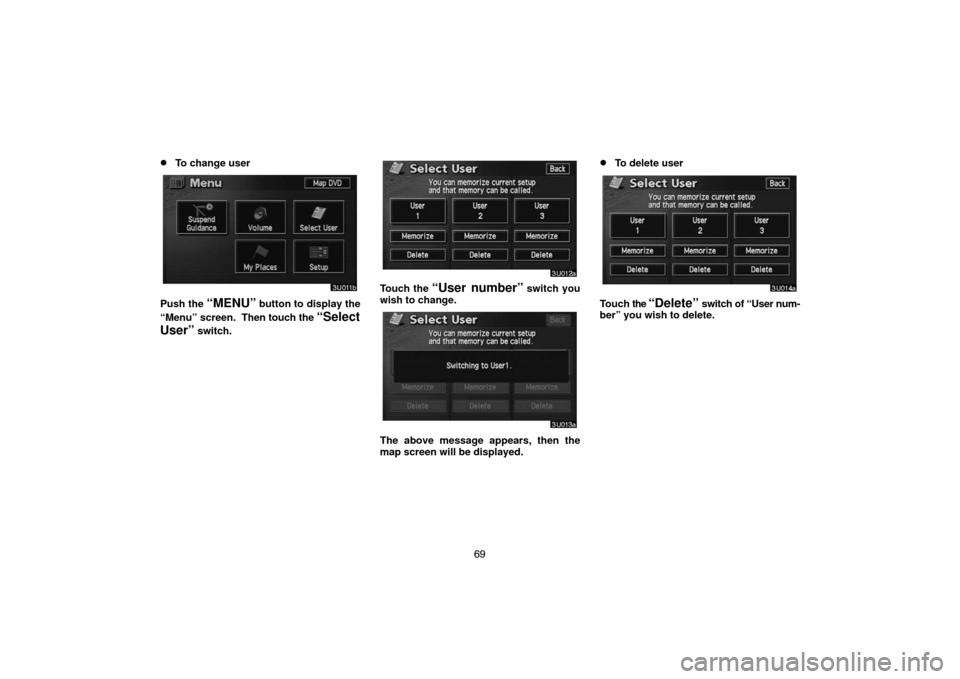

To change user
Push the “MENU” button to display the
“Menu” screen. Then touch the
“Select
User”
switch.
Touch the “User number” switch you
wish to change.
The above message appears, then the
map screen will be displayed.
To delete user
Touch the “Delete” switch of “User num-
ber” you wish to delete.

70

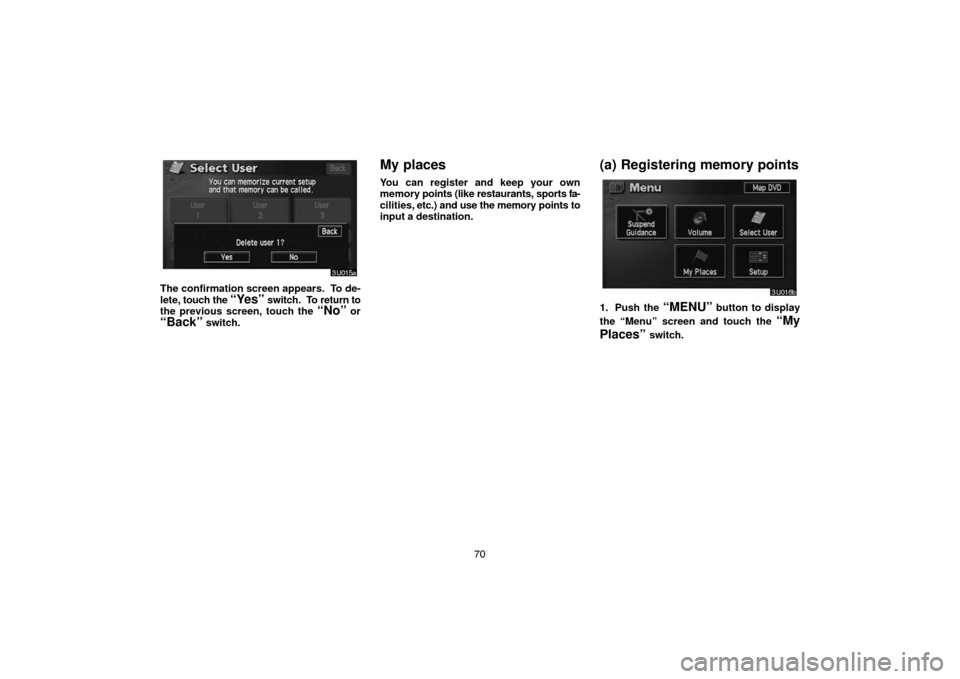

The confirmation screen appears. To de-
lete, touch the
“Yes” switch. To return to
the previous screen, touch the “No” or
“Back” switch.
My places
You can register and keep your own
memory points (like restaurants, sports fa-
cilities, etc.) and use the memory points to
input a destination.
(a) Registering memory points
1. Push the “MENU” button to display
the “Menu” screen and touch the
“My
Places”
switch.
