TOYOTA HIGHLANDER 2009 XU40 / 2.G Navigation Manual

BASIC FUNCTIONS
31

To see information about the icon
where the cursor is set
To display information about an icon, set
the cursor on it.
POI INFORMATION
When the cursor is set on a POI icon, the
name
and “Info.” are displayed on the top
of the screen.
Touch “Info.”.
Information such as the name, address,
and phone number are displayed.
If “Enter
” is touched, the position of the
cursor is set as a destination.
If there is already a set destination, “Add
to
” and “Replace ” are displayed.
“Add to
”: To add a destination.
“Replace
”: To delete the existing des-
tinations and set a new one.
To register this POI as a memory point,
touch “Mark” . (See page 93.)
If
is touched, the registered tele-
phone number can be called.
INFORMATION
The desired Point of Interest can be
displayed on the map screen. (See
“ — Display POI icons” on page 78.)

BASIC FUNCTIONS
32
MEMORY POINT INFORMATION
When the cursor is set on a memory point
icon, the name and “Info.” are displayed
on the top of the screen.
Touch “Info.”.
Information such as the name, address,
and phone number are displayed.
If “Enter
” is touched, the position of the
cursor is set as a destination.
If there is already a set destination, “Add
to
” and “Replace ” are displayed.
“Add to
”: To add a destination.
“Replace
”: To delete the existing des-
tinations and set a new one.
To edit a memory point, touch “Edit”. (See
“ — Editing memory points” on page 94.)
To delete a memory point, touch “Delete”.
If
is touched, the registered tele-
phone number can be called. DESTINATION INFORMATION
When the cursor is set on a destination
icon, the name and “Info.”
are displayed
on the top of the screen.
Touch “Info.”.
Information such as the name, address,
and phone number are displayed.
To delete a destination, touch “Delete”.
If
is touched, the registered tele-
phone number can be called.

BASIC FUNCTIONS
33
Any one of the screen configurations can
be selected.
1. Touch this touchscreen button to
display the following screen.
2. To select the desired screen config-
uration, touch one of the following
touchscreen buttons.Depending on the conditions, certain
screen configuration buttons cannot be
selected.
:
To display the single map screen.
(See page 34.)
: To display the dual map screen.
(See page 34.)
: To display the compass mode
screen. (See page 35.)
: To display the turn list screen.
(See page 68.)
: To display the arrow screen. (See
page 68.)
: To display the freeway information
screen. (See page 66.)
: To display the intersection guid-
ance screen or the guidance
screen on the freeway. (See page
67.)
— Switching the screens

BASIC FUNCTIONS
34

Screen configurations
SINGLE MAP
This is a regular map screen.
While on a dif ferent screen, touching
will display the single map screen.
The screen shows the single map. DUAL MAP
A map can be displayed split in two.
While on a different
screen, touching
will display the dual map screen.
The screen shows the dual map. The map
on the left is the main map.
The right side map can be edited by touch-
ing any specific point on the right side map.
This screen can perform the following pro-
cedures:
1. Changing the map scale
2. Displaying the POI icon
3. Changing the orientation of the map
Touch “OK” when you complete edi-
ting.
The screen returns to the dual map screen.

BASIC FUNCTIONS
35
COMPASS MODE
Current vehicle position is indicated with a
compass, not with a map.
While on a different screen, touching
will display the compass mode screen.
Information about the destination and cur-
rent position, as well as a compass, is dis-
played on the screen.
The destination mark is displayed in the di-
rection of the destination. When driving,
refer to the longitude and latitude coordi-
nates and the compass, to make sure that
your vehicle is headed in the direction of
the destination.
INFORMATION
When the vehicle goes out of the disc
area, the guidance screen changes
into compass mode.
Touch or to change the scale
of the map display. The scale bar and indi-
cator at the bottom of the screen indicates
the map scale menu. The scale range is
150 feet (50 m) to 250 miles (400 km).
Touch
or until the scale bar
changes normally. By continuing to touch
the touch−screen button, the scale bar
changes smoothly.
The scale of the map display can be
changed by touching the scale bar directly.
It is not available while driving.
The map scale is displayed under the
north−up symbol or heading −up symbol at
the top left of the screen.
INFORMATION
When the map scale is at the maxi-
mum range of 250 miles (400 km),
is not shown. When the map
scale is at the minimum range of 150
feet (50 m), is not shown. How-
ever, in the area where the foot print
map is contained, when the map
scale is changed to 150 feet (50 m), changes to .
— Map scale

BASIC FUNCTIONS
36
For the area which is covered by the foot
print map (Some areas in the following cit-
ies; Detroit, Chicago, N.Y., L.A), you can
switch to the foot print map on a scale of 75
feet (25 m).
To switch to the foot print map
changes into when the map is
scaled down to 150 feet (50 m).
To display the foot print map, touch
.
To delete the foot print map display, touch
.
INFORMATION
If the map or the current position is
moved to the area which is not cov-
ered by the foot print map, the
screen scale automatically
changes to 150 feet (50 m).
On the foot print map, a one way
street is displayed by .
It is not possible to perform scroll-
ing on the foot print map (one
touch scroll) while driving.
To display building information
Information is available only for buildings
for which information is recorded on the
map disc.
1. Touch “Info.” while the foot print
map is displayed.
If the map is displayed by a split screen,
the map turned into a single map display.
2. Using an eightdirection arrow,
move the cursor to the position of the
building to display building informa-
tion.
3. Touch “Building Info.”.
— Foot print map

BASIC FUNCTIONS
37
Details of POIs in some buildings may be
displayed.
For detailed POI information, touch the
building name. You can see details of the
selected POIs.The orientation of the map can be changed
from north−
up to heading −up by touching
the orientation symbol at the top left of the
screen.
Touch or .
 Northup screen
Headingup screen
Northup symbol
Regardless of the direction of vehicle trav-
el, North is always up.
Headingup symbol
The direction of vehicle travel is always up.
A red arrow indicates North.
— Orientation of the map

BASIC FUNCTIONS
38

SECTION 2
DESTINATION SEARCH
39

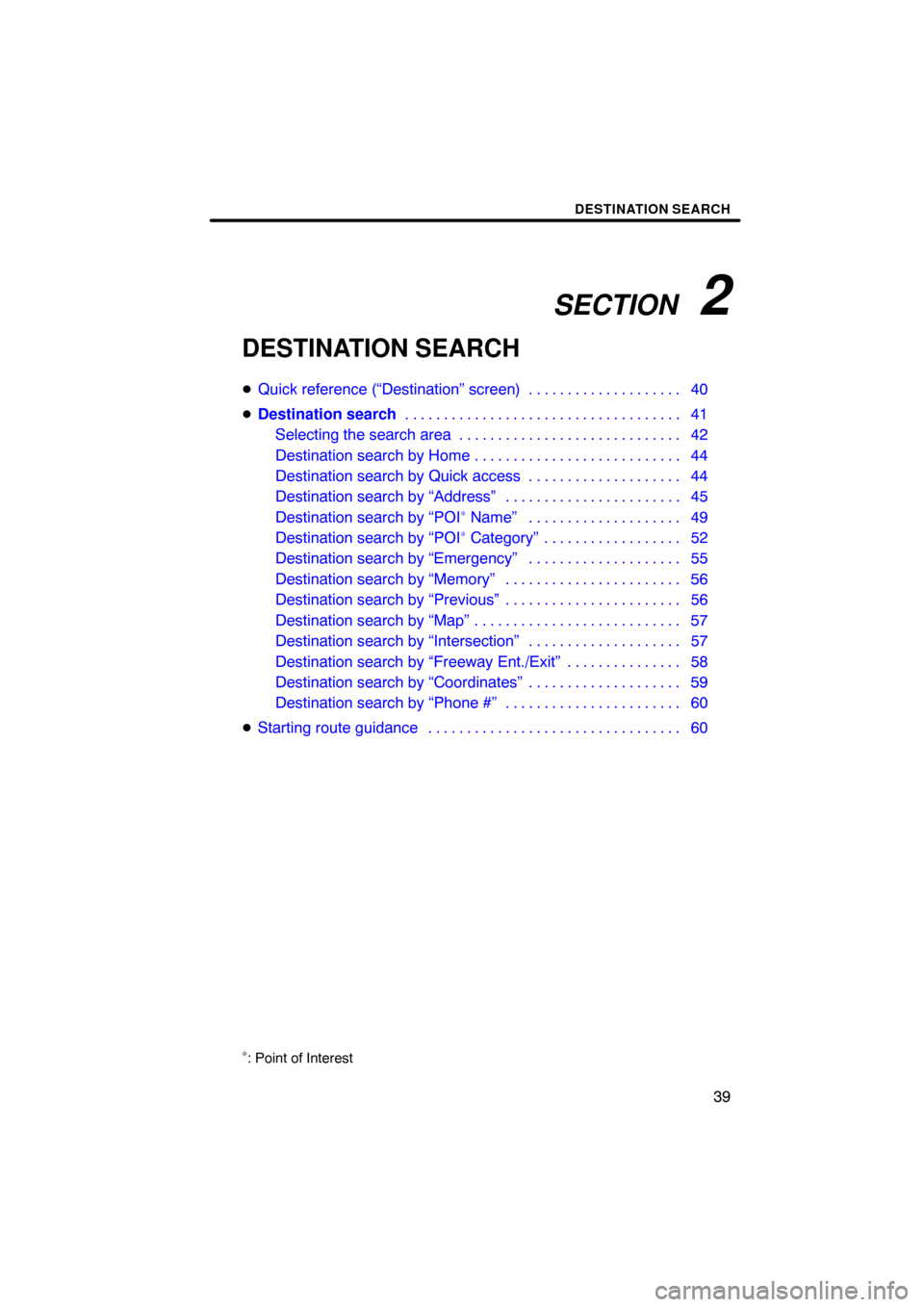

DESTINATION SEARCH
Quick reference (“Destination” screen) 40 . . . . . . . . . . . . . . . . . . . .
 Destination search 41
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Selecting the search area 42 . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Destination search by Home 44 . . . . . . . . . . . . . . . . . . . . . . . . . . .
Destination search by Quick access 44 . . . . . . . . . . . . . . . . . . . .
Destination search by “Address” 45 . . . . . . . . . . . . . . . . . . . . . . .
Destination search by “POI
∗ Name” 49
. . . . . . . . . . . . . . . . . . . .
Destination search by “POI∗ Category” 52
. . . . . . . . . . . . . . . . . .
Destination search by “Emergency” 55
. . . . . . . . . . . . . . . . . . . .
Destination search by “Memory” 56
. . . . . . . . . . . . . . . . . . . . . . .
Destination search by “Previous” 56
. . . . . . . . . . . . . . . . . . . . . . .
Destination search by “Map” 57
. . . . . . . . . . . . . . . . . . . . . . . . . . .
Destination search by “Intersection” 57
. . . . . . . . . . . . . . . . . . . .
Destination search by “Freeway Ent./Exit” 58
. . . . . . . . . . . . . . .
Destination search by “Coordinates” 59
. . . . . . . . . . . . . . . . . . . .
Destination search by “Phone #” 60
. . . . . . . . . . . . . . . . . . . . . . .
 Starting route guidance 60
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
∗: Point of Interest

DESTINATION SEARCH
40

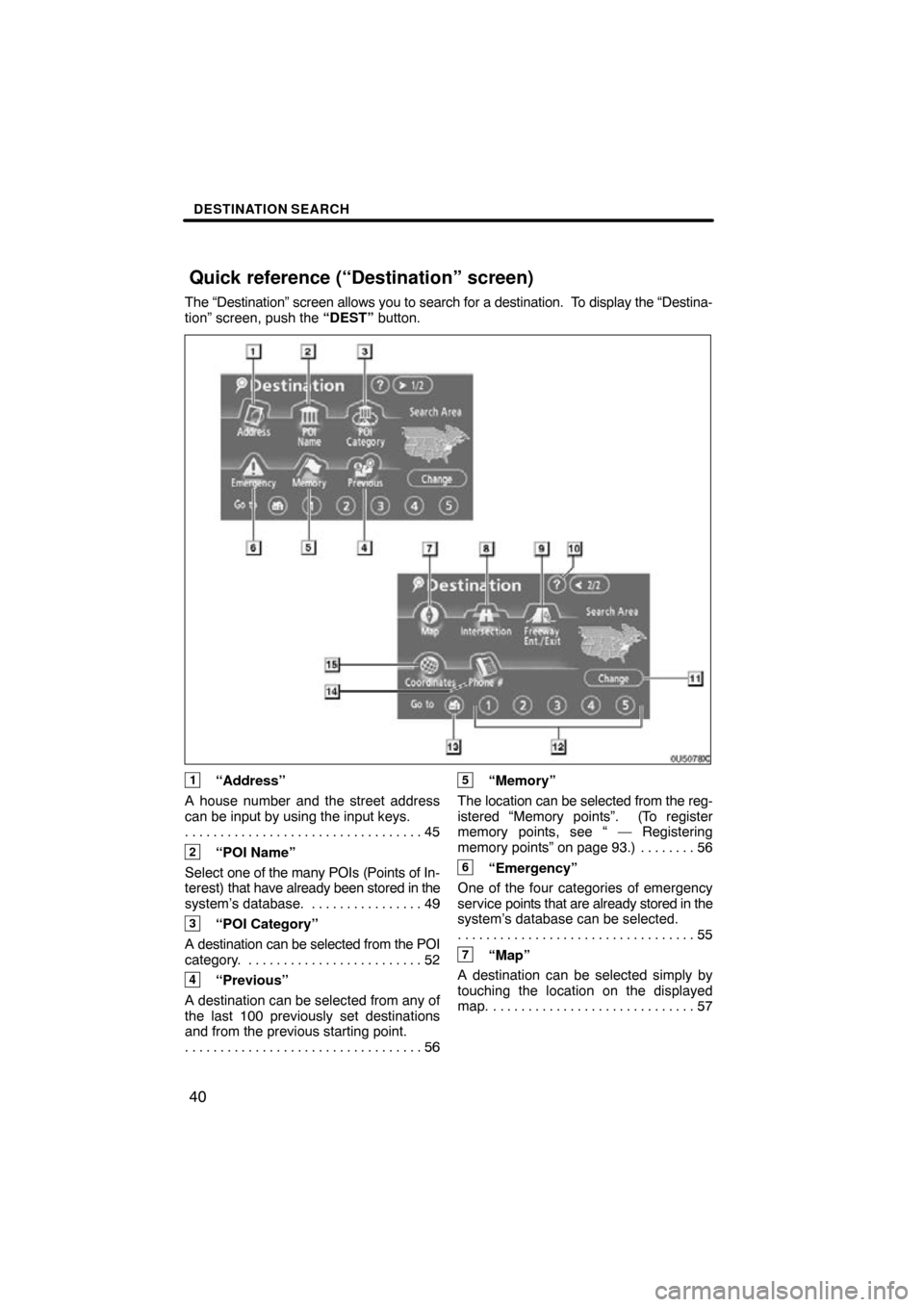

The “Destination” screen allows you to search for a destination. To display the “Destina-
tion” screen, push the “DEST” button.
1“Address”
A house number and the street address
can be input by using the input keys. 45
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
2“POI Name”
Select one of the many POIs (Points of In-
terest) that have already been stored in the
system’s database. 49 . . . . . . . . . . . . . . . .
3“POI Category”
A destination can be selected from the POI
category. 52 . . . . . . . . . . . . . . . . . . . . . . . . .
4“Previous”
A destination can be selected from any of
the last 100 previously set destinations
and from the previous starting point. 56
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
5“Memory”
The location can be selected from the reg-
istered “Memory points”. (To register
memory points, see “ — Registering
memory points” on page 93.) 56 . . . . . . . .
6“Emergency”
One of the four categories of emergency
service points that are already stored in the
system’s database can be selected. 55
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
7“Map”
A destination can be selected simply by
touching the location on the displayed
map. 57 . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Quick reference (“Destination” screen)
