TOYOTA HIGHLANDER 2009 XU40 / 2.G Navigation Manual

DESTINATION SEARCH
51

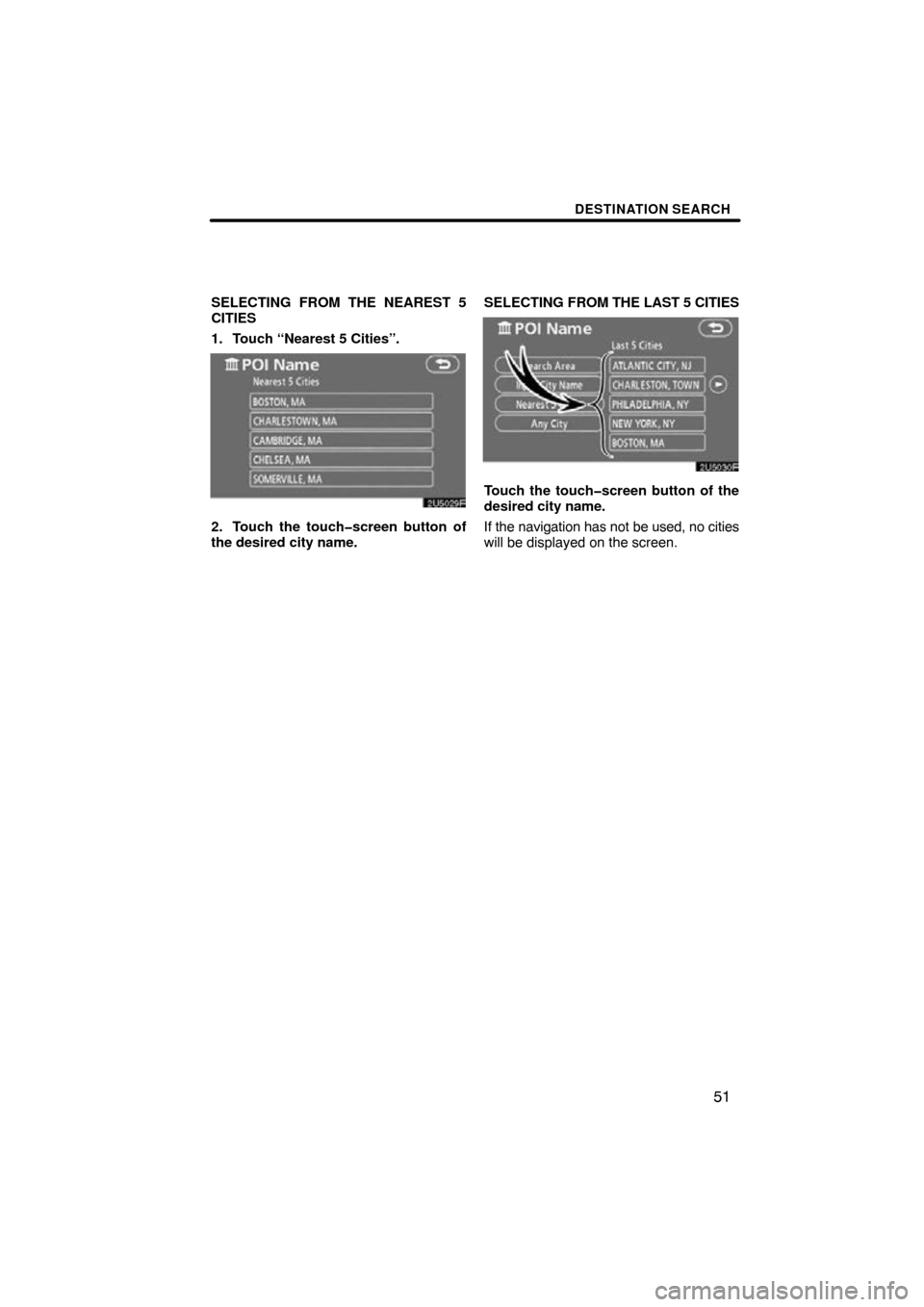

SELECTING FROM THE NEAREST 5
CITIES
1. Touch “Nearest 5 Cities”.
2. Touch the touchscreen button of
the desired city name.SELECTING F
ROM THE LAST 5 CITIES
Touch the touchscreen button of the
desired city name.
If the navigation has not be used, no cities
will be displayed on the screen.

DESTINATION SEARCH
52

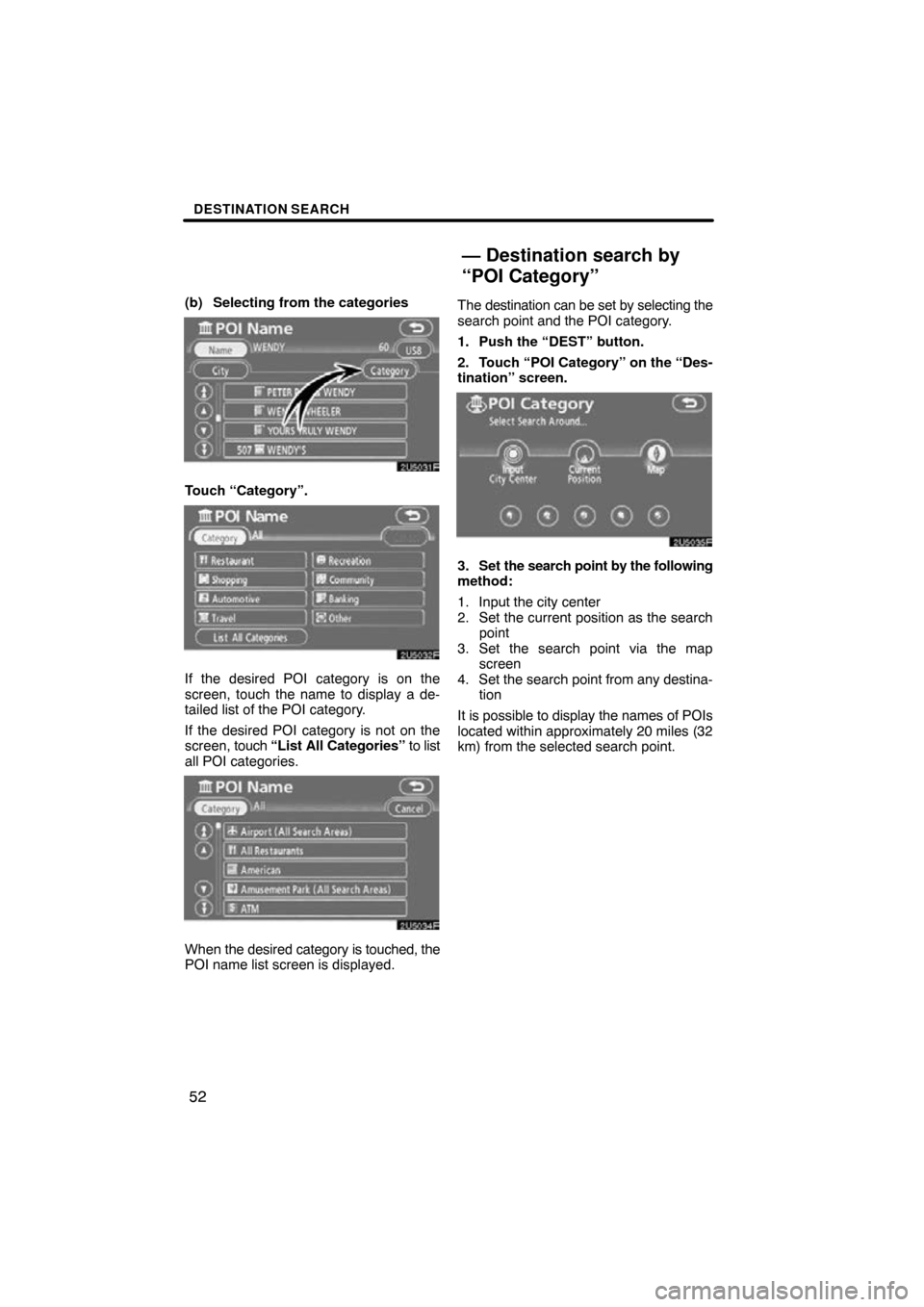

(b) Selecting from the categories
Touch “Category”.
If the desired POI category is on the
screen, touch the name to display a de-
tailed list of the POI category.
If the desired POI category is not on the
screen, touch “List All Categories” to list
all POI categories.
When the desired category is touched, the
POI name list screen is displayed. The destination can be set by selecting the
search point and the POI category.
1. Push the “DEST” button.
2. Touch “POI Category” on the “Des-
tination” screen.
3. Set the search point by the following
method:
1. Input the city center
2. Set the current position as the search
point
3. Set the search point via the map screen
4. Set the search point from any destina-
tion
It is possible to display the names of POIs
located within approximately 20 miles (32
km) from the selected search point.
— Destination search by
“POI Category”

DESTINATION SEARCH
53

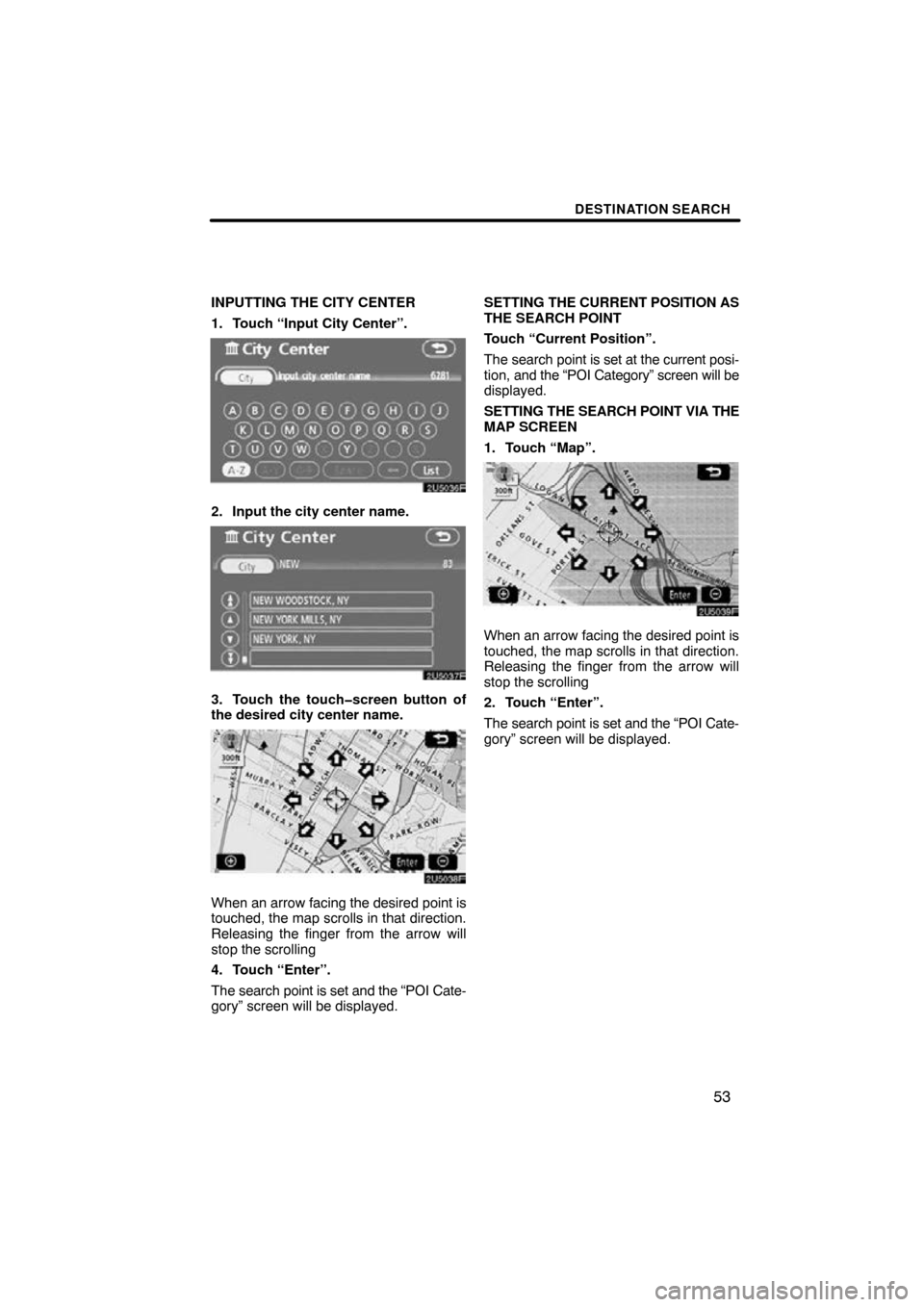

INPUTTING THE CITY CENTER
1. Touch “Input City Center”.
2. Input the city center name.
3. Touch the touchscreen button of
the desired city center name.
When an arrow facing the desired point is
touched, the map scrolls in that direction.
Releasing the finger from the arrow will
stop the scrolling
4. Touch “Enter”.
The search point is set and the “POI Cate-
gory” screen will be displayed.SETTING
THE CURRENT POSITION AS
THE SEARCH POINT
Touch “Current Position”.
The search point is set at the current posi-
tion, and the “POI Category” screen will be
displayed.
SETTING THE SEARCH POINT VIA THE
MAP SCREEN
1. Touch “Map”.
When an arrow facing the desired point is
touched, the map scrolls in that direction.
Releasing the finger from the arrow will
stop the scrolling
2. Touch “Enter”.
The search point is set and the “POI Cate-
gory” screen will be displayed.

DESTINATION SEARCH
54
SETTING THE SEARCH POINT FROM
DESTINATIONS
1. Touch the destination buttons at the
bottom of the screen.
When an arrow facing the desired point is
touched, the map scrolls in that direction.
Releasing the finger from the arrow will
stop the scrolling
2. Touch “Enter”.
The search point is set and the “POI Cate-
gory” screen will be displayed.
To search POIs near the search
point
When the search point is set, the “POI
Category” screen will be displayed.
Select the desired POI categories.
“List”: If the desired POI categories have
already been selected, a list of POI will be
displayed from among the selected cate-
gories.
The selected category icon appears on the
top left of the screen.
If the desired POI category is not on the
screen, touch “List All Categories” to list
all POI categories.
Select the desired POI categories from
the list and touch “OK”.
The selected category icon appears on the
top left of the screen.

DESTINATION SEARCH
55

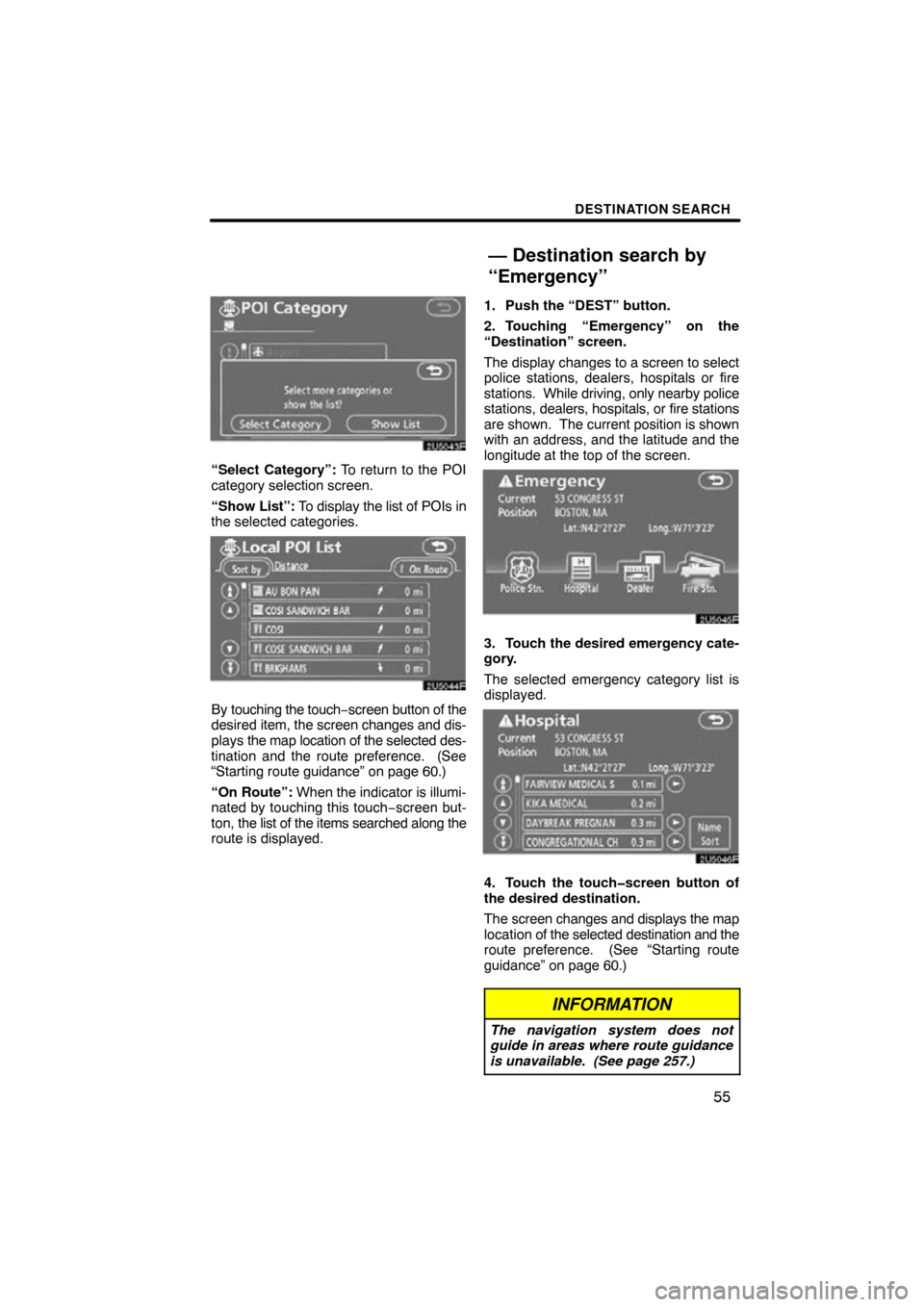

“Select Category”: To return to the POI
category selection screen.
“Show List”: To display the list of POIs in
the selected categories.
By touching the touch− screen button of the
desired item, the screen changes and dis-
plays the map location of the selected des-
tination and the route preference. (See
“Starting route guidance” on page 60.)
“On Route”: When the indicator is illumi-
nated by touching this touch −screen but-
ton, the list of the items searched along the
route is displayed. 1. Push the “DEST” button.
2. Touching “Emergency” on the
“Destination” screen.
The display changes to a screen to select
police stations, dealers, hospitals or fire
stations. While driving, only nearby police
stations, dealers, hospitals, or fire stations
are shown. The current position is shown
with an address, and the latitude and the
longitude at the top of the screen.
3. Touch the desired emergency cate-
gory.
The selected emergency category list is
displayed.
4. Touch the touchscreen button of
the desired destination.
The screen changes and displays the map
location of the selected destination and the
route preference. (See
“Starting route
guidance” on page 60.)
INFORMATION
The navigation system does not
guide in areas where route guidance
is unavailable. (See page 257.)
— Destination search by
“Emergency”

DESTINATION SEARCH
56

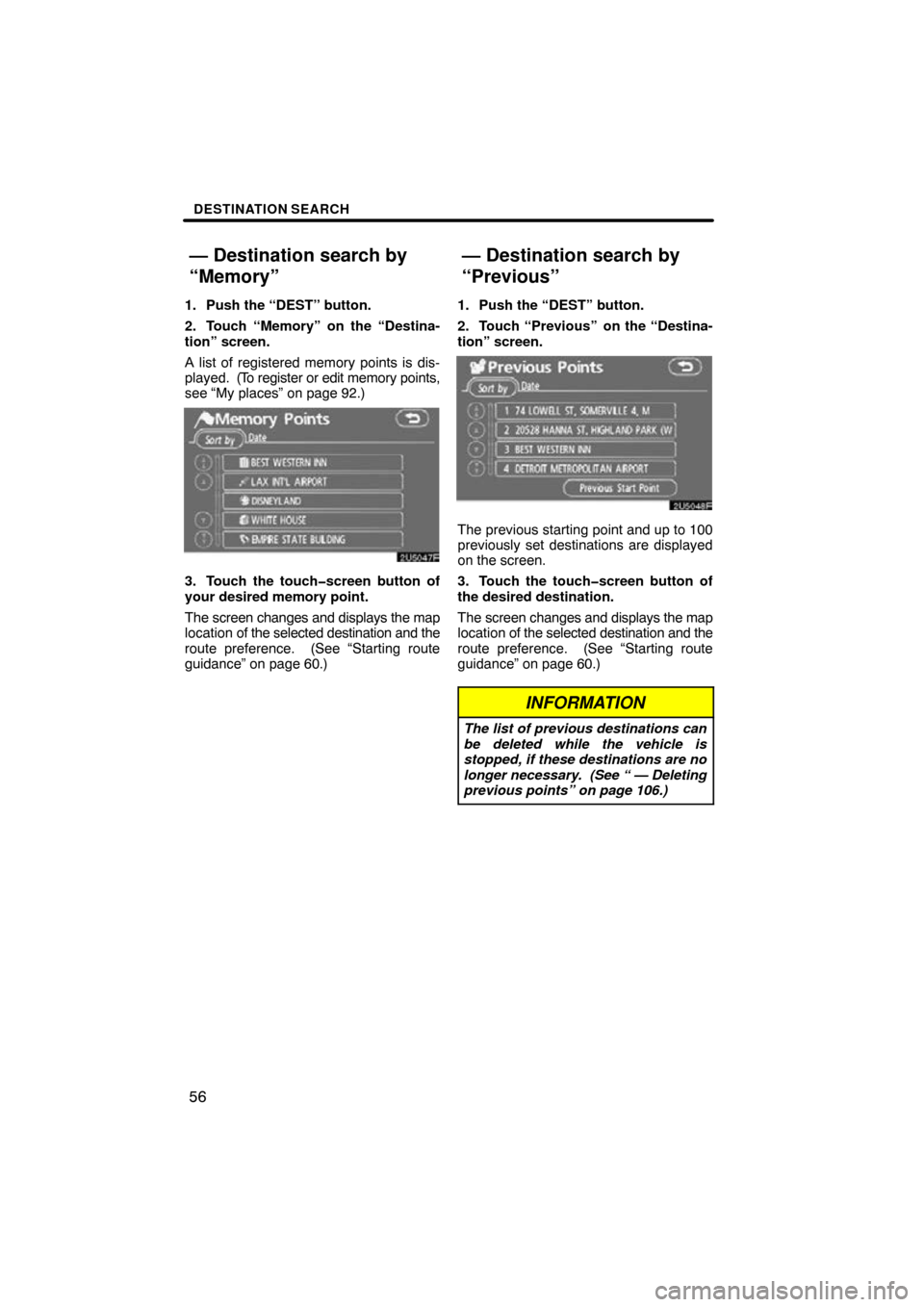

1. Push the “DEST” button.
2. Touch “Memory” on the “Destina-
tion” screen.
A list of registered memory points is dis-
played. (To register or edit memory points,
see “My places” on page 92.)
3. Touch the touchscreen button of
your desired memory point.
The screen changes and displays the map
location of the selected destination and the
route preference. (See “Starting route
guidance” on page 60.) 1. Push the “DEST” button.
2. Touch “Previous”
on the “Destina-
tion” screen.
The previous starting point and up to 100
previously set destinations are displayed
on the screen.
3. Touch the touchscreen button of
the desired destination.
The screen changes and displays the map
location of the selected destination and the
route preference. (See “Starting route
guidance” on page 60.)
INFORMATION
The list of previous destinations can
be deleted while the vehicle is
stopped, if these destinations are no
longer necessary. (See “ — Deleting
previous points” on page 106.)
— Destination search by
“Memory”
— Destination search by
“Previous”

DESTINATION SEARCH
57
1. Push the “DEST” button.
2. Touch “Map” on the “Destination”
screen.
The screen changes and displays the map
location that was previously displayed just
before the destination input operation and
the route preference. (See “Starting route
guidance” on page 60.)
INFORMATION
Guidance starts if “Enter” is touched
even while driving. However , the cur-
sor cannot be moved.
1. Push the “DEST” button.
2. Touch “Intersection” on the “Des-
tination” screen.
3. Input the name of the two intersect-
ing streets which are located near the
destination to be set.
4. Touch the touchscreen button of
the desired item.
After inputting the two intersecting streets,
the screen changes and displays the map
location of the selected destination and the
route preference. (See “Starting route
guidance” on page 60.)
— Destination search by
“Map”
— Destination search by
“Intersection”

DESTINATION SEARCH
58
If the same two streets cross at more than
one intersection, the screen changes and
displays the menu to select the city name
where the streets intersect. Select the city,
and the map location of the selected des-
tination and the route preference. (See
“Starting route guidance” on page 60.) 1. Push the “DEST” button.
2. To input a freeway entrance or exit,
touch “Freeway Ent./Exit” on the “Des-
tination” screen.
Be sure to use the complete name of the
freeway
or highway, including the hyphen,
when entering the destination. Freeways
and interstates use an “I” (I−405). US high-
ways use the state designation before the
number (CA −118).
3. Select the desired freeway by touch-
ing the touchscreen button.
4. Either a freeway “Entrance” or
“Exit” can be selected.
— Destination search by
“Freeway Ent./Exit”

DESTINATION SEARCH
59

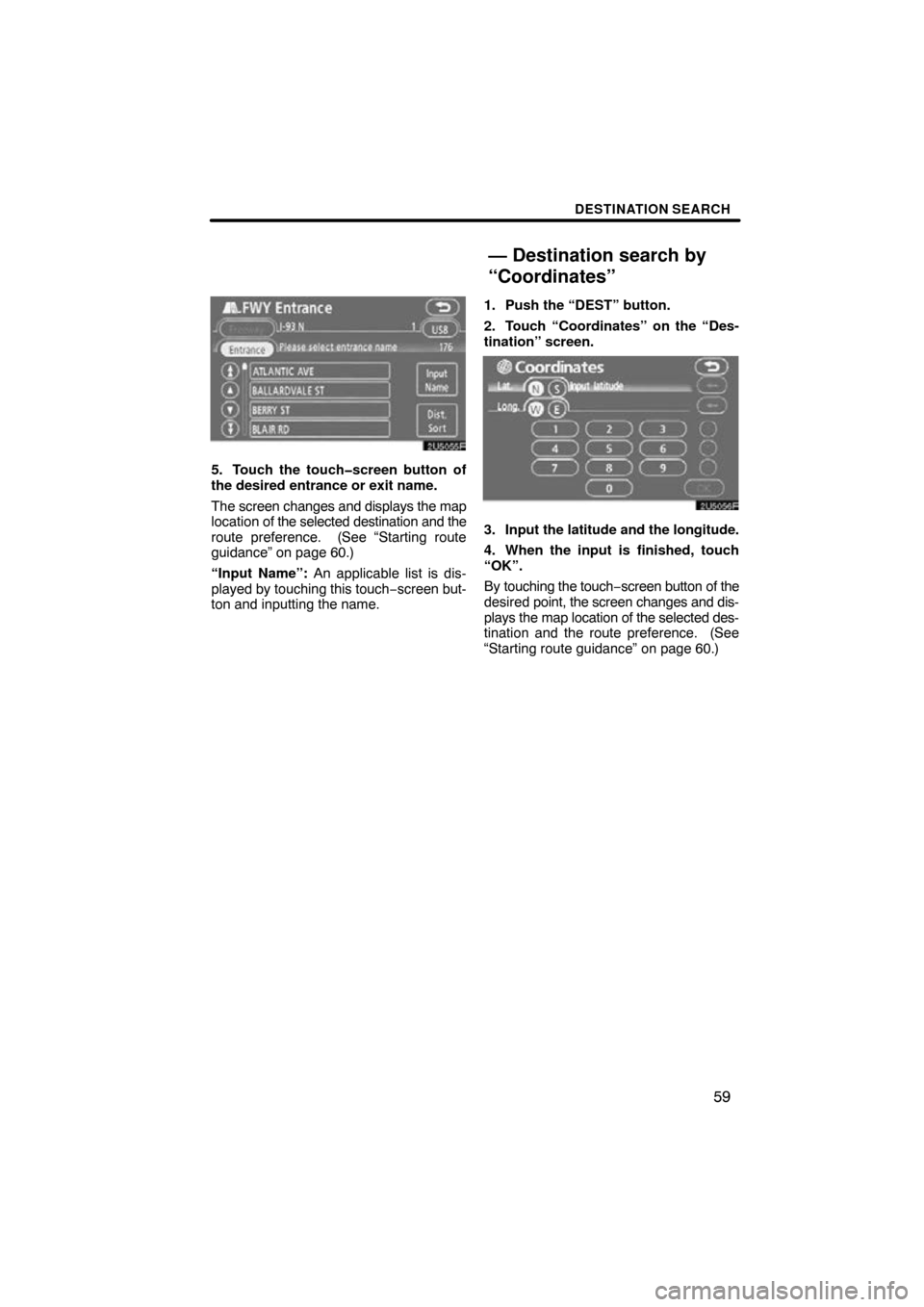

5. Touch the touchscreen button of
the desired entrance or exit name.
The screen changes and displays the map
location of the selected destination and the
route preference. (See
“Starting route
guidance” on page 60.)
“Input Name”: An applicable list is dis-
played by touching this touch −screen but-
ton and inputting the name. 1. Push the “DEST” button.
2. Touch “Coordinates” on the “Des-
tination” screen.3. Input the
latitude and the longitude.
4. When the input is finished, touch
“OK”.
By touching the touch− screen button of the
desired point, the screen changes and dis-
plays the map location of the selected des-
tination and the route preference. (See
“Starting route guidance” on page 60.)
— Destination search by
“Coordinates”

DESTINATION SEARCH
60

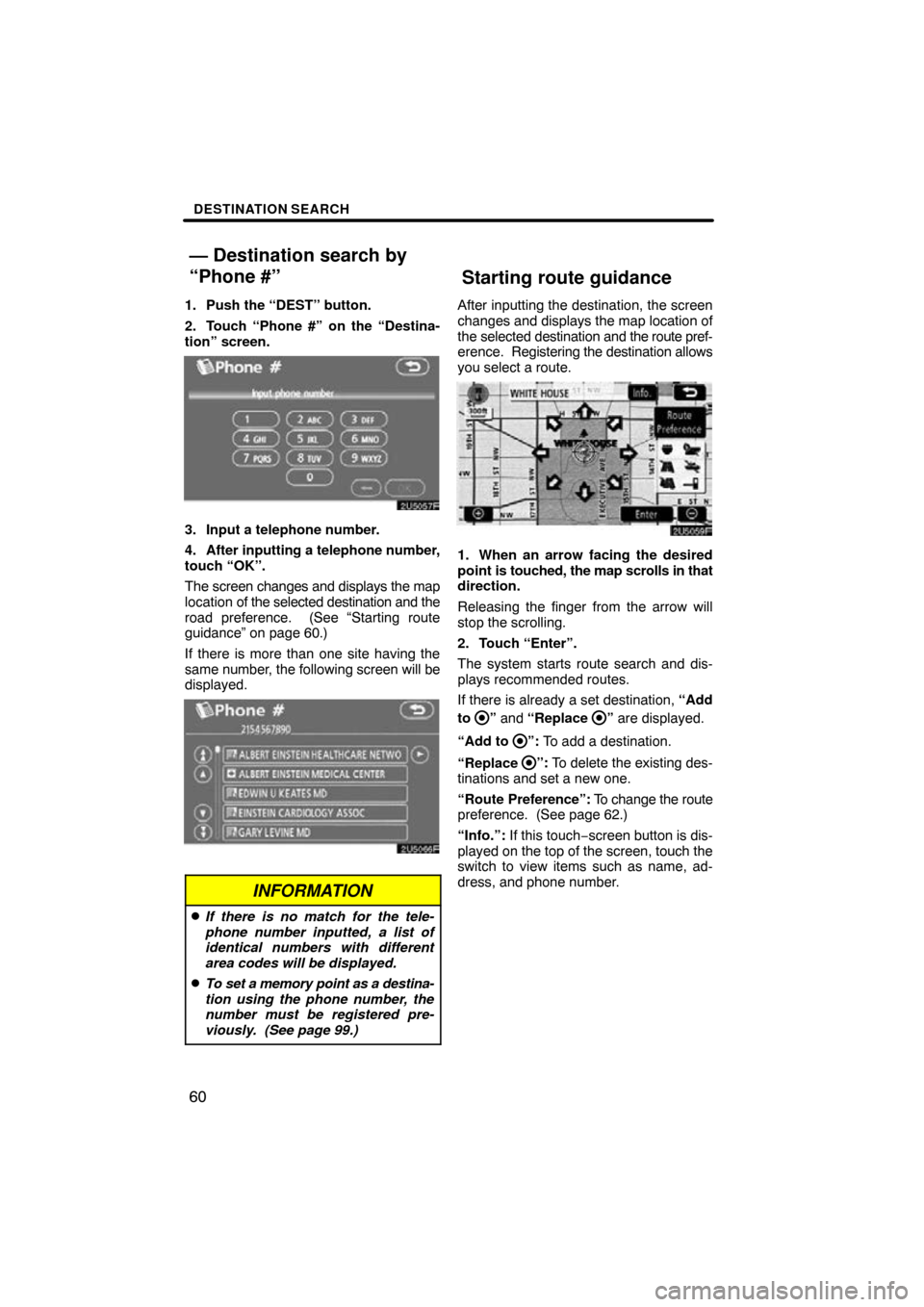

1. Push the “DEST” button.
2. Touch “Phone #” on the “Destina-
tion” screen.
3. Input a telephone number.
4. After inputting a telephone number,
touch “OK”.
The screen changes and displays the map
location of the selected destination and the
road preference. (See “Starting route
guidance” on page 60.)
If there is more than one site having the
same number, the following screen will be
displayed.
INFORMATION
If there is no match for the tele-
phone number inputted, a list of
identical numbers with different
area codes will be displayed.
To set a memory point as a destina-
tion using the phone number, the
number must be registered pre-
viously. (See page 99.)
After inputting the destination, the screen
changes and displays the map location of
the selected destination and the route pref-
erence. Registering the destination allows
you select a route.
1. When an arrow facing the desired
point is touched, the map scrolls in that
direction.
Releasing the finger from the arrow will
stop the scrolling.
2. Touch “Enter”.
The system starts route search and dis-
plays recommended routes.
If there is already a set destination, “Add
to
” and “Replace ” are displayed.
“Add to
”: To add a destination.
“Replace
”: To delete the existing des-
tinations and set a new one.
“Route Preference”: To change the route
preference. (See page 62.)
“Info.”: If this touch− screen button is dis-
played on the top of the screen, touch the
switch to view items such as name, ad-
dress, and phone number.
— Destination search by
“Phone #”Starting route guidance
