TOYOTA HIGHLANDER 2009 XU40 / 2.G Navigation Manual

DESTINATION SEARCH
61
1Current position
2Destination point
3Type of the route and the distance
4Distance of the entire route
3. To start guidance, touch “Guide”.
“3 Routes”: To select the desired route
from three possible routes. (See page 63.)
“Route”: To change the route. (See
pages 72 and 74.)
INFORMATION
Guidance can be suspended or re-
sumed. (See “Suspending and re-
suming guidance” on page 88.)
If “Guide” is touched until a beep
sounds, Demo mode will start.
Push the “MAP/VOICE” button to
finish Demo mode.
The route for returning may not be
the same as that for going.
The route guidance to the destina-
tion may not be the shortest route
nor a route without traffic conges-
tion.
Route guidance may not be avail-
able if there is no road data for the
specified location.
When setting the destination on a
map with a scale larger than 0.5
miles (800 m), the map scale
changes to 0.5 miles (800 m) auto-
matically. Set the destination
again.
If a destination is entered, the road
nearest to the point you selected is
set as the destination.
CAUTION
Be sure to obey traffic regulations
and keep road conditions in mind
while driving. If a traffic sign on the
road has been changed, the route
guidance may provide incorrect in-
formation.

DESTINATION SEARCH
62

To change the route before starting
guidance
ROUTE PREFERENCE
1. You can change route preference by
touching “Route Preference”.
2. Select desired route preferences by
touching each button on/off.
When searching for a route, the system will
avoid routes for preferences that are dese-
lected.
3. After choosing the desired route
preference, touch “OK”.
INFORMATION
 Even if the “Allow Freeway” indi-
cator is dimmed, the route cannot
avoid including a freeway in some
cases.
 If the calculated route includes a
trip by ferry, the route guidance
shows a sea route. After you travel
by ferry, the current vehicle posi-
tion may be incorrect. Upon recep-
tion of GPS signals, it is automati-
cally corrected.

DESTINATION SEARCH
63
3 ROUTES SELECTION
1. To select the desired route from
three routes, touch “3 Routes”.
2. Touch “Quick1”, “Quick2” or
“Short” to select the desired route.
“Quick1”: Recommended route.
This route is indicated by an orange line.
“Quick2”: Alternative route.
This route is indicated by a purple line.
“Short”: A route by which you can reach
the destination in the shortest distance.
This route is indicated by a green line.
“Info.”: To display the following informa-
tion about each of the 3 routes.
1Time necessary for the entire trip
2Distance of the entire trip
3Toll road
4Freeway
5Ferry

DESTINATION SEARCH
64

SECTION 3
ROUTE GUIDANCE
65

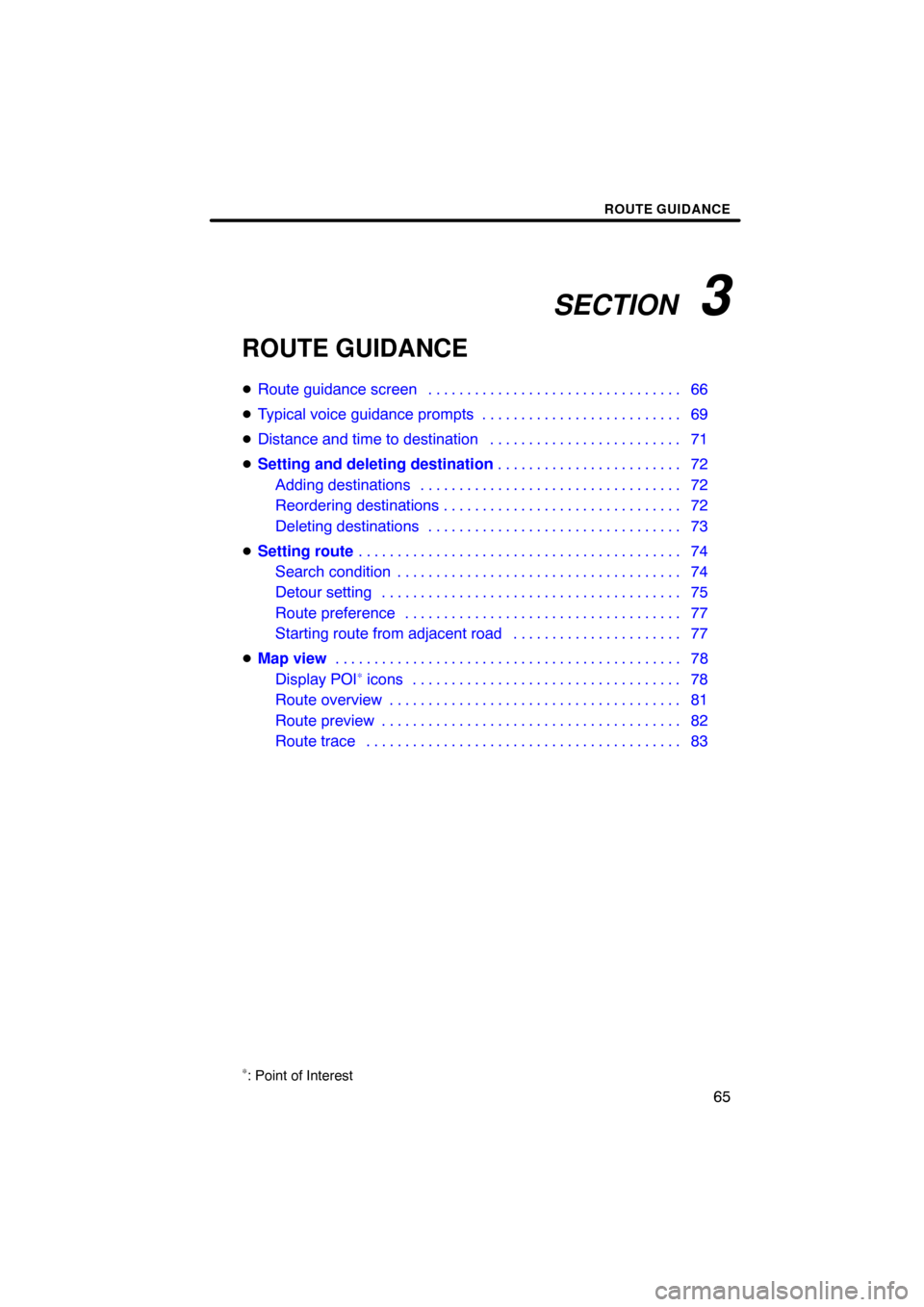

ROUTE GUIDANCE
Route guidance screen 66 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
 Typical voice guidance prompts 69 . . . . . . . . . . . . . . . . . . . . . . . . . .
 Distance and time to destination 71 . . . . . . . . . . . . . . . . . . . . . . . . .
 Setting and deleting destination 72
. . . . . . . . . . . . . . . . . . . . . . . .
Adding destinations 72 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Reordering destinations 72 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Deleting destinations 73 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
 Setting route 74
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .\
. . . . .
Search condition 74
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .\

Detour setting 75
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .\
. .
Route preference 77
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Starting route from adjacent road 77
. . . . . . . . . . . . . . . . . . . . . .
 Map view 78
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .\
. . . . . . . .
Display POI
∗ icons 78
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Route overview 81
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .\
.
Route preview 82
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .\
. .
Route trace 83
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .\
. . . .
∗: Point of Interest

ROUTE GUIDANCE
66
During route guidance, various types of
guidance screens can be displayed de-
pending on conditions.
Screen layout
1Distance to the next turn and the
arrow indicating turning direction
2Current street name
3Distance and travel/arrival time to
the destination
4Current position
5Guidance route
INFORMATION
If the vehicle goes off the guidance
route, the route is searched again.
For some areas, the roads have not
been completely digitized in our
database. For this reason, the route
guidance may select road that
should not be traveled on.
When you arrive at your destina-
tion, the destination name will be
displayed on the top of the screen.
Touching “OFF” clears the display.
During freeway driving
During freeway driving, the freeway infor-
mation screen will be displayed.
This screen displays the distance to the
next junction and exit, or POIs in the vicin-
ity of the freeway exit.
1Current position
2Points of Interest that are close to
a freeway exit.
3Exit number and junction name
4Distance from the current position
to the exit or junction
5Current street name
: To display the selected map of the
exit vicinity.
: To scroll for farther junctions or ex-
its.
: To scroll for closer junctions or ex-
its.
: To scroll for the closest three junc-
tions or exits.
Route guidance screen

ROUTE GUIDANCE
67

When
approaching a freeway exit or
junction
When the vehicle approaches an en-
trance, exit, or junction, the guidance
screen for the freeway will be displayed.
1Road/area name
2Distance from the current position
to the exit or junction
3Current position
“OFF”: The guidance screen on freeway
disappears and the map screen appears.
When touching
or pushing the
“MAP/VOICE” button, the guidance
screen on freeway reappears.
When approaching an intersection
When the vehicle approaches an intersec-
tion, the intersection guidance screen will
be displayed.
1Next street name
2Distance to the intersection
3Current position
“OFF”: The intersection guidance screen
disappears and the map screen appears.
When touching
or pushing the
“MAP/VOICE” button, the intersection
guidance screen reappears.

ROUTE GUIDANCE
68

Other screens
TURN LIST SCREEN
On this screen, the list of turns on the guid-
ance route can be viewed.
Touching
during guidance displays
the turn list.
1Next street name or destination
name
2Turn direction
3Distance to the next turn
4Current street name ARROW SCREEN
On this screen, information about next
turns on the
guidance route can be viewed.
Touching
during guidance displays
the arrow screen.
1Exit number, street name contain-
ing number or next street name
2Turn direction
3Distance to the next turn
4Current street name

ROUTE GUIDANCE
69
The voice guidance provides various mes-
sages as you approach an intersection, or
other point where you need to maneuver
the vehicle.
4.7
miles
0.25
miles + α
1“Proceed about 5 miles.”
2“In a quarter of a mile, right
turn.”
3“Right turn.”
4(Beep sound only)
INFORMATION
On freeways, interstates or other
highways with higher speed limits,
the voice guidance will be made at
earlier points than on city streets in
order to allow time to maneuver.
4.2 miles
0.25 miles
1“Proceed about 4 miles to the
traffic circle.”
2“In a quarter of a mile, traffic
circle ahead, and then 3rd exit
ahead.”
3“The 3rd exit ahead.”
4“The exit ahead.”
5(Beep sound only)
Typical voice guidance
prompts

ROUTE GUIDANCE
70
One−way road
One −way road
∗: The system indicates a U −turn if the dis-
tance between two one −way roads (of op-
posite directions) is less than 50 feet (15
m) in residential areas or 164 feet (50 m)
in non −residential areas.
1“In half of a mile, make a legal
U−turn.”
2“Make a legal U −turn ahead.”
3(Beep sound only)
The system announces the approach to
the final destination.
1“Your destination is ahead.”
2“You have arrived at your des-
tination. The route guidance is
now finished.”
INFORMATION
If the system cannot determine the
current vehicle position correctly
(in cases of poor GPS signal recep-
tion), the voice guidance may be
made early or delayed.
If you did not hear the voice guid-
ance command, push the “MAP/
VOICE” button to hear it again.
To adjust the voice guidance vol-
ume, see “Volume” on page 89.
