TOYOTA HIGHLANDER 2009 XU40 / 2.G Navigation Manual

ROUTE GUIDANCE
81
1. Touch “Map View”.
2. Touch “Route Overview”.
The entire route from the current position
to the destination is displayed.
“Guide”: To start guidance.
“Route”: To change the route. (See
pages 72 and 74.)
“Turn List”: The following screen displays
the list of the roads up to the destination.
You can scroll through the list of roads by
touching
or . However, not all road
names in the route may appear on the list.
If a road changes its name without requir-
ing a turn (such as on a street that runs
through two or more cities), the name
change will not appear on the list. The
street name closest to the starting point will
be displayed with the mileage to the next
turn.
These marks indicate the
direction in which you should
turn at an intersection.
Touch “Map” on the “T urn List” screen.
The point which you choose is displayed
on the map screen.
— Route overview

ROUTE GUIDANCE
82
1. Touch “Map View”.
2. Touch “Route Preview”.
:To indicate the next destination.
:To preview the route to the next
destination.
:To preview the route to the next
destination in fast −forward mode.
: To stop the preview.
:To review the route to the previous
destination or starting point.
: To review the route to the previous
destination or starting point in
fast−forward mode.
: To indicate the previous destina-
tion or starting point.
— Route preview

ROUTE GUIDANCE
83
It is possible to store the traveled route up
to 124 miles (200 km) and retrace the route
on the display.
INFORMATION
This feature is available on the map
with more detailed map scale than 30
mile (50 km).
Touch “Map View”.
“Record”: To start recording the route
trace.
“Stop”: To stop recording the route trace.
If you touch “Stop” to display the following
screen.
Touching “Yes” stops recording and the
route trace remains displayed on the
screen.
Touching “No” stops recording and the
route trace is erased.
— Route trace

ROUTE GUIDANCE
84

SECTION 4
ADVANCED FUNCTIONS
85
ADVANCED FUNCTIONS
Descriptions of functions for more effective
use
Quick reference (“Menu” screen) 86 . . . . . . . . . . . . . . . . . . . . . . . . .
 Quick reference (“Setup” screen) 87 . . . . . . . . . . . . . . . . . . . . . . . . .
 Suspending and resuming guidance 88 . . . . . . . . . . . . . . . . . . . . . .
 Volume 89 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . \
. . . . . . . . . . .
 User selection 90 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .\
. . . .
 My places 92
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .\
. . . . . . . .
Registering memory points 93 . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Editing memory points 94 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Deleting memory points 99 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Registering home 100 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Deleting home 101 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .\
.
Registering area to avoid 101 . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Editing area to avoid 102 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Deleting area to avoid 105 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Deleting previous points 106 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
 Setup 106 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . \
. . . . . . . . . . . .

ADVANCED FUNCTIONS
86

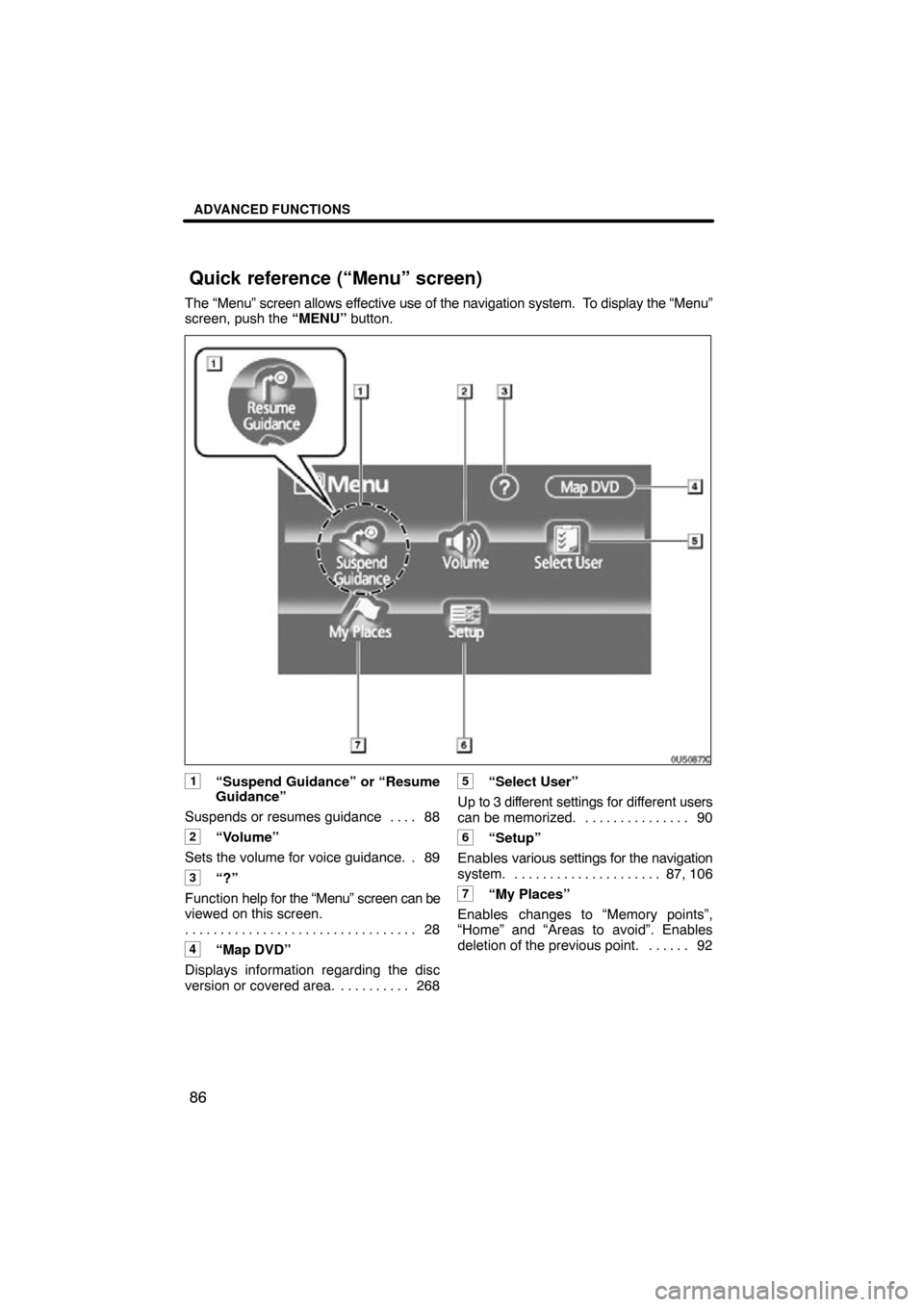

The “Menu” screen allows effective use of the navigation system. To display the “Menu”
screen, push the “MENU” button.
1“Suspend Guidance” or “Resume
Guidance”
Suspends or resumes guidance 88 . . . .
2“Volume”
Sets the volume for voice guidance. 89 .
3“?”
Function help for the “Menu” screen can be
viewed on this screen.
28
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
4“Map DVD”
Displays information regarding the disc
version or covered area. 268 . . . . . . . . . .
5“Select User”
Up to 3 different settings for dif ferent users
can be memorized. 90 . . . . . . . . . . . . . . .
6“Setup”
Enables various settings for the navigation
system. 87, 106 . . . . . . . . . . . . . . . . . . . . .
7“My Places”
Enables changes to “Memory points”,
“Home” and “Areas to avoid”. Enables
deletion of the previous point. 92 . . . . . .
Quick reference (“Menu” screen)

ADVANCED FUNCTIONS
87

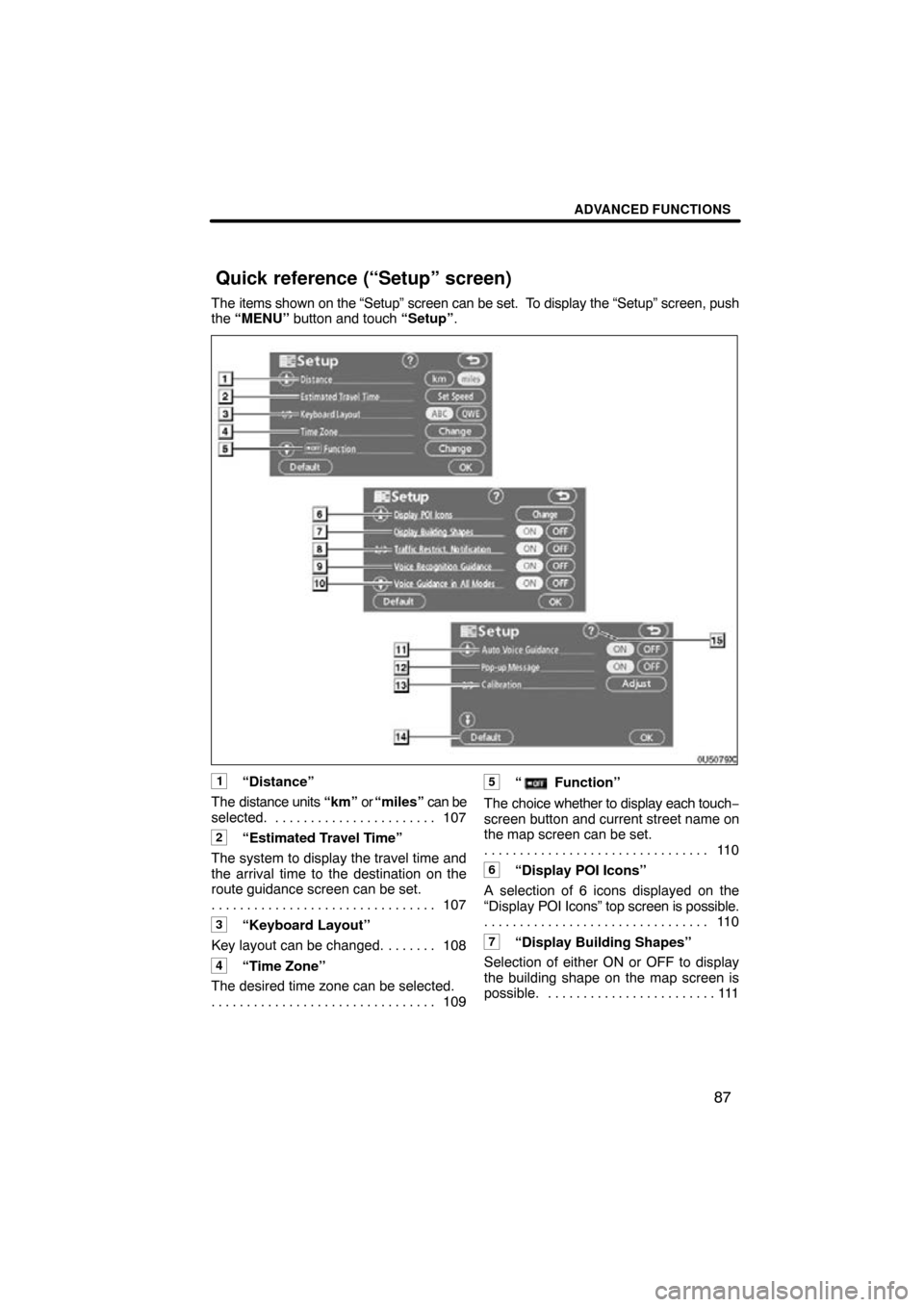

The items shown on the “Setup” screen can be set. To display the “Setup” screen, push
the “MENU” button and touch “Setup” .
1“Distance”
The distance units “km” or “miles” can be
selected. 107 . . . . . . . . . . . . . . . . . . . . . . .
2“Estimated Travel Time”
The system to display the travel time and
the arrival time to the destination on the
route guidance screen can be set. 107
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
3“Keyboard Layout”
Key layout can be changed. 108 . . . . . . .
4“Time Zone”
The desired time zone can be selected. 109
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
5“ Function”
The choice whether to display each touch −
screen button and current street name on
the map screen can be set. 11 0
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
6“Display POI Icons”
A selection of 6 icons displayed on the
“Display POI Icons” top screen is possible.
11 0
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
7“Display Building Shapes”
Selection of either ON or OFF to display
the building shape on the map screen is
possible. 111 . . . . . . . . . . . . . . . . . . . . . . . .
Quick reference (“Setup” screen)

ADVANCED FUNCTIONS
88
8“Traffic Restrict. Notification”
Notification of seasonal restrictions can be
selected. 112
. . . . . . . . . . . . . . . . . . . . . . .
9“Voice Recognition Guidance”
Voice recognition guidance can be set. 11 2
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
10“Voice Guidance in All Modes”
Voice guidance can be set in all modes. 11 3
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
11“Auto Voice Guidance”
Automatic voice guidance can be set. 11 3
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
12“Popup Message”
Selection of either ON or OFF to display
the pop− up message is possible.
11 4
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
13“Calibration”
Adjustment of the current vehicle position
mark can be done manually, or mis −cal-
culation by changing tire will be adjusted. 11 5
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
14“Default”
This touch−screen button initializes all of
the settings. 106
. . . . . . . . . . . . . . . . . . . .
15“?”
Function help for the “Setup” screen can
be viewed. 28 . . . . . . . . . . . . . . . . . . . . . . .
To suspend guidance
1. Push the “MENU” button.
2. Touch “Suspend Guidance”.
INFORMATION
Without route guidance, “Suspend
Guidance” cannot be used.
The screen will return to the current posi-
tion map without route guidance.
Suspending and resuming
guidance

ADVANCED FUNCTIONS
89

To resume guidance
1. Push the “MENU” button.
2. Touch “Resume Guidance”.
The screen will change to the current posi-
tion map with route guidance. Voice guidance can be used when ap-
proaching a destination.
The volume of the voice or turn off voice
guidance can be adjusted.
1. Push the “MENU” button.
2. Touch “Volume”.
To adjust the volume, select the desired
level by touching the appropriate number.
If voice guidance is unneeded, touch
“OFF”
.
The selected item is highlighted.
Volume

ADVANCED FUNCTIONS
90
INFORMATION
During route guidance, the voice
guidance continues even if the navi-
gation screen is changed to other
screens.
“Adaptive Volume Control”: By turning
“Adaptive V olume Control” on, the volume
is turned up automatically when the ve-
hicle speed exceeds 50 mph (80 km/h).
To turn the “Adaptive Volume Control”
system on, touch the button. The indicator
will be highlighted. The system can memorize the following
settings for up
to three users.
Map direction
Map scale
Map configuration
Guidance mode
Setup
Volume
Language
Route trace
Travel time/arrival time
Right screen of dual map
Route preference
Maintenance notification
1. Push the “MENU” button.
2. Touch “Select User”.
User selection
