TOYOTA HIGHLANDER 2009 XU40 / 2.G Owners Manual

431
4-3. Do-it-yourself maintenance
4
Maintenance and care
CAUTION
■
Safety glasses
Wear safety glasses to prevent flying or falling material, fluid spray, etc. from
getting in the eyes.
NOTICE
■If you remove the air cleaner filter
Driving with the air cleaner filter removed may cause excessive engine wear
due to dirt in the air. Also a backfire could cause a fire in the engine compart-
ment.

432
4-3. Do-it-yourself maintenance

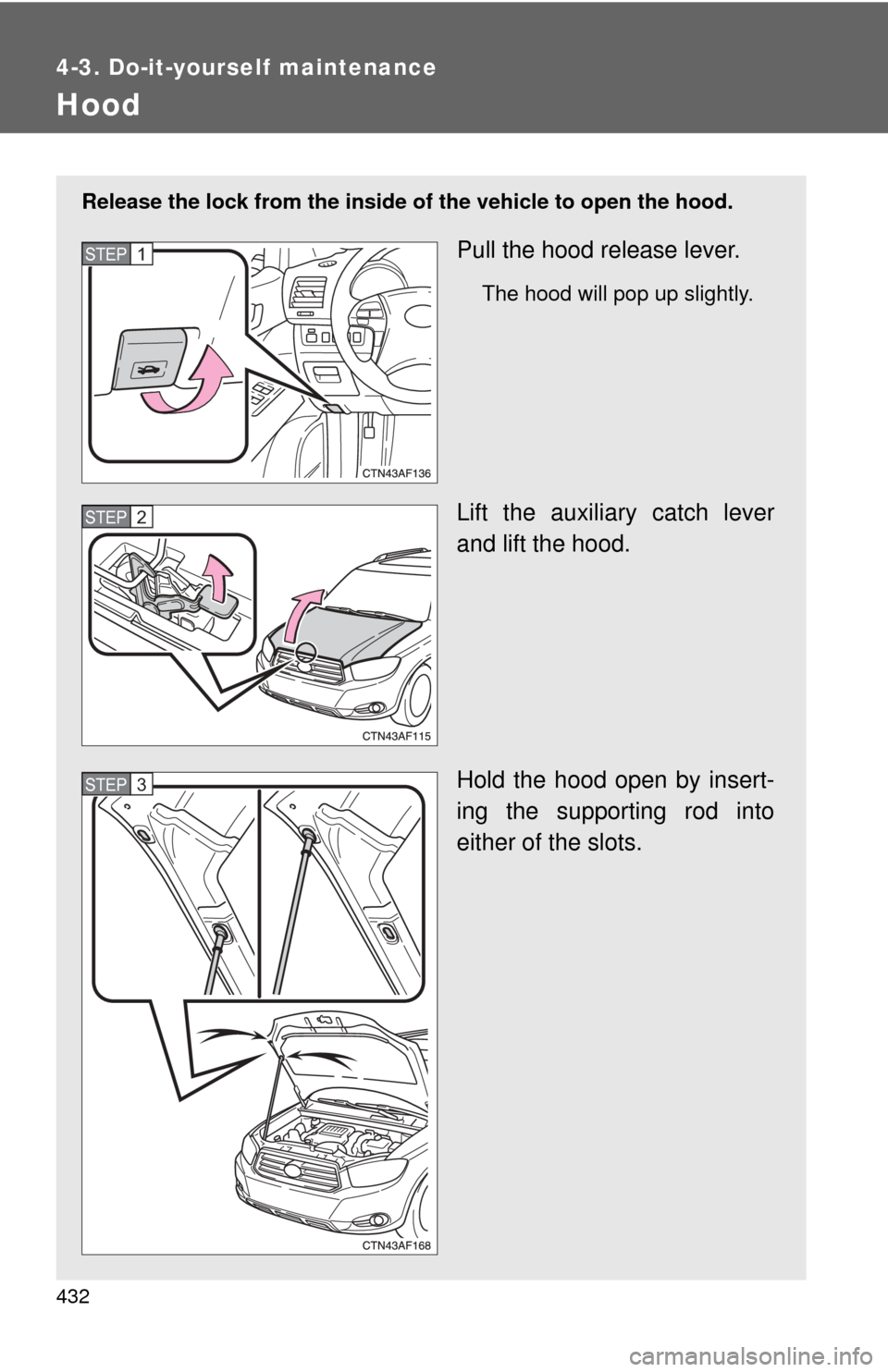

Hood
Release the lock from the inside of the vehicle to open the hood.
Pull the hood release lever.
The hood will pop up slightly.
Lift the auxiliary catch lever
and lift the hood.
Hold the hood open by insert-
ing the supporting rod into
either of the slots.
STEP1
STEP2
STEP3

433
4-3. Do-it-yourself maintenance
4
Maintenance and care
CAUTION
■
Pre-driving check
Check that the hood is fully closed and locked.
If the hood is not locked properly, it may open while the vehicle is in motion
and cause an accident, which may result in death or serious injury.
■ After installing the support rod into the slot
Make sure the rod supports the hood securely from falling down on to your
head or body.
NOTICE
■When closing the hood
Be sure to return the support rod to its clip before closing the hood. Closing
the hood with the support rod up could cause the hood to bend.

434
4-3. Do-it-yourself maintenance

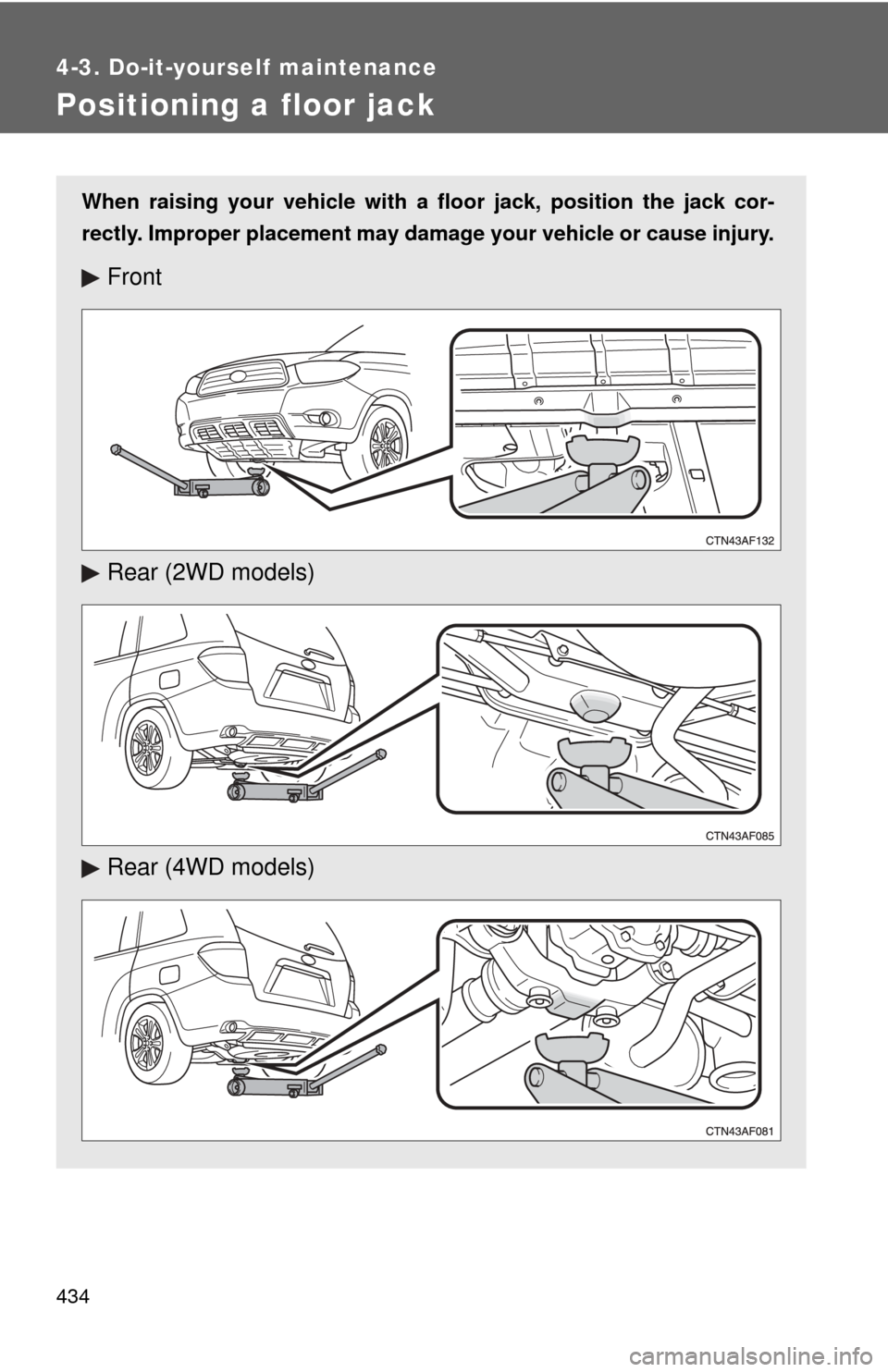

Positioning a floor jack
When raising your vehicle with a floor jack, position the jack cor-
rectly. Improper placement may damage your vehicle or cause injury.
Front
Rear (2WD models)
Rear (4WD models)

435
4-3. Do-it-yourself maintenance
4
Maintenance and care

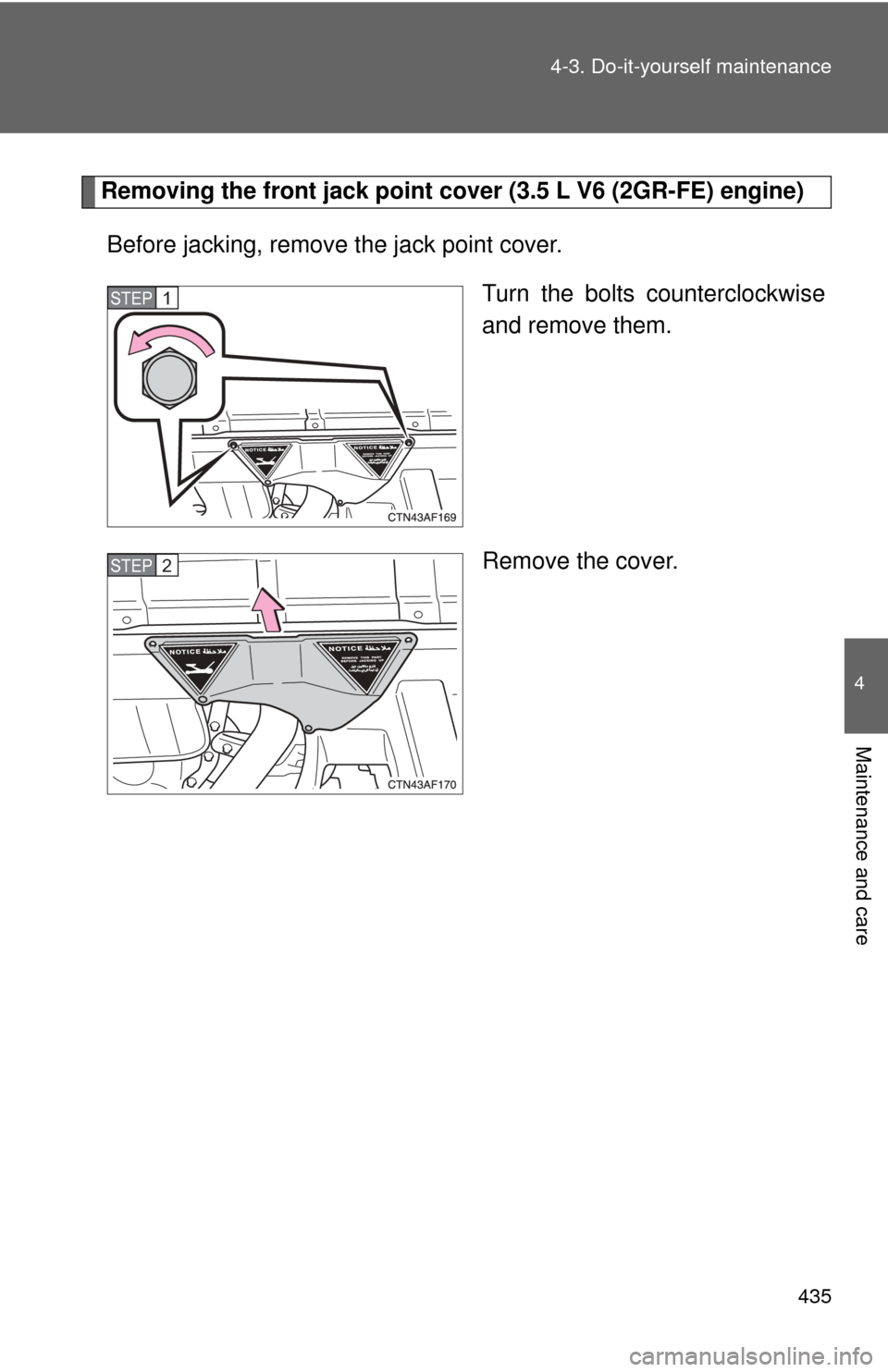

Removing the front jack point cove
r (3.5 L V6 (2GR-FE) engine)
Before jacking, remove the jack point cover.
Turn the bolts counterclockwise
and remove them.
Remove the cover.
STEP1
STEP2

436 4-3. Do-it-yourself maintenance
CAUTION
■When raising your vehicle
Make sure to observe the following to reduce the possibility of death or seri-
ous injury.
●Do not use the jack that was supplied with your vehicle.
● Do not put any part of your body or get underneath the vehicle supported
only by the floor jack.
Always use automotive jack stands on a solid, level surface.
● Do not start the engine while the vehicle is supported by the floor jack.
● Stop the vehicle on level firm ground, firmly set the parking brake and shift
the shift lever in P.
● Make sure to set the floor jack properly at the jack point.
Raising the vehicle with an improperly positioned floor jack will damage
the vehicle and may cause the vehicle to fall off the floor jack.
● Do not raise the vehicle while someone is in the vehicle.
● When raising the vehicle, do not place any objects on top of or underneath
the floor jack.
NOTICE
■Front jack point cover
●After installing the front jack point cover, make sure it is securely in its orig-
inal position.
● Before jacking up your vehicles, remove the front jack point cover. Other-
wise, the cover may be damaged.
●Lift up the vehicle using a floor jack
such as the one shown in the illustra-
tion.

437
4-3. Do-it-yourself maintenance
4
Maintenance and care
Engine compartment
2.7 L 4-cylinder (1AR-FE) engine
Washer fluid tank (→P. 452)
Engine oil filler cap (→ P. 441)
Engine oil level dipstick (→ P. 440)
Engine coolant reservoir (→ P. 445)Battery ( →P. 449)
Brake fluid reservoir (→ P. 448)
Fuse boxes ( →P. 475)
Electric cooling fans
Condenser ( →P. 447)
Radiator ( →P. 447)

438 4-3. Do-it-yourself maintenance
3.5 L V6 (2GR-FE) engine
Washer fluid tank (→P. 452)
Engine oil filler cap (→ P. 441)
Engine oil level dipstick (→ P. 440)
Engine coolant reservoir (→ P. 445)Battery ( →P. 449)
Brake fluid reservoir (→ P. 448)
Fuse boxes ( →P. 475)
Electric cooling fans
Condenser ( →P. 447)
Radiator ( →P. 447)

439
4-3. Do-it-yourself maintenance
4
Maintenance and care

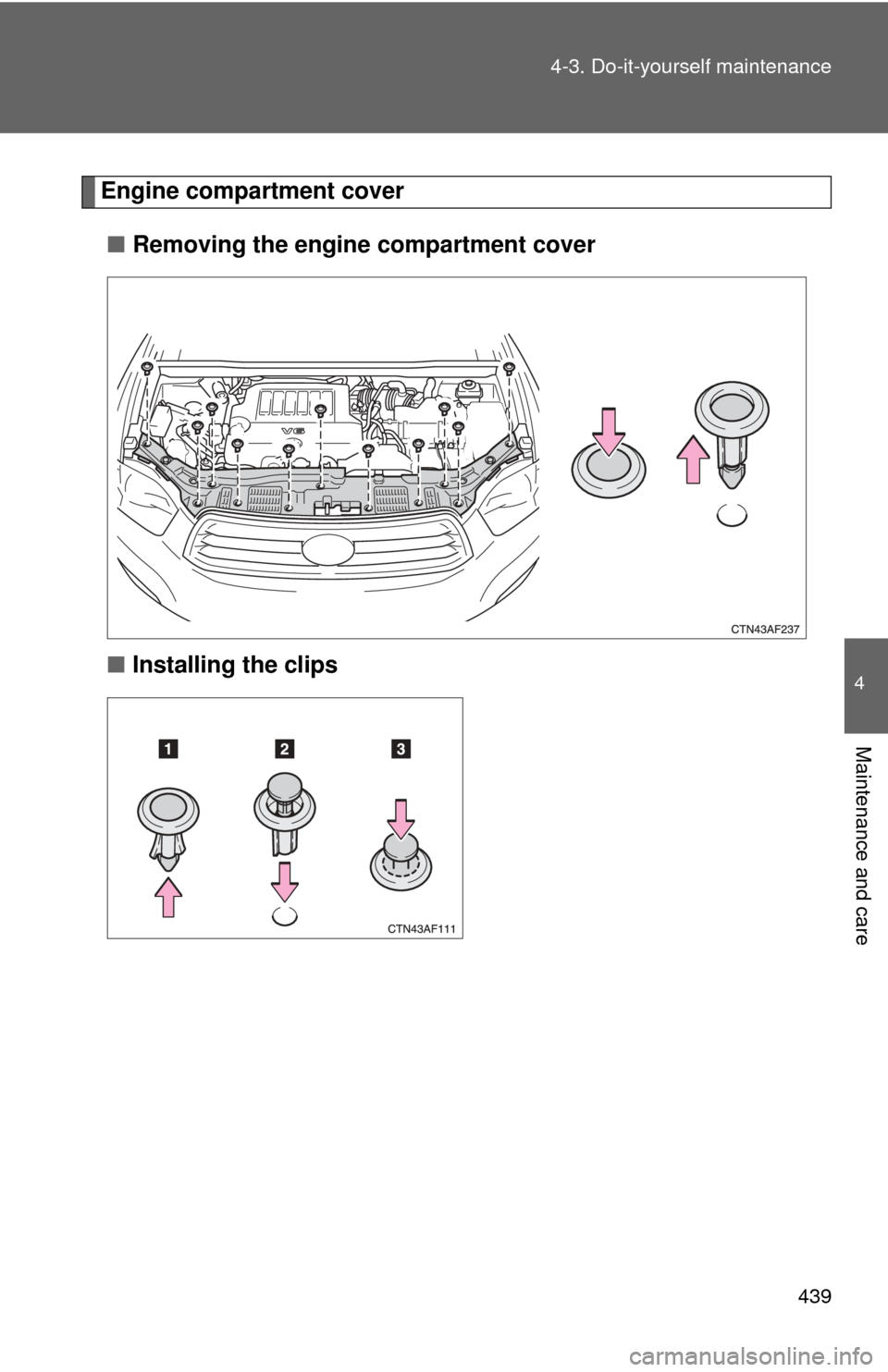

Engine compartment cover
■ Removing the engine compartment cover
■ Installing the clips

440 4-3. Do-it-yourself maintenance

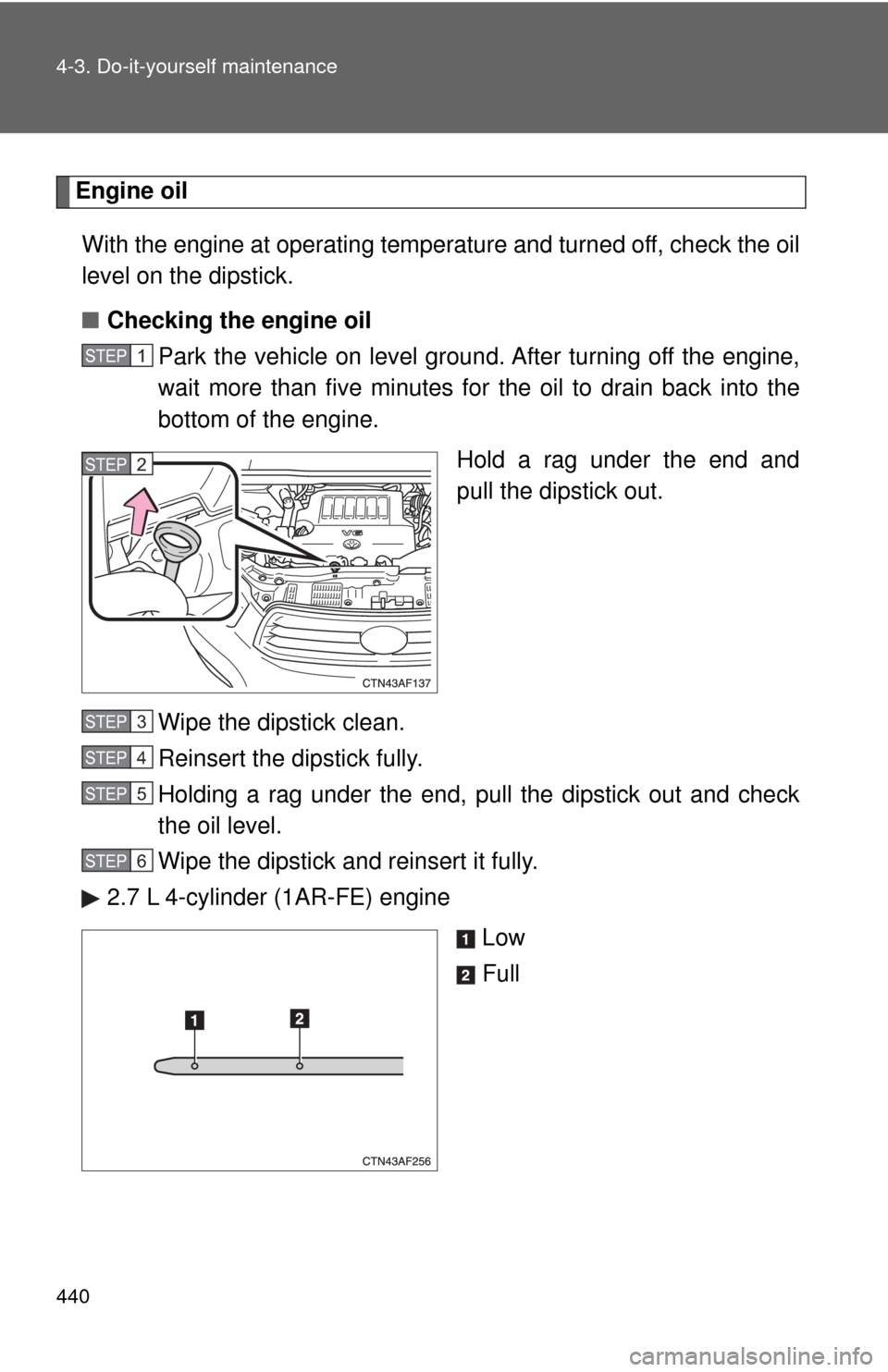

Engine oilWith the engine at operating temperature and turned off, check the oil
level on the dipstick.
■ Checking the engine oil
Park the vehicle on level ground. After turning off the engine,
wait more than five minutes for the oil to drain back into the
bottom of the engine.
Hold a rag under the end and
pull the dipstick out.
Wipe the dipstick clean.
Reinsert the dipstick fully.
Holding a rag under the end, pull the dipstick out and check
the oil level.
Wipe the dipstick and reinsert it fully.
2.7 L 4-cylinder (1AR-FE) engine
Low
Full
STEP1
STEP2
STEP3
STEP4
STEP5
STEP6
