TOYOTA HIGHLANDER 2010 XU40 / 2.G Navigation Manual

OTHER FUNCTIONS
145

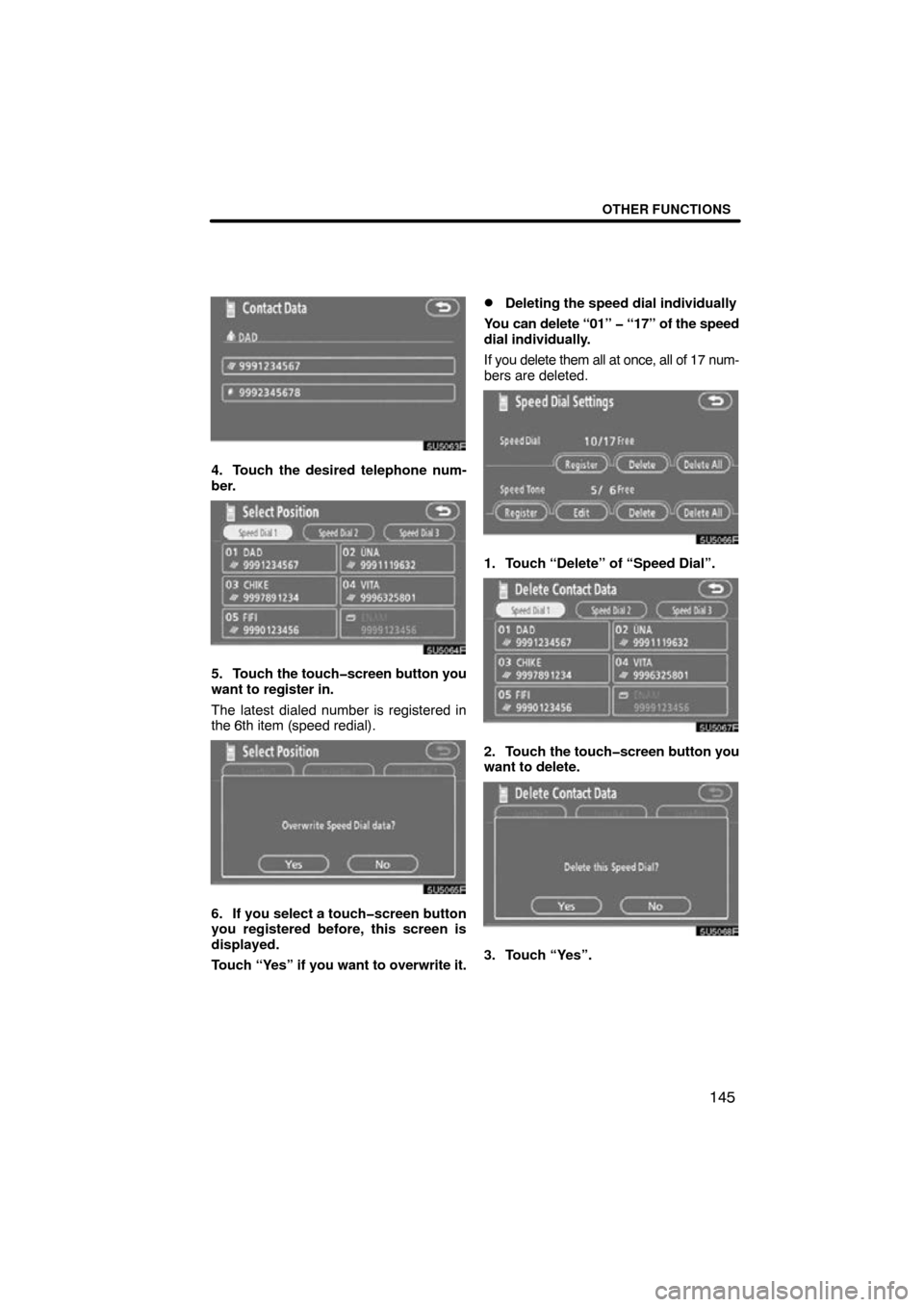

4. Touch the desired telephone num-
ber.
5. Touch the touchscreen button you
want to register in.
The latest dialed number is registered in
the 6th item (speed redial).
6. If you select a touchscreen button
you registered before, this screen is
displayed.
Touch “Yes” if you want to overwrite it.

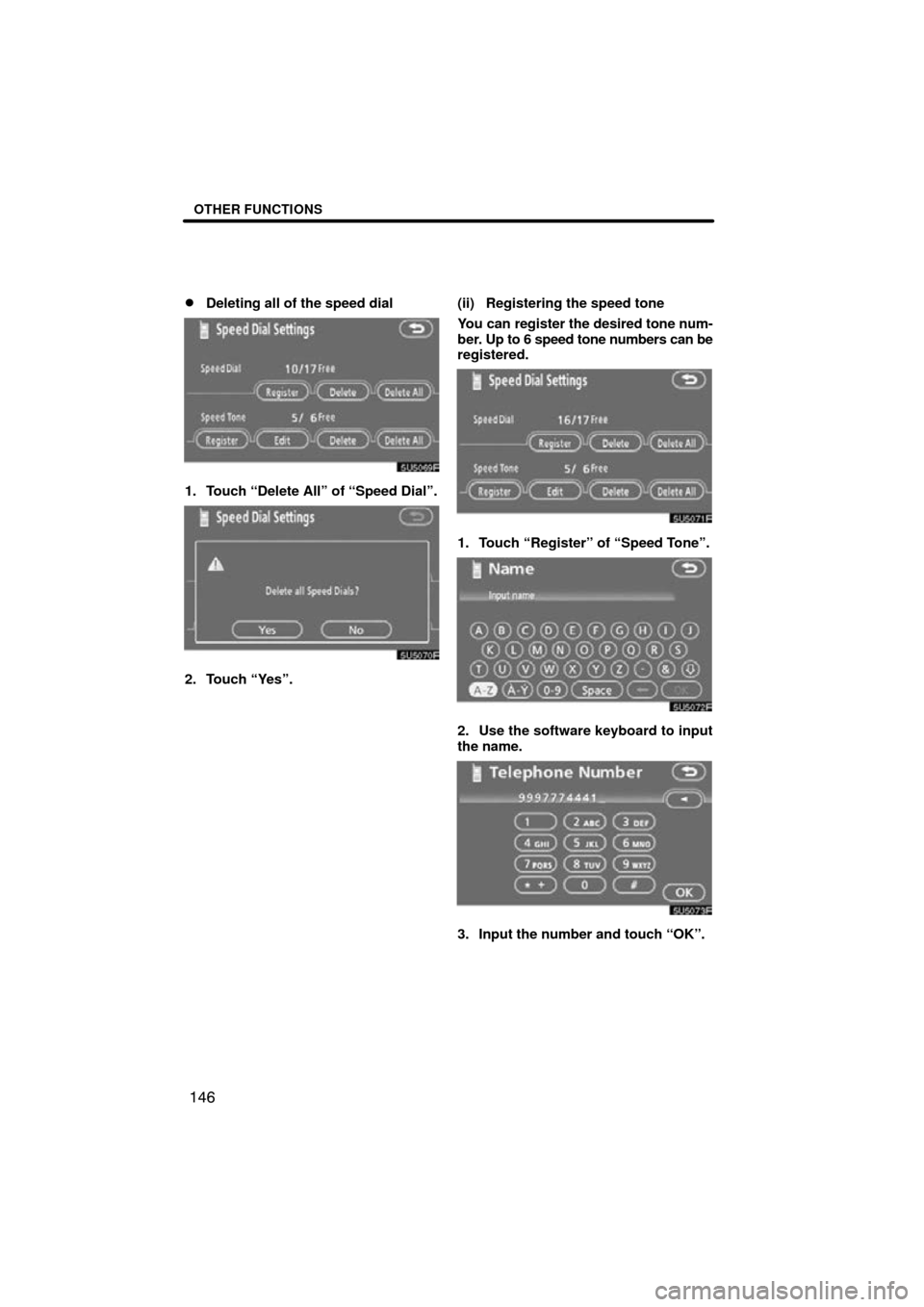

Deleting the speed dial individually
You can delete “01” “17” of the speed
dial individually.
If you delete them all at once, all of 17 num-
bers are deleted.
1. Touch “Delete” of “Speed Dial”.
2. Touch the touchscreen button you
want to delete.
3. Touch “Yes”.

OTHER FUNCTIONS
146

Deleting all of the speed dial
1. Touch “Delete All” of “Speed Dial”.
2. Touch “Yes”.

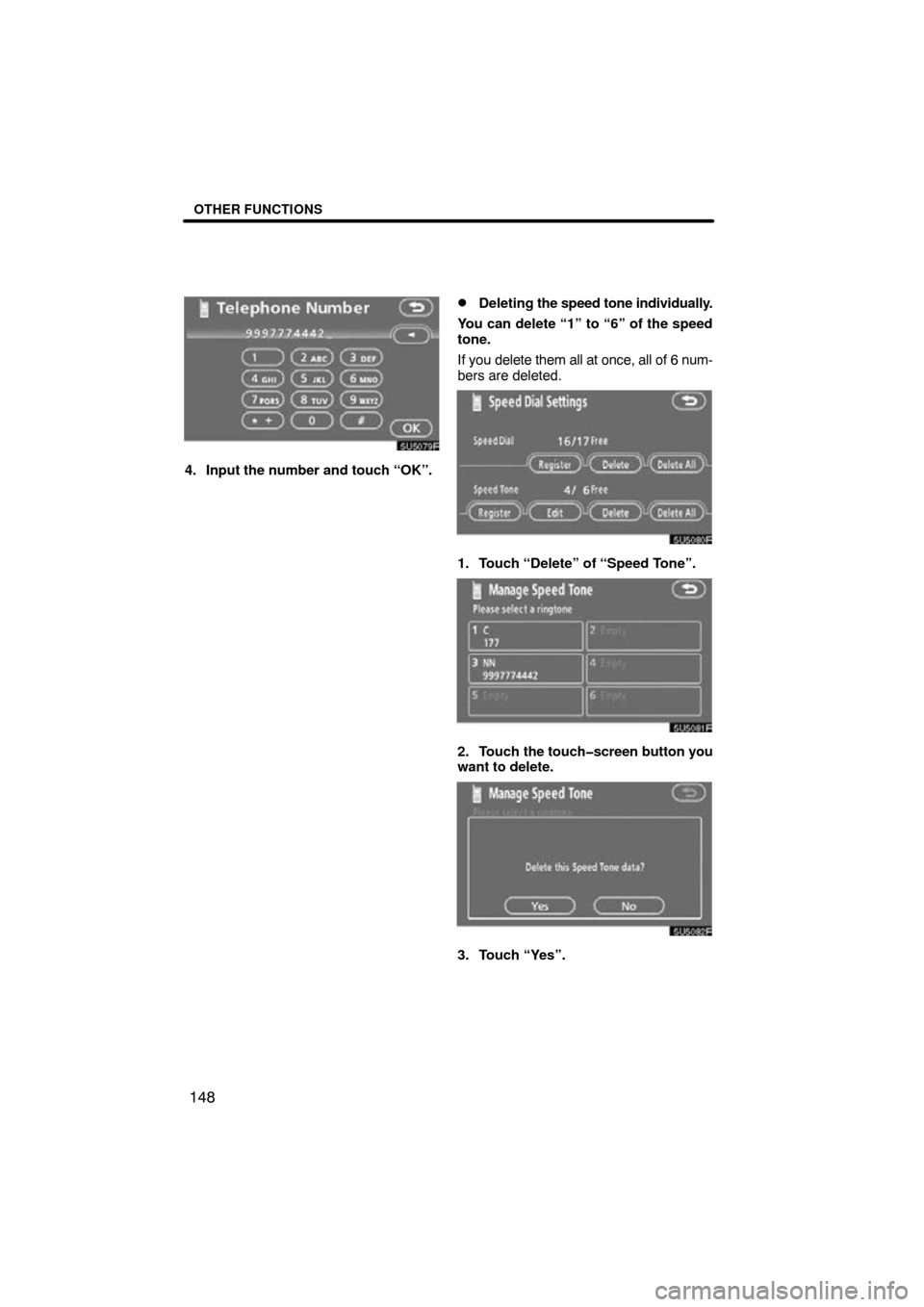

(ii) Registering the speed tone
You can
register the desired tone num-
ber. Up to 6 speed tone numbers can be
registered.
1. Touch “Register” of “Speed Tone”.
2. Use the software keyboard to input
the name.
3. Input the number and touch “OK”.

OTHER FUNCTIONS
147

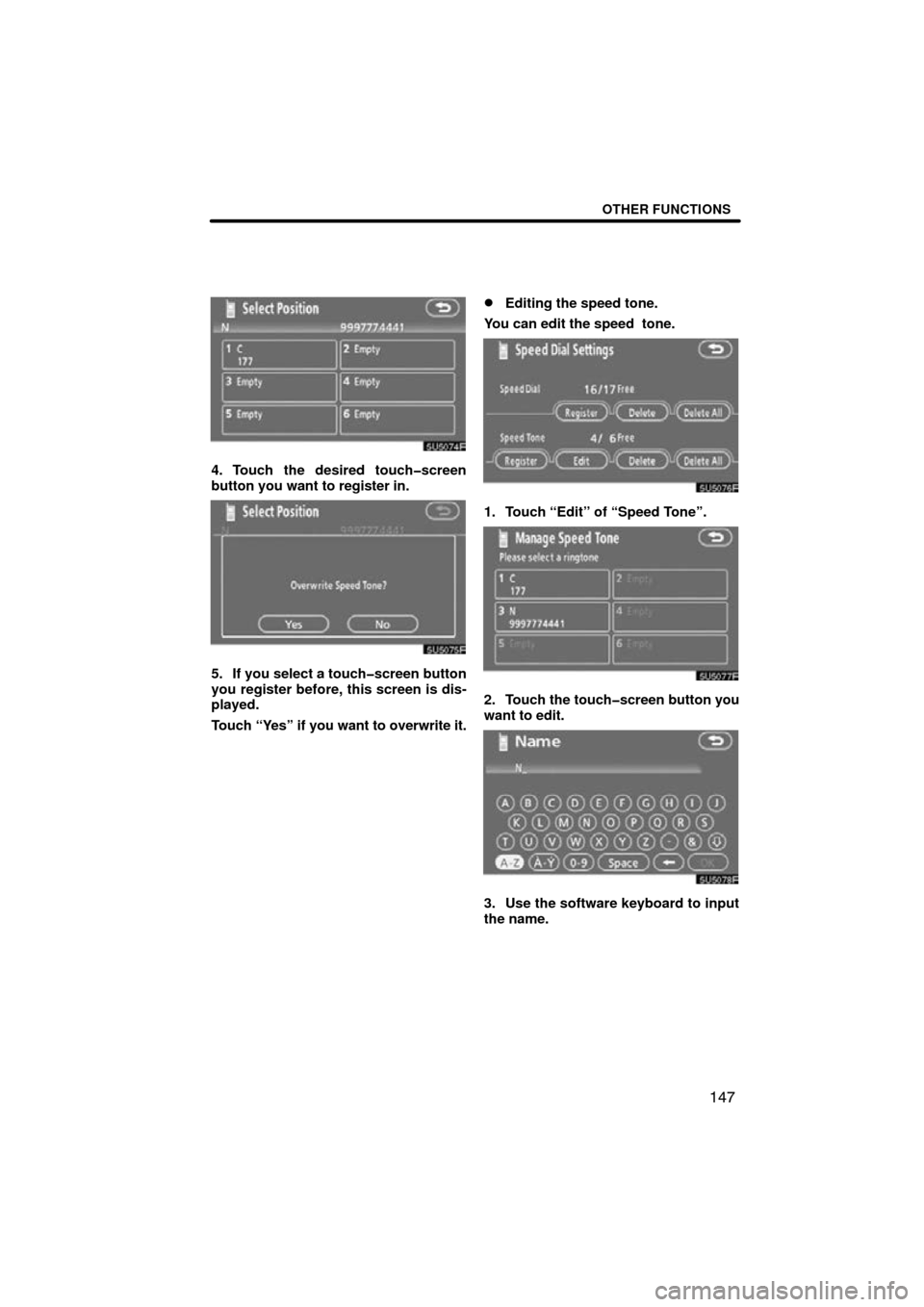

4. Touch the desired touchscreen
button you want to register in.
5. If you select a touchscreen button
you register before, this screen is dis-
played.
Touch “Yes” if you want to overwrite it.
Editing the speed tone.
You can edit the speed tone.
1. Touch “Edit” of “Speed Tone”.
2. Touch the touchscreen button you
want to edit.
3. Use the software keyboard to input
the name.

OTHER FUNCTIONS
148
4. Input the number and touch “OK”.
Deleting the speed tone individually.
You can delete “1” to “6” of the speed
tone.
If you delete them all at once, all of 6 num-
bers are deleted.
1. Touch “Delete” of “Speed Tone”.
2. Touch the touchscreen button you
want to delete.
3. Touch “Yes”.

OTHER FUNCTIONS
149

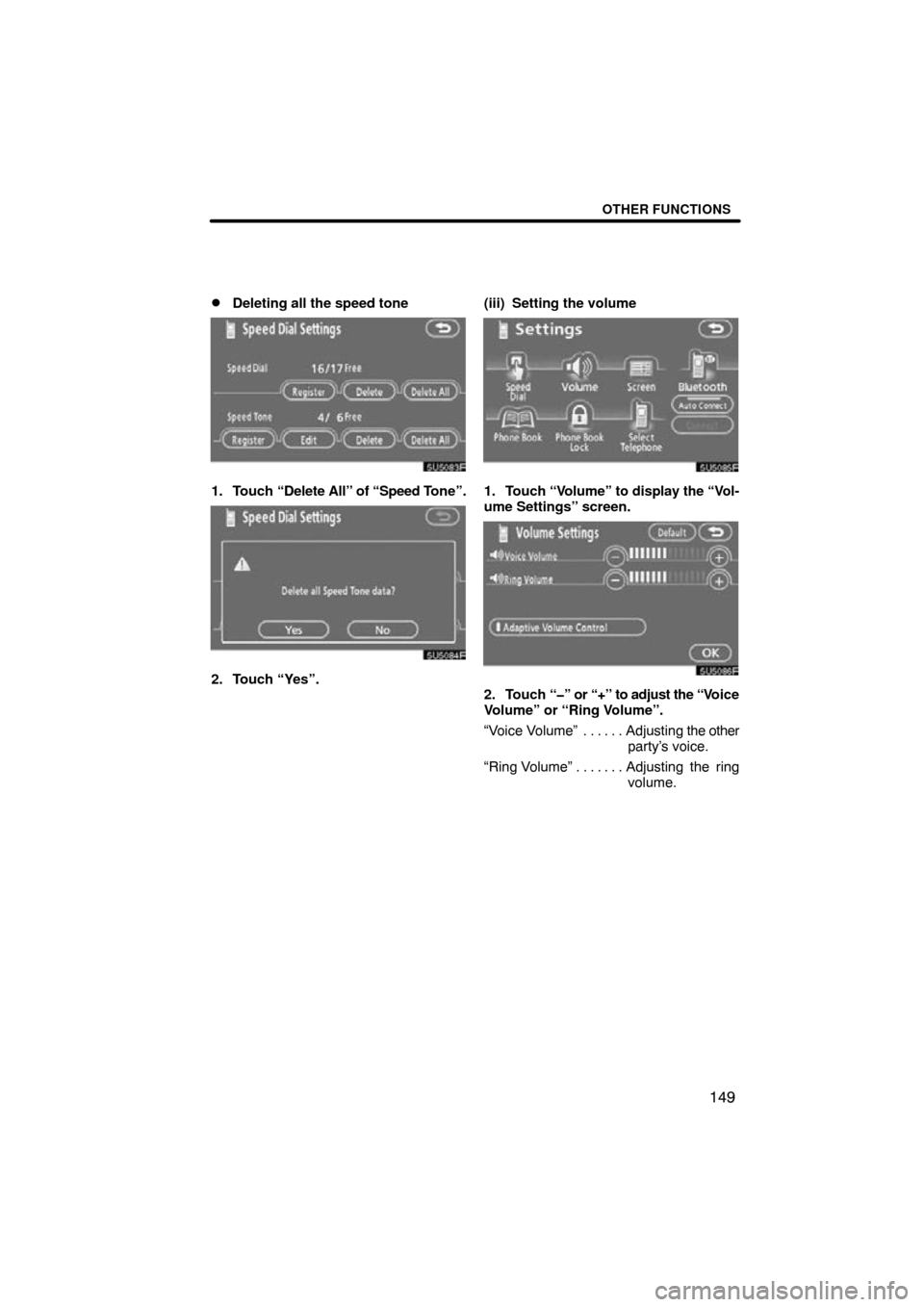

Deleting all the speed tone
1. Touch
“Delete All” of “Speed Tone”.

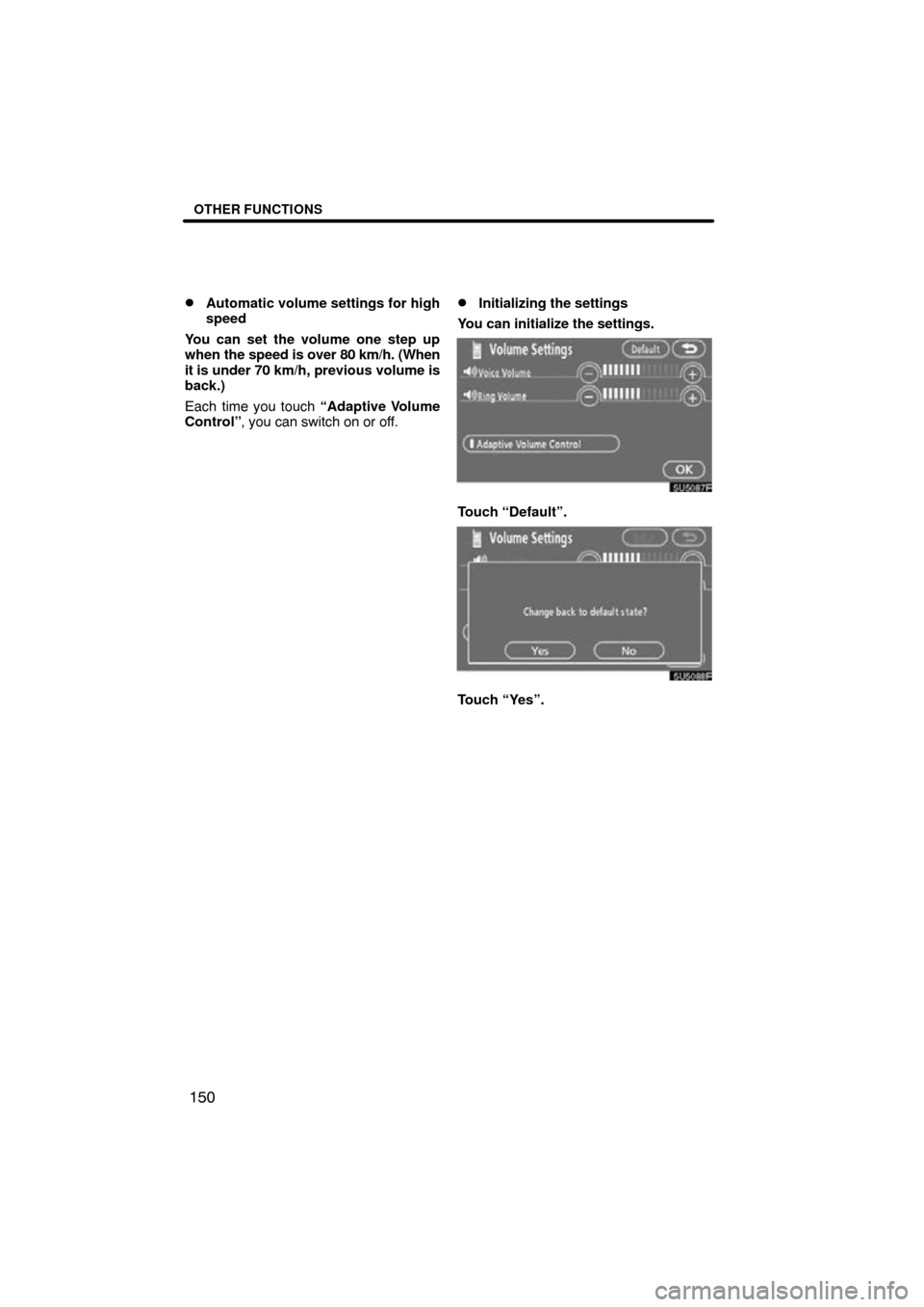

2. Touch “Yes”. (iii) Setting the volume
1. Touch
“Volume” to display the “Vol-
ume Settings” screen.
2. Touch “” or “+” to adjust the “V oice
Volume” or “Ring Volume”.
“Voice Volume” Adjusting the other
. . . . . .
party’s voice.
“Ring Volume” Adjusting the ring . . . . . . .
volume.

OTHER FUNCTIONS
150

Automatic volume settings for high
speed
You can set the volume one step up
when the speed is over 80 km/h. (When
it is under 70 km/h, previous volume is
back.)
Each time you touch “Adaptive Volume
Control” , you can switch on or off.Initializing the settings
You can initialize the settings.
Touch “Default”.
Touch “Yes”.

OTHER FUNCTIONS
151

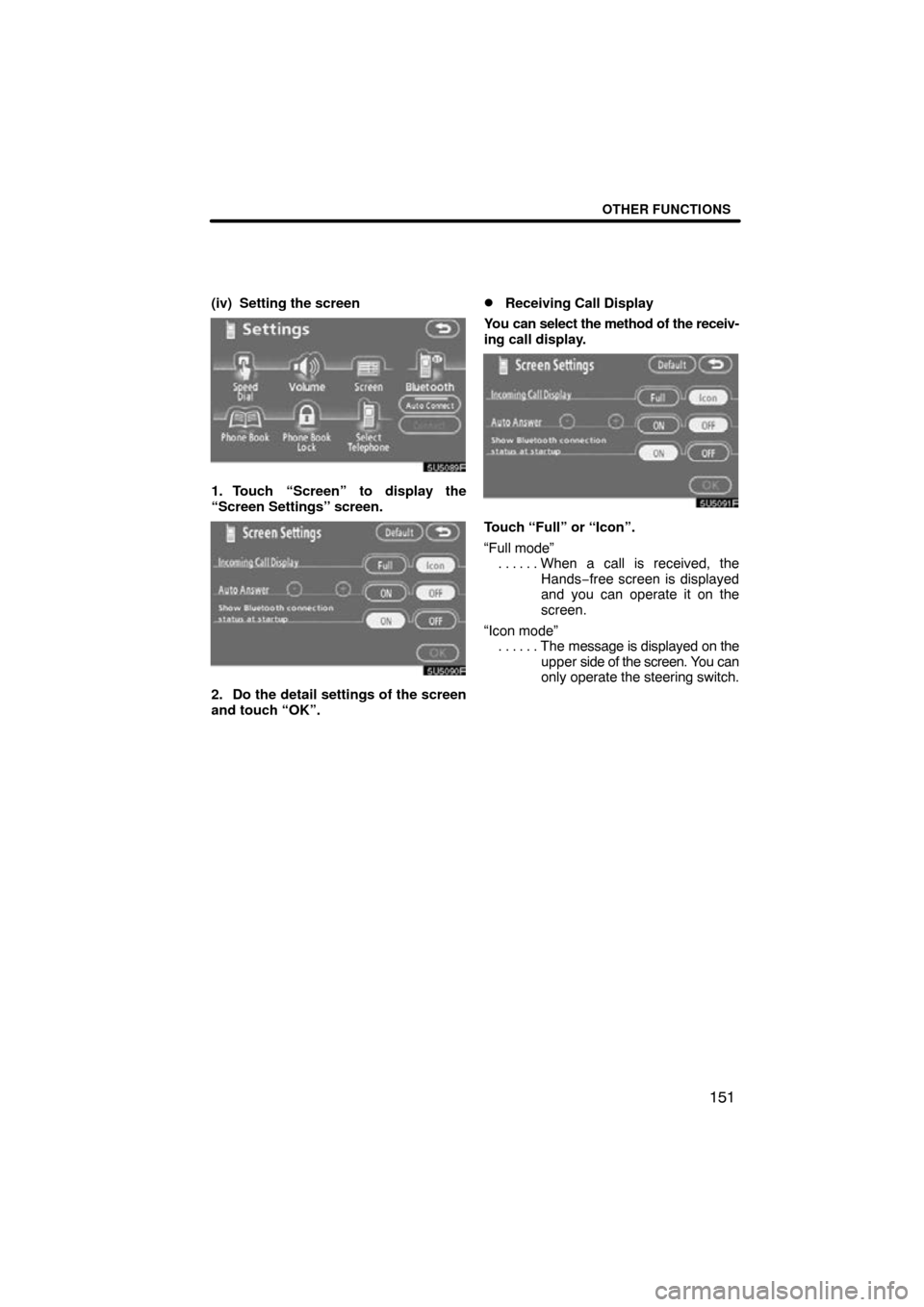

(iv) Setting the screen
1. Touch “Screen” to display the
“Screen Settings” screen.
2. Do the detail settings of the screen
and touch “OK”.
Receiving Call Display
You can select the method of the receiv-
ing call display.
Touch “Full” or “Icon”.
“Full mode” When a call is received, the
. . . . . .
Hands−free screen is displayed
and you can operate it on the
screen.
“Icon mode” The message is displayed on the
. . . . . .
upper side of the screen. You can
only operate the steering switch.

OTHER FUNCTIONS
152

Auto answer
When a call is received, the display au-
tomatically changes to the talking
screen and you can start to talk on the
phone (without touching any switch) af-
ter the preset time.
Touch “ON” of “Auto Answer” and “”
or “+” to adjust the waiting time of auto
answer within 1 60 seconds.
The Bluetooth connection status at
startup
Vehicles with smart key system —
When the “ENGINE START STOP”
switch is in ACCESSORY or IGNITION
ON mode and the Bluetooth is auto-
matically connected, the connection
check is displayed.
Vehicles without smart key system —
When the engine switch is in “ACC” or
“ON” position and the Bluetooth  is au-
tomatically connected, the connection
check is displayed.
Touch “ON” or “OFF” of “Show
Bluetooth∗ connection status at start
up”.
∗: Bluetooth is a registered trademark of Bluetooth SIG. Inc.

OTHER FUNCTIONS
153

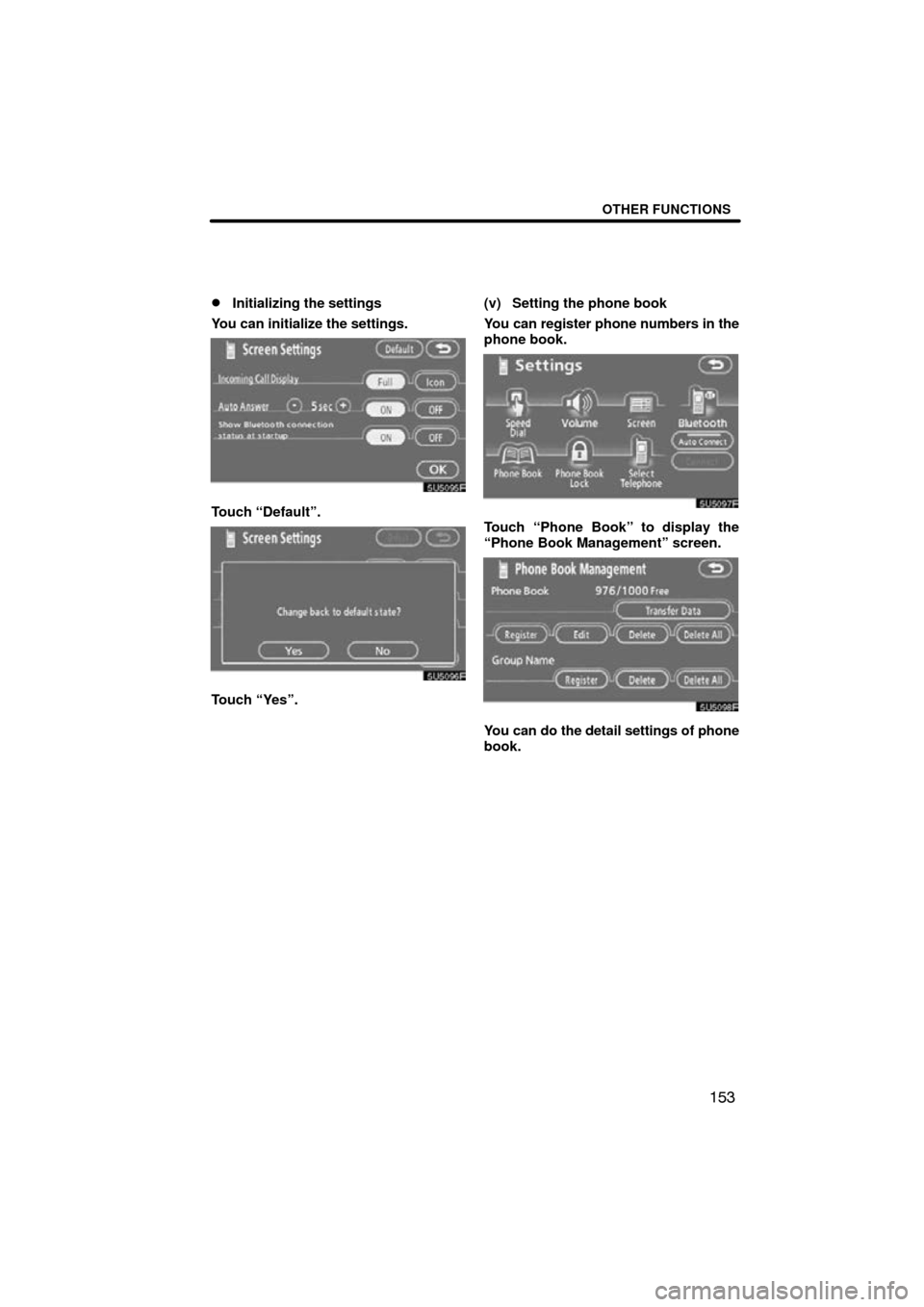

Initializing the settings
You can initialize the settings.
Touch “Default”.
Touch “Yes”. (v) Setting the phone book
You can register phone numbers in the
phone book.
Touch “Phone Book” to display the
“Phone Book Management” screen.
You can do the detail settings of phone
book.

OTHER FUNCTIONS
154

Transferring a telephone number
You can transfer the telephone num-
bers in your Bluetooth phone to the
system. Up to 1000 person’s data (up to
2 numbers a person) can be registered
in the phone book.
Transfer it while the engine is running.
1. Touch “Transfer Data” to display
“Select Group” screen.
2. Select the group you want to
transfer to.
3. Touch “Overwrite” or “Add To”.
4. Transfer the phone book data to the
system using the Bluetooth phone.
This screen appears while transferring. To
cancel it, touch “Cancel” . If the transfer-
ring is interrupted on the way, the phone
book data transferred until then can be
memorized in the system.
5. When this screen is displayed, the
transfer is completed.
When this screen is displayed, try the
transfer operation again.
