TOYOTA HIGHLANDER 2010 XU40 / 2.G Navigation Manual

OTHER FUNCTIONS
165

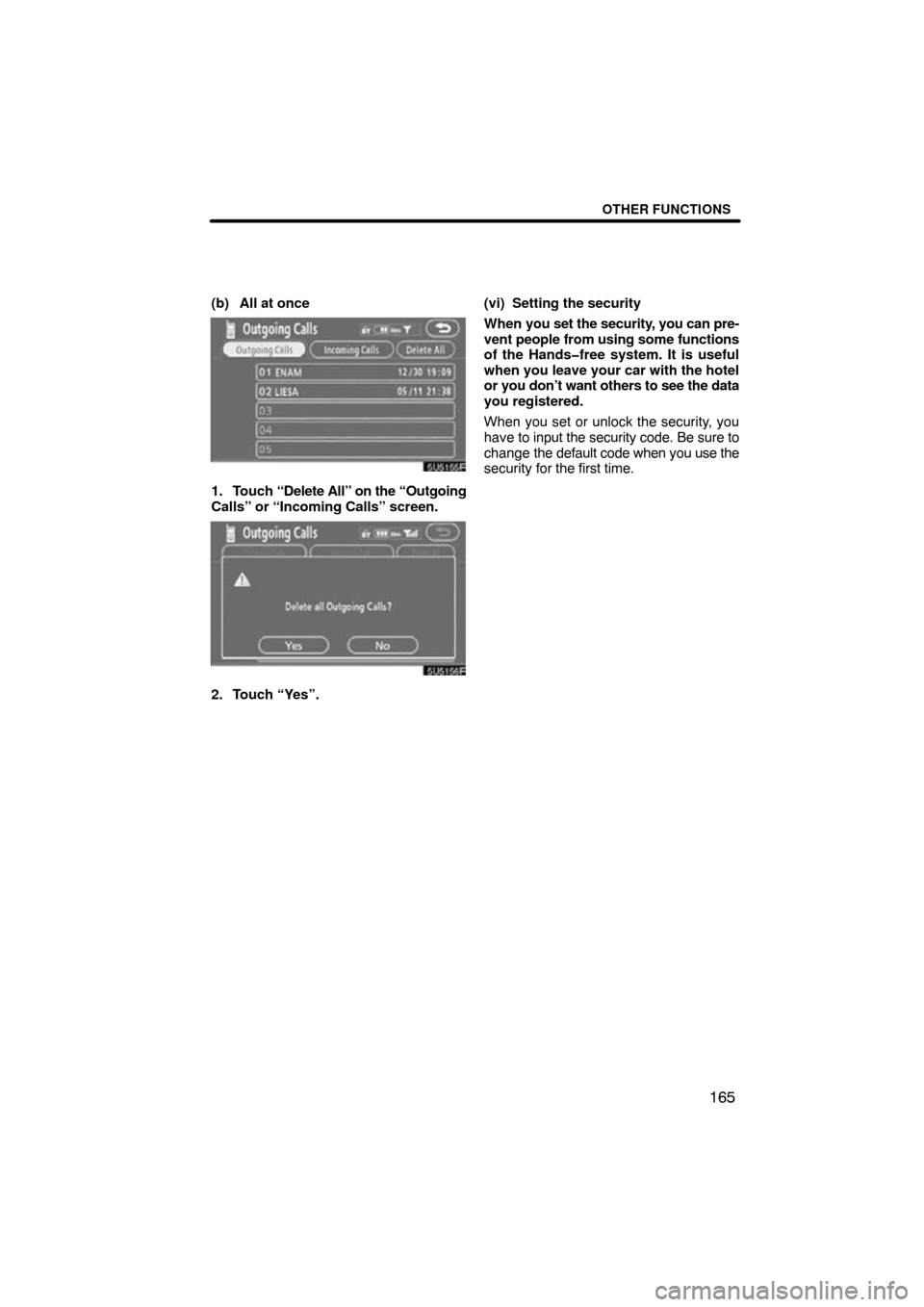

(b) All at once
1. Touch “Delete All” on the “Outgoing
Calls” or “Incoming Calls” screen.
2. Touch “Yes”. (vi) Setting the security
When
you set the security, you can pre-
vent people from using some functions
of the Handsfree system. It is useful
when you leave your car with the hotel
or you don’t want others to see the data
you registered.
When you set or unlock the security, you
have to input the security code. Be sure to
change the default code when you use the
security for the first time.

OTHER FUNCTIONS
166

Changing the security code
The security code is 4 digits and the de-
fault is “0000”.
Change a new code that is hard for other
people to know.
When you change the security code, don’t
forget the code. The dealers cannot unlock
the security when you forget it.
If you forget the security code, initialize
your personal data. When you initialize it,
not only the phonebook data but also the
memory points in the navigation system,
etc. will be deleted. (See “
 Initializing the
security code” on page 168.)

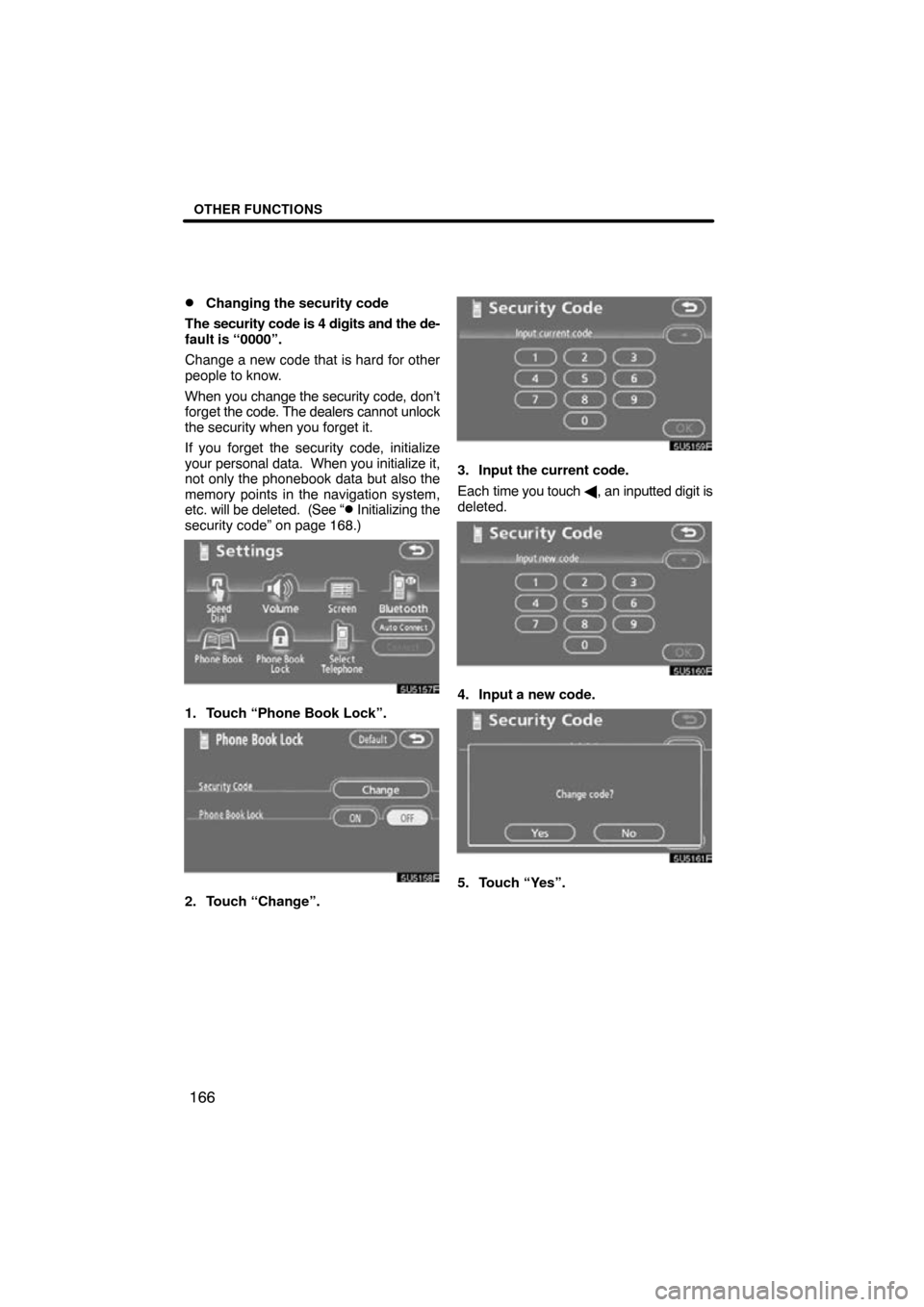

1. Touch “Phone Book Lock”.
2. Touch “Change”.
3. Input the current code.
Each time you touch , an inputted digit is
deleted.
4. Input a new code.
5. Touch “Yes”.

OTHER FUNCTIONS
167

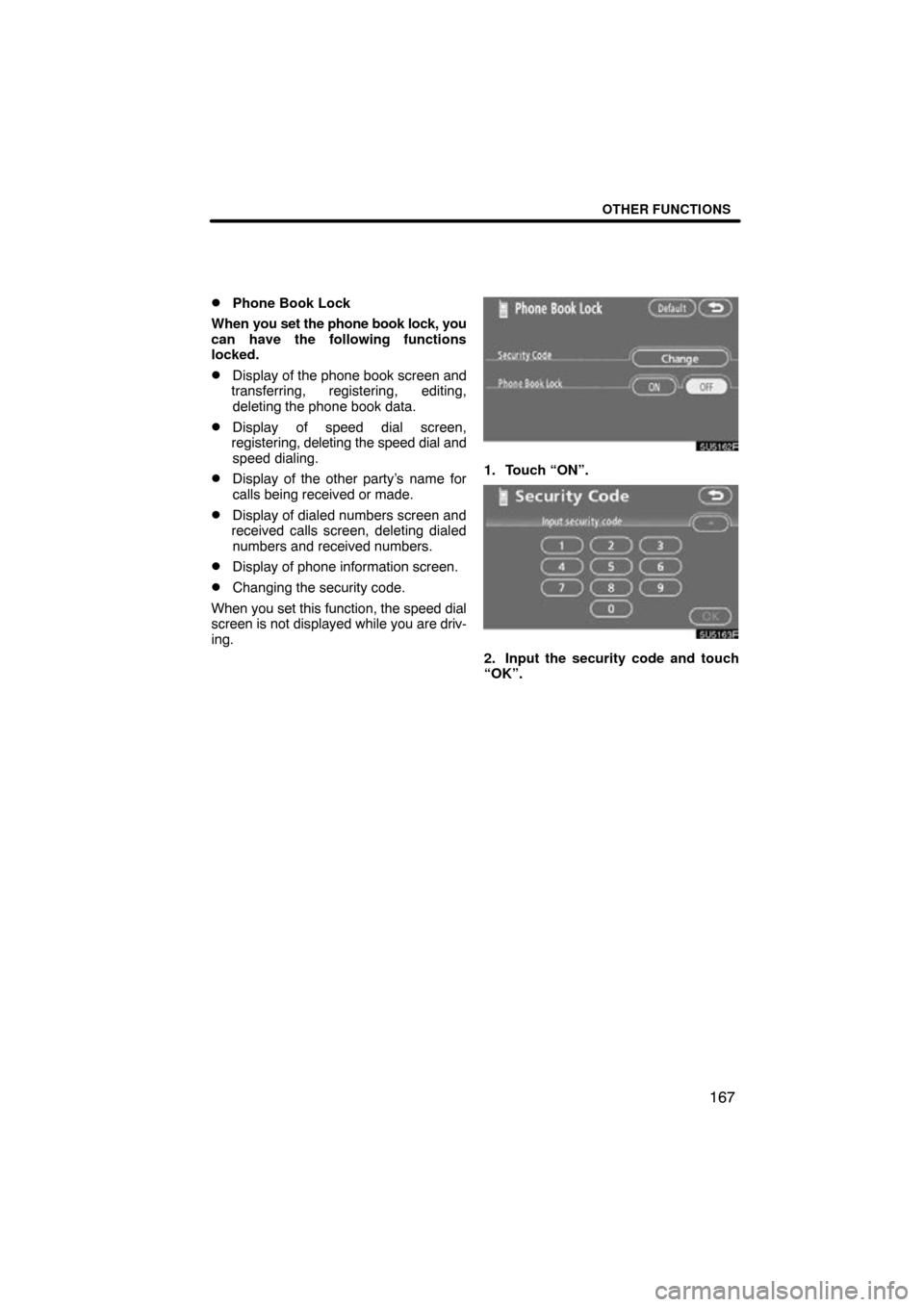

Phone Book Lock
When you set the phone book lock, you
can have the following functions
locked.
Display of the phone book screen and
transferring, registering, editing,
deleting the phone book data.
Display of speed dial screen,
registering, deleting the speed dial and
speed dialing.
Display of the other party’s name for
calls being received or made.
Display of dialed numbers screen and
received calls screen, deleting dialed
numbers and received numbers.
Display of phone information screen.
Changing the security code.
When you set this function, the speed dial
screen is not displayed while you are driv-
ing.

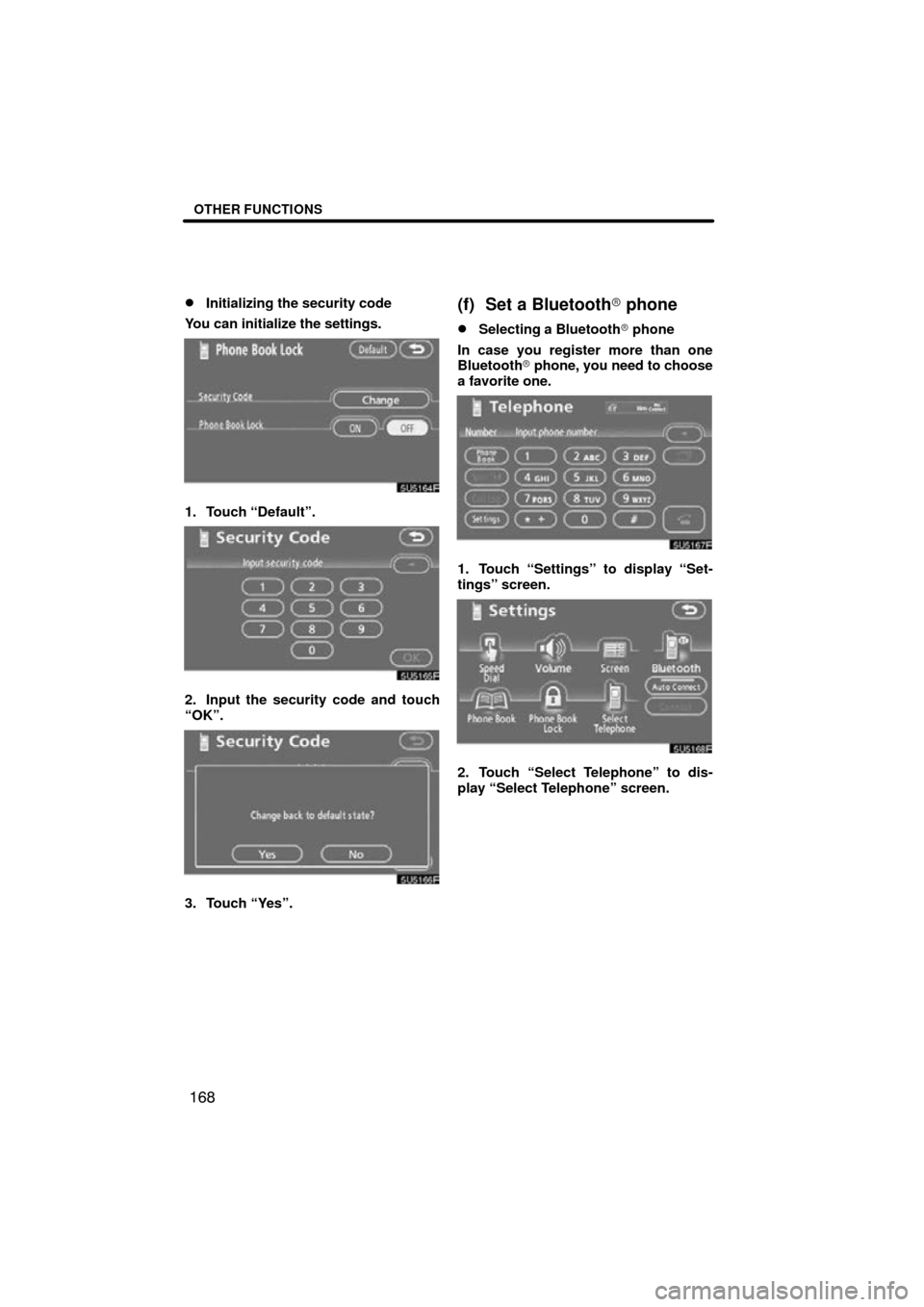

1. Touch “ON”.
2. Input the security code and touch
“OK”.

OTHER FUNCTIONS
168

Initializing the security code
You can initialize the settings.
1. Touch “Default”.
2. Input the security code and touch
“OK”.
3. Touch “Yes”.
(f) Set a Bluetooth phone
Selecting a Bluetooth  phone
In case you register more than one
Bluetooth  phone, you need to choose
a favorite one.
1. Touch “Settings” to display “Set-
tings” screen.
2. Touch “Select Telephone” to dis-
play “Select Telephone” screen.

OTHER FUNCTIONS
169

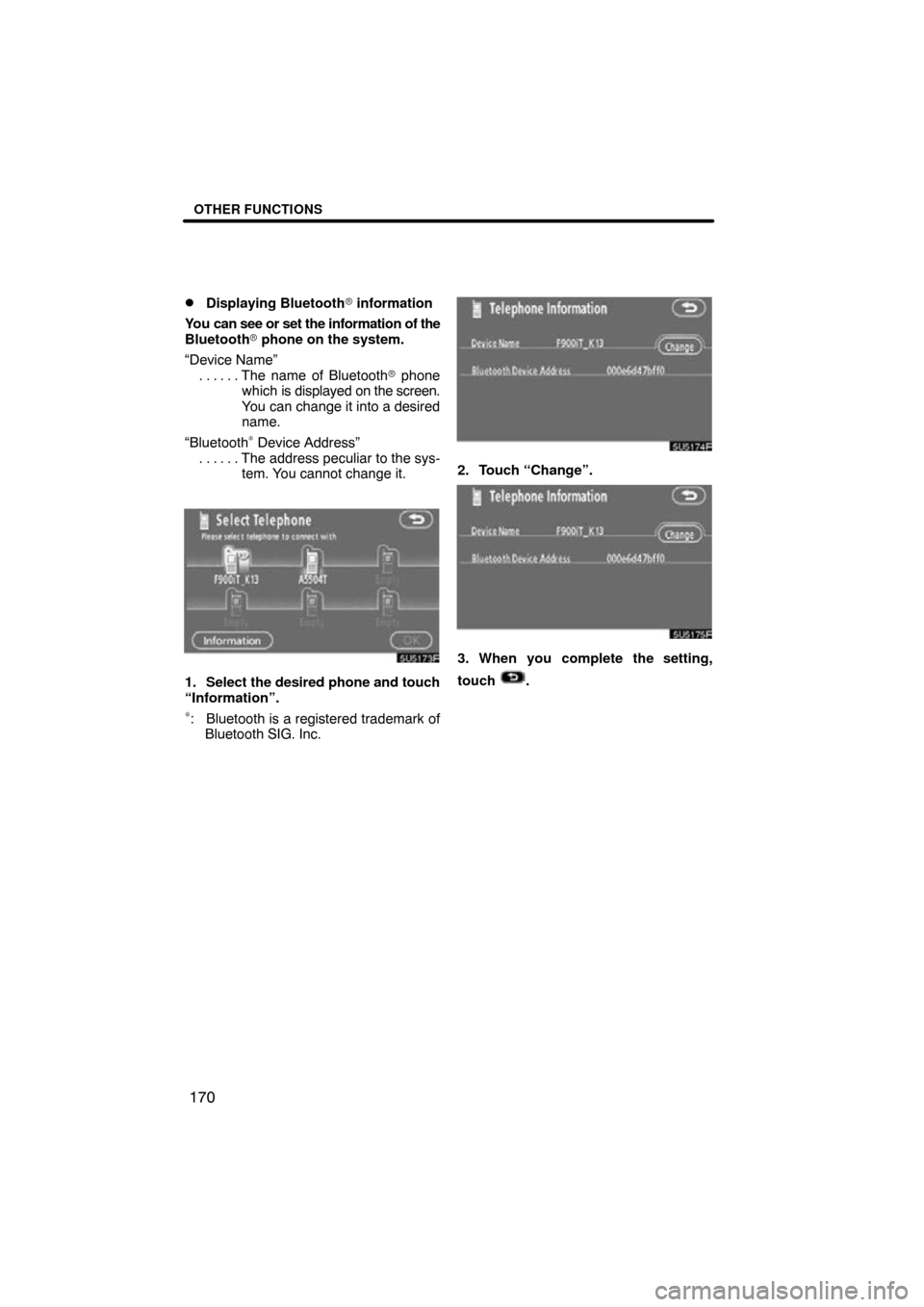

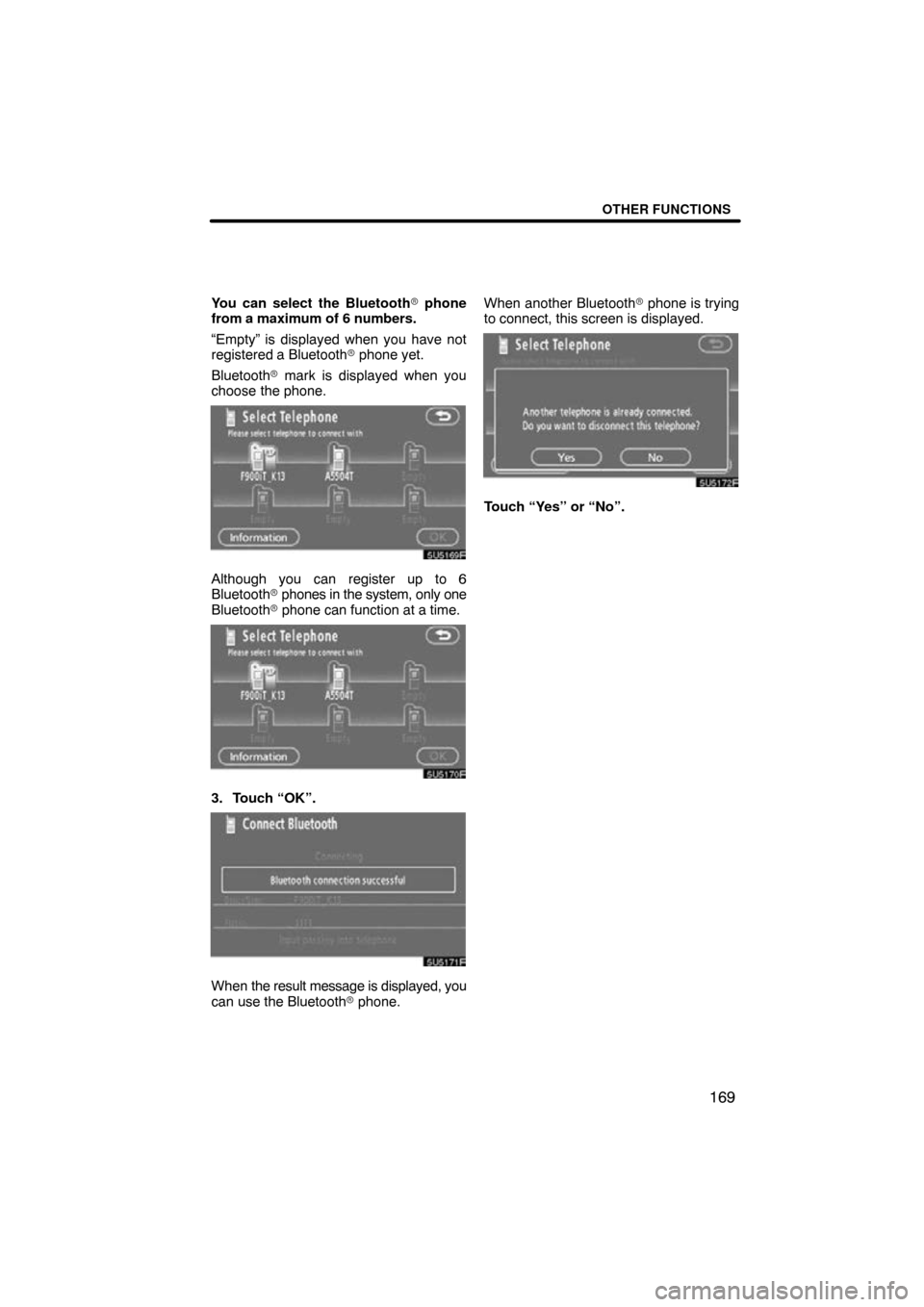

You can select the Bluetooth phone
from a maximum of 6 numbers.
“Empty” is displayed when you have not
registered a Bluetooth  phone yet.
Bluetooth  mark is displayed when you
choose the phone.
Although you can register up to 6
Bluetooth  phones in the system, only one
Bluetooth  phone can function at a time.
3. Touch “OK”.
When the result message is displayed, you
can use the Bluetooth  phone. When another Bluetooth
 phone is trying
to connect, this screen is displayed.
Touch “Yes” or “No”.

OTHER FUNCTIONS
170

Displaying Bluetooth
information
You can see or set the information of the
Bluetooth  phone on the system.
“Device Name” The name of Bluetooth  phone
. . . . . .
which is displayed on the screen.
You can change it into a desired
name.
“Bluetooth
∗ Device Address”
The address peculiar to the sys-
. . . . . .
tem. You cannot change it.

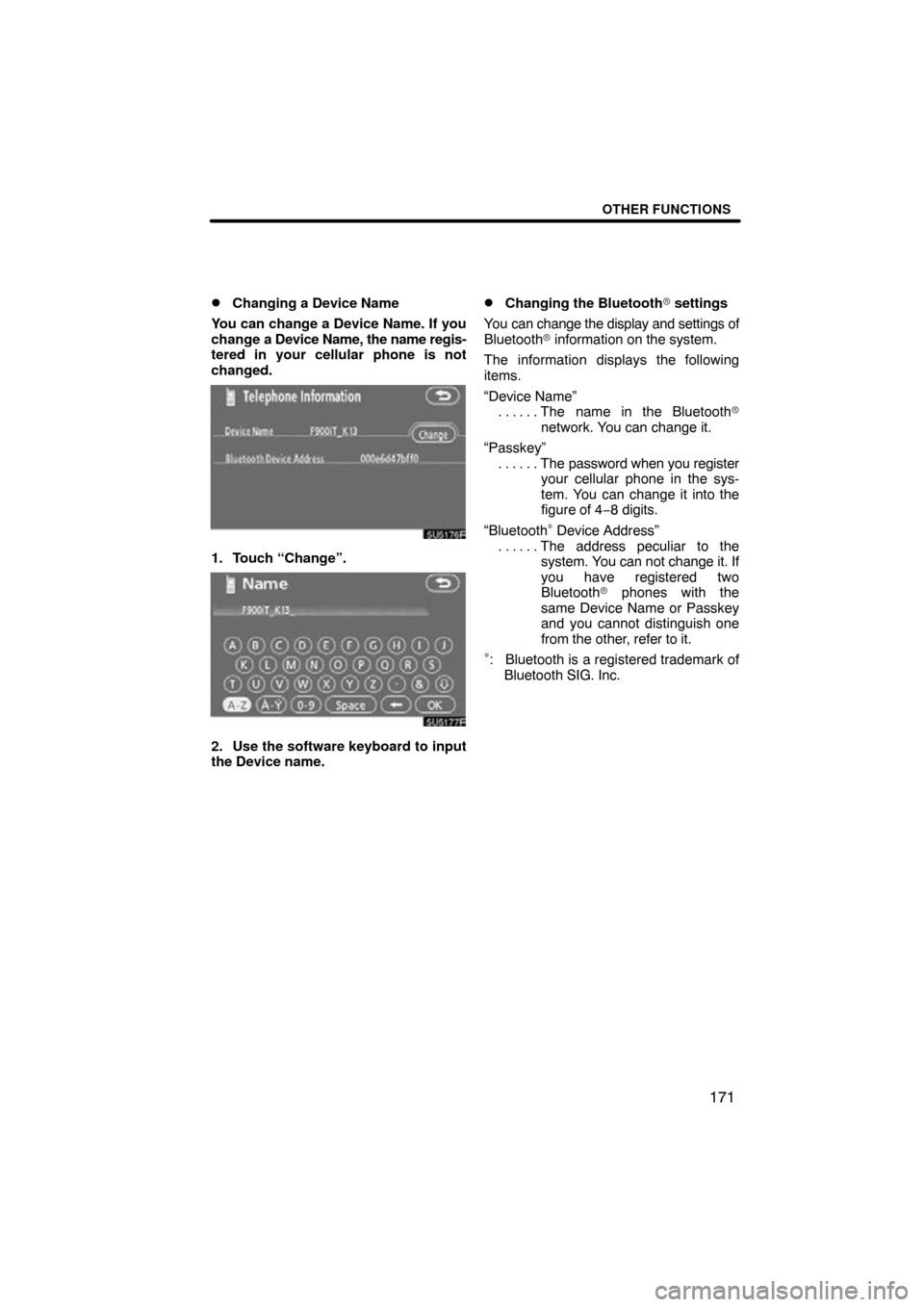

1. Select the desired phone and touch
“Information”.
∗: Bluetooth is a registered trademark of
Bluetooth SIG. Inc.
2. Touch “Change”.
3. When you complete the setting,
touch
.

OTHER FUNCTIONS
171

Changing a Device Name
You can change a Device Name. If you
change a Device Name, the name regis-
tered in your cellular phone is not
changed.
1. Touch “Change”.
2. Use the software keyboard to input
the Device name.
Changing the Bluetooth settings
You can change the display and settings of
Bluetooth  information on the system.
The information displays the following
items.
“Device Name” The name in the Bluetooth
. . . . . .
network. You can change it.
“Passkey” The password when you register
. . . . . .
your cellular phone in the sys-
tem. You can change it into the
figure of 4 −8 digits.
“Bluetooth
∗ Device Address”
The address peculiar to the
. . . . . .
system. You can not change it. If
you have registered two
Bluetooth  phones with the
same Device Name or Passkey
and you cannot distinguish one
from the other , refer to it.
∗: Bluetooth is a registered trademark of
Bluetooth SIG. Inc.

OTHER FUNCTIONS
172

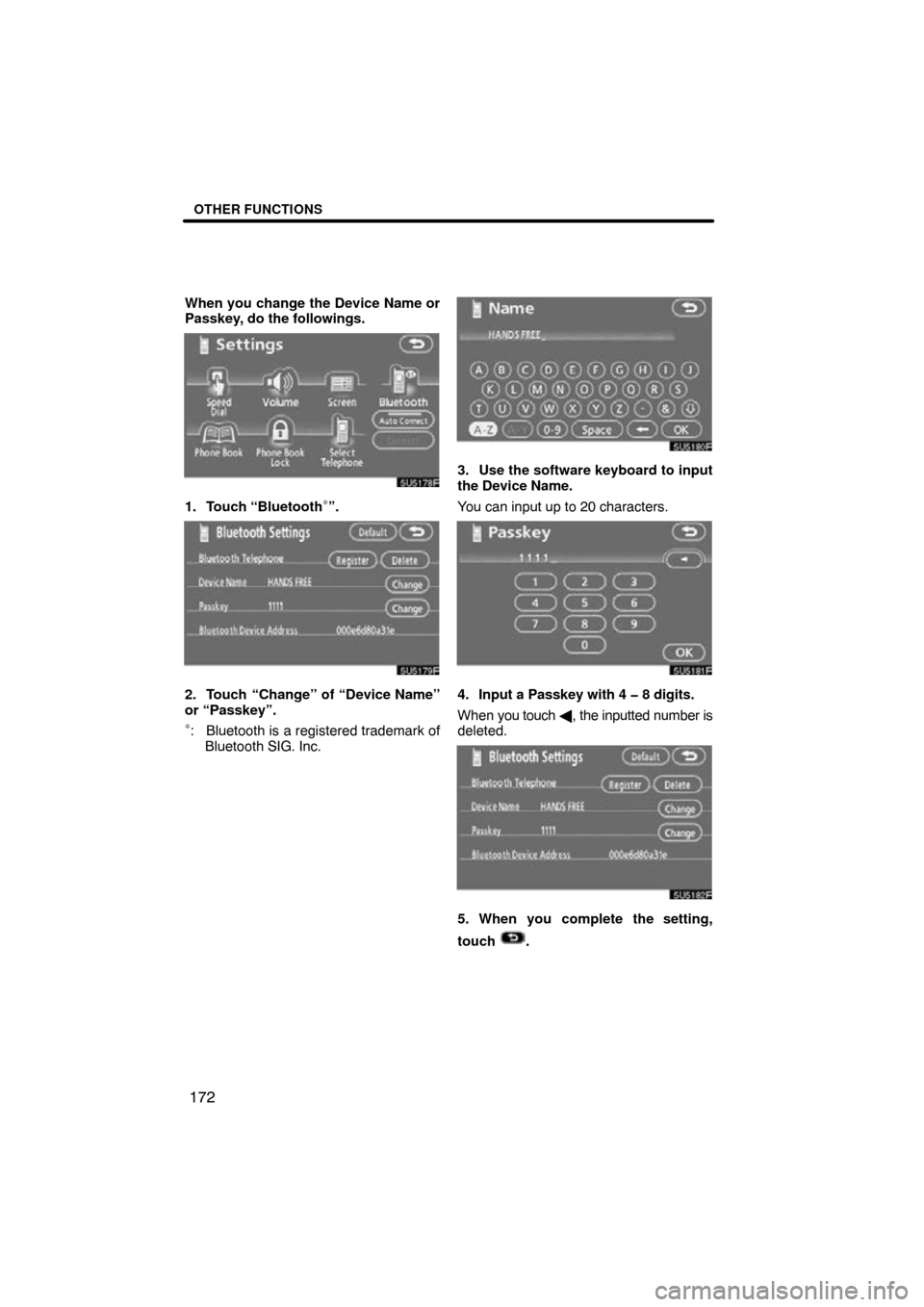

When you change the Device Name or
Passkey, do the followings.
1. Touch “Bluetooth∗”.
2. Touch “Change” of “Device Name”
or “Passkey”.
∗: Bluetooth is a registered trademark of
Bluetooth SIG. Inc.
3. Use the software keyboard to input
the Device Name.
You can input up to 20 characters.
4. Input a Passkey with 4 8 digits.
When you touch  , the inputted number is
deleted.
5. When you complete the setting,
touch
.

OTHER FUNCTIONS
173

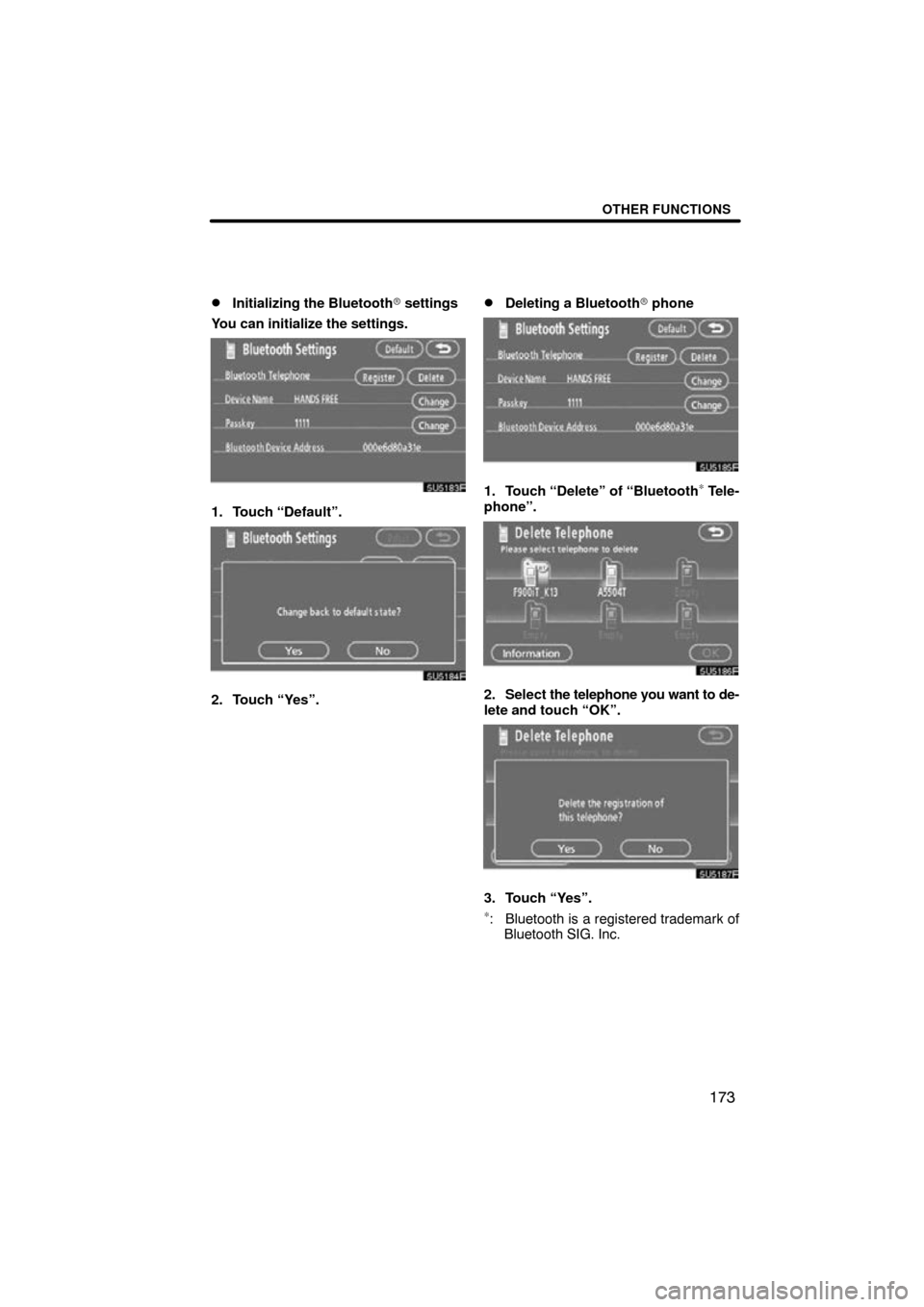

Initializing the Bluetooth
 settings
You can initialize the settings.
1. Touch “Default”.
2. Touch “Yes”.

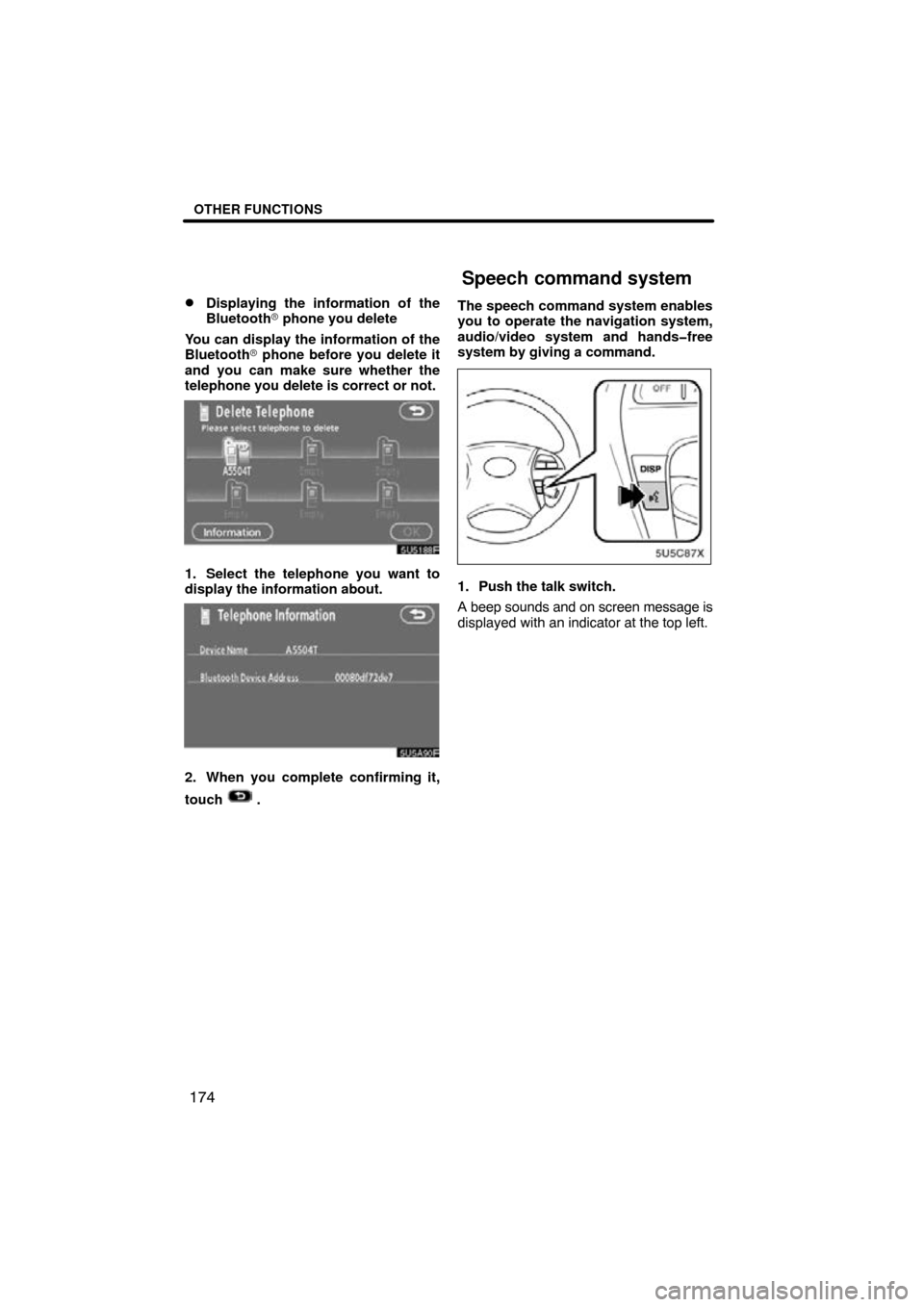

Deleting a Bluetooth phone
1. Touch “Delete” of “Bluetooth∗ Tele-
phone”.
2. Select the telephone you want to de-
lete and touch “OK”.
3. Touch “Yes”.
∗: Bluetooth is a registered trademark of Bluetooth SIG. Inc.

OTHER FUNCTIONS
174

Displaying the information of the
Bluetooth
 phone you delete
You can display the information of the
Bluetooth  phone before you delete it
and you can make sure whether the
telephone you delete is correct or not.
1. Select the telephone you want to
display the information about.
2. When you complete confirming it,
touch
. The speech command system enables
you to operate the navigation system,
audio/video system and handsfree
system by giving a command.
1. Push the talk switch.
A beep sounds and on screen message is
displayed with
an indicator at the top left.
Speech command system
