TOYOTA HIGHLANDER 2011 XU40 / 2.G Navigation Manual

1
Introduction
This manual explains the operation of the Navigation System.
Please read this manual carefully to ensure proper use. Keep this
manual in your vehicle at all times.
The Navigation System is one of the most technologically advanced
vehicle accessories ever developed. The system receives satellite sig-
nals from the Global Positioning System (GPS) operated by the U.S.
Department of Defense. Using these signals and other vehicle sen-
sors, the system indicates your present position and assists in locating
a desired destination.
The navigation system is designed to select efficient routes from your
present starting location to your destination. The system is also designed
to direct you to a destination that is unfamiliar to you in an ef ficient manner.
The system uses DENSO maps. The calculated routes may not be the
shortest nor the least traffic congested. Your own personal local knowl-
edge or “short cut” may at times be faster than the calculated rou\
tes.
The navigation system’s database includes Point of Interest categories to
allow you to easily select destinations such as restaurants and hotels. If
a destination is not in the database, you can enter the street address o\
r
a major intersection close to it and the system will guide you there.
The system will provide both a visual map and audio instructions. The au-
dio instructions will announce the distance remaining and the direction to
turn in approaching an intersection. These voice instructions will help you
keep your eyes on the road and are timed to provide enough time to allow
you to maneuver, change lanes or slow down.

2
Please be aware that all current vehicle navigation systems have
certain limitations that may affect their ability to perform properly.
The accuracy of the vehicle’s position depends on the satellite con-
dition, road configuration, vehicle condition or other circumstan-
ces. For more information on the limitations of the system, refer to
pages 328 through 329.

3
For safety reasons, this manual indicates
items requiring particular attention with the
following marks.
CAUTION
This is a warning against anything
which may cause injury to people if
the warning is ignored. You are in-
formed about what you must or must
not do in order to reduce the risk of
injury to yourself and others.
NOTICE
This is a warning against anything
which may cause damage to the ve-
hicle or its equipment if the warning
is ignored. You are informed about
what you must or must not do in or-
der to avoid or reduce the risk of dam-
age to your vehicle and its equip-
ment.
INFORMATION
This provides additional information.

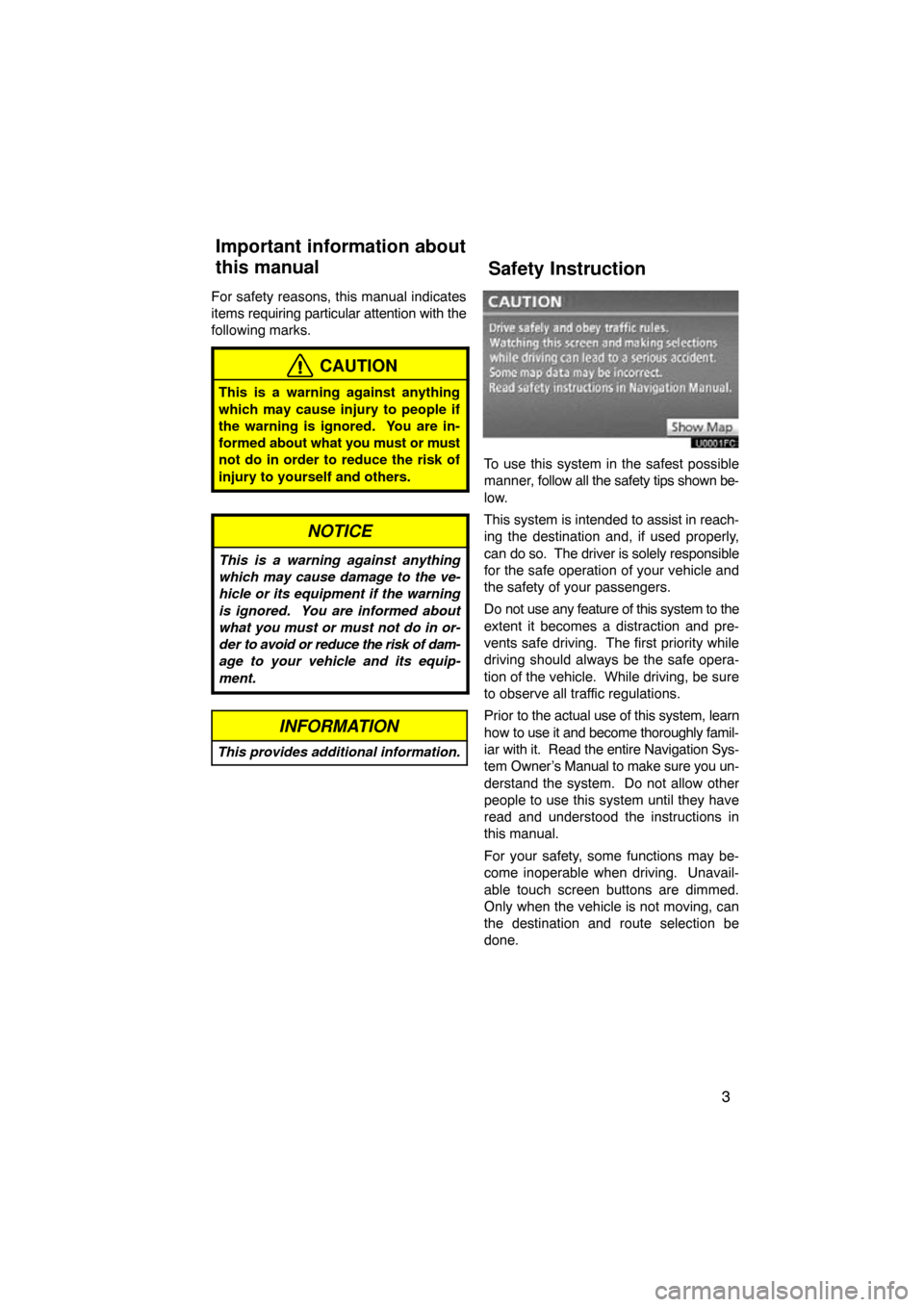

To use this system in the safest possible
manner, follow all the safety tips shown be-
low.
This system is intended to assist in reach-
ing the destination and, if used properly,
can do so. The driver is solely responsible
for the safe operation of your vehicle and
the safety of your passengers.
Do not use any feature of this system to the
extent it becomes a distraction and pre-
vents safe driving. The first priority while
driving should always be the safe opera-
tion of the vehicle. While driving, be sure
to observe all traffic regulations.
Prior to the actual use of this system, learn
how to use it and become thoroughly famil-
iar with it. Read the entire Navigation Sys-
tem Owner’s Manual to make sure you un-
derstand the system. Do not allow other
people to use this system until they have
read and understood the instructions in
this manual.
For your safety, some functions may be-
come inoperable when driving. Unavail-
able touch screen buttons are dimmed.
Only when the vehicle is not moving, can
the destination and route selection be
done.
Important information about
this manualSafety Instruction

4
CAUTION
For safety, the driver should not
operate the navigation system
while he/she is driving.
Insufficient attention to the road
and traffic may cause an accident.
 While driving, be sure to obey the
traffic regulations and maintain
awareness of the road conditions.
If a traffic sign on the road has
been changed, route guidance
may not have the updated
information such as the direction
of a one way street.
While driving, listen to the voice instruc-
tions as much as possible and glance at
the screen briefly and only when it is safe.
However, do not totally rely on voice guid-
ance. Use it just for reference. If the sys-
tem cannot determine the current vehicle
position correctly, there is a possibility of
incorrect, late, or non −voice guidance.
The data in the system may occasionally
be incomplete. Road conditions, including
driving restrictions (no left turns, street clo-
sures, etc.) frequently change. Therefore,
before following any instruction from the
system, look to see whether the instruction
can be done safely and legally.
This system cannot warn about such
things as the safety of an area, condition of
streets, and availability of emergency ser-
vices. If unsure about the safety of an
area, do not drive into it. Under no cir-
cumstances is this system a substitute
for the driver’s personal judgement.
Use this system only in locations where it
is legal to do so. Some states/provinces
may have laws prohibiting the use of video
and navigation screens next to the driver.

5
Table of Contents
Quick guide —
— Overview buttons and guidance screen 10. . . . . . . . . . .
— Registering home 12 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
— Registering preset destinations 14 . . . . . . . . . . . . . . . . . .
— Operation flow: guiding the route 16 . . . . . . . . . . . . . . . . .
— Setting home as the destination 17 . . . . . . . . . . . . . . . . . .
Navigation system function index 18 . . . . . . . . . . . . . . . . . . .
Quick reference (“Destination” screen) 20 . . . . . . . . . . . . . .
Quick reference (“Setup” screen) 22 . . . . . . . . . . . . . . . . . . .
Quick reference (“Information” screen) 23 . . . . . . . . . . . . . .
1 Basic Functions 〈Basic information before operation〉
Initial screen 26
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .\
. . . . . . . . . .
Touch screen operation 27
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .\

Inputting letters and numbers/List screen operation 28
. . . . . . . . . . . . .
Screen adjustment 31
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .\
. . . .
Function help 33
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .\
. . . . . . . . .
Map screen operation 33
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .\
.
Current position display 33
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Screen scroll operation (one −touch scroll) 34
. . . . . . . . . . . . . . . . . . .
Switching the screens 39
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Map scale 42
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .\
. . . . . . . . .
Foot print map 42
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .\
. . . . .
Orientation of the map 43
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Map icons 44
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .\
. . . . . . . . .
Speech command system 44
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Command list 47
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .\
. . . . . .
Quick
Guide

6
2 Destination Search
Destination search52
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .\
. . .
Selecting the search area 52 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Destination search by Home 54
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Destination search by Preset destinations 54
. . . . . . . . . . . . . . . . . . .
Destination search by “Address” 55
. . . . . . . . . . . . . . . . . . . . . . . . . . .
Destination search by “Point of Interest” 59
. . . . . . . . . . . . . . . . . . . .
Destination search by “Previous Destinations” 65
. . . . . . . . . . . . . . .
Destination search by “Address Book” 66
. . . . . . . . . . . . . . . . . . . . . .
Destination search by “Emergency” 66
. . . . . . . . . . . . . . . . . . . . . . . .
Destination search by “Intersection & Freeway” 67
. . . . . . . . . . . . . .
Destination search by “Map” 70
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Destination search by “Coordinates” 71
. . . . . . . . . . . . . . . . . . . . . . . .
Deleting set destinations 71
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Starting route guidance 72
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .\
.
3 Route Guidance
Route guidance screen 78
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .\
.
Typical voice guidance prompts 81
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Distance and time to destination 83
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Setting and deleting destinations 84
. . . . . . . . . . . . . . . . . . . . . . . . . . .
Adding destinations 84
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .\
.
Reordering destinations 84
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Deleting destinations 85
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .\

Setting route 86
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .\
. . . . . . . . .
Detour setting 86
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .\
. . . . . .
Route overview 87
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .\
. . . . .
Route preference 89
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .\
. . .
Pausing and resuming guidance 91
. . . . . . . . . . . . . . . . . . . . . . . . . . .
Show on map 92
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .\
. . . . . . . .
Display POI
∗ icons 92
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .\
. .
Route trace 96
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .\
. . . . . . . .
XM  NavTraffic 98
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .\
. . . . . . .
∗: Point of Interest

7
4 My Places
Navigation settings102
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .\
.
Setting up the “Home” 103 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Setting up the “Preset Destinations” 105
. . . . . . . . . . . . . . . . . . . . . .
Setting up the “Address Book” 108
. . . . . . . . . . . . . . . . . . . . . . . . . . .
Setting up the “Areas to Avoid” 114
. . . . . . . . . . . . . . . . . . . . . . . . . . .
Deleting previous destinations 119
. . . . . . . . . . . . . . . . . . . . . . . . . . . .
5 Telephone and Information
Telephone (Handsfree system for cellular phone) 122
. . . . . . . . .
Enter a Bluetooth  phone 126 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Call on the Bluetooth  phone 131 . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Receive on the Bluetooth  phone 138 . . . . . . . . . . . . . . . . . . . . . . . .
Talk on the Bluetooth  phone 139 . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Calendar 142 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . \
. . . . . . . . . . . .
6 Audio/video system
Quick reference 144
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .\
. . . . .
Using your audio/video system 145
. . . . . . . . . . . . . . . . . . . . . . . . . . .
Some basics 145
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .\
. . . . .
Radio operation 153
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .\
. .
Radio operation (XM  Satellite Radio broadcast) 158
. . . . . . . . . . .
CD changer operation 164
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Bluetooth  audio operation 176
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
DVD player operation 184
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
USB memory/iPod operation 208
. . . . . . . . . . . . . . . . . . . . . . . . . . . .
Audio/video remote controls (steering switches) 215
. . . . . . . . . . . . . .
Rear seat entertainment system features 218
. . . . . . . . . . . . . . . . . .
Using the DVD player (DVD video) 223
. . . . . . . . . . . . . . . . . . . . . . .
Using the DVD player (video CD) 229
. . . . . . . . . . . . . . . . . . . . . . . .
Using the DVD player (audio CD/CD text) 231
. . . . . . . . . . . . . . . . .
Using the DVD player (MP3 discs) 232
. . . . . . . . . . . . . . . . . . . . . . .
Using the video mode 233
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Changing the initial setting 234
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Replacing the batteries 238
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Audio/video system operating hints 239
. . . . . . . . . . . . . . . . . . . . . . . . .
7 Rear View Monitor System
Rear view monitor system 250
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

8
8 Setup
General settings256
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .\
. . . . .
Clock settings 261
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .\
. . . . . . .
Voice settings 263
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .\
. . . . . . .
Navigation settings 265
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .\
. .
Detailed navigation settings 265
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Telephone settings 274
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .\
.
Volume setting 275
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .\
. . .
Manage phone 276
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .\
. . .
Phonebook 284
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . \
. . . . . . .
Setting the phonebook 285
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Speed dials setting 293
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Deleting call history 300
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Setting the voice tag 301
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Bluetooth  305
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . \
. . . . . . . .
Details 310
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . \
. . . . . . . . . . .
Audio settings 313
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .\
. . . . .
Select portable player 313
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Setting Bluetooth audio 315
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Vehicle settings 320
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .\
. . . .
Maintenance 320
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . \
. . . . . .
9 Appendix
Limitations of the navigation system 328
. . . . . . . . . . . . . . . . . . . . . . . . .
Map database information and updates 330
. . . . . . . . . . . . . . . . . . .
Changing the map DVD −ROM 339
. . . . . . . . . . . . . . . . . . . . . . . . . . .
Index 343
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .\
. . . . . . . .

9

10
No.NameFunctionPage
1
Northup or
headingup
symbolThis symbol indicates a map view with
north−up or heading−up. Touching this
symbol changes the map orientation.
43
2Scale indicatorThis figure indicates the map scale.42
3“MAP/VOICE”
buttonPush this button to repeat a voice guid-
ance, cancel one touch scroll, start
guidance, and disp lay the current posi-
tion.
33, 82
4“DEST” buttonPush this button to display the “Destina-
tion” screen.12, 14, 16, 17, 20, 52
5Zoom out buttonTouch this button to reduce the map
scale.42
6“DISP” buttonPush this button to display the “Display”
screen.31

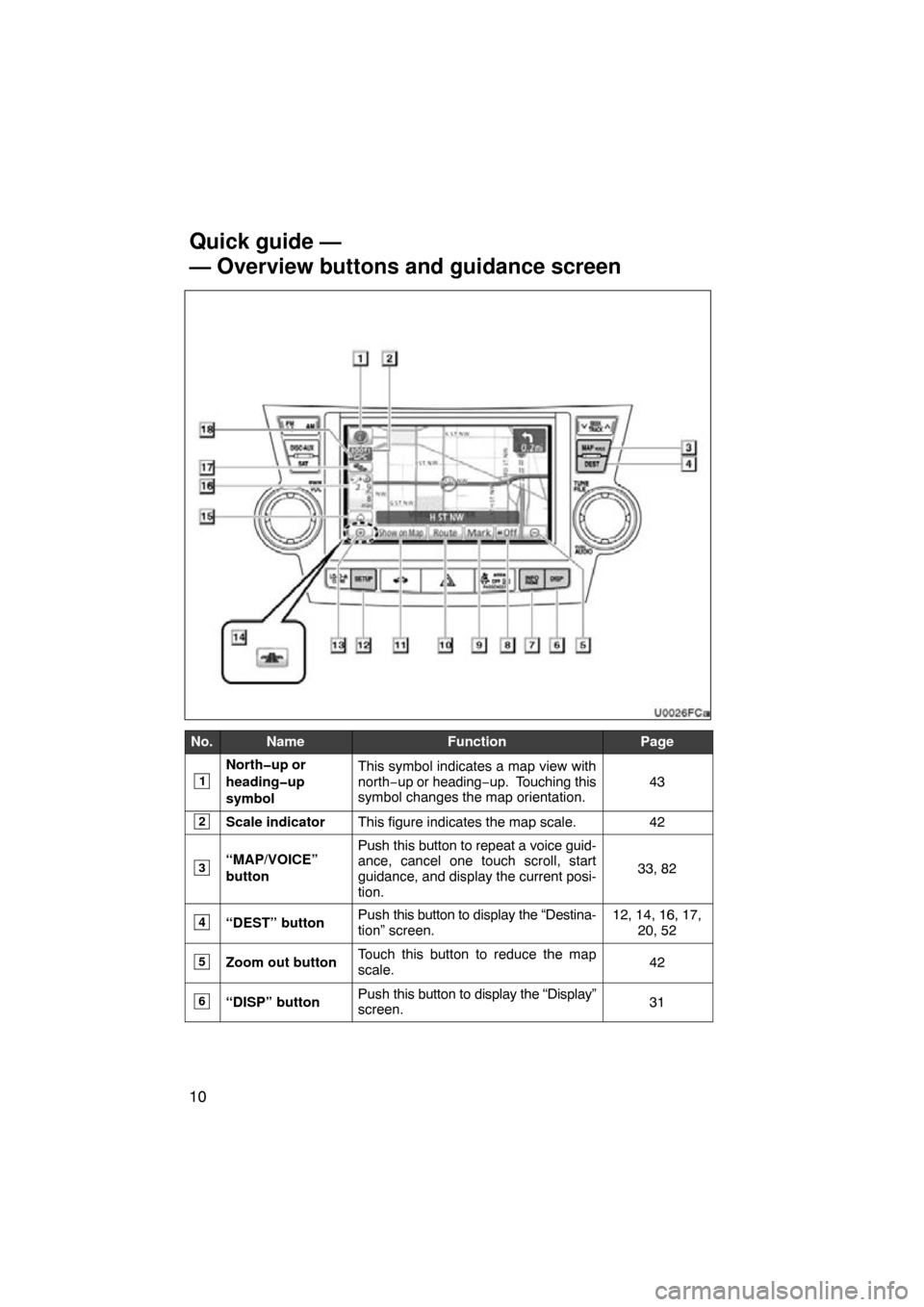

Quick guide —
— Overview buttons and guidance screen
