TOYOTA HIGHLANDER 2011 XU40 / 2.G Navigation Manual

TELEPHONE AND INFORMATION
141

Interrupt call
When
the call is interrupted by the third
party while talking, this screen is dis-
played.
Touch
or push on the steering
wheel to start talking with the other party.
Touch
or push on the steering
wheel to refuse the call.
Everytime you touch or push on
the steering wheel during interrupted call,
the other party will be switched.
If your cellular phone is not approved for
HFP Ver. 1.5, this function can not be used.
INFORMATION
Interrupt call operation may differ
depending on your phone company
and cellular phone.

TELEPHONE AND INFORMATION
142
To view calendar.
1. Push the “INFO/PHONE” button.
2. Touch “Calendar”.
On this screen, the current date is high-
lighted in yellow.
or : To change month.
or : To change year.
“Today”: To display the current month cal-
endar (if another month’s is being dis-
played).
Calendar

SECTION 6
AUDIO/VIDEO SYSTEM
143

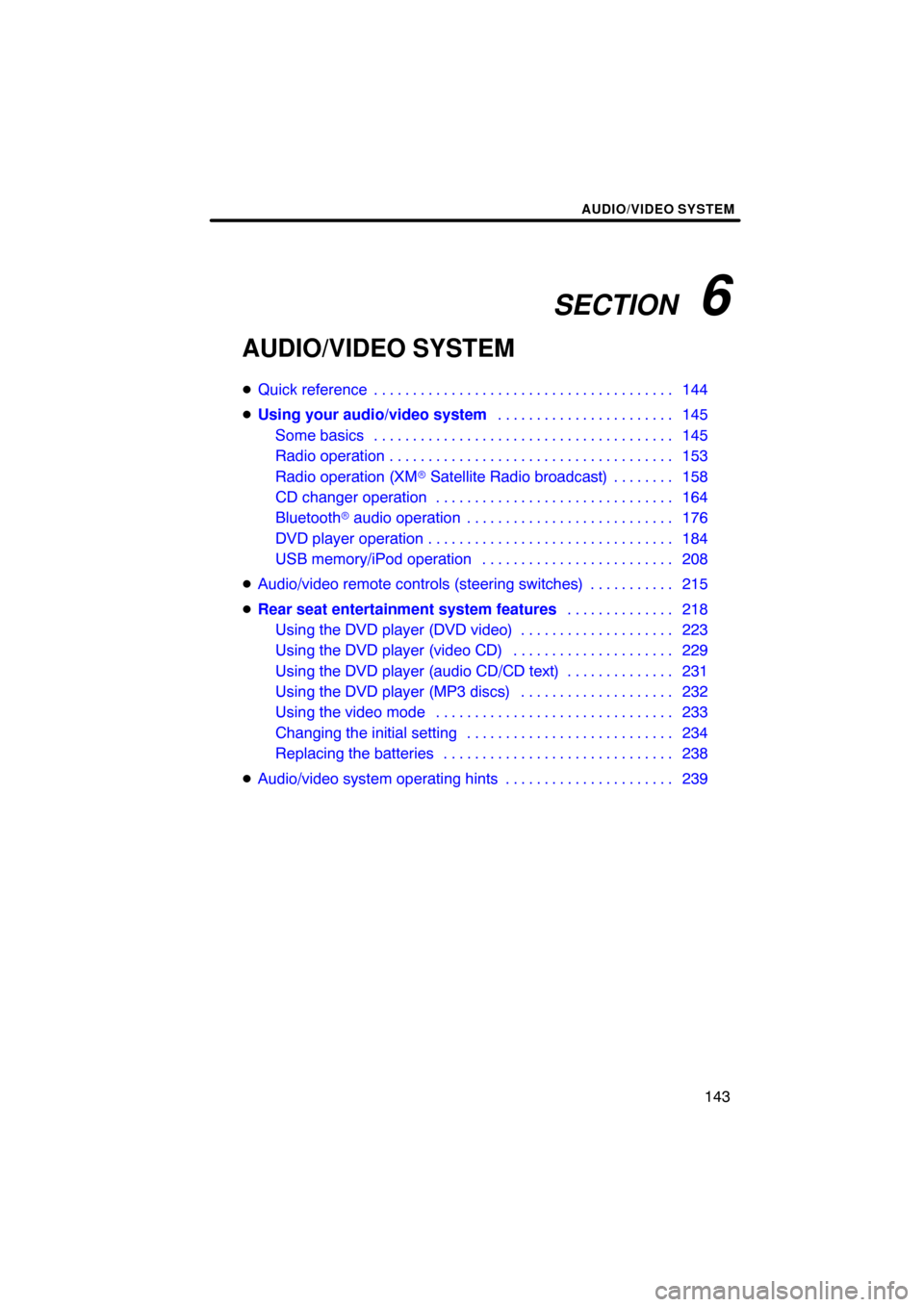

AUDIO/VIDEO SYSTEM
Quick reference 144 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .\
. .
 Using your audio/video system 145
. . . . . . . . . . . . . . . . . . . . . . .
Some basics 145 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .\
. .
Radio operation 153 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .\

Radio operation (XM  Satellite Radio broadcast) 158 . . . . . . . .
CD changer operation 164 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Bluetooth  audio operation 176 . . . . . . . . . . . . . . . . . . . . . . . . . . .
DVD player operation 184 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
USB memory/iPod operation 208 . . . . . . . . . . . . . . . . . . . . . . . . .
 Audio/video remote controls (steering switches) 215 . . . . . . . . . . .
 Rear seat entertainment system features 218
. . . . . . . . . . . . . .
Using the DVD player (DVD video) 223 . . . . . . . . . . . . . . . . . . . .
Using the DVD player (video CD) 229 . . . . . . . . . . . . . . . . . . . . .
Using the DVD player (audio CD/CD text) 231 . . . . . . . . . . . . . .
Using the DVD player (MP3 discs) 232 . . . . . . . . . . . . . . . . . . . .
Using the video mode 233 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Changing the initial setting 234 . . . . . . . . . . . . . . . . . . . . . . . . . . .
Replacing the batteries 238 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
 Audio/video system operating hints 239 . . . . . . . . . . . . . . . . . . . . . .

AUDIO/VIDEO SYSTEM
144

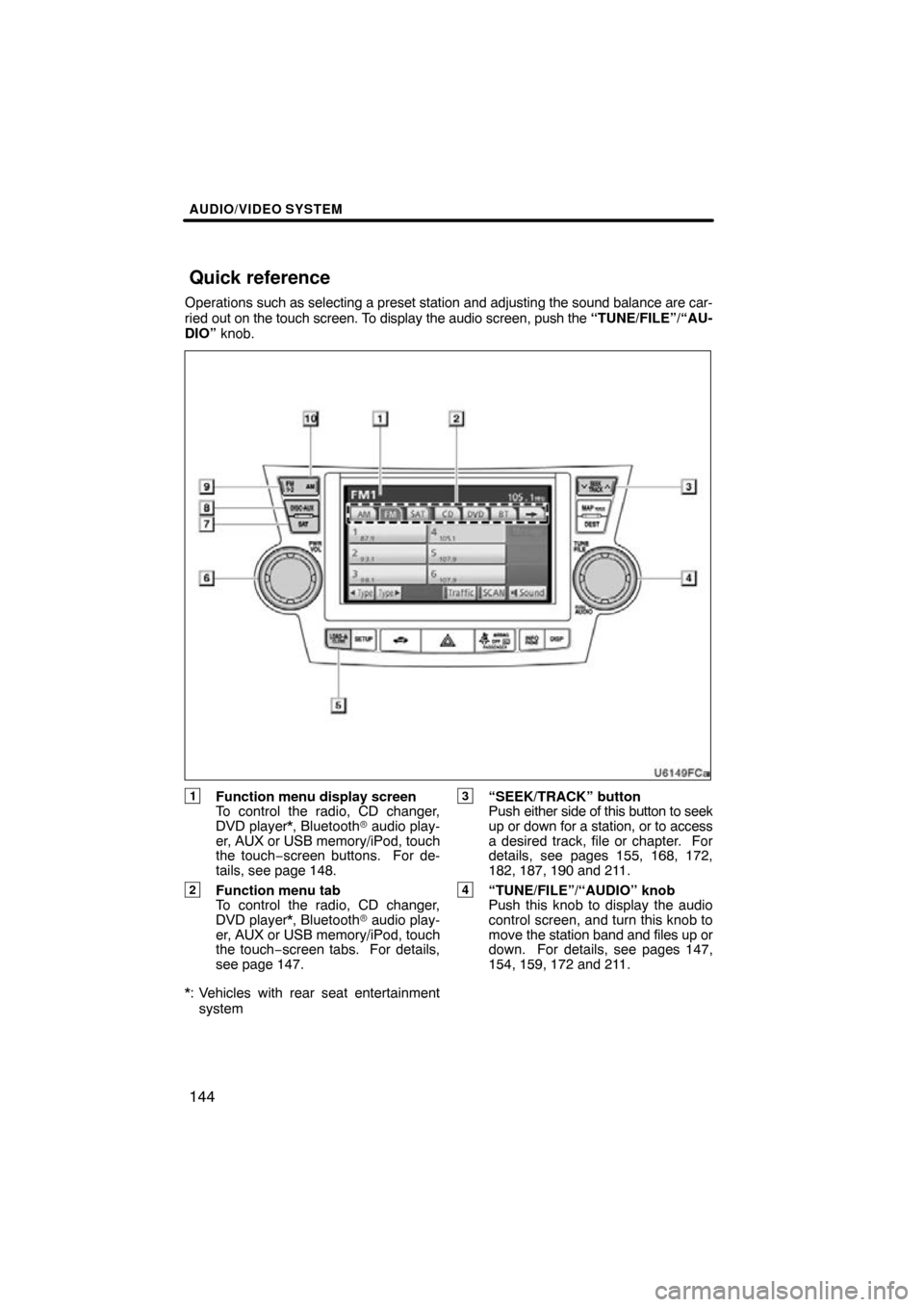

Operations such as selecting a preset station and adjusting the sound balance are c\
ar-
ried out on the touch screen. To display the audio screen, push the “TUNE/FILE”/“AU-
DIO” knob.
1Function menu display screen
To control the radio, CD changer,
DVD player*, Bluetooth  audio play-
er, AUX or USB memory/iPod, touch
the touch−screen buttons. For de-
tails, see page 148.
2Function menu tab
To control the radio, CD changer,
DVD player*, Bluetooth  audio play-
er, AUX or USB memory/iPod, touch
the touch−screen tabs. For details,
see page 147.
*: Vehicles with rear seat entertainment system
3“SEEK/TRACK” button
Push either side of this button to seek
up or down for a station, or to access
a desired track, file or chapter. For
details, see pages 155, 168, 172,
182, 187, 190 and 211.
4“TUNE/FILE”/“AUDIO” knob
Push this knob to display the audio
control screen, and turn this knob to
move the station band and files up or
down. For details, see pages 147,
154, 159, 172 and 211.
Quick reference

AUDIO/VIDEO SYSTEM
145
5“LOAD·/ CLOSE” button
Push this button to display the
“Load·Eject” screen or close the dis-
play. For details, see page 164.
6“PWR/VOL” knob
Push this knob to turn the audio sys-
tem on and off, and turn it to adjust the
volume. For details, see page 147.
7“SAT” button
Push this button to choose an SAT
station. For details, see pages 147
and 159.
8“DISC·AUX” button
Push this button to turn the
Bluetooth  audio player, AUX, USB
memory/iPod, CD changer or DVD
player* on. For details, see pages
147, 153, 167, 181 and 186.
*: Vehicles with rear seat entertainment system
9“FM 1·2” button
Push this button to choose an FM sta-
tion. Each time this button is pushed,
the mode switches between FM1 and
FM2. For details, see pages 147 and
153.
10“AM” button
Push this button to choose an AM sta-
tion. For details, see pages 147 and
153. This section describes some of the basic
features of your audio system. Some in-
formation may not
pertain to your system.
Vehicles with smart key system—
Your audio system works when the “EN-
GINE START STOP” switch is turned to
ACCESSORY or IGNITION ON mode.
Vehicles without smart key system—
Your audio system works when the engine
switch is turned to the “ACC” or “ON” posi-
tion.

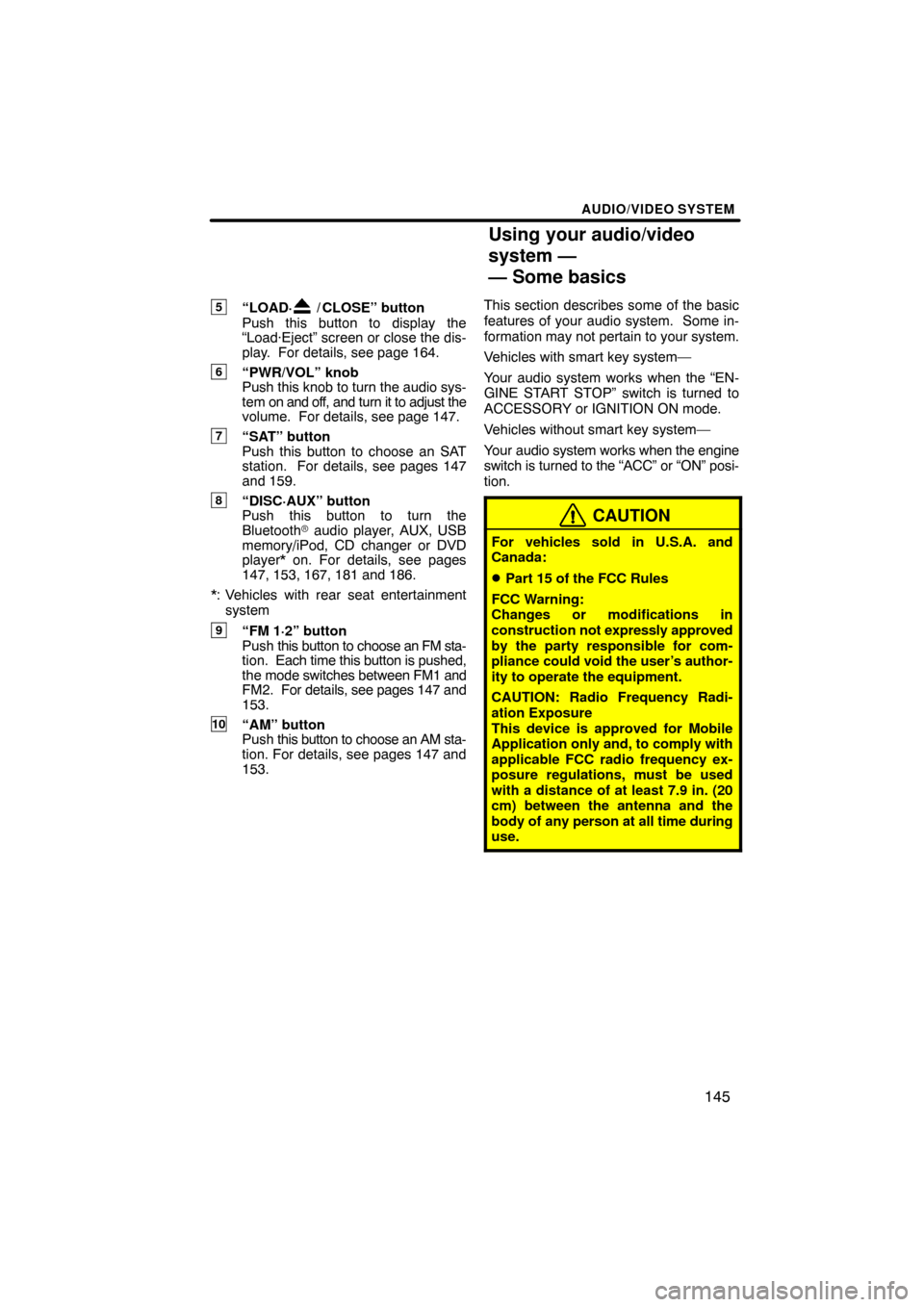

CAUTION
For vehicles sold in U.S.A. and
Canada:
Part 15 of the FCC Rules
FCC Warning:
Changes or modifications in
construction not expressly approved
by the party responsible for com-
pliance could void the user’s author-
ity to operate the equipment.
CAUTION: Radio Frequency Radi-
ation Exposure
This device is approved for Mobile
Application only and, to comply with
applicable FCC radio frequency ex-
posure regulations, must be used
with a distance of at least 7.9 in. (20
cm) between the antenna and the
body of any person at all time during
use.
Using your audio/video
system —
— Some basics

AUDIO/VIDEO SYSTEM
146
Laser products Do not take this unit apart or at-
tempt to make any changes
yourself. This is an intricate unit
that uses a laser pickup to re-
trieve information from the sur-
face of compact discs. The la-
ser is carefully shielded so that
its rays remain inside the cabi-
net. Therefore, never try to dis-
assemble the player or alter any
of its parts since you may be ex-
posed to laser rays and danger-
ous voltages.
 This product utilizes a laser.
Use of controls or adjustments
or performance of procedures
other than those specified here-
in may result in hazardous radi-
ation exposure.
NOTICE
To prevent the battery from being dis-
charged, do not leave the audio sys-
tem on longer than necessary when
the engine is not running.
(a) Speech command system
By pushing the switch above, you can
operate the speech command system.
For the operation of the speech command
system and the list of commands, see
pages 44 and 47.

AUDIO/VIDEO SYSTEM
147

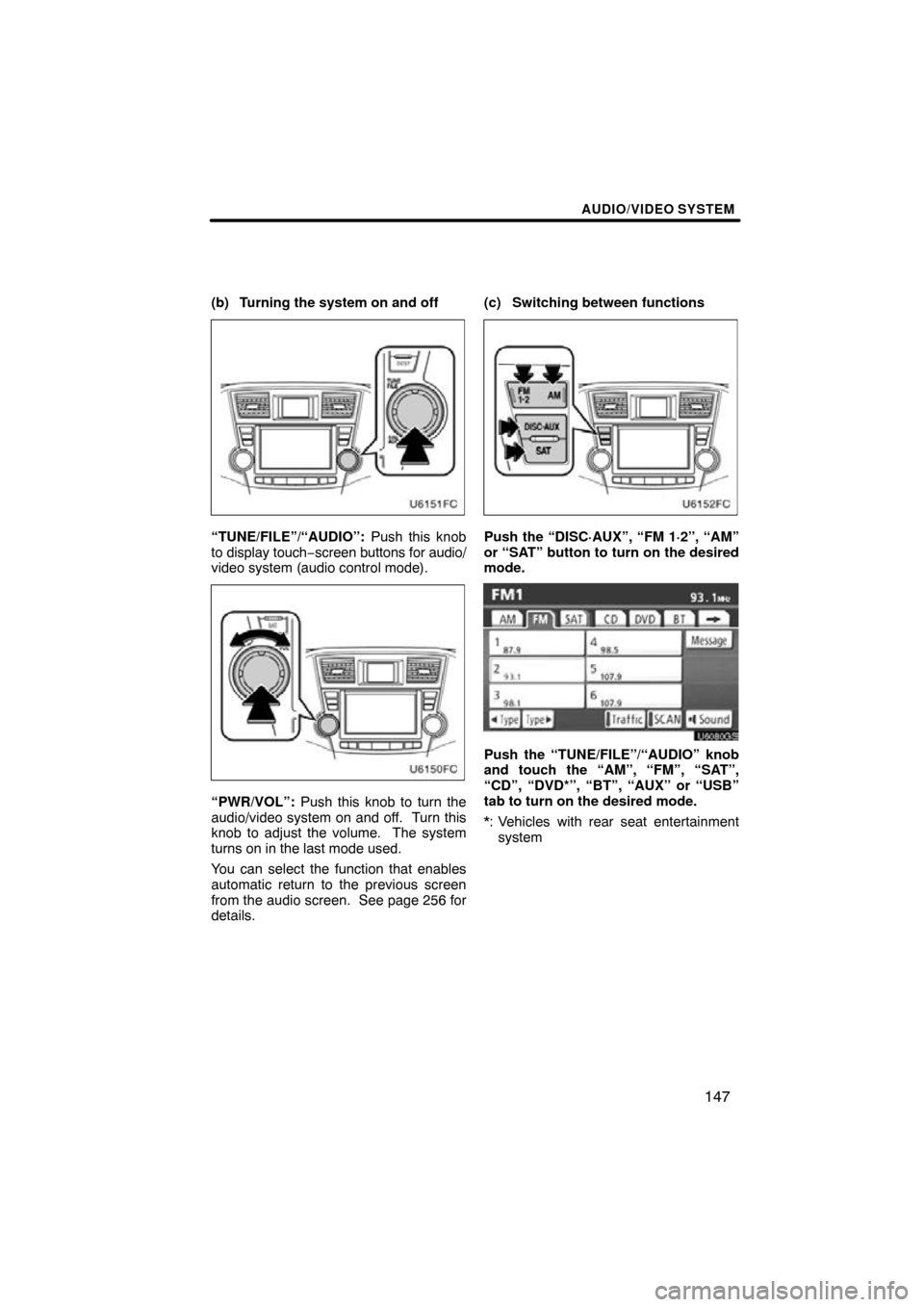

(b) Turning the system on and off
“TUNE/FILE”/“AUDIO”: Push this knob
to display touch− screen buttons for audio/
video system (audio control mode).
“PWR/VOL”: Push this knob to turn the
audio/video system on and off. Turn this
knob to adjust the volume. The system
turns on in the last mode used.
You can select the function that enables
automatic return to the previous screen
from the audio screen. See page 256 for
details. (c) Switching between functions
Push the “DISC·AUX”, “FM 1·2”, “AM”
or “SAT” button to turn on the desired
mode.
U6080GS
Push the “TUNE/FILE”/“AUDIO” knob
and touch the “AM”, “FM”, “SAT”,
“CD”, “DVD*”, “BT”, “AUX” or “USB”
tab to turn on the desired mode.
*: Vehicles with rear seat entertainment
system

AUDIO/VIDEO SYSTEM
148

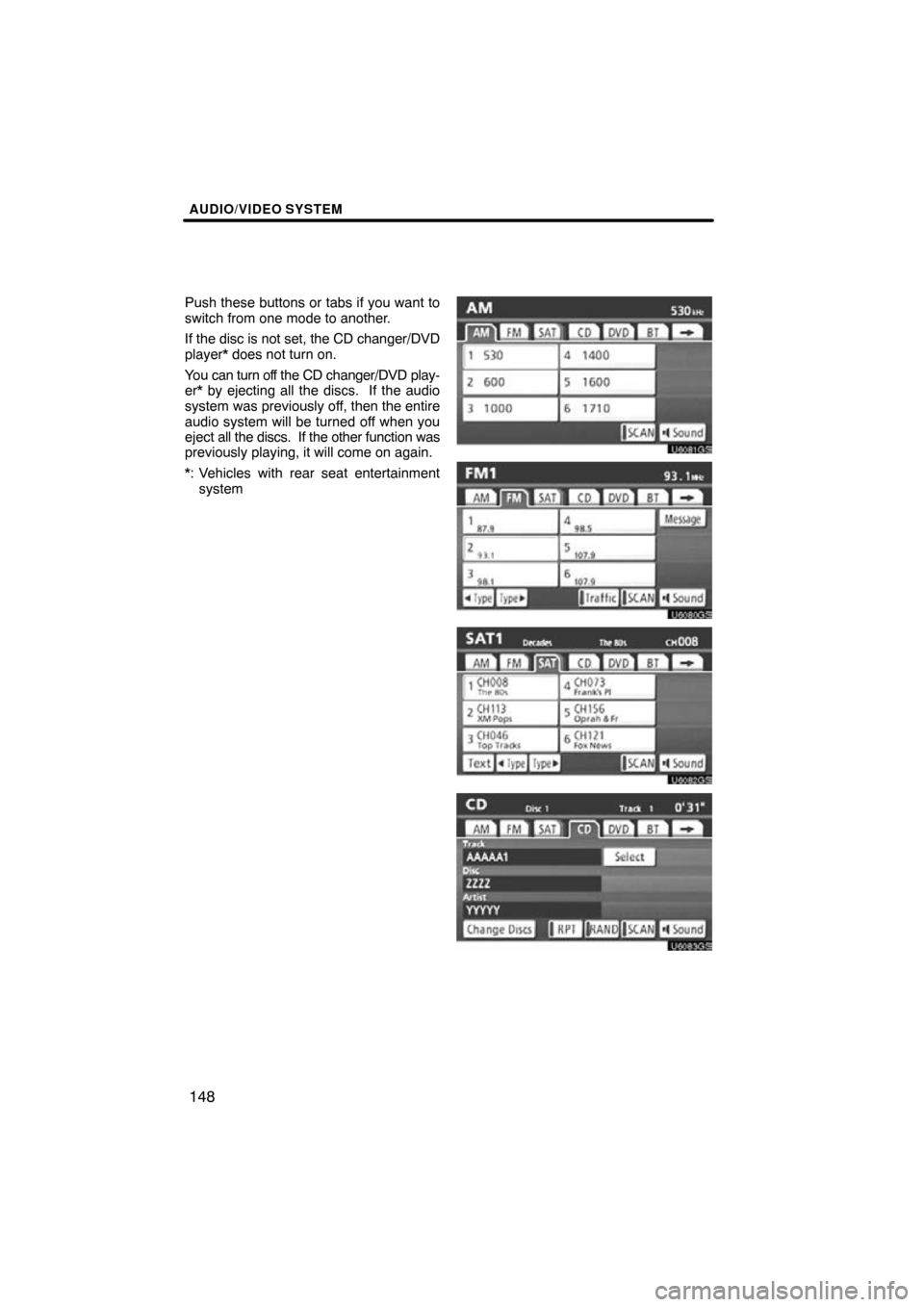

Push these buttons or tabs if you want to
switch from one mode to another.
If the disc is not set, the CD changer/DVD
player* does not turn on.
You can turn off the CD changer/DVD play-
er* by ejecting all the discs. If the audio
system was previously off, then the entire
audio system will be turned off when you
eject all the discs. If the other function was
previously playing, it will come on again.
*: Vehicles with rear seat entertainment
system
U6081GS
U6080GS
U6082GS
U6083GS

AUDIO/VIDEO SYSTEM
149
U6084GS
U6086GS
U6085GS
U6078GS
U6079GS
The touchscreen buttons for radio, CD
changer, DVD player*, Bluetooth
audio player, AUX and USB memory/
iPod, operation are displayed on the
function touchscreen button display
screen when the audio control mode is
selected. Touch them lightly and
directly on the screen.
*: Vehicles with rear seat entertainment
system
Touch the tab to select the desired mode
when the audio control mode is selected.
The selected switch is highlighted.
INFORMATION
If the system does not respond to a
touch of a touchscreen button,
move your finger away from the
screen and then touch it again.
You cannot operate dimmed
touchscreen buttons.
Wipe off fingerprints using a glass
cleaning cloth. Do not use chemi-
cal cleaners to clean the touch
screen.

AUDIO/VIDEO SYSTEM
150

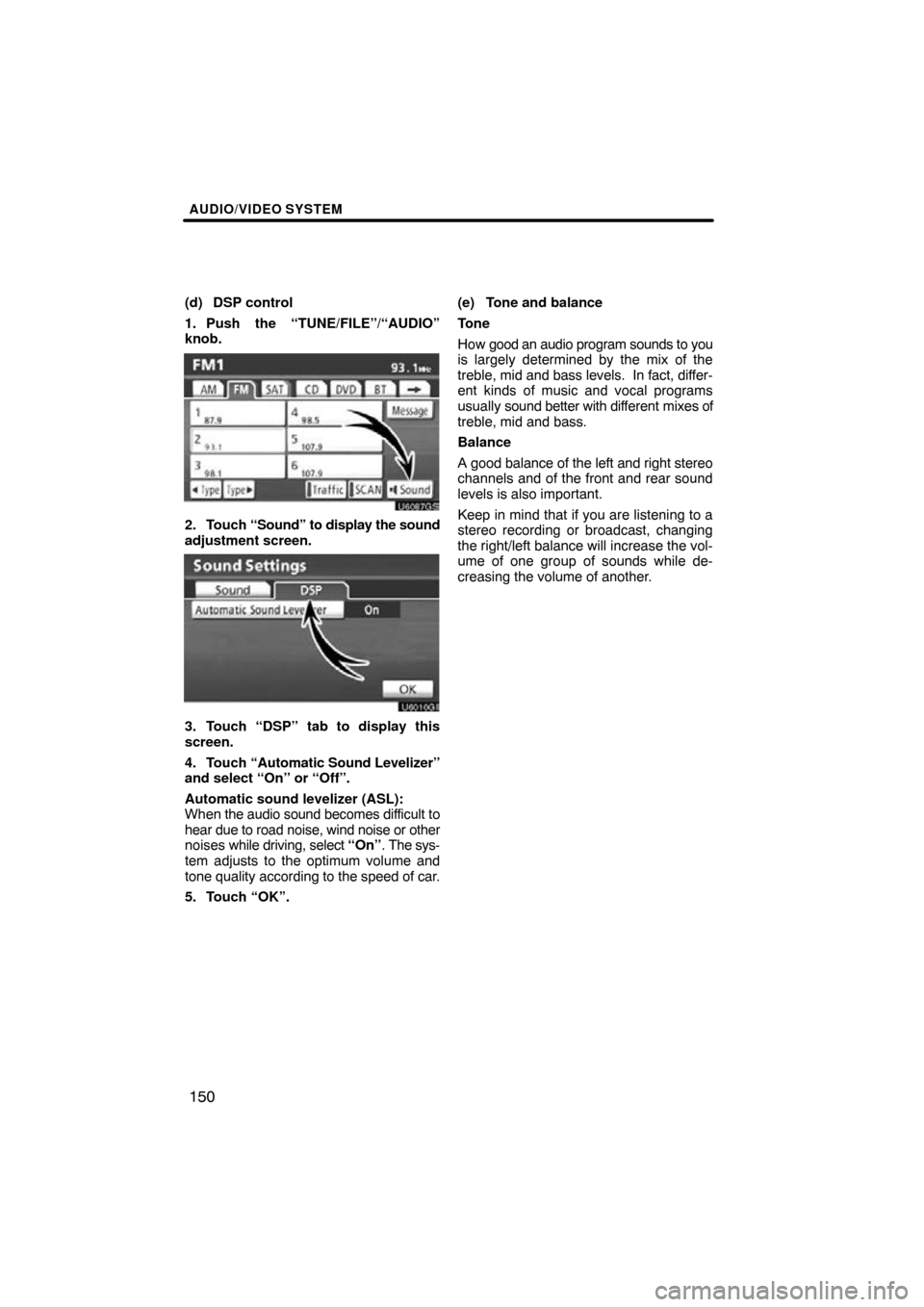

(d) DSP control
1. Push the “TUNE/FILE”/“AUDIO”
knob.
U6087GS
2. Touch “Sound” to display the sound
adjustment screen.
U6010GI
3. Touch “DSP” tab to display this
screen.
4. Touch “Automatic Sound Levelizer”
and select “On” or “Off”.
Automatic sound levelizer (ASL):
When the audio sound becomes difficult to
hear due to road noise, wind noise or other
noises while driving, select “On”. The sys-
tem adjusts to the optimum volume and
tone quality according to the speed of car.
5. Touch “OK”. (e) Tone and balance
Tone
How good
an audio program sounds to you
is largely determined by the mix of the
treble, mid and bass levels. In fact, differ-
ent kinds of music and vocal programs
usually sound better with dif ferent mixes of
treble, mid and bass.
Balance
A good balance of the left and right stereo
channels and of the front and rear sound
levels is also important.
Keep in mind that if you are listening to a
stereo recording or broadcast, changing
the right/left balance will increase the vol-
ume of one group of sounds while de-
creasing the volume of another.
