60

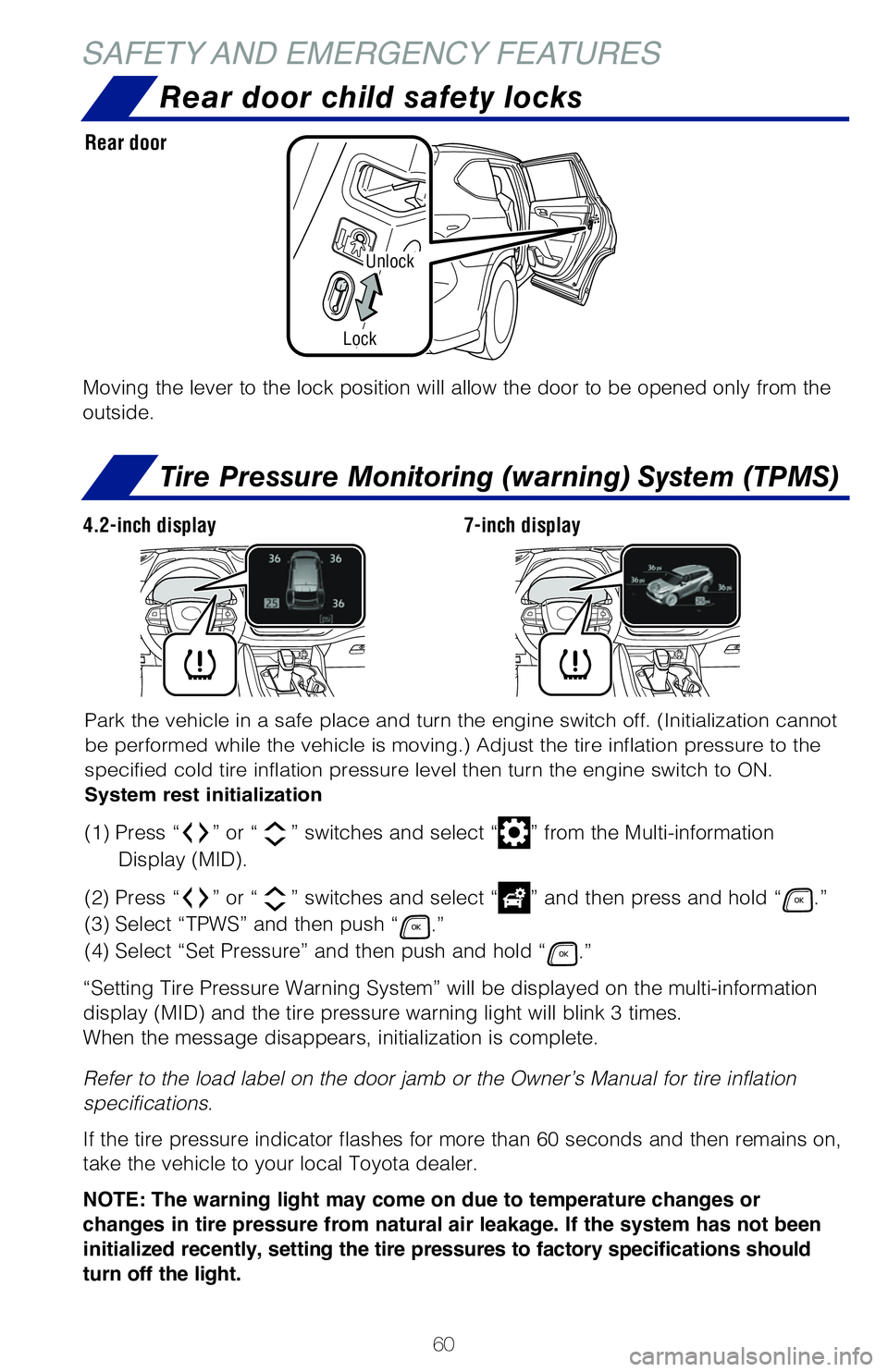

SAFETY AND EMERGENCY FEATURES
Unlock
Lock
Rear door child safety locks
Tire Pressure Monitoring (warning) System (TPMS)
Moving the lever to the lock position will allow the door to be opened o\
nly from the
outside.
Rear door
Refer to the load label on the door jamb or the Owner’s Manual for tire inflation
specifications.
If the tire pressure indicator flashes for more than 60 seconds and then\
remains on,
take the vehicle to your local Toyota dealer.
NOTE: The warning light may come on due to temperature changes or
changes in tire pressure from natural air leakage. If the system has not been
initialized recently, setting the tire pressures to factory specifications should
turn off the light.
Park the vehicle in a safe place and turn the engine switch off. (Initi\
alization cannot
be performed while the vehicle is moving.) Adjust the tire inflation pr\
essure to the
specified cold tire inflation pressure level then turn the engine switch\
to ON.
System rest initialization
(1) Press “” or “” switches and select “” from the Multi-information
Display (MID).
(2) Press “
” or “” switches and select “” and then press and hold “.”
(3) Select “TPWS” and then push “
.”
(4) Select “Set Pressure” and then push and hold “
.”
“Setting Tire Pressure Warning System” will be displayed on the mu\
lti-information
display (MID) and the tire pressure warning light will blink 3 times.
When the message disappears, initialization is complete.
4.2-inch display 7-inch display
