QUICK
REFERENCE
GUIDE

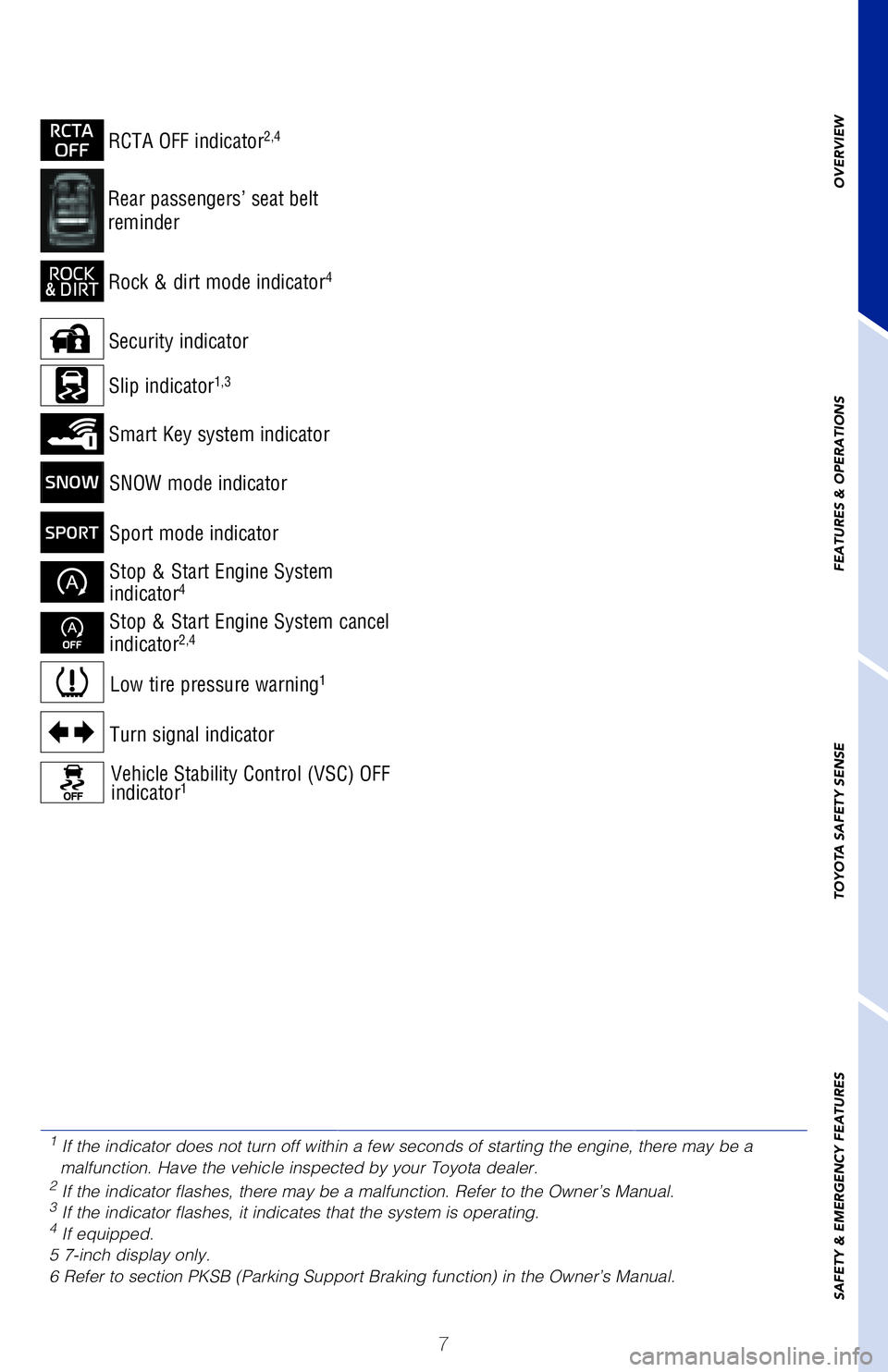

2020
QUICK
REFERENCE
GUIDE
2020
Page 2 of 72
HIGHLANDER
2020
This Quick Reference Guide is a summary of basic vehicle
operations. It contains brief descriptions of fundamental
operations so you can locate and use the vehicle’s main
equipment quickly and easily.
The Quick Reference Guide is not intended as a substitute for
the Owner’s Manual located in your vehicle’s glove box. We
strongly encourage you to review the Owner’s Manual and
supplementary manuals so you will have a better understanding
of your vehicle’s capabilities and limitations.
Your dealership and the entire staff of Toyota Motor North
America, Inc. wish you many years of satisfied driving in your
new Highlander.
A word about safe vehicle operations
This Quick Reference Guide is not a full description of Highlander operations.
Every Highlander owner should review the Owner’s Manual that accompanies
this vehicle.
Pay special attention to the boxed information highlighted in color throughout
the Owner’s Manual. Each box contains safe operating instructions to help you
avoid injury or equipment malfunction.
All information in this Quick Reference Guide is current at the time of printing.
Toyota reserves the right to make changes at any time without notice.
Page 3 of 72
1
OVERVIEW
FEATURES & OPERATIONS
TOYOTA SAFETY SENSE
SAFETY & EMERGENCY FEATURES
INDEX

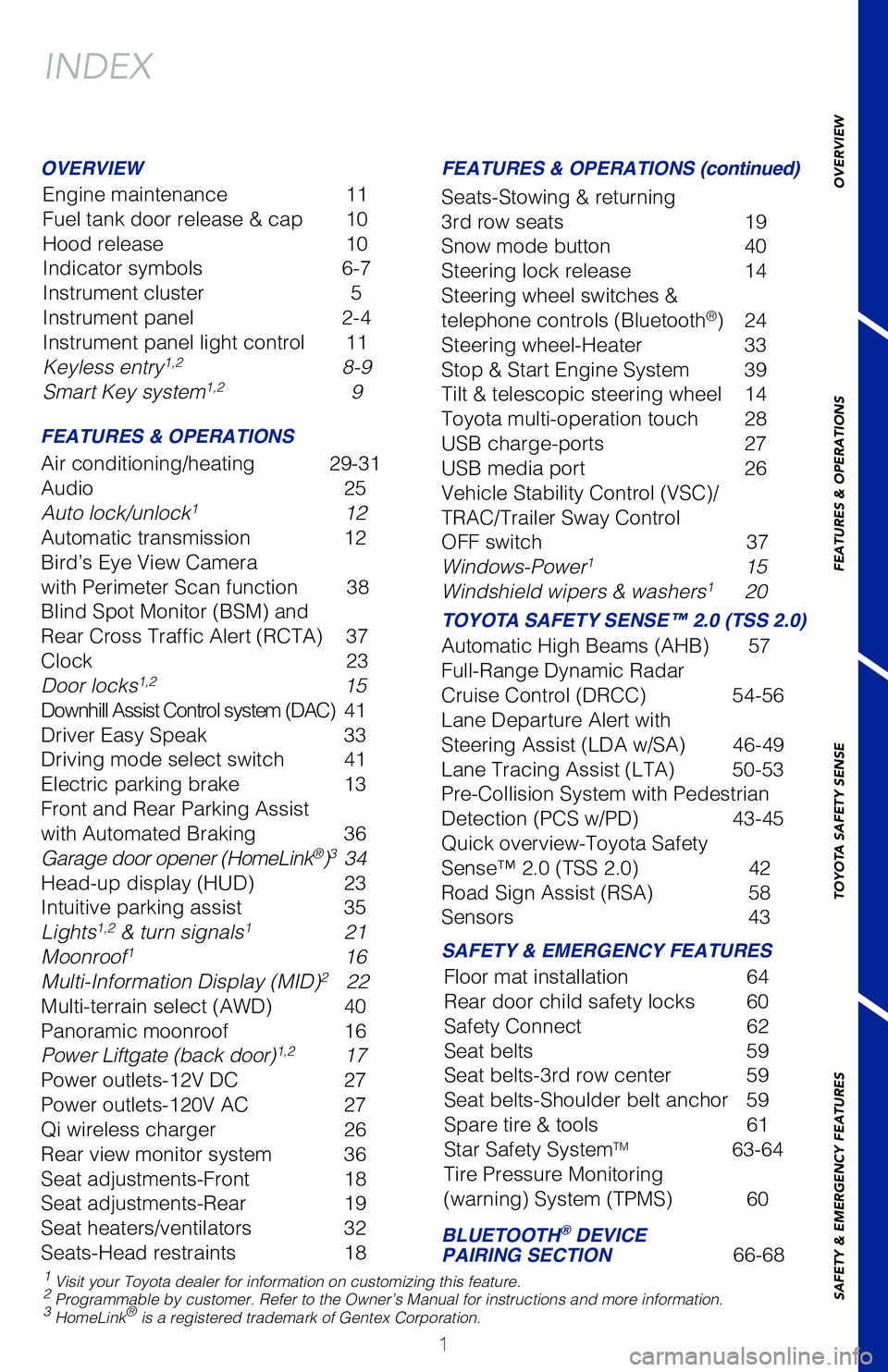

1 Visit your Toyota dealer for information on customizing this feature.2 Programmable by customer. Refer to the Owner’s Manual for instructions and more information.3 HomeLink® is a registered trademark of Gentex Corporation.
Engine maintenance 11
Fuel tank door release & cap 10
Hood release 10
Indicator symbols 6-7
Instrument cluster 5
Instrument panel 2-4
Instrument panel light control 11
Keyless entry
1,2 8-9
Smart Key system1,2 9
OVERVIEW
FEATURES & OPERATIONS FEATURES & OPERATIONS (continued)
SAFETY & EMERGENCY FEATURES
TOYOTA SAFETY SENSE™ 2.0 (TSS 2.0)
Air conditioning/heating
29-31
Audio 25
Auto lock/unlock
1 12
Automatic transmission 12
Bird’s Eye View Camera
with Perimeter Scan function 38
Blind Spot Monitor (BSM) and
Rear Cross Traffic Alert (RCTA) 37
Clock 23
Door locks
1,2 15
Downhill Assist Control system (DAC) 4 1
Driver Easy Speak 33
Driving mode select switch 41
Electric parking brake 13
Front and Rear Parking Assist
with Automated Braking 36
Garage door opener (HomeLink
®)3 34
Head-up display (HUD) 23
Intuitive parking assist 35
Lights
1,2 & turn signals1 21
Moonroof1 16
Multi-Information Display (MID)2 22
Multi-terrain select (AWD) 40
Panoramic moonroof 16
Power Liftgate (back door)
1,2 17
Power outlets-12V DC 27
Power outlets-120V AC 27
Qi wireless charger 26
Rear view monitor system 36
Seat adjustments-Front 18
Seat adjustments-Rear 19
Seat heaters/ventilators 32
Seats-Head restraints 18Seats-Stowing & returning
3rd row seats 19
Snow mode button 40
Steering lock release 14
Steering wheel switches &
telephone controls (Bluetooth
®) 24
Steering wheel-Heater 33
Stop & Start Engine System 39
Tilt & telescopic steering wheel 14
Toyota multi-operation touch 28
USB charge-ports 27
USB media port 26
Vehicle Stability Control (VSC)/
TRAC/Trailer Sway Control
OFF switch 37
Windows-Power
1 15
Windshield wipers & washers1 20
Automatic High Beams (AHB) 57
Full-Range Dynamic Radar
Cruise Control (DRCC) 54-56
Lane Departure Alert with
Steering Assist (LDA w/SA) 46-49
Lane Tracing Assist (LTA) 50-53
Pre-Collision System with Pedestrian
Detection (PCS w/PD) 43-45
Quick overview-Toyota Safety
Sense™ 2.0 (TSS 2.0) 42
Road Sign Assist (RSA) 58
Sensors 43
BLUETOOTH® DEVICE
PAIRING SECTION 66-68
Floor mat installation
64
Rear door child safety locks 60
Safety Connect 62
Seat belts 59
Seat belts-3rd row center 59
Seat belts-Shoulder belt anchor 59
Spare tire & tools 61
Star Safety System
TM 63-64
Tire Pressure Monitoring
(warning) System (TPMS) 60
63195a_MY20 Highlander.indd 111/18/19 8:12 AM
Page 4 of 72
2

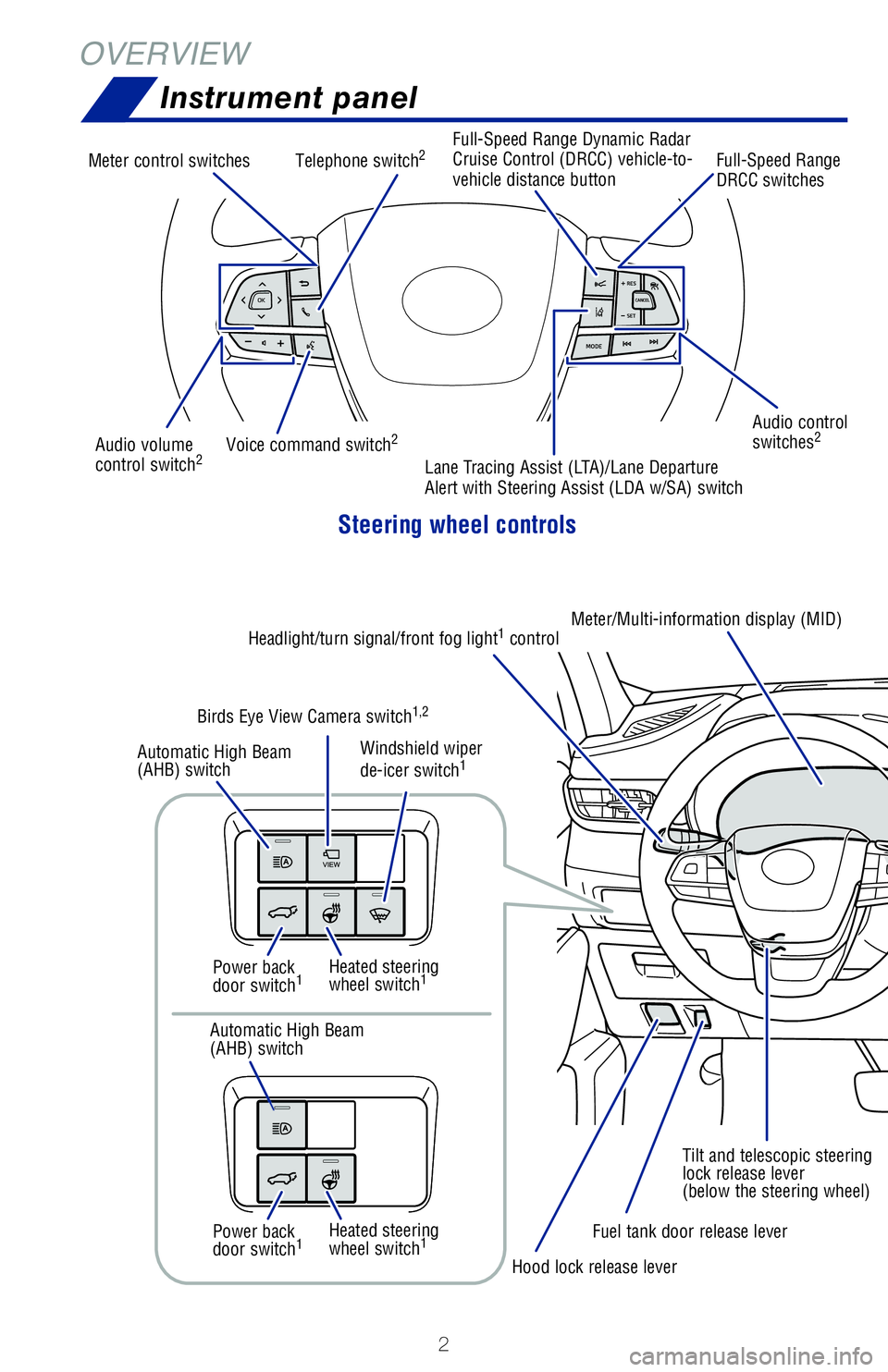

Steering wheel controls
Automatic High Beam (AHB) switch
Audio control
switches2Audio volume
control switch2
Meter control switchesFull-Speed Range Dynamic Radar
Cruise Control (DRCC) vehicle-to-
vehicle distance buttonFull-Speed Range
DRCC switches
Tilt and telescopic steering
lock release lever
(below the steering wheel)
Headlight/turn signal/front fog light
1 control
Meter/Multi-information display (MID)
Hood lock release lever Fuel tank door release lever
Windshield wiper
de-icer switch
1
Heated steering
wheel switch1
Heated steering
wheel switch1
Automatic High Beam
(AHB) switch
Automatic High Beam
(AHB) switch
Birds Eye View Camera switch
1,2
Power back
door switch1
Power back
door switch1
Voice command switch2
Telephone switch2
Lane Tracing Assist (LTA)/Lane Departure
Alert with Steering Assist (LDA w/SA) switch
OVERVIEW
Instrument panel
63195a_MY20 Highlander.indd 211/18/19 8:12 AM
Page 5 of 72
3
OVERVIEW
FEATURES & OPERATIONS
TOYOTA SAFETY SENSE
SAFETY & EMERGENCY FEATURES
Tilt and telescopic steering
lock release lever
(below the steering wheel)
Windshield wiper and
washer control

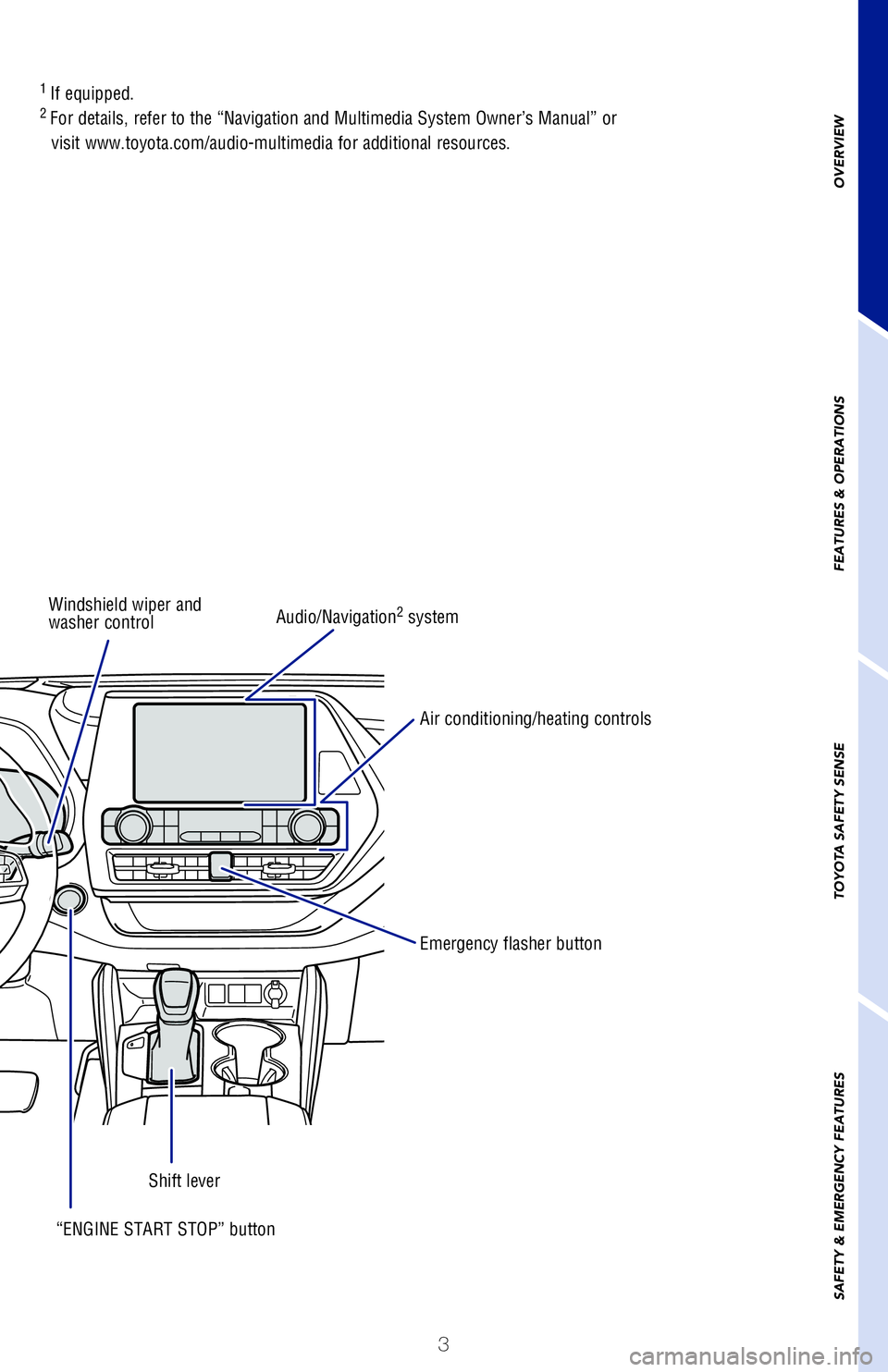

“ENGINE START STOP” button Shift lever Audio/Navigation2 system
Air conditioning/heating controls
Emergency flasher button
1 If equipped.2 For details, refer to the “Navigation and Multimedia System Owner’s Manual” or
visit www.toyota.com/audio-multimedia for additional resources.
63195a_MY20 Highlander Txt.indd 363195a_MY20 Highlander Txt.indd 311/19/19 12:43 PM11/19/19 12:43 PM
Page 6 of 72
4
1 If equipped.2 For details, refer to the “Navigation and Multimedia System Owner’s Manual” or
visit www.toyota.com/audio-multimedia for additional resources.

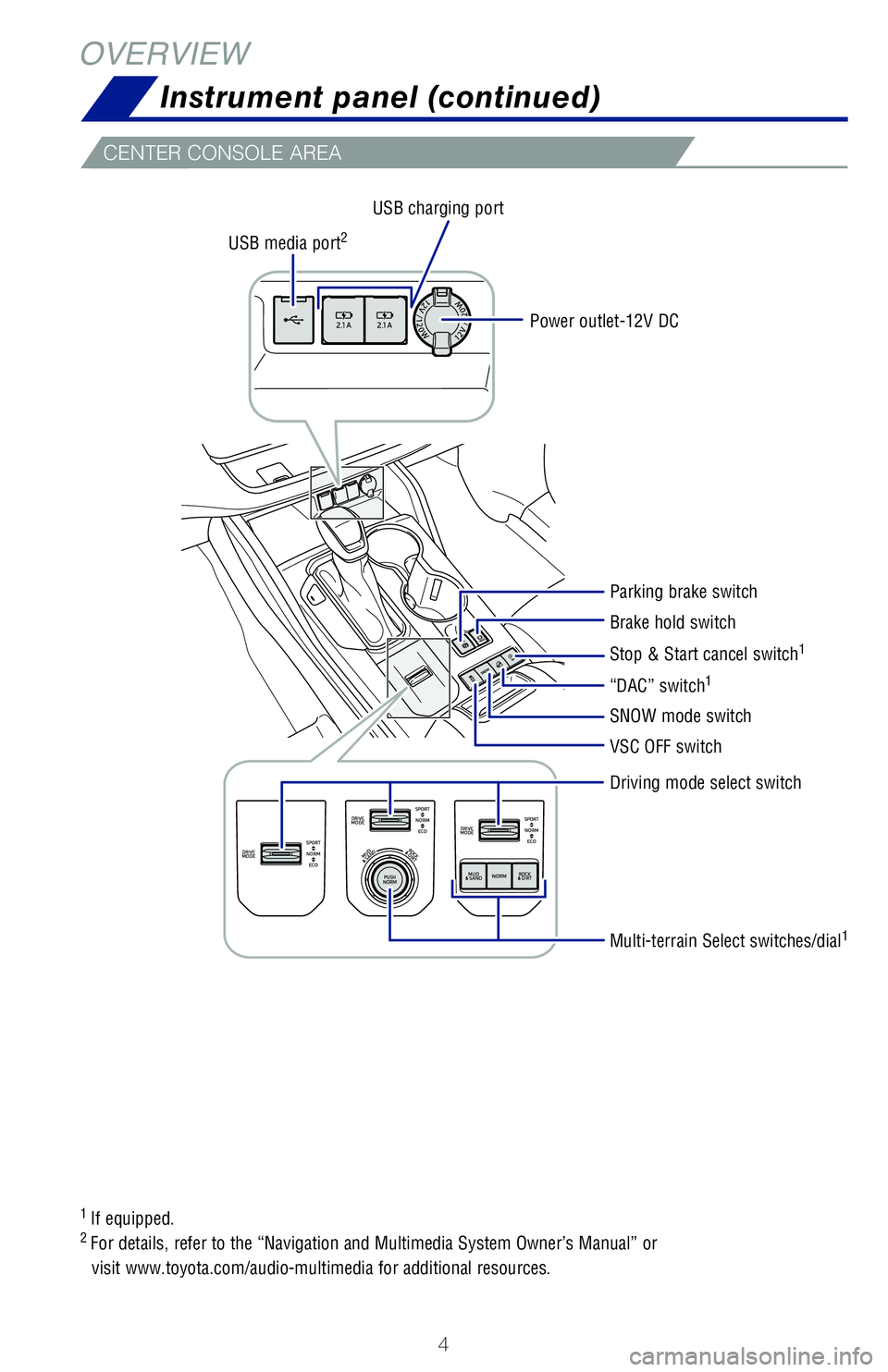

VSC OFF switch SNOW mode switch
Driving mode select switch
Multi-terrain Select switches/dial
1
Parking brake switch
Brake hold switch
“DAC” switch
1
USB media port2
USB charging port
Power outlet-12V DC
Stop & Start cancel switch
1
CENTER CONSOLE AREA
OVERVIEWInstrument panel (continued)
63195a_MY20 Highlander Txt.indd 463195a_MY20 Highlander Txt.indd 411/19/19 12:44 PM11/19/19 12:44 PM
Page 7 of 72
5
OVERVIEW
FEATURES & OPERATIONS
TOYOTA SAFETY SENSE
SAFETY & EMERGENCY FEATURES

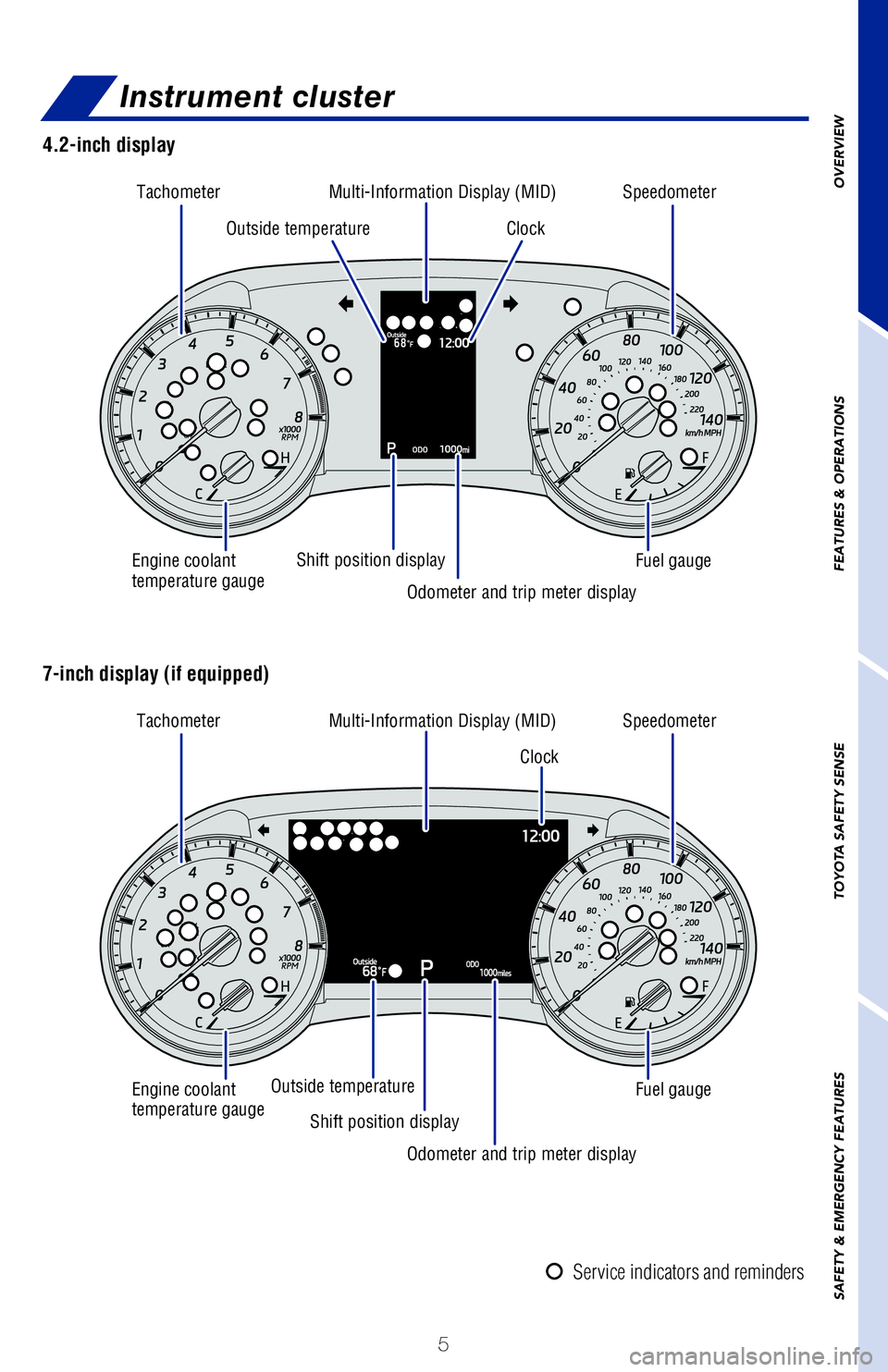

Engine coolant
temperature gauge
Engine coolant
temperature gauge
Fuel gauge
Fuel gauge
Shift position display
Shift position display
Tachometer
Tachometer
Multi-Information Display (MID)
Multi-Information Display (MID)
Speedometer
Speedometer
Outside temperature
Outside temperature
Clock
Clock
Odometer and trip meter display
Odometer and trip meter display
Service indicators and reminders
Instrument cluster
4.2-inch display
7-inch display (if equipped)
63195a_MY20 Highlander.indd 511/18/19 8:12 AM
Page 8 of 72
6

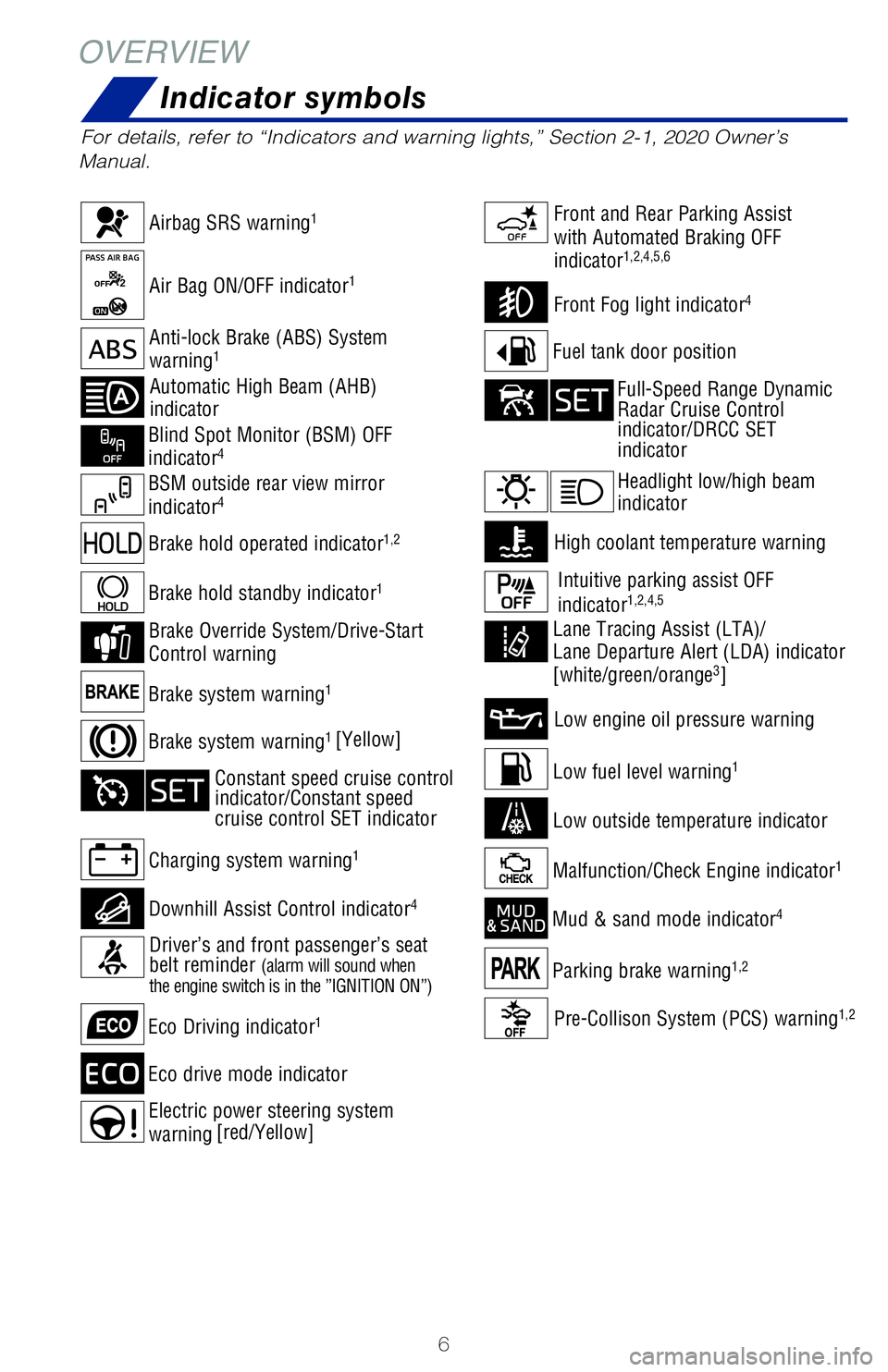

Automatic High Beam (AHB)
indicator
For details, refer to “Indicators and warning lights,” Section 2-1, 2020 Owner’s
Manual.
Front Fog light indicator4
Constant speed cruise control
indicator/Constant speed
cruise control SET indicator
Electric power steering system
warning [red/Yellow]
Downhill Assist Control indicator4
Fuel tank door position
Anti-lock Brake (ABS) System
warning1
Airbag SRS warning1
Air Bag ON/OFF indicator1
Brake system warning1 [Yellow]
High coolant temperature warning
Eco drive mode indicator
Mud & sand mode indicator4
Low engine oil pressure warning
Brake Override System/Drive-Start
Control warning
Charging system warning1
Brake hold operated indicator1,2
Brake hold standby indicator1
Front and Rear Parking Assist
with Automated Braking OFF
indicator
1,2,4,5,6
Brake system warning1
BSM outside rear view mirror
indicator4
Blind Spot Monitor (BSM) OFF
indicator4
Eco Driving indicator1
Driver’s and front passenger’s seat
belt reminder (alarm will sound when
the engine switch is in the ”IGNITION ON”)
Full-Speed Range Dynamic
Radar Cruise Control
indicator/DRCC SET
indicator
Malfunction/Check Engine indicator
1
Intuitive parking assist OFF
indicator1,2,4,5
Headlight low/high beam
indicator
Low fuel level warning1
Low outside temperature indicator
Parking brake warning
1,2
Lane Tracing Assist (LTA)/
Lane Departure Alert (LDA) indicator
[white/green/orange
3]
Pre-Collison System (PCS) warning1,2
OVERVIEW
Indicator symbols
63195a_MY20 Highlander.indd 611/18/19 8:12 AM
Page 9 of 72
7
Sport mode indicator
Rock & dirt mode indicator4
RCTA OFF indicator2,4
Rear passengers’ seat belt
reminder
Vehicle Stability Control (VSC) OFF
indicator1
Low tire pressure warning1
Turn signal indicator
Slip indicator1,3
Smart Key system indicator
SNOW mode indicator
Stop & Start Engine System
indicator4
Stop & Start Engine System cancel
indicator2,4
Security indicator
Pre-Collison System (PCS) warning1,2
OVERVIEW
FEATURES & OPERATIONS
TOYOTA SAFETY SENSE
SAFETY & EMERGENCY FEATURES
1
If the indicator does not turn off within a few seconds of starting the engine, there may be a
malfunction. Have the vehicle inspected by your Toyota dealer.
2 If the indicator flashes, there may be a malfunction. Refer to the Owner’s Manual.3 If the indicator flashes, it indicates that the system is operating.4 If equipped.
5 7-inch display only.
6 Refer to section PKSB (Parking Support Braking function) in the Owner’s Manual.
63195a_MY20 Highlander.indd 711/18/19 8:12 AM
Page 10 of 72
8
Carry
Smart Key remote
Front door unlock*
Carry
Smart Key remote
All-door lock
Carry
Smart Key remote
Carry
Smart Key remote Touch
NOTE: If a door is not opened within 60 seconds of unlocking, all doors will
relock for safety.
NOTE: Power back door will not open if glass hatch is open.
* Driver door unlocking function can be programmed to unlock driver door only, or all doors. Grasping passenger door handle will unlock all doors.
NOTE: Doors may also be locked/unlocked using remote.
Push
Lock
Push
Unlock
Push
Push and hold Push
ONCE: Driver door
TWICE: All doors
Grasp

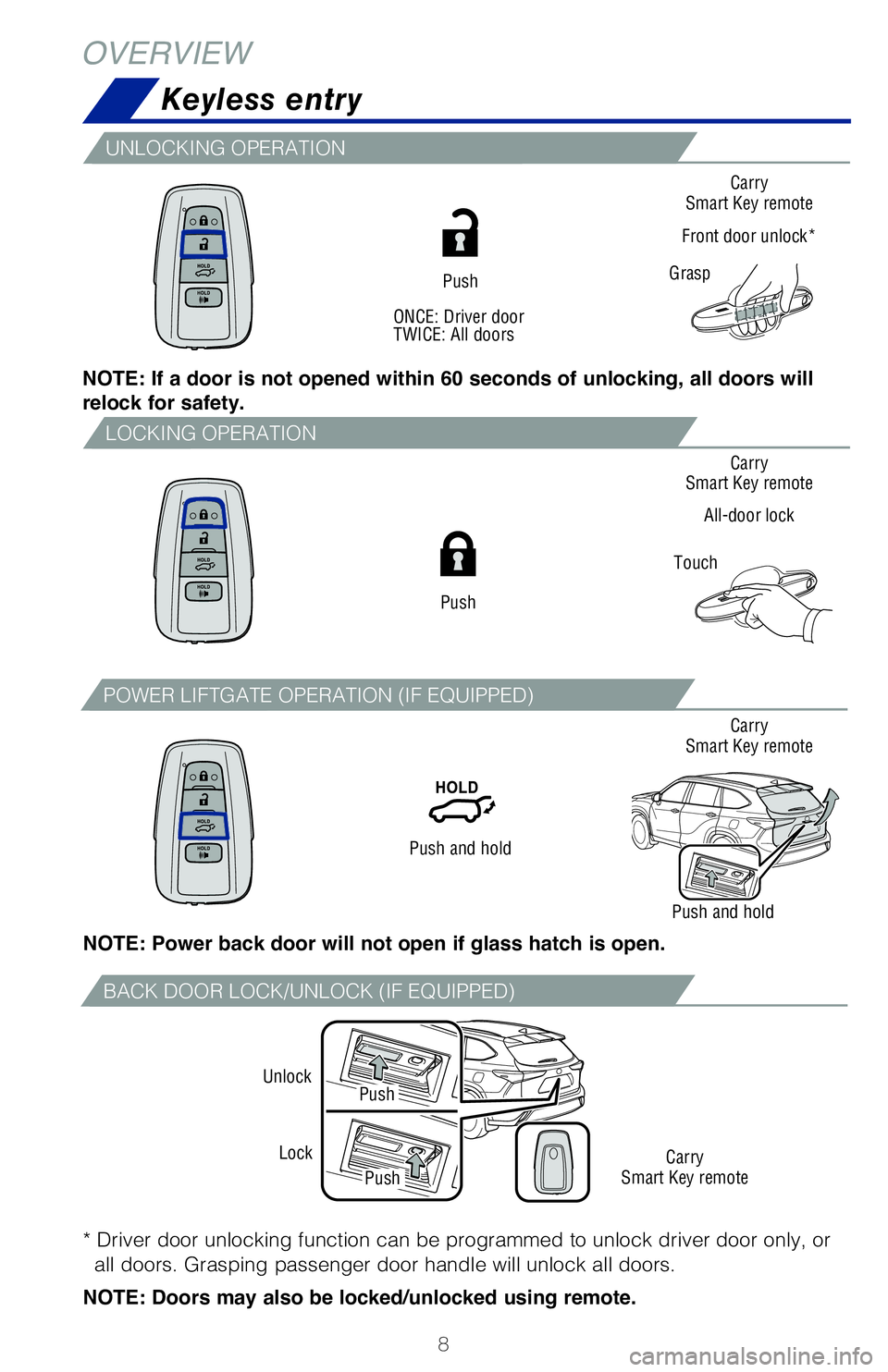

LOCKING OPERATION
UNLOCKING OPERATION
POWER LIFTGATE OPERATION (IF EQUIPPED)
BACK DOOR LOCK/UNLOCK (IF EQUIPPED)
Keyless entry
OVERVIEW
Push and hold
63195a_MY20 Highlander.indd 811/18/19 8:12 AM
