turn signal TOYOTA HIGHLANDER 2020 Owners Manual (in English)

1
OVERVIEW
FEATURES & OPERATIONS
TOYOTA SAFETY SENSE
SAFETY & EMERGENCY FEATURES
INDEX
1 Visit your Toyota dealer for information on customizing this feature.2 Programmable by customer. Refer to the Owner’s Manual for instructions and more information.3 HomeLink® is a registered trademark of Gentex Corporation.
Engine maintenance 11
Fuel tank door release & cap 10
Hood release 10
Indicator symbols 6-7
Instrument cluster 5
Instrument panel 2-4
Instrument panel light control 11
Keyless entry
1,2 8-9
Smart Key system1,2 9
OVERVIEW
FEATURES & OPERATIONS FEATURES & OPERATIONS (continued)
SAFETY & EMERGENCY FEATURES
TOYOTA SAFETY SENSE™ 2.0 (TSS 2.0)
Air conditioning/heating
29-31
Audio 25
Auto lock/unlock
1 12
Automatic transmission 12
Bird’s Eye View Camera
with Perimeter Scan function 38
Blind Spot Monitor (BSM) and
Rear Cross Traffic Alert (RCTA) 37
Clock 23
Door locks
1,2 15
Downhill Assist Control system (DAC) 4 1
Driver Easy Speak 33
Driving mode select switch 41
Electric parking brake 13
Front and Rear Parking Assist
with Automated Braking 36
Garage door opener (HomeLink
®)3 34
Head-up display (HUD) 23
Intuitive parking assist 35
Lights
1,2 & turn signals1 21
Moonroof1 16
Multi-Information Display (MID)2 22
Multi-terrain select (AWD) 40
Panoramic moonroof 16
Power Liftgate (back door)
1,2 17
Power outlets-12V DC 27
Power outlets-120V AC 27
Qi wireless charger 26
Rear view monitor system 36
Seat adjustments-Front 18
Seat adjustments-Rear 19
Seat heaters/ventilators 32
Seats-Head restraints 18Seats-Stowing & returning
3rd row seats 19
Snow mode button 40
Steering lock release 14
Steering wheel switches &
telephone controls (Bluetooth
®) 24
Steering wheel-Heater 33
Stop & Start Engine System 39
Tilt & telescopic steering wheel 14
Toyota multi-operation touch 28
USB charge-ports 27
USB media port 26
Vehicle Stability Control (VSC)/
TRAC/Trailer Sway Control
OFF switch 37
Windows-Power
1 15
Windshield wipers & washers1 20
Automatic High Beams (AHB) 57
Full-Range Dynamic Radar
Cruise Control (DRCC) 54-56
Lane Departure Alert with
Steering Assist (LDA w/SA) 46-49
Lane Tracing Assist (LTA) 50-53
Pre-Collision System with Pedestrian
Detection (PCS w/PD) 43-45
Quick overview-Toyota Safety
Sense™ 2.0 (TSS 2.0) 42
Road Sign Assist (RSA) 58
Sensors 43
BLUETOOTH® DEVICE
PAIRING SECTION 66-68
Floor mat installation
64
Rear door child safety locks 60
Safety Connect 62
Seat belts 59
Seat belts-3rd row center 59
Seat belts-Shoulder belt anchor 59
Spare tire & tools 61
Star Safety System
TM 63-64
Tire Pressure Monitoring
(warning) System (TPMS) 60
63195a_MY20 Highlander.indd 111/18/19 8:12 AM

2
Steering wheel controls
Automatic High Beam (AHB) switch
Audio control
switches2Audio volume
control switch2
Meter control switchesFull-Speed Range Dynamic Radar
Cruise Control (DRCC) vehicle-to-
vehicle distance buttonFull-Speed Range
DRCC switches
Tilt and telescopic steering
lock release lever
(below the steering wheel)
Headlight/turn signal/front fog light
1 control
Meter/Multi-information display (MID)
Hood lock release lever Fuel tank door release lever
Windshield wiper
de-icer switch
1
Heated steering
wheel switch1
Heated steering
wheel switch1
Automatic High Beam
(AHB) switch
Automatic High Beam
(AHB) switch
Birds Eye View Camera switch
1,2
Power back
door switch1
Power back
door switch1
Voice command switch2
Telephone switch2
Lane Tracing Assist (LTA)/Lane Departure
Alert with Steering Assist (LDA w/SA) switch
OVERVIEW
Instrument panel
63195a_MY20 Highlander.indd 211/18/19 8:12 AM

7
Sport mode indicator
Rock & dirt mode indicator4
RCTA OFF indicator2,4
Rear passengers’ seat belt
reminder
Vehicle Stability Control (VSC) OFF
indicator1
Low tire pressure warning1
Turn signal indicator
Slip indicator1,3
Smart Key system indicator
SNOW mode indicator
Stop & Start Engine System
indicator4
Stop & Start Engine System cancel
indicator2,4
Security indicator
Pre-Collison System (PCS) warning1,2
OVERVIEW
FEATURES & OPERATIONS
TOYOTA SAFETY SENSE
SAFETY & EMERGENCY FEATURES
1
If the indicator does not turn off within a few seconds of starting the engine, there may be a
malfunction. Have the vehicle inspected by your Toyota dealer.
2 If the indicator flashes, there may be a malfunction. Refer to the Owner’s Manual.3 If the indicator flashes, it indicates that the system is operating.4 If equipped.
5 7-inch display only.
6 Refer to section PKSB (Parking Support Braking function) in the Owner’s Manual.
63195a_MY20 Highlander.indd 711/18/19 8:12 AM

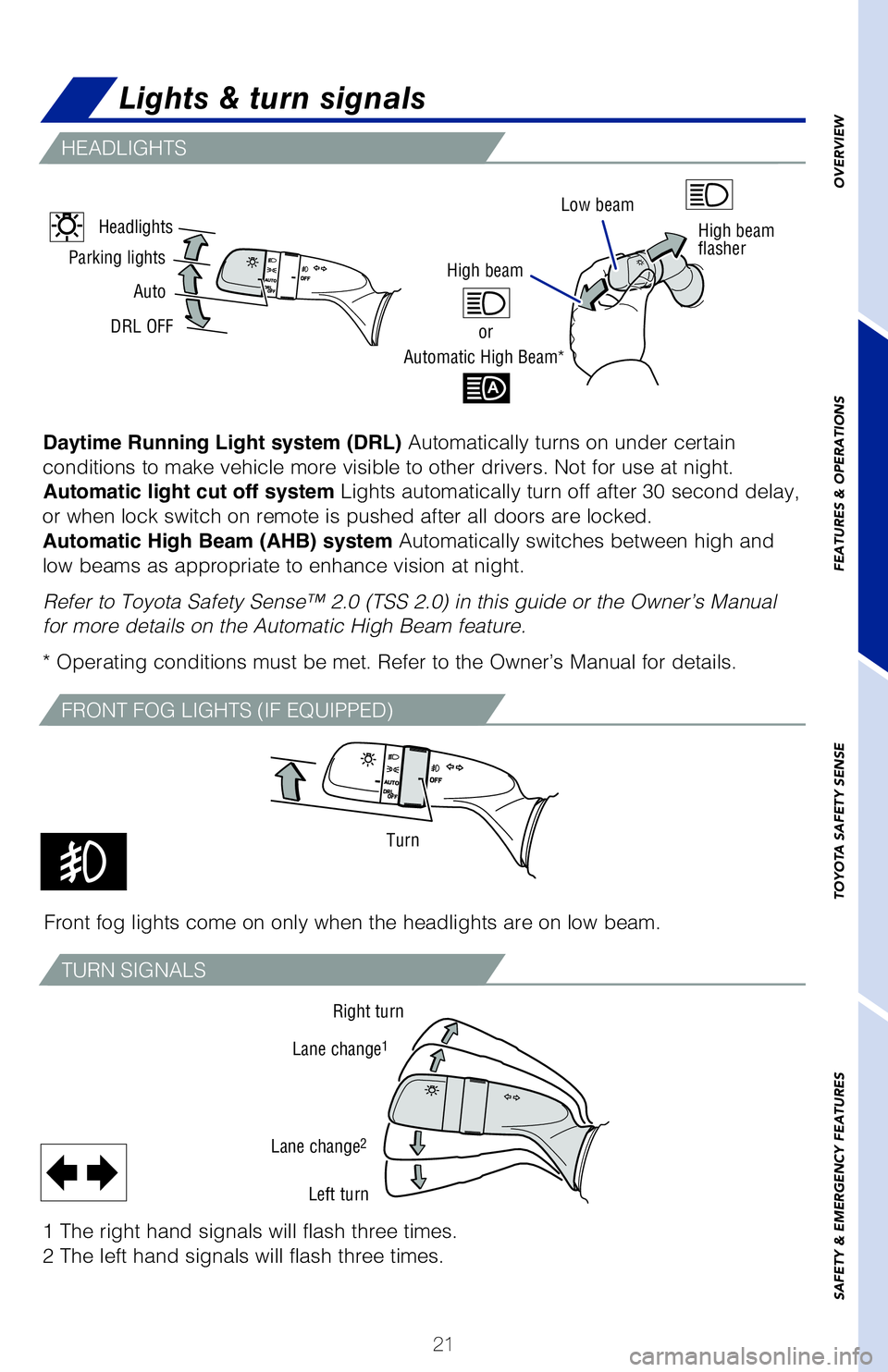

21
OVERVIEW
FEATURES & OPERATIONS
TOYOTA SAFETY SENSE
SAFETY & EMERGENCY FEATURES
Front fog lights come on only when the headlights are on low beam.
1 The right hand signals will flash three times.
2 The left hand signals will flash three times.
Daytime Running Light system (DRL) Automatically turns on under certain
conditions to make vehicle more visible to other drivers. Not for use at night. Automatic light cut off system Lights automatically turn off after 30 second delay,
or when lock switch on remote is pushed after all doors are locked.
Automatic High Beam (AHB) system Automatically switches between high and
low beams as appropriate to enhance vision at night.
Refer to Toyota Safety Sense™ 2.0 (TSS 2.0) in this guide or the Owner’s Manual
for more details on the Automatic High Beam feature.
* Operating conditions must be met. Refer to the Owner’s Manual for details.
Low beam
Parking lights
Auto
DRL OFFHigh beam
or
Automatic High Beam*
High beam
flasherHeadlights
Turn
Right turn
Lane change
1
Lane change2
Left turn
Lights & turn signals
HEADLIGHTS
FRONT FOG LIGHTS (IF EQUIPPED)
TURN SIGNALS
63195a_MY20 Highlander.indd 2111/18/19 8:12 AM
