TOYOTA HIGHLANDER 2021 Accessories, Audio & Navigation (in English)

1113-3. Route guidance
3
Navigation system
HIGHLANDER_HIGHLANDER HV_NAVI_(U)
When more than 1 destination
has been set, the arrival order of
the destinations can be
changed.
1Select on the map
screen. ( P.80)
2 Select “Reorder”.
3 Select the desired destina-
tion and select “Move Up” or
“Move Down” to change the
arrival order. Then select
“OK”.
1 Select on the map
screen. ( P.80)
2 Select “Route Type”.
3 Select the desired route type.
 The entire route from the
starting point to the destina-
tion is displayed. ( P.102)
 During driving, the route guid-
ance starts after selecting the
desired route type. The conditions to determine the
route can be selected from vari-
ous choices such as freeways,
toll roads, ferries, etc.
1
Select on the map
screen. ( P. 8 0 )
2 Select “Preference”.
3 Select the desired route pref-
erences and select “OK”.
●Even if the “Avoid Freeways”
route preference is turned off, the
route may not be able to avoid
freeways in some cases.
●If the calculated route includes a
trip by ferry, the route guidance
shows a sea route. After traveling
by ferry, the curre nt position may
be incorrect. Upon reception of
GPS signals, it is automatically
corrected.
Reordering destinations
Selecting route typeSetting route preferences

1123-3. Route guidance
HIGHLANDER_HIGHLANDER HV_NAVI_(U)
During the route guidance, the
route can be changed to detour
around a section of the route
where a delay is caused by road
repairs, an accident, etc.
1Select on the map
screen. ( P.80)
2 Select “Detour”.
3 Select the desired detour dis-
tance.
Select to detour within 1 mile
of the current position.
Select to detour within 3
miles of the current position.
Select to detour within 5
miles of the current position.
Select to detour on the entire
route.
Select to make the navigation
system search for the route
based on traffic congestion
information received from
traffic information.
* ( P. 9 0 )
*: This function is not available in
some countries or areas.
●This picture shows an example of
how the navigation system would guide around a delay caused by a
traffic jam.
This position indi cates the loca-
tion of a traffic jam caused by
road repairs, an accident, etc.
This route indicates the detour
suggested by the navigation
system.
●When the vehicle is on a freeway,
the detour distance selections are
5, 15 and 25 miles (or 5, 15 and
25 km if units are in km).
●The navigation system may not be
able to calculate a detour route
depending on the selected dis-
tance and surrounding road condi-
tions.
Detour setting
A
B
C
D
E
A
B

1133-3. Route guidance
3
Navigation system
HIGHLANDER_HIGHLANDER HV_NAVI_(U)
When a freeway and a surface
road run in parallel, the naviga-
tion system may show the guid-
ance route going on the freeway
while driving on the surface
road, or vice versa.
If this happens, you can
instantly choose the adjacent
road for the route guidance.
1Select on the map
screen. ( P.80)
2 Select “Adjacent Road”.
●When there is no adjacent road,
this screen button will not be dis-
played.
Adjacent road

1143-4. Setup
HIGHLANDER_HIGHLANDER HV_NAVI_(U)
3-4.Setup
1Press the “MENU” button.
8-inch display model
12.3-inch display model
2 Select “Setup”.
3 Select “Navigation”. 4
Select the desired item to be
set.
Select to set home. ( P.115)
Select to set the favorites list.
( P. 1 1 5 )
Select to set areas to avoid.
( P. 1 1 7 )
Select to set detailed naviga-
tion settings. ( P. 1 1 9 )
●When “Useful Navi. Information
Settings” is displayed on the
screen: P. 1 2 8
Navigation settings
Home, favorites list entries,
areas to avoid can be set as
memory points. The regis-
tered points can be used as
the destinations. ( P.93)
Registered areas to avoid,
will be avoided when the
navigation system searches
for a route.
Displaying navigation set-
tings screen
Navigation settings
screen
A
B
C
D

1153-4. Setup
3
Navigation system
HIGHLANDER_HIGHLANDER HV_NAVI_(U)
If home has been registered,
that information can be recalled
by selecting “Home” on the
destination screen. (P.93)
1 Display the navigation set-
tings screen. ( P.114)
2 Select “Home”.
3 Select “Address”( P.97) or
“Current Location” to search
for your home.
4 Select “OK” when the editing
home screen appears.
1 Display the navigation set-
tings screen. ( P.114)
2 Select “Home”.
3 Select the desired item to be
edited.
Select to edit the home
name.
Select to edit location infor-
mation.
Select to change the icon to be displayed on the map
screen. (
P.117)
Select to set display of the
home name on/off.
Select to delete registered
home location.
4 Select “OK”.
Points on the map can be regis-
tered.
1 Display the navigation set-
tings screen. ( P. 1 1 4 )
2 Select “Favorites”.
3 Select the desired item.
Select to edit the favorites
list.
“Add New”: Select to register
favorites list entries.
( P. 1 1 6 )
“Sort”: Select to sort (date,
name, icon) favorite list
entries.
“Delete All”: Select to delete
all favorite list entries.
Setting up home
Registering home
Editing home
A
B
C
6HWWLQJXSID\
YRULWHVOLVW
D
E
A

1163-4. Setup
HIGHLANDER_HIGHLANDER HV_NAVI_(U)
1Select “Add New/Sort/Delete
All”.
2 Select “Add New”.
3 Select the desired item to
search for the location.
( P. 9 3 )
4 Select “OK” when the editing
favorites list screen appears.
( P.116)
●Up to 100 favorites list entries can
be registered.
The icon, name, location and/or
phone number of a registered
favorites list entry can be edited.
1Select the desired favorites
list entry.
 Each time a star icon is
selected, its color will change.
Colored star icons indicate
that the favorite is registered
to the corresponding preset
destination button. Up to 2
entries can be registered as
quick favorite destinations.
( P.100) 2
Select the desired item to be
edited.
Select to edit the favorites list
entry name.
Select to edit location infor-
mation.
Select to edit the phone num-
ber.
Select to change the icon to
be displayed on the map
screen. ( P.117)
Select to set display of the
favorites list entry name
on/off.
Select to delete the favorites
list entry.
3 Select “OK”.
Registering favorites list
entries
Editing favorites list
entries
A
B
C
D
E
F

1173-4. Setup
3
Navigation system
HIGHLANDER_HIGHLANDER HV_NAVI_(U)
1Select “Icon”.
2 Select the desired icon.
■Icons with sound
A sound for some favorites list
entries can be set. When the
vehicle approaches the location
of the favorites list entry, the
selected sound will be heard.
: Select to play the sound.
●When “Bell (with Direction)” is
selected, select an arrow to adjust
the direction and select “OK”.
●The bell sounds only when the
vehicle approaches this point in
the direction th at has been set.
Areas to be avoided because of
traffic jams, construction work or
other reasons can be registered
as “Areas to Avoid”.
1Display the navigation set-
tings screen. ( P. 1 1 4 )
2 Select “Areas to Avoid”.
3 Select the desired item.
Select to edit the list of areas
to avoid.
“Add New”: Select to register
areas to avoid. ( P. 1 1 8 )
“Delete All”: Select to delete
all areas to avoid.
Changing the icon
Setting up areas to avoid
A

1183-4. Setup
HIGHLANDER_HIGHLANDER HV_NAVI_(U)
1Select “Add New/Delete All”.
2 Select “Add New”.
3 Select “Recent Destinations”
( P.95) or “Current Location”
to search for the location.
4 Select either “+” or “-” to
change the size of the area to
be avoided and select “OK”.
5 Select “OK” when the area to
avoid screen appears.
●If a destination is entered in the
area to avoid or th e route calcula-
tion cannot be made without run-
ning through the a rea to avoid, a
route passing through the area to
be avoided may be shown.
●Up to 10 locations can be regis-
tered as points/areas to avoid.
The name, location and/or area
size of a registered area can be
edited.
1 Select the desired area.
2 Select the desired item to be
edited.
Select to edit the name of the
area to avoid.
Select to edit area location.
Select to edit area size.
Select to set the area to
avoid function on/off.
Select to set display of the
area to avoid name on/off.
Select to delete the area to
avoid.
3 Select “OK”.
Registering areas to avoid
Editing areas to avoid
A
B
C
D
E
F

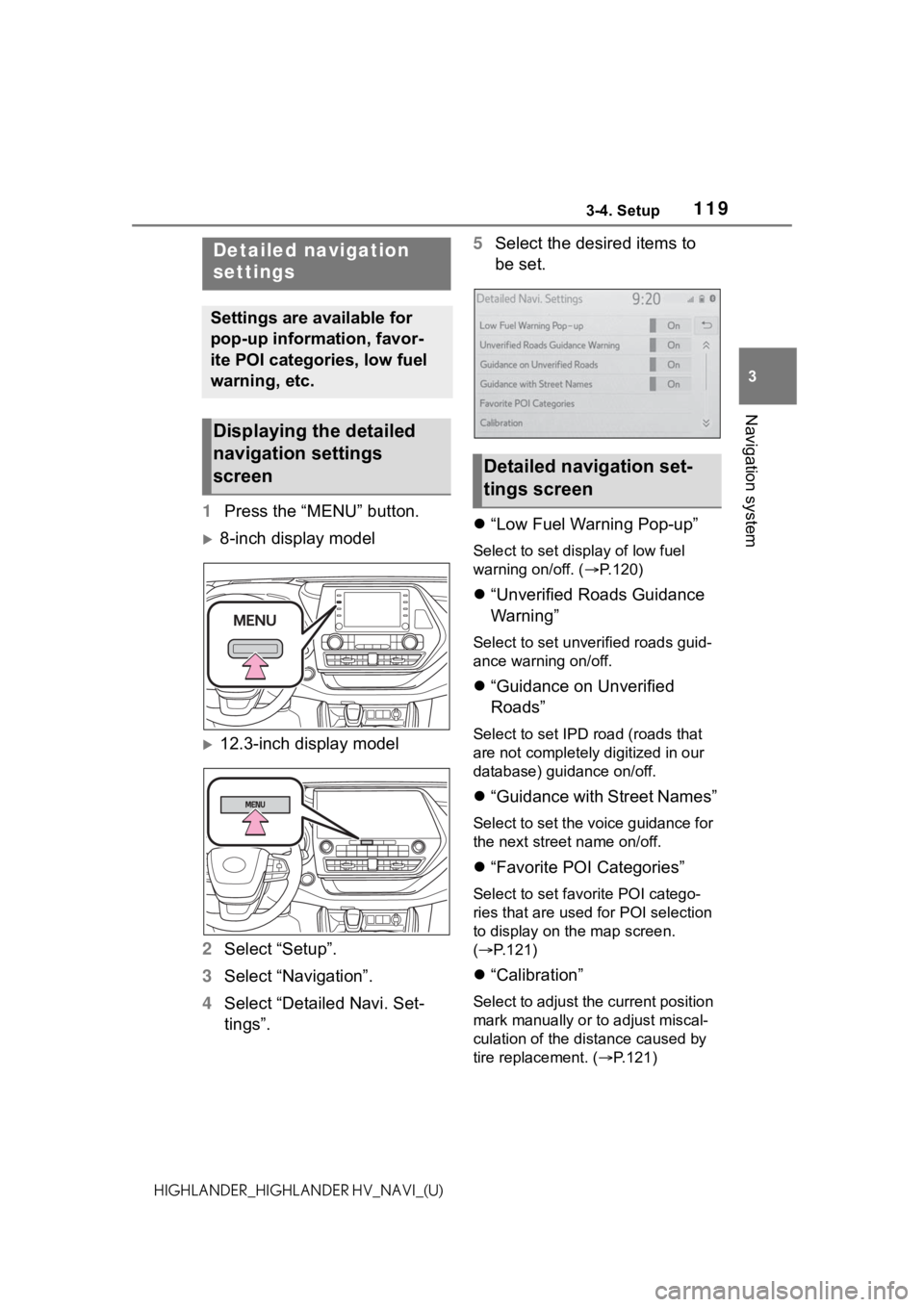

1193-4. Setup
3
Navigation system
HIGHLANDER_HIGHLANDER HV_NAVI_(U)
1Press the “MENU” button.
8-inch display model
12.3-inch display model
2 Select “Setup”.
3 Select “Navigation”.
4 Select “Detailed Navi. Set-
tings”. 5
Select the desired items to
be set.
 “Low Fuel Warning Pop-up”
Select to set display of low fuel
warning on/off. ( P.120)
 “Unverified Roads Guidance
Warning”
Select to set unverified roads guid-
ance warning on/off.
“Guidance on Unverified
Roads”
Select to set IPD road (roads that
are not completely digitized in our
database) guidance on/off.
 “Guidance with Street Names”
Select to set the voice guidance for
the next street name on/off.
“Favorite POI Categories”
Select to set favorite POI catego-
ries that are used for POI selection
to display on the map screen.
( P.121)
 “Calibration”
Select to adjust the current position
mark manually or to adjust miscal-
culation of the distance caused by
tire replacement. ( P.121)
Detailed navigation
settings
Settings are available for
pop-up information, favor-
ite POI categories, low fuel
warning, etc.
Displaying the detailed
navigation settings
screen
Detailed navigation set-
tings screen

1203-4. Setup
HIGHLANDER_HIGHLANDER HV_NAVI_(U)
“Adaptive Route”
Select to enable/d isable adaptive
routes. When enabled, the naviga-
tion system will provide frequently
used routes.
 “Reset Adaptive Route”
Select to erase adaptive route data.
“Automatic Destination List
Info”
Select to set autom atic destination
list information on/off. When set to
on, the estimated time of arrival to
the registered home and preset
destinations from the current posi-
tion will be displayed.
 “Intersection Zoom Map”
Select to set display of a guidance
screen on/off.
“Automatic Zoom”
Select to set autom atic zoom func-
tion on/off. When it is enabled, as
the vehicle approaches a guidance
point, the map will change to a
detailed map automatically.
 “State Border Guidance”
Select to set cross-border guidance
on/off.
“Map Color Customization”
Select to set the map display color.
“Map Animation”
Select to set map animation on/off.
“Weather Incident Warnings”
Select to set weather incident warn-
ings on/off. ( P.260)
 “Dynamic Route”*1
Select to enable/disable routes
sourced from the Cloud. ( P.104)
 “Predictive Efficient Drive”*1, 2
Select to set predictive efficient
drive on/off. ( P.122)
 “Restore the default settings”
Select to reset all setup items.
*1: This function is not available in
some countries or areas.
*2: Vehicles with hybrid system
When the fuel level is low, a
warning message will pop up on
the screen.
1 Display the detailed naviga-
tion settings screen.
( P. 1 1 9 )
2 Select “Low Fuel Warning
Pop-up”.
3 Select “On” or “Off”.
A nearby gas station can be
selected as a destination when
the fuel level is low.
1 Select “Yes” when the low
fuel warning appears.
2 Select the desired nearby
gas station.
3 Select “Enter” to set as a
destination.
“Info”: Select to display gas station
information. ( P.89)
Low fuel warning
Searching gas station in low
fuel warning
