VEHICLE MAINTENANCE AND CARE
Vehicle maintenance and care
Maintenance requirements 370
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
General maintenance 371
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . \
. . .
Does your vehicle need repairing? 373
. . . . . . . . . . . . . . . . . . . . . . . . . . . .
Emissions Inspection and Maintenance (I/M) programs 374
. . . . . . . . .
For scheduled maintenance information, please refer to the “Sched-
uled Maintenance Guide” or “Owner’s Manual Supplement”.
SECTION 6

’06 HIGHLANDER HB_U (L/O 0503)
370
2006 HIGHLANDER (Hybrid) from Mar. ’05 Prod. (OM48530U)
Your Toyota vehicle has been designed for
fewer maintenance requirements with long-
er service intervals to save both your time
and money. However, each regular mainte-
nance, as well as day−to −day care, is
more important than ever before to ensure
smooth, trouble− free, safe, and economical
drivings.
It is the owner ’s responsibility to make
sure the specified maintenance, including
general maintenance service, is performed.
Note that both the new vehicle and emis-
sion control system warranties specify that
proper maintenance and care must be per-
formed. See “Owner ’s Warranty Informa-
tion Booklet” or “Owner ’s Manual Supple-
ment” for complete warranty information.
General maintenance
General maintenance items are those day −
to −day care practices that are important to
your vehicle for proper operation. It is the
owner ’s responsib ility to ensure that the
general maintenance items are performed
regularly.
These checks or inspections can be done
either by yourself or a qualified technician,
or if you prefer, your Toyota dealer will be
pleased to do them at a nominal cost. Scheduled maintenance
The scheduled maintenance items listed in
the “Scheduled Maintenance Guide” or
“Owner ’s Manual Supplement” are those
required to be serviced at regular inter-
vals.
For details of your maintenance schedule,
read the “Scheduled Maintenance Guide”
or “Owner ’s Manual Supplement”.
It is recommended that any replacement
parts used for maintenance or for the
repair of the emission control system
be Toyota supplied.
The owner may elect to use nonToyota
supplied parts for replacement pur-
poses without invalidating the emission
control system warranty. However, use
of replacement parts which are not of
equivalent quality may impair the effec-
tiveness of the emission control sys-
tems.
You may also elect to have mainte-
nance, replacement, or repair of the
emission control devices and system
performed by any automotive repair es-
tablishment or individual without invali-
dating this warranty. See “Owner’s War-
ranty Information Booklet” or “Owner’s
Manual Supplement” for complete war-
ranty information.Where to go for service?
Toyota technicians are well
−trained spe-
cialists and are kept up to date with the
latest service information through technical
bulletins, service tips, and in −dealership
training programs. They learn to work on
Toyotas before they work on your vehicle,
rather than while they are working on it.
You can be confident that your Toyota
dealer ’s service department performs the
best job to meet the maintenance require-
ments on your vehicle—reliably and eco-
nomically.
Your copy of the repair order is proof that
all required maintenance has been per-
formed for warranty coverage. If any prob-
lems should arise with your vehicle while
under warranty, your Toyota dealer will
promptly take care of it. Again, be sure
to keep a copy of the repair order for any
service performed on your Toyota.
What about doityourself maintenance?
Many of the maintenance items are easy
to do yourself if you have a little mechani-
cal ability and a few basic automotive
tools. Simple instructions for how to per-
form them are presented on page 375 in
Section 7.
Maintenance requirements

’06 HIGHLANDER HB_U (L/O 0503)
371
2006 HIGHLANDER (Hybrid) from Mar. ’05 Prod. (OM48530U)
If you are a skilled do−it−yourself mechan-
ic, the Toyota service manuals are recom-
mended. Please be aware that do −it−your-
self maintenance can affect your warranty
coverage. See “Owner ’s Warranty Informa-
tion Booklet” or “Owner ’s Manual Supple-
ment” for the details. Listed below are the general maintenance
items that should be performed as fre-
quently as specified. In addition to check-
ing the items listed, if you notice any
unusual noise, smell or vibration, you
should investigate the cause or take your
vehicle to your Toyota dealer or a quali-
fied service shop immediately. It is recom-
mended that any problem you notice be
brought to the attention of your dealer or
the qualified service shop for their advice.
CAUTION
Make these checks only with ade-
quate ventilation if the hybrid system
is turned on.
IN THE ENGINE COMPARTMENT
Items listed below should be checked
from time to time, e.g. each time when
refueling.
Washer fluid
Make sure there is sufficient fluid in the
tank. See page 403 in Section 7
−3 for
additional information. Coolant level
Make sure the coolant level is between
the “FULL” and “LOW” lines on the see
−
through reservoir when the hybrid system
is cold. See page 388 in Section 7 −2 for
additional information.
Radiator, condenser and hoses
Check that the front of the radiator and
condenser are clean and not blocked with
leaves, dirt or insects. See page 390 in
Section 7 −2 for additional information.
Auxiliary battery electrolyte l evel
Your Toyota has a maintenance free bat-
tery. You do not have to add distilled wa-
ter. For longer life of the battery, however,
see page 400 for additional information.
Brake fluid level
Make sure the brake fluid level is correct.
See page 390 in Section 7 −2 for addition-
al information.
Engine oil level
Check the level on the dipstick with the
hybrid system turned off and the vehicle
parked on a level spot. See page 386 in
Section 7 −2 for additional information.
General maintenance

’06 HIGHLANDER HB_U (L/O 0503)
372
2006 HIGHLANDER (Hybrid) from Mar. ’05 Prod. (OM48530U)
Exhaust system
If you notice any change in the sound of
the exhaust or smell exhaust fumes, have
the cause located and corrected immedi-
ately. (See “Engine exhaust cautions” on
page 305 in Section 2.)
INSIDE THE VEHICLE
Items listed below should be checked
regularly, e.g. while performing periodic
services, cleaning the vehicle, etc.
Lights
Make sure the headlights, stop lights, tail
lights, turn signal lights, and other lights
are all working. Check headlight aim.
Service reminder indicators and warning
buzzers
Check that all service reminder indicators
and warning buzzers function properly.
Steering wheel
Check that it has the specified free play.
Be alert for changes in steering condition,
such as hard steering or strange noise. Seats
Check that all seat controls such as seat
adjusters, seatback recliner, etc. operate
smoothly and that all latches lock securely
in any position. Check that the head re-
straints move up and down smoothly and
that the locks hold securely in any latched
position. For folding
−down rear seatbacks,
check that the latches lock securely.
Seat belts
Check that the seat belt system such as
buckles, retractors and anchors operate
properly and smoothly. Make sure the belt
webbing is not cut, frayed, worn or dam-
aged.
Accelerator pedal
Check the pedal for smooth operation and
uneven pedal effort or catching.
Brake pedal
Check the pedal for smooth operation and
that the pedal has the proper clearance.
Check the brake booster function.
Brakes
In a safe place, check that the brakes do
not pull to one side when applied. Parking brake
Check that the pedal has the proper travel
and that, on a safe incline, your vehicle
is held securely with only the parking
brake applied.
Transmission “Park” mechanism
Check the lock release button of the se-
lector lever for proper and smooth opera-
tion. On a safe incline, check that your
vehicle is held securely with the selector
lever in “P” position and all brakes re-
leased.
OUTSIDE THE VEHICLE
Items listed below should be performed
from time to time, unless otherwise
specified.
Fluid leaks
Check underneath for leaking fuel, oil, wa-
ter or other fluid after the vehicle has
been parked for a while. If you smell fuel
fumes or notice any leak, have the cause
found and corrected immediately.
Doors and engine hood
Check that all side doors and back door
operate smoothly and all latches lock se-
curely. Make sure the engine hood sec-
ondary latch secures the hood from open-
ing when the primary latch is released.

’06 HIGHLANDER HB_U (L/O 0503)
373
2006 HIGHLANDER (Hybrid) from Mar. ’05 Prod. (OM48530U)
Tire inflation pressure
Check the pressure with a gauge ev-
ery two weeks, or at least once a
month. See page 391 in Section 7 −2
for additional information.
Tire surface and wheel nuts
Check the tires carefully for cuts,
damage or excessive wear. See page
393 in Section 7− 2 for additional in-
formation. When checking the tires,
make sure no nuts are missing, and
check the nuts for looseness. Tighten
them if necessary.
Tire rotation
Rotate the tires according to the
maintenance schedule. (For sched-
uled maintenance information, please
refer to the “Scheduled Maintenance
Guide” or “Owner ’s Manual Supple-
ment”.) See page 395 in Section 7 −2
for additional information.Be on the alert for changes in perfor-
mance, sounds, and visual tip −offs that
indicate service is needed. Some impor-
tant clues are as follows:
Engine missing, stumbling, or pinging
Appreciable loss of power
Strange engine noises
A leak under the vehicle (however, wa-
ter dripping from the air conditioning
after use is normal.)
Change in exhaust sound (This may
indicate a dangerous carbon monoxide
leak. Drive with the windows open and
have the exhaust system checked im-
mediately.)
Flat −looking tire; excessive tire squeal
when cornering; uneven tire wear
Vehicle pulls to one side when driving
straight on a level road
Strange noises related to suspension
movement
Loss of brake effectiveness; spongy
feeling brake pedal; pedal almost
touches floor; vehicle pulls to one side
when braking
Engine coolant temperature continually
higher than normal If you notice any of these clues, take your
vehicle to your Toyota dealer as soon as
possible. It probably needs adjustment or
repair.
CAUTION
Do not continue driving with the ve-
hicle unchecked. It could result in se-
rious vehicle damage and possibly
personal injury.
Does your vehicle need
repairing?

’06 HIGHLANDER HB_U (L/O 0503)
374
2006 HIGHLANDER (Hybrid) from Mar. ’05 Prod. (OM48530U)
Some states have vehicle emission in-
spection programs which include OBD
(On−Board Diagnostics) che cks.
The OBD system monitors the operation
of the emission control system. When the
OBD system determines that a problem
exists somewhere in the emission control
system, the malfunction indicator lamp
comes on. In this case, your vehicle may
not pass the I/M test and need to be
repaired. Contact your Toyota dealer to
service the vehicle.
Even if the malfunction indicator lamp
does not come on, your vehicle may not
pass the I/M test as readiness codes
have not been set in the OBD system.
Readiness codes are automatically set
during ordinary driving. However, when the
auxiliary battery is disconnected or run
down, the codes are erased. Also, de-
pending on your driving habits, the codes
may not be completely set.
Also, if the malfunction indicator lamp had
come on recently due to temporary mal-
function such as a loose fuel tank cap,
your vehicle may not pass the I/M test. The malfunction indicator lamp will go off
after taking several driving trips, but the
error code in the OBD system will not be
cleared unless about 40 trips or more are
taken.
If your vehicle does not pass the I/M test
even the malfunction indicator lamp does
not come on, contact your Toyota dealer
to prepare the vehicle for re
−testing.
Emissions Inspection and
Maintenance (I/M) programs

’06 HIGHLANDER HB_U (L/O 0503)
375
2006 HIGHLANDER (Hybrid) from Mar. ’05 Prod. (OM48530U)
DOITYOURSELF MAINTENANCE
Introduction
Engine compartment overview 376
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Removing the engine compartment covers 377
. . . . . . . . . . . . . . . . . . . .
Fuse locations 378
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . \
. . . . . . . . .
Do −it− yourself service precautions 379
. . . . . . . . . . . . . . . . . . . . . . . . . . .
Positioning the jack 381
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . \
. . . . .
Parts and tools 382
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . \
. . . . . . . . .
SECTION 7 1

’06 HIGHLANDER HB_U (L/O 0503)
376
2006 HIGHLANDER (Hybrid) from Mar. ’05 Prod. (OM48530U)

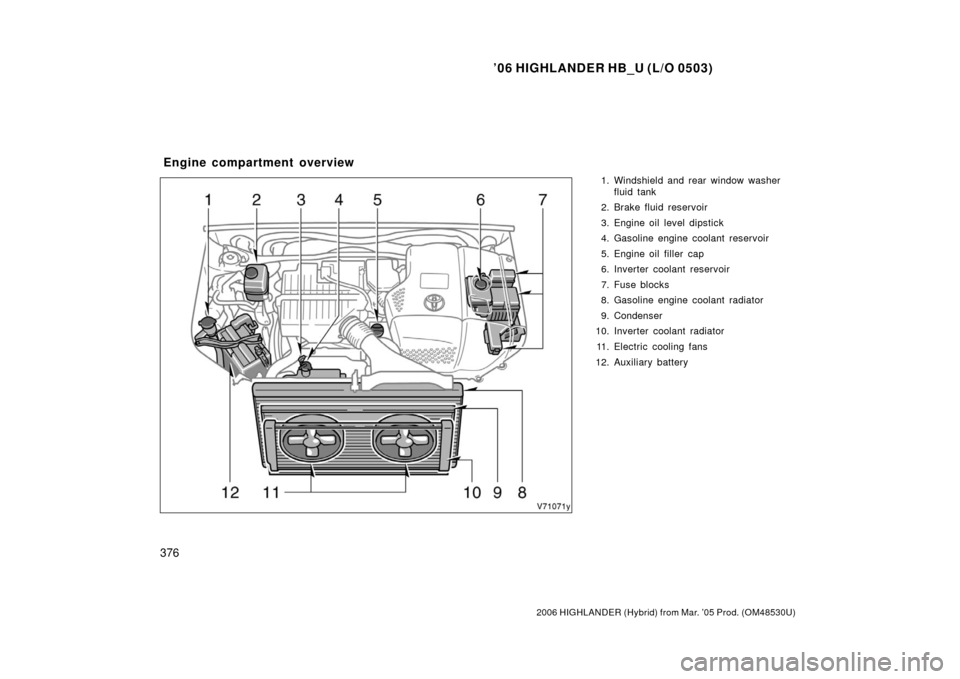

1. Windshield and rear window washer
fluid tank
2. Brake fluid reservoir
3. Engine oil level dipstick
4. Gasoline engine coolant reservoir
5. Engine oil filler cap
6. Inverter coolant reservoir
7. Fuse blocks
8. Gasoline engine coolant radiator
9. Condenser
10. Inverter coolant radiator
11. Electric cooling fans
12. Auxiliary battery
Engine compartment overview

’06 HIGHLANDER HB_U (L/O 0503)
377
2006 HIGHLANDER (Hybrid) from Mar. ’05 Prod. (OM48530U)
High voltage current runs in the parts
and cables in the engine compartment.
Do not touch high voltage parts, cables
and connectors. For the locations of
high voltage parts and cables, see
“—High voltage components” on page
6 in Section 11.
CAUTION
Never touch, remove or disassemble
high voltage parts and cables. It can
cause severe burns or electric shock
that may result in death or serious
injury.
Front cover
: Clips
Rear cover
: Clip
: Hooks
(Hook up gently to remove.)

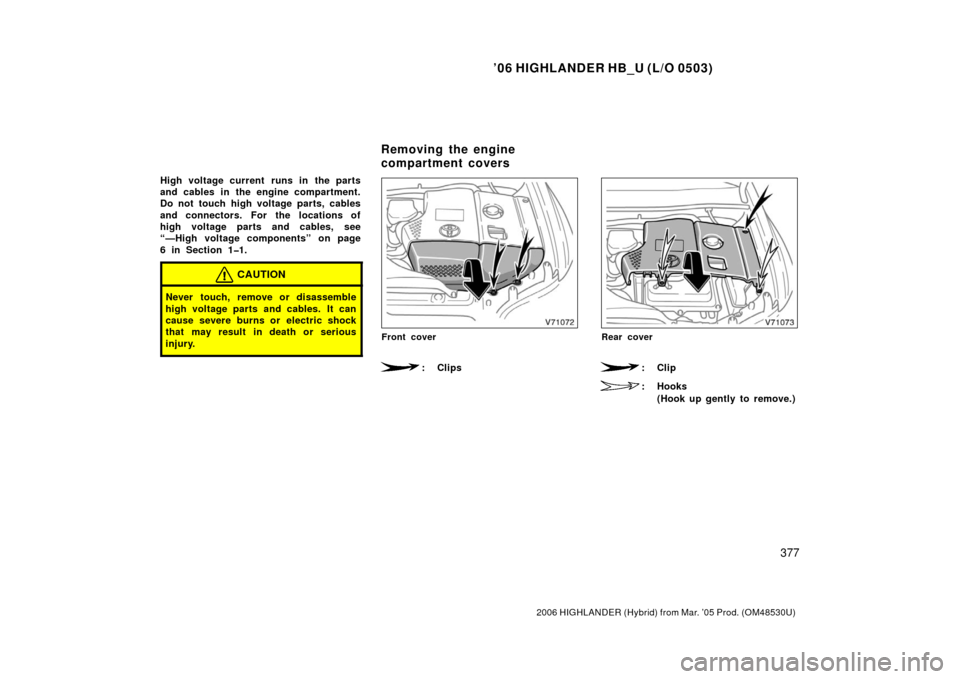

Removing the engine
compartment covers

’06 HIGHLANDER HB_U (L/O 0503)
378
2006 HIGHLANDER (Hybrid) from Mar. ’05 Prod. (OM48530U)
Removing clip
Installing clip
Before checking the fuse or replacing
the left front light bulbs, etc. in the
engine compartment, remove the engine
compartment covers as shown in the
illustrations:
1. Push the core of the clips and remove the clips.
2. Remove the cover.
Be careful not to lose the removed plastic
clips.
After checking the items, install the en-
gine compartment covers and insert the
plastic clips in their original positions.
NOTICE
After installing the engine compart-
ment covers, make sure the covers
are securely in their original posi-
tions.
Fuse locations
