6. Remove the holding br ac k et and
the spare tire cover.2. Block the wheel diagonally op- posite the flat tire to keep the
vehicle from rolling when it is
jacked up.
When blocking the wheel, place a
wheel block in front of one of the front
wheels or behind one of the rear
wheels.3. Loosen all the wheel nuts.
Always loosen the wheel nuts before
raising the vehicle.
Turn the wheel nuts counterclockwise
to loosen. To get maximum leverage,
fit the wrench to the nut so that the
handle is on the right side, as shown
above. Grab the wrench near the end
of the handle and pull up on the han-
dle. Be careful that the wrench does
not slip off the nut.
Do not remove the nuts yet—just un-
screw them about one −half turn.
—Blocking the wheel —Loosening wheel nuts

’06 HIGHLANDER HB_U (L/O 0503)
350
2006 HIGHLANDER (Hybrid) from Mar. ’05 Prod. (OM48530U)
CAUTION
Never use oil or grease on the
bolts or nuts. The nuts may loose
and the wheels may fall off,
which could cause a serious ac-
cident.
4. Position the jack at the correct
jack point as shown.
Make sure the jack is positioned on
a level and solid place.5. After making sure that no one is in the vehicle, raise it high
enough so that the spare tire
can be installed.
Remember you will need more ground
clearance when putting on the spare
tire than when removing the flat tire.
To raise the vehicl e, insert the jack
handle into the jack (it is a loose fit)
and turn it clockwise. As the jack
touches the vehicle and begins to lift,
double −check that it is properly posi-
tioned.
—Positioning the jack —Raising your vehicle

’06 HIGHLANDER HB_U (L/O 0503)
351
2006 HIGHLANDER (Hybrid) from Mar. ’05 Prod. (OM48530U)
CAUTION
Never get under the vehicle when
the vehicle is supported by the
jack alone.
6. Remove the wheel nuts and
change tires.
Lift the flat tire straight off and put it
aside.
Remove the wheel ornament from the
flat tire and replace it on the spare
wheel.
Roll the spare wheel into position and
align the holes in the wheel with the
bolts. Then lift up the wheel and get
at least the top bolt started through
its hole. Wiggle the tire and press it
back over the other bolts.Before putting on wheels, remove any
corrosion on the mounting surfaces
with a wire brush or such. Installation
of wheels without good metal− to−met-
al contact at the mounting surface can
cause wheel nuts to loosen and
eventually cause a wheel to come off
while driving.
—Changing wheels

’06 HIGHLANDER HB_U (L/O 0503)
352
2006 HIGHLANDER (Hybrid) from Mar. ’05 Prod. (OM48530U)
7. Reinstall all the wheel nuts fin-
ger tight.

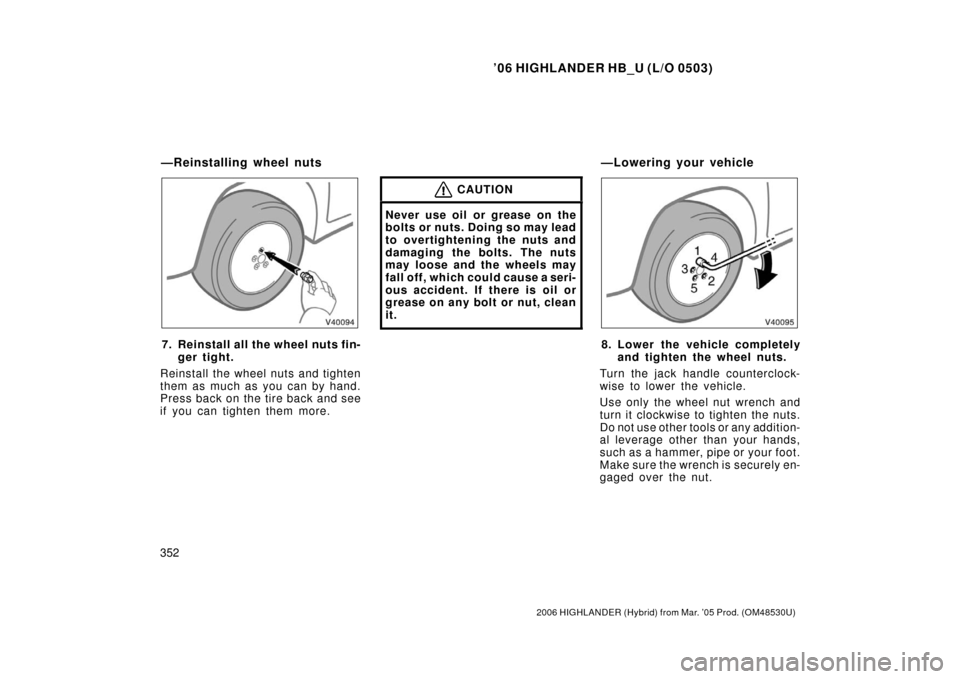

Reinstall the wheel nuts and tighten
them as much as you can by hand.
Press back on the tire back and see
if you can tighten them more.
CAUTION
Never use oil or grease on the
bolts or nuts. Doing so may lead
to overtightening the nuts and
damaging the bolts. The nuts
may loose and the wheels may
fall off, which could cause a seri-
ous accident. If there is oil or
grease on any bolt or nut, clean
it.
8. Lower the vehicle completely and tighten the wheel nuts.
Turn the jack handle counterclock-
wise to lower the vehicle.
Use only the wheel nut wrench and
turn it clockwise to tighten the nuts.
Do not use other tools or any addition-
al leverage other than your hands,
such as a hammer, pipe or your foot.
Make sure the wrench is securely en-
gaged over the nut.
—Reinstalling wheel nuts —Lowering your vehicle

’06 HIGHLANDER HB_U (L/O 0503)
353
2006 HIGHLANDER (Hybrid) from Mar. ’05 Prod. (OM48530U)
Tighten each nut a little at a time in
the order shown. Repeat the process
until all the nuts are tight.
CAUTION
When lowering the vehicle,
make sure all portions of your
body and all other persons
around will not be injured as
the vehicle is lowered to the
ground.
 Have the wheel nuts tightened
with torque wrench to 103 N·m
(10.5 kgf·m, 76 ft·lbf), as soon
as possible after changing
wheels. Otherwise, the nuts
may loosen and the wheels
may fall off, which could cause
a serious accident.
 Do not attach a heavily dam-
aged plastic wheel ornament.
It may fly off the wheel and
cause accidents while the ve-
hicle is moving.
9. Check the air pressure of the re-
placed tire.
Adjust the air pressu re to the specifi-
cation designated on page 415 in
Section 8. If the pressure is lower,
drive slowly to the nearest service
station and fill to the correct pressure.
Do not forget to reinstall the tire infla-
tion valve cap as dirt and moisture
could get into th e valve core and
possibly cause air leakage. If the cap
is missing, have a new one put on as
soon as possible.
10.Restow all the tools, jack and flat tire securely.
As soon after changing wheels as
possible, tighten the wheel nuts to the
torque specified on page 415 in Sec-
tion 8 with a torque wrench. Have a
technician repair the flat tire and re-
place the spare tire with it.CAUTION
Before driving, make sure all the
tools, jack and flat tire are se-
curely in place in their storage
location to reduce the possibility
of personal injury during a colli-
sion or sudden braking.
—After changing wheels

’06 HIGHLANDER HB_U (L/O 0503)
354
2006 HIGHLANDER (Hybrid) from Mar. ’05 Prod. (OM48530U)
If your vehicle becomes stuck in snow,
mud, sand, etc., then you may attempt
to rock the vehicle free by moving it
forward and backward.
CAUTION
Do not attempt to rock the vehicle
free by moving it forward and back-
ward if people or objects are any-
where near the vehicle. During the
rocking operation the vehicle may
suddenly move forward or backward
as it becomes unstuck, causing injury
or damage to nearby people or ob-
jects.
NOTICE
If you rock your vehicle, observe the
following precautions to prevent dam-
age to the hybrid transmission and
other parts.
Do not depress the accelerator ped-
al while shifting the selector lever
or before the transmission is com-
pletely shifted to forward or reverse
gear.
Avoid spinning the wheels.
 If your vehicle remains stuck after
rocking the vehicle several times,
consider other ways such as tow-

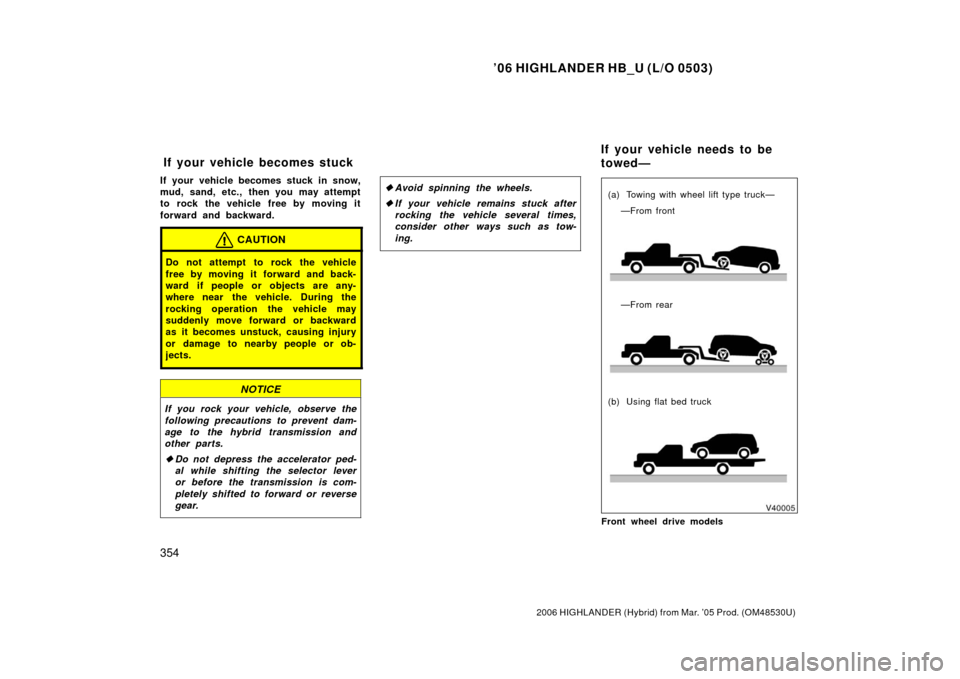

ing.(a) Towing with wheel lift type truck—
—From front
—From rear
(b) Using flat bed truck
Front wheel drive models
If your vehicle becomes stuck If your vehicle needs to be
towed—

’06 HIGHLANDER HB_U (L/O 0503)
355
2006 HIGHLANDER (Hybrid) from Mar. ’05 Prod. (OM48530U)

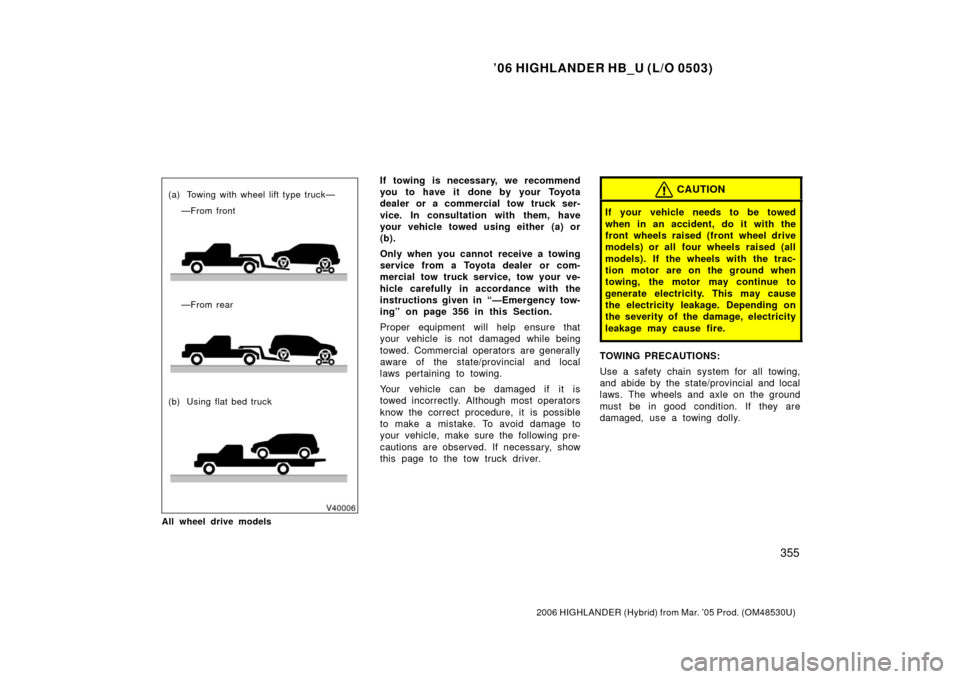

(a) Towing with wheel lift type truck—
—From front
—From rear
(b) Using flat bed truck
All wheel drive models
If towing is necessary, we recommend
you to have it done by your Toyota
dealer or a commercial tow truck ser-
vice. In consultation with them, have
your vehicle towed using either (a) or
(b).
Only when you cannot receive a towing
service from a Toyota dealer or com-
mercial tow truck service, tow your ve-
hicle carefully in accordance with the
instructions given in “—Emergency tow-
ing” on page 356 in this Section.
Proper equipment will help ensure that
your vehicle is not damaged while being
towed. Commercial operators are generally
aware of the state/provincial and local
laws pertaining to towing.
Your vehicle can be damaged if it is
towed incorrectly. Although most operators
know the correct procedure, it is possible
to make a mistake. To avoid damage to
your vehicle, make sure the following pre-
cautions are observed. If necessary, show
this page to the tow truck driver.CAUTION
If your vehicle needs to be towed
when in an accident, do it with the
front wheels raised (front wheel drive
models) or all four wheels raised (all
models). If the wheels with the trac-
tion motor are on the ground when
towing, the motor may continue to
generate electricity. This may cause
the electricity leakage. Depending on
the severity of the damage, electricity
leakage may cause fire.
TOWING PRECAUTIONS:
Use a safety chain system for all towing,
and abide by the state/provincial and local
laws. The wheels and axle on the ground
must be in good condition. If they are
damaged, use a towing dolly.

’06 HIGHLANDER HB_U (L/O 0503)
356
2006 HIGHLANDER (Hybrid) from Mar. ’05 Prod. (OM48530U)
Front wheel drive models—
(a) Towing with wheel lift type truck
From front—Release the parking brake.
NOTICE
When lifting wheels, take care to en-
sure adequate ground clearance for
towing at the opposite end of the
raised vehicle. Otherwise, the bumper
and/or underbody of the towed vehicle
will be damaged during towing.
From rear—
Use a towing dolly under the front wheels.
NOTICE
Never tow a vehicle from the rear
with the front wheels on the ground,
as this may cause serious damage to
the transmission.
(b) Using flat bed truck
All wheel drive models—
(a) Towing with wheel lift type truck
Use a towing dolly under the wheels not
lifted by the truck.
(b) Using flat bed truck
(c) Towing with sling
type truck
All models—
(c) Towing with sling type truck
NOTICE
Do not tow with sling type truck, ei-
ther from the front or rear. This may
cause body damage.
If towing is necessary, we recommend
you to have it done by your Toyota
dealer or a commercial tow truck ser-
vice.
If towing service is not available in an
emergency, your vehicle may be tempo-
rarily towed at less than 30 km/h (18
mph) by a cable or chain secured to
one of the emergency towing eyelets on
the front of the vehicle. Use extreme
caution when towing the vehicle.
To install the front towing eyelet, see
“—Installing front towing eyelet” on page
357 in this Section.
—Emergency towing

’06 HIGHLANDER HB_U (L/O 0503)
357
2006 HIGHLANDER (Hybrid) from Mar. ’05 Prod. (OM48530U)

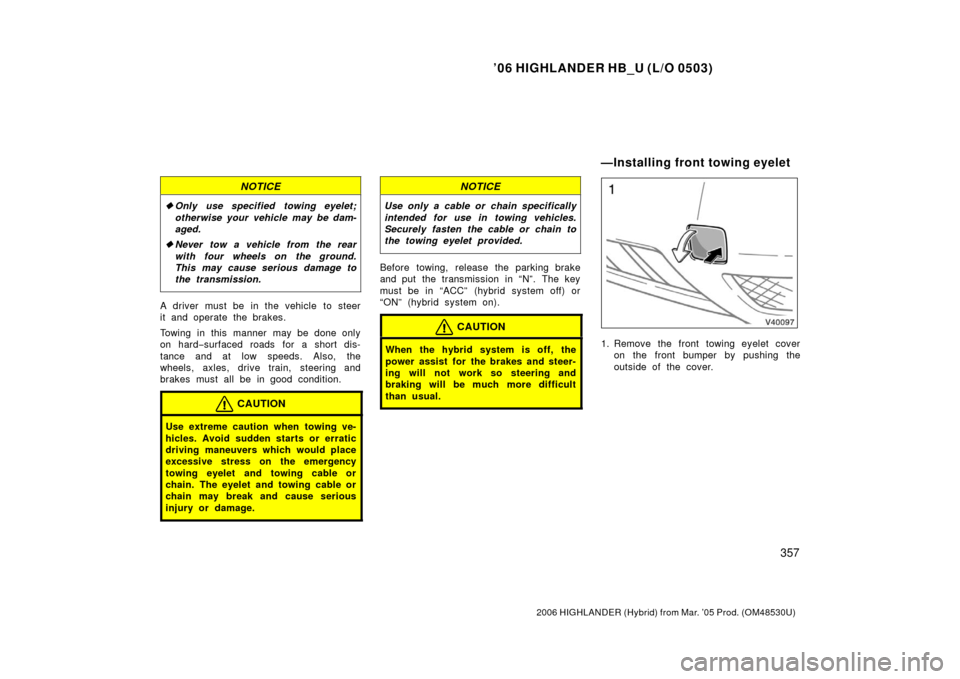

NOTICE
Only use specified towing eyelet;
otherwise your vehicle may be dam-
aged.
 Never tow a vehicle from the rear
with four wheels on the ground.
This may cause serious damage to
the transmission.
A driver must be in the vehicle to steer
it and operate the brakes.
Towing in this manner may be done only
on hard− surfaced roads for a short dis-
tance and at low speeds. Also, the
wheels, axles, drive train, steering and
brakes must all be in good condition.
CAUTION
Use extreme caution when towing ve-
hicles. Avoid sudden starts or erratic
driving maneuvers which would place
excessive stress on the emergency
towing eyelet and towing cable or
chain. The eyelet and towing cable or
chain may break and cause serious
injury or damage.
NOTICE
Use only a cable or chain specifically
intended for use in towing vehicles.
Securely fasten the cable or chain to
the towing eyelet provided.
Before towing, release the parking brake
and put the transmission in “N”. The key
must be in “ACC” (hybrid system off) or
“ON” (hybrid system on).
CAUTION
When the hybrid system is off, the
power assist for the brakes and steer-
ing will not work so steering and
braking will be much more difficult
than usual.1. Remove the front towing eyelet cover on the front bumper by pushing the
outside of the cover.
—Installing front towing eyelet

’06 HIGHLANDER HB_U (L/O 0503)
358
2006 HIGHLANDER (Hybrid) from Mar. ’05 Prod. (OM48530U)
2. Use the front towing eyelet in the lug-
gage compartment. Secure it to the
hole on the bumper by turning clock-
wise.
For the towing eyelet location, see
“—Required tools and spare tire” on
page 345 in this Section.3. Tighten the front towing eyelet securelyby a wheel nut wrench.
CAUTION
When installing the eyelet on the ve-
hicle, be sure to tighten the front
eyelet securely. If the eyelet is loose,
it may come off when being towed
and result in death or serious injury.
Before emergency towing, check that
the eyelet is not broken or damaged
and that the installation bolts are not
loose.
Fasten the towing cable or chain se-
curely to the eyelet.
Do not jerk the eyelet. Apply steady
and even force.
To avoid damaging the eyelet, do not
pull from the side or at a vertical
angle. Always pull straight ahead.
—Emergency towing eyelet
precautions
