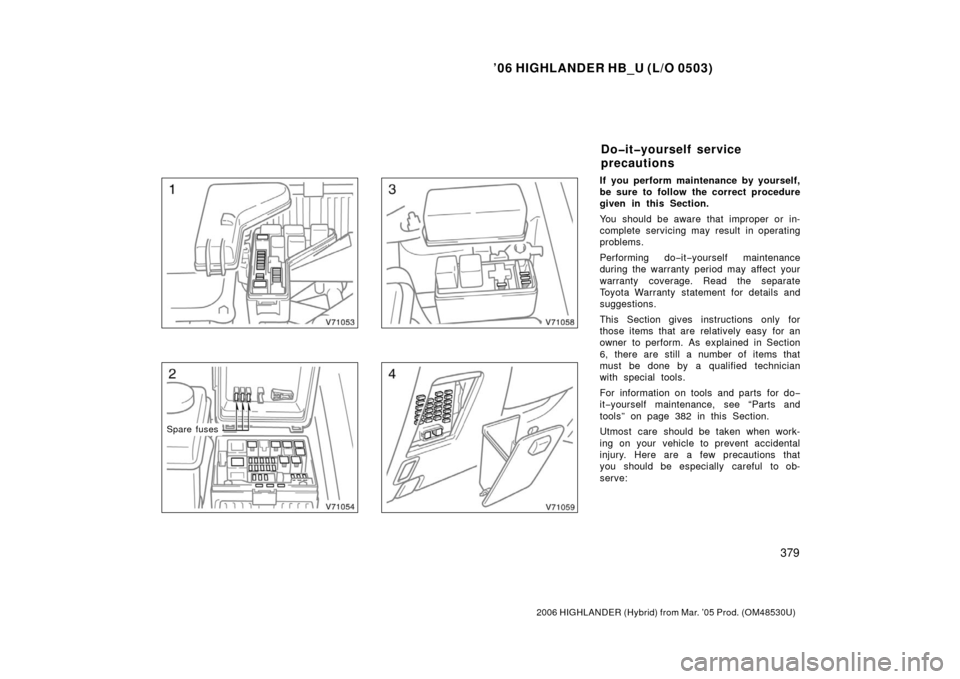

Spare fuses
If you perform maintenance by yourself,
be sure to follow the correct procedure
given in this Section.
You should be aware that improper or in-
complete servicing may result in operating
problems.
Performing do−it−yourself maintenance
during the warranty period may affect your
warranty coverage. Read the separate
Toyota Warranty statement for details and
suggestions.
This Section gives instructions only for
those items that are relatively easy for an
owner to perform. As explained in Section
6, there are still a number of items that
must be done by a qualified technician
with special tools.
For information on tools and parts for do −
it −yourself maintenance, see “Parts and
tools” on page 382 in this Section.
Utmost care should be taken when work-
ing on your vehicle to prevent accidental
injury. Here are a few precautions that
you should be especially careful to ob-
serve:
Doityourself service
precautions

’06 HIGHLANDER HB_U (L/O 0503)
380
2006 HIGHLANDER (Hybrid) from Mar. ’05 Prod. (OM48530U)
CAUTION
Never touch, remove or disassemble
high voltage parts and cables.
Touching, removing or disassem-
bling those parts and cables can
cause severe burns or electric
shock that may result in death or
serious injury. For the locations of
high voltage parts and cables, see
“—High voltage components” on
page 6 in Section 11.
When the hybrid system is on, keep
hands, clothing, and tools away
from the moving fan. (Removing
rings, watches, and ties is advis-
able.)
Right after driving, the engine
compartment—the engine, radiator,
exhaust manifold and spark plug
boots, etc.—will be hot. So be care-
ful not to touch them. Oil, fluids
and spark plugs may also be hot.
If the radiator is hot, do not remove
the radiator cap or loosen the drain
plugs to prevent burning yourself.
Do not leave anything that may
burn easily, such as paper or rags,
in the engine compartment.
Do not smoke, cause sparks or al-
low open flames around fuel or the
battery. Their fumes are flammable.
When the hybrid system is operat-
ing with the “READY” light on, the
engine may suddenly start in some
cases. When you inspect the engine
compartment, be sure to turn off
the hybrid system.
Do not get under your vehicle with
just the body jack supporting it. Al-
ways use automotive jack stands or
other solid supports.
Be sure that the ignition is off if
you work near the electric cooling
fans or radiator grille. With the
ignition on, the electric cooling fans
will automatically start to run if the
engine coolant temperature is high
and/or the air conditioning is on.
Use eye protection whenever you
work on or under your vehicle
where you may be exposed to flying
or falling material, fluid spray, etc.
Brake fluid can harm your hands or
eyes and damage painted surfaces.
If fluid gets on your hands or in
your eyes, flush the affected area
with clean water immediately. If you
still feel uncomfortable with your
hands or eyes, go to the doctor.
Used engine oil contains potentially
harmful contaminants which may
cause skin disorders such as in-
flammation or skin cancer, so care
should be taken to avoid prolonged
and repeated contact with it. To re-
move used engine oil from your
skin, wash thoroughly with soap
and water.
Do not leave used oil within the
reach of children.
Dispose of used oil and filter only
in a safe and acceptable manner.
Do not dispose of used oil and fil-
ter in household trash, in sewers or
onto the ground. Call your dealer or
a service station for information
concerning recycling or disposal.
Be extremely cautious when work-
ing on the auxiliary battery. It con-
tains poisonous and corrosive
sulfuric acid.

’06 HIGHLANDER HB_U (L/O 0503)
381
2006 HIGHLANDER (Hybrid) from Mar. ’05 Prod. (OM48530U)
NOTICE
Remember that the auxiliary battery
and ignition cable carry high cur-
rents or voltages. Be careful of ac-
cidentally causing a short circuit.
 Add only “Toyota Super Long Life
Coolant” or similar high quality eth-
ylene glycol based nonsilicate,
nonamine, nonnitrite, and nonbo-
rate coolant with longlife hybrid
organic acid technology to fill the
radiator. “Toyota Super Long Life
Coolant” is a mixture of 50% cool-
ant and 50% deionized water (for
the U.S.A.) or 55% coolant and 45%
deionized water (for Canada).
 If you spill some of the coolant, be
sure to wash it off with water to
prevent it from damaging the parts
or paint.
 Do not allow dirt or anything else
to fall through the spark plug holes.
 Use only spark plugs of the speci-
fied type. Using other types will
cause engine damage, loss of per-
formance or radio noise.
Do not reuse iridiumtipped spark
plugs by cleaning or regapping.
 Do not drive with the air cleaner
filter removed, or excessive engine
wear could result. Also backfiring
could cause a fire in the engine
compartment.
 Be careful not to scratch the glass
surface with the wiper frame.
 When closing the engine hood,
check to see that you have not for-
gotten any tools, rags, etc.
Front
Rear (front wheel drive models)

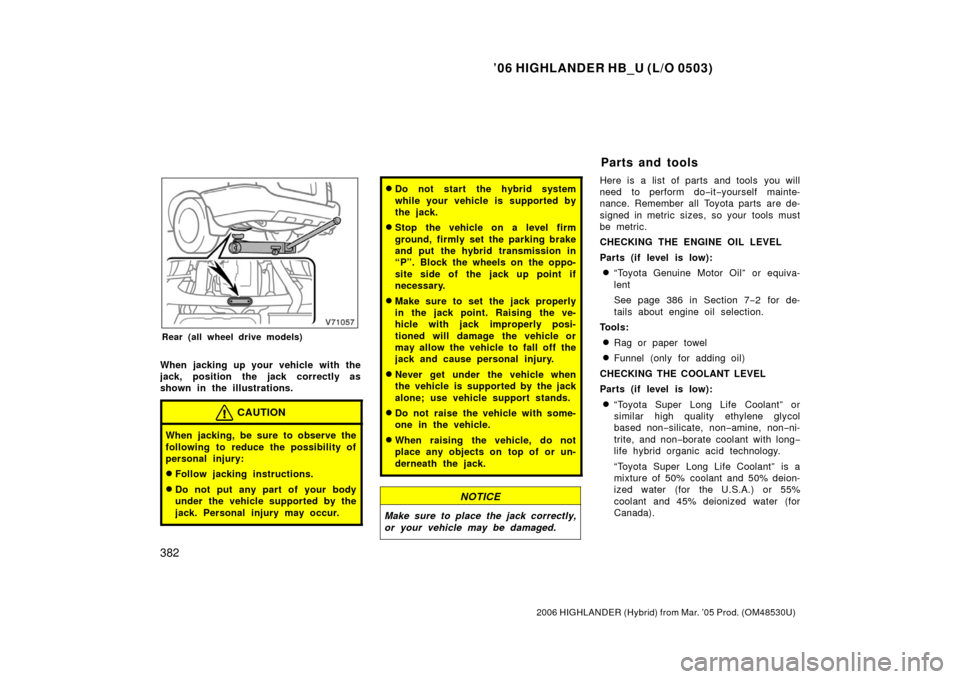

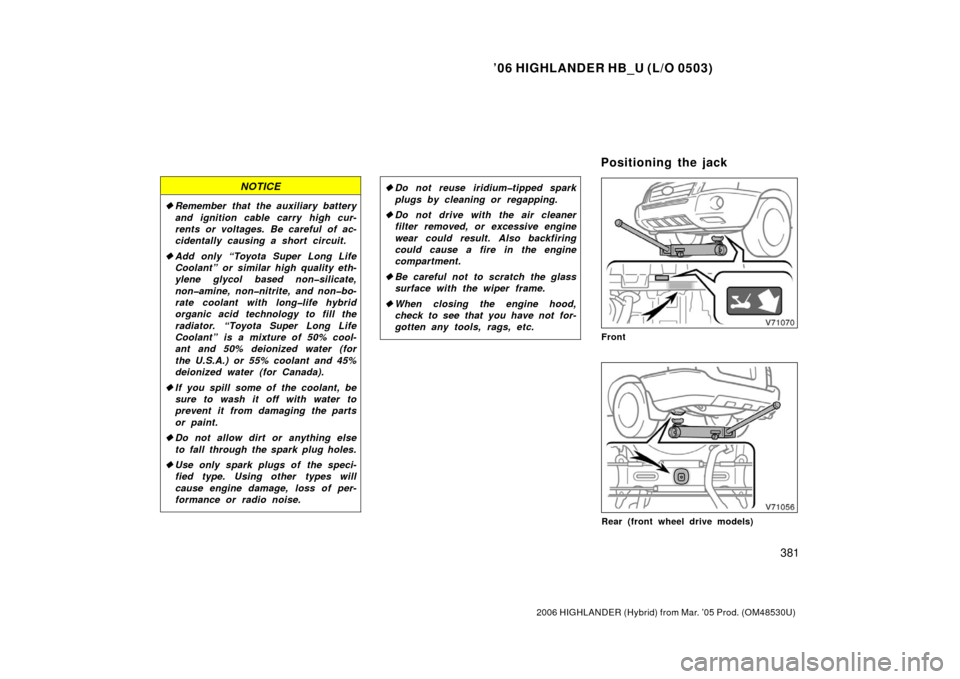

Positioning the jack

’06 HIGHLANDER HB_U (L/O 0503)
382
2006 HIGHLANDER (Hybrid) from Mar. ’05 Prod. (OM48530U)
Rear (all wheel drive models)
When jacking up your vehicle with the
jack, position the jack correctly as
shown in the illustrations.
CAUTION
When jacking, be sure to observe the
following to reduce the possibility of
personal injury:
Follow jacking instructions.
Do not put any part of your body
under the vehicle supported by the
jack. Personal injury may occur.
Do not start the hybrid system
while your vehicle is supported by
the jack.
Stop the vehicle on a level firm
ground, firmly set the parking brake
and put the hybrid transmission in
“P”. Block the wheels on the oppo-
site side of the jack up point if
necessary.
Make sure to set the jack properly
in the jack point. Raising the ve-
hicle with jack improperly posi-
tioned will damage the vehicle or
may allow the vehicle to fall off the
jack and cause personal injury.
Never get under the vehicle when
the vehicle is supported by the jack
alone; use vehicle support stands.
Do not raise the vehicle with some-
one in the vehicle.
When raising the vehicle, do not
place any objects on top of or un-
derneath the jack.
NOTICE
Make sure to place the jack correctly,
or your vehicle may be damaged.
Here is a list of parts and tools you will
need to perform do−it−yourself mainte-
nance. Remember all Toyota parts are de-
signed in metric sizes, so your tools must
be metric.
CHECKING THE ENGINE OIL LEVEL
Parts (if level is low):
“Toyota Genuine Motor Oil” or equiva-
lent
See page 386 in Section 7− 2 for de-
tails about engine oil selection.
Tools:
Rag or paper towel
Funnel (only for adding oil)

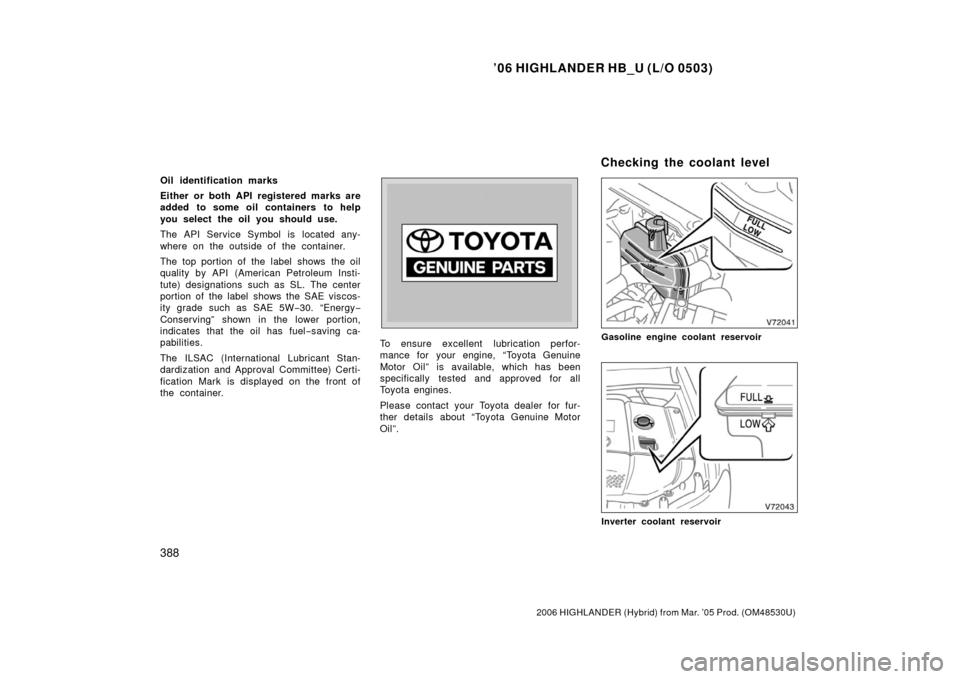

CHECKING THE COOLANT LEVEL
Parts (if level is low):
“Toyota Super Long Life Coolant” or
similar high quality ethylene glycol
based non −silicate, non −amine, non− ni-
trite, and non −borate coolant with long −
life hybrid organic acid technology.
“Toyota Super Long Life Coolant” is a
mixture of 50% coolant and 50% deion-
ized water (for the U.S.A.) or 55%
coolant and 45% deionized water (for
Canada).
Parts and tools

’06 HIGHLANDER HB_U (L/O 0503)
383
2006 HIGHLANDER (Hybrid) from Mar. ’05 Prod. (OM48530U)
Tools:
Funnel (only for adding coolant)
CHECKING BRAKE FLUID
Parts (if level is low):
SAE J1703 or FMVSS No.116 DOT 3
brake fluid
Tools:
Rag or paper towel
Funnel (only for adding fluid)
CHECKING AUXILIARY BATTERY
CONDITION
Tools:
Warm water
Baking soda
Grease
Conventional wrench
(for terminal clamp bolts)
CHECKING AND REPLACING FUSES
Parts (if replacement is necessary):
Fuse with same amperage rating as
original ADDING WASHER FLUID
Parts:
Water
Washer fluid containing antifreeze
(for winter use)
Tools:
Funnel
REPLACING LIGHT BULBS
Parts:
Bulb with same number and wattage
rating as original (See charts in
“Replacing light bulbs” on page 404 in
Section 7 −3.)
Tools:
Screwdriver

’06 HIGHLANDER HB_U (L/O 0503)
384
2006 HIGHLANDER (Hybrid) from Mar. ’05 Prod. (OM48530U)

’06 HIGHLANDER HB_U (L/O 0503)
385
2006 HIGHLANDER (Hybrid) from Mar. ’05 Prod. (OM48530U)
DOITYOURSELF MAINTENANCE
Engine and Chassis
Checking the engine oil level 386
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Checking the coolant level 388
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Checking the radiators and condenser 390
. . . . . . . . . . . . . . . . . . . . . . . .
Checking brake fluid 390
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . \
. . . .
Checking tire inflation pressure 391
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Checking and replacing tires 393
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Rotating tires 395
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . \
. . . . . . . . . . .
Installing snow tires and chains 396
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Replacing wheels 397
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . \
. . . . . . .
Aluminum wheel precautions 398
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
SECTION 7 2

’06 HIGHLANDER HB_U (L/O 0503)
386
2006 HIGHLANDER (Hybrid) from Mar. ’05 Prod. (OM48530U)
Low level Full level
Add oil O.K. Too full
With the hybrid system at operating
temperature and turned off, check the
oil level on the dipstick. 1. To get a correct reading, the vehicle should be on level ground. After turning
off the hybrid system, wait a few min-
utes for the oil to drain back into the
bottom of the engine.
2. Pull the dipstick out, hold a rag under the end and wipe it clean.
3. Reinsert the dipstick—push it in as far as it will go, or the reading will not be
correct.
4. Pull the dipstick out and look at the oil level while holding a rag under the
end.
CAUTION
Be careful not to touch the hot ex-
haust manifold.
NOTICE
Be careful not to drop engine oil on
the vehicle components.
 To avoid drops of the engine oil
falling when you pull out the engine
oil dipstick, make sure to hold a
rag under the dipstick.
If the oil level is below or only slightly
above the low level, add engine oil of
the same type as already in the engine.
Remove the oil filler cap and add engine
oil in small quantities at a time, checking
the dipstick. We recommend that you use
a funnel when adding oil.
The approximate quantity of oil needed to
raise the level between low and full on the
dipstick is indicated as follows:
1.5 L (1.6 qt., 1.3 lmp. qt.)
For the engine oil capacity, see “Service
specifications” on page 412 in Section 8. When the level reaches within the correct
range, install the filler cap hand−
tight.
NOTICE
Be careful not to spill engine oil on
the vehicle components.
 Avoid overfilling, or the engine
could be damaged.
 Check the oil level on the dipstick
once again after adding the oil.
Checking the engine oil level

’06 HIGHLANDER HB_U (L/O 0503)
387
2006 HIGHLANDER (Hybrid) from Mar. ’05 Prod. (OM48530U)
ENGINE OIL SELECTION
“Toyota Genuine Motor Oil” is used in
your Toyota vehicle. Use Toyota approved
“Toyota Genuine Motor Oil” or equivalent
to satisfy the following grade and
viscosity.
Oil grade:
API grade SL “Energy −Conserving” or
ILSAC multigrade engine oil
Recommended viscosity: SAE 5W −30
Outside temperature
SAE 5W30 is the best choice for good
fuel economy and good starting in cold
weather.
If SAE 5W30 is not available, SAE
10W30 may be used. However, it
should be replaced with SAE 5W30 at
the next oil change.
API service symbol
ILSAC certification mark

’06 HIGHLANDER HB_U (L/O 0503)
388
2006 HIGHLANDER (Hybrid) from Mar. ’05 Prod. (OM48530U)
Oil identification marks
Either or both API registered marks are
added to some oil containers to help
you select the oil you should use.
The API Service Symbol is located any-
where on the outside of the container.
The top portion of the label shows the oil
quality by API (American Petroleum Insti-
tute) designations such as SL. The center
portion of the label shows the SAE viscos-
ity grade such as SAE 5W−30. “Energy −
Conserving” shown in the lower portion,
indicates that the oil has fuel −saving ca-
pabilities.
The ILSAC (International Lubricant Stan-
dardization and Approval Committee) Certi-
fication Mark is displayed on the front of
the container.
To ensure excellent lubrication perfor-
mance for your engine, “Toyota Genuine
Motor Oil” is available, which has been
specifically tested and approved for all
Toyota engines.
Please contact your Toyota dealer for fur-
ther details about “Toyota Genuine Motor
Oil”.Gasoline engine coolant reservoir
Inverter coolant reservoir
Checking the coolant level
