TOYOTA HIGHLANDER HYBRID 2006 XU40 / 2.G Manual PDF

’06 HIGHLANDER HB_U (L/O 0503)
59
2006 HIGHLANDER (Hybrid) from Mar. ’05 Prod. (OM48530U)
CAUTION
Be careful that the seat does not
hit a passenger or luggage.
After folding down the right side
seat, try pushing the seat forward
and rearward to make sure it is se-
cured in place.
NOTICE
Do not fold the second seat seatback
forward with the luggage cover hooks
attached.
Folding down the second seats will en-
large the luggage compartment.
If there is space between the second seat
and the folded third seat seatback, slide
the folded second seat to the rear −most
position.
CAUTION
After sliding the seat, try pushing the
seat forward and rearward to make
sure it is secured in place.
See “—Stowage precautions” on page 320
in Section 2 for precautions when loading
luggage.
CAUTION
When returning the seatback to the
upright position, observe the follow-
ing precautions in order to prevent
personal injury in a collision or sud-
den stop:
Make sure the seatback is securely
locked by pushing forward and rear-
ward on the top of the seatback.
Failure to do so will prevent the
seat belt from operating properly.
Make sure the seat belts are not
twisted or caught in the seatback
and are arranged in their proper
position and are ready to use.

’06 HIGHLANDER HB_U (L/O 0503)
60
2006 HIGHLANDER (Hybrid) from Mar. ’05 Prod. (OM48530U)
From front
From rear1. SEATBACK ANGLE ADJUSTING
STRAP
Lean forward and pull the strap toward
you. Then lean back to the desired
angle and release the strap.
2. SEATBACK ANGLE ADJUSTING LEVER
Pull down the lever, then adjust the
seatback to the desired angle and re-
lease the lever.
CAUTION
Do not adjust the seat while the
vehicle is moving.
Be careful that the seat does not
hit a passenger or luggage.
Avoid reclining the seatback any
more than needed. The seat belts
provide maximum protection in a
frontal or rear collision when the
passengers are sitting up straight
and well back in the seats. If you
are reclined, the lap belt may slide
past your hips and apply restraint
forces directly to the abdomen or
your neck may contact the shoulder
belt. In the event of a frontal colli-
sion, the more the seat is reclined,
the greater the risk of death or per-
sonal injury.
After adjusting the seatback, push
your body back against the seat to
make sure the seat is locked in
position.
—Adjusting third seat

’06 HIGHLANDER HB_U (L/O 0503)
61
2006 HIGHLANDER (Hybrid) from Mar. ’05 Prod. (OM48530U)
BEFORE FOLDING DOWN THIRD SEAT
Make sure that the seat is clear of
people and luggage.
1. Stow the third seat seat belt buckles as shown in the illustration.
NOTICE
The seat belt buckles must be stowed
before you fold the third seat.
2. To stow the seat belt, insert the tabsinto the slot as shown above. Make
sure the tabs are securely locked in
the slot.
NOTICE
The seat belt must be stowed before
you fold the seatback.
—Folding down third seat

’06 HIGHLANDER HB_U (L/O 0503)
62
2006 HIGHLANDER (Hybrid) from Mar. ’05 Prod. (OM48530U)
From front
From rearFOLDING DOWN THIRD SEAT
Lower the head restraints to the lowest
position. Pull the seatback angle adjust-
ing strap toward you or pull down the
seatback angle adjusting lever to un-
lock the seatback and fold the seatback
down until it locks.
CAUTION
Be careful that the seat does not hit
a passenger or luggage.
Folding down the third seat will enlarge
the luggage compartment. See “—Stowage
precautions” on page 320 in Section 2 for
precautions when loading luggage.RETURNING THIRD SEAT
Pull the seatback adjusting lever to un-
lock the seatback and fold up the seat-
back to its upright lock position.

’06 HIGHLANDER HB_U (L/O 0503)
63
2006 HIGHLANDER (Hybrid) from Mar. ’05 Prod. (OM48530U)
CAUTION
When returning the seatback to the
upright position, observe the follow-
ing precautions in order to prevent
personal injury in a collision or sud-
den stop:
Make sure the seatback is securely
locked by pushing forward and rear-
ward on the top of the seatback.
Failure to do so will prevent the
seat belt from operating properly.
Make sure the seat belts are not
twisted or caught under the seat
and are arranged in their proper
position and are ready to use.To flatten the seatbacks, do the follow-
ing:
1. Hold the center of the lever and pull it up, sliding the second seat to the
rearmost position. Then pull the
seat forward slightly until it locks.2. Remove the head restraint. Hold thecenter of the lever and pull it up.
Then slide the front seat further for-
ward than the frontmost lock posi-
tion.
Flattening seatbacks
(manual seat)

’06 HIGHLANDER HB_U (L/O 0503)
64
2006 HIGHLANDER (Hybrid) from Mar. ’05 Prod. (OM48530U)
3. Pull the seatback angle adjusting le-
ver up to unlock and push down the
seatback.
When returning the seatback to the up-
right position, be careful not to make
yourself hit by the seatback which will
bound with considerable spring force.
After returning the seat to its original
position, be certain to replace the head
restraint.
CAUTION
Do not allow passengers to ride on
the flattened seat while driving; use
the seat in the normal position.
After returning the seat to its origi-
nal position, try pushing the seat
and seatback forward and rearward
to make sure it is secured in place.
Be certain to replace head restraint.
To flatten the seatbacks, do the follow-
ing:
1. Hold the center of the lever and pull it up, sliding the second seat to the
rearmost position. Then pull the
seat forward slightly until it locks.
Flattening seatbacks
(power seat)

’06 HIGHLANDER HB_U (L/O 0503)
65
2006 HIGHLANDER (Hybrid) from Mar. ’05 Prod. (OM48530U)
2. Remove the head restraint. Push the
seat position adjusting switch for-
ward to slide the front seat to the
frontmost position.3. Move the seatback angle adjustingswitch backward to flatten the seat-
back.
After returning the seat to its original
position, be certain to replace the head
restraint.
CAUTION
Do not allow passengers to ride on
the flattened seat while driving; use
the seat in the normal position.
After returning the seat to its origi-
nal position, try pushing the seat
and seatback forward and rearward
to make sure it is secured in place.
Be certain to replace head restraint.

’06 HIGHLANDER HB_U (L/O 0503)
66
2006 HIGHLANDER (Hybrid) from Mar. ’05 Prod. (OM48530U)
To turn on the seat heater, push the
switches (“L” switch for the left front
seat and “R” switch for the right front
seat). At this time, the indicator light
will illuminate to indicate the seat heat-
er is operating.
To turn off the seat heater, push the
switch once again.
The key must be in the “ON” position to
operate seat heaters.
CAUTION
Occupants must use caution when op-
erating the seat heater because it
may make them feel too hot or cause
burns at low temperatures (erythema,
varicella). Use extra caution for;
Babies, small children, elderly per-
sons, sick persons or persons with
physical disabilities
Persons who have sensitive skin
Persons who are exhausted
Persons who have taken alcohol or
drugs which induce sleep (sleeping
drug, cold remedy, etc.)
To prevent the seat overheating, do
not use the seat heater with a blan-
ket, cushion, or other insulating ob-
jects which cover the seat.
NOTICE
 Do not put unevenly weighed ob-
jects on the seat and do not stick
sharp objects (needles, nails, etc.)
into the seat.
 When cleaning the seats, do not
use organic substances (paint thin-
ner, benzine, alcohol, gasoline,
etc.). They may damage the heater
and seat surface.
 To prevent the battery from being
discharged, turn the switch off
when the hybrid system is off.
Seat heaters

’06 HIGHLANDER HB_U (L/O 0503)
67
2006 HIGHLANDER (Hybrid) from Mar. ’05 Prod. (OM48530U)

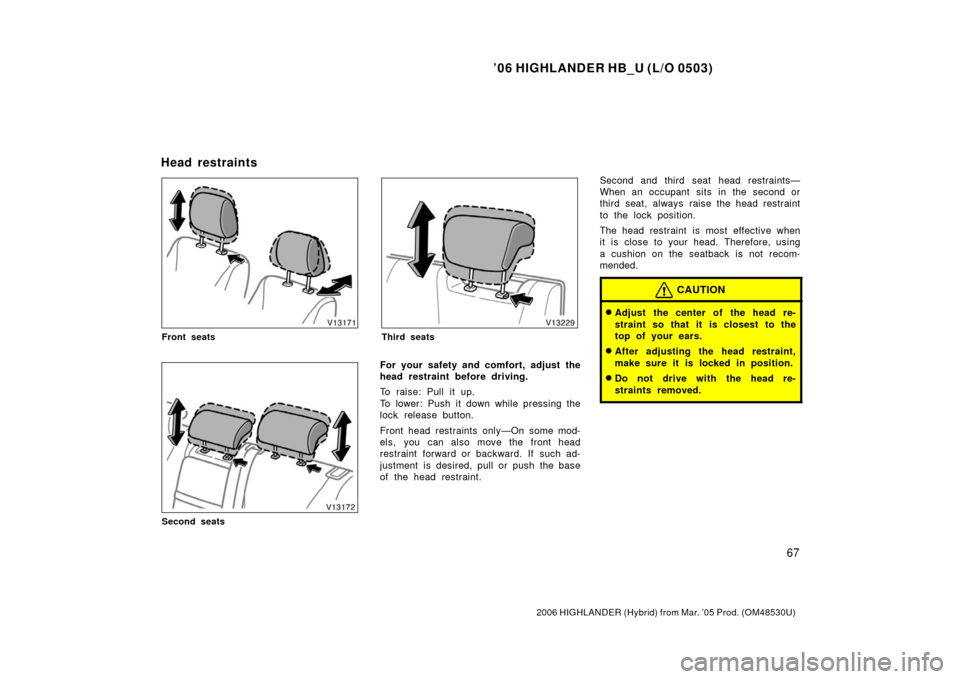

Front seats
Second seats
Third seats
For your safety and comfort, adjust the
head restraint before driving.
To raise: Pull it up.
To lower: Push it down while pressing the
lock release button.
Front head restraints only—On some mod-
els, you can also move the front head
restraint forward or backward. If such ad-
justment is desired, pull or push the base
of the head restraint. Second and third seat head restraints—
When an occupant sits in the second or
third seat, always raise the head restraint
to the lock position.
The head restraint is most effective when
it is close to your head. Therefore, using
a cushion on the seatback is not recom-
mended.
CAUTION
Adjust the center of the head re-
straint so that it is closest to the
top of your ears.
After adjusting the head restraint,
make sure it is locked in position.
Do not drive with the head re-
straints removed.
Head restraints

’06 HIGHLANDER HB_U (L/O 0503)
68
2006 HIGHLANDER (Hybrid) from Mar. ’05 Prod. (OM48530U)
Front seats
Second seat
To use the armrest, pull it down as
shown in the illustrations.
NOTICE
To prevent damage to the armrest,
avoid putting heavy loads on it.
Toyota strongly urges that the driver and
passengers in the vehicle be properly re-
strained at all times with the seat belts
provided. Failure to do so could increase
the chance of injury and/or the severity of
injury in accidents.
The seat belts provided for your vehicle
are designed for people of adult size,
large enough to properly wear them.
Child. Use a child restraint system ap-
propriate for the child until the child be-
comes large enough to properly wear the
vehicle’s seat belts. See “Child restraint”
on page 101 in this Section for details.
If a child is too large for a child restraint
system, the child s hould sit in the rear
seat and must be restrained using the
vehicle’s seat belt. According to accident
statistics, the child is safer when properly
restrained in the rear seat than in the
front seat.
If a child must sit in the front seat, the
seat belts should be worn properly. If an
accident occurs and the seat belts are not
worn properly, the force of the rapid infla-
tion of the airbag may cause death or
serious injury to the child.
Armrests Seat belts—
—Seat belt precautions
