TOYOTA HIGHLANDER HYBRID 2009 XU40 / 2.G Owners Manual

91
1-4. Adjustable components (s
eats, mirrors, steering wheel)
1
Before driving
■Getting out of the vehicle (right side only)
Lift the lever on the side of the
seatback and fold down the seat-
back. The seat will slide forward.
Move the seat to the front-most
position.
■ After passengers have entered/exited the vehicle
Lift up the seatback an d slide the seat backward until it locks.
Folding down the second seats
■ Before folding down the second seats
Stow the rear center seat belt
buckle.
Pass the outer seat belts through
the seat belt hangers and secure
the seat belt plates.
This prevents the shoulder belt
from being damage.
Make sure that the seat belts are
removed from the hangers before
using them.
STEP1
STEP2

92 1-4. Adjustable components (seats, mirrors, steering wheel)
■Folding down the second seats
From inside
Pull the lever to unlock the seat-
back and then fold the seatback
down.
From outside (if equipped) Pull the lever.
L: Left side and center secondseats
R: Right side second seat
■ After folding down the second seats
Slide the folded second seats to
the rear-most position.

93
1-4. Adjustable components (s
eats, mirrors, steering wheel)
1
Before driving
Folding down the third seats ( vehicles with third seats)
■ Before folding down the third seats
Stow the third seat belt buckles.
Pass the seat belts through the
seat belt hangers.
This prevents the shoulder belt
from being damage.
Make sure that the seat belts are
removed from the hangers before
using them.
Pull the strap to fold down the
head restraints.
STEP1
STEP2
STEP3

94 1-4. Adjustable components (seats, mirrors, steering wheel)
■Folding down the third seats
Pull the strap on the third seat-
back fold-down lever toward you
to fold down the seatback.
Removing the second center seat
■ Before removing the second center seat
Take out the side table from the
console box.
Lower the second center seat head restraint to the lowest
position. ( →P. 98)
■ Removing the second center seat
Fold down the second center
seatback while pulling the seat-
back lock release strap.
STEP1
STEP2
STEP1

95
1-4. Adjustable components (s
eats, mirrors, steering wheel)
1
Before driving
Pull the lock release lever to
remove the second center seat.
Stow the second center seat in
the console box.
Make sure that the seat is securely locked in position and
close the console box door.STEP2
STEP3
STEP4

96 1-4. Adjustable components (seats, mirrors, steering wheel)
Installing the second center seat
■ Before installing the second center seat
Take out the second center seat
from the console box.
Remove the side table, if used, from the second seat.
( → P. 384)
■ Installing the second center seat
Fully engage the front pins
with the hooks, and swing the
second center seat downward.
Push down on the second
center seat to engage the rear
pin locks.
Unfold the seatback and lock it.
Stow the side table in the console
box.
STEP1
STEP2
STEP1
STEP2

97
1-4. Adjustable components (s
eats, mirrors, steering wheel)
1
Before driving
CAUTION
■When adjusting a rear seat or removing the second center seat
●Be careful that the seat does not hit passengers or luggage.
● Do not recline the seat more than necessary when the vehicle is in motion
to reduce the risk of sliding under the lap belt. If the seat is too reclined,
the lap belt may slide past the hips and apply restraint forces directly to the
abdomen or your neck may contact the shoulder belt, increasing the risk of
death or serious injury in the event of an accident.
● Be careful not to get your hands or feet caught in the seat.
■ Before folding down a rear seats
Do not fold down a rear seat when there are passengers sitting in the rear
seats or when there is luggage placed on the rear seats.
■ After adjusting a seats
Observe the following precautions. Failure to do so may result in death or
serious injury.
●Make sure that the seat and seatback are securely locked in position by
lightly rocking them back and forth.
● Check that the seat belts are not twisted or caught under the seat.
● Second center seat: Make sure the seat is locked in place by trying to
shake the seatback and lift up the rear part of the seat cushion.
■ Caution while driving
Keep the console box closed.
Injuries may result in the event of an accident or sudden braking.
NOTICE
■When folding down the second seats
Do not fold the seatback forward with the luggage cover hooks attached.
■ Removed second center seat
Avoid putting heavy loads on the seat. The metallic seat pins may be dam-
aged, and you may be unable to correctly reinstall the seat.

98
1-4. Adjustable components (seats, mirrors, steering wheel)

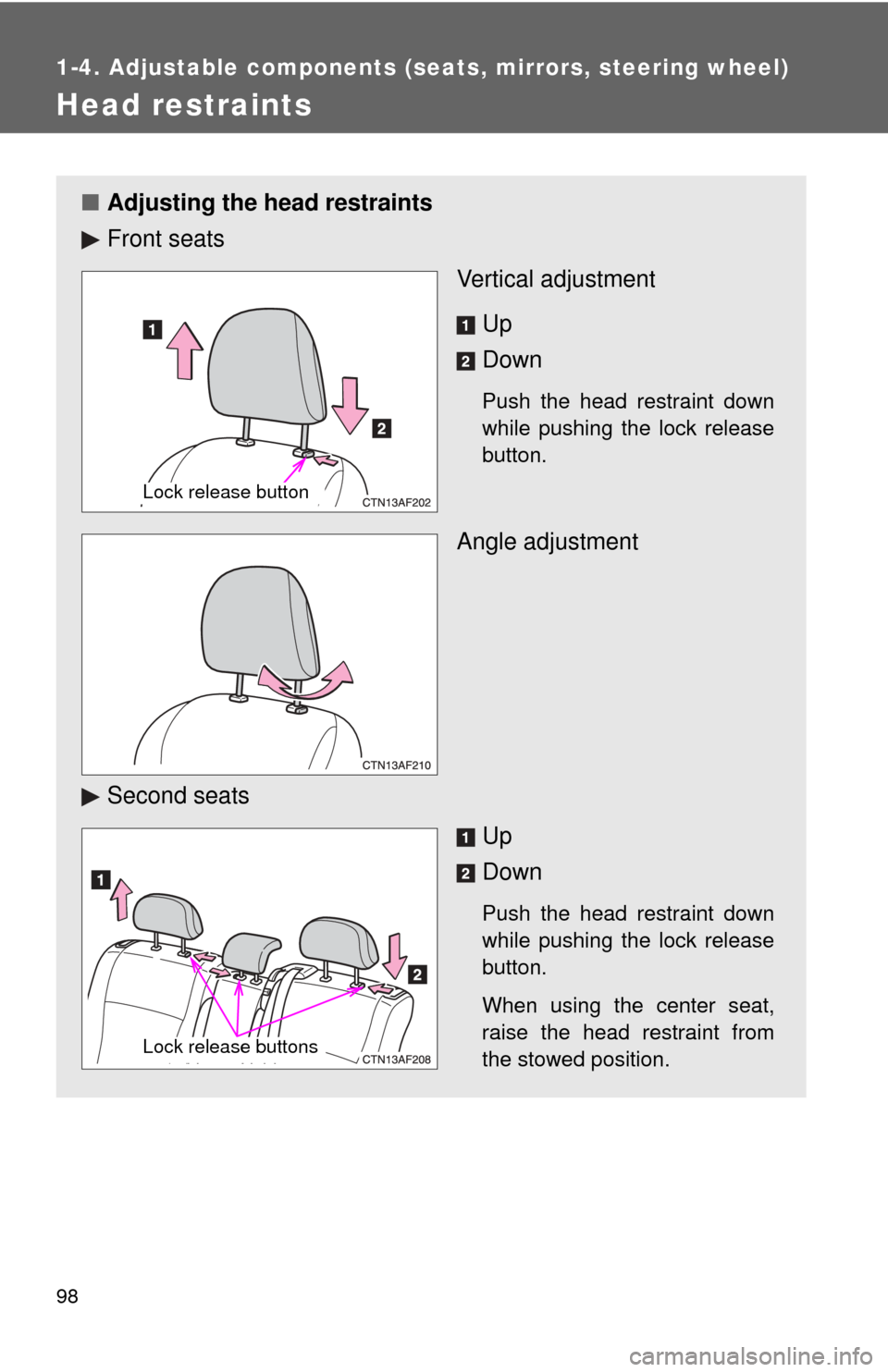

Head restraints
■Adjusting the head restraints
Front seats
Vertical adjustment
Up
Down
Push the head restraint down
while pushing the lock release
button.
Angle adjustment
Second seats Up
Down
Push the head restraint down
while pushing the lock release
button.
When using the center seat,
raise the head restraint from
the stowed position.
Lock release button
Lock release buttons

99
1-4. Adjustable components (s
eats, mirrors, steering wheel)
1
Before driving
■Adjusting the height of the head restraints (except second center seat
and third seats)
■ Removing the front and second seat outer head restraints
Pull the head restraint up while pushing the lock release button.
While pushing in the screwdriver, pull up the head restraint.
■When using the third seat head restraints (vehicles with
third seats)
To u s e
To f o l d
Make sure that the head restraints are
adjusted so that the center of the head
restraint is closest to the top of your ears.
STEP1
Push a flathead screwdriver into the slot.
(The slot is located on the opposite side
of the head restraint to the lock released
button.)STEP2
STEP3

100 1-4. Adjustable components (seats, mirrors, steering wheel)
■Installing the front head rest raints and second seat outer head
restraints
Align the head restraint with the installation holes.
Push down the head restraint to the lowest position while pushing
the lock release button.
CAUTION
■Head restraint precautions
Observe the following precautions regarding the head restraints. Failure to
do so may result in death or serious injury.
●Use the head restraints designed for each respective seat.
● Adjust the head restraints to the correct position at all times.
● After adjusting the head restraints, push down on them and make sure
they are locked in position.
● Do not drive with the head restraints removed.
STEP1
STEP2
