TOYOTA HIGHLANDER HYBRID 2009 XU40 / 2.G Owners Manual

251
2-5. Driving information
2
When driving

252
3-1. Using the air conditioning system
and defogger
Front manual air conditioning system ....... 254
Front automatic air conditioning system ....... 260
Rear manual air conditioning system ....... 269
Rear automatic air conditioning system ....... 272
Rear window and outside rear view mirror
defoggers ....................... 275
Windshield wiper de-icer ............................ 277
Using the steering wheel climate remote control
switches ......................... 278
3-2. Using the audio system Audio system (without navigation
system) .......................... 279
Using the radio ................. 282 Using the CD player ......... 288
Playing back MP3 and
WMA discs ..................... 295
Optimal use of the audio system ........................... 302
Using the AUX adapter........................... 305
Using the steering wheel audio switches ............... 307
3-3. Using the rear audio system
Rear seat entertainment system features ............. 309
Using the DVD player (DVD video) ................... 316
Using the DVD player (video CD)...................... 324
Using the DVD player (audio CD/CD text) ........ 326
Using the DVD player (MP3 discs) .................... 327
Using the video mode ...... 329
Changing the initial setting ............................ 331

Interior features3
253

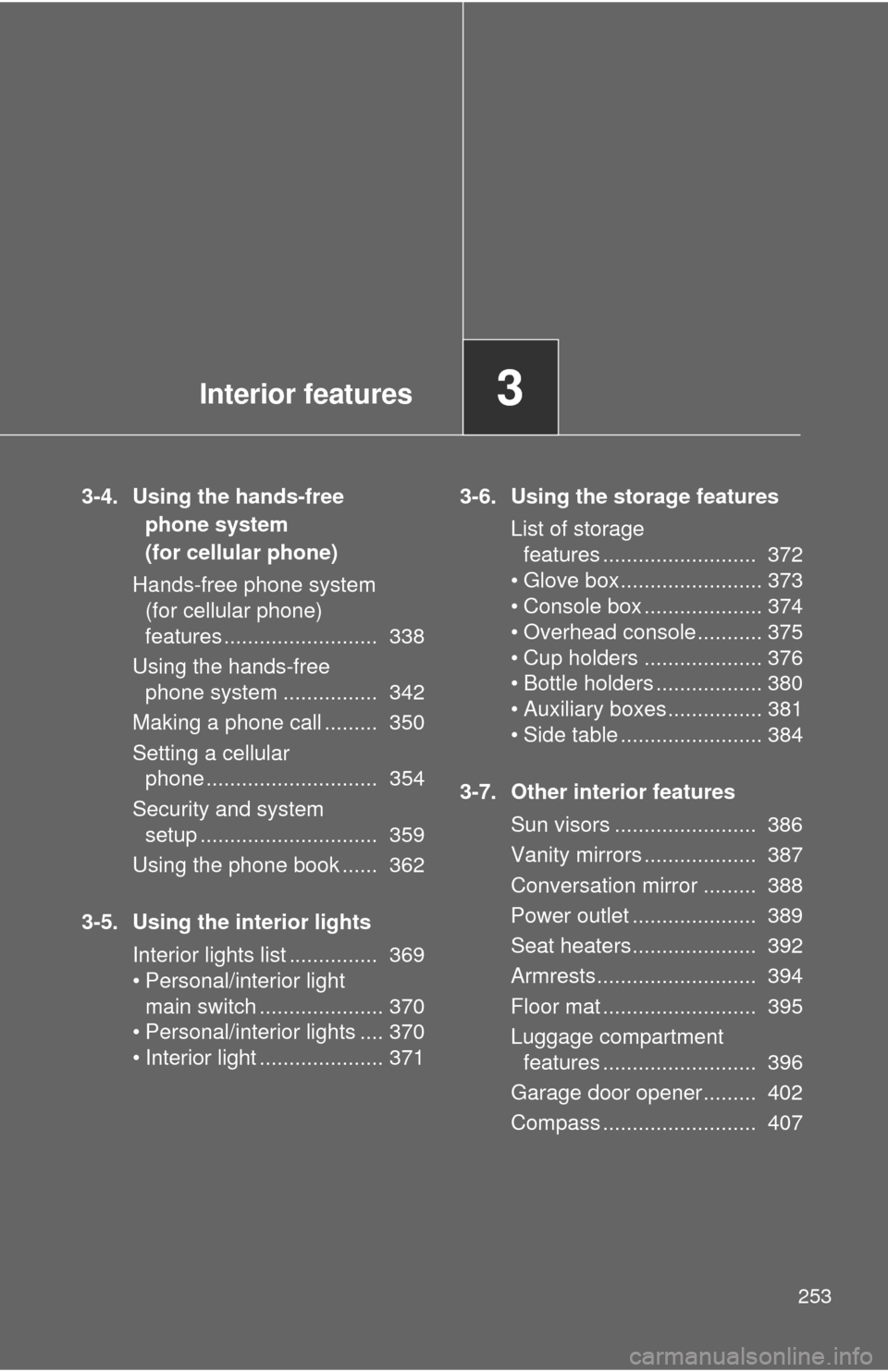

3-4. Using the hands-free phone system
(for cellular phone)
Hands-free phone system (for cellular phone)
features .......................... 338
Using the hands-free phone system ................ 342
Making a phone call ......... 350
Setting a cellular phone ............................. 354
Security and system setup .............................. 359
Using the phone book ...... 362
3-5. Using the interior lights Interior lights list ............... 369
• Personal/interior light main switch ..................... 370
• Personal/interior lights .... 370
• Interior light ..................... 371 3-6. Using the storage features
List of storage features .......................... 372
• Glove box........................ 373
• Console box .................... 374
• Overhead console ........... 375
• Cup holders .................... 376
• Bottle holders .................. 380
• Auxiliary boxes................ 381
• Side table ........................ 384
3-7. Other interior features Sun visors ........................ 386
Vanity mirrors ................... 387
Conversation mirror ......... 388
Power outlet ..................... 389
Seat heaters..................... 392
Armrests........................... 394
Floor mat .......................... 395
Luggage compartment features .......................... 396
Garage door opener......... 402
Compass .......................... 407

254
3-1. Using the air conditioning system and defogger
Front manual air conditioning system∗
Adjusting the settings■ Adjusting the temperature setting
Turn the temperature control dial clockwise (warm) or counter-
clockwise (cool).
If is not pressed, the system will blow ambient temperature air or
heated air.
For quick cooling, turn the temperature selector knob to the “MAX A/C”
position. The air conditioning will automatically turn on in (recir-
culated air) mode.
Fan speed control dial
Air outlet selection dial
Air conditioning on/off switch
Temperature control dial
Outside air or recirculated air mode
Rear air conditioning
on/off switch∗
∗: If equipped

255
3-1. Using the air conditioning system
and defogger
3
Interior features
■Adjusting the fan speed
Turn the fan speed control dial clockwise (increase) or counter-
clockwise (decrease).
Turn the dial to “OFF” to turn the fan off.
■ Changing the air outlets
Set the air outlet selection di al to an appropriate position.
The positions between the air outlet selections shown below can be also
selected for more detailed adjustment.
Upper body
: Vehicles without rear air conditioning system Upper body and feet
: Vehicles without rear air conditioning system

256 3-1. Using the air conditioning system and defogger
Feet
: Vehicles without rear air conditioning system
Without rear air conditioning system Feet and windshield
With rear air conditioning system Feet and windshield

257
3-1. Using the air conditioning system
and defogger
3
Interior features
■Switching between outside air and recirculated air modes
Press .
The mode switches between outside air mode (indicator off) and recircu-
lated air mode (indicator on) modes each time is pressed.
Defogging the windshield
Set the air outlet selection dial to position.
The air conditioning system oper-
ates automatically.
Recirculated air mode may auto-
matically switch to outside air
mode.
Adjusting the position of and opening and closing the air outlets
Front center outlets Direct air flow to the left or right,
up or down.

258 3-1. Using the air conditioning system and defogger
Front side outlets
Direct air flow to the left or
right, up or down.
Turn the knob to open or close
the vent.
Rear center outlets (vehicles with out rear air conditioning system)
Direct air flow to the left or
right, up or down.
Turn the knob to open or close
the vent.

259
3-1. Using the air conditioning system
and defogger
3
Interior features
■Using the system in recirculated air mode
The windows will fog up more easily if the recirculated air mode is used for
an extended period.
■ Window defogger feature
In order to prevent the windows from fogging up, recirculated air mode may
automatically switch to outside air mode if the ambient temperature drops.
This feature can be cancelled by pushing and holding the air intake mode
switch for longer than 2 seconds. The feature will be reactivated when the
“POWER” switch is turned to ACCESSORY mode or OFF.
■ When outside air temperature approaches 32°F (0°C)
The air conditioning system may not operate even when is pressed.
■ When is selected for the air outlets used
For your driving comfort, air flowing to the feet may be warmer than air flow-
ing to the upper body depending on the position of the temperature adjust-
ment dial.
CAUTION
■ To prevent the windshield from fogging up
Do not set the air outlet selection dial to during cool air operation in
extremely humid weather. The difference between the temperature of the
outside air and that of the windshield can cause the outer surface of the
windshield to fog up, blocking your vision.
NOTICE
■To prevent 12-volt battery from being discharged
Do not leave the air conditioning system on longer than necessary when the
hybrid system is off.

260
3-1. Using the air conditioning system and defogger

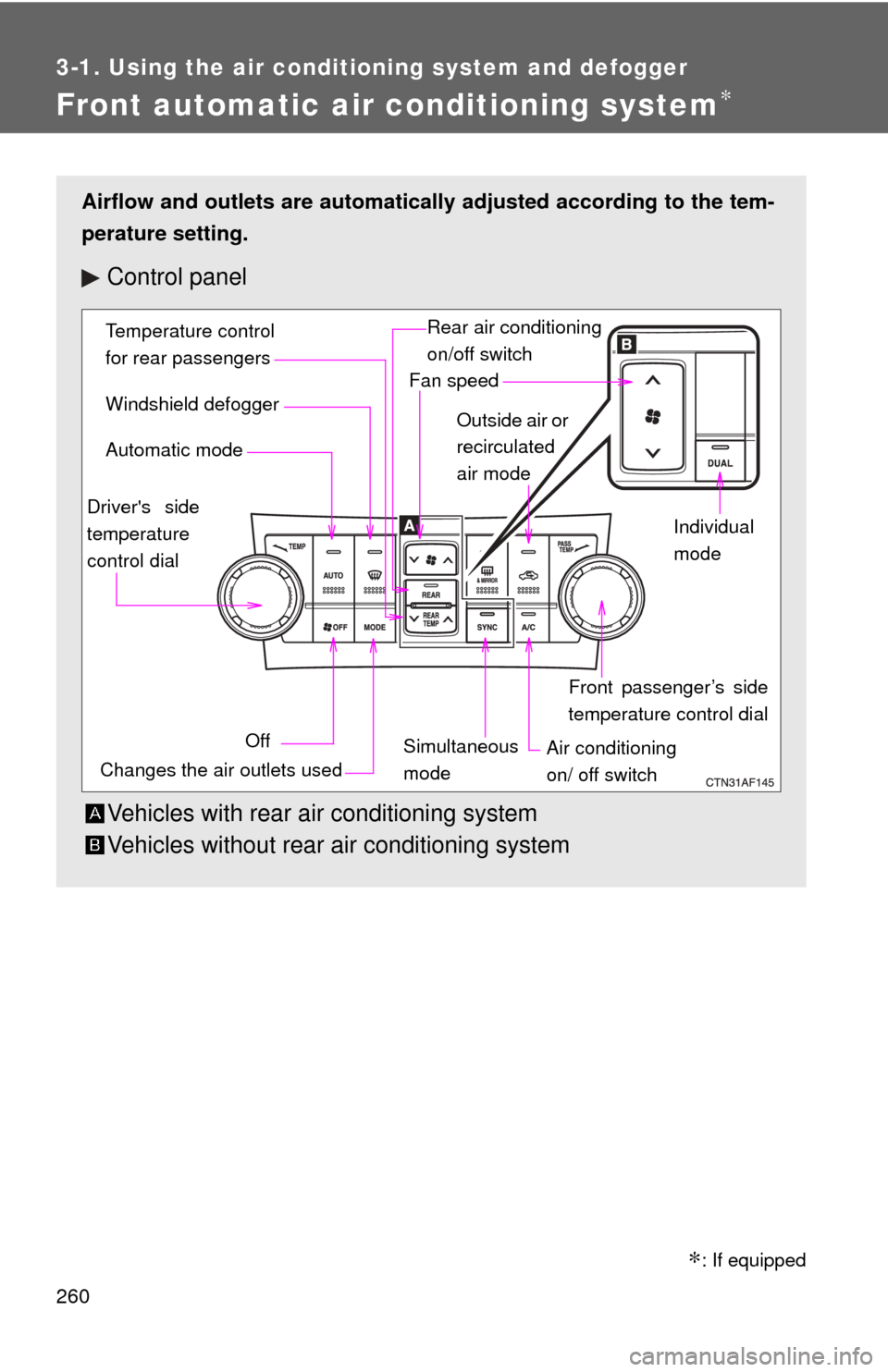

Front automatic air conditioning system∗
Airflow and outlets are automatically adjusted according to the tem-
perature setting.
Control panel
Vehicles with rear air conditioning system
Vehicles without rear air conditioning system
Fan speed
Individual
mode
Front passenger’s side
temperature control dial
Air conditioning
on/ off switch
Simultaneous
mode Rear air conditioning
on/off switch
Temperature control
for rear passengers
Changes the air outlets used Off
Driver's side
temperature
control dial
Automatic mode Windshield defogger
Outside air or
recirculated
air mode
: If equipped
