3-1. Using the air conditioning system
and defogger
3
Interior features

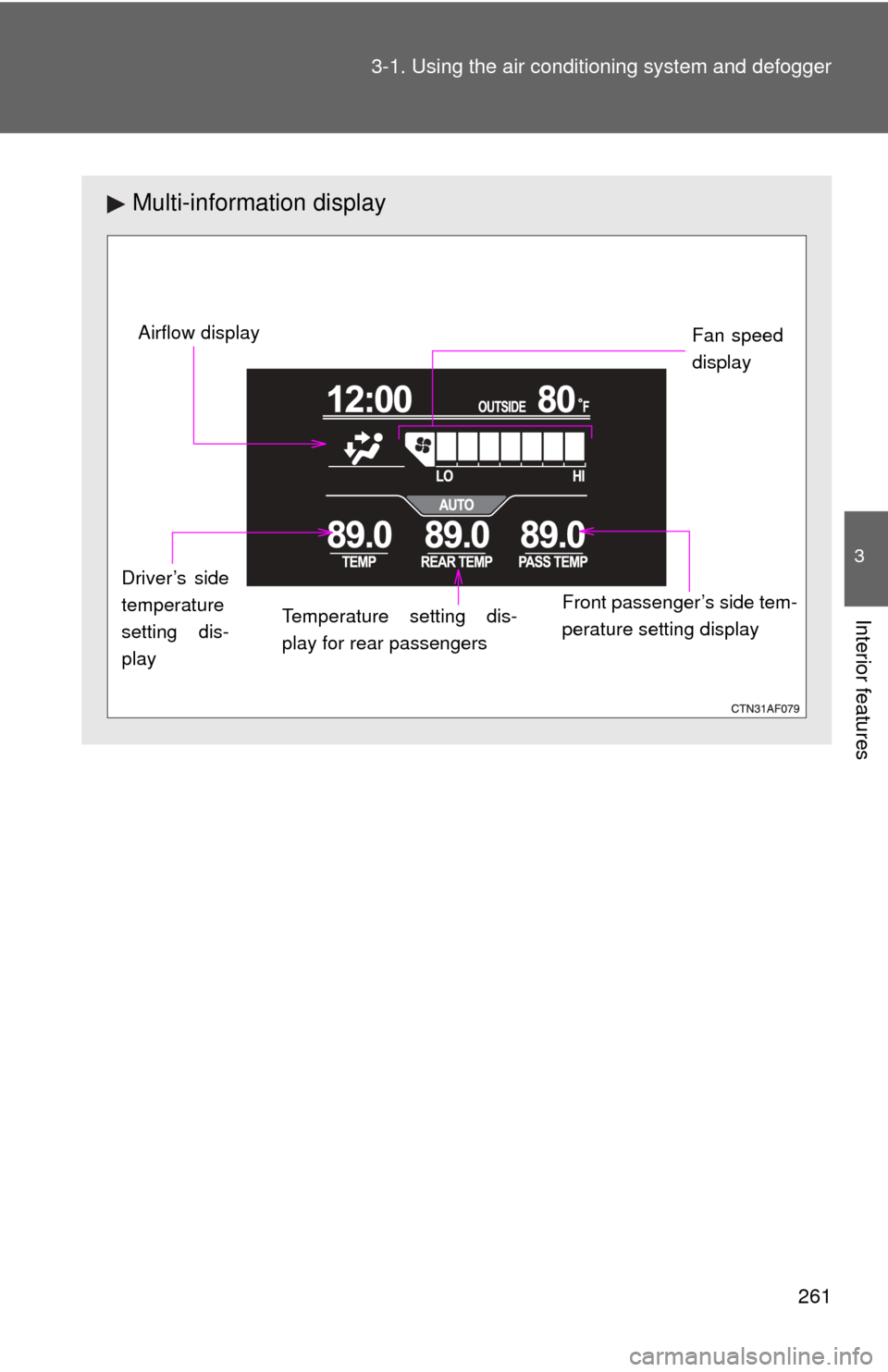

Multi-information display
Front passenger’s side tem-
perature setting display Fan speed
display
Airflow display
Driver’s side
temperature
setting dis-
play Temperature setting dis-
play for rear passengers

262 3-1. Using the air conditioning system and defogger
Using the automatic mode
Press .The air conditioning system be gins to operate. Air outlets
and fan speed are automatically adjusted according to the
temperature setting.
“AUTO” will be displayed on the multi-information display.
Turn the temperature control dial clockwise (warm) or coun-
terclockwise (cool).
Air outlets and fan speed for the right-hand and left-hand seats may
be set separately depending on the temperature setting.
STEP1
STEP2

263
3-1. Using the air conditioning system
and defogger
3
Interior features
Adjusting the settings
■ Adjusting the temperature setting
Turn the temperature control dial clockwise (warm) or counter-
clockwise (cool).
The air conditioning system sw itches between individual and
simultaneous modes each time (w ithout rear air conditioning
system) or (with rear air condi tioning system) is pressed.
Simultaneous mode: Only the driver ’s side temperature control dial
can be used to adjust the temperature for all seats.
The indicator status will be as follows:
Without rear air conditioning system: (off)
With rear air conditioning system: (on)
Individual mode: The temperature for the driver’s, front passen-
ger’s and rear seats ( →P. 272) can be adjusted separately. Operat-
ing the passenger's side or rear (with rear air conditioning system)
temperature control will enter individual mode.
The indicator status will be as follows:
Without rear air conditioning system: (on)
With rear air conditioning system: (off)
■ Adjusting the fan speed
Press “ ∧” (increase) or “ ∨” (decrease) on or .
The fan speed is shown on the multi-information display. (7 levels)
Press to turn the fan off.

264 3-1. Using the air conditioning system and defogger

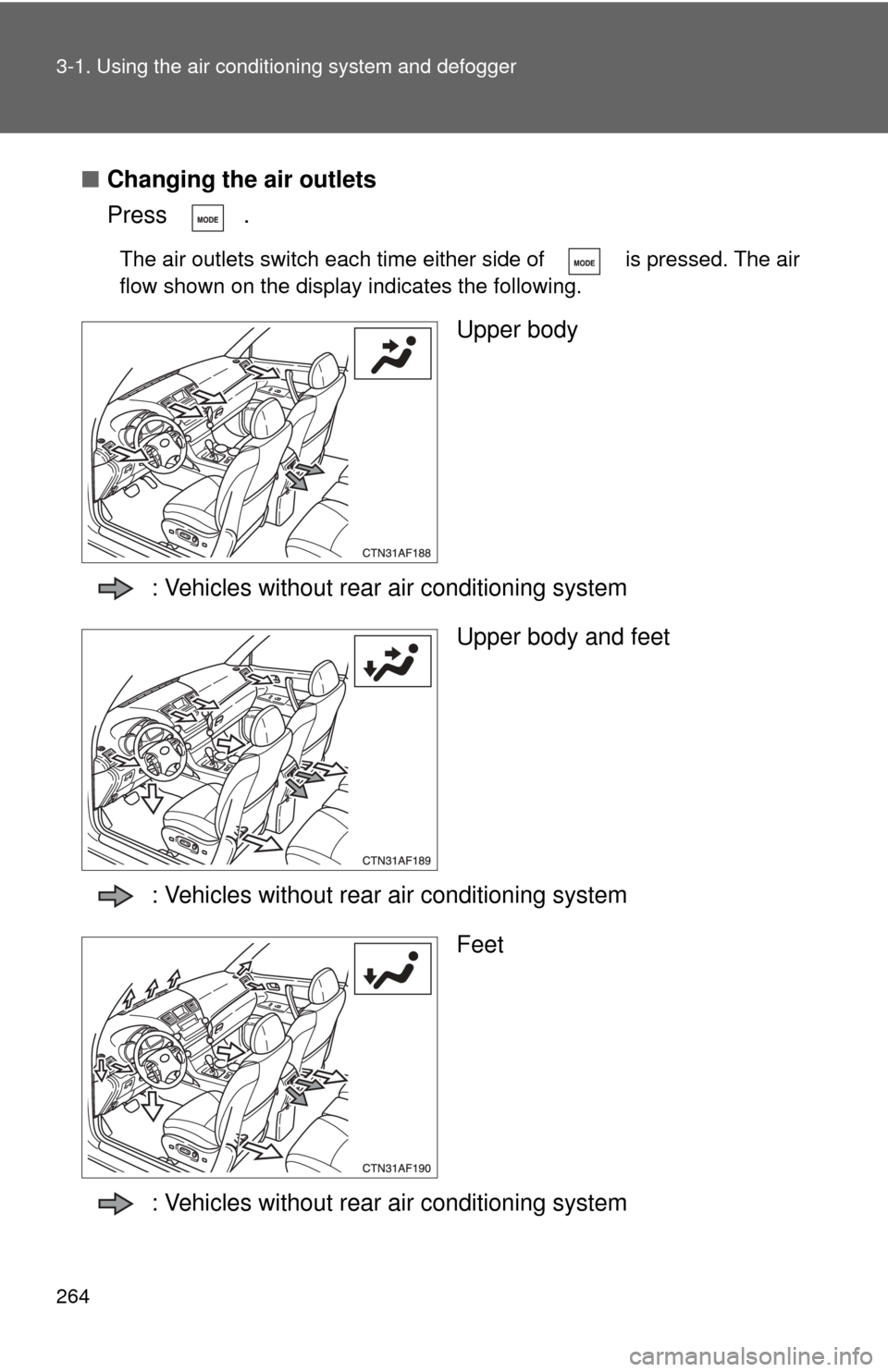

■Changing the air outlets
Press .
The air outlets switch each time either side of is pressed. The air
flow shown on the display indicates the following.

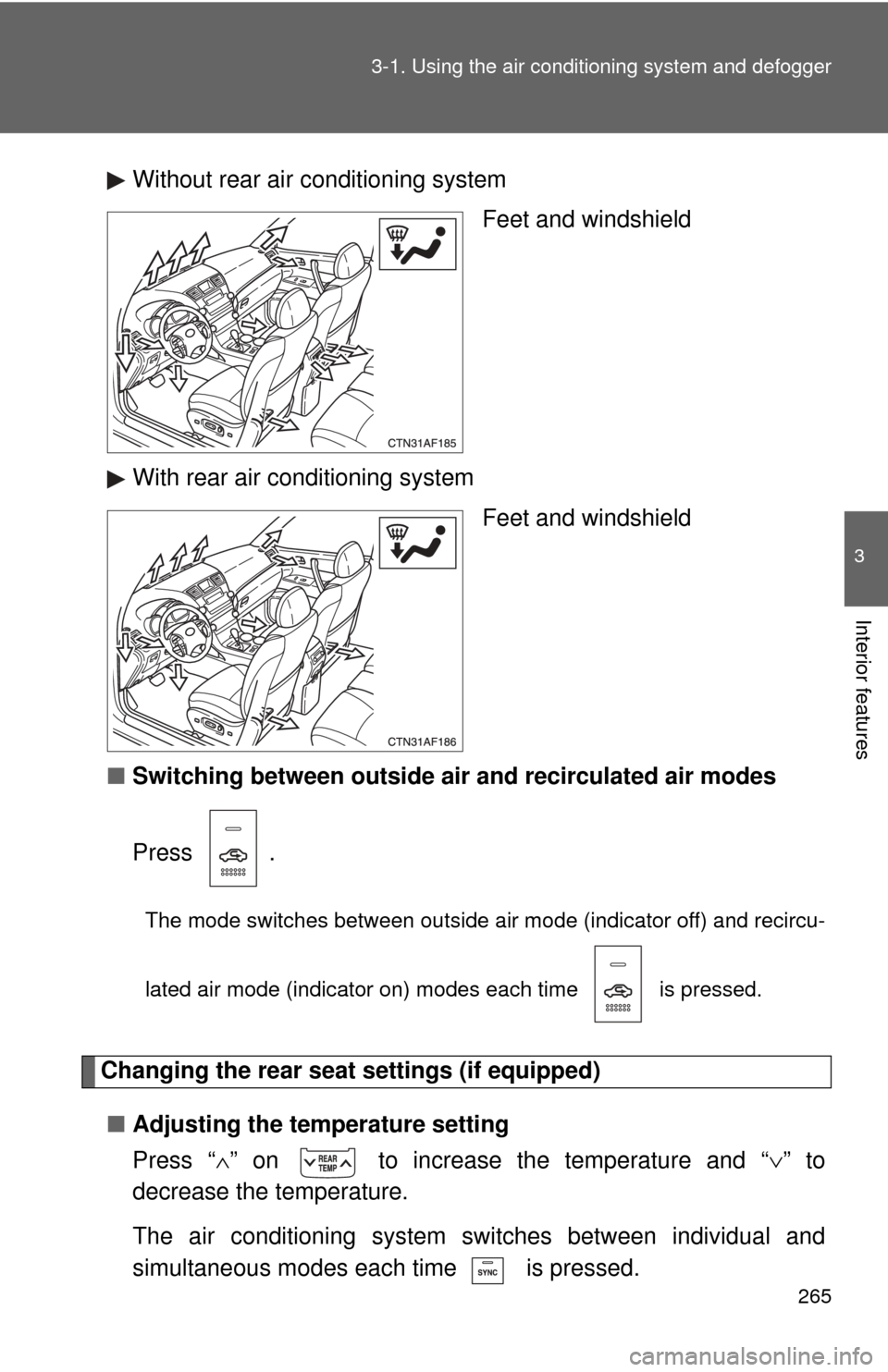

Upper body
: Vehicles without rear air conditioning system Upper body and feet
: Vehicles without rear air conditioning system Feet
: Vehicles without rear air conditioning system

265
3-1. Using the air conditioning system
and defogger
3
Interior features
Without rear air conditioning system
Feet and windshield
With rear air conditioning system Feet and windshield
■ Switching between outside air and recirculated air modes
Press .
The mode switches between outside air mode (indicator off) and recircu-
lated air mode (indicator on) modes each time is pressed.
Changing the rear seat settings (if equipped)
■ Adjusting the temperature setting
Press “ ∧” on to increase the temperature and “ ∨” to
decrease the temperature.
The air conditioning system sw itches between individual and
simultaneous modes each time is pressed.

266 3-1. Using the air conditioning system and defogger

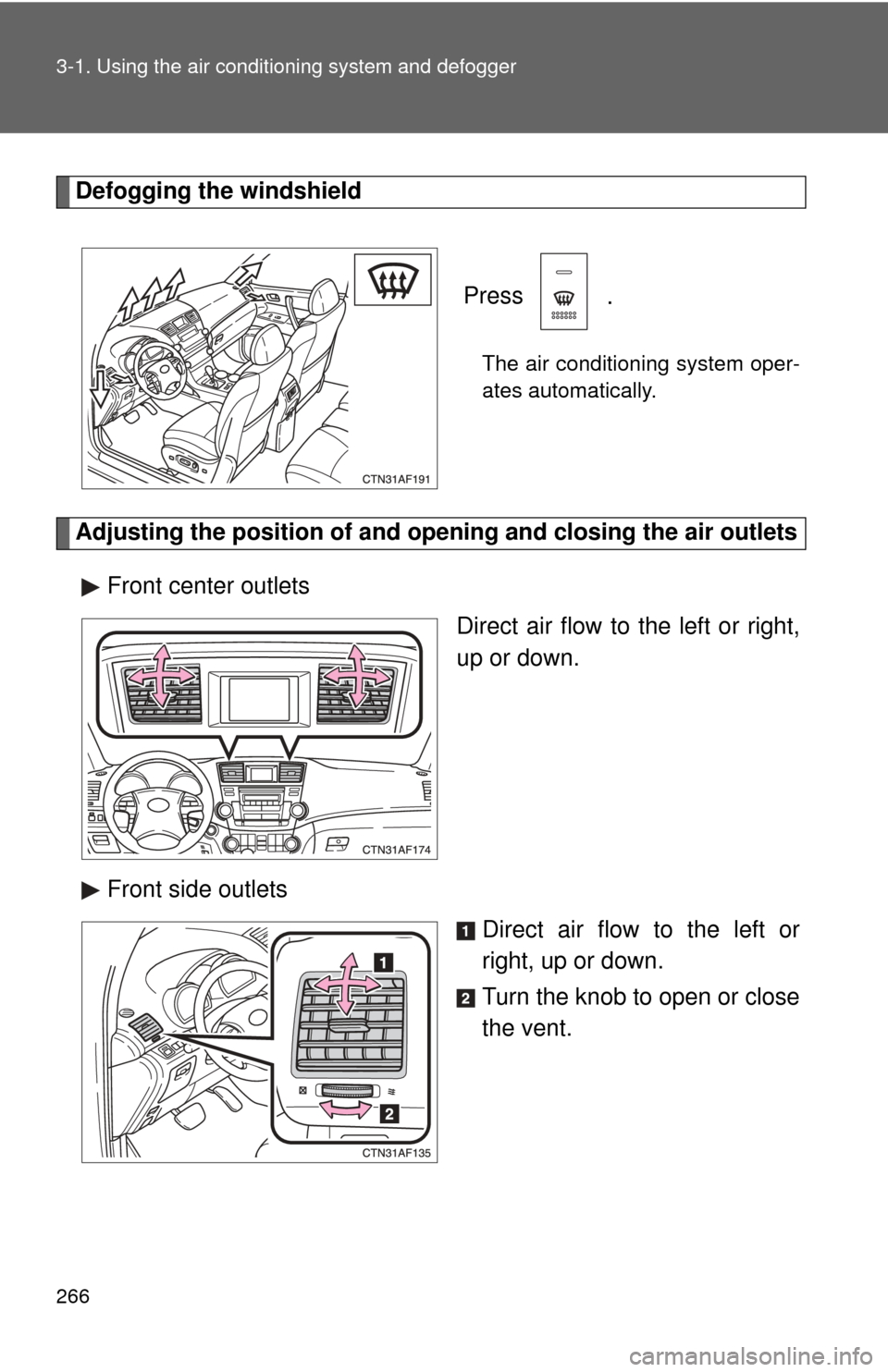

Defogging the windshield
Press
.
The air conditioning system oper-
ates automatically.
Adjusting the position of and opening and closing the air outletsFront center outlets Direct air flow to the left or right,
up or down.
Front side outlets Direct air flow to the left or
right, up or down.
Turn the knob to open or close
the vent.

267
3-1. Using the air conditioning system
and defogger
3
Interior features

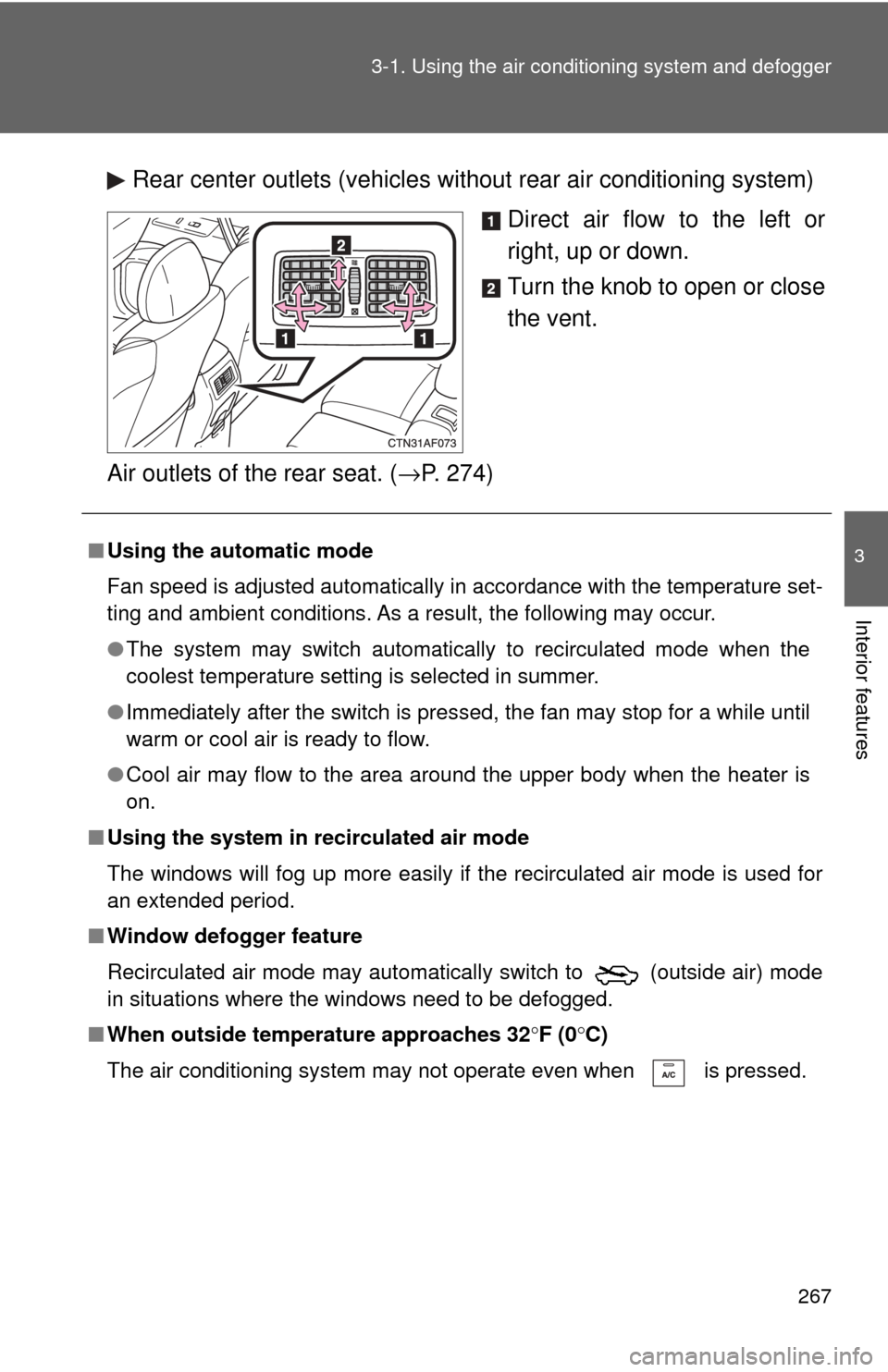

Rear center outlets (vehicles without rear air conditioning system)
Direct air flow to the left or
right, up or down.
Turn the knob to open or close
the vent.
Air outlets of the rear seat. ( →P. 274)
■Using the automatic mode
Fan speed is adjusted automatically in accordance with the temperature set-
ting and ambient conditions. As a result, the following may occur.
●The system may switch automatically to recirculated mode when the
coolest temperature setting is selected in summer.
● Immediately after the switch is pressed, the fan may stop for a while until
warm or cool air is ready to flow.
● Cool air may flow to the area around the upper body when the heater is
on.
■ Using the system in recirculated air mode
The windows will fog up more easily if the recirculated air mode is used for
an extended period.
■ Window defogger feature
Recirculated air mode may automatically switch to
(outside air) mode
in situations where the windows need to be defogged.
■ When outside temperature approaches 32 °F (0 °C)
The air conditioning system may not operate even when is pressed.

268 3-1. Using the air conditioning system and defogger
CAUTION
■To prevent the windshield from fogging up
Do not use during cool air operation in extremely humid weather. The
difference between the temperature of the outside air and that of the wind-
shield can cause the outer surface of the windshield to fog up, blocking your
vision.
NOTICE
■To prevent 12-volt battery from being discharged
Do not leave the air conditioning system on longer than necessary when the
hybrid system is off.

269
3-1. Using the air conditioning system and defogger
3
Interior features

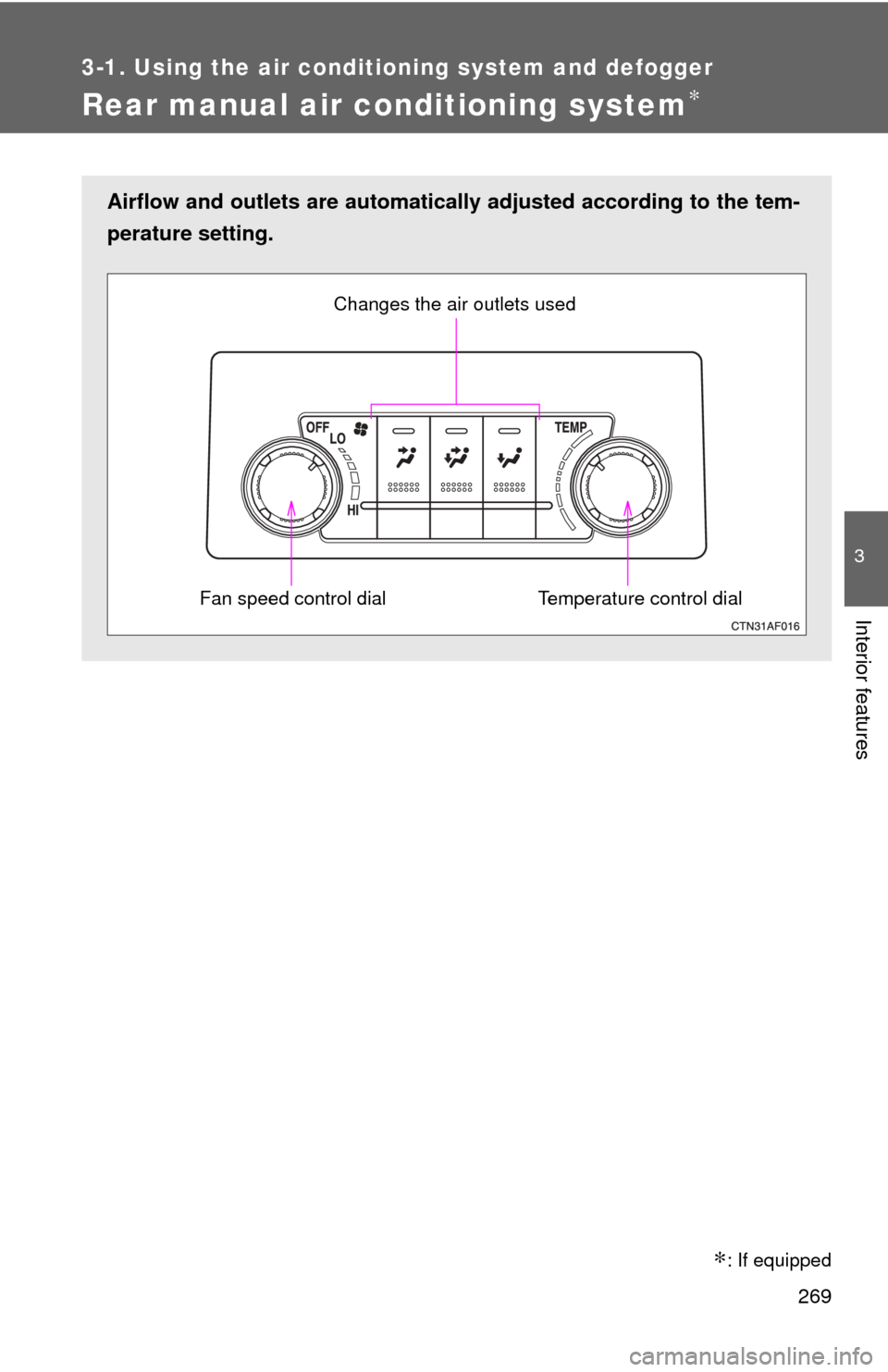

Rear manual air conditioning system∗
Airflow and outlets are automatically adjusted according to the tem-
perature setting.
Temperature control dial
Changes the air outlets used
Fan speed control dial
: If equipped

270 3-1. Using the air conditioning system and defogger
Adjusting the settings
■ Adjusting the temperature setting
Turn the temperature control dial clockwise (warm) or counter-
clockwise (cool).

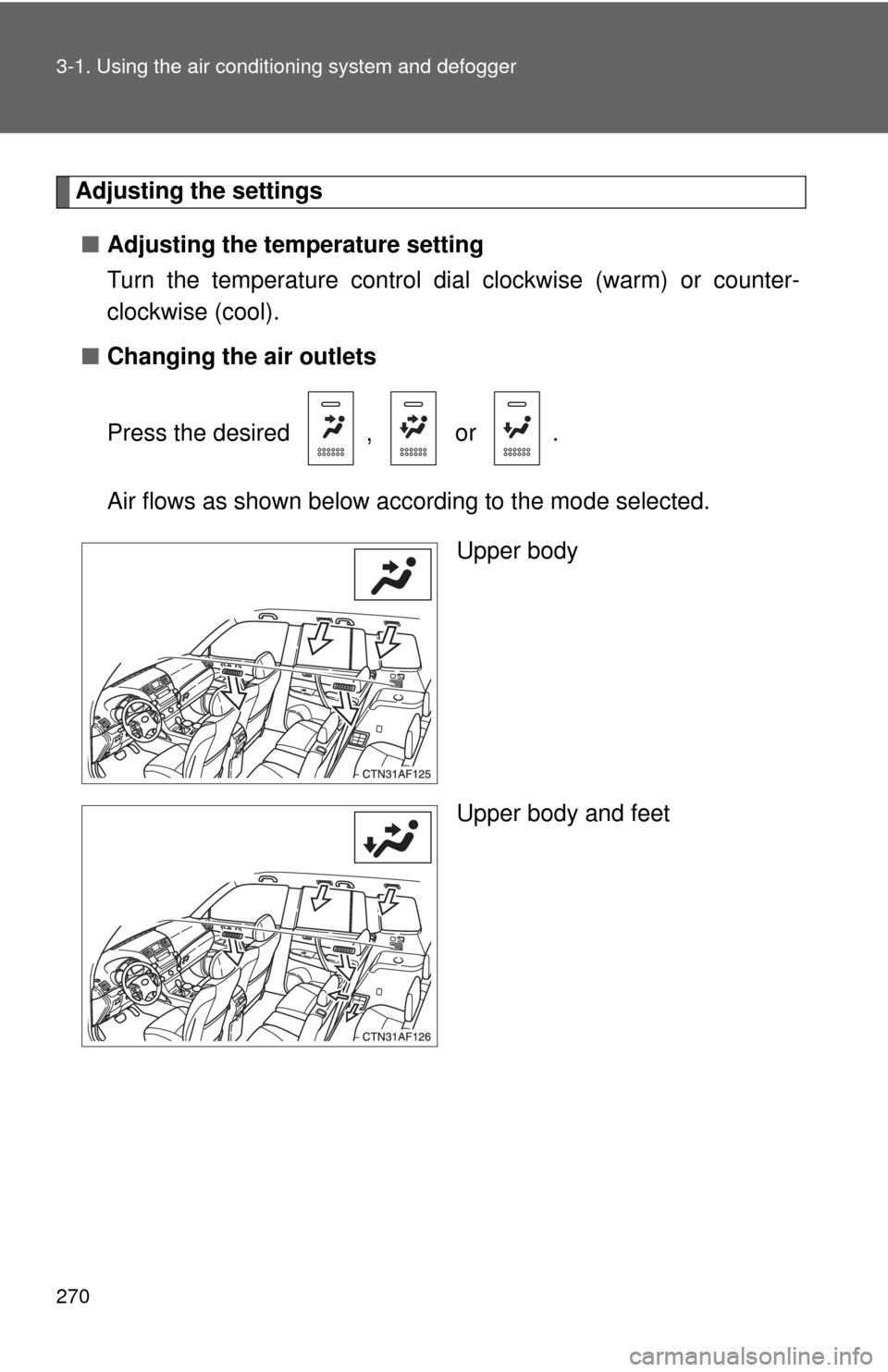

■ Changing the air outlets
Press the desired , or .
Air flows as shown below according to the mode selected.
Upper body
Upper body and feet
