TOYOTA HIGHLANDER HYBRID 2009 XU40 / 2.G Owners Manual

381
3-6. Using the
storage features
3
Interior features
Auxiliary boxes
Type A Pull up the lever.
Type B Lift the lid.
Remove the separator to use the
box. (→P. 383)
Auxiliary boxes

382 3-6. Using the storage features
Type C (if equipped)Lift the lid.
Type D Lift the lid.
Auxiliary boxes

383
3-6. Using the
storage features
3
Interior features
â– Auxiliary box (type D)
Install the side table. ( →P. 384)
â–  Removing the separator (type B)
CAUTION
â– Caution while driving
Keep the auxiliary boxes closed.
Injuries may result in the event of an accident or sudden braking.
Pull it up.
Auxiliary boxes

384 3-6. Using the storage features
Side tableâ–  Installing the side table
Take out the side table from the
console box.
Remove the second center seat. ( →P. 94)
Engage the front pins of the
side table with the hooks.
Push down on the side table to
engage the rear pin locks.
â–  Removing the side table
Take out the second center seat
from the console box.
STEP1
STEP2
STEP3
STEP1
Side table

385
3-6. Using the
storage features
3
Interior features
Pull the lock release lever to
remove the side table.
Stow the side table in the con-
sole box.
Push down on the end to engage
the pins in the holes and close
the console box door.
Make sure that the side table is
securely locked in position.
STEP2
STEP3
STEP4
CAUTION
â– Caution while driving
Keep the console box closed.
Injuries may result in the event of an accident or sudden braking.
Side table

386
3-7. Other interior features

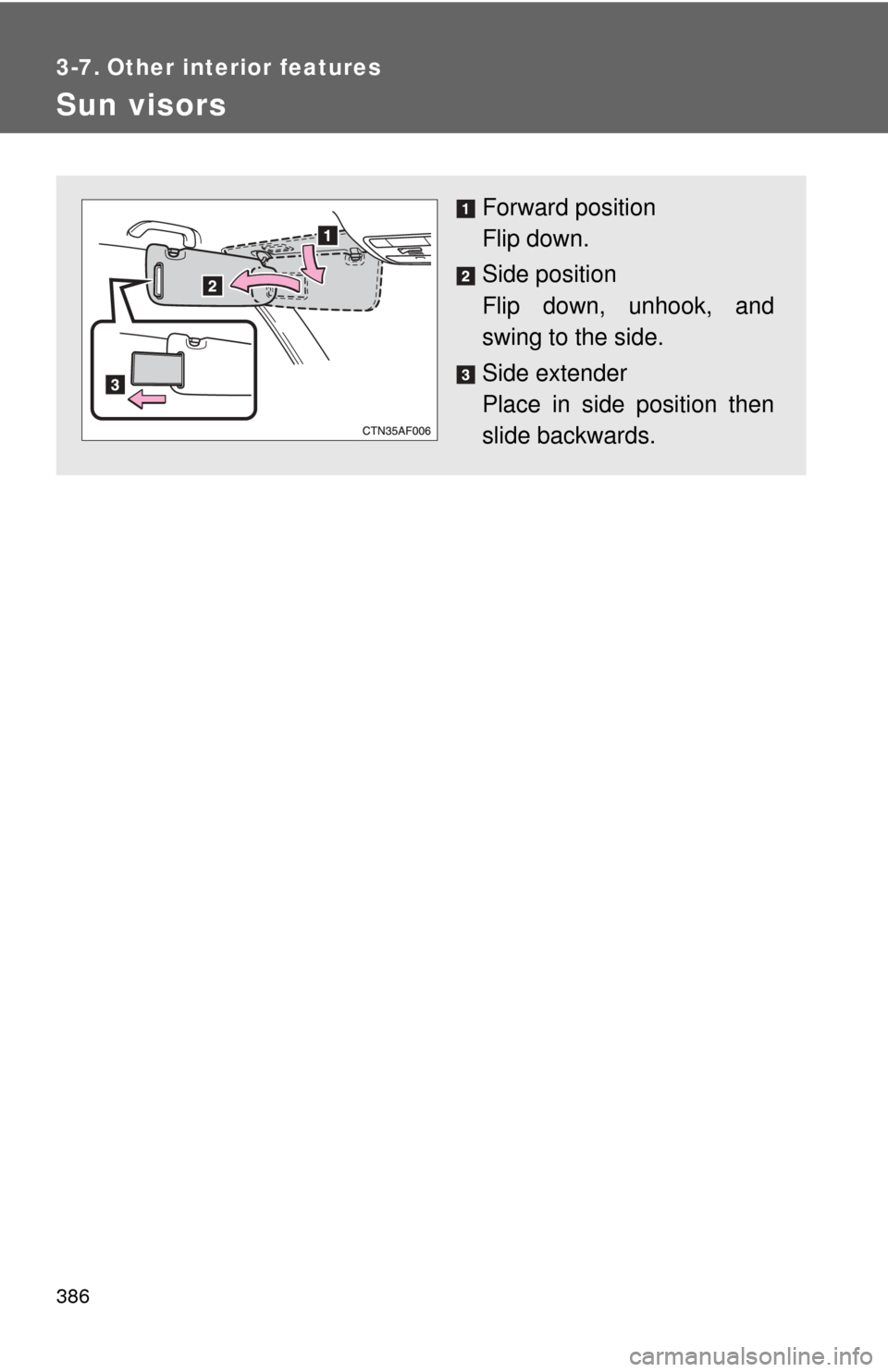

Sun visors
Forward position
Flip down.
Side position
Flip down, unhook, and
swing to the side.
Side extender
Place in side position then
slide backwards.

387
3-7. Other interior features
3
Interior features
Vanity mirrors
NOTICE
â– To prevent the 12-volt battery from being discharged
Do not leave the vanity lights on for extended periods while the hybrid sys-
tem is off.
Slide the cover.
The light turns on when the
cover is opened. (vehicles with
vanity mirror light)

388
3-7. Other interior features
Conversation mirror
â– To use the overhead console from the conversation mirror state
Fully close the lid, then open it again. ( →P. 375)
Press in the lid.
Push the lid back up half way.STEP1
STEP2

389
3-7. Other interior features
3
Interior features

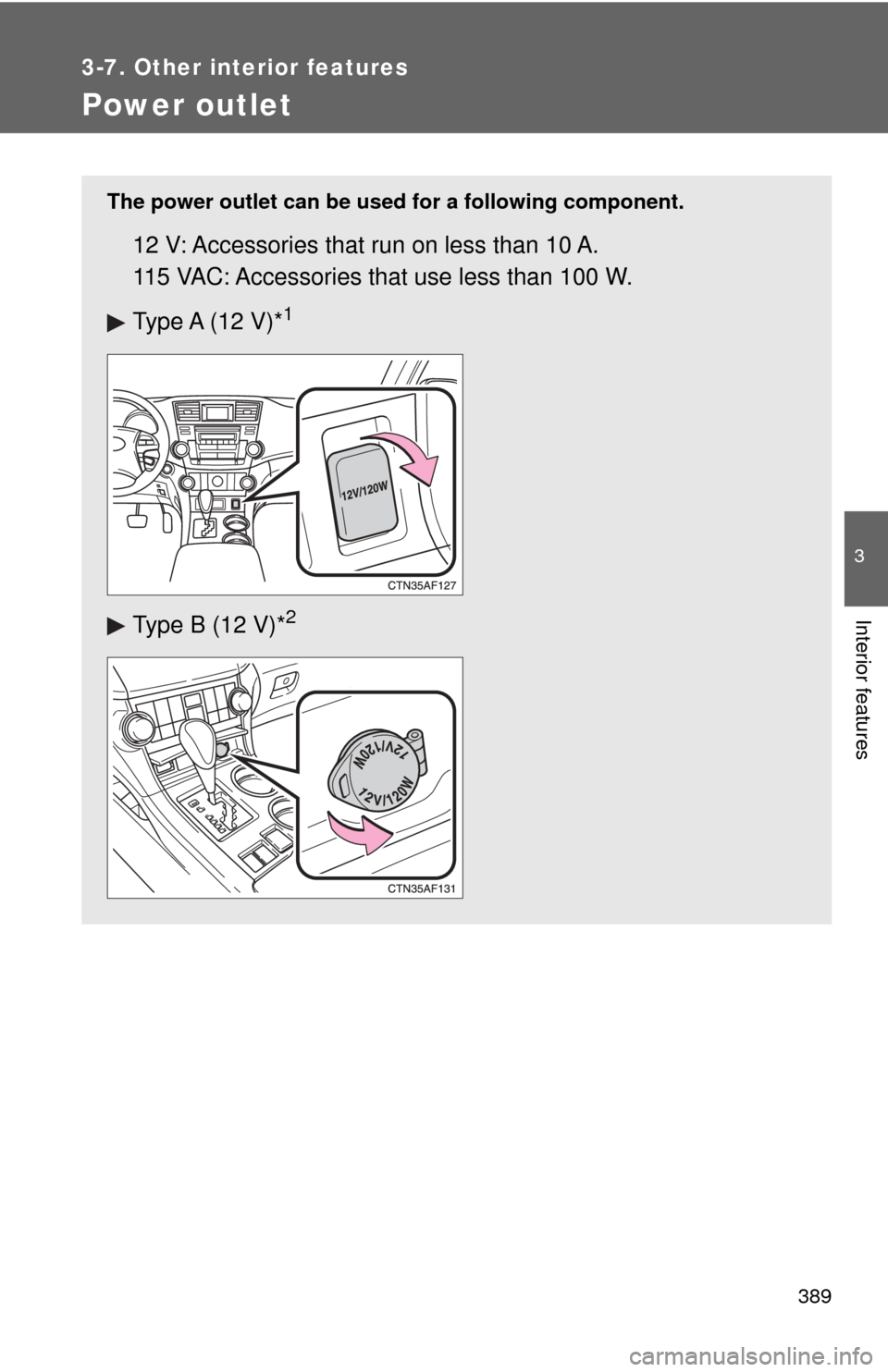

Power outlet
The power outlet can be used for a following component.
12 V: Accessories that run on less than 10 A.
115 VAC: Accessories that use less than 100 W.
Type A (12 V)*
1
Type B (12 V)*2

390 3-7. Other interior features

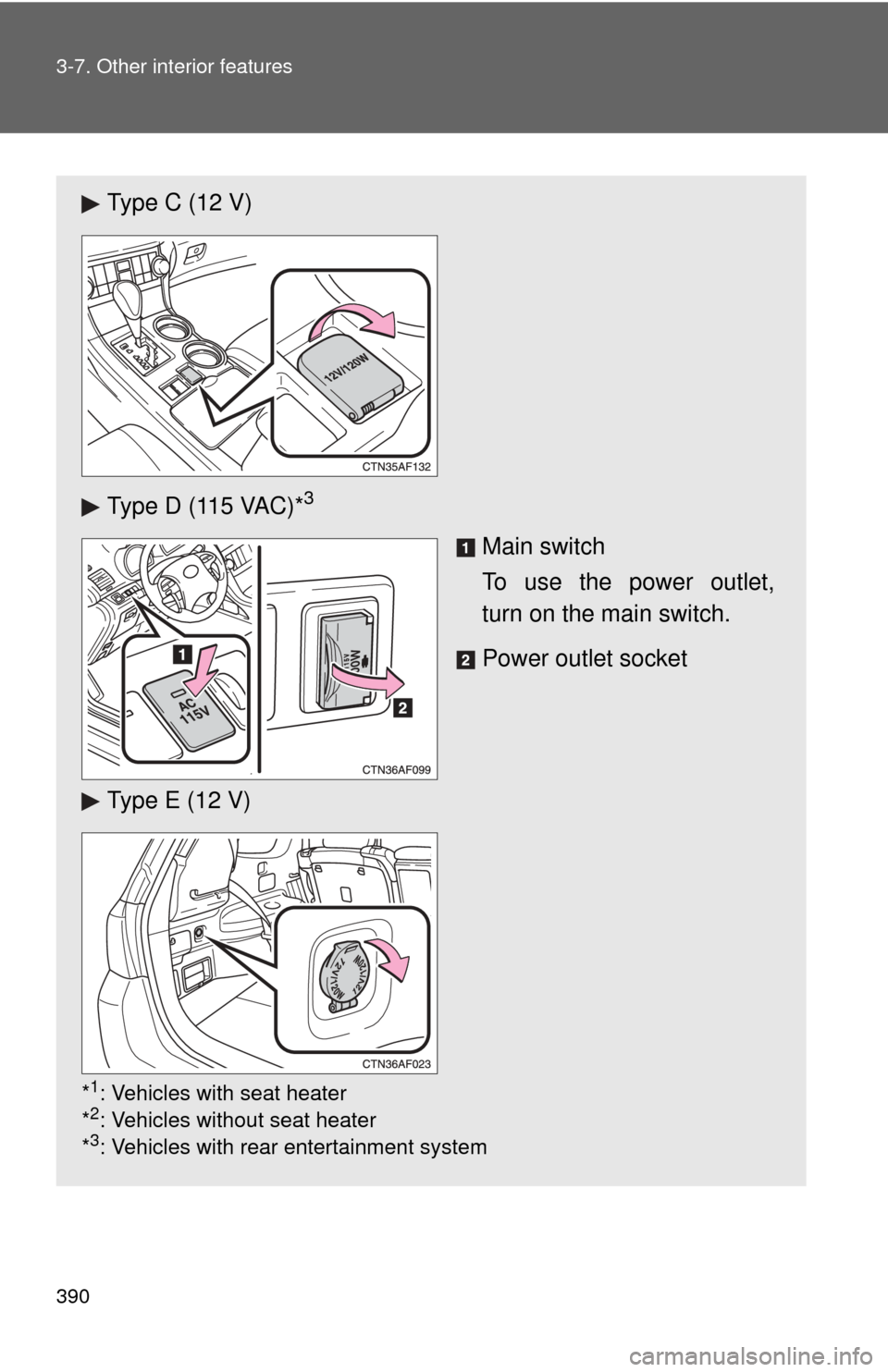

Type C (12 V)
Type D (115 VAC)*
3
Main switch
To use the power outlet,
turn on the main switch.
Power outlet socket
Type E (12 V)
*1: Vehicles with seat heater
*2: Vehicles without seat heater
*3: Vehicles with rear entertainment system
