TOYOTA HIGHLANDER HYBRID 2009 XU40 / 2.G Owners Manual

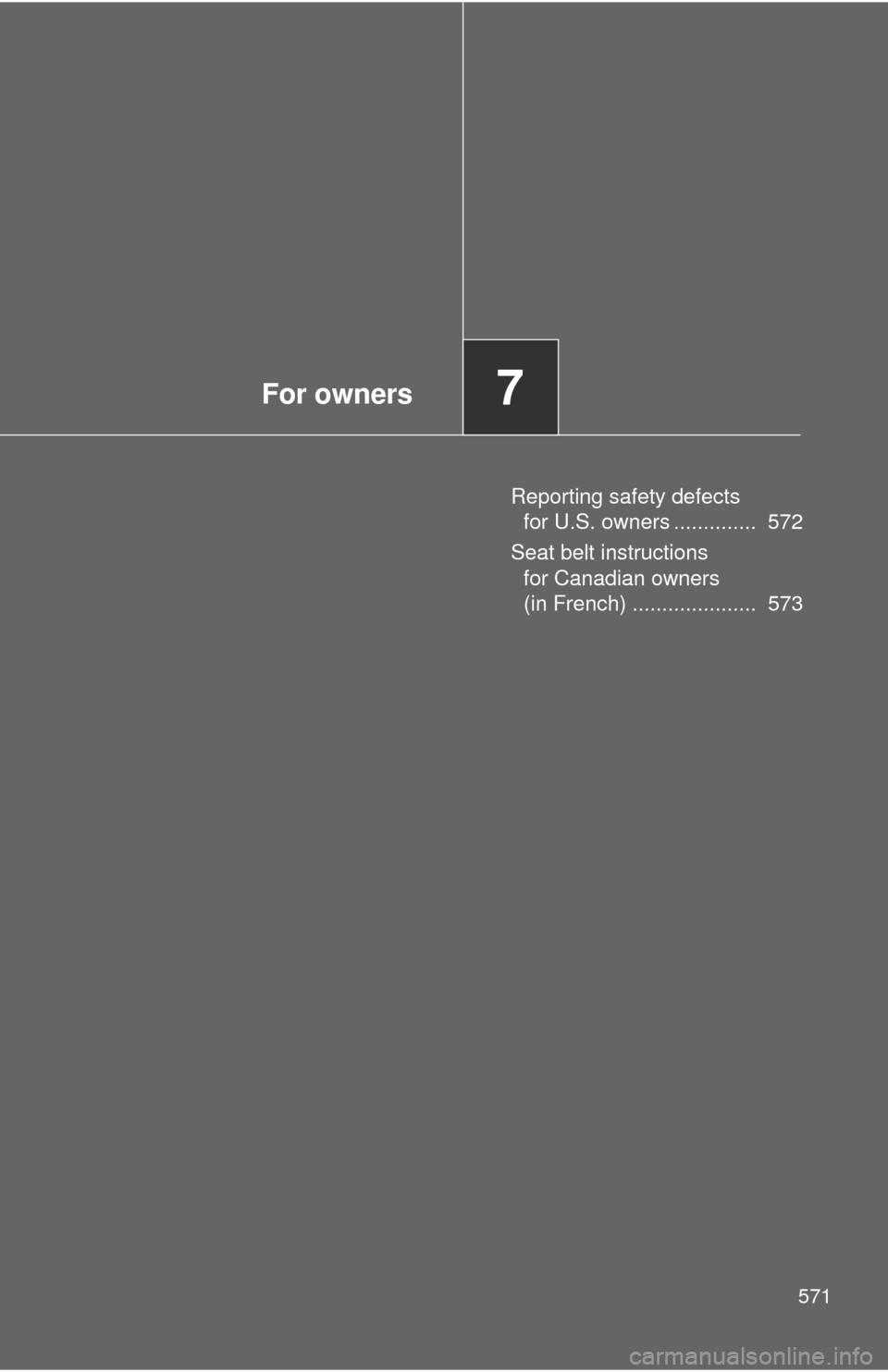

For owners7
571
Reporting safety defects for U.S. owners .............. 572
Seat belt instructions for Canadian owners
(in French) ..................... 573

572

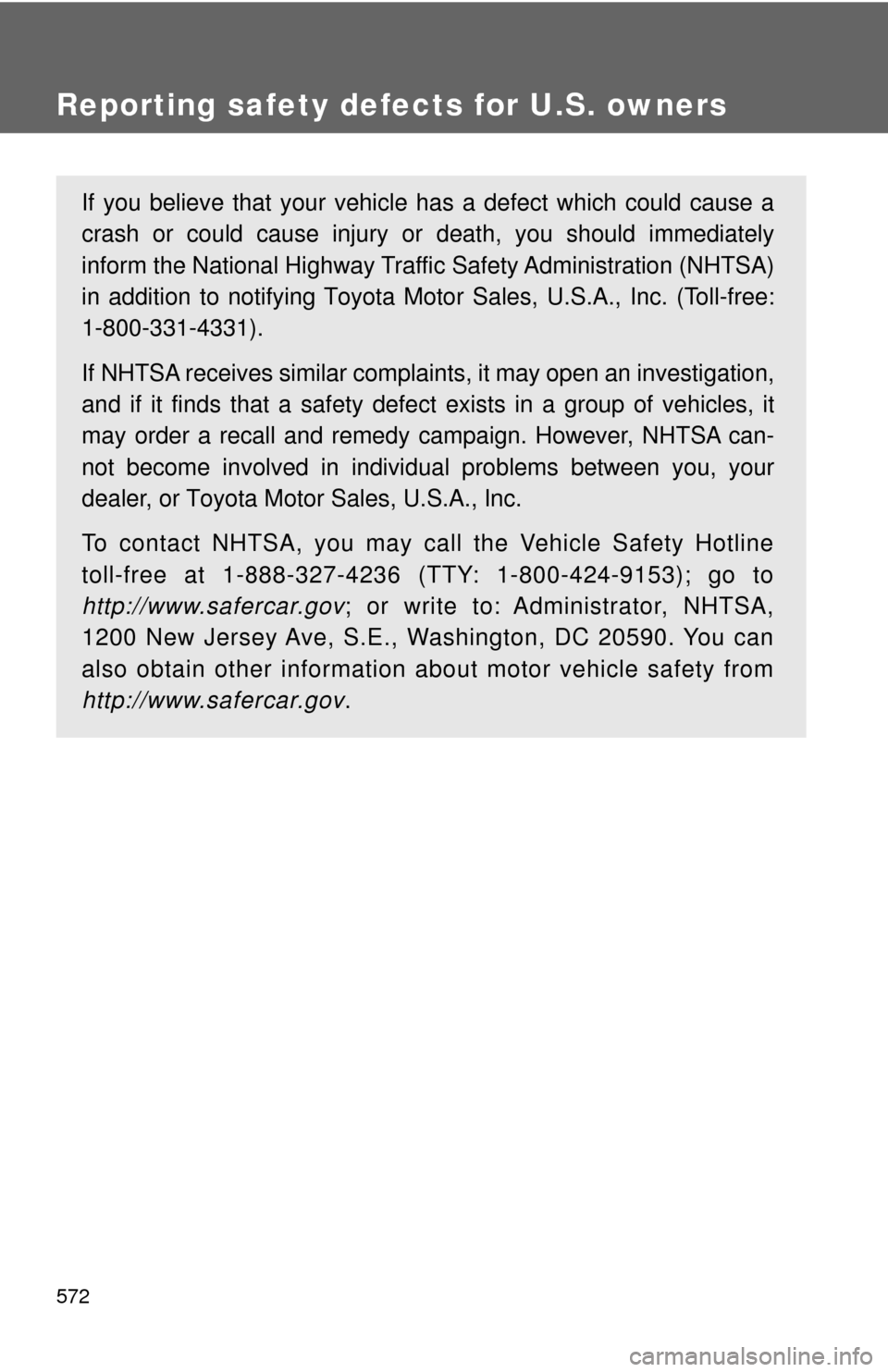

Reporting safety defects for U.S. owners
If you believe that your vehicle has a defect which could cause a
crash or could cause injury or death, you should immediately
inform the National Highway Traffi c Safety Administration (NHTSA)
in addition to notifying Toyota Moto r Sales, U.S.A., Inc. (Toll-free:
1-800-331-4331).
If NHTSA receives similar complaints, it may open an investigation,
and if it finds that a safety defect exists in a group of vehicles, it
may order a recall and remedy campaign. However, NHTSA can-
not become involved in individ ual problems between you, your
dealer, or Toyota Motor Sales, U.S.A., Inc.
To contact NHTSA, you may call the Vehicle Safety Hotline
toll-free at 1-888-327-4236 (TTY: 1-800-424-9153); go to
http://www.safercar.gov ; or write to: Administrator, NHTSA,
1200 New Jersey Ave, S.E., Washington, DC 20590. You can
also obtain other information about motor vehicle safety from
http://www.safercar.gov .

573
7
For owners
Seat belt instructions for Canadian owners (in French)
The following is a French explanation of seat belt instructions
extracted from the seat belt section in this manual.
See the seat belt section for more detailed seat belt instructions in
English.
Utilisation correcte des ceintures de sécurité
●Tendez la sangle diagonale de
sorte qu'elle couvre
complètement l'épaule, sans
entrer en contact avec le cou
ou glisser de l'épaule.
● Placez la sangle abdominale
le plus bas possible sur les
hanches.
● Réglez la position du dossier
de siège. Asseyez-vous le dos
le plus droit possible et calez-
vous bien dans le siège.
● Ne vrillez pas la ceinture de
sécurité.

574

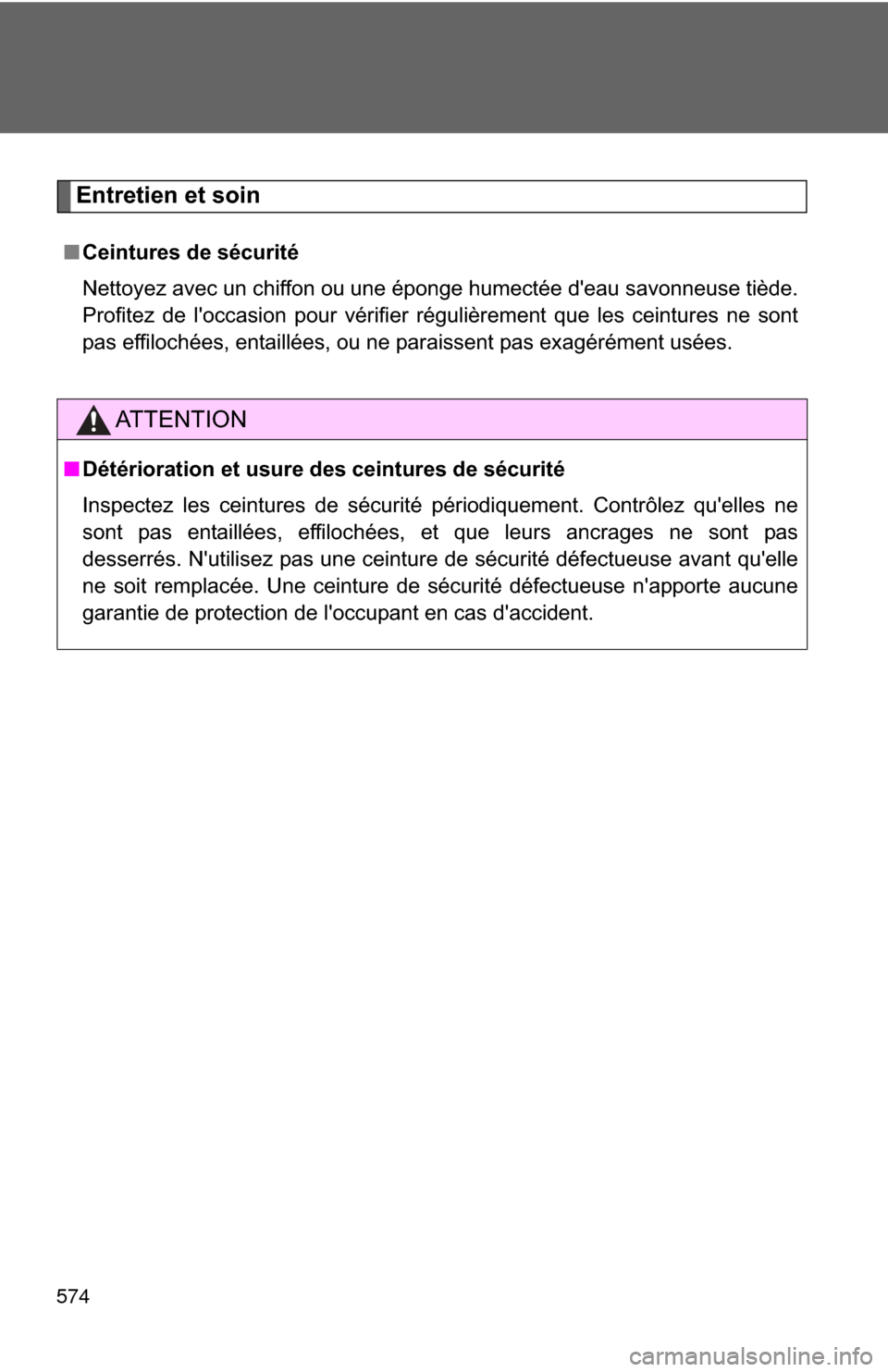

Entretien et soin
■Ceintures de sécurité
Nettoyez avec un chiffon ou une éponge humectée d'eau savonneuse tiède.
Profitez de l'occasion pour vérifier régulièrement que les ceintures ne sont
pas effilochées, entaillées, ou ne paraissent pas exagérément usées.
AT T E N T I O N
■Détérioration et usure des ceintures de sécurité
Inspectez les ceintures de sécurité périodiquement. Contrôlez qu'elles ne
sont pas entaillées, effilochées, et que leurs ancrages ne sont pas
desserrés. N'utilisez pas une ceinture de sécurité défectueuse avant qu'elle
ne soit remplacée. Une ceinture de sécurité défectueuse n'apporte aucune
garantie de protection de l'occupant en cas d'accident.

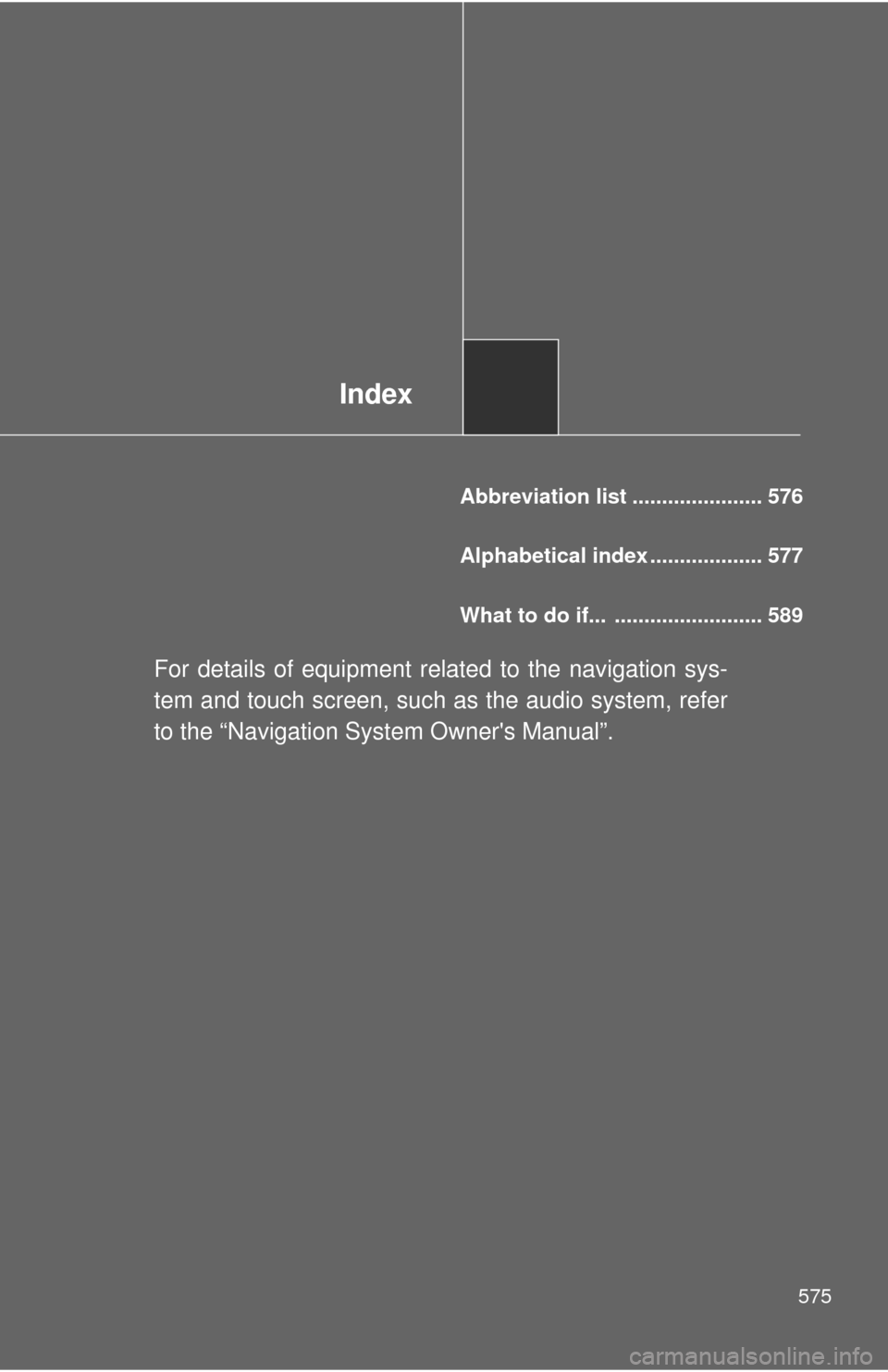

Index
575
Abbreviation list ...................... 576
Alphabetical index ................... 577
What to do if... ......................... 589
For details of equipment related to the navigation sys-
tem and touch screen, such as the audio system, refer
to the “Navigation System Owner's Manual”.

576
Abbreviation list
Abbreviation/Acronym list
ABBREVIATIONSMEANING
A/C Air Conditioning
ABS Anti-lock Brake System ALR Automatic Locking Retractor
CAL Calibration
CRS Child Restraint System
DISP Display
ECON Economy ECU Electronic Control Unit
EDR Event Data RecorderELR Emergency Locking Retractor
EPS Electric Power Steering
GAWR Gross Axle Weight Rating GVM Gross Vehicle Mass
I/M Emission Inspection and Maintenance
INFO Information
LATCH Lower Anchors and Tethers for Children
LED Light Emitting Diode
OBD On Board Diagnostics SRS Supplemental Restraint System
TIN Tire Identification Number
TEMP Temperature
TPMS Tire Pressure Warning System TRAC Traction Control VDIM Vehicle Dynamics Integrated Management VIN Vehicle Identification Number
VSC Vehicle Stability Control

577
Alphabetical index
Alphabetical index
A/C .................... 254, 260, 269, 272
ABS........................................... 220
Air conditioning filter .............. 461
Air conditioning systemAir conditioning filter ............. 461
Front automatic air conditioning system ........... 260
Front manual air conditioning system................................ 254
Rear automatic air
conditioning system ........... 272
Rear manual air conditioning system................................ 269
Airbags Airbag operating conditions ........................... 136
Airbag precautions for your child.................................... 140
Airbag warning light .............. 501
Curtain shield airbag operating
conditions ........................... 136
Curtain shield airbag
precautions ........................ 140
Front passenger occupant classification system .......... 145
General airbag precautions ........................ 140
Locations of airbags ............. 133
Modification and disposal of
airbags ............................... 144
Proper driving
posture ....................... 131, 140
Side airbag operating conditions ........................... 136
Side airbag precautions........ 140
SRS airbags ......................... 133 Alarm .........................................127
Antenna.....................................285
Anti-lock brake system............220
Armrest .....................................394
Audio input ...............................305
Audio system
Antenna .................................285
Audio input ............................305
Audio visual input ..................329
AUX adapter..........................305
A/V input adapter ..................329
CD player/changer ................288
DVD player ............................316
MP3/WMA disc......................295
Optimal use ...........................302
Portable music player............305
Radio .....................................282
Rear seat entertainment system ................................309
Steering wheel audio switch ..................................307
Type ......................................279
Audio visual input ....................329
Automatic light control system ....................................205
AUX adapter .............................305
Auxiliary box ........................... 381
A/V input adapter .....................329A

578 Alphabetical index
Back-up lightsReplacing light bulbs ............. 478
Wattage ................................. 551
Back door Back door ................................78
Wireless remote control ..........65
Smart key system... .................44
Battery
Checking ............................... 443
Hybrid battery (traction battery)....................33
If the vehicle has a discharged 12-volt
battery ................................. 528
Preparing and checking before winter .................................. 236
Bluetooth
\b................................ 342
Bottle holder ............................. 380
Brakes Fluid ...................................... 442
Parking brake ........................ 187
Brake assist .............................. 220
Break-in tips ............................. 169 Care
Exterior.................................. 412
Interior ................................... 415
Seat belts .............................. 416
Cargo capacity ......................... 235
Cargo hooks ............................. 396
CD changer............................... 288
CD player .................................. 288
Chains ....................................... 236
Child restraint system Booster seats, definition........ 152
Booster seats, installation ..... 155
Convertible seats, definition ............................. 152
Convertible seats, installation........................... 155
Front passenger occupant
classification system ........... 145
Infant seats, definition ........... 152
Infant seats, installation ........ 155
Installing CRS with lower anchorages ......................... 157
Installing CRS with seat
belts .................................... 159
Installing CRS with top straps .................................. 162
BC

579
Alphabetical index
Child safety
Airbag precautions ............... 140
Child restraint system ........... 151
Child-protectors ...................... 75
How your child should wear
the seat belt ....................... 104
Installing child restraints ....... 155
Moon roof precautions.......... 115
Power window lock switch .... 113
Power window precautions... 114
Removed key battery precautions ........................ 465
Seat belt extender precautions ........................ 107
Seat belt precautions............ 106
Seat heater precautions ....... 393
12-volt battery precautions ................ 445, 530
Child-protectors ........................ 75
Cleaning Exterior ................................. 412
Interior .................................. 415
Seat belts ............................. 416
Clock ........................................ 195
Compass .................................. 407
Condenser ............................... 442
Console box............................. 374
Conversation mirror................ 388
Cooling system Hybrid system overheating ... 532
Cruise control .......................... 213
Cup holders ............................. 376
Curtain shield airbags ............ 133
Customizable features ............ 567 Daytime running light
system ....................................207
Defogger Rear window .........................275
Side mirrors ...........................275
Dimension.................................538
Dinghy towing ..........................250
Display Energy flow .............................35
Multi-information display .......195
Trip information .....................195
Warning message .................509
Do-it-yourself main tenance.....424
Door courtesy lights
Door courtesy lights ..............369
Wattage .................................551
Doors
Door glasses .........................113
Door lock .....................44, 65, 74
Side mirrors ...........................111
Driver's seat belt reminder light .........................................503
Driving
Break-in tips ..........................169
Correct posture .....................131
Procedures ............................168
Winter driving tips..................236
DVD player ................................316D

580 Alphabetical index
“ECON” switch ......................... 185
Eco Driving Mode..................... 185
Electric power steering ........... 220
Electronic keyIf your electronic key battery is
discharged .......................... 526
Emergency flashers Switch.................................... 490
Emergency, in case of If the back door opener is inoperative ............................81
If the electronic key does not operate properly.................. 526
If the hybrid system will
not start ............................... 522
If the shift lever cannot be shifted from P...................... 524
If the vehicle has a discharged 12-volt
battery ................................. 528
If the warning buzzer sounds ................................ 500
If the warning light turns
on ........................................ 500
If the warning message is displayed............................. 509
If you have a flat tire ............. 510
If you lose your keys ............. 525
If you think something is wrong .................................. 497
If your vehicle becomes stuck ................................... 536
If your vehicle needs to be towed .................................. 491
If your vehicle overheats ....... 532 Engine
Compartment ........................ 432
Engine switch ........................ 178
Hood ..................................... 428
How to start the
hybrid system ..................... 178
Identification number............. 539
If the hybrid system will not start............................... 522
Ignition switch ....................... 178
Overheating .......................... 532
Power switch ......................... 178
Engine compartment cover .... 433
Engine/power control unit coolant Capacity ................................ 543
Checking ............................... 439
Preparing and checking before winter .................................. 236
Engine coolan t temperature
gauge ...................................... 189
Engine oil Capacity ................................ 542
Checking ............................... 435
Preparing and checking before winter .................................. 236
Engine oil maintenance
data ......................................... 437
Engine switch........................... 178
EPS............................................ 220
EV-Drive Mode ......................... 182
Event data recorder ................. 498E
