TOYOTA HIGHLANDER HYBRID 2010 XU40 / 2.G Owners Manual

251
2-5. Driving information
2
When driving
NOTICE
■
When installing a trailer hitch
●Use only the position recommended by your Toyota dealer. Do not install
the trailer hitch on the bumper as this may cause body damage.
● Do not use axle-mounted hitches, as they can cause damage to the axle
housing, wheel bearings, wheels or tires.
■ Safety chain
A safety chain must always be used between the towing vehicle and the
trailer. Leave sufficient slack in the chain for turns. The chain should cross
under the trailer tongue to prevent the tongue from dropping to the ground in
the case that it becomes damaged or separated. For the correct safety chain
installation procedure, ask your Toyota dealer.
■ Do not directly splice trailer lights
Directly splicing trailer lights may damage your vehicle's electrical system
and cause a malfunction.

252
2-5. Driving information
Dinghy towing
NOTICE
■To avoid serious damage to your vehicle
Do not tow your vehicle with 4 wheels on the ground.
Your vehicle is not designed to be dinghy towed (with 4 wheels on
the ground) behind a motor home.

253
2-5. Driving information
2
When driving

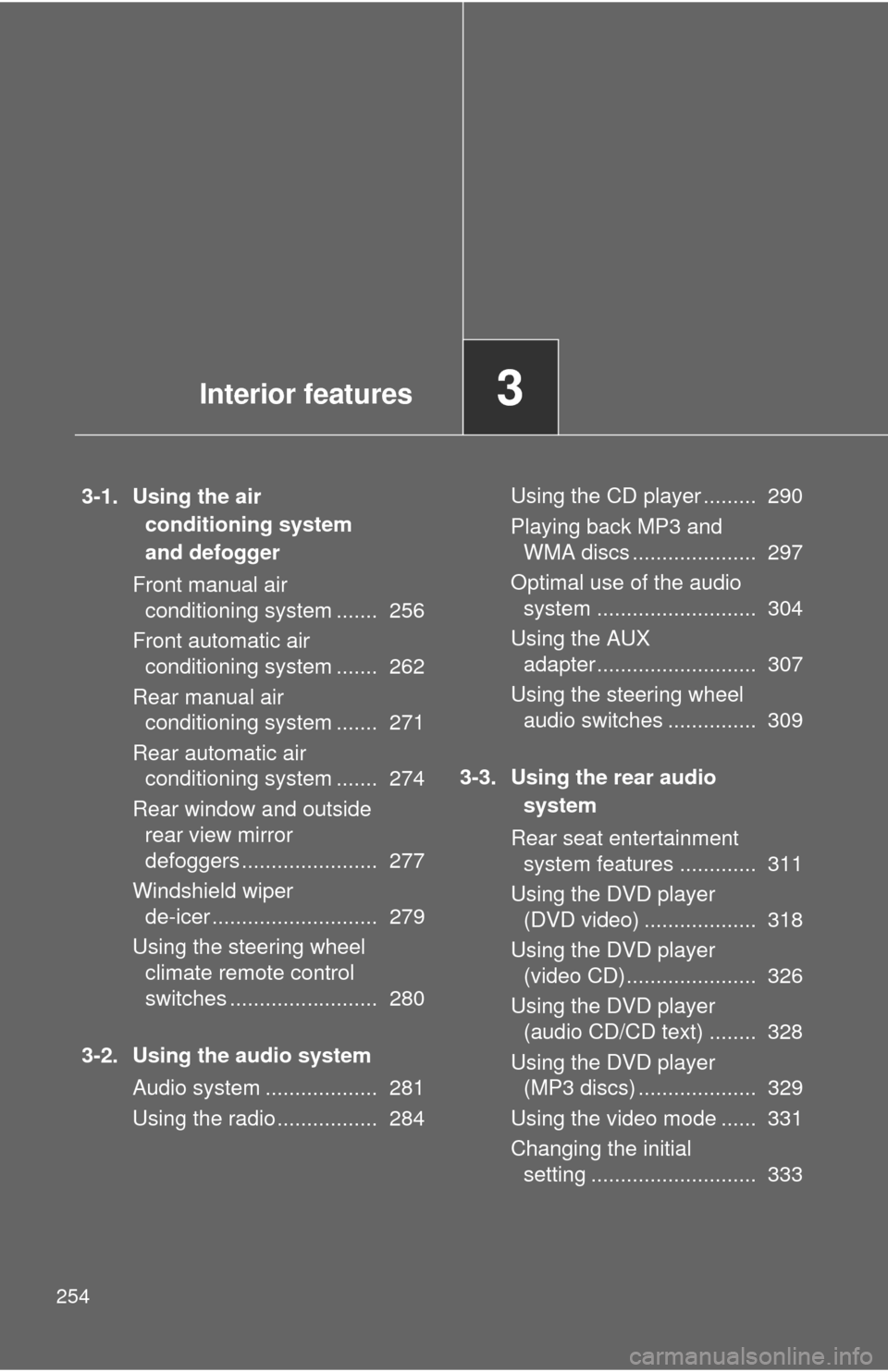

254
3-1. Using the air conditioning system
and defogger
Front manual air conditioning system ....... 256
Front automatic air conditioning system ....... 262
Rear manual air conditioning system ....... 271
Rear automatic air conditioning system ....... 274
Rear window and outside rear view mirror
defoggers ....................... 277
Windshield wiper de-icer ............................ 279
Using the steering wheel climate remote control
switches ......................... 280
3-2. Using the audio system Audio system ................... 281
Using the radio ................. 284 Using the CD player ......... 290
Playing back MP3 and
WMA discs ..................... 297
Optimal use of the audio system ........................... 304
Using the AUX adapter........................... 307
Using the steering wheel audio switches ............... 309
3-3. Using the rear audio system
Rear seat entertainment system features ............. 311
Using the DVD player (DVD video) ................... 318
Using the DVD player (video CD)...................... 326
Using the DVD player (audio CD/CD text) ........ 328
Using the DVD player (MP3 discs) .................... 329
Using the video mode ...... 331
Changing the initial setting ............................ 333
Interior features3

Interior features3

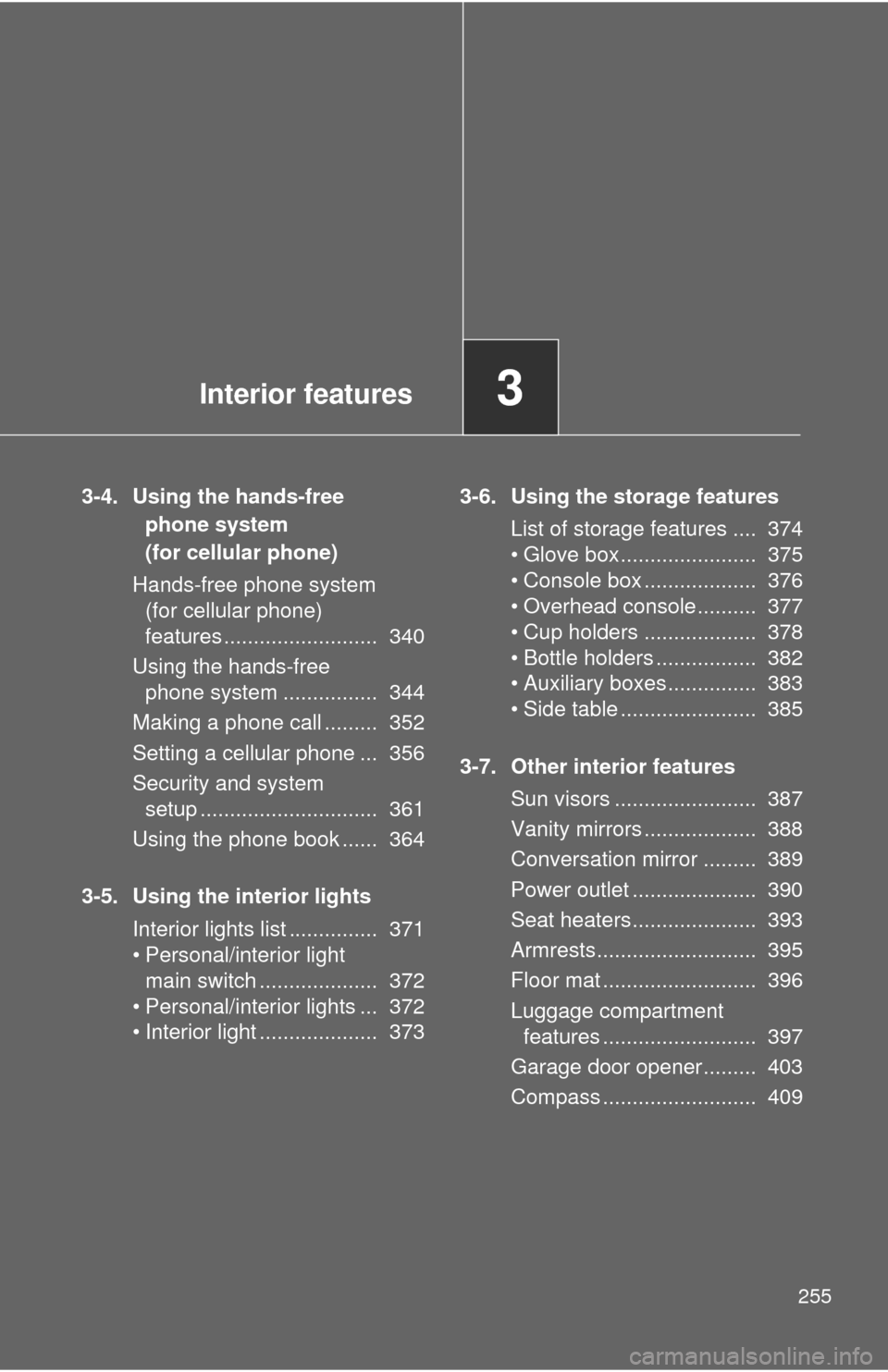

255
3-4. Using the hands-free phone system
(for cellular phone)
Hands-free phone system (for cellular phone)
features .......................... 340
Using the hands-free phone system ................ 344
Making a phone call ......... 352
Setting a cellular phone ... 356
Security and system setup .............................. 361
Using the phone book ...... 364
3-5. Using the interior lights Interior lights list ............... 371
• Personal/interior light main switch .................... 372
• Personal/interior lights ... 372
• Interior light .................... 373 3-6. Using the storage features
List of storage features .... 374
• Glove box....................... 375
• Console box ................... 376
• Overhead console .......... 377
• Cup holders ................... 378
• Bottle holders ................. 382
• Auxiliary boxes ............... 383
• Side table ....................... 385
3-7. Other interior features Sun visors ........................ 387
Vanity mirrors ................... 388
Conversation mirror ......... 389
Power outlet ..................... 390
Seat heaters..................... 393
Armrests........................... 395
Floor mat .......................... 396
Luggage compartment features .......................... 397
Garage door opener......... 403
Compass .......................... 409

256
3-1. Using the air conditioning system and defogger
Front manual air conditioning system
Adjusting the settings■ Adjusting the temperature setting
Turn the temperature control dial clockwise (warm) or counter-
clockwise (cool).
If is not pressed, the system will blow ambient temperature air or
heated air.
For quick cooling, turn the temperature selector knob to the “MAX A/C”
position. The air conditioning will automatically turn on in (recir-
culated air) mode.
Fan speed control dial
Air outlet selection dial
Air conditioning on/off switch
Temperature control dial
Outside air or recirculated air mode
Rear air conditioning
on/off switch
(if equipped)
: If equipped

257
3-1. Using the air conditioning system
and defogger
3
Interior features
■Adjusting the fan speed
Turn the fan speed control dial clockwise (increase) or counter-
clockwise (decrease).
Turn the dial to “OFF” to turn the fan off.
■ Changing the air outlets
Set the air outlet selection di al to an appropriate position.
The positions between the air outlet selections shown below can be also
selected for more detailed adjustment.
Upper body
: Vehicles without rear air conditioning system Upper body and feet
: Vehicles without rear air conditioning system

258 3-1. Using the air conditioning system and defogger
Feet
: Vehicles without rear air conditioning system
Without rear air conditioning system Feet and windshield
With rear air conditioning system Feet and windshield

259
3-1. Using the air conditioning system
and defogger
3
Interior features
■Switching between outside air and recirculated air modes
Press .
The mode switches between outside air mode (indicator off) and recircu-
lated air mode (indicator on) modes each time is pressed.
Defogging the windshield
Set the air outlet selection dial to position.
The air conditioning system oper-
ates automatically.
Recirculated air mode may auto-
matically switch to outside air
mode.
Adjusting the position of and opening and closing the air outlets
Front center outlets Direct air flow to the left or right,
up or down.

260 3-1. Using the air conditioning system and defogger
Front side outlets
Direct air flow to the left or
right, up or down.
Turn the knob to open or close
the vent.
Rear center outlets (vehicles without rear air conditioning system) Direct air flow to the left or
right, up or down.
Turn the knob to open or close
the vent.
■Using the system in recirculated air mode
The windows will fog up more easily if the recirculated air mode is used for an
extended period.
■ Window defogger feature
In order to prevent the windows from fogging up, recirculated air mode may
automatically switch to outside air m ode if the ambient temperature drops.
This feature can be cancelled by pushing and holding the air intake mode
switch for longer than 2 seconds. The feature will be reactivated when the
“POWER” switch is turned to ACCESSORY mode or OFF.
■ When outside air temperature approaches 32°F (0°C)
The air conditioning system may not operate even when is pressed.
