TOYOTA HIGHLANDER HYBRID 2011 XU40 / 2.G Quick Reference Guide

9
OVERVIEW
FEATURES/OPERATIONS
SAFETY AND EMERGENCY FEATURES
Windshield washer fluid tank
Engine oil filler cap
Engine oil level dipstick
Engine coolant reservoir
NOTE: Regularly scheduled maintenance, including oil changes, will
help extend the life of your vehicle and maintain performance.
Please refer to the “Warranty Maintenance Guide.”
Engine maintenance
Light control-Instrument panel
Brightness
control
-
+

10
FEATURES/OPERATIONS
(1) Put the selector lever in “P.”
(2) Vehicles with Smart Key system:
Depress the brake pedal, and press the “POWER” switch briefly
and firmly.
Vehicles without Smart Key system:
Depress the brake pedal, and turn the key to the “START” position.
(3) The “READY” light will blink. After a few seconds, when the light
remains steady and a beep sounds, you may begin driving.

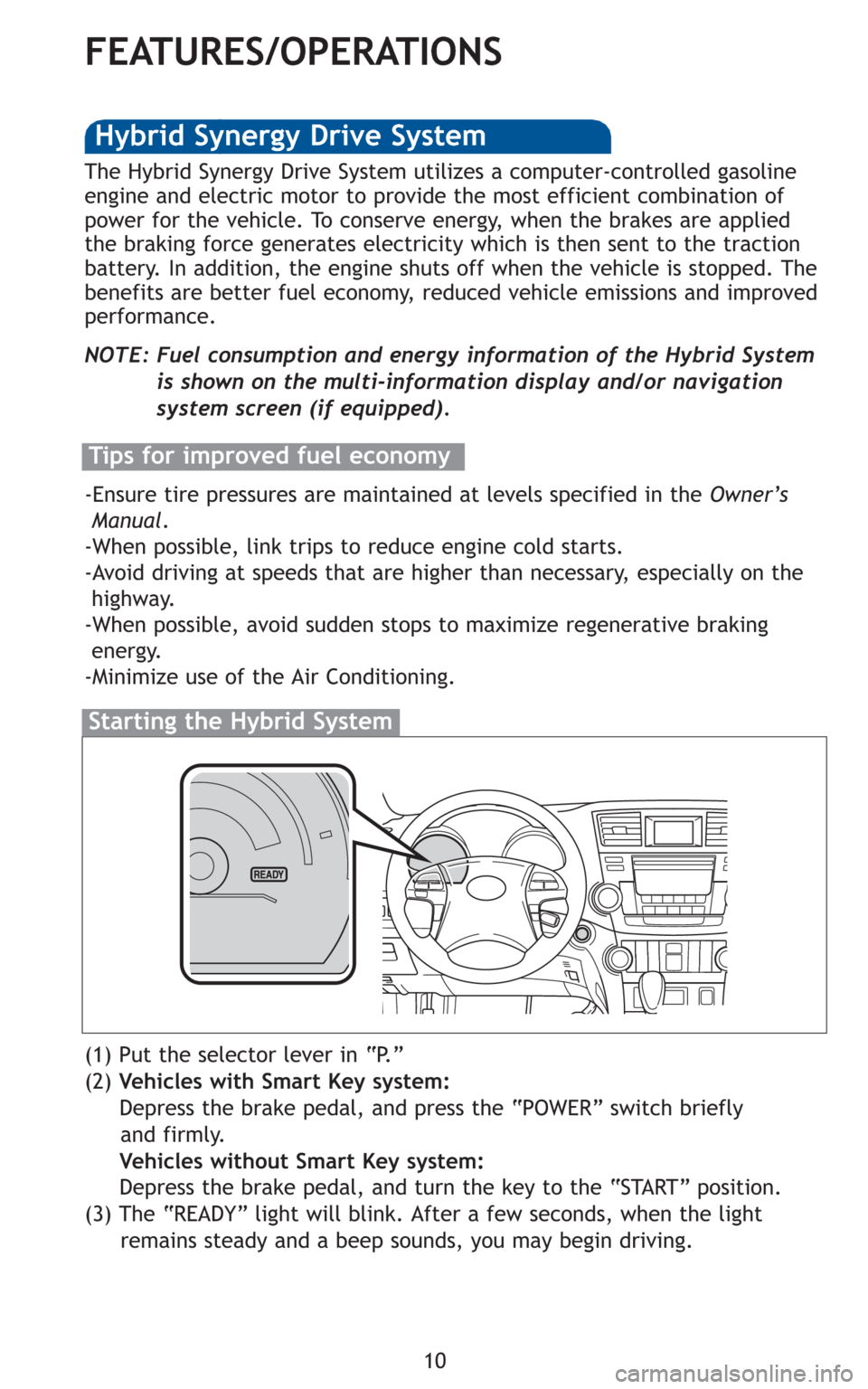

Starting the Hybrid System
The Hybrid Synergy Drive System utilizes a computer-controlled gasoline
engine and electric motor to provide the most efficient combination of
power for the vehicle. To conserve energy, when the brakes are applied
the braking force generates electricity which is then sent to the traction
battery. In addition, the engine shuts off when the vehicle is stopped. The
benefits are better fuel economy, reduced vehicle emissions and improved
performance.
NOTE: Fuel consumption and energy information of the Hybrid System
is shown on the multi-information display and/or navigation
system screen (if equipped).
Tips for improved fuel economy
-Ensure tire pressures are maintained at levels specified in the Owner’s
Manual.
-When possible, link trips to reduce engine cold starts.
-Avoid driving at speeds that are higher than necessary, especially on the
highway.
-When possible, avoid sudden stops to maximize regenerative braking
energy.
-Minimize use of the Air Conditioning.
Hybrid Synergy Drive System

11
OVERVIEW
FEATURES/OPERATIONS
SAFETY AND EMERGENCY FEATURES
Transmission
1 The “POWER”/ignition switch must be “ON” and the brake pedal
depressed to shift from Park.
2 The engine brake is the equivalent of downshifting. Shift to “B” when
engine braking is desired (i.e. downhill driving, coasting to a stop, etc.).
Park1
Reverse
Neutral
Drive
BEngine braking2
Eco Driving Mode
Push

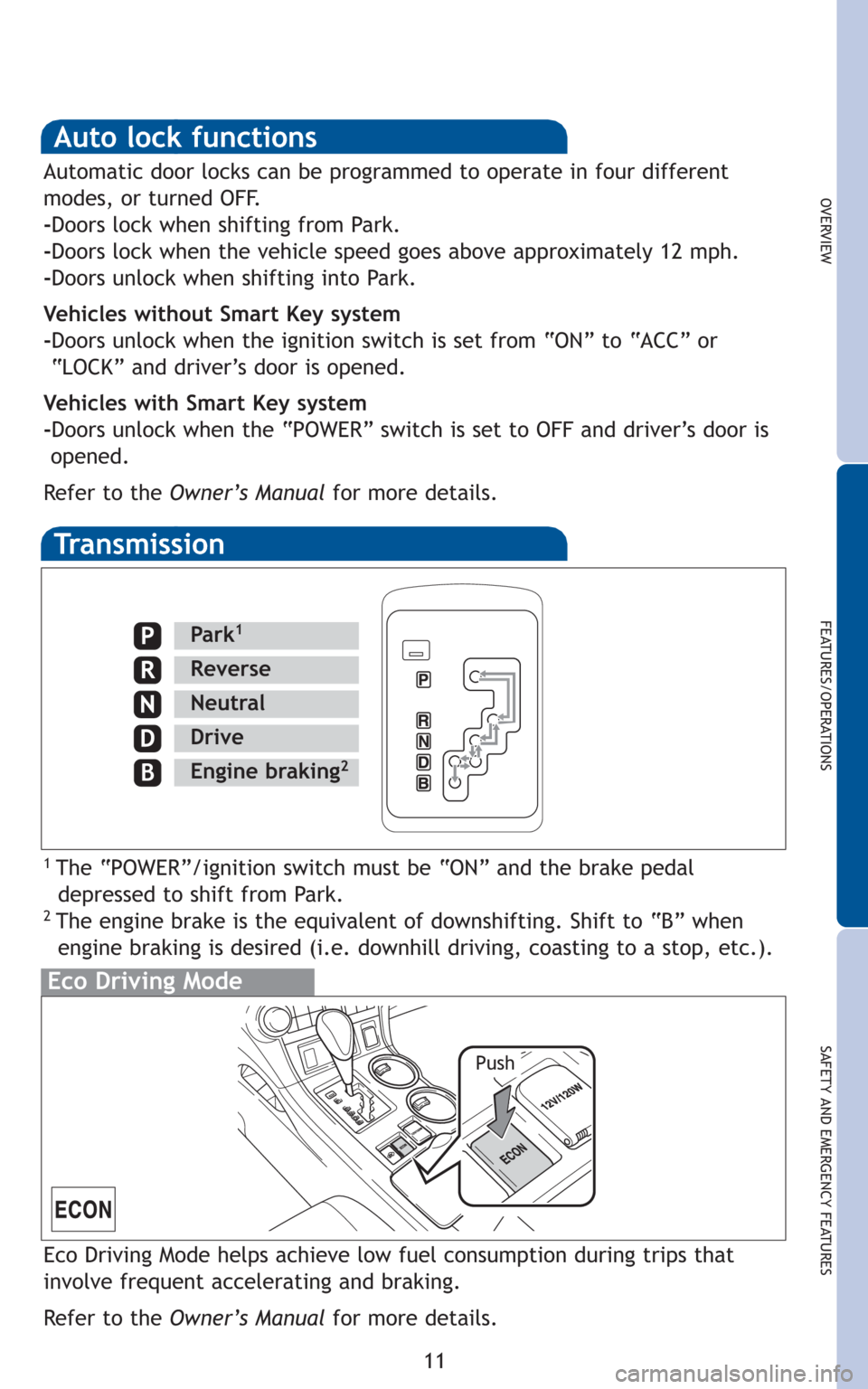

Auto lock functions
Automatic door locks can be programmed to operate in four different
modes, or turned OFF.
-Doors lock when shifting from Park.
-Doors lock when the vehicle speed goes above approximately 12 mph.
-Doors unlock when shifting into Park.
Vehicles without Smart Key system
-Doors unlock when the ignition switch is set from “ON” to “ACC” or
“LOCK” and driver’s door is opened.
Vehicles with Smart Key system
-Doors unlock when the “POWER” switch is set to OFF and driver’s door is
opened.
Refer to the Owner’s Manualfor more details.
Eco Driving Mode helps achieve low fuel consumption during trips that
involve frequent accelerating and braking.
Refer to the Owner’s Manualfor more details.

12
FEATURES/OPERATIONS
Hold wheel, push lever down, set angle and length, and return lever.
NOTE: Do not attempt to adjust while the vehicle is in motion.
Angle
Length
Lock release lever
Tilt and telescopic steering wheel
EV-Drive Mode
EV-Drive Mode allows the electric motor (traction motor), powered by the
hybrid battery (traction battery), to be used to drive the vehicle.
Refer to the Owner’s Manualfor more details.
Push
Steering lock release
Tu r n
Push
Parking brake
Set: Depress
Release: Depress again
With Smart Key systemWithout Smart Key system
Tu r n
Push Tu r n

13
OVERVIEW
FEATURES/OPERATIONS
SAFETY AND EMERGENCY FEATURES
Seat adjustments-Rear
Second row seat
Seat position (forward/backward)
Seatback angle
Third seat access lever
Seatback release
Refer to the Owner’s Manualfor more details.

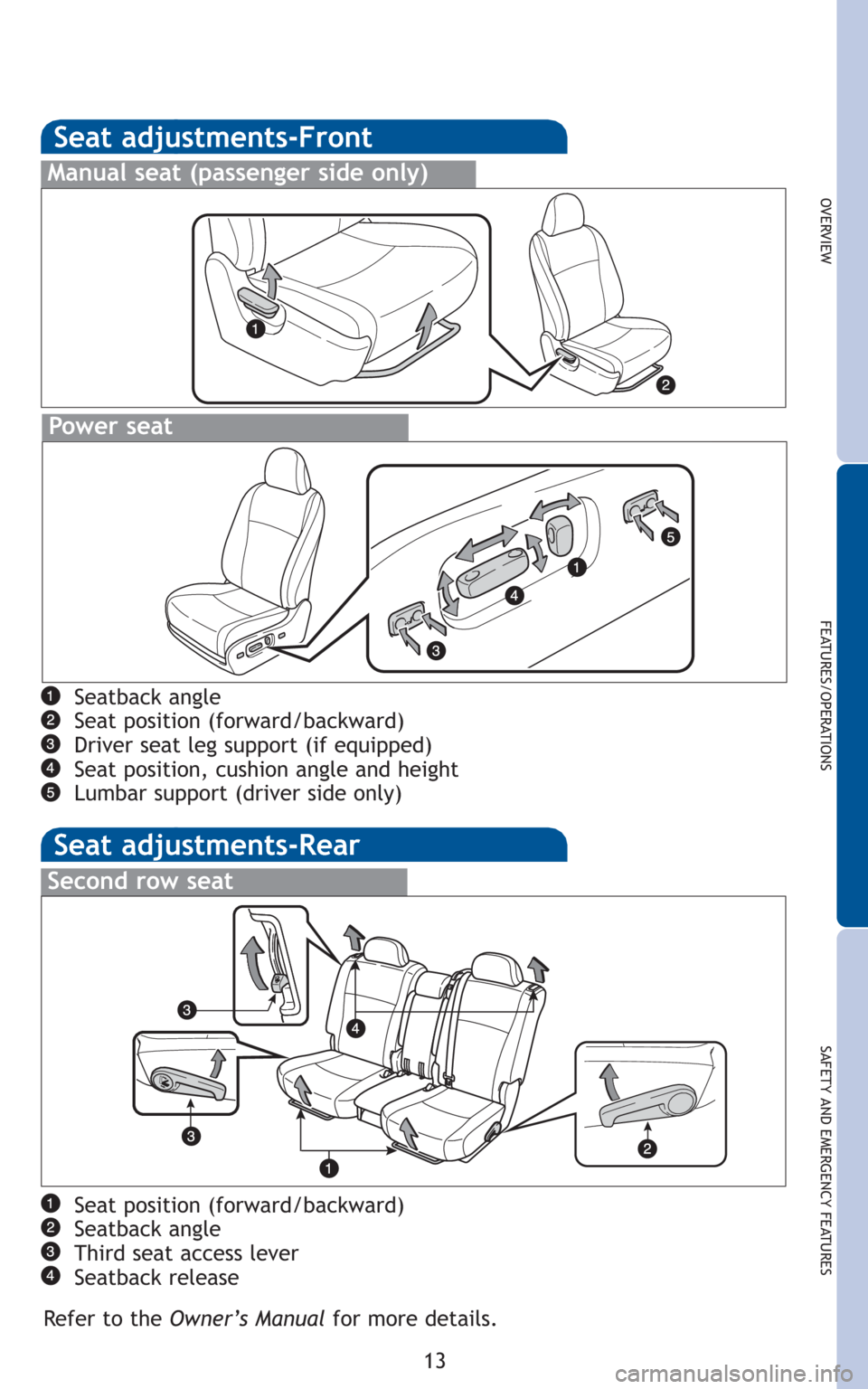

Seat adjustments-Front
Seatback angle
Seat position (forward/backward)
Driver seat leg support (if equipped)
Seat position, cushion angle and height
Lumbar support (driver side only)
Manual seat (passenger side only)
Power seat

14
FEATURES/OPERATIONS

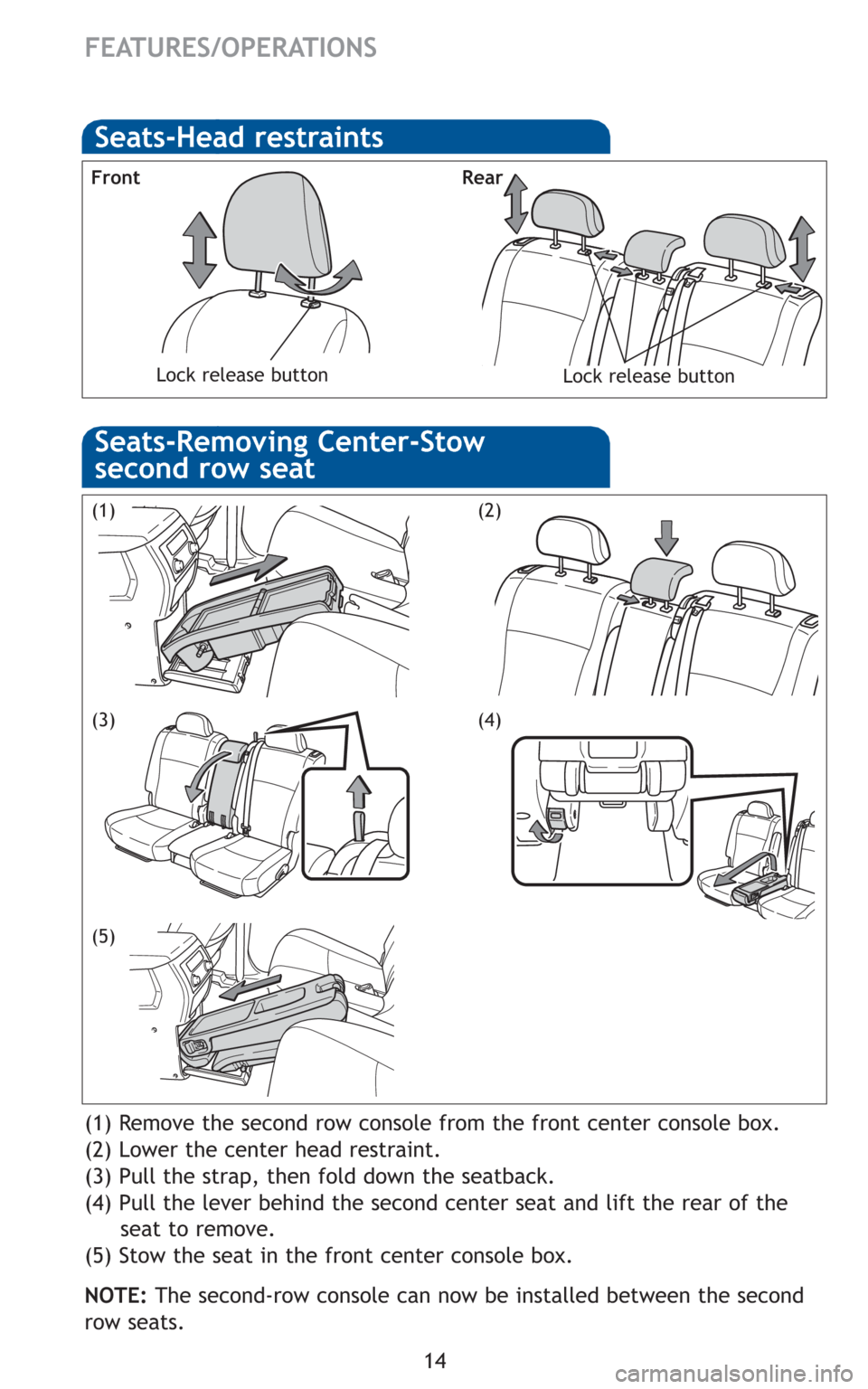

Seats-Head restraints
Front Rear
Lock release button
Lock release button
(1) Remove the second row console from the front center console box.
(2) Lower the center head restraint.
(3) Pull the strap, then fold down the seatback.
(4) Pull the lever behind the second center seat and lift the rear of the
seat to remove.
(5) Stow the seat in the front center console box.
(1)
(5)
(4)(3)
(2)
NOTE:The second-row console can now be installed between the second
row seats.
Seats-Removing Center-Stow
second row seat

15
OVERVIEW
FEATURES/OPERATIONS
SAFETY AND EMERGENCY FEATURES
Refer to the Owner’s Manualfor more details.
Pull
From outside
Left side/center remote seat release
Right side remote seat release
(2) Fold down From inside
(1) Pull up

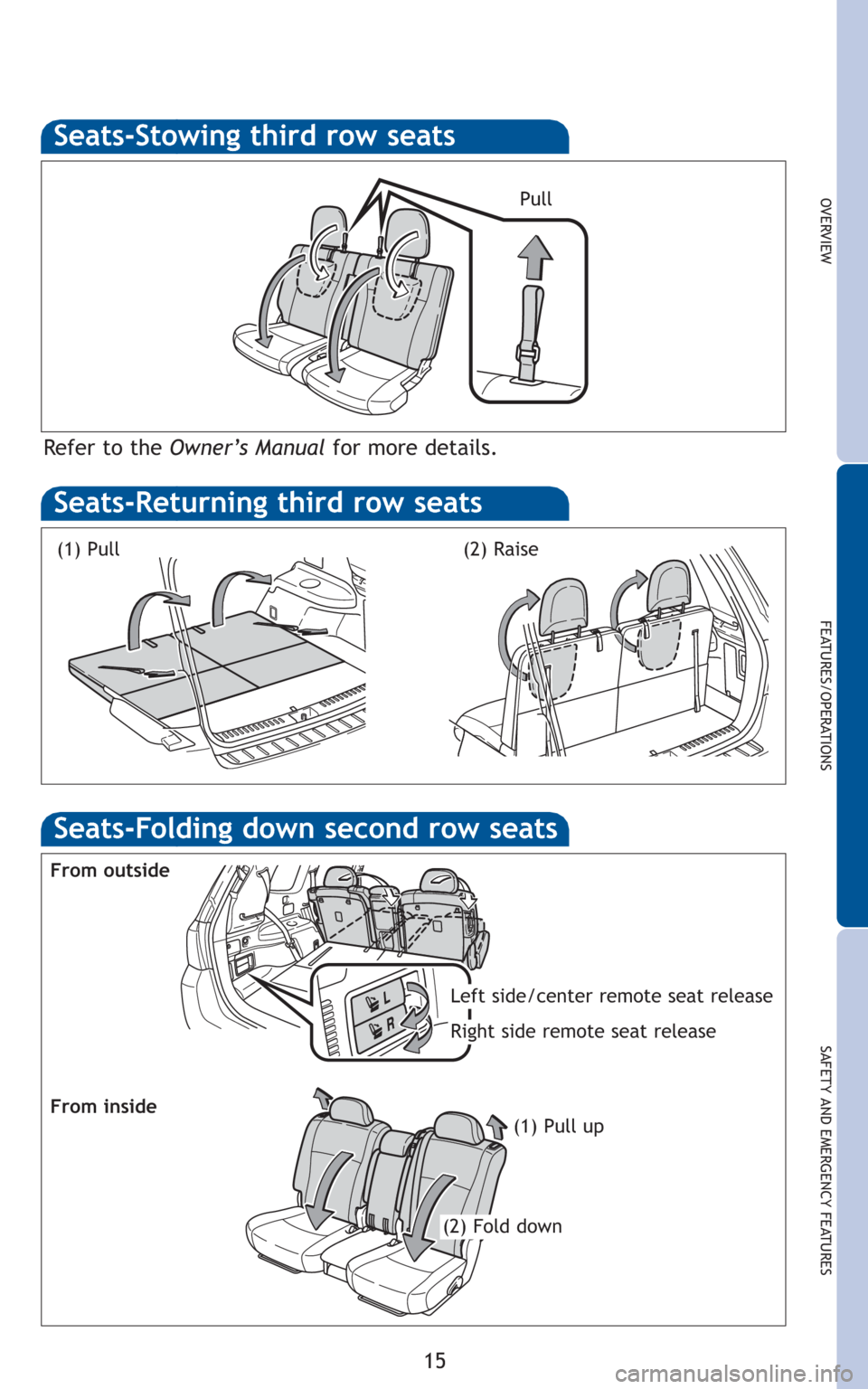

Seats-Stowing third row seats
(1) Pull(2) Raise
Seats-Returning third row seats
Seats-Folding down second row seats

16

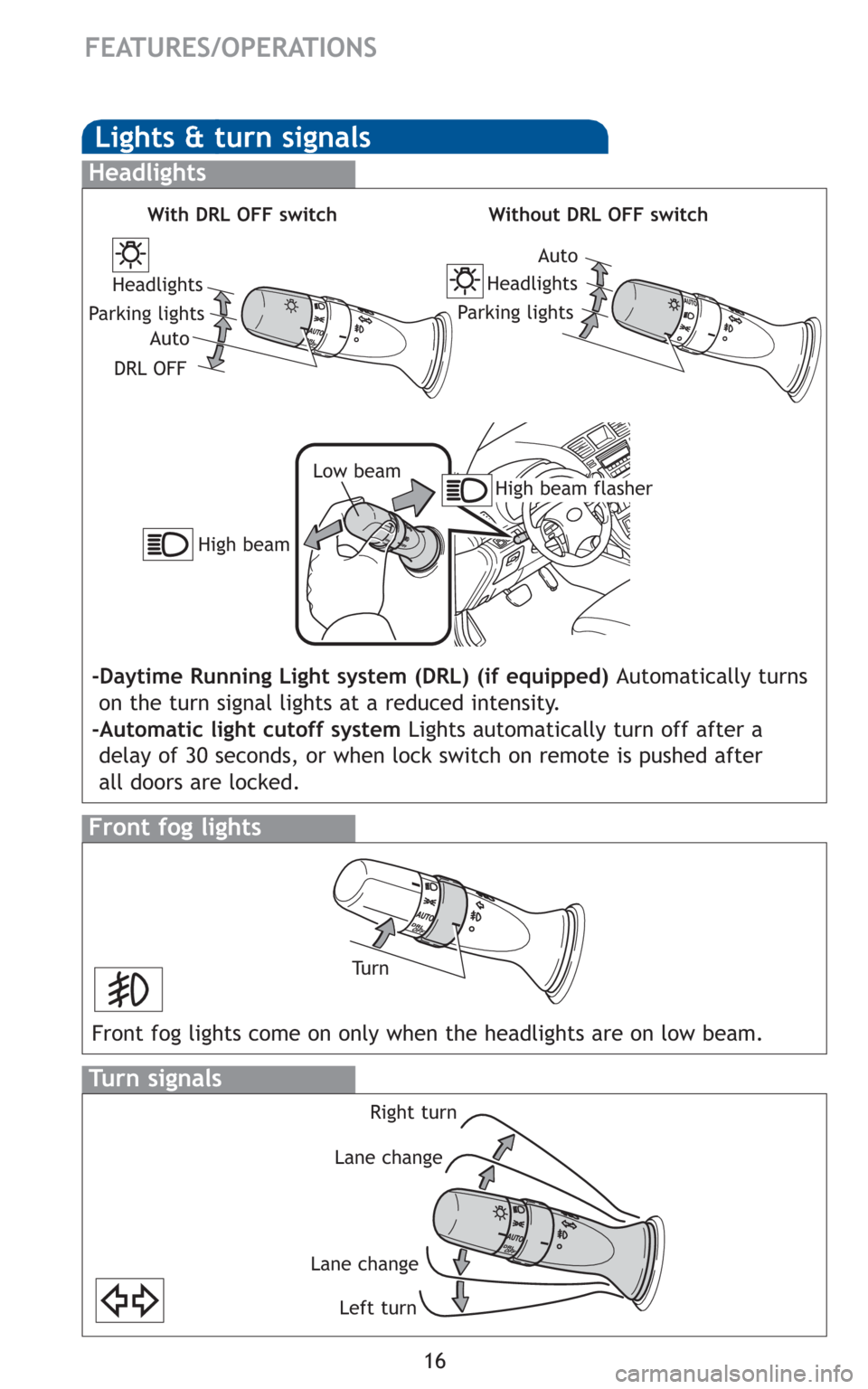

Lights & turn signals
Turn signals
Headlights
High beam flasher Low beam
Front fog lights
Headlights
-Daytime Running Light system (DRL) (if equipped) Automatically turns
on the turn signal lights at a reduced intensity.
-Automatic light cutoff system Lights automatically turn off after a
delay of 30 seconds, or when lock switch on remote is pushed after
all doors are locked.
Front fog lights come on only when the headlights are on low beam.
Parking lights
Right turn
Lane change
Lane change
Left turn High beam
Auto
Headlights
Parking lights
Auto
DRL OFF
Tu r n
With DRL OFF switchWithout DRL OFF switch
FEATURES/OPERATIONS

17
OVERVIEW
FEATURES/OPERATIONS
SAFETY AND EMERGENCY FEATURES
Windows-Power
Up
Down
Driver side
Window lock
switch
Automatic operation (driver’s window only) Push the switch completely
down or pull it completely up and release to fully open or close. To stop
window midway, lightly push the switch in the opposite direction.
Window lock switch Deactivates all passenger windows. Driver’s window
remains operable.
Windshield wipers & washers
Interval wipe
Single wipe
Slow
FastPull to wash and wipe
Front
Rear
Wash and wipe
Wipe
Interval wipe
Wash and wipe Adjust frequency*
* Intermittent windshield wiper frequency adjustment
Rotate to increase/decrease wipe frequency.

18
FEATURES/OPERATIONS

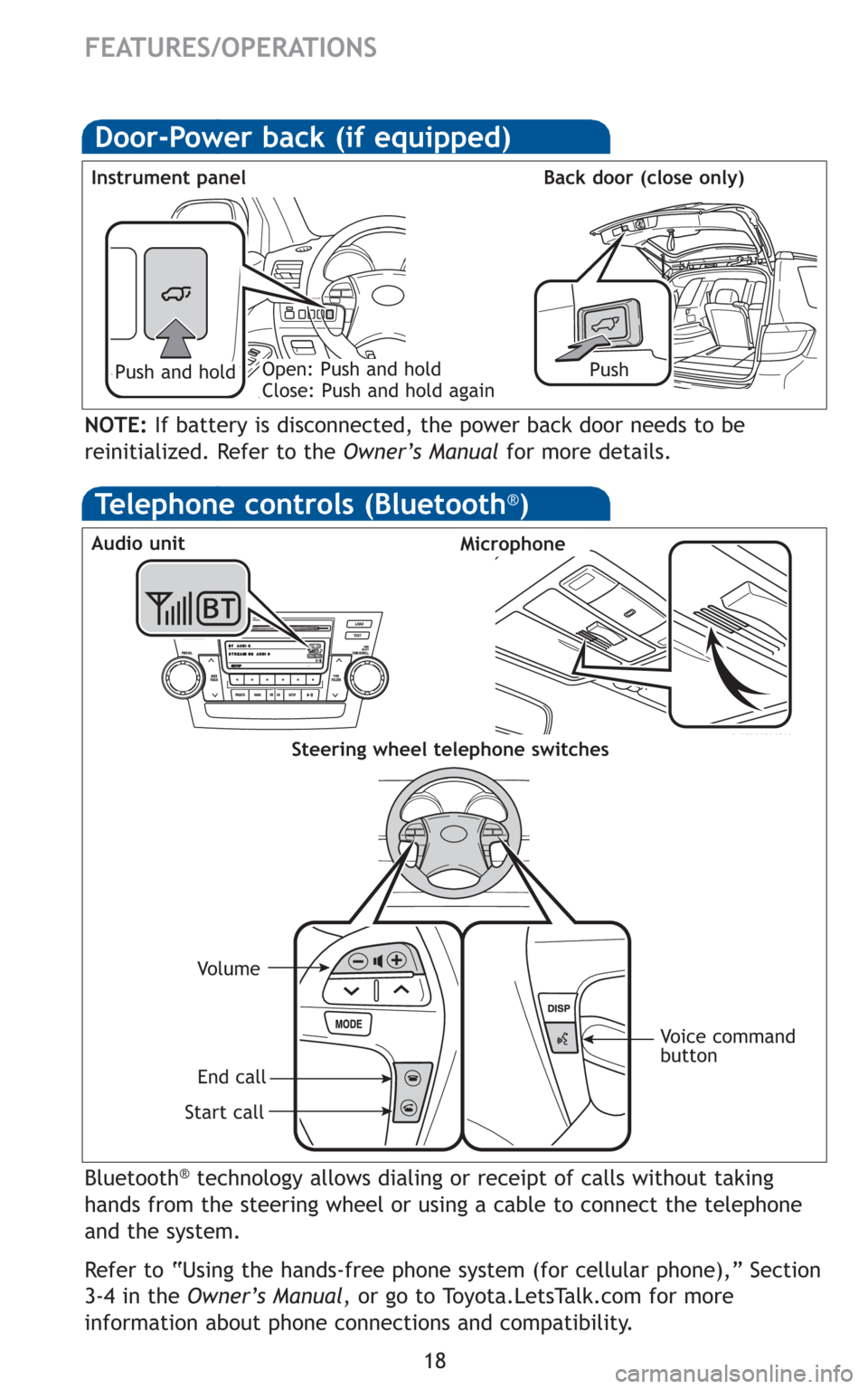

Door-Power back (if equipped)
PushPush and hold Instrument panel Back door (close only)Open: Push and hold
Close: Push and hold again
NOTE:If battery is disconnected, the power back door needs to be
reinitialized. Refer to the Owner’s Manualfor more details.
Bluetooth®technology allows dialing or receipt of calls without taking
hands from the steering wheel or using a cable to connect the telephone
and the system.
Refer to “Using the hands-free phone system (for cellular phone),” Section
3-4 in the Owner’s Manual, or go to Toyota.LetsTalk.com for more
information about phone connections and compatibility.
MicrophoneAudio unit
Steering wheel telephone switches
Vo l u m e
Start call
End callVoice command
button
Telephone controls (Bluetooth®)
