For safety and security
HIGHLANDER_HV_U (OM48D74U)
1-3. Theft deterrent system
The indicator light flashes after
the power switch has been turned
off to indicate that the system is
operating.
The indicator light stops flashing
after the power switch has been
turned to ACCESSORY or ON
mode to indicate that the system
has been canceled.
■System maintenance
The vehicle has a maintenance-free type immobilizer system.
■ Conditions that may cause the system to malfunction
●If the grip portion of the key is in contact with a metallic object
● If the key is in close proximity to or touching a key to the security system
(key with a built-in transponder chip) of another vehicle
■ Certification for the en gine immobilizer system
For vehicles sold in the U.S.A.
FCC ID: NI4TMIMB-3
This device complies with part 15 of the FCC Rules. Operation is subject to
the following two conditions: (1) This device may not cause harmful interfer-
ence, and (2) this device must accept any interference received, including
interference that may cause undesired operation.
FCC WARNING
Changes or modifications not expressly approved by the party responsible for
compliance could void the user's authority to operate the equipment.

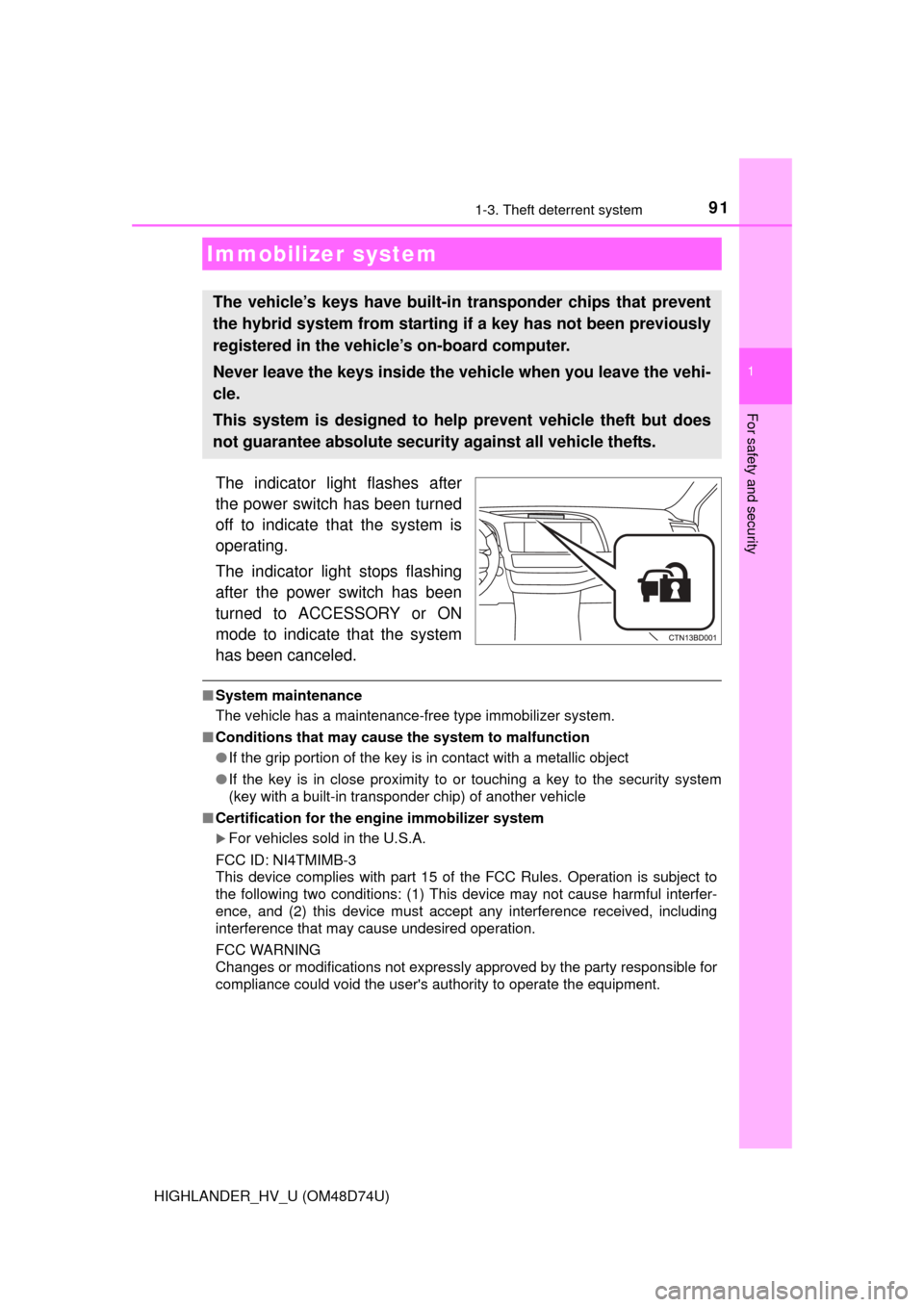

Immobilizer system
The vehicle’s keys have built-in transponder chips that prevent
the hybrid system from starting if a key has not been previously
registered in the vehi cle’s on-board computer.
Never leave the keys inside the vehicle when you leave the vehi-
cle.
This system is designed to help prevent vehicle theft but does
not guarantee absolute security against all vehicle thefts.

921-3. Theft deterrent system
HIGHLANDER_HV_U (OM48D74U)
For vehicles sold in Canada
This device complies with Industry Canada licence-exempt RSS standard(s).
Operation is subject to the following two conditions: (1) this device may not
cause interference, and (2) this device must accept any interference, includ-
ing interference that may cause undesired operation of the device.
NOTICE
■ To ensure the system operates correctly
Do not modify or remove the system. If modified or removed, the proper
operation of the system cannot be guaranteed.

931-3. Theft deterrent system
1
For safety and security
HIGHLANDER_HV_U (OM48D74U)
The alarm uses light and sound to give an alert when an intrusion is
detected.
The alarm is triggered in the following situations when the alarm is
set:
●A locked door is unlocked or opened in any way other than using
the entry function, wireless remo te control or mechanical key.
● The hood is opened.
● The locked glass hatch is opened in any way other than using the
entry function.
● The battery is reconnected.
Close the doors, glass hatch and
hood, and lock all the doors. The
system will be set automatically
after 30 seconds.
The indicator light changes from
being on to flashing when the sys-
tem is set.
Alar m
: If equipped
The alarm

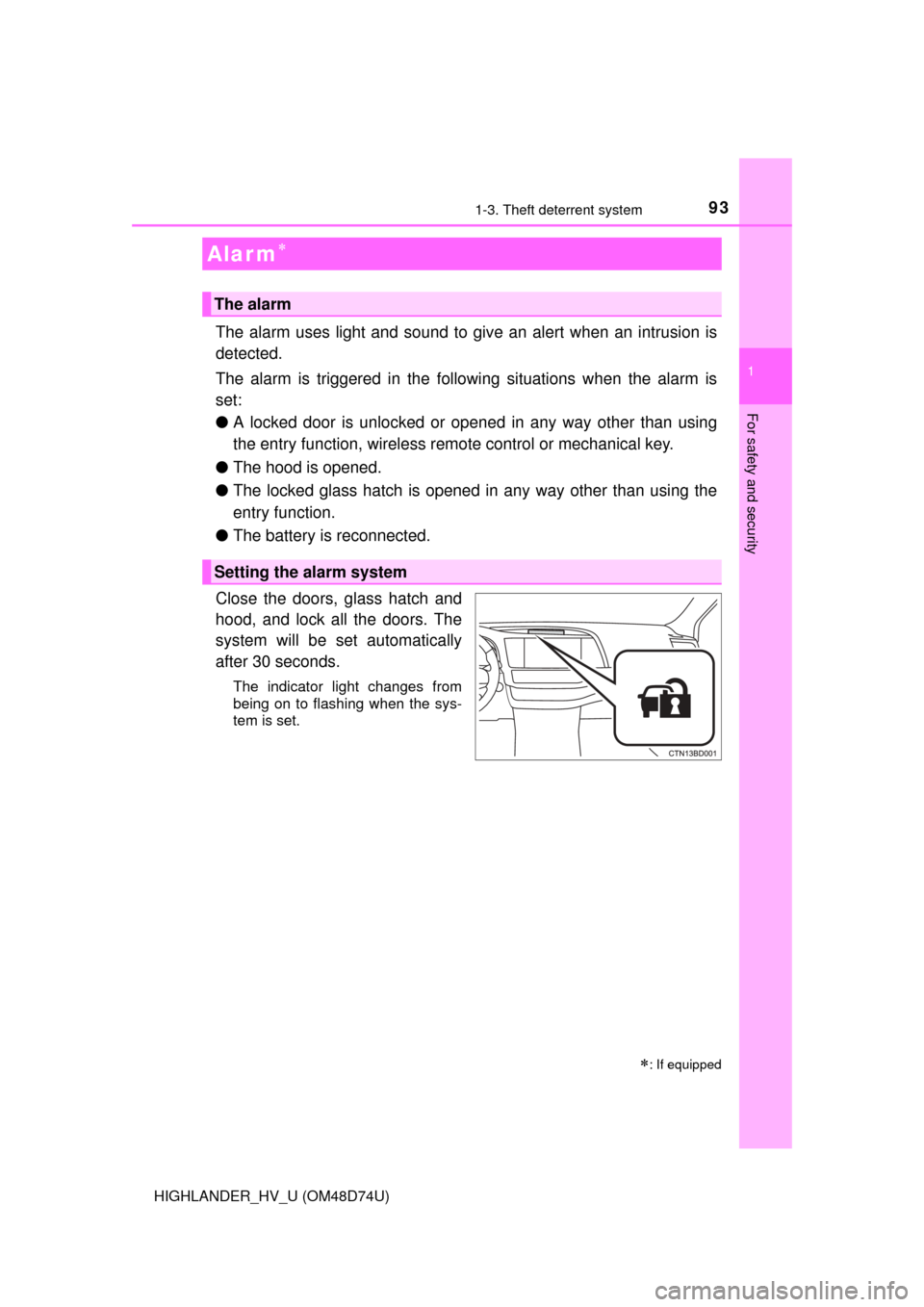

Setting the alarm system

941-3. Theft deterrent system
HIGHLANDER_HV_U (OM48D74U)
Do one of the following to deactivate or stop the alarm:
●Unlock the doors.
● Turn the power switch to ACCESSORY or ON mode, or start the
hybrid system. (The alarm will be de activated or stopped after a few
seconds.)
● Open the glass hatch using the entry function.
■System maintenance
The vehicle has a maintenance-free type alarm system.
■ Items to check before locking the vehicle
To prevent unexpected triggering of the alarm and vehicle theft, make sure of
the following:
●Nobody is in the vehicle.
● The windows and following openings are closed before the alarm is set.
• The glass hatch
• The moon roof (if equipped)
• The panoramic moon roof (if equipped)
● No valuables or other personal items are left in the vehicle.
■ Triggering of the alarm
The alarm may be triggered in the following situations:
(Stopping the alarm deactivates the alarm system.)

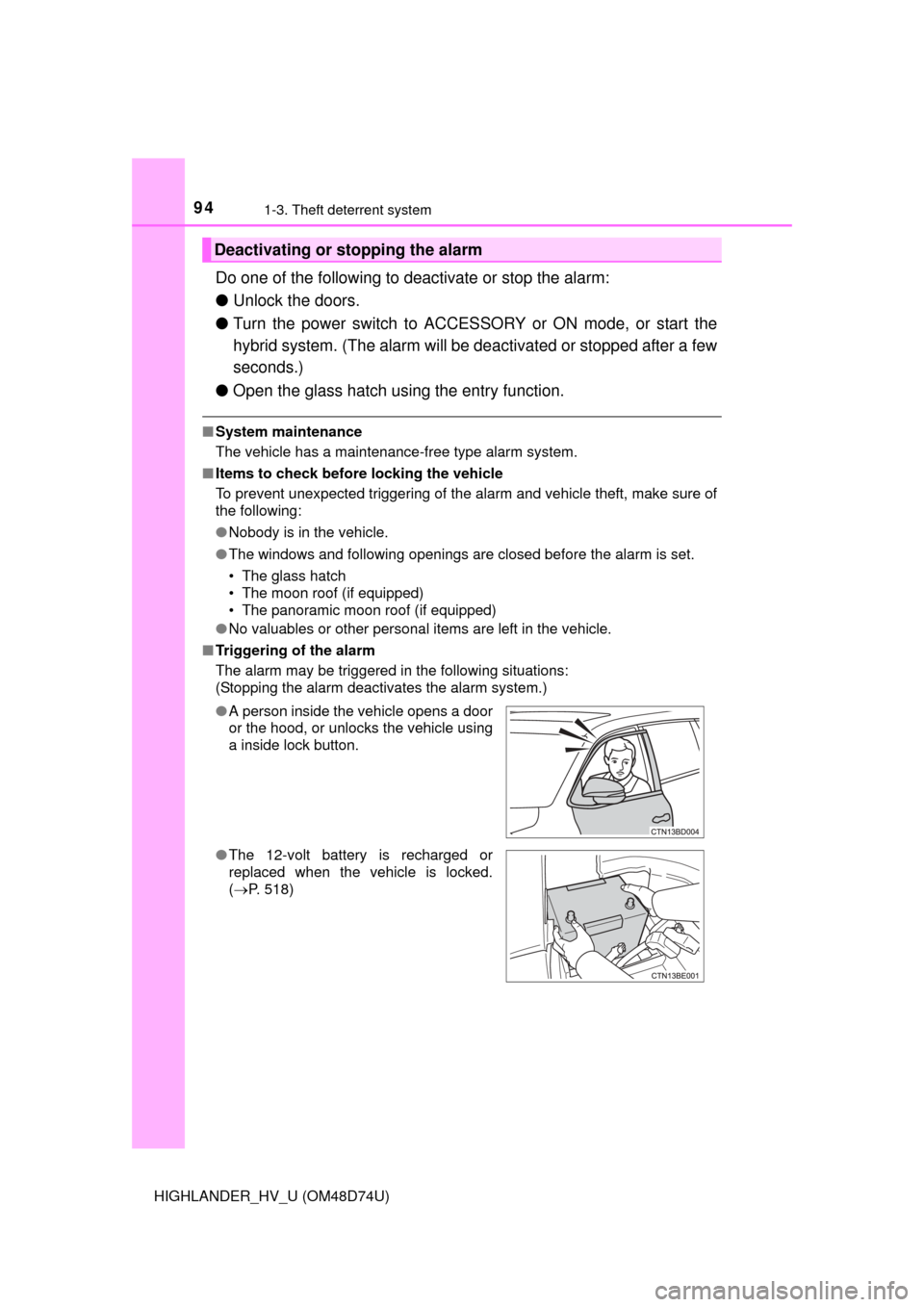

Deactivating or stopping the alarm
●A person inside the vehicle opens a door
or the hood, or unlocks the vehicle using
a inside lock button.
● The 12-volt battery is recharged or
replaced when the vehicle is locked.
(P. 518)

951-3. Theft deterrent system
1
For safety and security
HIGHLANDER_HV_U (OM48D74U)■
Alarm-operated door lock
In the following situations, the doors are locked automatically:
●When a person inside the vehicle triggers the alarm by unlocking a door or
the back door.
● When a person inside the vehicle unlocks a door or the back door while the
alarm is operating.
NOTICE
■To ensure the system operates correctly
Do not modify or remove the system. If modified or removed, the proper
operation of the system cannot be guaranteed.

961-3. Theft deterrent system
HIGHLANDER_HV_U (OM48D74U)

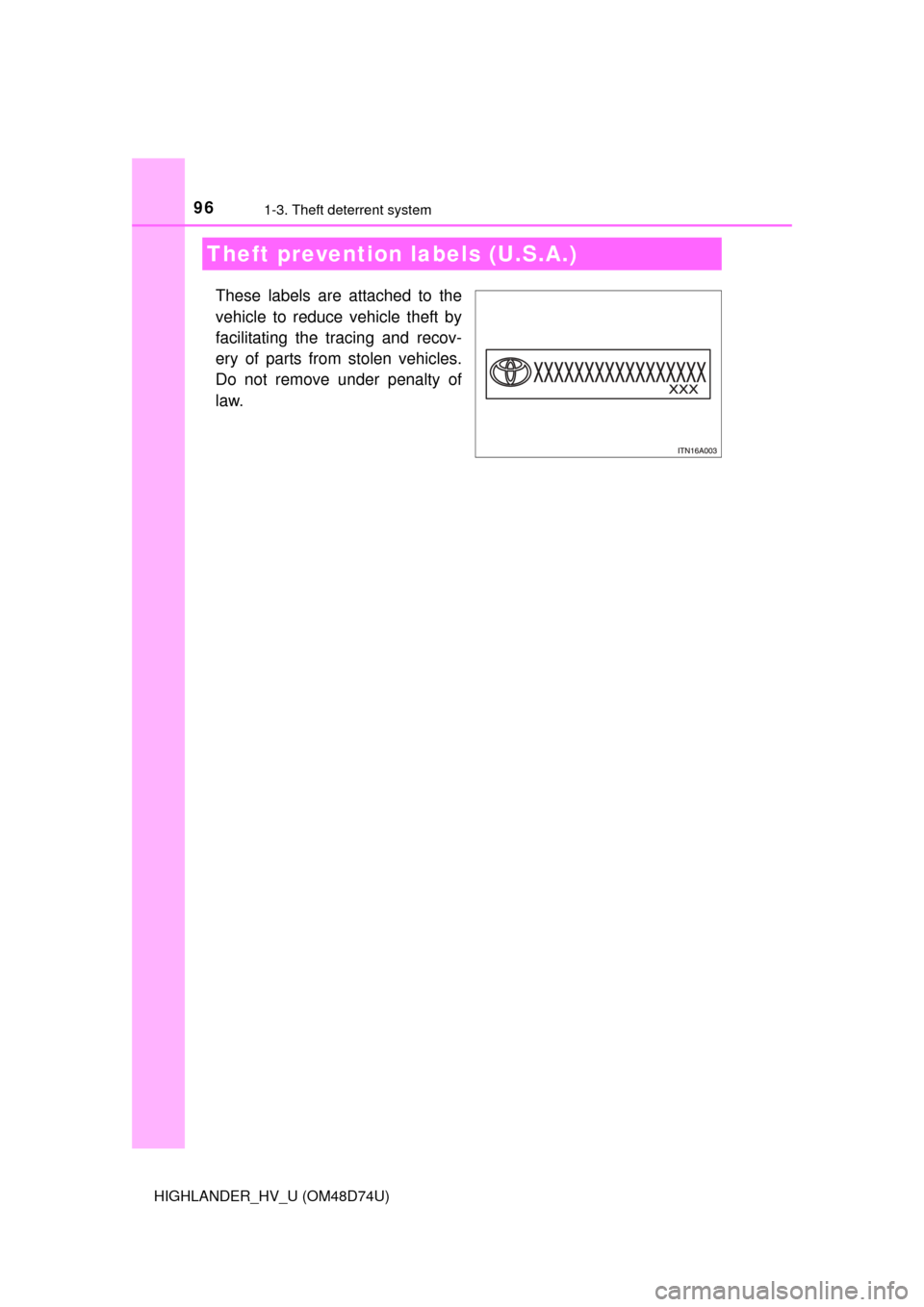

These labels are attached to the
vehicle to reduce vehicle theft by
facilitating the tracing and recov-
ery of parts from stolen vehicles.
Do not remove under penalty of
law.
Theft prevention labels (U.S.A.)

97
Instrument cluster2
HIGHLANDER_HV_U (OM48D74U)2. Instrument cluster
Warning lights and indicators .......................... 98
Gauge and meters ............ 103
Multi-information display (with monochrome
display) ........................... 107
Multi-information display (with color display) .......... 111
Energy monitor/ consumption screen ........ 117

98
HIGHLANDER_HV_U (OM47D74U)
2. Instrument cluster
Vehicles with monochrome display
Vehicles with color display
The units used on the meters and some indicators may differ depending on
the target region.
Warning lights and indicators
The warning lights and indicators on the instrument cluster and
center panel inform the driver of the status of the vehicle’s vari-
ous systems.

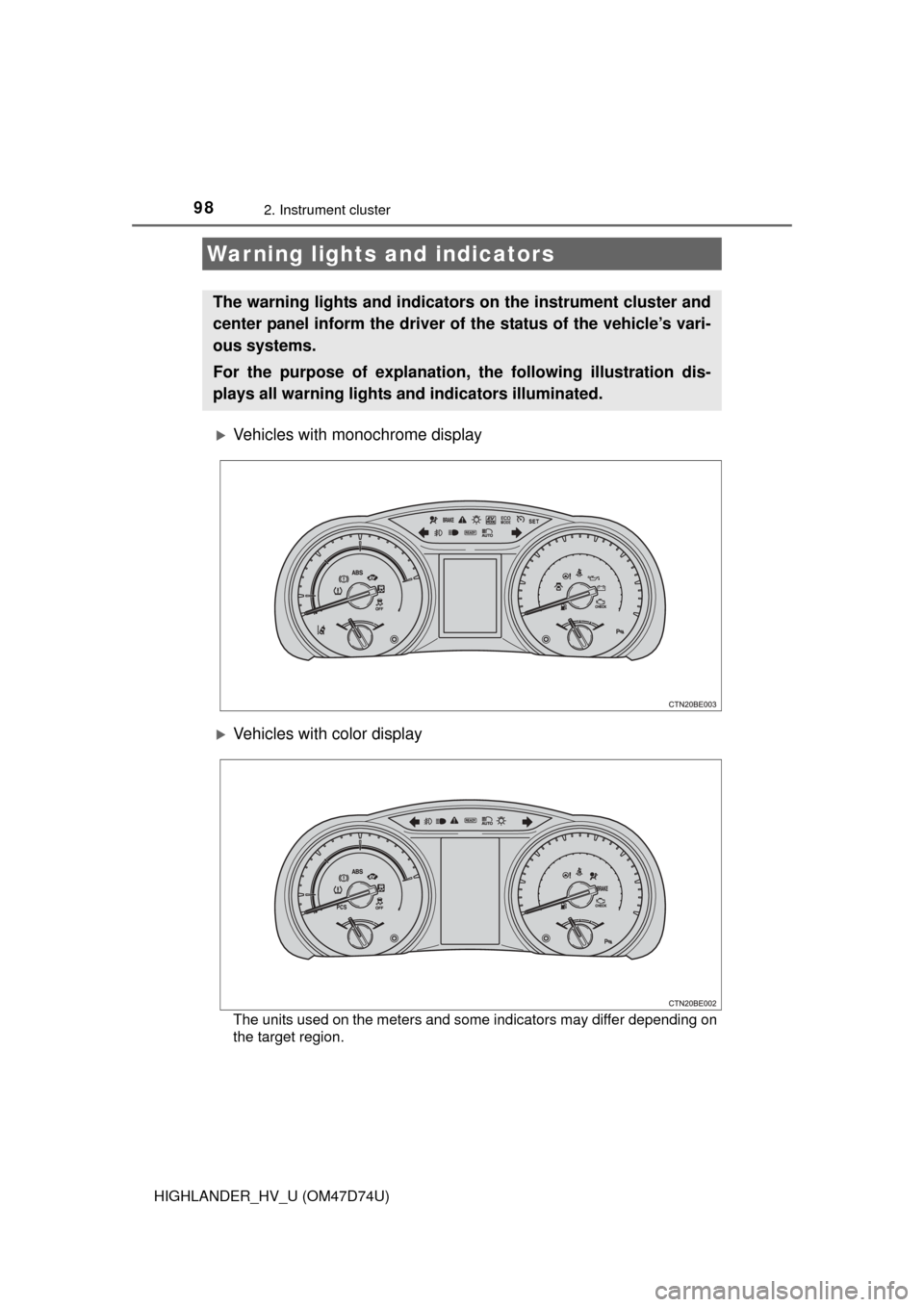

For the purpose of explanation, the following illustration dis-
