1012. Instrument cluster
2
Instrument cluster
HIGHLANDER_HV_U (OM47D74U)
The indicators inform the driver of the operating state of the vehicle’s
various systems.
Indicators
Turn signal indicator
( P. 242)
*2
“ECO MODE” indicator
(P. 238)
(U.S.A.)
Headlight indicator
(P. 244)*1 Slip indicator ( P. 293)
(Canada)
Tail light indicator
(P. 244) *1VSC OFF indicator
(P. 293)
Headlight high beam
indicator ( P. 245)
*1, 2, 4Pre-collision system
warning light ( P. 298)
*2Automatic High Beam
indicator ( P. 248)*2, 5, 6BSM (Blind Spot Moni-
tor) outside rear view
mirror indicators
(P. 304)
Front fog light indicator
( P. 254)
*7Security indicator
(P. 91, 93)
*2Cruise control indicator
(P. 264) “READY” indicator
(
P. 229)
*2Cruise control “SET”
indicator ( P. 264) EV indicator (
P. 8 3 )
*2LDA (Lane Departure
Alert) indicator
(P. 283) EV drive mode indicator
(
P. 235)
*2, 3 Intuitive parking assist
indicator*1, 7“AIR BAG ON/
OFF” indicator
(P. 54)

1022. Instrument cluster
HIGHLANDER_HV_U (OM47D74U)
*1: These lights turn on when the power switch is turned to ON mode to indi-cate that a system check is being performed. They will turn off after the
hybrid system is on, or after a few seconds. There may be a malfunction in
a system if a light does not come on, or if the lights do not turn off. Have
the vehicle inspected by your Toyota dealer.
*2: If equipped
*3: Refer to “Navigation and Multimedia System Owner’s Manual”.
*4: The light comes on when the system is turned off. The light flashes fasterthan usual to indicate that the system is operating.
*5: In order to confirm operation, the BS M outside rear view mirror indicators
illuminate in the following situations:
• When the power switch is turned to ON mode while the BSM main switch is set to ON.
• When the BSM main switch is set to ON while the power switch is in ON mode.
If the system is functioning correctly, the BSM outside rear view mirror indi-
cators will turn off after a few seconds.
If the BSM outside rear view mirror indicators do not illuminate or do not
turn off, there may be a malfunction in the system.
If this occurs, have the vehicle inspected by your Toyota dealer.
*6: This light illuminates on the outside rear view mirrors.
*7: This light illuminates on the center panel.
WARNING
■ If a safety system warning light does not come on
Should a safety system light such as the ABS and SRS warning lights not
come on when you start the engine, this could mean that these systems are
not available to help protect you in an accident, which could result in death
or serious injury. Have the vehicle inspected by your Toyota dealer immedi-
ately if this occurs.

1032. Instrument cluster
2
Instrument cluster
HIGHLANDER_HV_U (OM47D74U)
Vehicles with monochrome display
Vehicles with color display

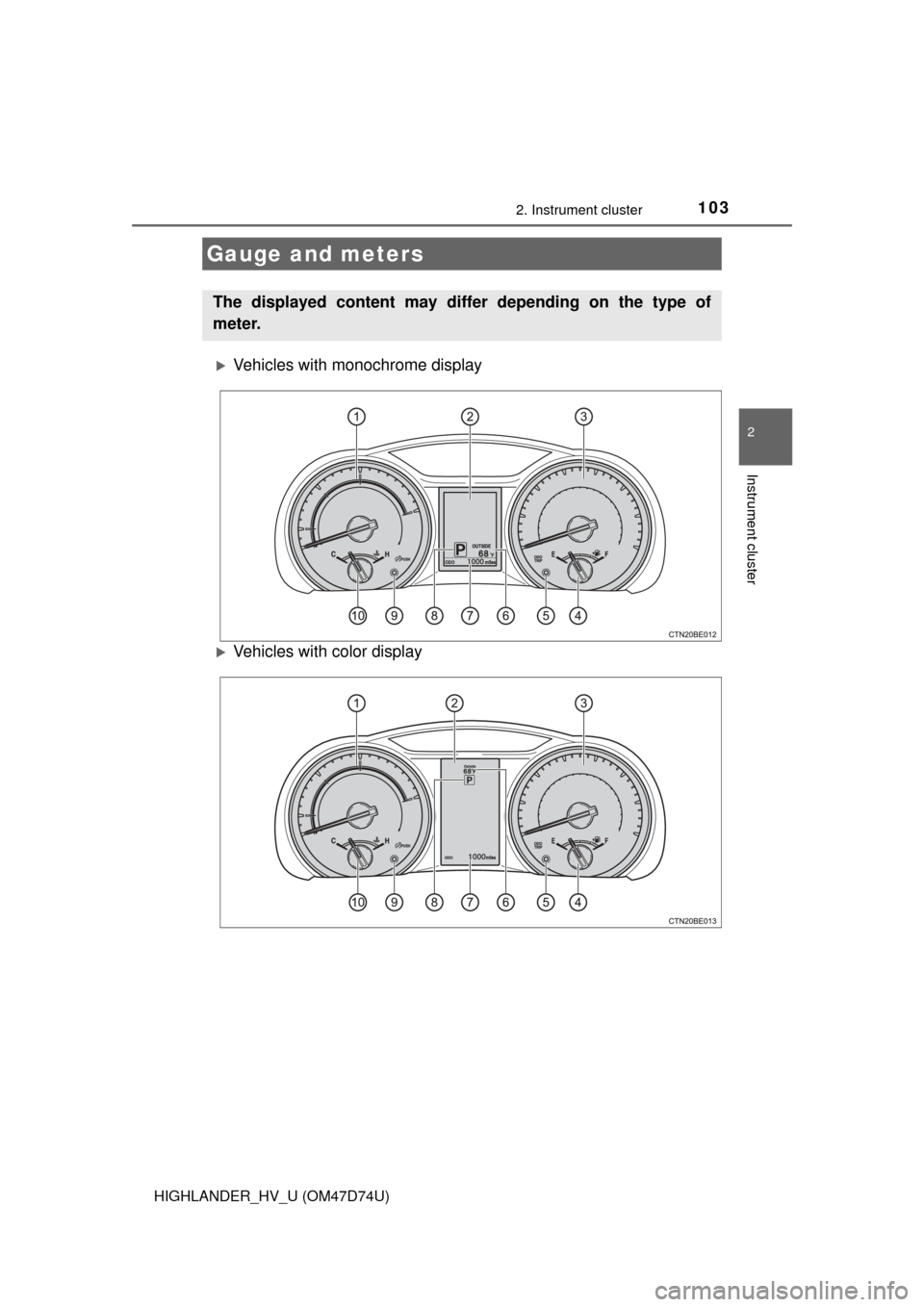

Gauge and meters
The displayed content may differ depending on the type of
meter.

1042. Instrument cluster
HIGHLANDER_HV_U (OM47D74U)
Hybrid System Indicator
Displays hybrid system output or regeneration level.
Multi-information display
Presents the driver with a variety of driving-related data.
Speedometer
Fuel gauge
Trip meter reset knob
Switches the trip information.
Outside temperature
Odometer and trip meter display
Shift position and shift range
Displays the selected shift position or selected shift range. (P. 237)
Meter panel lights control button
Engine coolant temperature gauge
Displays the engine coolant temperature.
Switches between the trip meter
“A” and “B” displays. When the trip
meter is displayed, pressing and
holding the knob will reset the trip
meter.
The brightness of the meter pa nel lights can be adjusted.
Pressing the button will adjust the
brightness of the meter panel
lights.
The brightness level of the meters
when the surroundings are bright
(day mode) and dark (night mode)
can be adjusted individually. How-
ever, when in day mode, adjusting
the brightness level will also
change the brightness level of
night mode.
Changing the trip meter display
1
2
3
4
5
6
7
8
9
10
Instrument panel light control

1052. Instrument cluster
2
Instrument cluster
HIGHLANDER_HV_U (OM47D74U)
■The meters and display illuminate when
The power switch is in ON mode.
■ Hybrid System Indicator
●By keeping the indicator needle within Eco area, more Eco-friendly driving
can be achieved.
● Charge area indicates regeneration
* status. Regenerated energy will be
used to charge the battery.
*: When used in this manual, “regeneration” refers to the conversion of
energy created by the movement of the vehicle into electrical energy.
■ Engine speed
On hybrid vehicles, engine speed is precisely controlled in order to help
improve fuel efficiency and reduce exhaust emissions etc.
There are times when the engine speed that is displayed may differ even
when vehicle operation and driving conditions are the same.
■ Outside temperature display
In the following situations, the correct outside temperature may not be dis-
played, or the display may take longer than normal to change.
●When stopped, or driving at low speeds (less than 12 mph [20 km/h])
● When the outside temperature has changed suddenly (at the entrance/exit
of a garage, tunnel, etc.) Charge area
Shows regenerative charging.
Hybrid Eco area
Shows that gasoline engine power is
not being used very often.
The gasoline engine will automatically
stop and restart under various condi-
tions.
Eco area
Shows that the vehicle is being driven in
an Eco-friendly manner.
Power area
Shows that an Eco-friendly driving
range is being exceeded (during full
power driving etc.)
1
2
3
4

1062. Instrument cluster
HIGHLANDER_HV_U (OM47D74U)
NOTICE
■To prevent damage to the engine and its components
● Do not let the indicator needle of the tachometer enter the red zone, which
indicates the maximum engine speed.
● The engine may be overheating if the engine coolant temperature gauge is
in the red zone (H). In this case, immediately stop the vehicle in a safe
place, and check the engine after it has cooled completely. (P. 521)

1072. Instrument cluster
2
Instrument cluster
HIGHLANDER_HV_U (OM47D74U)

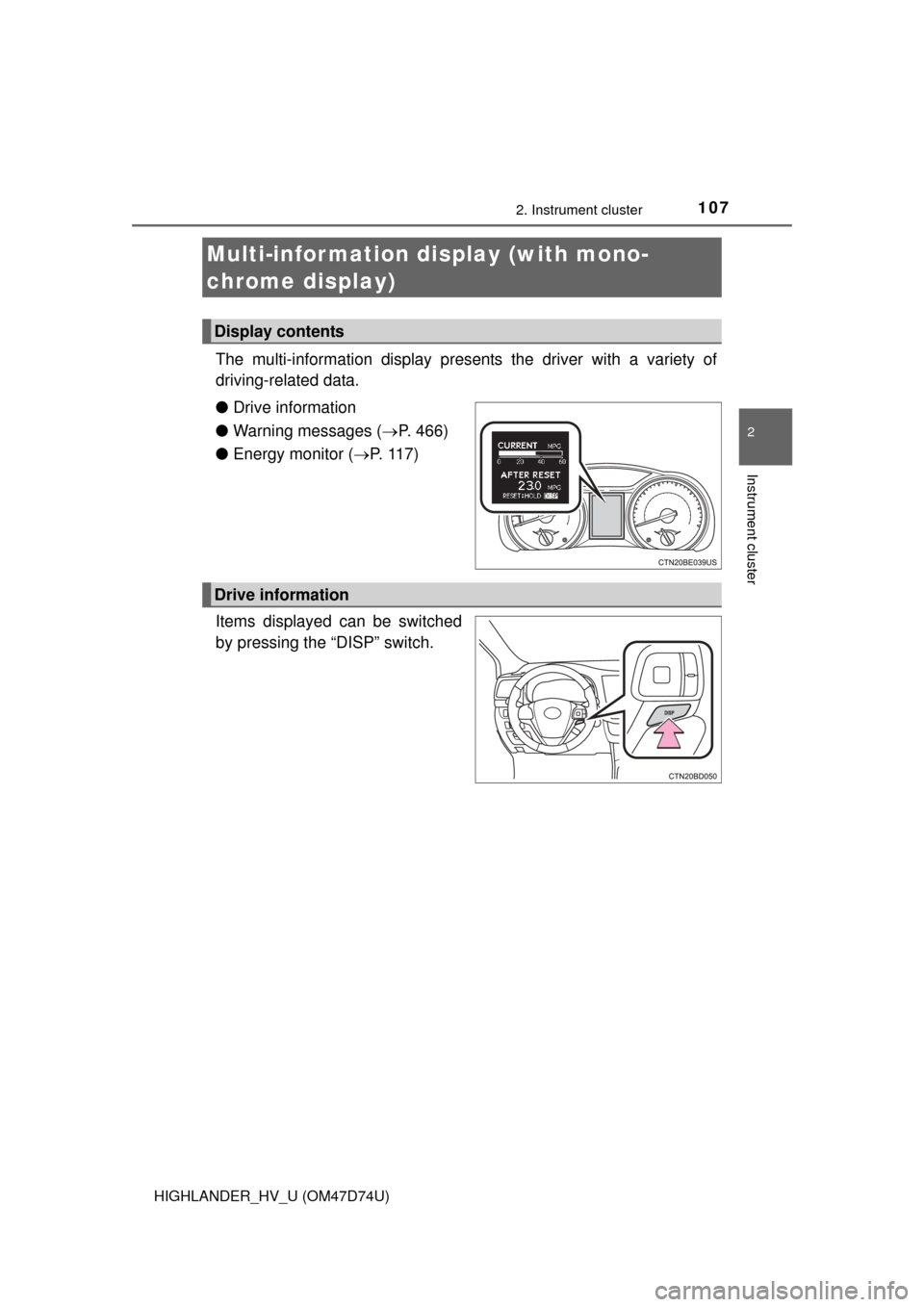

The multi-information display presents the driver with a variety of
driving-related data.
●Drive information
● Warning messages ( P. 466)
● Energy monitor ( P. 117)
Items displayed can be switched
by pressing the “DISP” switch.
Multi-infor mation di splay (with mono-
chrome display)
Display contents
Drive information

1082. Instrument cluster
HIGHLANDER_HV_U (OM47D74U)
●Current fuel consumption
Displays the current rate of fuel consumption.
Average fuel economy (after reset
*)
Displays the average fuel economy since the function was reset
respectively
Use the displayed average fuel economy as a reference.
● Distance (driving range)
Displays the estimated maximum distance that can be driven with
the quantity of fuel remaining and t he distance driven after the func-
tion was reset respectively
• This distance is computed based on your average fuel consumption. As a result, the actual distance that can be driven may differ from that dis-
played.
• When only a small amount of fuel is added to the tank, the display may not be updated.
When refueling, turn the power switch off. If the vehicle is refueled with-
out turning the power switch off, the display may not be updated.
Average fuel economy (after refuel)
Displays the average fuel economy since the vehicle was refueled
respectively
Use the displayed average fuel economy as a reference.
● Distance (after reset*)
Displays the estimated maximum di stance driven after the function
was reset respectively
Average vehicle speed (after reset
*)
Displays the average vehicle spe ed since the function was reset
● Customization
EV Indicator Light, Language and Units settings can be changed.
( P. 110)
● Energy monitor
P. 1 1 7
*: Press and hold the “DISP” switch to reset.

1092. Instrument cluster
2
Instrument cluster

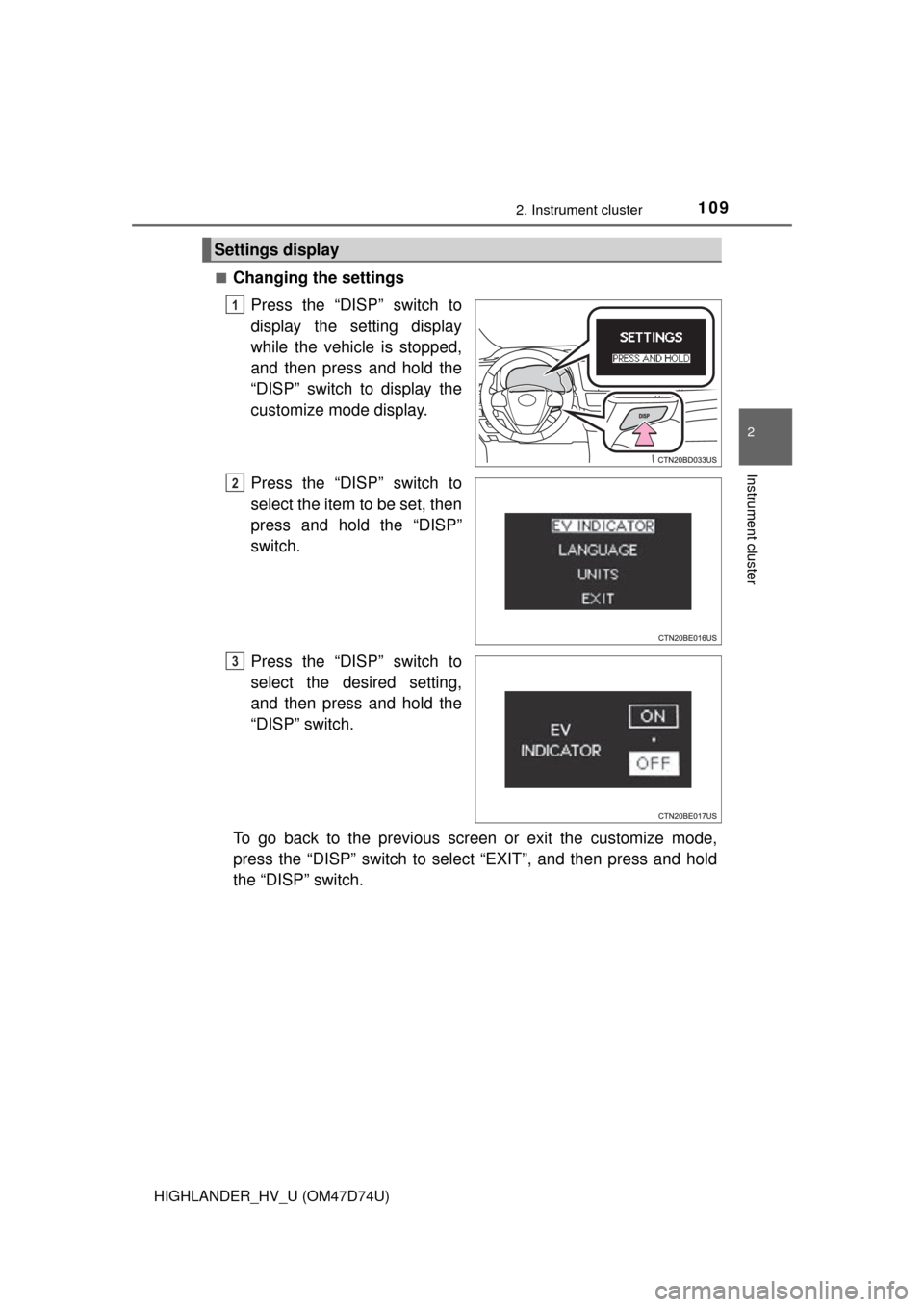

HIGHLANDER_HV_U (OM47D74U)■
Changing the settings
Press the “DISP” switch to
display the setting display
while the vehicle is stopped,
and then press and hold the
“DISP” switch to display the
customize mode display.
Press the “DISP” switch to
select the item to be set, then
press and hold the “DISP”
switch.
Press the “DISP” switch to
select the desired setting,
and then press and hold the
“DISP” switch.
To go back to the previous screen or exit the customize mode,
press the “DISP” switch to select “EXIT”, and then press and hold
the “DISP” switch.
Settings display
1
2
3

1102. Instrument cluster
HIGHLANDER_HV_U (OM47D74U)■
Customizable items
●
EV Indicator Light
Select to activate/deactiva te the EV Indicator Light.
● Language
Select to change the language on the display.
● Units
Select to change the unit of measure for fuel consumption.
Settings can be changed. (Customizable features: P. 557)
■Setting display automatic cancelation
In the following situations, setting display in which the settings can b\
e
changed through the “DISP” switch will automatically be turned off.
●When a warning message appears while the setting display is displayed
● When the vehicle begins to move while the setting display is displayed
■ Liquid crystal display
Small spots or light spots may appear on the display. This phenomenon is
characteristic of liquid crystal displays, and there is no problem continuing to
use the display.
WARNING
■The information display at low temperatures
Allow the interior of the vehicle to warm up before using the liquid crystal
information display. At extremely low temperatures, the display monitor may
respond slowly, and display changes may be delayed.
For example, there is a lag between the driver’s shifting and the new gear
number appearing on the display. This lag could cause the driver to down-
shift again, causing rapid and excessive engine braking and possibly an
accident resulting in death or injury.
■ Cautions during setting up the display
As the hybrid system needs to be running during setting up the display,
ensure that the vehicle is parked in a place with adequate ventilation. In a
closed area such as a garage, exhaust gases including harmful carbon
monoxide (CO) may collect and enter the vehicle. This may lead to death or
a serious health hazard.
NOTICE
■During setting up the display
To prevent 12-volt battery discharge, ensure that the hybrid system is oper-
ating while setting up the display features.
