1-2. Hybrid system
Gasoline engine
Front electric motor (traction motor)
Rear electric motor (traction motor)
Hybrid system features
Your vehicle is a hybrid vehicle. It has characteristics different
from conventional vehicles. Be sure you are closely familiar with
the characteristics of your vehicle, and operate with care.
The hybrid system combines the use of a gasoline engine and
an electric motor (traction moto r) according to driving condi-
tions, improving fuel efficien cy and reducing exhaust emis-
sions.
1
2
3

821-2. Hybrid system
HIGHLANDER_HV_U (OM48D74U)
◆When stopped/during start off
The gasoline engine stops when the vehicle is stopped. During start
off, the electric motor (traction mo tor) drives the vehicle. At slow
speeds or when traveling down a gentle slope, the engine is
stopped and the electric moto r (traction motor) is used.
◆During normal driving
The gasoline engine is predominantly used. The electric motor
(traction motor) charges the hybrid battery (traction battery) as nec-
essary.
◆When accelerating sharply
When the accelerator pedal is depressed heavily, the power of the
hybrid battery (traction battery) is added to that of the gasoline
engine via the electric motor (traction motor).
◆When braking (regenerative braking)
The electric motor (traction motor) charges the hybrid battery (trac-
tion battery).
When the gasoline engine is off while driving, a sound is produced to
warn pedestrians, people riding bi cycles or other people and vehicles
in the surrounding area that the vehicle is approaching. The pitch of
the sound adjusts according to vehicle speed. When vehicle speed is
approximately 16 mph (25 km/h) or more, the warning system turns
off.
Vehicle Proximity Notification System

831-2. Hybrid system
1
For safety and security
HIGHLANDER_HV_U (OM48D74U)
■Regenerative braking
In the following situations, kinetic energy is converted to electric energy and
deceleration force can be obtained in conjunction with the recharging of the
hybrid battery (traction battery).
●The accelerator pedal is released while driving with the shift lever in D or S.
● The brake pedal is depressed while driving with the shift lever in D or S.
■ EV indicator
■ Conditions in which the gasoline engine may not stop
The gasoline engine starts and stops automatically. However, it may not stop
automatically in the following conditions:
●During gasoline engine warm-up
● During hybrid battery (traction battery) charging
● When the temperature of the hybrid battery (traction battery) is high or low
● When the heater is switched on
■ Charging the hybrid battery (traction battery)
●As the gasoline engine charges the hybrid battery (traction battery), the bat-
tery does not need to be charged from an outside source. However, if the
vehicle is left parked for a long time the hybrid battery will slowly discharge.
For this reason, be sure to drive the vehicle at least once every few months
for at least 30 minutes or 10 miles (16 km). If the hybrid battery becomes
fully discharged and you are unable to jump-start the vehicle with the 12-volt
battery, contact your Toyota dealer.
● If the shift lever is in N, the hybrid battery (traction battery) will not be
charged. Always shift the shift lever in P when the vehicle is stopped. When
driving in heavy traffic, operate the vehicle with the shift lever in D or S to
avoid discharging the hybrid battery (traction battery).
● To help prevent the 12-volt battery from becoming discharged, drive the
vehicle at least once a month, and operate the accessories only when the
“READY” indicator is on. When parking the vehicle, make sure the doors are
closed and all lights are turned off.
The EV indicator comes on when the
vehicle is driven using only the electric
motor (traction motor) or the gasoline
engine is stopped.

841-2. Hybrid system
HIGHLANDER_HV_U (OM48D74U)■
Charging the 12-volt battery
P. 518
■ After the 12-volt battery has discharged or has been changed or
removed
The gasoline engine may not stop even if the vehicle is running on the hybrid
battery (traction battery). If this continues for a few days, contact your Toyota
dealer.
■ Sounds and vibrations specific to a hybrid vehicle
There may be no engine sounds or vibration even though the vehicle is able
to move. Always shift the shift lever to P when parked.
The following sounds or vibrations may occur when the hybrid system is
operating and are not a malfunction:
●Motor sounds may be heard from the engine compartment.
● Sounds may be heard from the hybrid battery (traction battery) under t\
he
rear seats when the hybrid system starts or stops.
● Sounds from the hybrid system may be heard when the back door is open.
● Sounds may be heard from the hybrid transmission when the gasoline
engine starts or stops, or during idling.
● Engine sounds may be heard when accelerating sharply.
● Sounds may be heard due to regenerative braking when the brake pedal is
depressed or accelerator is loosened.
● Vibration may be felt when the gasoline engine starts or stops.
● Cooling fan sounds may be heard from the air intake vents under the rear
seat.
■ Vehicle Proximity Notification System
In the following cases, the Vehicle Proximity Notification System sound may
be difficult for pedestrians, people ridi ng bicycles or other people and vehicles
in the surrounding area to hear:
● When there is a lot of noise in the vicinity
● When it is raining or during strong winds
● When in the area surrounding the rear of the vehicle, rather than in front of
the vehicle
■ Maintenance, repair, recycling, and disposal
Contact your Toyota dealer regarding maintenance, repair, recycling and dis-
posal. Do not dispose of the vehicle yourself.
■ Customization
Settings (e.g. on/off operation of the EV indicator) can be changed.
(Customizable features P. 556)

851-2. Hybrid system
1
For safety and security
HIGHLANDER_HV_U (OM48D74U)

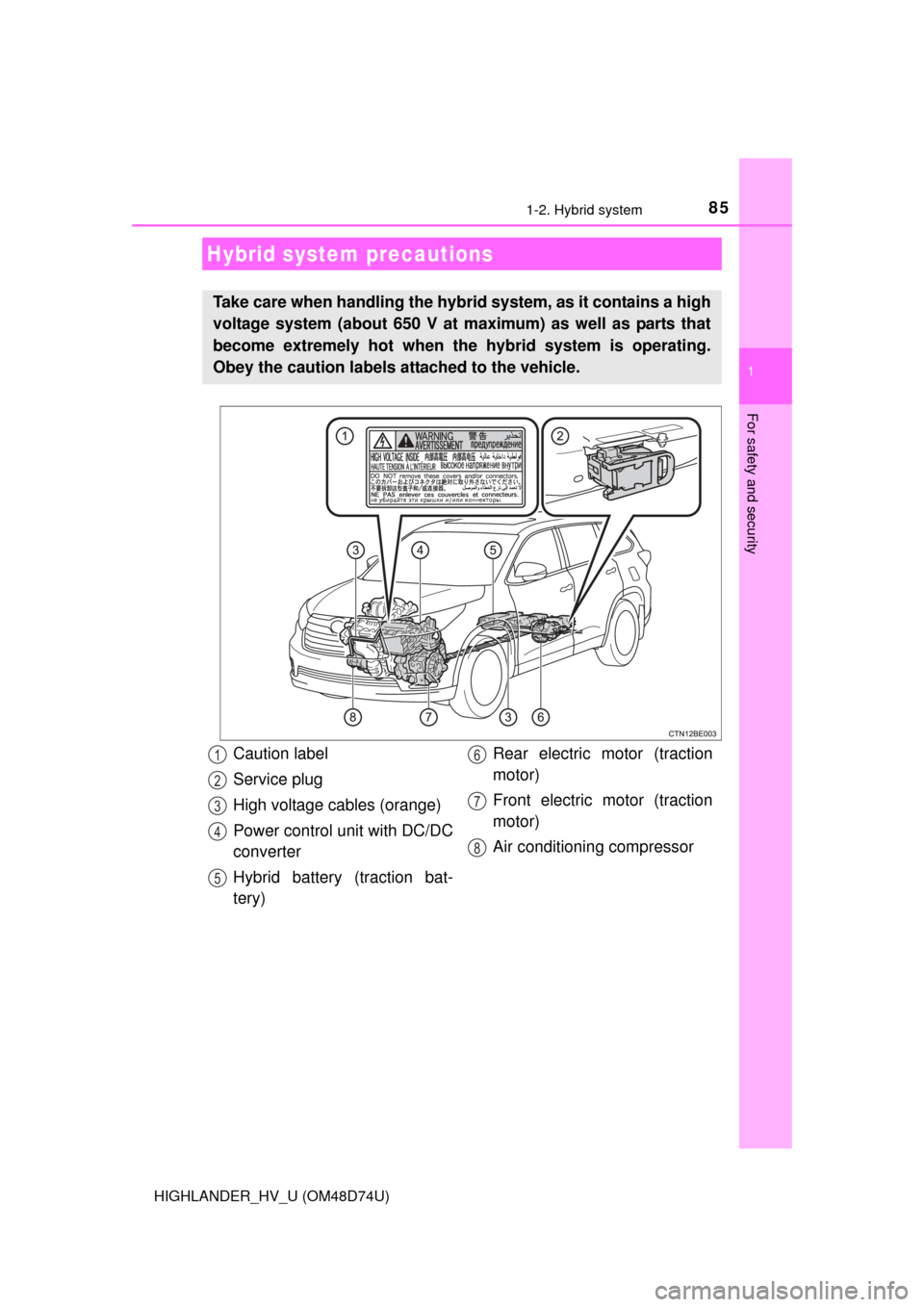

Hybrid system precautions
Take care when handling the hybrid system, as it contains a high
voltage system (about 650 V at maximum) as well as parts that
become extremely hot when the hybrid system is operating.
Obey the caution labels attached to the vehicle.
Caution label
Service plug
High voltage cables (orange)
Power control unit with DC/DC
converter
Hybrid battery (traction bat-
tery)Rear electric motor (traction
motor)
Front electric motor (traction
motor)
Air conditioning compressor1
2
3
4
5
6
7
8

861-2. Hybrid system
HIGHLANDER_HV_U (OM48D74U)
There are air intake vents under
the second seats for the purpose
of cooling the hybrid battery (trac-
tion battery). If the vents become
blocked, the hybrid battery may
overheat, leading to a reduction in
hybrid battery output.
When a certain level of impact is detected by the impact sensor, the
emergency shut off system blocks off the high voltage current and
stops the fuel pump to minimize the risk of electrocution and fuel leak-
age. If the emergency shut off syst em activates, your vehicle will not
restart. To restart the hybrid system, contact your Toyota dealer.
A message is automatically displayed when a malfunction occurs in
the hybrid system or an improper operation is attempted.
If a warning message is shown on
the multi-information display, read
the message and follow the
instructions. ( P. 466)
Hybrid battery (traction battery) air vents
Emergency shut off system
Hybrid warning message

871-2. Hybrid system
1
For safety and security
HIGHLANDER_HV_U (OM48D74U)
■If a warning light comes on, a warn ing message is displayed, or the 12-
volt battery is disconnected
The hybrid system may not start. In that case, try to start the system again. If
the “READY” indicator does not come on, contact your Toyota dealer.
■ When refueling, the fuel filler door may take a few moments to open
As part of emission system operation, it may take up to 10 seconds for the
fuel filler door to automatically release after the opener switch is pressed.
Before refueling is possible, a message will be shown on the multi-informa-
tion display. ( P. 259)
■ Running out of fuel
When the vehicle has run out of fuel and the hybrid system cannot be started,
refuel the vehicle with at least enough gasoline to make the low fuel le\
vel
warning light ( P. 459) go off. If there is only a small amount of fuel, the
hybrid system may not be able to start. (The minimum amount of fuel to add
to make the low fuel level warning light go out is about 2.6 gal. [9.7 L, 2.1 Imp.
gal.], when the vehicle is on a level surface. This value may vary when the
vehicle is on a slope.)
■ Electromagnetic waves
●High voltage parts and cables on the hybrid vehicles incorporate electro-
magnetic shielding, and therefore em it approximately the same amount of
electromagnetic waves as conventional gasoline powered vehicles or home
electronic appliances.
● Your vehicle may cause sound interference in some third party-produced
radio parts.
■ Hybrid battery (traction battery)
The hybrid battery (traction battery) has a limited service life. The lifespan of
the hybrid battery (traction battery) can change in accordance with driving
style and driving conditions.

881-2. Hybrid system
HIGHLANDER_HV_U (OM48D74U)
WARNING
■High voltage precautions
The vehicle has high voltage DC and AC systems as well as a 12-volt sys-
tem. DC and AC high voltage is very dangerous and can cause severe
burns and electric shock that may result in death or serious injury.
● Never touch, disassemble, remove or replace the high voltage parts,
cables or their connectors.
● The hybrid system will become hot after starting as the system uses high
voltage. Be careful of both the high voltage and the high temperature, and
always obey the caution labels attached to the vehicle.

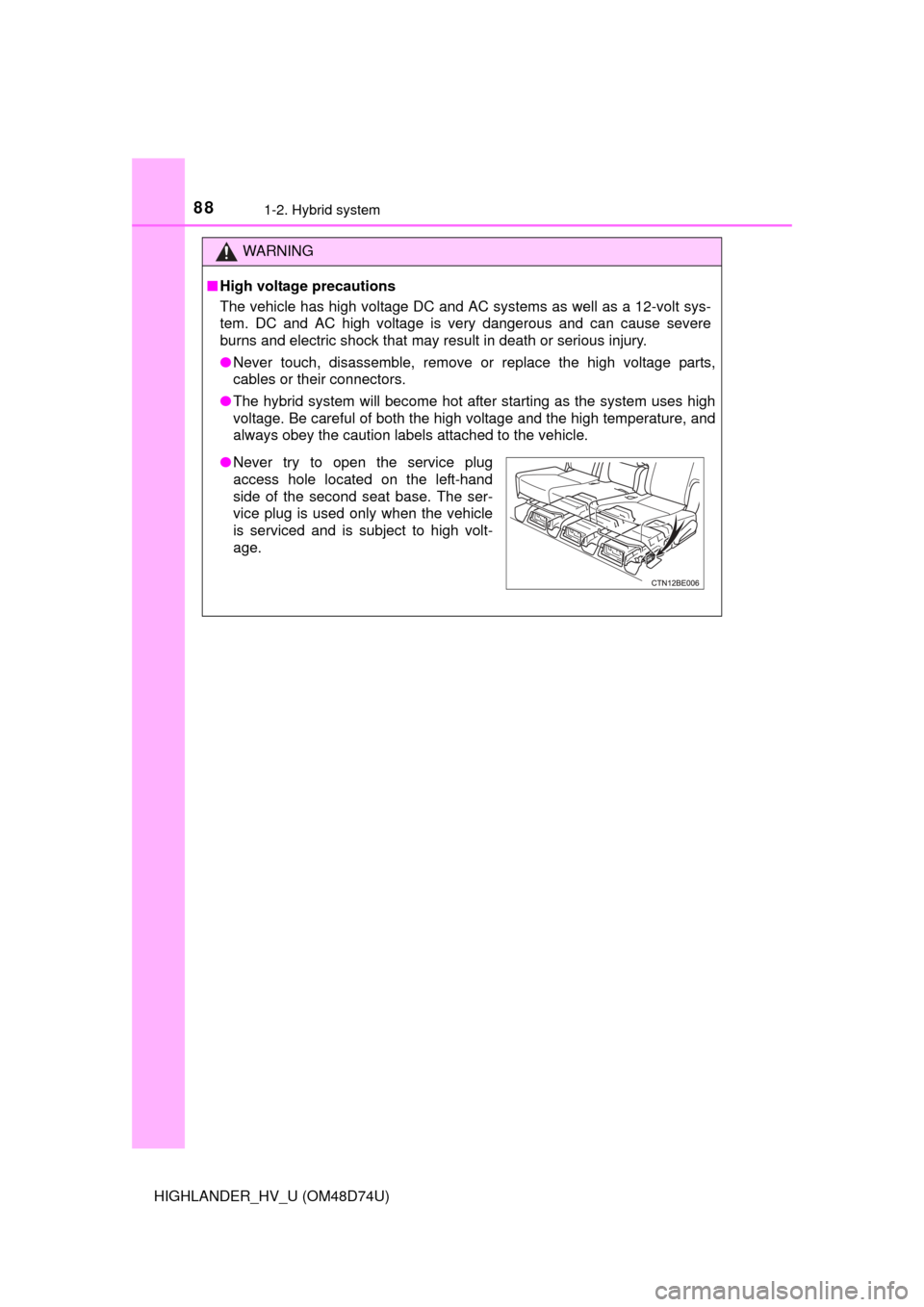

●Never try to open the service plug
access hole located on the left-hand
side of the second seat base. The ser-
vice plug is used only when the vehicle
is serviced and is subject to high volt-
age.

891-2. Hybrid system
1
For safety and security
HIGHLANDER_HV_U (OM48D74U)
WARNING
■Road accident cautions
Observe the following precautions to reduce the risk of death or serious
injury:
● Pull your vehicle off the road, shift the shift lever to P, apply the parking
brake, and turn the hybrid system off.
● Do not touch the high voltage parts, cables or connectors.
● If electric wires are exposed inside or outside your vehicle, an electric
shock may occur. Never touch exposed electric wires.
● If a fluid leak occurs, do not touch the fluid as it may be strong alkaline
electrolyte from the hybrid battery (traction battery). If it comes into contact
with your skin or eyes, wash it off immediately with a large amount of water
or, if possible, boric acid solution. Seek immediate medical attention.
● If a fire occurs in the hybrid vehicle, leave the vehicle as soon as possible.
Never use a fire extinguisher that is not meant for electric fires. Using even
a small amount of water may be dangerous.
● If your vehicle needs to be towed, do so with all four wheels raised. If the
wheels connected to the electric motor (traction motor) are on the ground
when towing, the motor may continue to generate electricity. This may
cause a fire. (
P. 452)
● Carefully inspect the ground under the vehicle. If you find that liquid has
leaked onto the ground, the fuel system may have been damaged. Leave
the vehicle as soon as possible.

901-2. Hybrid system
HIGHLANDER_HV_U (OM48D74U)
WARNING
■Hybrid battery (traction battery)
● Your vehicle contains a sealed nickel-metal hydride battery. Never resell,
hand over or modify the hybrid battery. To prevent accidents, hybrid batter-
ies that have been removed from a disposed vehicle are collected through
your Toyota dealer. Do not dispose of the battery yourself.
Unless the battery is properly collected, the following may occur, resulting
in death or serious injury:
• The hybrid battery may be illegally disposed of or dumped, and some-
one may touch a high voltage part, resulting in an electric shock.
• The hybrid battery is intended to be used exclusively with your hybrid
vehicle. If the hybrid battery is used outside of your vehicle or modified
in any way, accidents such as electric shock, heat generation, smoke
generation, an explosion and electrolyte leakage may occur.
When reselling or handing over your vehicle, the possibility of an accident
is extremely high because the person receiving the vehicle may not be
aware of these dangers.
● If your vehicle is disposed of without the hybrid battery having been
removed, there is a danger of serious electric shock if high voltage parts,
cables and their connectors are touched. In the event that your vehicle
must be disposed of, the hybrid battery must be disposed of by your
Toyota dealer. If the hybrid battery is not disposed of properly, it may
cause electric shock that can result in death or serious injury.
NOTICE
■Hybrid battery air vents
● Do not put foreign objects over the air vents. The hybrid battery (traction
battery) may overheat and be damaged.
● Clean the air vents regularly to prevent the hybrid battery (traction battery)
from overheating.
● Do not wet or allow foreign substances to enter the air vents as this may
cause a short circuit and damage the hybrid battery (traction battery).
● Do not carry large amounts of water such as water cooler bottles in the
vehicle. If water spills onto the hybrid battery (traction battery), the battery
may be damaged.
