21Pictorial index
HIGHLANDER_HV_U (OM48D74U)Inside lock buttons . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 130
Driving position memory switches
*1. . . . . . . . . . . . . . . . . . P. 165
Outside rear view mirror switch . . . . . . . . . . . . . . . . . . . . . . P. 177
Door lock switches . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 130
Power window switches . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 179
Window lock switch . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 180
Tire pressure warning reset switch . . . . . . . . . . . . . . . . . . . P. 414
PCS OFF switch
*1 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 298
*1: If equipped
*2: Refer to “Navigation and Multimedia System Owner’s Manual”.
1
2
3
4
5
6
7
8
Page 22 of 604
22Pictorial index
HIGHLANDER_HV_U (OM48D74U)Talk switch
*1
Audio remote control switches*1

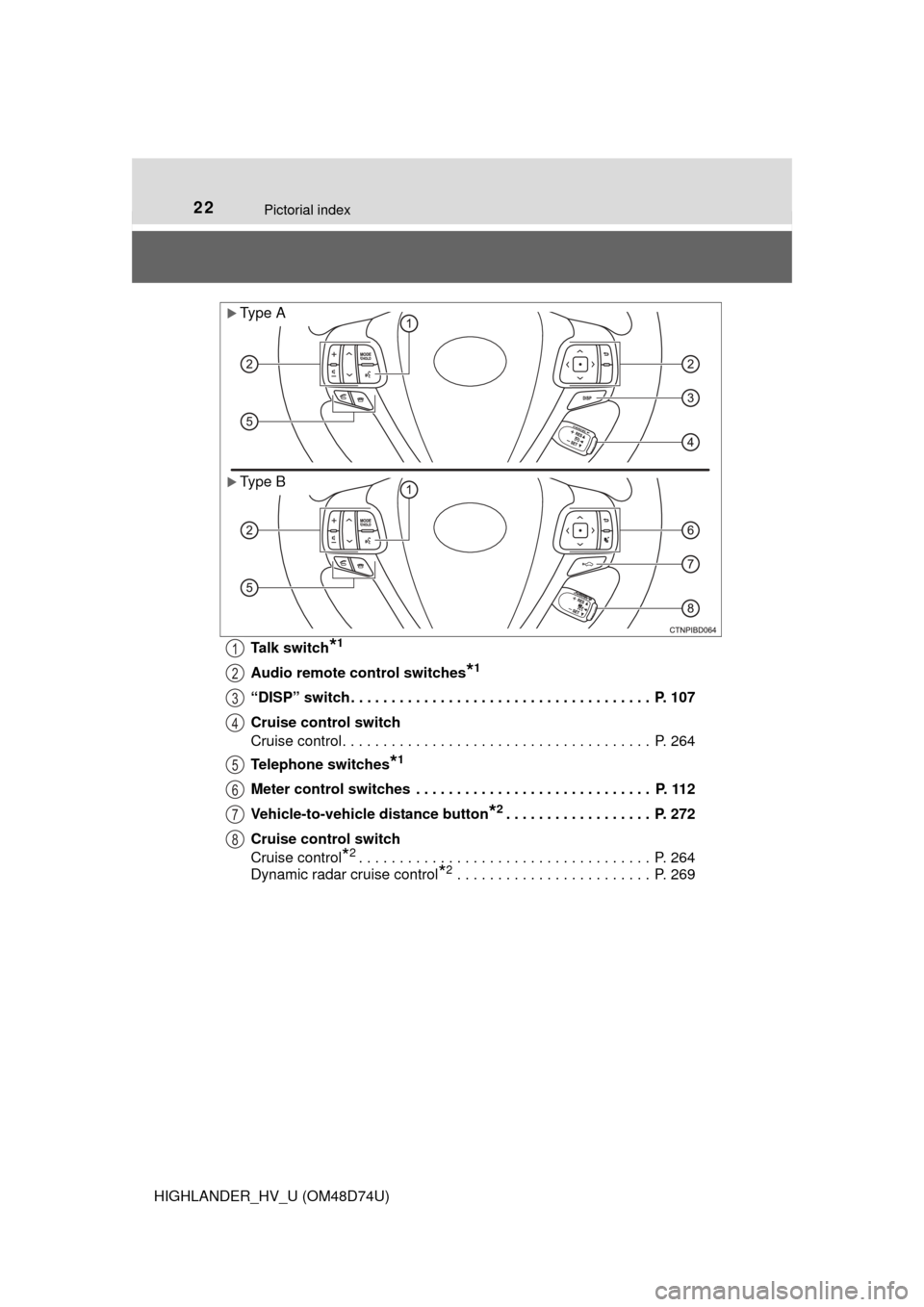

“DISP” switch . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 107
Cruise control switch
Cruise control. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 264
Telephone switches
*1
Meter control switches . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 112
Vehicle-to-vehicle distance button
*2. . . . . . . . . . . . . . . . . . P. 272
Cruise control switch
Cruise control
*2. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 264
Dynamic radar cruise control
*2 . . . . . . . . . . . . . . . . . . . . . . . . P. 269
Type B
Type A
1
2
3
4
5
6
7
8
Page 23 of 604
23Pictorial index

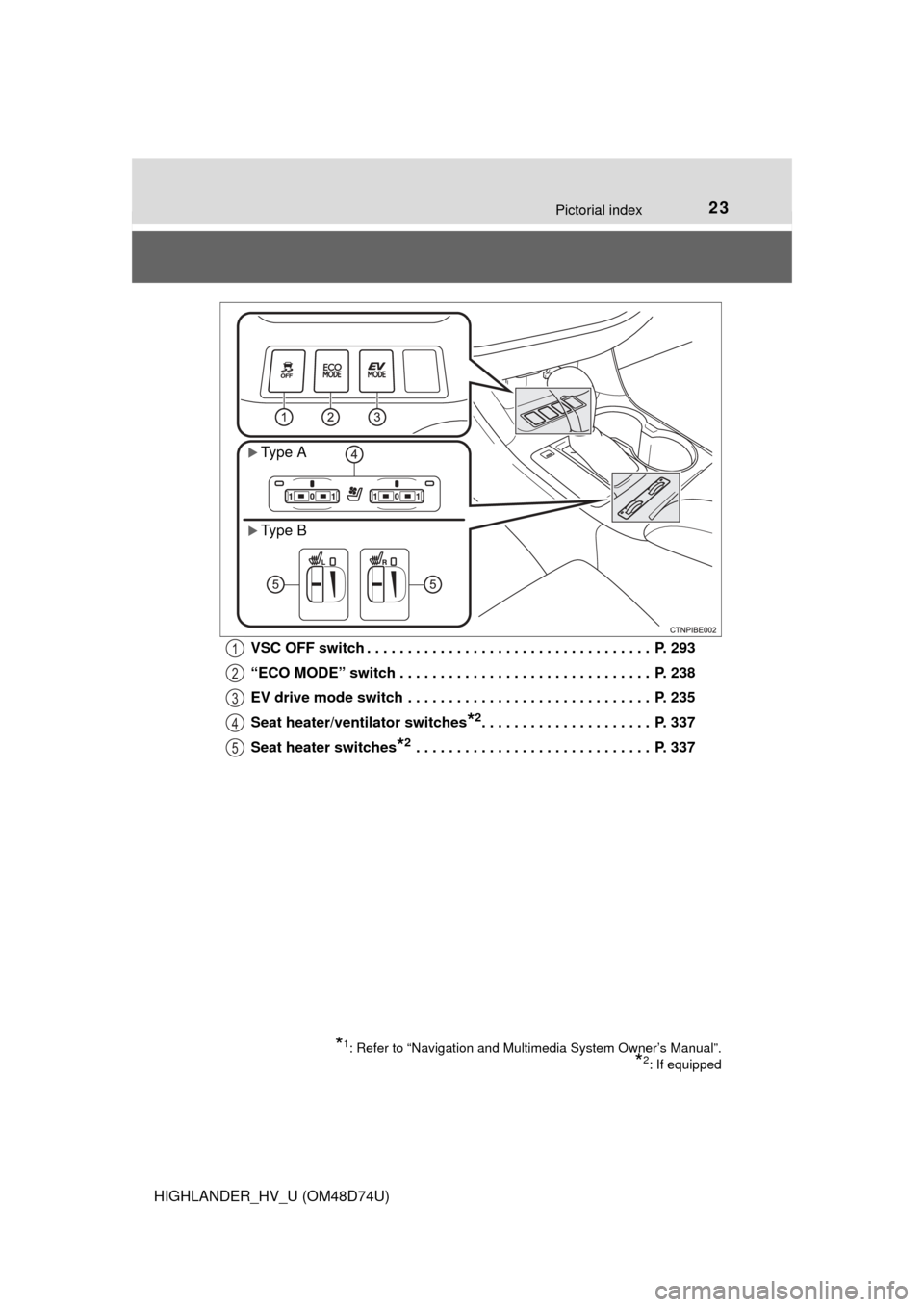

HIGHLANDER_HV_U (OM48D74U)VSC OFF switch . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 293
“ECO MODE” switch . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 238
EV drive mode switch . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 235
Seat heater/ven
tilator switches
*2. . . . . . . . . . . . . . . . . . . . . P. 337
Seat heater switches
*2 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 337
Type B
Type A
1
2
3
4
5
*1: Refer to “Navigation and Multimedia System Owner’s Manual”.
*2: If equipped
Page 24 of 604
24Pictorial index
HIGHLANDER_HV_U (OM48D74U)

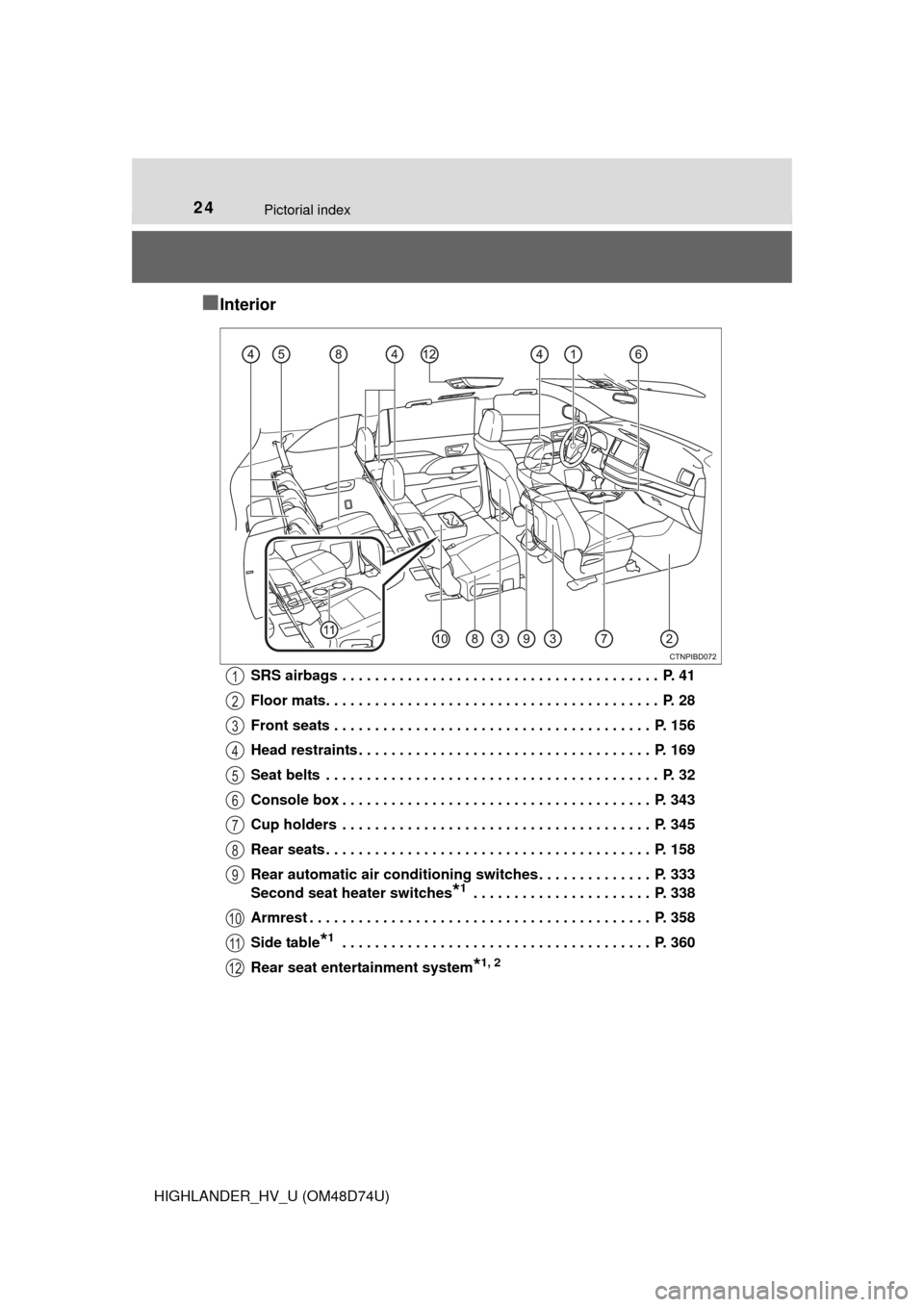

■Interior
SRS airbags . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 41
Floor mats. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 28
Front seats . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 156
Head restraints . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 169
Seat belts . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 32
Console box . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 343
Cup holders . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 345
Rear seats . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 158
Rear automatic air conditioning switches . . . . . . . . . . . . . . P. 333
Second seat heater switches
*1 . . . . . . . . . . . . . . . . . . . . . . P. 338
Armrest . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 358
Side table
*1 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 360
Rear seat entertainment system
*1, 2
1
2
3
4
5
6
7
8
9
10
11
12
Page 25 of 604

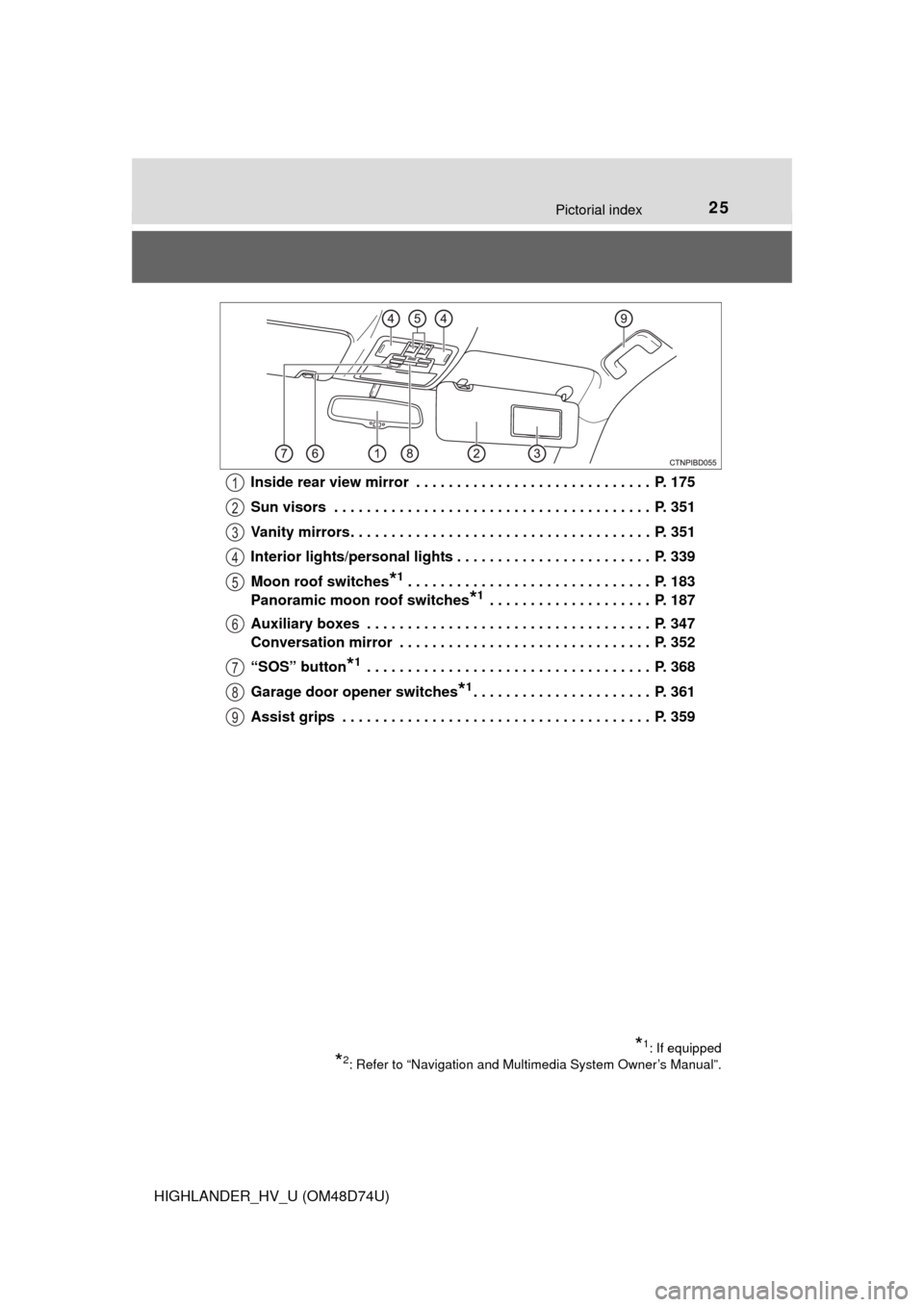

25Pictorial index
HIGHLANDER_HV_U (OM48D74U)Inside rear view mirror . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 175
Sun visors . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 351
Vanity mirrors . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 351
Interior lights/personal lights . . . . . . . . . . . . . . . . . . . . . . . . P. 339
Moon roof switches
*1 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 183
Panoramic moon roof switches
*1 . . . . . . . . . . . . . . . . . . . . P. 187
Auxiliary boxes . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 347
Conversation mirror . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 352
“SOS” button
*1 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 368
Garage door opener switches
*1. . . . . . . . . . . . . . . . . . . . . . P. 361
Assist grips . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 359
1
2
3
4
5
6
7
8
9
*1: If equipped
*2: Refer to “Navigation and Multimedia System Owner’s Manual”.
Page 26 of 604
26Pictorial index
HIGHLANDER_HV_U (OM48D74U)
Page 27 of 604
27
For safety and security1
HIGHLANDER_HV_U (OM48D74U)1-1. For safe use
Before driving ...................... 28
For safety drive ................... 30
Seat belts ............................ 32
SRS airbags ........................ 41
Front passenger occupant classification system ......... 54
Safety information for children ............................. 61
Child restraint systems........ 62
Installing child restraints...... 66
Exhaust gas precautions..... 80
1-2. Hybrid system Hybrid system features ....... 81
Hybrid system precautions ....................... 85
1-3. Theft deterrent system Immobilizer system ............. 91
Alarm................................... 93
Theft prevention labels (U.S.A.) ............................. 96
Page 28 of 604
28
HIGHLANDER_HV_U (OM48D74U)
1-1. For safe use
Use only floor mats designed specifically for vehicles of the same
model and model year as your vehi cle. Fix them securely in place
onto the carpet.

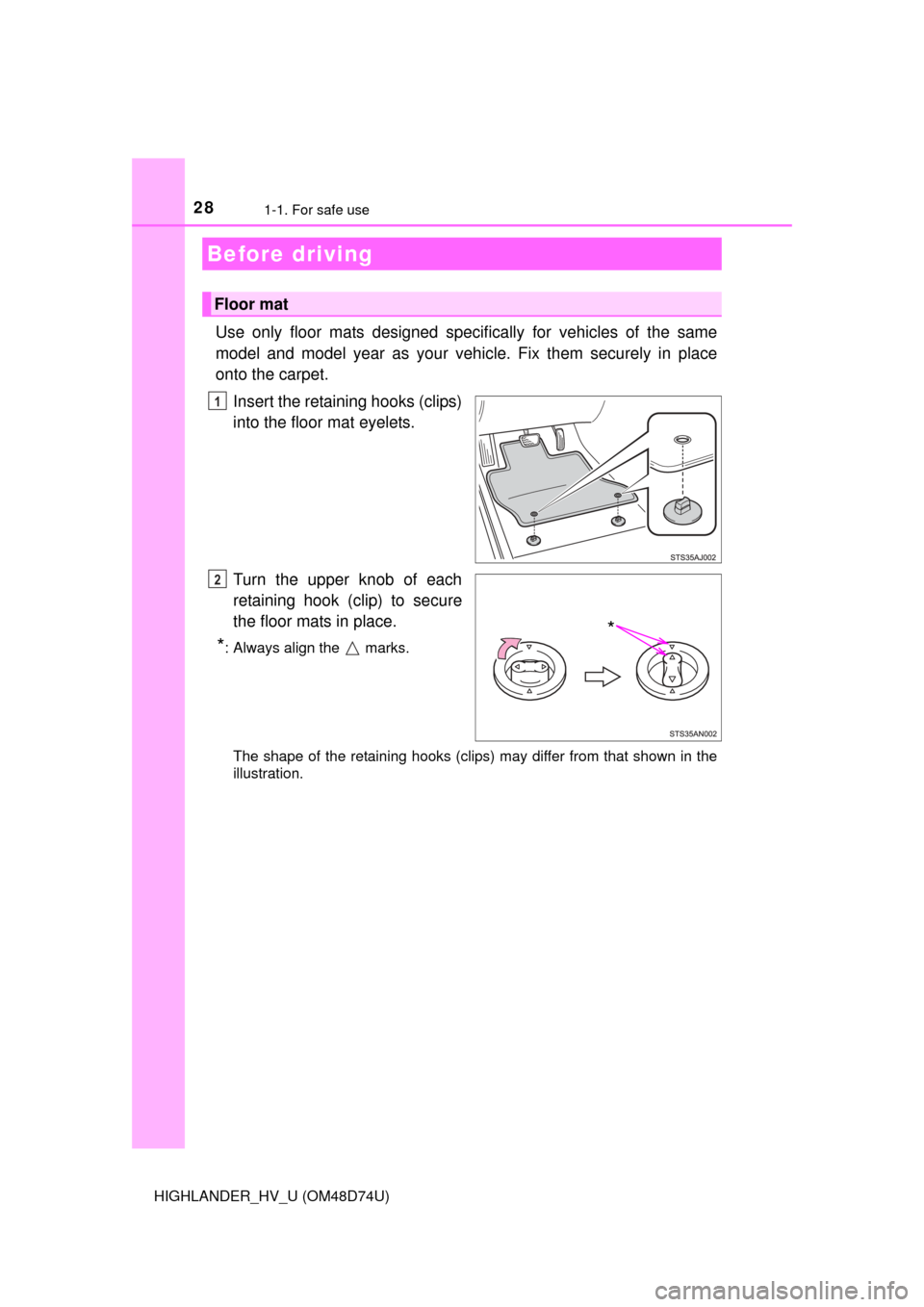

Insert the retaining hooks (clips)
