1112. Instrument cluster
2
Instrument cluster
HIGHLANDER_HV_U (OM48F12U)
Drive information
Select to display various drive
data. (P. 113)
Navigation system-
linked display (if
equipped)
Select to display the following navigation system-linked information.
• Route guidance
• Compass display (north-up display/heading-up display)
Audio system-linked display
Select to enable selection of an audio source or track on the meter
using the meter control switches.
Dynamic radar cruise control operation guide (if equipped)
Select to display operation procedures of the dynamic radar cruise
control. (P. 271)
The tab will change to when the vehicle is in constant
speed control mode. ( P. 278)
If activated, the operational status of the LDA (Lane Departure Alert)
system will also be displayed. (If equipped) ( P. 288)
LDA (Lane Departure Alert) operational status (if equipped)*
Select to display the operational status of the LDA (Lane Departure
Alert). (P. 288)
If activated, the operation procedures of the dynamic radar cruise
control system will also be displayed. (If equipped) (P. 271)
*: The LDA operational status will not be displayed if the dynamic radar cruise control operation guide is displayed.

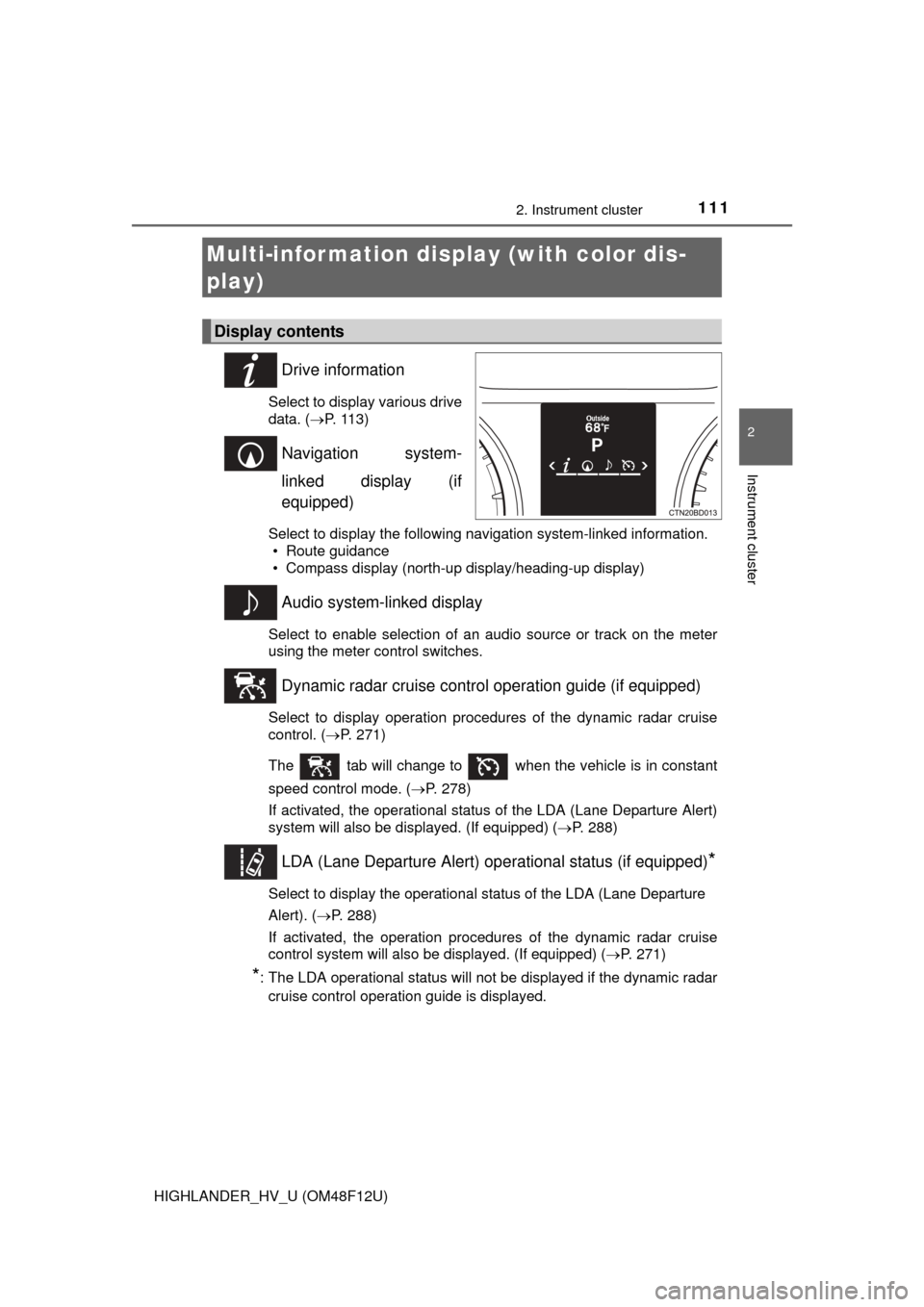

Multi-infor mation disp lay (with color dis-
play)
Display contents

1122. Instrument cluster
HIGHLANDER_HV_U (OM48F12U)
Warning message display
Select to display warning messages and measures to be taken if a
malfunction is detected. (P. 470)
Settings display
Select to change the meter display settings. ( P. 114)
■

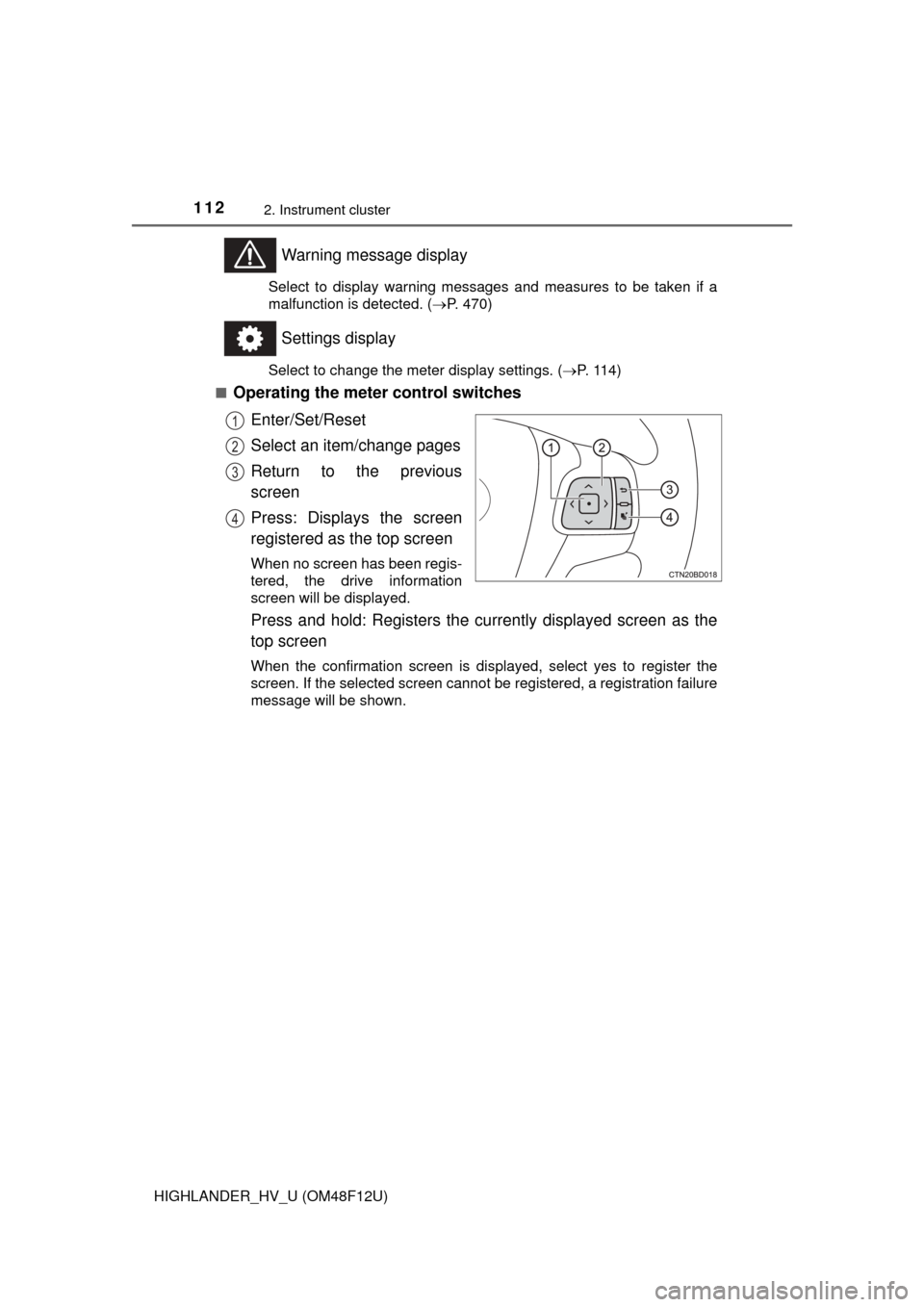

Operating the meter control switches
Enter/Set/Reset
Select an item/change pages
Return to the previous
screen
Press: Displays the screen
registered as the top screen
When no screen has been regis-
tered, the drive information
screen will be displayed.
Press and hold: Registers the currently displayed screen as the
top screen
When the confirmation screen is displayed, select yes to register the
screen. If the selected screen cannot be registered, a registration failure
message will be shown.
1
2
3
4

1132. Instrument cluster
2
Instrument cluster
HIGHLANDER_HV_U (OM48F12U)
●Current fuel consumption*1
Displays the current rate of fuel consumption
● Average fuel economy (after reset
*2/after start/after refuel)*1
Displays the average fuel economy since the function was reset,
the engine was started, and the ve hicle was refueled, respectively
Use the displayed average fuel economy as a reference.
●Average vehicle speed (after reset*2/after start)*1
Displays the average vehicle speed since the function was reset
and the engine was started, respectively
● Elapsed time (after reset
*2/after start)*1
Displays the elapsed time since the function was reset and the
engine was started, respectively
● Distance (driving range/after start/after reset
*2)*1
Displays the estimated maximum distance that can be driven with
the quantity of fuel remaining an d the distance driven after the
engine was started, respectively.
• This distance is computed based on your average fuel consumption. As a result, the actual distance that can be driven may differ from that dis-
played.
• When only a small amount of fuel is added to the tank, the display may
not be updated.
When refueling, turn the power switch off. If the vehicle is refueled with-
out turning the power switch off, the display may not be updated.
● Energy monitor
P. 1 1 7
*1: Can be registered to Drive information 1 through 3. ( P. 114)
*2: Resetting procedures
• Select a function to be reset using the meter control switches and then press and hold to reset.
• If there are two functions that can be reset, check boxes will be dis-
played next to those functions.
Drive information

1142. Instrument cluster
HIGHLANDER_HV_U (OM48F12U)■
Changing the settings
Select using the meter control switches.
Select an item and then set it with the center button.
■Customizable items
●Language
Select to change the language on the display.
● Units
Select to change the unit of measure for fuel consumption.
● Maintenance system (for U.S.A)
Select to reset the maintenance data after the required mainte-
nance is performed. (
P. 390)
● EV Indicator Light
Select to activate/deactiva te the EV Indicator Light.
● switch settings
You can register 1 screen as the top screen. To register, press
and hold while the desired screen is displayed.
● Drive information 1 through 3
Select to select up to 2 items t hat will be displayed on a Drive
information screen, up to 3 Drive information screens can be set.
● Pop-up display
Select to set the following pop-up displays, which may appear in
some situations, on/off.
• Route guidance display of t he navigation system-linked sys-
tem (if equipped)
• Incoming call display of the hands-free phone system
• Dynamic radar cruise control operation display (if equipped)
• Instrument panel brightness adjustment display
● Accent color
Select to change the accent colors on the screen, such as the
cursor color.
● Eco mode linked color display
When the “ECO MODE” indicator light is displayed, the shift posi-
tion indicator will be highlighted with a colored background.
Settings display
1
2

1152. Instrument cluster
2
Instrument cluster
HIGHLANDER_HV_U (OM48F12U)
●Speed limit display*
Select to set the display of speed limit information stored in the
navigation system to on with the speed limit caution indicator
(yellow) enabled, on with the sp eed limit caution not enabled, or
off. If enabled, the s peed limit caution indicator will come on if the
vehicle speed exceeds th e displayed speed limit.
● Initialization
Registered or changed meter settings will be deleted or returned
to their default setting.
Settings can be changed. (Customizable features: P. 561)
*: Speed limit display may not be available for some regions.
■Pop-up display
In some situations, such as when a switch operation is performed, a pop-up
display, such as the operating cruise control switch, will be temporarily dis-
played on the multi-information display.
The pop-up display function can be set on/off.
■ Setting display automatic cancelation
In the following situations, setting display in which the settings can b\
e
changed through the meter control switch will automatically be turned off.
●When a warning message appears while the setting display is displayed
● When the vehicle begins to move while the setting display is displayed
■ Liquid crystal display
Small spots or light spots may appear on the display. This phenomenon is
characteristic of liquid crystal displays, and there is no problem continuing to
use the display.

1162. Instrument cluster
HIGHLANDER_HV_U (OM48F12U)
WARNING
■The information display at low temperatures
Allow the interior of the vehicle to warm up before using the liquid crystal
information display. At extremely low temperatures, the display monitor may
respond slowly, and display changes may be delayed.
For example, there is a lag between the driver’s shifting and the new gear
number appearing on the display. This lag could cause the driver to down-
shift again, causing rapid and excessive engine braking and possibly an
accident resulting in death or injury.
■ Cautions during setting up the display
As the engine needs to be running during setting up the display, ensure that
the vehicle is parked in a place with adequate ventilation. In a closed area
such as a garage, exhaust gases including harmful carbon monoxide (CO)
may collect and enter the vehicle. This may lead to death or a serious
health hazard.
NOTICE
■During setting up the display
To prevent 12-volt battery discharge, ensure that the hybrid system is oper-
ating while setting up the display features.

1172. Instrument cluster
2
Instrument cluster
HIGHLANDER_HV_U (OM48F12U)
Multi-information display
Audio system screen
Audio system screen
Press the “APPS” button.
Touch “ECO” on the “Apps”
screen.
If the “Trip Information” or “Past
Record” screen is displayed, touch
“Energy”.

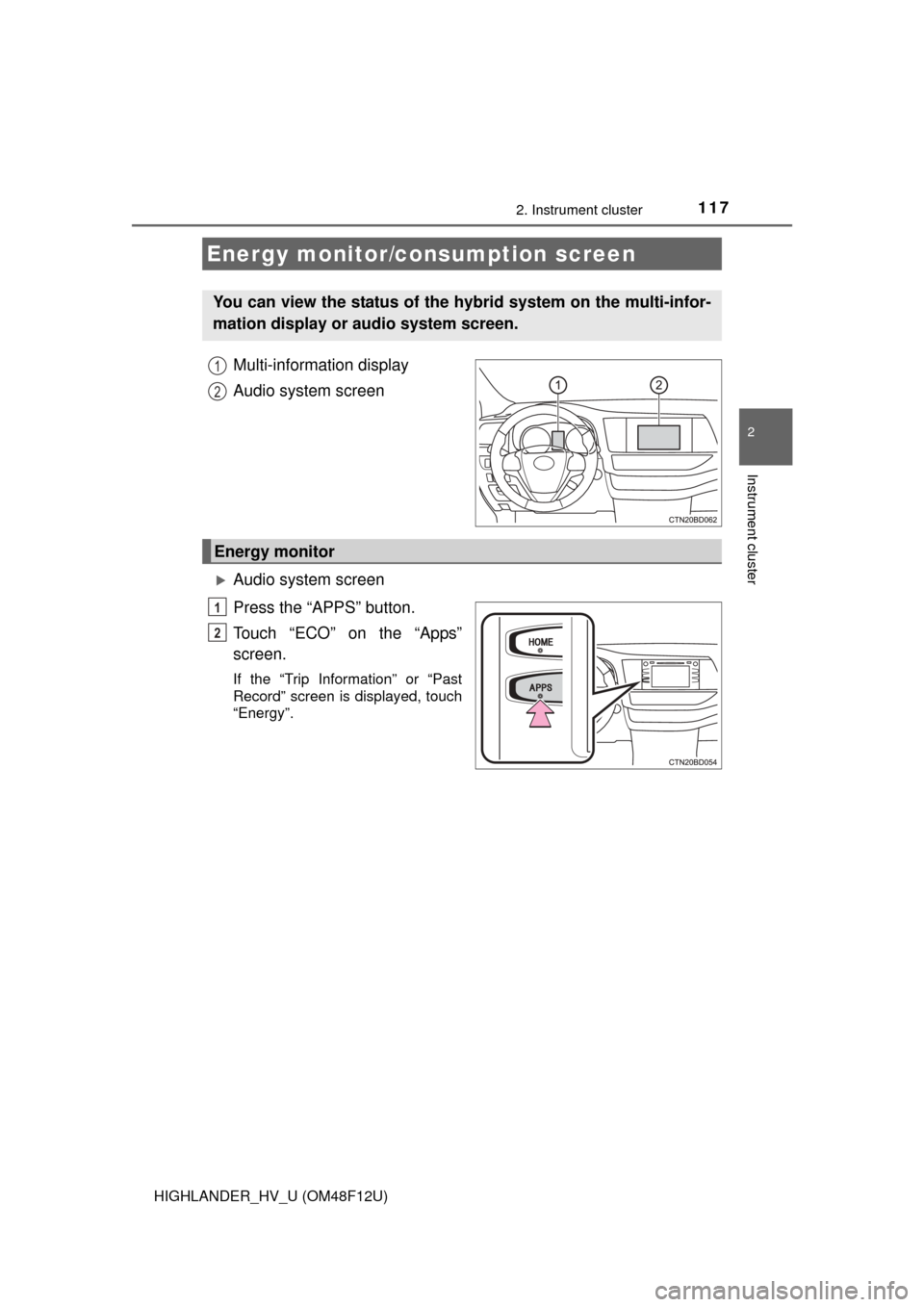

Energy monitor/consumption screen
You can view the status of the hybrid system on the multi-infor-
mation display or audio system screen.
1
2
Energy monitor
1
2

1182. Instrument cluster
HIGHLANDER_HV_U (OM48F12U)

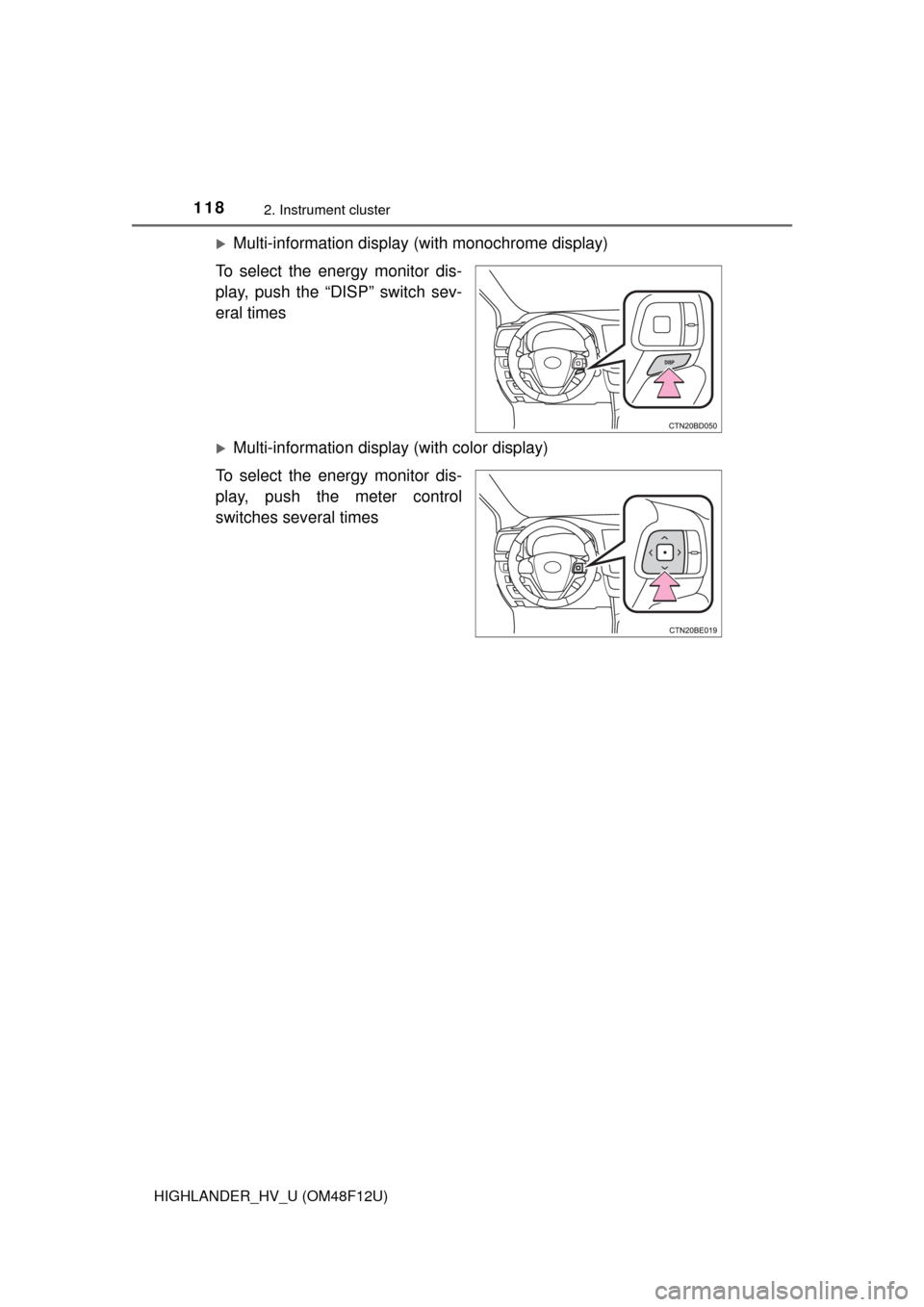

Multi-information display (with monochrome display)
To select the energy monitor dis-
play, push the “DISP” switch sev-
eral times
Multi-information display (with color display)
To select the energy monitor dis-
play, push the meter control
switches several times

1192. Instrument cluster
2
Instrument cluster
HIGHLANDER_HV_U (OM48F12U)
Audio system screen
Multi-information dis-
play (with monochrome
display)Multi-information dis-
play (with color display)

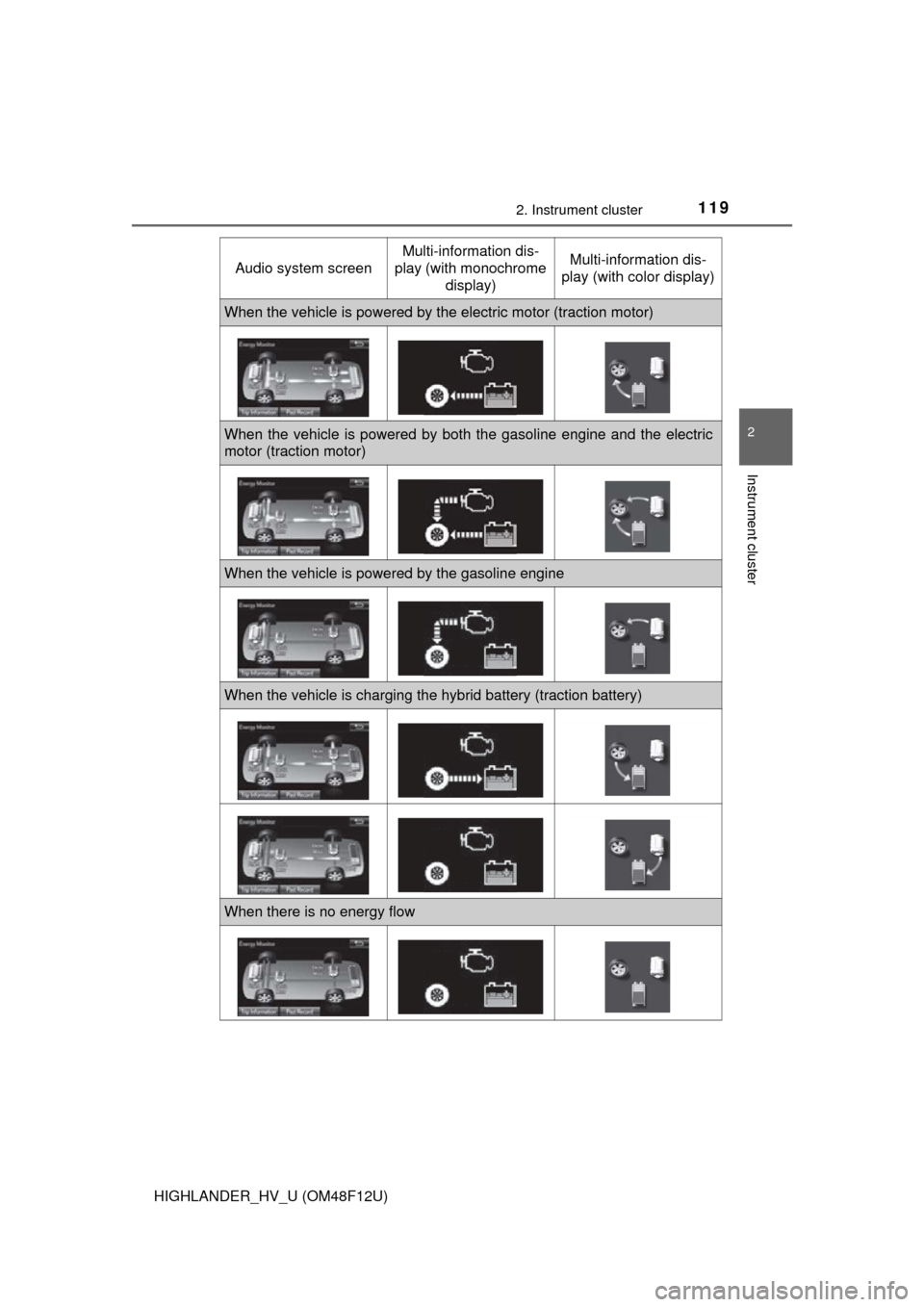

When the vehicle is powered by the electric motor (traction motor)
When the vehicle is powered by both the gasoline engine and the electric
motor (traction motor)
When the vehicle is powered by the gasoline engine
When the vehicle is charging the hybrid battery (traction battery)
When there is no energy flow

1202. Instrument cluster
HIGHLANDER_HV_U (OM48F12U)
These images are examples only.

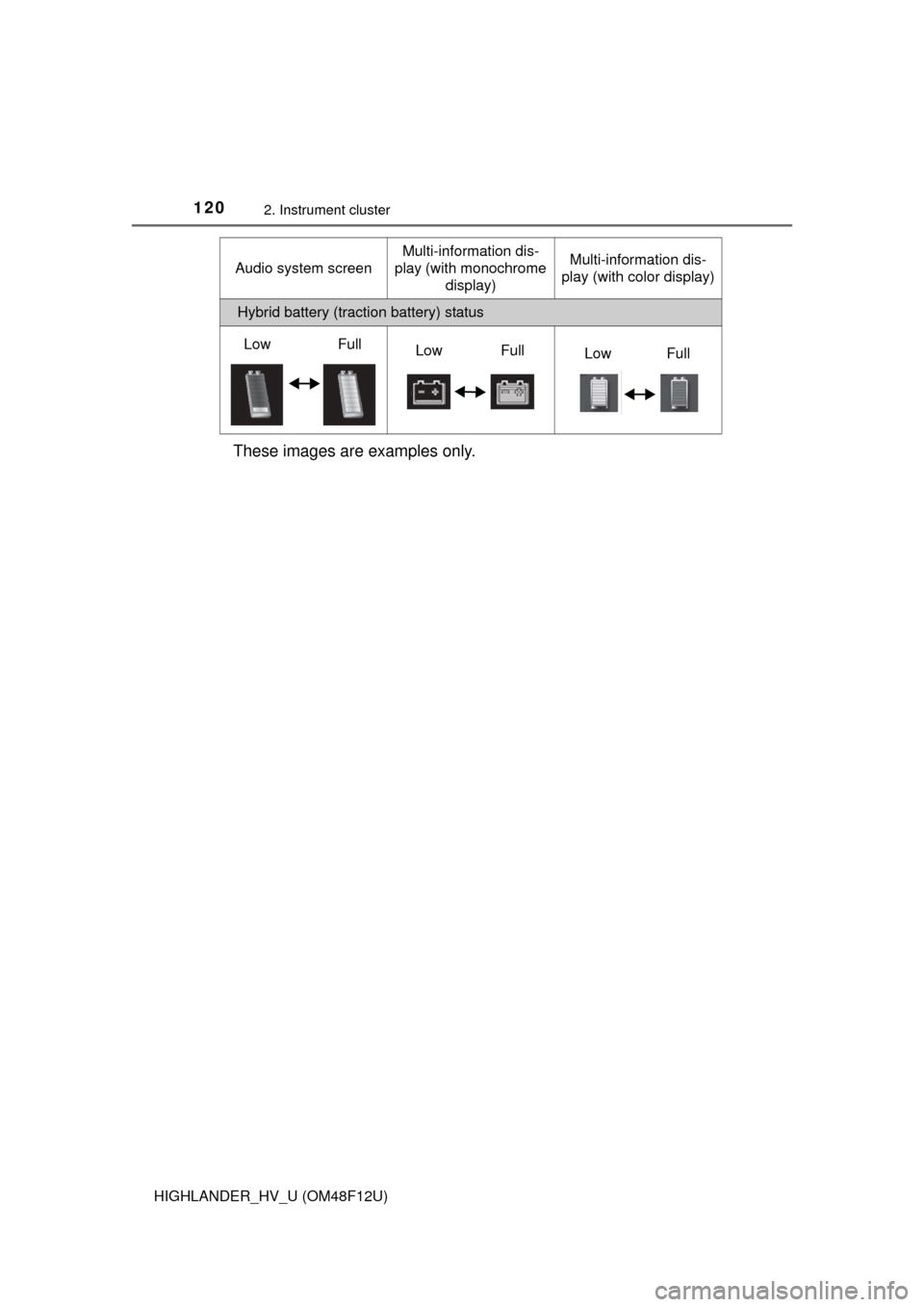

Hybrid battery (traction battery) status
Audio system screen
Multi-information dis-
play (with monochrome
display)Multi-information dis-
play (with color display)
LowFullLowFullLowFull
