TOYOTA HIGHLANDER HYBRID 2016 XU50 / 3.G Owner's Manual

21Pictorial index

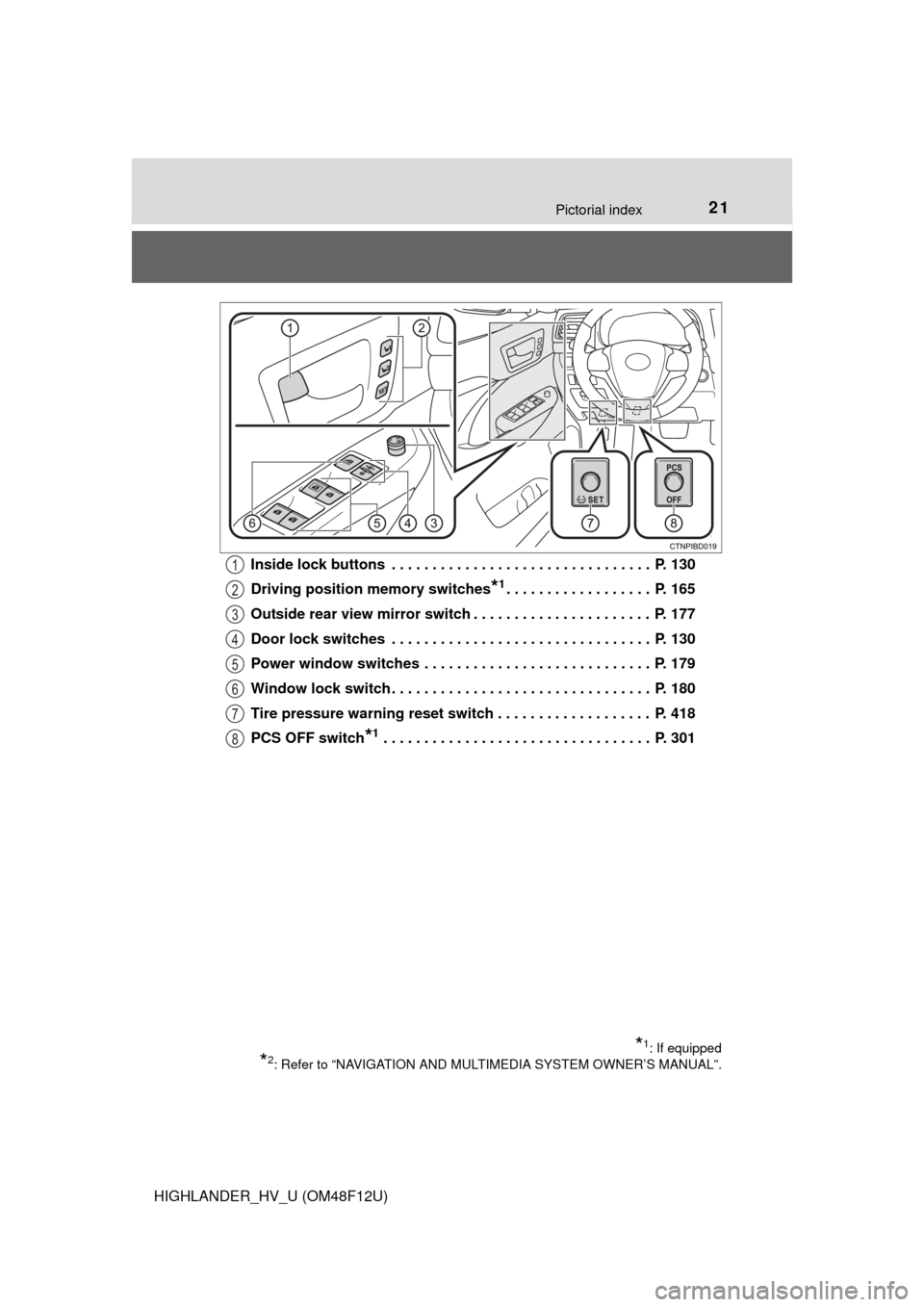

HIGHLANDER_HV_U (OM48F12U)Inside lock buttons . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 130
Driving position memory switches
*1. . . . . . . . . . . . . . . . . . P. 165
Outside rear view mirror switch . . . . . . . . . . . . . . . . . . . . . . P. 177
Door lock switches . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 130
Power window switches . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 179
Window lock switch . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 180
Tire pressure warning reset switch . . . . . . . . . . . . . . . . . . . P. 418
PCS OFF switch
*1 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 301
*1: If equipped
*2: Refer to “NAVIGATION AND MULTIMEDIA SYSTEM OWNER’S MANUAL”.
1
2
3
4
5
6
7
8

22Pictorial index
HIGHLANDER_HV_U (OM48F12U)Talk switch
*1

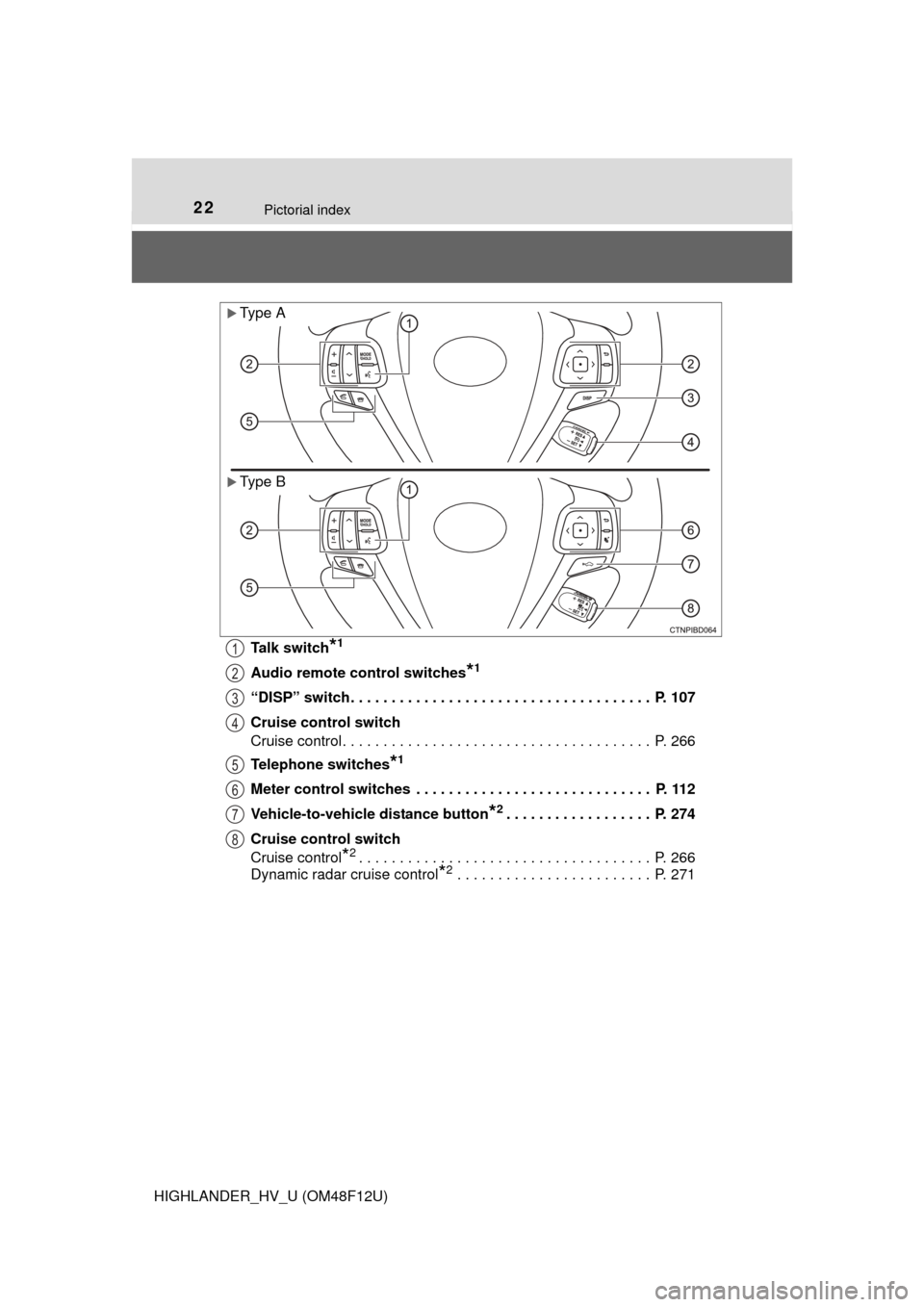

Audio remote control switches*1
“DISP” switch. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 107
Cruise control switch
Cruise control. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 266
Telephone switches
*1
Meter control switches . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 112
Vehicle-to-vehicle distance button
*2. . . . . . . . . . . . . . . . . . P. 274
Cruise control switch
Cruise control
*2. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 266
Dynamic radar cruise control
*2 . . . . . . . . . . . . . . . . . . . . . . . . P. 271
Type B
Type A
1
2
3
4
5
6
7
8

23Pictorial index
HIGHLANDER_HV_U (OM48F12U)VSC OFF switch . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 296

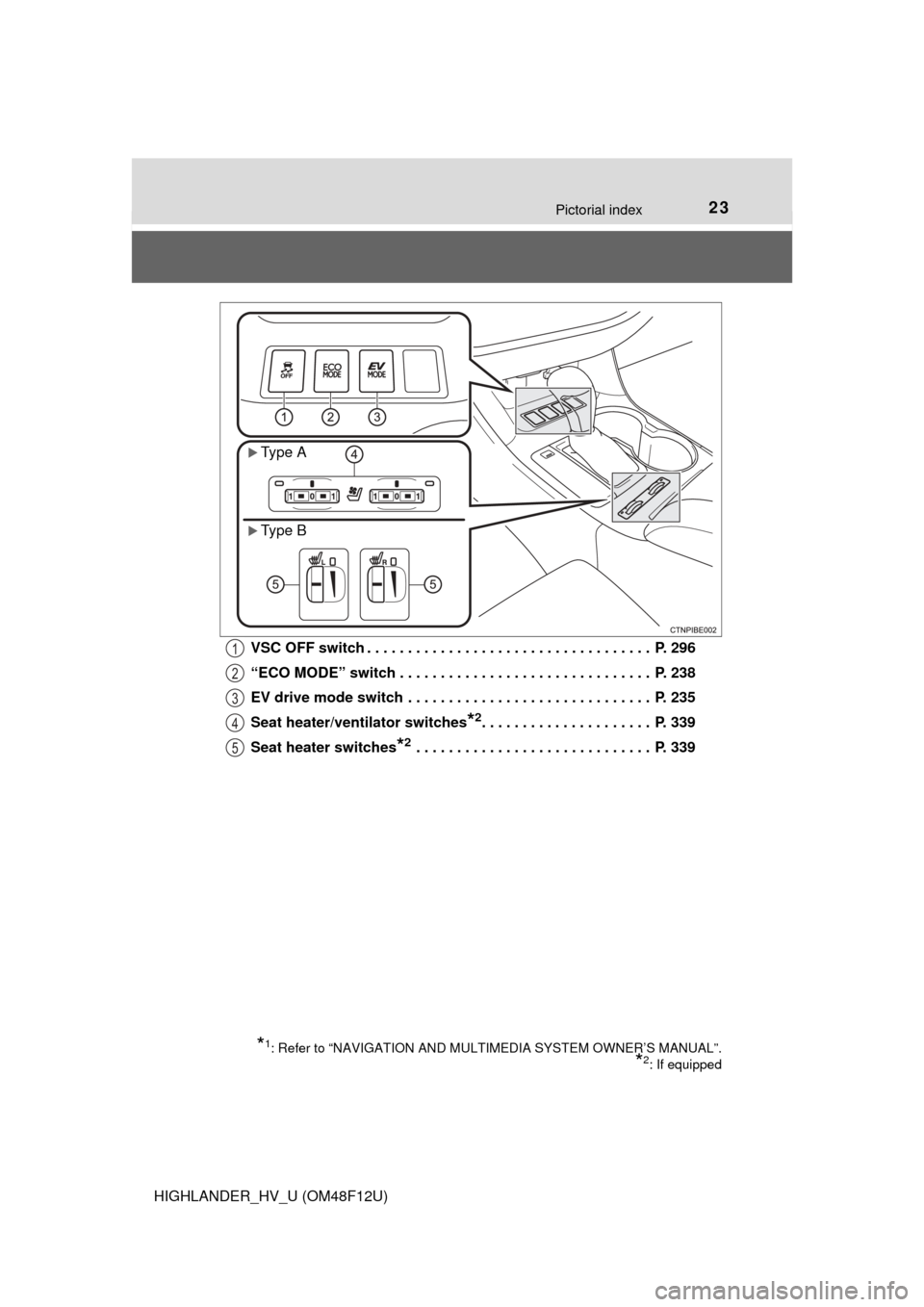

“ECO MODE” switch . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 238
EV drive mode switch . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 235
Seat heater/ven
tilator switches
*2. . . . . . . . . . . . . . . . . . . . . P. 339
Seat heater switches
*2 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 339
Type B
Type A
1
2
3
4
5
*1: Refer to “NAVIGATION AND MULTIMEDIA SYSTEM OWNER’S MANUAL”.
*2: If equipped

24Pictorial index
HIGHLANDER_HV_U (OM48F12U)
■Interior

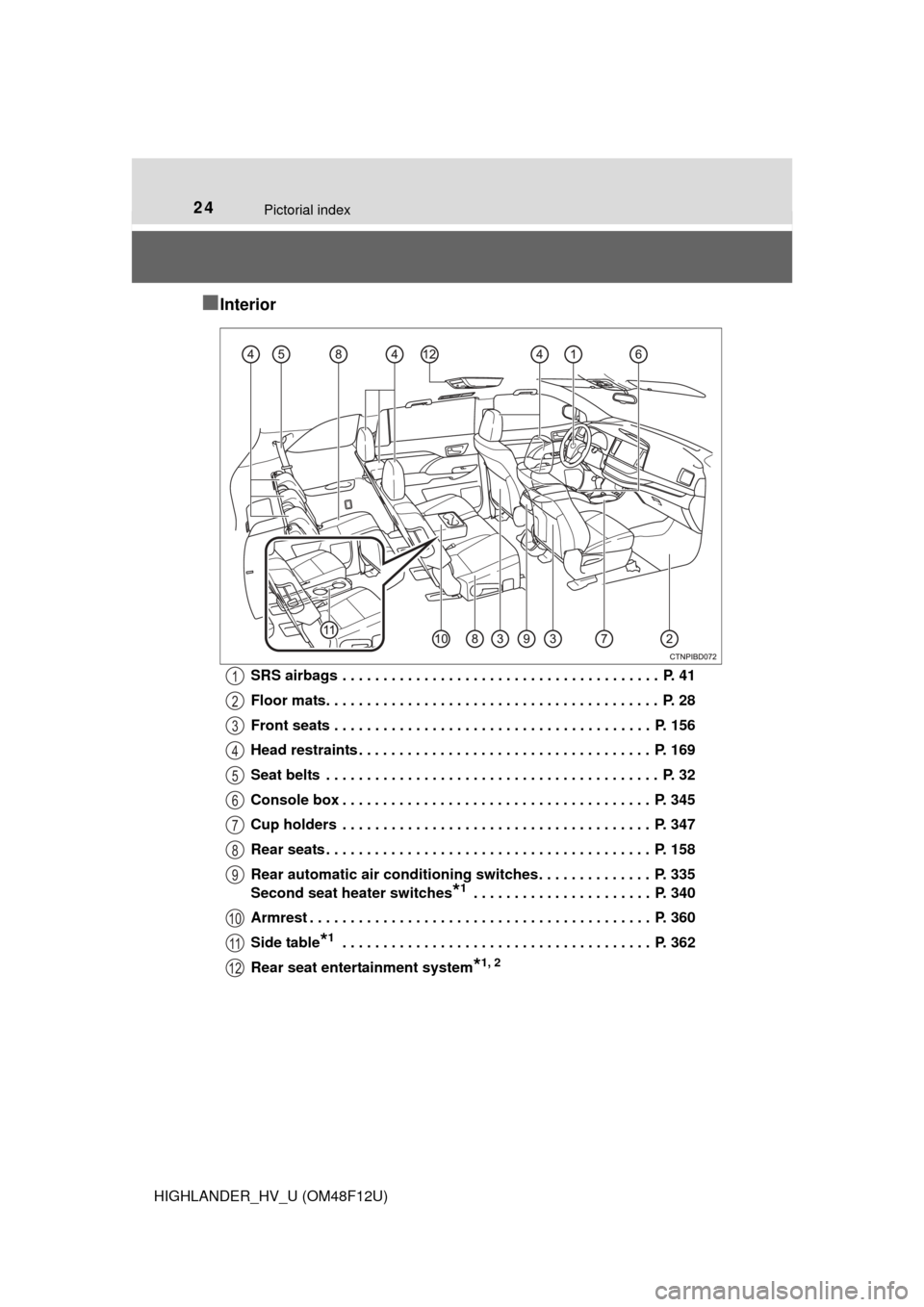

SRS airbags . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 41
Floor mats. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 28
Front seats . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 156
Head restraints . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 169
Seat belts . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 32
Console box . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 345
Cup holders . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 347
Rear seats . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 158
Rear automatic air conditioning switches . . . . . . . . . . . . . . P. 335
Second seat heater switches
*1 . . . . . . . . . . . . . . . . . . . . . . P. 340
Armrest . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 360
Side table
*1 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 362
Rear seat entertainment system
*1, 2
1
2
3
4
5
6
7
8
9
10
11
12

25Pictorial index

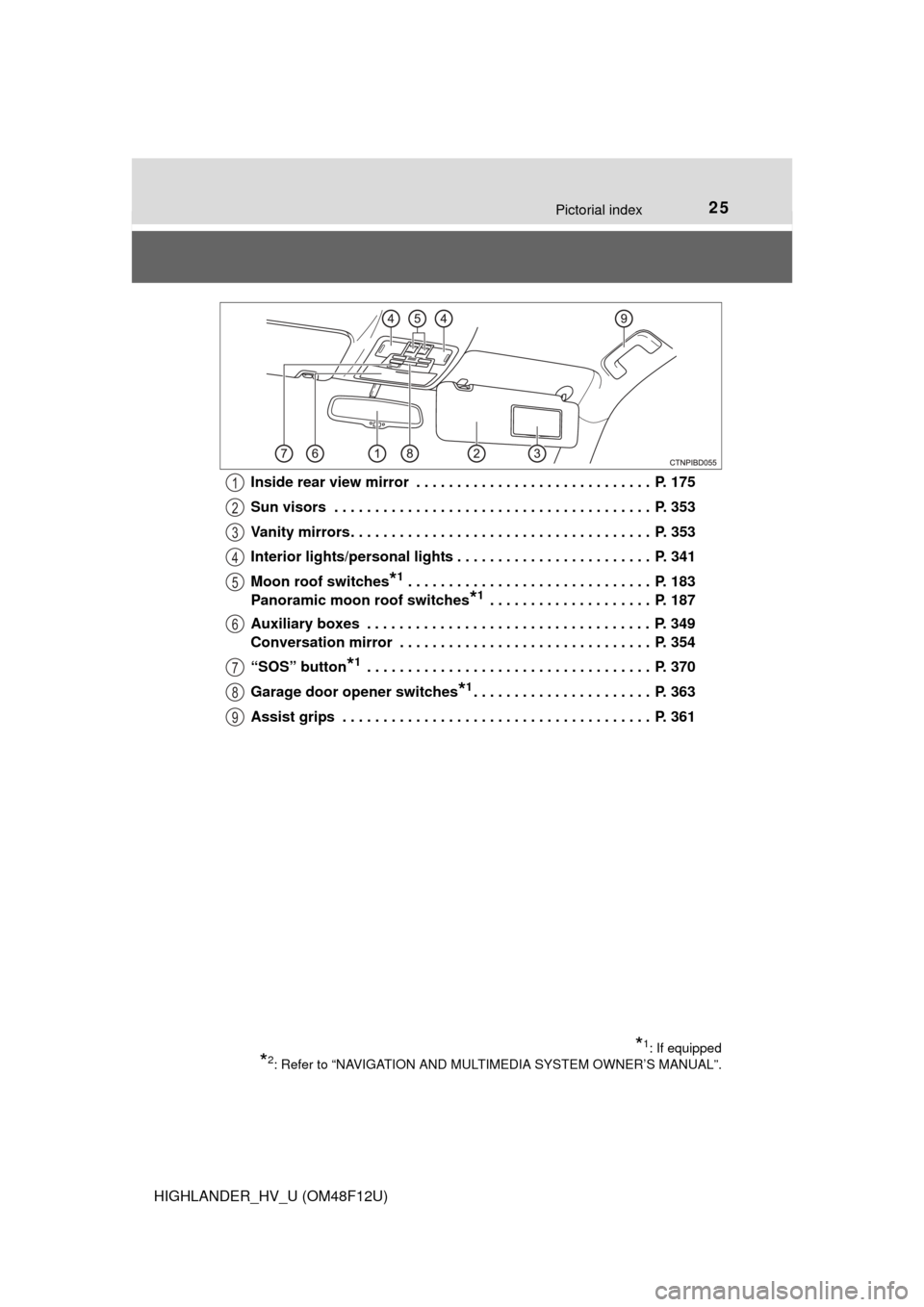

HIGHLANDER_HV_U (OM48F12U)Inside rear view mirror . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 175
Sun visors . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 353
Vanity mirrors. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 353
Interior lights/personal lights . . . . . . . . . . . . . . . . . . . . . . . . P. 341
Moon roof switches
*1 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 183
Panoramic moon roof switches
*1 . . . . . . . . . . . . . . . . . . . . P. 187
Auxiliary boxes . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 349
Conversation mirror . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 354
“SOS” button
*1 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 370
Garage door opener switches
*1. . . . . . . . . . . . . . . . . . . . . . P. 363
Assist grips . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 361
1
2
3
4
5
6
7
8
9
*1: If equipped
*2: Refer to “NAVIGATION AND MULTIMEDIA SYSTEM OWNER’S MANUAL”.

26Pictorial index
HIGHLANDER_HV_U (OM48F12U)

27
For safety and security1
HIGHLANDER_HV_U (OM48F12U)1-1. For safe use
Before driving ...................... 28
For safety drive ................... 30
Seat belts ............................ 32
SRS airbags ........................ 41
Front passenger occupant classification system ......... 54
Safety information for children ............................. 61
Child restraint systems........ 62
Installing child restraints...... 66
Exhaust gas precautions..... 80
1-2. Hybrid system Hybrid system features ....... 81
Hybrid system precautions ....................... 85
1-3. Theft deterrent system Immobilizer system ............. 91
Alarm................................... 93

28
HIGHLANDER_HV_U (OM48F12U)
1-1. For safe use
Use only floor mats designed specifically for vehicles of the same
model and model year as your vehi cle. Fix them securely in place
onto the carpet.

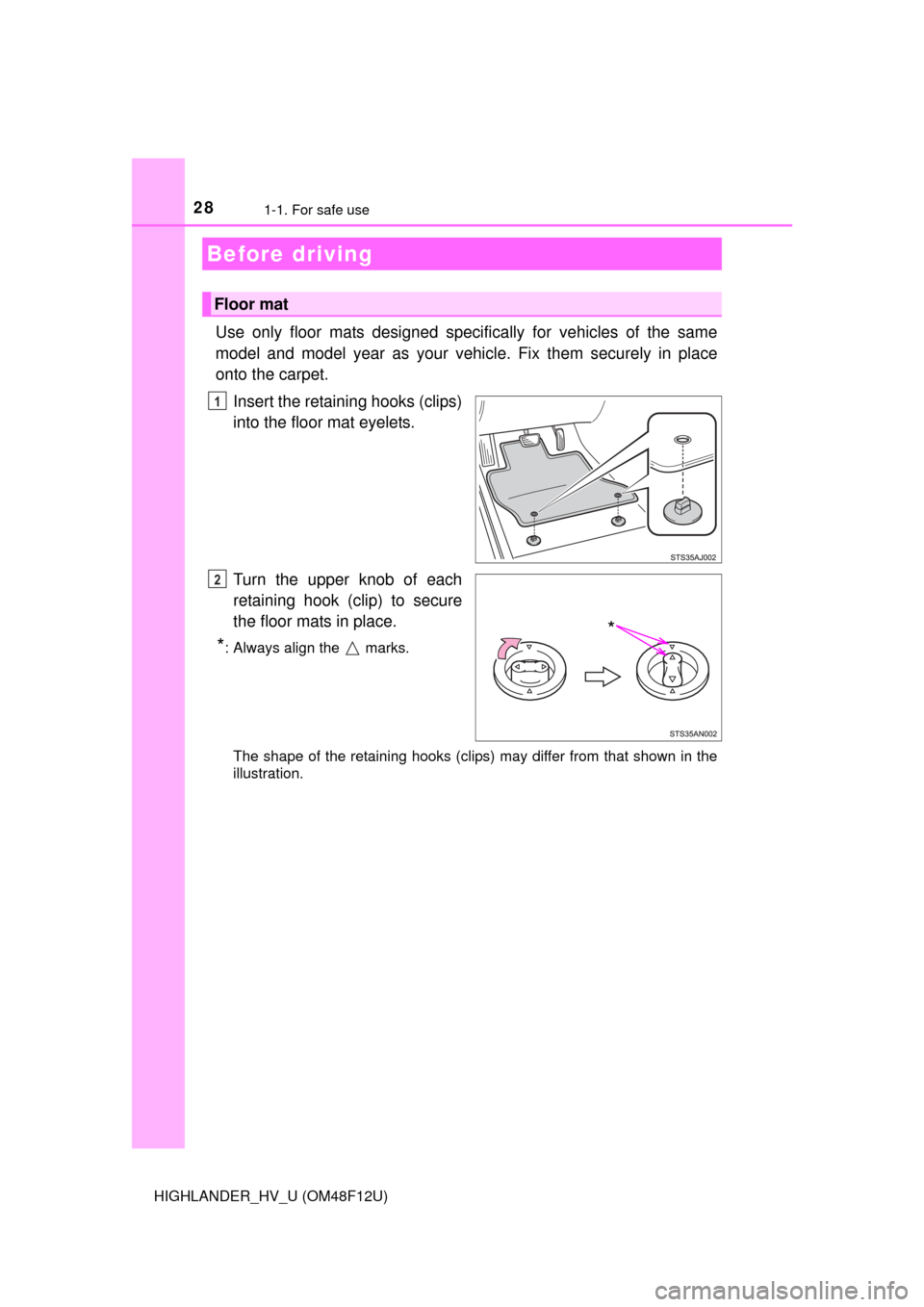

Insert the retaining hooks (clips)
into the floor mat eyelets.
Turn the upper knob of each
retaining hook (clip) to secure
the floor mats in place.
*: Always align the marks.
The shape of the retaining hooks (clips) may differ from that shown in the
illustration.
Before driving
Floor mat
1
*
2

291-1. For safe use
1
For safety and security
HIGHLANDER_HV_U (OM48F12U)
WARNING
Observe the following precautions.
Failure to do so may cause the driver’s floor mat to slip, possibly interfering
with the pedals while driving. An unexpectedly high speed may result or it may
become difficult to stop the vehicle. This could lead to an accident, resulting in
death or serious injury.
■When installing the driver’s floor mat
●Do not use floor mats designed for other models or different model year
vehicles, even if they are Toyota Genuine floor mats.
● Only use floor mats designed for the driver’s seat.
● Always install the floor mat securely using the retaining hooks (clips) pro-
vided.
● Do not use two or more floor mats on top of each other.
● Do not place the floor mat bottom-side up or upside-down.
■ Before driving
●Check that the floor mat is securely
fixed in the correct place with all the
provided retaining hooks (clips). Be
especially careful to perform this check
after cleaning the floor.
● With the hybrid system stopped and the
shift lever in P, fully depress each pedal
to the floor to make sure it does not
interfere with the floor mat.

301-1. For safe use
HIGHLANDER_HV_U (OM48F12U)
Adjust the angle of the seat-
back so that you are sitting
straight up and so that you do
not have to lean forward to
steer. (P. 156)
Adjust the seat so that you can
depress the pedals fully and so
that your arms bend slightly at
the elbow when gripping the
steering wheel. ( P. 156)
Lock the head restraint in place with the center of the head restraint
closest to the top of your ears. ( P. 169)
Wear the seat belt correctly. ( P. 3 2 )
Make sure that all occupants are wearing their seat belts before driv-
ing the vehicle. ( P. 3 2 )
Use a child restraint system appropriate for the child until the child
becomes large enough to properly wear the vehicle’s seat belt.
(  P. 62)
For safety drive
For safe driving, adjust the seat and mirror to an appropriate
position before driving.
Correct driving posture
1
2
Correct use of the seat belts
3
4
