TOYOTA HIGHLANDER HYBRID 2018 Accessories, Audio & Navigation (in English)

5
181
HIGHLANDER_Navi_U
6
7
8
9
1
2
3
4
5

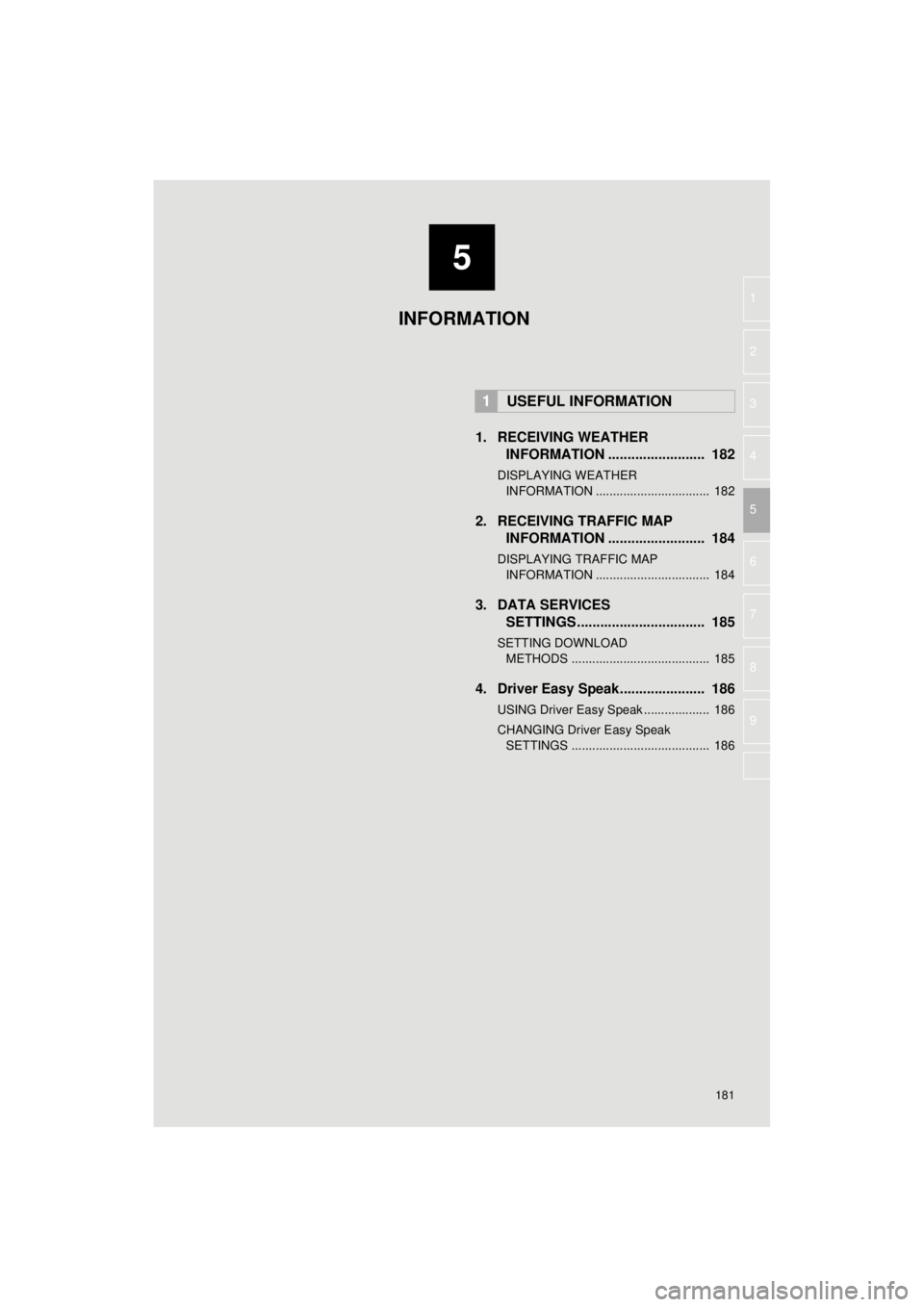

1. RECEIVING WEATHERINFORMATION ......................... 182
DISPLAYING WEATHER
IN FORMATION ................................. 182
2. RECEIVING TRAFFIC MAP
INFORMATION ......................... 184
DISPLAYING TRAFFIC MAP
IN FORMATION ................................. 184
3. DATA SERVICES
SETTINGS ................................. 185
SETTING DOWNLOAD
MET HODS ........................................ 185
4. Driver Easy Speak...................... 186
USING Driver Easy Speak ................... 186
CHANGING Driver Easy Speak
SETTINGS ........................................ 186
1USEFUL INFORMATION
INFORMATION

182
HIGHLANDER_Navi_U
1. USEFUL INFORMATION
1. RECEIVING WEATHER INFORMATION
1Press the “APPS” button.
2Select “Weather” .
3Check that the “Weather” screen is dis-
played.

Entune Audio Plus
Weather information can be received
via the HD Radio broadcast.
Entune Premium Audio
Weather information can be received
via the HD Radio broadcast or by the
Entune App Suite application on a
Bluetooth
® phone. For details about
the Entune App Suite application:
→P.371
DISPLAYING WEATHER
INFORMATION
No.Function
Select to display the weather of the
current location. ( →P.183)
Select to display the weather of a
desired location in the recently
checked locations list.
Select to display the weather of a
desired location in the national cities
list.
Select to display the weather of a
desired location in the other local cit-
ies list.
*Select to display weather informa-
tion over the map.
*: Entune Premium Audio only
INFORMATION
● Weather information is available in the
48 states, D.C. and Alaska of the United
States.
● The weather for current location might
not show the closest city when it first dis-
plays.

183
1. USEFUL INFORMATION
HIGHLANDER_Navi_U
INFORMATION
5
1Display the “Weather” screen.
(→P.182)
2Select “Current Weather” .
3Select the desired tab to be displayed.
DISPLAYING THE WEATHER
OF THE CURRENT LOCATION
INFORMATION
●If weather is set to the home screen, the
weather screen of the current location
will be displayed.

184
1. USEFUL INFORMATION
HIGHLANDER_Navi_U
2. RECEIVING TRAFFIC MAP INFORMATION*
1Press the “APPS” button.
2Select “Traffic”.
3Check that the “Traffic Map” screen is
displayed.Traffic map information can be re-
ceived via the HD Radio.
DISPLAYING TRAFFIC MAP
INFORMATION
*: Entune Audio Plus only
No.Function
Current position of your car
Traffic information line
The line color means the following:
Red: Heavy congestion
Yellow: Moderate traffic
Green: Freely flowing traffic
INFORMATION
●Traffic map information is available in
the 48 states, D.C. and Alaska of the
United States.

185
1. USEFUL INFORMATION
HIGHLANDER_Navi_U
INFORMATION
5
3. DATA SERVICES SETTINGS*
1Press the “APPS” button.
2Select “Setup” .
3Select “HD Data” .
4Select the desired item to be set.
Select a checkbox on the right to set.
SETTING DOWNLOAD
METHODS
Data service information, which is
comprised of traffic information and
weather information, can be received
via HD Radio broadcast and by the En-
tune App Suite application on a
Bluetooth
® phone. The receiving meth-
od can be set to both or only via HD
Radio broadcast. For details about the
Entune App Suite application: →P.371
*: Entune Premium Audio only
No.Function
Select to receive data service infor-
mation via both HD Radio broadcast
and the Entune App Suite applica-
tion on a Bluetooth
® phone. When
both methods are available, HD Ra-
dio broadcast will be selected.
Select to receive data only via HD
Radio broadcast.
INFORMATION
● These settings are available in the 48
states, D.C. and Alaska of the United
States.

186
1. USEFUL INFORMATION
HIGHLANDER_Navi_U
4. Driver Easy Speak*
1Press the “APPS” button.
2Select “Driver Easy Speak” to
change on/off.
1Press the “APPS” button.
2Select “Setup” .
3Select “Driver Easy Speak” .
4Select to adjust the audio volume.
USING Driver Easy Speak
Driver Easy Speak will utilize the vehi-
cle microphones and speakers to allow
passengers in the rear of the vehicle to
more easily hear the driver.
CHANGING Driver Easy
Speak SETTINGS
INFORMATION
●If a side door or the back door is opened
while the Driver Easy Speak function is
in use, it will be automatically turned off.
To use this function again, close all side
doors and the back door and turn on
Driver Easy Speak again.
● Driver Easy Speak cannot be used while
the voice command system or hands-
free system is in use.
● If feedback occurs, turn the Driver Easy
Speak function off or adjust its volume.
*: Entune Premium Audio only

187
1. USEFUL INFORMATION
HIGHLANDER_Navi_U
INFORMATION
5

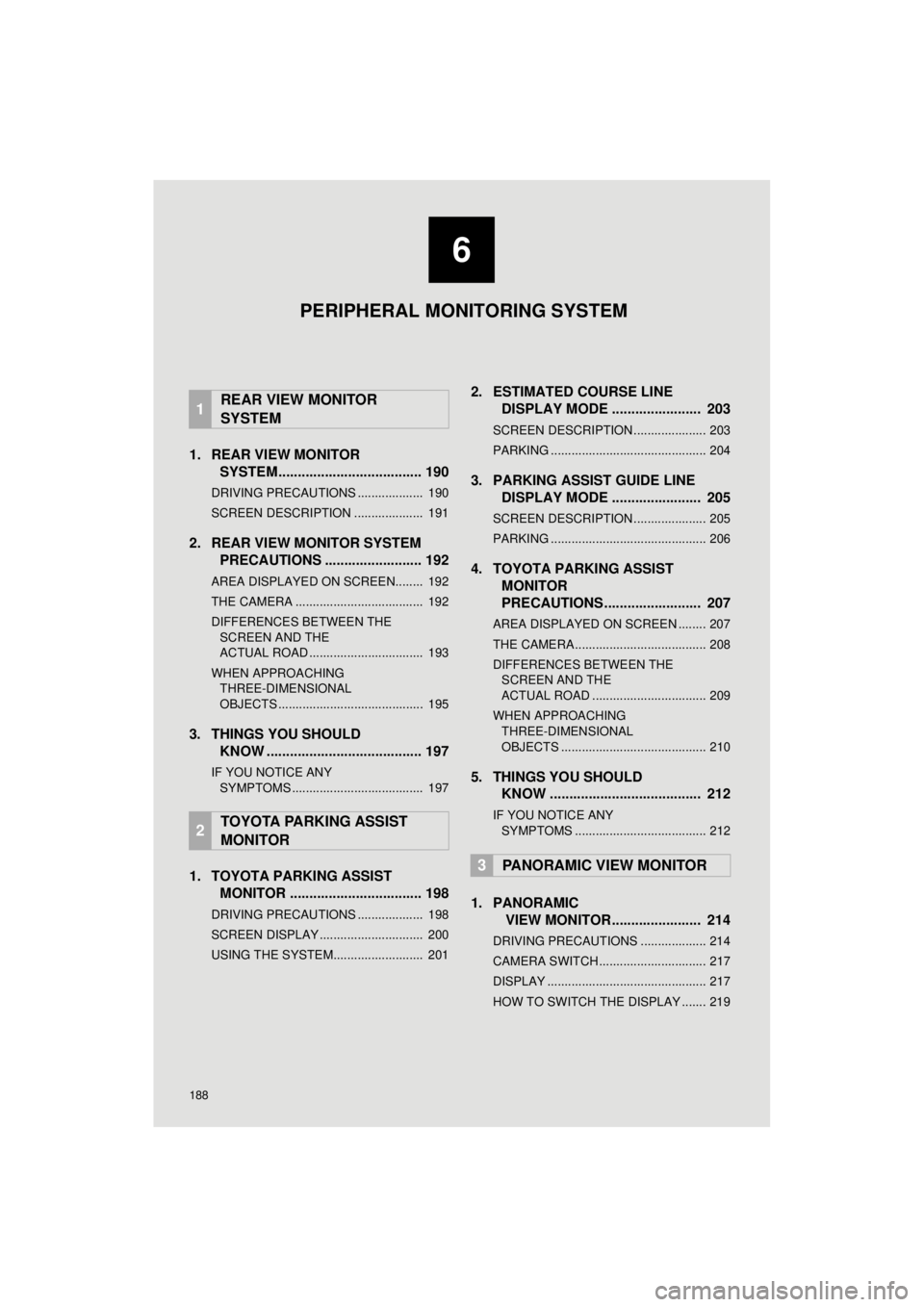

188
HIGHLANDER_Navi_U
1. REAR VIEW MONITORSYSTEM..................................... 190
DRIVING PRECAUTIONS ................... 190
SCREEN DESCRIPTION .................... 191
2. REAR VIEW MONITOR SYSTEM
PRECAUTIONS ......................... 192
AREA DISPLAYED ON SCREEN........ 192
THE CAMERA ..................................... 192
DIFFERENCES BETWEEN THE
SCREEN AND THE
ACTUAL ROAD ................................. 193
WHEN APPROACHING THREE-DIMENSIONAL
OBJECTS .......................................... 195
3. THINGS YOU SHOULD KNOW ........................................ 197
IF YOU NOTICE ANY
SYMPTOMS ...................................... 197
1. TOYOTA PARKING ASSIST MONITOR .................................. 198
DRIVING PRECAUTIONS ................... 198
SCREEN DISPLAY .............................. 200
USING THE SYSTEM.......................... 201
2. ESTIMATED COURSE LINE DISPLAY MODE ....................... 203
SCREEN DESCRIPTION ..................... 203
PARKING ............................................. 204
3. PARKING ASSIST GUIDE LINE
DISPLAY MODE ....................... 205
SCREEN DESCRIPTION ..................... 205
PARKING ............................................. 206
4. TOYOTA PARKING ASSISTMONITOR
PRECAUTIONS ......................... 207
AREA DISPLAYED ON SCREEN ........ 207
THE CAMERA ...................................... 208
DIFFERENCES BETWEEN THE
SCREEN AND THE
ACTUAL ROAD ................................. 209
WHEN APPROACHING THREE-DIMENSIONAL
OBJECTS .......................................... 210
5. THINGS YOU SHOULD KNOW ....................................... 212
IF YOU NOTICE ANY
SYMPTOMS ...................................... 212
1. PANORAMIC VIEW MONITOR....................... 214
DRIVING PRECAUTIONS ................... 214
CAMERA SWITCH ............................... 217
DISPLAY .............................................. 217
HOW TO SWITCH THE DISPLAY ....... 219
1REAR VIEW MONITOR
SYSTEM
2TOYOTA PARKING ASSIST
MONITOR
3PANORAMIC VIEW MONITOR
6
PERIPHERAL MONITORING SYSTEM

6
189
HIGHLANDER_Navi_U
4
5
7
8
9
1
2
3
6
2. CHECKING AROUND THEVEHICLE .................................... 221
SCREEN DISPLAY ............................. 221
3. CHECKING THE FRONT AND
AROUND THE VEHICLE ........... 222
SCREEN DISPLAY ............................. 222
4. CHECKING THE SIDES OFTHE VEHICLE............................ 225
SCREEN DISPLAY ............................. 225
5. CHECKING THE REAR AND
AROUND THE VEHICLE ........... 228
SCREEN DISPLAY ............................. 228
GUIDE LINES DISPLAYED ON
THE SCREEN ................................... 230
PARKING ............................................ 233
6. MAGNIFYING FUNCTION ........... 235
MAGNIFYING THE DISPLAY ............. 235
7. PANORAMIC VIEW MONITOR PRECAUTIONS ....... .................. 236
AREA DISPLAYED ON SCREEN ....... 236
THE CAMERA ..................................... 239
DIFFERENCES BETWEEN THE
SCREEN AND THE ACTUAL
ROAD ................................................ 241
DISTORTION OF THREE- DIMENSIONAL OBJECTS ON
THE SCREEN ................................... 243
WHEN APPROACHING THREE- DIMENSIONAL OBJECTS ................ 244
MAGNIFYING FUNCTION .................. 246
8. THINGS YOU SHOULD KNOW ....................................... 247
IF YOU NOTICE ANY
SYMPT OMS ...................................... 247
PRODUCT LICENSE ........................... 249
1. INTUITIVE PARKING ASSIST ...................................... 250
TYPES OF SENSORS......................... 250
INTUITIVE PARKING ASSIST
SWITCH ............................................ 250
DISPLAY .............................................. 250
THE DISTANCE DISPLAY AND BUZZER ............................................ 251
DETECTION RANGE OF THE SENSORS ......................................... 253
SENSOR DETECTION INFORMATION ................................. 253
INTUITIVE PARKING ASSIST- SENSOR FAILURE WARNING ......... 255
CERTIFICATION ................................. 255
2. INTUITIVE PARKING ASSIST SETTING ................................... 256
SETTING AN ALERT VOLUME........... 256
SETTING A PARKING SONAR
DISPLAY ........................................... 257
SETTING A DISPLAY AND TONE INDICATION ...................................... 257
4INTUITIVE PARKING ASSIST
PERIPHERAL MONITORING SYSTEM

190
HIGHLANDER_Navi_U
1. REAR VIEW MONITOR SYSTEM
1. REAR VIEW MONITOR SYSTEM*
The rear view monitor system assists
the driver by displaying an image of the
view behind the vehicle with fixed
guide lines on the screen while backing
up, for example while parking.
INFORMATION
●The screen illustrations used in this text
are intended as examples, and may dif-
fer from the image that is actually dis-
played on the screen.
DRIVING PRECAUTIONS
The rear view monitor system is a sup-
plemental device intended to assist the
driver when backing up. When backing
up, be sure to visually check all around
the vehicle both directly and using the
mirrors before proceeding. If you do
not, you may hit another vehicle, and
could possibly cause an accident.
Pay attention to the following precau-
tions when using the rear view monitor
system.
*: If equipped
WA R N I N G
●Never depend on the rear view monitor
system entirely when backing up. The
image and the position of the guide lines
displayed on the screen may differ from
the actual state.
Use caution, just as you would when
backing up any vehicle.
● Be sure to back up slowly, depressing
the brake pedal to control vehicle speed.
● The instructions given are only guide
lines. When and how much to turn the
steering wheel will vary according to
traffic conditions, road surface condi-
tions, vehicle condition, etc. when park-
ing. It is necessary to be fully aware of
this before using the rear view monitor
system.
● When parking, be sure to check that the
parking space will accommodate your
vehicle before maneuvering into it.
● Do not use the rear view monitor system
in the following cases:
• On icy or slick road surfaces, or in
snow
• When using tire chains or emergency tires
• When the back door is not closed com- pletely
• On roads that are not flat or straight,
such as curves or slopes
● In low temperatures, the screen may
darken or the image may become faint.
The image could distort when the vehi-
cle is moving, or you may become
unable to see the image on the screen.
Be sure to visually check all around the
vehicle both directly and using the mir-
rors before proceeding.
● If the tire sizes are changed, the position
of the fixed guide lines displayed on the
screen may change.
● The camera uses a special lens. The
distances between objects and pedestri-
ans that appear in the image displayed
on the screen will differ from the actual
distances.( →P.193)
