QUICK REFERENCE GUIDE
Page 2 of 56
HIGHLANDER HV 2018
This Quick Reference Guide is a summary of basic vehicle
operations. It contains brief descriptions of fundamental
operations so you can locate and use the vehicle’s main
equipment quickly and easily.
The Quick Reference Guide is not intended as a substitute for
the Owner’s Manual located in your vehicle’s glove box. We
strongly encourage you to review the Owner’s Manual and
supplementary manuals so you will have a better understanding
of your vehicle’s capabilities and limitations.
Your dealership and the entire staff of Toyota Motor North
America, Inc. wish you many years of satisfied driving in your
new Highlander HV.
A word about safe vehicle operations
This Quick Reference Guide is not a full description of Highlander HV
operations. Every Highlander HV owner should review the Owner’s Manual that
accompanies this vehicle.
Pay special attention to the boxed
information highlighted in color throughout
the Owner’s Manual. Each box contains safe operating instructions to \
help you
avoid injury or equipment malfunction.
All information in this Quick Reference Guide is current at the time of \
printing.
Toyota reserves the right to make changes at any time without notice.
Page 3 of 56
1
INDEX
Engine maintenance 9
Fuel tank door release & cap
8
Hood release
8
Indicator symbols
4-5
Instrument cluster
4
Instrument panel
2-3
Instrument panel light control
8
Keyless entry1,2 6-7
Smart Key system1,2 7
1 Visit your Toyota dealer for information on customizing this feature.2 Programmable by customer. Refer to the Owner’s Manual for instructio\
ns and more information.3 HomeLink® is a registered trademark of Gentex Corporation.
OVERVIEW
FEATURES & OPERATIONS FEATURES & OPERATIONS (continued)
SAFETY & EMERGENCY FEATURES TOYOTA SAFETY SENSE™ P (TSS-P)
Air conditioning1,2/heating 24
Audio
23
Auto lock/unlock1 12
Clock
12
Door locks1,2 12
Driver Easy Speak
22
ECO drive mode
11
EV drive mode
11
Garage door opener (HomeLink®)3 25
Hybrid Synergy Drive System
10
Hybrid transmission
11
Lights1,2 & turn signals1 19
Moonroof1 14
Multi-Information Display (MID)2 20
Panoramic moonroof
14
Parking brake
12
Power Liftgate (back door)1,2 15
Power outlets-
12V DC/120V AC/USB 2.1A
21
Rear seat entertainment system
22
Seat adjustments-Front
16
Seat adjustments-Rear
17
Seat heaters/ventilators
25
Seats-Head restraints
17
Seats-Stowing &
returning 3rd row seats
17
Steering lock release
13
Steering wheel switches &
telephone controls (Bluetooth
®) 13 Tilt & telescopic steering wheel
16
USB 2.0/AUX port
20
Vehicle Stability Control (VSC)/
TRAC OFF switch
22
Windows-Power1 18
Windshield wipers & washers1 18
Automatic High Beams (AHB) 35-36
Dynamic Radar
Cruise Control (DRCC)
32-35
Lane Departure Alert with Steering
Assist function (LDA w/SA)
29-32
Pre-Collision System with Pedestrian
Detection function (PCS w/PD)
27-29
Quick overview-
Toyota Safety Sense™ P (TSS-P)
26
Sensors
26
BLUETOOTH® DEVICE
PAIRING SECTION 42-51
Floor mat installation
41
Rear door child safety locks
38
Seat belt reminder indicator
37
Seat belts
37
Seat belts-3rd row center
37
Seat belts-Shoulder belt anchor
37
Spare tire & tools
39
Star Safety SystemTM 40-41
Tire Pressure Monitoring
(warning) System (TPMS)
38
OVERVIEW
FEATURES & OPERATIONS
TOYOTA SAFETY SENSE
SAFETY & EMERGENCY FEATURES
Page 4 of 56
2

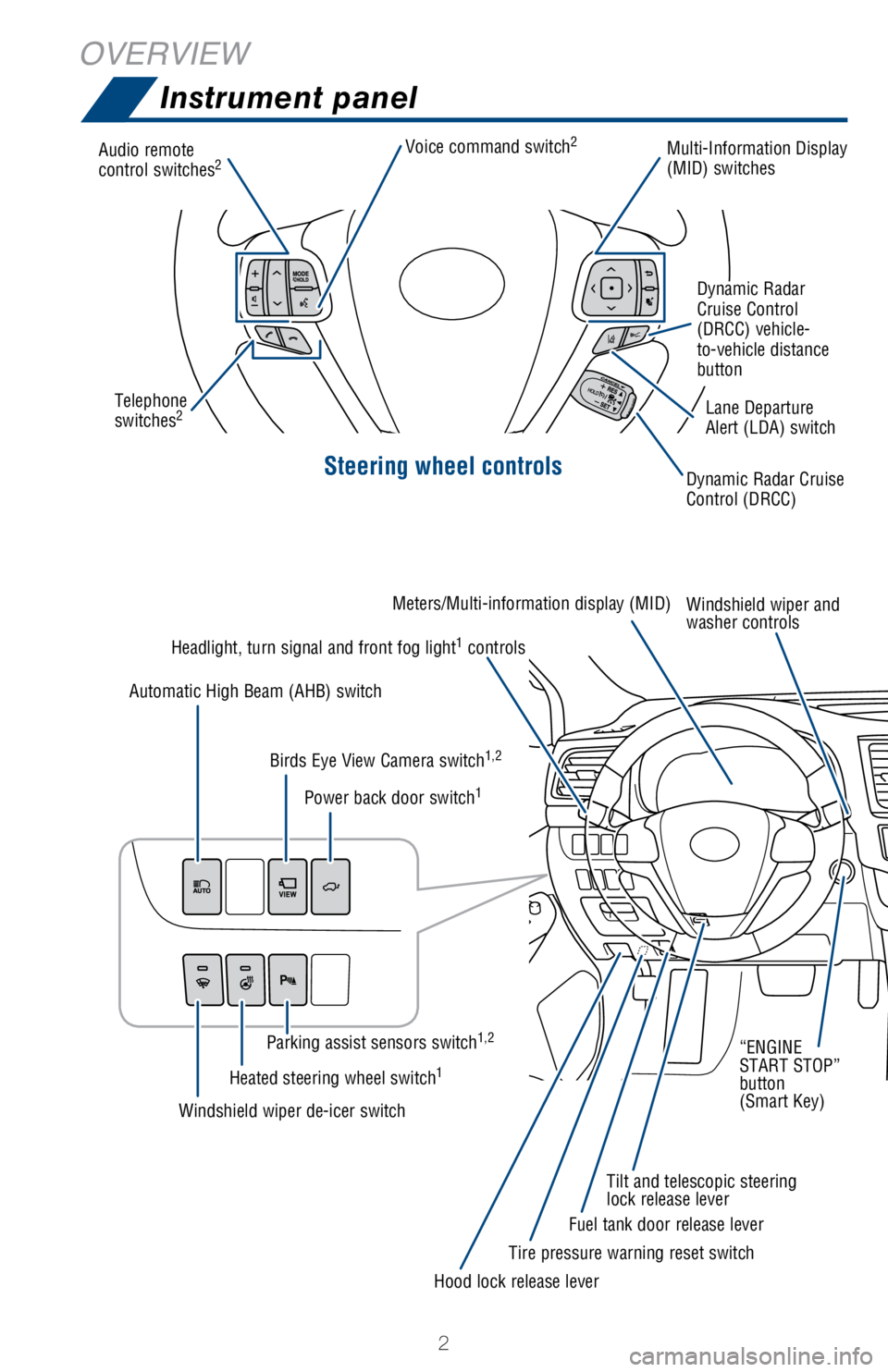

Steering wheel controls
Audio remote
control switches2Multi-Information Display
(MID) switchesDynamic Radar Cruise
Control
(DRCC)
Dynamic Radar
Cruise Control
(DRCC) vehicle-
to-vehicle distance
button
Lane Departure
Alert (LDA) switch
Tilt and telescopic steering
lock release lever
Headlight, turn signal and front fog light
1 controls
Windshield wiper and
washer controls
Meters/Multi-information display (MID)
“ENGINE
START STOP”
button
(Smart Key)
Hood lock release lever Fuel tank door release lever
Tire pressure warning reset switch
Windshield wiper de-icer switch
Heated steering wheel switch
1
Parking assist sensors switch1,2
Automatic High Beam (AHB) switch
Birds Eye View Camera switch
1,2
Power back door switch1
Voice command switch2
Telephone
switches2
OVERVIEWInstrument panel
Page 5 of 56
3
OVERVIEW
FEATURES & OPERATIONS
TOYOTA SAFETY SENSE
SAFETY & EMERGENCY FEATURES
Audio/Navigation2
system
rear window/ outside rear view mirror defogger
Automatic air conditioning and heating controls
Power back door main switch1
VSC OFF switch“ECO MODE” switch
EV drive mode switch
Seat heater/ventilator switches
1
Seat heater switches1
1
If equipped2 For details, refer to the “Navigation System Owner’s Manual” and “ 2018 Entune™ Audio
Quick Reference Guide.”
Clock
Page 6 of 56
4
Automatic High Beam (AHB)
indicator
For details, refer to “Indicators and warning lights,” Section 2-2\
, 2018 Owner’s
Manual.
Airbag SRS warning2
Air Bag ON/OFF indicator2
Anti-lock Brake System (ABS)
warning2
Brake system warning2
Blind Spot Monitor (BSM)
outside rear view mirror indicator1
Blind Spot Monitor (BSM)
indicator1
EV indicator
EV drive mode indicator
ECO drive mode indicator2
Constant speed cruise control
indicator/Constant speed cruise
control SET indicator
Electric power steering system
warning2
Driver’s and front passenger’s seat
belt reminder
(alarm will sound if speed is over 12 mph)
Dynamic Radar Cruise Control
(DRCC)(vehicle-to-vehicle distance
control mode) indicator/DRCC
SET indicator
OVERVIEW

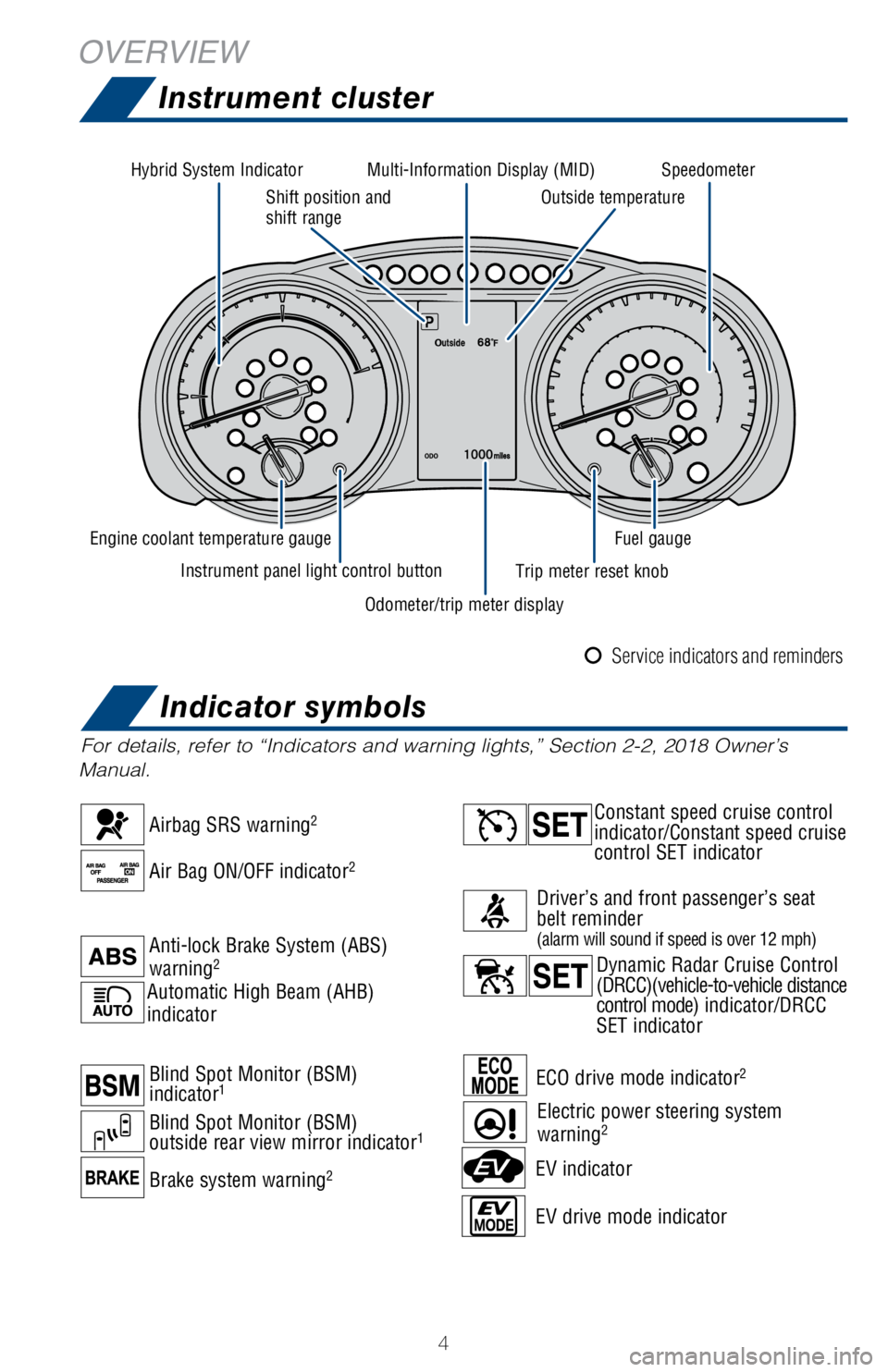

Instrument cluster
Indicator symbols
Engine coolant temperature gauge Shift position and
shift range
Hybrid System Indicator Multi-Information Display (MID)
Speedometer
Fuel gauge
Outside temperature
Trip meter reset knob
Odometer/trip meter display
Instrument panel light control button
Service indicators and reminders
Page 7 of 56
5
OVERVIEW
FEATURES & OPERATIONS
TOYOTA SAFETY SENSE
SAFETY & EMERGENCY FEATURES

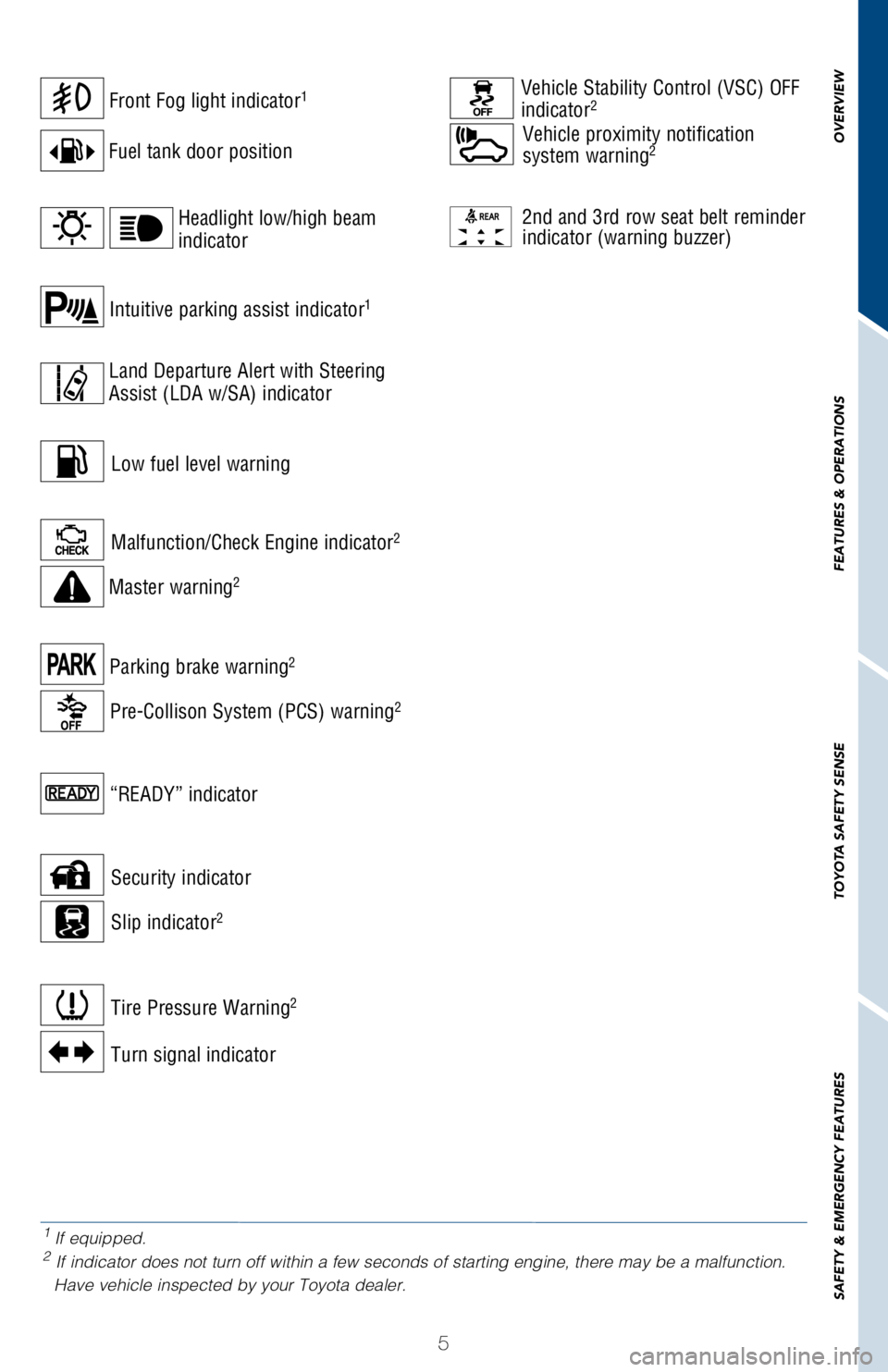

1 If equipped.2
If indicator does not turn off within a few seconds of starting engine, \
there may be a malfunction.
Have vehicle inspected by your Toyota dealer.
Front Fog light indicator1
Fuel tank door position
“READY” indicator
Pre-Collison System (PCS) warning2
Malfunction/Check Engine indicator2
Master warning2
Intuitive parking assist indicator1
Headlight low/high beam
indicator
Low fuel level warning
Parking brake warning
2
Land Departure Alert with Steering
Assist (LDA w/SA) indicator
Slip indicator2
Security indicator
Tire Pressure Warning2
Turn signal indicator
Vehicle Stability Control (VSC) OFF
indicator2
2nd and 3rd row seat belt reminder
indicator (warning buzzer)
Vehicle proximity notification
system warning2
Page 8 of 56
6
GraspCarry
Smart Key remote
Front door unlock*
Carry
Smart Key remote
Front door lock
Touch
NOTE: If a door is not opened within 60 seconds of unlocking, all doors will
relock for safety.
NOTE: Power back door will not open if glass hatch is open.
* Driver door unlocking function can be programmed to unlock driver door\
only, or all doors. Grasping passenger door handle will unlock all doors.
NOTE: Doors may also be locked/unlocked using remote.
(1) Push
Push
Lock
Push
Unlock
Carry remote to unlock Carry remote to lock/unlock
(2) Lift
GLASS HATCH UNLOCK (IF EQUIPPED)BACK DOOR LOCK/UNLOCK (IF EQUIPPED)
Smart Key
Smart Key
Smart Key
Push
Push and holdPush
Push ONCE: Driver door TWICE: All doors
Carry
Smart Key remote
Push and hold

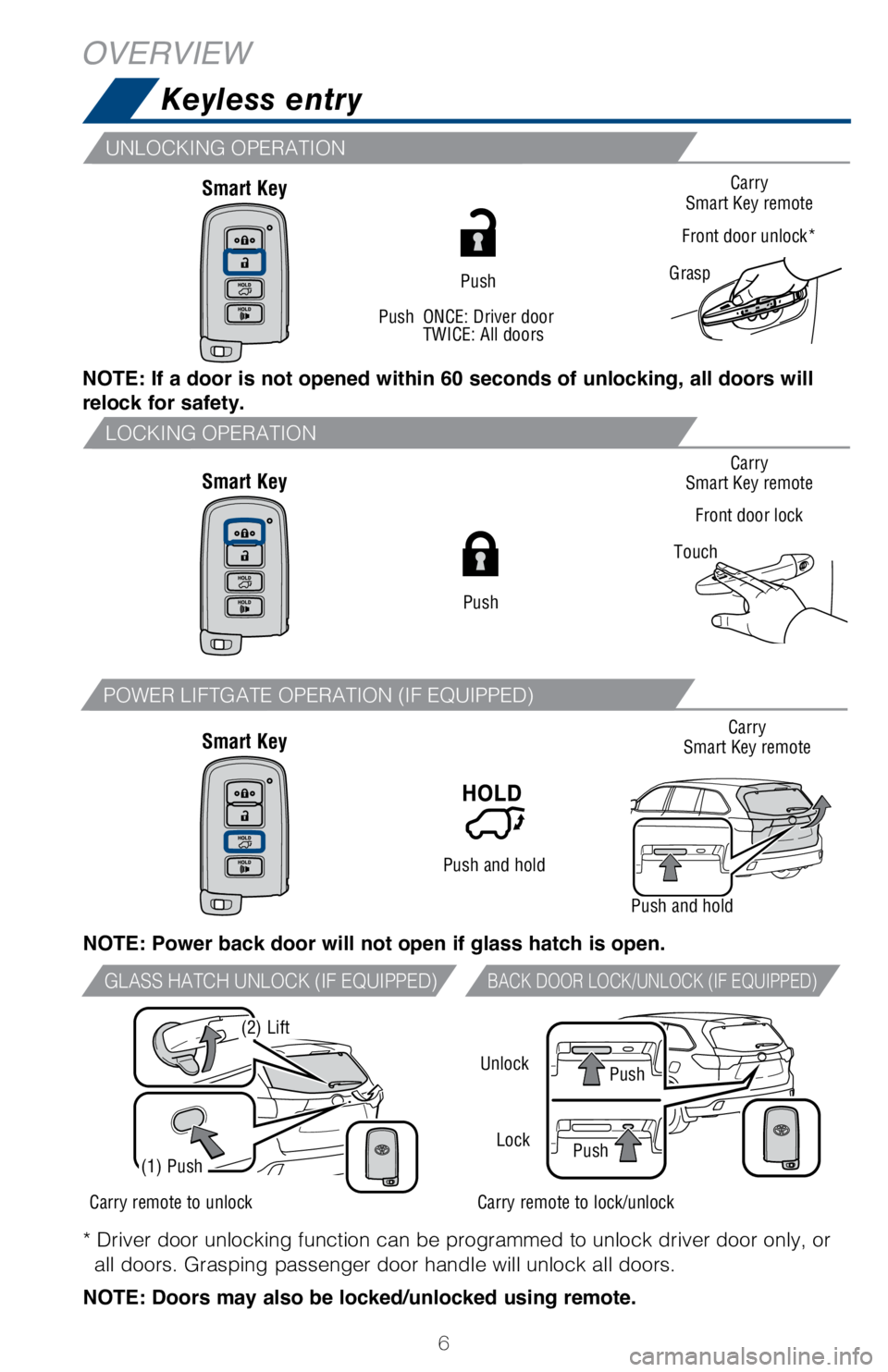

LOCKING OPERATION
UNLOCKING OPERATION
POWER LIFTGATE OPERATION (IF EQUIPPED)
Keyless entry
OVERVIEW
Page 9 of 56
7
OVERVIEW
FEATURES & OPERATIONS
TOYOTA SAFETY SENSE
SAFETY & EMERGENCY FEATURES
All systems OFF.
Accessories such as the radio will operate.
Power ON; all electrical systems can be used.
NOTE: Parking brake must be set. Shift lever is set to P.
Push
Depress
brake pedal
will be displayed on the
multi-information display. If it is
not displayed, the hybrid system
cannot be started.
Without depressing the brake pedal, pressing the “ENGINE START STOP”\
switch will change
the operation mode in succession from:
Smart Key
Push and hold

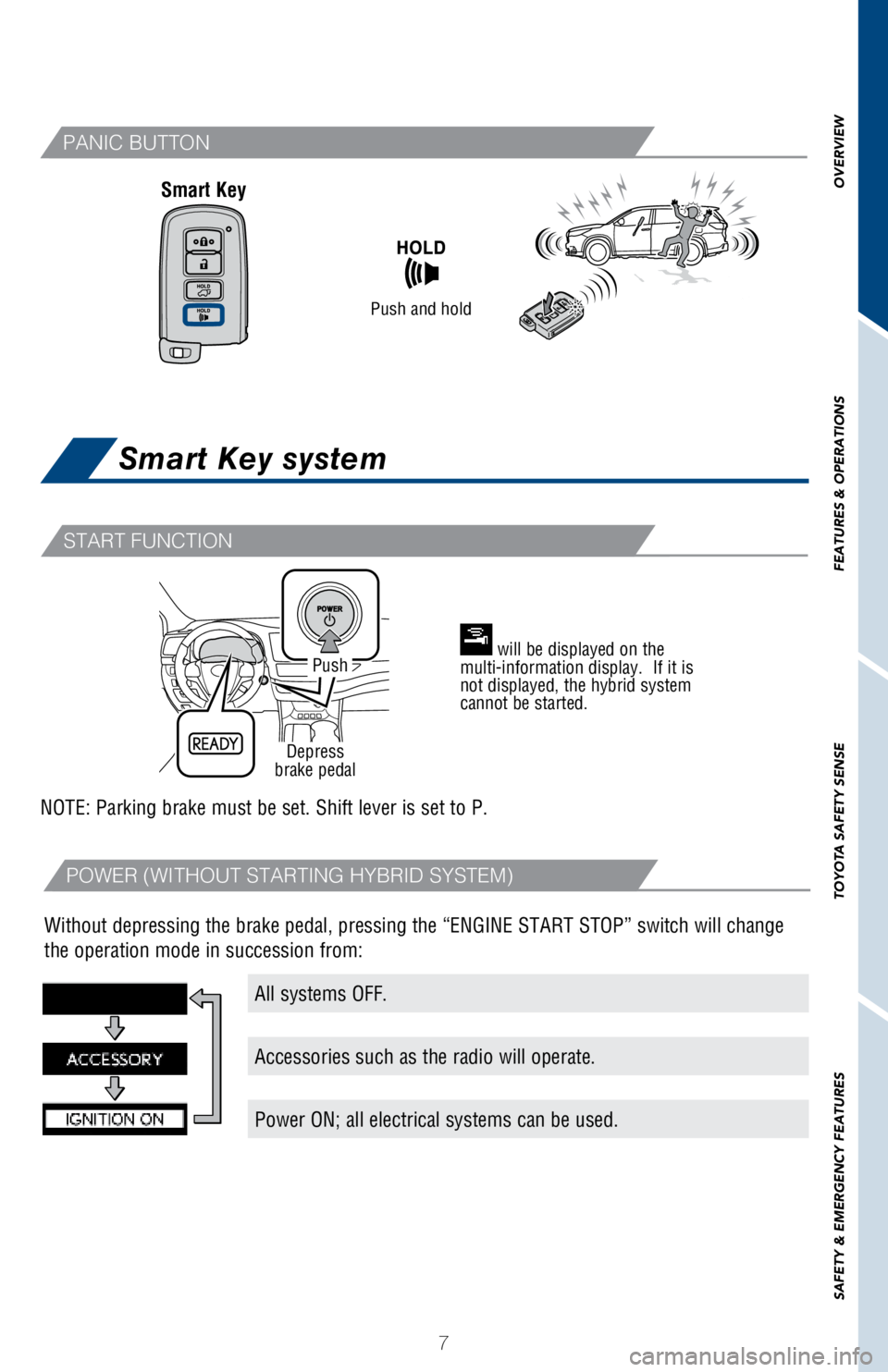

START FUNCTION
POWER (WITHOUT STARTING HYBRID SYSTEM)
PANIC BUTTON
Smart Key system
Page 10 of 56
8

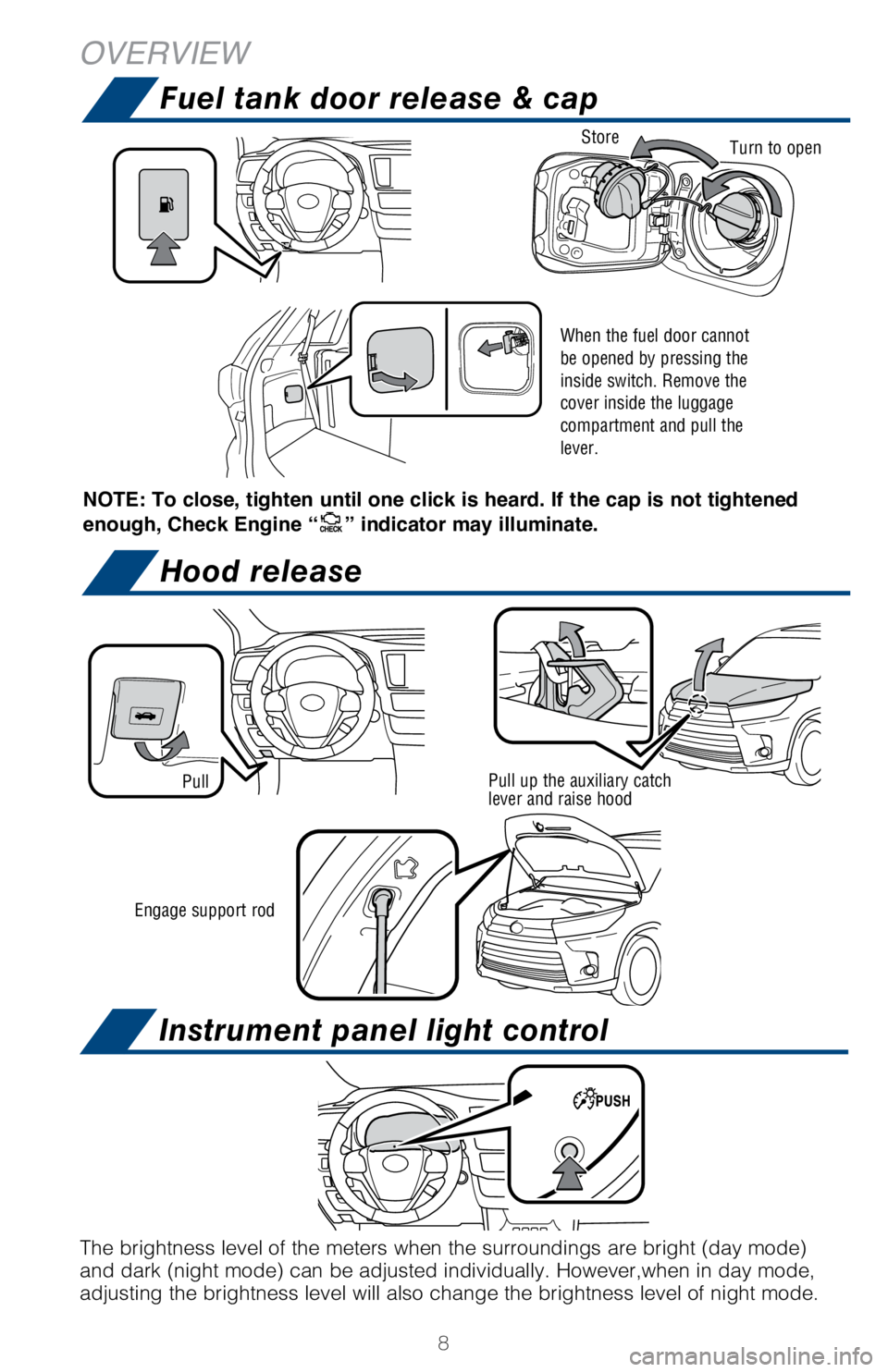

NOTE: To close, tighten until one click is heard. If the cap is not tightened
enough, Check Engine “
” indicator may illuminate.
Turn to openStore
Engage support rod
Pull When the fuel door cannot
be opened by pressing the
inside switch. Remove the
cover inside the luggage
compartment and pull the
lever.Pull up the auxiliary catch
lever and raise hood
The brightness level of the meters when the surroundings are bright (da\
y mode)
and dark (night mode) can be adjusted individually. However,when in da\
y mode,
adjusting the brightness level will also change the brightness level of \
night mode.
Fuel tank door release & cap
Hood release
Instrument panel light control
OVERVIEW
